USER MANUAL DO247SV DOMO

Purple handheld vacuum cleaner with black handle and blue airflow trail (no text or symbols visible)

EN Instruction booklet Stick vacuum cleaner

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Three-step diagram showing a vacuum cleaner's internal structure and assembly process, with no visible text or symbols.

MUURBEVESTIGING

Close-up of a hand inserting a small electronic component into a gray device (no visible text or symbols)

OPMERKINGEN:

Close-up of a stainless steel electric shaver with a vertical control knob (no visible text or symbols)

GEBRUIK

Close-up of a black and silver vacuum cleaner with blue filter bands (no visible text or symbols)

Exterior view of a black handheld device with purple handle (no text or symbols visible)

Two mechanical component diagrams showing assembly or disassembly states, with arrows indicating direction of movement (no text or symbols present)

Close-up of a metallic industrial device's internal component with no visible text or symbols

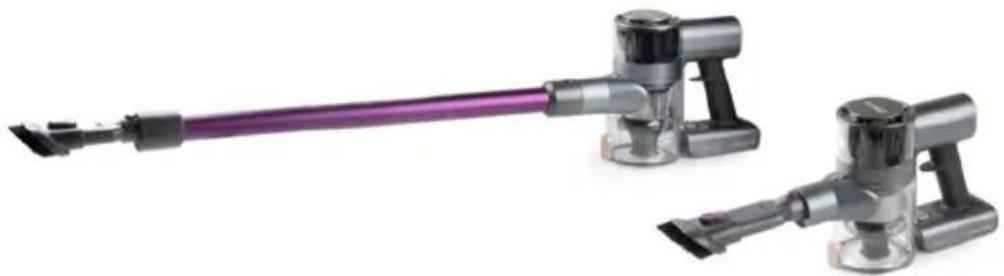

OPMERKING:

Two modern vacuum cleaner units with purple tip and gray handle, shown against white background (no text or symbols visible)

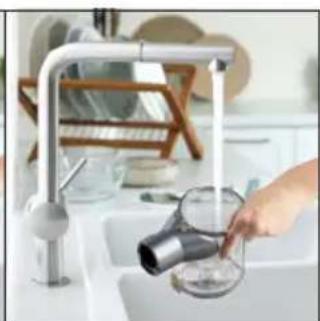

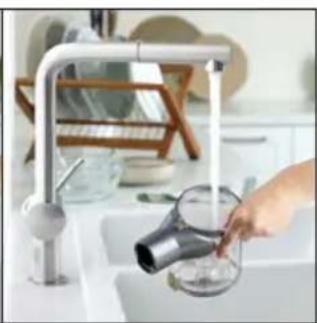

REINIGING EN ONDERHOUD

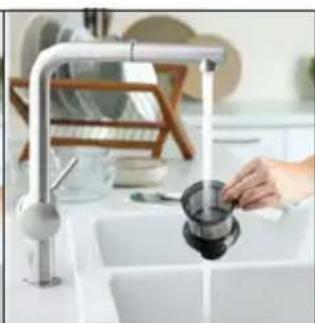

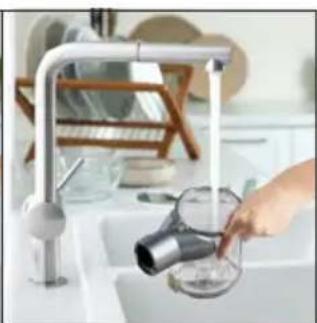

HET TOESTEL SCHOONMAKEN

Hand using a black smart hand mixer to handle a glass container filled with colorful food, with a bowl in the foreground (no text or symbols visible)

Close-up of a purple handheld vacuum cleaner with a close-up view of its internal component (no text or symbols visible)

Close-up of a metallic mechanical component with red arrows indicating flow or movement (no text or symbols)

Three types of kitchen appliances shown in black and white, labeled a, b, and c (no text or symbols on the devices themselves)

Close-up of a black plastic filter or filter component with a circular label showing number 4 (no text or symbols on the component itself)

Modern kitchen sink with hand pouring liquid from a black pot (no text or symbols visible)

Modern kitchen sink with hand placing a black sink, no visible text or symbols

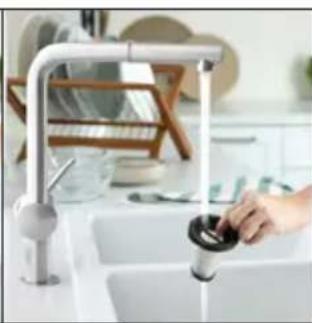

Modern kitchen sink with hand washing a sink, no visible text or symbols

Kitchen sink with hand washing a small glass bowl, no visible text or symbols

DE VLOERBORSTEL SCHOONMAKEN

Close-up of a robotic vacuum cleaner's handle and lever assembly (no text or symbols visible)

Close-up of a mechanical component with a highlighted section and arrow indicator (no readable text or symbols)

Hand cleaning a kitchen sink with a cloth (no text or symbols visible)

6 c b a

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or numbers present)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Three-step diagram showing a purple vacuum cleaner being inserted into a device, with a magnified inset highlighting the component detail (no text or symbols present)

SUPPORT MURAL

Close-up of a hand inserting a small electronic component into a device (no visible text or symbols)

REMARQUES:

Close-up of a metallic cylindrical device with a vertical scroll and control panel (no visible text or symbols)

UTILISATION

Close-up of a black and silver vacuum cleaner with attached screwdriver (no visible text or symbols)

Exterior view of a gray cylindrical device with purple handle (no text or symbols visible)

Two mechanical component diagrams showing assembly or disassembly states with arrows indicating direction (no text or symbols present)

Close-up of a kitchen appliance interior with a circular dial and indicator lights (no visible text or symbols)

REMARQUE :

Two variants of a purple handheld vacuum cleaner, one with a brush and the other with a handle (no text or symbols visible)

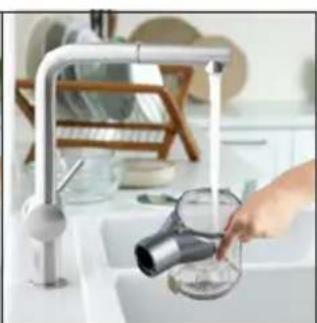

NETTOYAGE ET ENTRETIEN

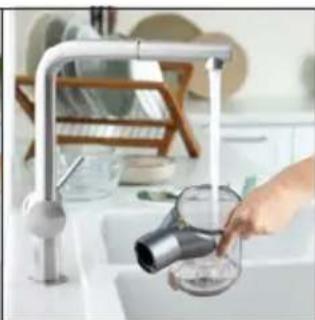

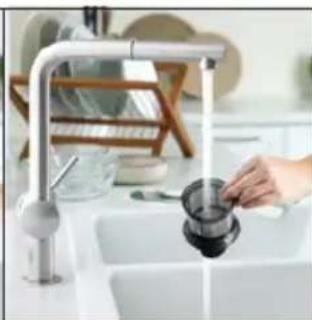

NETTOYER L'APPAREIL

Hand using a black manual washing machine to lift water into a bowl (no text or symbols visible)

Close-up of a purple handheld vacuum cleaner with a close-up view of its internal component (no text or symbols visible)

Close-up of a mechanical component with red arrows indicating flow or movement, no visible text or symbols

Three types of kitchen appliances shown in black and white, labeled a, b, and c (no text or symbols on the devices themselves)

Close-up of a black plastic filter or filter component with a white filter, no visible text or symbols.

Modern kitchen sink with a hand pouring liquid from a black bag into the water, no visible text or symbols

Interior kitchen sink with hand cleaning a sink (no visible text or symbols)

Modern kitchen sink with hand cleaning a sink (no visible text or symbols)

Kitchen sink with hand washing a glass water dispenser (no visible text or symbols)

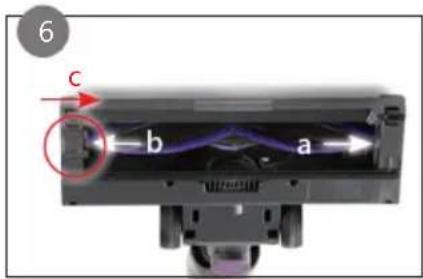

NETTOYER LA BROSSE DE SOLS

Close-up of a robotic vacuum cleaner's handle assembly (no text or symbols visible)

Close-up of a mechanical device with a highlighted component and a red arrow indicating motion (no text or symbols visible)

Hand cleaning a kitchen sink with a cloth (no text or symbols visible)

6 c b a

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Three-step diagram showing a purple vacuum cleaner being inserted into a cylindrical device, then being handled with a hand (no text or symbols present)

WANDBEFESTIGUNG

Close-up of a hand inserting a small component into a black appliance (no visible text or symbols)

ANMERKUNGEN:

Close-up of a stainless steel smart air purifier device with control panel (no visible text or symbols)

GEBRAUCH

Close-up of a black DC motor with attached vacuum cleaner (no visible text or symbols)

Black rectangular electronic device with purple handle and metallic contacts (no visible text or symbols)

Two 3D mechanical component diagrams showing assembly or disassembly states with arrows indicating direction (no text or symbols present)

Close-up of a kitchen brush head with control buttons and a dial (no visible text or symbols)

ANMERKUNG

Two compact vacuum cleaner units with purple tip and gray handle, shown against white background (no text or symbols)

Hand using a black-handled cleaning brush to lift a fish in a bowl (no text or symbols visible)

Close-up of a purple handheld vacuum cleaner with a black handle, showing mechanical components and a close-up view (no text or symbols visible)

Close-up of a mechanical component with red arrows indicating flow or movement, no visible text or symbols

Three types of kitchen appliances shown in black and white, labeled a, b, and c (no text or symbols on the devices themselves)

Close-up of a black plastic filter or filter component with a white top and base (no text or symbols visible)

Modern kitchen sink with a hand pouring liquid from a black pot (no text or symbols visible)

Modern kitchen sink with hand placing a black sink, no visible text or symbols

Modern kitchen sink with hand washing a sink, no visible text or symbols

Modern kitchen sink with hand washing a glass bowl (no text or symbols visible)

Close-up of a robotic vacuum cleaner's handle assembly with arrows indicating component alignment (no text or symbols)

Close-up of a mechanical device with a highlighted circular component and a red arrow indicating motion (no text or symbols)

Hand cleaning a kitchen surface with a dark cloth, no visible text or symbols

6 c b a

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠PRODUCTSPECIFIC WARNINGS

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
• Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Avoid vacuuming large objects and items that could become entangled in the brush (long hair, plastic bags, string, etc.). Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.
• Make sure that the air intake or the floor suction opening do not become blocked.
• Make sure that the machine does not come into contact with liquids.
• First charge a new battery up completely.
• Pull the plug from the outlet when the vacuum cleaner is fully charged.
• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.
• Under extreme circumstances, there could be leakage of the battery.

- If the liquid from the battery comes into contact with the skin, remove all contaminated clothing and immediately wash the skin profusely with soap and water or take a shower. Contact a physician immediately if you continue to feel a burning sensation.

• If the liquid comes into contact with the eyes, rinse abundantly with water for at least 15 minutes until the irritation subsides and contact a doctor immediately.
• When inhaling any fumes that were released, immediately move into the fresh air and take a deep breath in and out. Contact a doctor immediately if you experience shortness of breath, dizziness, or headaches.
• If a battery or the liquid from a battery is swallowed, seek medical assistance immediately. Try not to induce vomiting and do not eat or drink anything.
• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.
• Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.
• Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.
• Never use the appliance without filters. This will damage the motor and render it unusable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

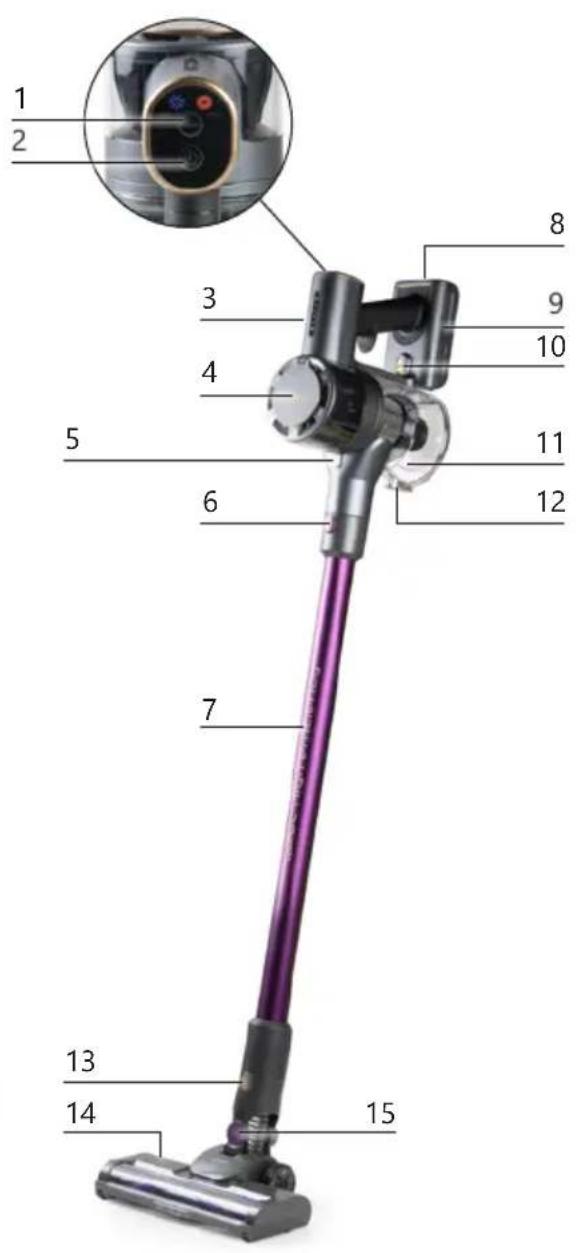

PARTS

1. Mode button (Min/Max)
2. On/off key
3. Battery level indicator lights
4. Motor compartment
5. Dust container release button
6. Aluminium tube release button
7. Aluminium tube
8. Adapter connection
9. Removable battery
10. Battery release button
11. Dust container
12. Dust container lid release button
13. Release button floor nozzle
14. Floor nozzle with rotating floor brush
15. Parking lock
16. Additional HEPA filter with sponge filter
17. Wall fixing (screws and plugs included) and accessory holder
18. Long crevice tool
19. 2-in-1 fabric brush
20. Adapter

16 17 18 19 20

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

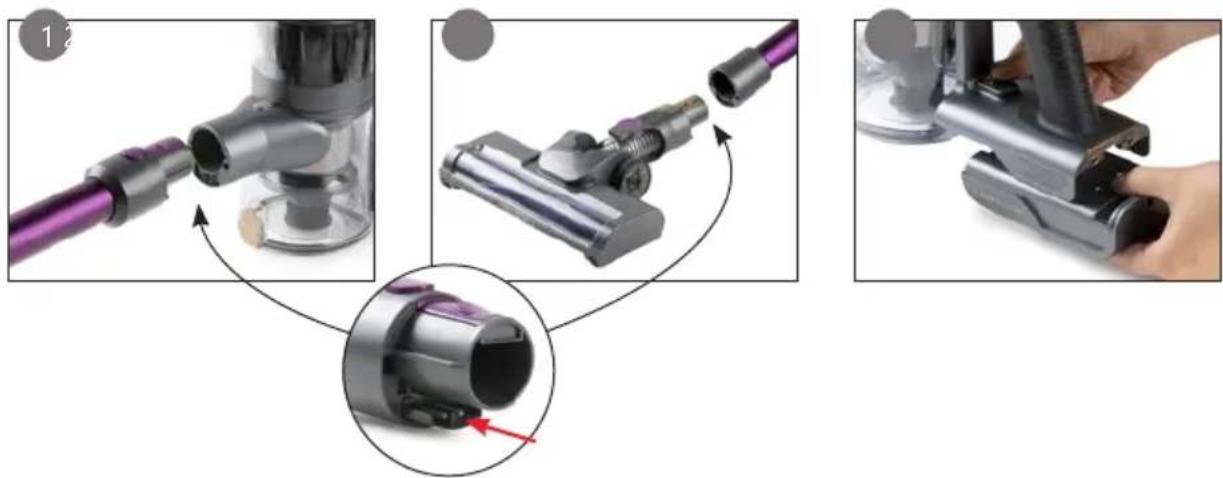

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Wipe the unit and all parts down with a soft, damp cloth.

• Assemble all the parts:

• Slide the tube into the motor part until it clicks into place. Make sure the power pins slide into the intended holes properly.

• Slide the floor attachment on to the wand assembly until it clicks into place. Make sure the power pins slide into the intended holes properly.
• Snap the battery into the battery holder.

Three-step diagram showing a purple vacuum cleaner being inserted into a black plastic housing, then being handled with a hand using a handheld device (no text or symbols present)

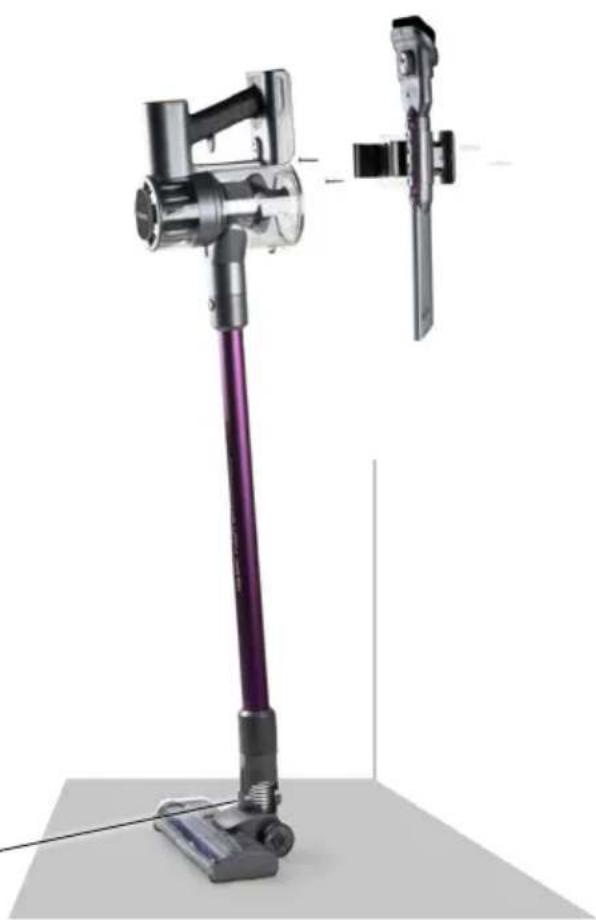

WALL MOUNT

The wall mount serves to keep the stick vacuum cleaner upright and to store accessories. It is not intended to hang the vacuum cleaner on. The stick vacuum cleaner must always rest on the ground when clicked into the wall mount.

To mount the wall mount to the wall, please follow these steps:

1. Snap the stick vacuum cleaner with the battery section into the wall mount and hold it where the wall mount will be attached. Make sure that the stick vacuum cleaner rests completely on the ground when doing so.
2. Mark the two points on the wall where you will attach the mount.
3. Drill 2 holes in the wall corresponding to these attachment points.
4. Insert the supplied plugs into the wall.
5. Fix the wall mount using the supplied screws.
6. To store the appliance, place it flat on the ground until the floor nozzle clicks into the tube (parking lock) and click the appliance into the wall mount.

to the wall, please follow eener with the battery ount and hold it where attached. Make sure that er rests completely on | so. the wall where you will corresponding to these s into the wall. the supplied screws. place it flat on the ozzle clicks into the click the appliance into

CHARGING

- Connect the adapter into the battery via the provided connection, and then plug the adapter into the wall socket.

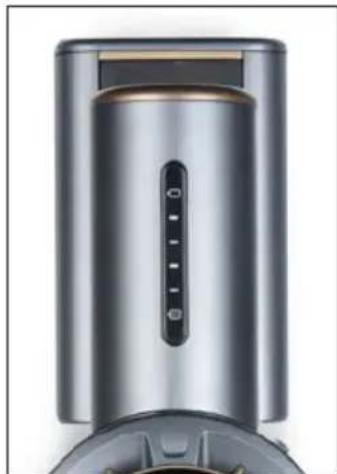

- The battery level indicator lights will then flash (see also "Indicator lights"). The battery is fully charged when all four lights stay illuminated.

• The machine cannot be started during charging.

- Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.

- It is recommended that the battery be fully charged for the first three charges.

Close-up of a hand inserting a small electronic component into a device (no visible text or symbols)

REMARKS:

- The temperature while charging should be between 15 °C and 25 °C. Higher or lower temperatures reduce battery life.

- It is recommended that the vacuum cleaner be charged after each use regardless of the duration of the use.

- Do not charge the battery for extended periods. This can damage the battery. Disconnect the adapter once the battery is fully charged.

- The recommendation is to disconnect the battery and adapter if the vacuum cleaner is not used for more than two months. To ensure a longer lifespan, the battery must be charged at least once every two months.

- The battery and adapter may become hot during charging. Take the necessary precautions to avoid coming into contact with it during this time.

INDICATOR LIGHTS

There are indicator lights at the front of the motor unit to show the battery level:

- When charging: the indicator lights flash alternately from top to bottom until all four lights stay illuminated.

- During use: the indicator lights turn off alternately (from bottom to top) as the battery level decreases.

- The last (top) light flashes: the battery is almost empty. Turn off the vacuum cleaner and put it on charge.

- All four lights flash simultaneously: the rotating floor brush is blocked. Turn off the vacuum cleaner, remove the object blocking the floor brush, and then turn the vacuum back on.

Close-up of a metallic cylindrical device with a vertical scroll and control panel (no visible text or symbols)

USE

1. Choose the correct accessory for the cleaning task you want to carry out:

- Floor attachment with rotating floor brush: suitable for floors and carpets. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.

Close-up of a black DNOVO vacuum cleaner with blue filter (no visible text or symbols)

- Long crevice tool: for corners, cracks, skirting board edges and hard-to-reach places.

Black rectangular electronic device with purple handle and small button (no visible text or symbols)

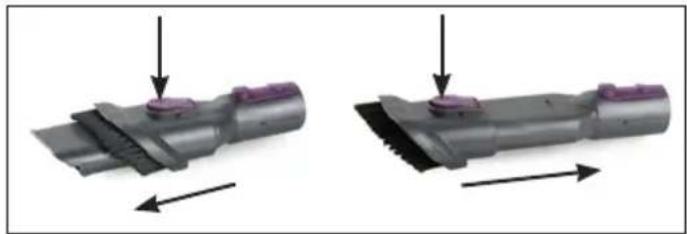

- 2-in-1 fabric brush: use on upholstered surfaces, keyboards, lamps, curtains, blinds, ventilation openings, etc. The brush offers extra friction to make it easier to loosen hair and dust stuck on fabric. Use the short crevice tool for regular cleaning of small surfaces. To switch between brush and crevice tool, press the button to unlock the brush and slide it up or down.

Two 3D mechanical component diagrams showing assembly or assembly states with arrows indicating direction (no text or symbols present)

1. Press the on/off key. The vacuum cleaner starts working. Press again to stop.

2. Press the mode button to switch between the two suction power levels: MIN (energy efficient) or MAX (maximum suction power).

Close-up of a kitchen brush head with control buttons and a dial (no visible text or symbols)

NOTE:

The various accessories can be clicked onto the wand assembly (stick vacuum cleaner) or directly onto the motor part, without the handle (hand vacuum cleaner).

Two modern vacuum cleaner units with purple tip and gray handle, shown against white background (no text or symbols visible)

CLEANING AND MAINTENANCE

CLEANING THE APPLIANCE

Clean the appliance with a slightly moist soft cloth. Dry the machine off well. Never submerge the appliance in water!

CLEANING THE DUST RESERVOIR

Empty the dust container after each cleaning session;

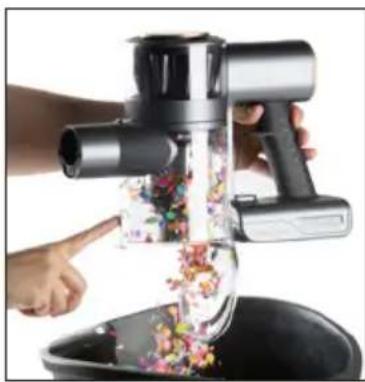

- Hold the dust container over a rubbish bin and press the release button to open the cover. Empty the dust container.

Hand using a black manual hand mixer to handle a bowl of food, with no visible text or symbols.

Clean the dust container and filters at least once a month to maintain optimal performance. We recommend changing the filters regularly to ensure optimal operation of the appliance.

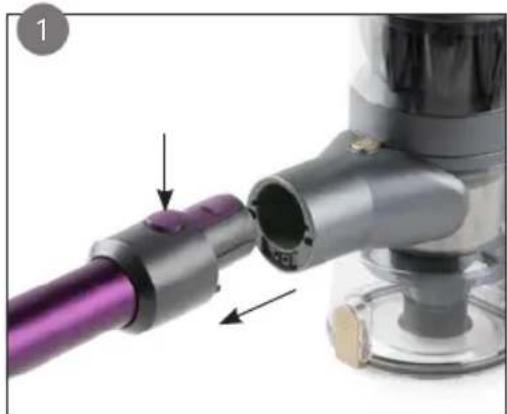

1. Disconnect the tube from the motor part.
2. Press the release button to remove the dirt receptacle. Unscrew the dust container clockwise and remove from the motor unit.
3. Remove the coarse filter (c) from the motor unit (a) by turning it clockwise. Now turn the HEPA filter (b) clockwise and remove it from the outer coarse filter (c).
4. Remove the sponge filter from the HEPA filter.

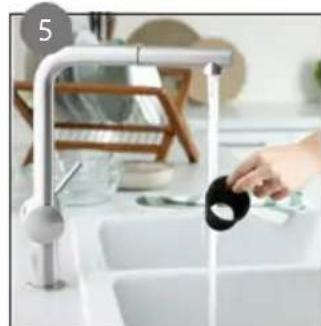

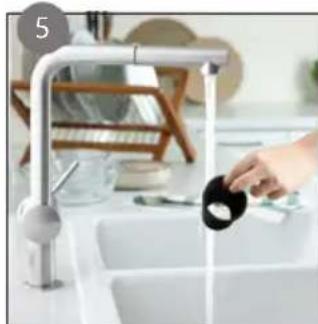

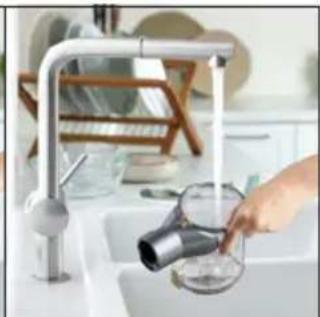

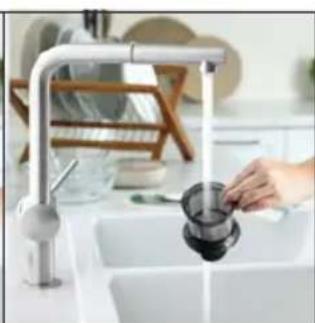

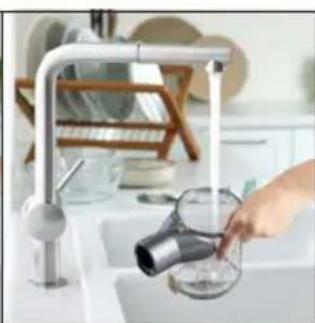

5. Wash all the parts under cold running water.
6. Allow all the parts to dry completely before reassembling them.
7. Make sure all the parts fit together nicely when assembling, before using the machine again.

Close-up of a purple handheld vacuum cleaner with a close-up view of its internal component (no text or symbols visible)

Close-up of a metallic mechanical component with red arrows indicating directional flow or movement (no text or symbols)

Three types of kitchen appliances shown in black, labeled a, b, and c (no text or symbols on the devices themselves)

Close-up of a black plastic filter or filter device with a white filter, no visible text or symbols.

Kitchen sink with hand pouring liquid into sink (no visible text or symbols)

Modern kitchen sink with hand placing a soap stop, no visible text or symbols

Modern kitchen sink with hand cleaning a sink (no visible text or symbols)

Kitchen sink with hand washing a water dispenser (no visible text or symbols)

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.
2. Slide out the brush lock to unlock the floor brush.
3. Gently remove any hair and dirt from around the brush; do this by hand or carefully with a knife.
4. Rinse the brush under cold running water.
5. Allow the brush to dry completely before reassembling it.

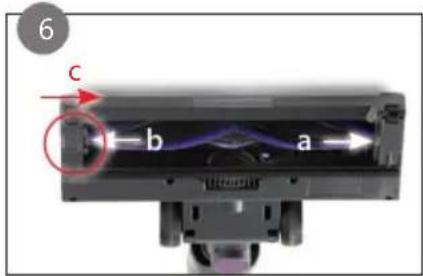

6. To refit the brush, place the right side of the brush against the gear (a) and push the left side (b) until it clicks into place. Slide the lock (c) back in to secure the brush.
7. Push the nozzle back onto the stick. The machine is now again ready for use.

Close-up of a robotic vacuum cleaner's handle assembly (no text or symbols visible)

Close-up of a mechanical component with a highlighted circular feature and red arrow indicator (no text or symbols)

Hand cleaning a kitchen sink with a tassel, no visible text or symbols

6 c b a

Do not immerse unit, cord, or plug in water or other liquid.
⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The machine does not start up. • The battery is	empty. Charge the machine.
Loss of suction. • The filters are dirty/the dust reservoir is full. Clean the machine as described in this manual. If necessary, replace the HEPA filter with sponge filter (an extra filter is included).• The floor nozzle or tube is clogged. Turn off the vacuum cleaner and remove the object blocking the floor nozzle or tube.
The rotating floor brush is not rotating.	• The floor brush is blocked. Turn off the vacuum cleaner and remove the object blocking the floor brush.• The floor brush is assembled incorrectly. Follow the instructions to correctly assemble the floor brush as described in this manual.
All the indicator lights are flashing simultaneously.	• The floor brush is blocked. Turn off the vacuum cleaner and remove the object blocking the floor brush.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Three-step diagram showing a purple handheld vacuum cleaner being inserted into a black plastic housing, then being handled with a hand (no text or symbols present)

SOPORTE MURAL

Close-up of a hand inserting a small electronic component into a device (no visible text or symbols)

COMENTARIOS:

Close-up of a modern stainless steel electric shaver with a vertical control panel (no visible text or symbols)

USO

Close-up of a black vacuum cleaner with attached blue tray (no visible text or symbols)

Exterior view of a black handheld device with purple handle (no text or symbols visible)

Two mechanical component diagrams showing assembly or disassembly states with arrows indicating direction (no text or symbols present)

Close-up of a kitchen brush head with control buttons and a circular dial (no visible text or symbols)

COMENTARIO

Two compact vacuum cleaner units with purple tip and gray handle, shown against white background (no text or symbols)

LIMPIEZA Y MANTENIMIENTO

LIMPIAR EL APARATO DE POLVO

Hand using a black manual hand mixer to lift water in a basin (no text or symbols visible)

Close-up of a purple handheld vacuum cleaner with a pink handle, showing mechanical components and a close-up view (no text or symbols visible)

Close-up of a metallic mechanical component with red arrows indicating features (no text or symbols)

Three types of kitchen appliances shown in black and white, labeled a, b, and c (no text or symbols on the devices themselves)

Close-up of a black plastic filter or filter component with a white filter, no visible text or symbols.

Modern kitchen sink with hand pouring black soap can into water, no visible text or symbols

Interior kitchen sink with hand opening a sink (no visible text or symbols)

Modern kitchen sink with hand washing a sink (no visible text or symbols)

Person washing a small bowl in a kitchen sink with a hand holding a water tap (no visible text or symbols)

LIMPIAR EL CEPILLO DE SUELO

Close-up of a vacuum cleaner's brush and handle assembly (no text or symbols visible)

Close-up of a mechanical component with a highlighted circular feature and arrow indicator (no text or symbols)

Hand cleaning a kitchen surface with a cloth (no text or symbols visible)

6 c b a

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Three-step diagram showing a purple handheld vacuum cleaner being inserted into a plastic housing, then being handled with a hand using a brush (no text or symbols present)

SOSTEGNO A PARETE

Close-up of a hand inserting a small electronic component into a gray device (no visible text or symbols)

NOTE:

Close-up of a stainless steel electric shaver with a circular vent and control panel (no visible text or symbols)

UTILIZZO

Close-up of a black DC vacuum cleaner with purple filter and brand logo (no visible text or symbols)

Exterior view of a black rectangular electronic device with purple handle (no text or symbols visible)

Two 3D mechanical component diagrams showing assembly or disassembly states, with arrows indicating direction (no text or symbols present)

Close-up of a metallic industrial valve or pump component with circular ports and a dial indicator (no visible text or symbols)

NOTE:

Two modern vacuum cleaner units with purple tip and gray handle, shown against white background (no text or symbols)

Hand using a black smart water dispenser to handle a glass container with colorful contents, partially submerged in a basin (no text or symbols visible)

Close-up of a purple handheld vacuum cleaner with a black handle, showing mechanical assembly (no text or symbols visible)

Close-up of a metallic mechanical component with red arrows indicating directional flow or movement (no text or symbols)

Three types of kitchen appliances shown in black and white, labeled a, b, and c (no text or symbols on the devices themselves)

Close-up of a black plastic filter or filter component with a white filter, no visible text or symbols.

Modern kitchen sink with a hand pouring liquid from a black bag into the water, no visible text or symbols

Modern kitchen sink with hand cleaning a sink (no visible text or symbols)

Modern kitchen sink with hand washing a sink, no visible text or symbols

Kitchen sink with hand washing a small glass bowl, kitchen utensils and tableware visible in background (no text or symbols)

PULIRE LA SPAZZOLA PER I PAVIMENTI

Close-up of a robotic vacuum cleaner's handle assembly (no text or symbols visible)

Close-up of a mechanical device with a highlighted circular component and purple motion line (no text or symbols visible)

Hand cleaning a tiled surface with a cloth (no text or symbols visible)

6 c b a

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Three-step diagram showing a purple handheld vacuum cleaner being inserted into a black plastic housing, then being handled with a hand (no text or symbols present)

DRŽÁK NA STĚNU

Close-up of a vacuum cleaner's lid and circular component (no visible text or symbols)

Product photo of a purple handheld vacuum cleaner with attached black vertical clip (no text or symbols visible)

NABÍJENÍ

Close-up of a hand inserting a small electronic component into a gray industrial machine (no visible text or symbols)

POZNÁMKA:

Close-up of a metallic cylindrical device with a vertical scroll and control panel (no visible text or symbols)

POUŽITÍ

Close-up of a black D340 vacuum cleaner with attached screwdriver (no visible text or symbols)

Exterior view of a gray cylindrical device with purple handle (no text or symbols visible)

Two 3D mechanical component diagrams showing progressive assembly or disassembly (no text or symbols)

Close-up of a mechanical device's internal component with no visible text or symbols

POZNÁMKA

Two modern vacuum cleaner units with purple and gray coloring, shown against a white background (no text or symbols visible)

ČIŠTĚNÍ A ÚDRŽBA

ČIŠTĚNÍ PŘÍSTROJE

Hand using a smart hand mixer device to lift water in a bowl (no text or symbols visible)

Close-up of a purple and gray vacuum cleaner's handle assembly (no text or symbols visible)

Close-up of a metallic mechanical component with red arrows indicating flow or movement (no text or symbols)

Three types of kitchen appliances shown in black and white, labeled a, b, and c (no text or symbols on the devices themselves)

Close-up of a black plastic filter or filter component with a white top and base (no text or symbols visible)

Kitchen sink with hand pouring liquid from a black ring (no text or symbols visible)

Modern kitchen sink with hand placing a black sink, no visible text or symbols

Modern kitchen sink with hand cleaning a sink (no visible text or symbols)

Interior kitchen scene showing a hand washing a sink with a water dispenser (no visible text or symbols)

ČIŠTĚNÍ PODLAHOVÉ HUBICE

Close-up of a robotic vacuum cleaner's handle assembly (no text or symbols visible)

Close-up of a mechanical component with a red circular annotation and arrow, no visible text or symbols

Hand cleaning a kitchen sink with a cloth (no text or symbols visible)

6 c b a

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

Three-step diagram showing a purple vacuum cleaner being inserted into a black plastic housing, then being handled with a hand using a handheld device (no text or symbols present)

DRŽIAK NA STENU

Close-up of a hand inserting a small electronic component into a black device (no visible text or symbols)

POZNÁMKA:

Close-up of a metallic cylindrical device with a vertical scroll and control panel (no visible text or symbols)

POUŽITIE

Close-up of a black DTCO vacuum cleaner with blue filter bands (no visible text or symbols)

Exterior view of a black handheld device with purple handle (no text or symbols visible)

Two mechanical component diagrams showing assembly or disassembly states with arrows indicating direction (no text or symbols present)

Close-up of a mechanical device's top panel showing control buttons and a dial (no text or symbols visible)

POZNÁMKA:

Two modern vacuum cleaner units with purple handle and gray casing, shown against white background (no text or symbols visible)

ČISTENIE A ÚDRŽBA

ČISTENIE PRÍSTROJA

Hand using a smart hand mixer device to clean colorful food in a bowl (no text or symbols visible)

Close-up of a purple handheld vacuum cleaner with a close-up view of its internal component (no text or symbols visible)

Close-up of a metallic mechanical component with red arrows indicating flow or movement (no text or symbols)

Three types of kitchen appliances shown in black, labeled a, b, and c (no text or symbols on the devices themselves)

Close-up of a black plastic brush holder with a white filter, no visible text or symbols

Modern kitchen sink with hand pouring liquid from a black pot (no text or symbols visible)

Interior kitchen scene with a hand cleaning a sink and a stainless steel faucet (no visible text or symbols)

Modern kitchen sink with hand cleaning a sink (no visible text or symbols)

Kitchen sink with hand washing a glass water dispenser, no visible text or symbols

ČISTENIE PODLAHOVÉ HUBICA

Close-up of a robotic vacuum cleaner's handle and lever assembly (no text or symbols visible)

Close-up of a mechanical component with a highlighted circular feature and arrow indicator (no text or symbols)

Hand cleaning a kitchen surface with a cloth (no text or symbols visible)

6 c b a

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
