DO702BL - Blender DOMO - Free user manual and instructions

Brand	DOMO
Model	DO702BL
Product type	Blender
Container capacity	0.5 L (min) - 1.75 L (max)
Container material	Resistant glass
Number of speeds	5 speeds + pulse function
Power supply	220-240 V ~ 50/60 Hz
Main functions	Mixing, crushing ice, blending hard foods
Maintenance and cleaning	Removable parts hand washable; motor unit wiped with a damp cloth; do not immerse motor unit
Safety	Maximum operation 3 continuous minutes, then 10 minutes cooling; lid lock recommended when crushing
Spare parts and repairability	Accessories available online (measuring glass, lid, sealing ring, blades, motor unit)
Warranty	2 years (accessories: 6 months)
General information	Integrated cord storage; domestic use; suitable for liquids, thick liquids and solid foods

Frequently Asked Questions - DO702BL DOMO

How to use the DO702BL blender?

Place the sealing ring and blade assembly on the glass jug, then the lid with the measuring cap. Pour the ingredients (between 0.5 and 1.75 L), plug in the appliance and turn the speed regulator to the desired position. For the pulse function, hold the button on the pulse position (left of 0).

What is the maximum capacity of the blender?

The maximum capacity is 1.75 liters. Do not exceed this limit to avoid overflow. The minimum capacity is 0.5 liters.

How to clean the blender?

Unplug the appliance. Pour soapy water into the container and use the pulse function for a few seconds. Disassemble the removable parts: measuring cap, lid, sealing ring and blades. Clean them by hand (do not immerse the blades). Wipe the motor unit with a damp cloth.

Can you blend hot liquids?

No, never use boiling liquids. The blender is designed for ingredients at room temperature or cold.

What to do if the blender does not work?

Check that the speed regulator is on a position other than 0, that the jug is properly fixed on the motor unit and that the appliance is plugged in. If the problem persists, contact DOMO customer service at [phone].

How to use the pulse function?

Turn the speed regulator to the pulse position (left of 0). Hold it for a few seconds, then release to stop. Repeat until you get the desired consistency.

Can I put the motor unit in the dishwasher?

No, never immerse the motor unit in water or put it in the dishwasher. Clean it only with a damp cloth.

What is the maximum continuous operation time?

Do not use the blender for more than 3 minutes without interruption. Let it cool down for at least 10 minutes at room temperature before using again.

How to replace the blades?

Remove the blade assembly by turning counterclockwise. Replace it with a new assembly available online. Be careful with sharp blades.

What to do in case of container leakage?

Check that the sealing ring is correctly placed on the blade assembly and that it is properly screwed onto the jug. If the seal is worn, replace it.

USER MANUAL DO702BL DOMO

Black and white photo of a Domo blender with strawberry, kiwi, and white cheese being filled (no text or symbols visible on the blender itself)

DO702BL

Handleiding Blender
Mode d'emploi Blender
Gebrauchsanleitung Blender
Instruction booklet Blender
Manual de instrucciones Blender

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book (no text or symbols)

Close-up of a black rubber cap with 'DOMO' branding and a dial indicator (no additional text or symbols visible)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black Domo-branded hairless device with a circular dial and a white label (no readable text beyond branding)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black Domo-branded hairdryer with a dial indicator (no text or symbols on the body)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time.
  · Make sure children cannot play with the packaging material.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

· Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

· Never leave the appliance unattended while it is functioning.

- Do not use or store this appliance outdoors.

- Do not use this appliance for other than intended use.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Only use the utensils delivered with the appliance.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

· Do not operate the appliance with wet hands.

· A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.

· Unwrap the cord completely to prevent overheating of the cord.

· Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

· Do not allow the power cord supply to run underneath or around the unit.

· Do not use the appliance if there is any water in it or the parts are still wet after cleaning.

· Do not use the appliance without ingredients.

· Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

· Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

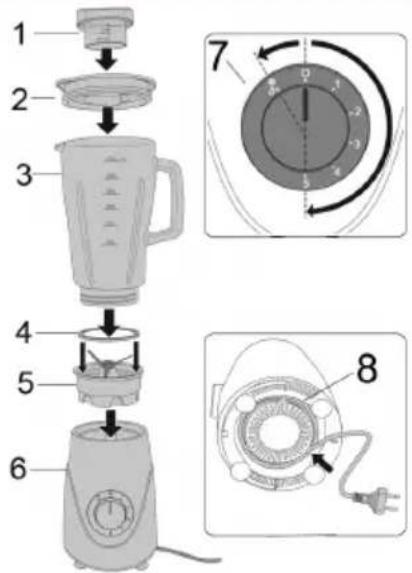

PARTS

1. Measuring cup

2. Lid

3. Glass jar

4. Sealing ring

5. Blade assembly

6. Motor unit

7. Speed knob with pulse function

8. Cord storage

Close-up of a black and white object resembling a blender or blender with 'DOMO' branding (no additional text or symbols visible)

Note: This recess allows any fluids spilled to drain, preventing damage to the motor block.

BEFORE THE FIRST USE

Assemble the appliance following these steps:

1. Position the seal on the blade assembly. Screw the unit clockwise onto the glass container.
2. Turn the measuring cup clockwise into the lid and place the lid on the glass container so that the pouring spout and the recess in the lid line up.
3. Position the container with lid on the motor block. The blender is now ready for use.

USE

1. Make sure that the speed regulation button is at "o".
2. Put the plug in the outlet and position the glass container on the engine block.
3. Fill the glass container with the desired ingredients, between the minimum (0.5 l) and maximum (1.75 l) indication lines.
4. Position the lid with measuring cup on the container and turn the speed regulator to the desired speed:
   Position 1-2: for light liquids Position 3-5 for thicker fluids and solid foods
5. For quick and accurate blending, turn the speed knob to the pulse function (to the left of o) and hold for a few seconds. When you release the knob, it will automatically reset itself to the o position. You can do this a few times in a row, until the desired consistency has been reached.
6. If you want to add ingredients while you are blending, remove the measuring cup from the lid and put the extra ingredients into the jar through this fill opening.
7. When crushing ice or blending hard foods, keep 1 hand firmly onto the lid.
8. Turn off the blender by setting the speed knob to o.
9. Unplug the blender after use.

Caution:

• For each use, the consecutive operation time should not exceed 3 minutes. Between two continuous cycles at least 10 minutes resting time should be maintained. The appliance needs to cool down to room temperature before starting the next blending cycle.
• Never use boiling liquids or do not use the blender when the jar is empty.

CLEANING AND MAINTENANCE

1. Pour some warm soapy water into the jar and turn the speed knob for a few seconds to the pulse function. Empty the jar.
2. Unplug the blender before continuing with cleaning.

3. Always clean the blender immediately after us for easy cleaning. Do not let food dry in the jar or the blade assembly, this will make them harder to clean.

4. Disassemble the removable parts. Remove the blade assembly from the bottom of the container by turning them counter-clockwise. Remove the blade assembly and the seal. Remove the lid from the container and the measuring cup from the lid.

5. Clean the measuring cup, the lid, the sealing ring and the jar by hand.
6. Clean the blades with some warm soapy water and rinse under the tap. Do not touch the blades and be extra careful. Do not immerse the blade assembly in water. Let the blade assembly dry upside down, out of reach of children.
7. Wipe the motor unit clean with a damp cloth and dry thoroughly.

Caution:

• Never immerse the motor unit in any liquid to avoid the risk of electrical shock.
• Do not use any rough scouring pads or cleaners on the parts or on the finish of the appliance.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Close-up of a black Domo-branded hairless device with a dial indicator (no visible text or symbols beyond brand name)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)
