USER MANUAL DO2323 DOMO

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, such as brushes and batteries, which are subject to wear, are excluded from the warranty.

Type nr.apparaat

RECYCLAGE-INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically

INFORMACE O RECYKLACI ODPADU

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

This appliance can be used by children, starting from the age of 8 and up, and by persons with a physical or sensorly limitation as well as, mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance, cannot be done by children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surrounding.
  Farms
• Hotel or motel rooms and other surroundings with a residential character
  Guest rooms or similar

Attention: This appliance can not be used with external timer or separate remote control.

Read this manual carefully before using the device and save it for later reference.

The following basic precautions should always be followed when using an electrical appliance:

1. Read all instructions before using.
2. Make sure the voltage in your living area corresponds to the one shown on the rating label of the appliance. And the

wall socket is properly grounded.

1. To reduce the risk of fire in the oven cavity:

A. Do not overcook the food.
B. Remove wire twist-ties from paper or plastic bags before placing bags in the oven.
C. Do not heat oil or fat for deep frying as the temperature of oil cannot be controlled.
D. After use wipe the waveguide cover with a damp cloth, followed by a dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire.
E. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
G. Close supervision is necessary when using disposable containers made from plastic, paper or other combustible material.
4. To reduce the risk of explosion and sudden boiling:
A. Do not place sealed containers in the oven. Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
B. When boiling liquid in the oven, use the wide-mouthed container and keep it in the oven about 20 seconds at the end of cooking to avoid delayed eruptive boiling of liquids.
5. Never keep operating the oven if the door is damaged, the oven malfunctions or the supply cord is damaged. Return the appliance to the nearest authorised service centre for repair and maintenance. Never try to adjust or repair the oven yourself.
6. If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a qualified technician in

order to avoid a shock hazard.

1. After cooking, the container is very hot. Use gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
2. Remove any packaging carefully by first lifting the edges that are the furthest away from you. Popcorn and other oven cooking bags are best opened as far away from your face as possible.
3. To prevent the turntable from breaking:

A. Let the turntable cool down before cleaning.
B. Do not place hot foods or utensils on the cold turntable.
C. Do not place frozen foods or utensils on the hot turntable.

1. Make sure the utensils do not touch the interior walls during cooking.

2. Do not store food or any other things inside the oven.

3. Do not operate the oven without any liquid or food inside the oven. This would do damage to the oven.

4. Any accessories not recommended by the manufacturer may cause injuries to persons.

5. Do not use outdoors.
6. Save these instructions.
   Household use only

• To ensure sufficient ventilation, the distance from the back of the oven to the wall or cabinet should be at least 10cm , from the side of the oven to the wall or cabinet should be at least 20cm , from the top of the oven to the ceiling or cabinet should be at least 20cm .
• Do not place any object on the top of the oven.
• The oven should be placed far from the tv, radio or antenna as picture disturbance or noise may occur.
• After the installation of the oven the plug should be accessible.

UTENSILS GUIDE

Material of container Micro
Heat resistant glass Yes
Ceramic Yes
Normal glass No
Heat resistant plastic Yes
Normal plastic No
Plastic film Yes
Metal dish No

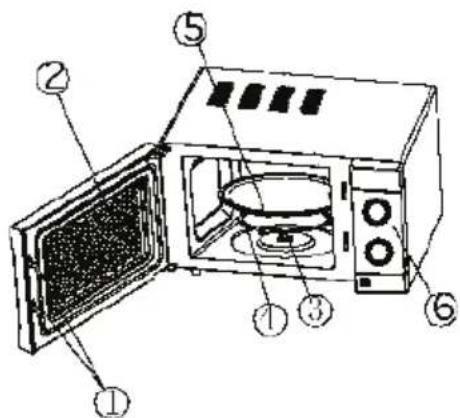

1. Safety lock
2. Viewing window
3. Rotating axis
4. Rotating ring
5. Glass turntable
6. Control panel

Note: The oven cannot be activated without the door properly closed. This is a safety feature, never intend to damage it.

USE OF CONTROL PANEL

1. Timer knob

Maximum time is 30 minutes.

2. Function control knob

Your micro wave oven has 6 different power levels :

1. High: 100% of the power is used, can be used for fast cooking.
2. M. High: 85% of the power is uded
3. Med: 66% of power use, for slow cooking
4. M. low: 40% of te power is used.
5. Defrost: 37% of the power is used, for defrosting food.
6. Low: 17% of the power is used, can be used for keeping warm.

COOKING PROCEDURE

Put the plug in the power socket.

Place the food on the glass turntable and close the door.

Choose the desired power level with the function control knob.

Adjust the timer. When you want to use the timer for less than 2 minutes, you first need to turn the timer passed 3 minutes and then turn it back to the desired time.

The oven will turn on. The operation can be stopped at any time by opening the door. When closing the door, the oven will start operating again.

A signal will be heard when the selected time has passed.

Attention: when you remove the food out of the oven before the signal, make sure to turn the timer to "0". This is to prevent the oven from starting to operate again without food in it. We recommend to use oven gloves when removing cooked food from the oven.

Remarks when defrosting food:

The defrost function is one of the possibilities of your oven. This is safer than defrosting at room temperature, because you will prevent the development of harmful bacteria.

1. Turn the function control knob to the "defrost" function.
2. Select the time, depending on the frozen food. Defrosting usually takes up more time than normal cooking. Turn over the food at least once during defrosting, to check the doneness. When you can cut the frozen food with a knife, it is usually ready.

CLEANING AND MAINTENANCE

Below steps are recommended after each use.

Never use any scoring pads, or aggressive cleaners to clean the oven.

Remove the plug from the socket and let the oven cool down completely.

Remove the turning ring and turntable and clean them in warm soapy water.

Use a soft moist cloth to clean the door, the inside, the outside and the control panel.

When oil or soap has been spilled in the microwave oven, this must be cleaned up, otherwise smoke can occur during the next use.

When the inside of the microwave oven has a bad smell you can put a cup of water with a bit of lemon in it in the oven and let this boil inside the microwave for about 5-7 minutes. This will most likely remove the bad smell.

Dry all parts thoroughly and place them back into the oven.

REPAIR

All repairs can only be done by a qualified person. Don't ever try to repair your microwave. You could be exposed to microwaves, which are hazardous for your health.
