DO2326 - Microwave Oven DOMO - Free user manual and instructions

Product type	Microwave oven
Brand	Domo
Model	DO2326
Dimensions (W x H x D)	45.4 x 29.3 x 28.2 cm
Net weight	13 kg
Power supply	230 V ~ 50 Hz
Microwave power	800 W
Capacity	17 L
Turntable diameter	27 cm
Adjustable power levels	6 levels (High, M.High, Med, M.Low, Defrost, Low)
Timer	Up to 30 minutes
Defrost function	Yes, specific setting
Plate material	Glass
Recommended utensils	Glass, ceramic, heat-resistant plastic
Child safety	Use under adult supervision for children under 8 years
Safety lock	Yes, prevents operation with open door
Maintenance	Clean with a soft damp cloth, do not use abrasives
Warranty	2 years
Repairability	Reserved for qualified personnel

Frequently Asked Questions - DO2326 DOMO

How to clean the microwave oven?

Unplug the appliance and let it cool. Remove the glass turntable and wash it in warm soapy water. Use a soft damp cloth for the interior, door, and control panel. Never use abrasive sponges or harsh chemicals.

Can I use metal containers in the oven?

No, metal containers cause sparks and can damage the oven. Use only microwave-safe utensils: glass, ceramic, or heat-resistant plastic.

How to defrost food?

Set the function selector to the Defrost position (37% power). Set the time according to the food. Turn the food at least once during the cycle to check defrosting.

What to do if the oven does not start?

Check that the door is fully closed: the oven will not operate if the door is not properly latched. Also make sure the plug is connected and the timer is set.

What size container can I use?

The turntable diameter is 27 cm. Use containers that fit freely on the turntable without touching the walls.

Can I run the oven empty?

No, never run the oven empty, as this can damage it and pose a hazard.

How to remove bad odors?

Place a cup of water with a little lemon juice inside and heat at full power for 5 to 7 minutes. Then wipe the interior.

Can I reheat hard-boiled eggs?

No, eggs in their shell or whole hard-boiled eggs can explode in the microwave, even after cooking. Do not reheat them.

Is this appliance suitable for children?

The appliance can be used by children aged 8 years and older under supervision. Children under 8 years should stay away. Never let children play with the appliance.

How to set the timer for less than 2 minutes?

Turn the timer knob past 3 minutes, then back to the desired time. This allows precise setting.

USER MANUAL DO2326 DOMO

Exterior view of a silver semi-c中的Domo microwave oven (no visible text or symbols on the device body)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed with no text or labels

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple black line drawing of a power plug with a curved cable (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Nota:

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Remarque:

Anmerkung:

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

Warning symbol depicting steam rising inside a triangle (no text or numbers)

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

PRECAUTIONS TO PREVENT EXPOSURE TO MICROWAVE ENERGY

Do not attempt to operate the oven with the door open as this can result in harmful exposure to microwave energy.

Do not damage or tamper with the safety latch.

Do not place objects between the door and the oven.

Ensure dirt and cleaning materials do not accumulate between the door and the oven.

WARNING: if the door or the latch is damaged, the oven may not be used until it has been properly repaired by a qualified technician.

Failure to sufficiently and properly maintain the oven can lead to damage, cause malfunction or result in hazardous situations.

IMPORTANT SAFETY PRECAUTIONS

To reduce the risk of fire, electrocution, injury or exposure to microwave energy, the following safety measures must be taken:

- Liquids or other foods should not be heated in closed containers due to the risk of explosion.

• Components intended to protect against microwave energy should not be removed except by a qualified technician.
• Only use cooking utensils that are safe for microwave ovens.
• Clean the oven regularly and remove any leftover food residue.
• When heating food in plastic containers, keep an eye on the oven as the container could ignite.
• If smoke is noticed in the microwave oven, immediately remove the plug from the socket and leave the door closed to extinguish any flames.

CAUTION

• Do not overcook food.
• Do not store items in the oven. Do not store bread, cookies, etc. in the oven.
• Do not use the oven when it is empty. This is hazardous.
• Remove metal closures and handles from food packaging before placing the food in the oven.
• Always install the oven according to the installation instructions.
• Eggs in their shells, or whole hard-cooked eggs, may not be heated in the microwave oven. These may explode even after microwave cooking has ended.
• Use the appliance only as described in the manual. Do not use harmful chemicals or vapours in this appliance. This oven is only intended for heating

purposes. It is not suitable for industrial or laboratory use.

• Do not use or store this appliance outdoors or near water, in a damp area or near a swimming pool.
• The oven may become hot during use. Keep the electrical cord away from hot components and do not cover the oven.
• Do not allow the cord to hang over the edge of a table.
• The contents of baby bottles and baby food should always be shaken or stirred after heating and before use. To prevent burns, the temperature of the food should be checked before use.
• Heating liquids in the oven can result in a delayed cooking reaction. Therefore always be careful when removing the container from the oven.
• This unit may not be placed in a cabinet.
• Do not use a steam cleaner to clean your oven.
• Do not use abrasive cleaners or sharp objects to clean the glass on the door. This can damage the glass and cause it to break.
• The door of the unit may become warm during use.
• Do not try to disassemble the appliance.
  • Always connect the appliance to an earthed socket.

TO REDUCE THE RISK OF INJURY, KEEP THESE SAFETY WARNINGS FOR FUTURE REFERENCE

Your unit is equipped with a short electric cord to prevent tripping or becoming entangled in the cord. When an

extension cord is used, the capacity of the cord must be equal to or greater than the oven power. The extension cord must be placed in such a way that no one can trip over it or become entangled in it.

SPECIFICATIONS

Model: DO2326

Voltage: 230V\~50Hz

Input power - Microwave: 800W

Oven capacity: 17L

Turntable diameter: 27 cm

External dimensions: 38,2 x 45,4 x 29,3 cm

Net. Weight: 13 kg

1. To ensure sufficient ventilation, the distance of the back of the oven to the wall or cabinet should be at least 10cm, the side of the oven to the wall or cabinet should be at least 20cm and the distance from the top of the oven to the ceiling or cabinet should be at least 20cm.
2. Do not place any objects on top of the oven.
3. The oven should be positioned far from the TV, radio or antenna as picture disturbance or noise may occur.
4. The oven should be installed in such a manner that the plug is accessible.

UTENSILS GUIDE

Material of container Microwave
Heat resistant glass	Yes
Ceramic	Yes
Normal glass	No
Heat resistant plastic	Yes
Normal plastic	No
Plastic film	Yes
Metal dish	No

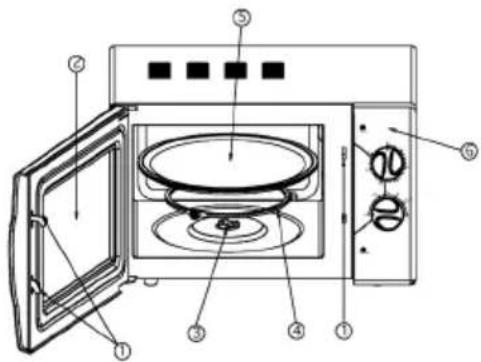

1. Safety lock
2. Viewing window
3. Rotating axis
4. Rotating ring
5. Glass turntable
6. Control panel

Note:

The oven cannot be activated without the door properly closed. This is a safety feature, never intend to damage it.

USE OF THE CONTROL PANEL

1. Timer knob

Maximum time is 30 minutes.

2. Function control knob

Your microwave oven has 6 different power levels:

1. High: 100% of the power is used. Can be used for fast cooking.
2. M. High: 85% of the power is used.
3. Med: 66% of the power is used. For slow cooking.
4. M. low: 40% of the power is used.
5. Defrost: 37% of the power is used. For defrosting food.
6. Low: 17% of the power is used. Can be used for keeping warm.

COOKING PROCEDURE

1. Put the plug into the power socket.
2. Place the food on the glass turntable and close the door.
3. Choose the desired power level with the function control knob.
4. Adjust the timer. When you want to use the timer for less than 2 minutes, you first need to turn the timer passed 3 minutes and then turn it back to the desired time.
5. The oven will start operating. The cooking can be stopped at any time by opening the door. When closing the door, the oven will start operating again.
6. A bell signal will be heard when the selected time has passed.

Attention: when you remove the food out of the oven before the signal, make sure to turn the timer to "0". This prevents the oven from starting to operate again

without food in it, which could damage the oven.

1. We recommend to use oven gloves when removing cooked food from the oven.

Remarks when defrosting food:

The defrost function is one of the possibilities of your oven. This is safer than defrosting at room temperature, because it will prevent the development of harmful bacteria.

1. Turn the function control knob to the defrost function.
2. Select the time, depending on the frozen food. Defrosting usually takes up more time than normal cooking. Turn over the food at least once during defrosting, to check whether it is done. When you can cut the frozen food with a knife, it is usually defrosted enough.

CLEANING AND MAINTENANCE

The following steps are recommended after each use.

• Never use any scouring pads or aggressive cleaners to clean the oven.
• Remove the plug from the socket and let the oven cool down completely.
• Remove the turning ring and turntable and clean them in warm soapy water.
• Use a soft moist cloth to clean the door, the inside, the outside and the control panel.
• When oil or soap has been spilled in the microwave oven, this must be cleaned up. Otherwise smoke can occur during the next use.
• When the inside of the microwave oven has a bad smell, you can put in a cup of water with a bit of lemon in it and let this boil inside the microwave for about 5-7 minutes. This will most likely remove the bad smell.
• Dry all parts thoroughly and place them back into the oven.

REPAIR

All repairs can only be done by a qualified person. Don't ever try to repair your microwave yourself. You will risk being exposed to microwaves, which can be hazardous for your health.

PRECAUCIONES IMPORTANTES

Nota:

Warning symbol depicting steam rising inside a triangle (no text or numbers)

Poznámka:

Four-panel image showing milk products: two with clear liquid, four with square and cross-shaped pastries, a glass pitcher, and a dark brown bowl (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:
