| Brand | DOMO |
| Model | DO2016G |
| Product type | Microwave oven |
| Supply voltage | 230 V~, 50 Hz |
| Microwave power (input) | 1270 W |
| Microwave power (output) | 800 W |
| Grill power (input) | 1000 W |
| Microwave power levels | 5 (P100, P80, P50, P30, P10) |
| Functions | Microwave, Grill, Combination cooking (C-1, C-2), Defrost by weight and time, Quick cook, Timer, Auto programs (8) |
| Auto programs | Reheat, Vegetables, Fish, Meat, Pasta, Potatoes, Pizza, Soup |
| Supplied accessories | Glass turntable, Turntable ring, Roasting rack, User manual |
| Control type | Rotary knob and buttons |
| Display | LED |
| Safety | Child lock, automatic stop when door opens |
| Warranty | 2 years |
| Cleaning | Interior: damp cloth; turntable and ring: warm water and mild detergent; do not use steam cleaner |
| Suitable materials | Heat-resistant glass, microwave-safe plastic, aluminum foil (at 2.5 cm from walls), cooking pouches (pierced) |
| Prohibited materials | Metal, aluminum (except small pieces), wood, plastic foam, paper bags, containers with metal handle |
| Use | Household use only |
| Repairability | Contact an authorized service; do not repair yourself |
Frequently Asked Questions - DO2016G DOMO
User questions about DO2016G DOMO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwave Oven in PDF format for free! Find your manual DO2016G - DOMO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DO2016G by DOMO.
USER MANUAL DO2016G DOMO
CONDITIONS DE GARANTIE
This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.
ZÁRUKA
RECYCLING INFORMATION
This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
The packaging is recyclable. Please treat package ecologically
INFORMACE O RECYKLACI ODPADU
If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.
If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.
VOLUME DU FOUR : 20 L
DIAMETRE PLATEAU TOURNANT : 24,5 CM
DIMENSIONS EXTERIEURES (L X P X H) : 453 X 358 X 258 MM
POIDS NET : 10,66 KG
MESURES DE SECURITE IMPORTANTES
PRECAUTIONARY MEASURES TO PREVENT EXPOSURE TO MICROWAVES
Make sure the oven door is closed; using the oven with the door open can result in harmful exposure to microwaves. It is important to avoid tampering with, or breaking, the safety interlock.
Do not place any object between the door and the oven. Prevent dirt or cleaning agents from accumulating between the door and the oven.
WARNING: when the door or the protective interlock is damaged, you cannot use the oven before a qualified person repairs it.
The appliance can be damaged, may not work correctly or can cause injury if it is not treated with care and is not well maintained.
SPECIFICATIONS
MODEL : DO2016G
VOLTAGE : 230V\~50Hz
IMPORTANT SAFETY MEASURES
Warning: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
Warning: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
Warning: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance in a safe way and understand the hazards involved.
- Only use utensils suitable for use in microwave ovens.
- The oven should be cleaned regularly and any food deposits should be removed.
- Read and follow the specific: “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY”.
- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.
- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
- Do not overcook food.
- Do not use the oven cavity for storage purposes. Do not store items, such as bread, cookies, etc. inside the oven.
- Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
- Install or locate this oven only in accordance with the installation instructions provided.
- Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
- Use this appliance only for its intended uses as described in manual. Do not use corrosive chemicals or vapors in this appliance. This oven is especially designed to heat. It is not designed for industrial or laboratory use.
- If the supply cord or the internal light is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Do not store or use this appliance outdoors.
- Do not use this oven near water, in a wet basement or near a swimming pool.
- The temperature of accessible surfaces may be high when the appliance is operating. The surfaces are liable to get
hot during use. Keep cord away from heated surface, and do not cover any events on the oven.
- Do not let cord hang over edge of table or counter.
- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
- Children should be supervised to ensure that they do not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Keep the appliance and its cord out of reach of children less than 8 years.
- The microwave oven shall not be placed in a cabinet.
- The appliances are not intended to be operated by means of an external timer or separate remote-control system.
- Accessible parts may become hot during use. Children younger then 8 years should be kept away. Steam cleaner is not to be used.
- Surface of a storage drawer can get hot.
- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
- The rear surface of appliance shall be placed against a wall.
- Read and follow the specific “Installation”.
KEEP THIS LIST OF WARNINGS FOR LATER REFERENCE
IN ORDER TO AVOID THE RISK OF INJURIES
Attention: Do not touch any (electrical) parts in the appliance's interior. This can result in serious injury or death. Do not dismantle the appliance.
Incorrect use of the appliance and the earthed plug can lead to electrocution. Do not switch the appliance on before it has been correctly assembled and connected to an earthed socket.
This appliance must be connected to an earthed socket. When the appliance short-circuits, the earthed socket ensures that the electricity is safely conducted and diverted.
If you are not absolutely certain about your electrical system at home, contact a qualified electrician. In the event you need to make use of wiring for an extension, always use a lead with 3 wires.
Your appliance is provided with a short electric lead to prevent tangling or accidents from tripping over it.
In the event you use an extension lead you must make sure that the lead has at least the same capacity as that of the oven.
The extension lead must be placed so that nobody will trip over it or get caught in it.
CLEANING
Always make sure that the plug has been removed from the socket before you clean the appliance.
After use, clean the inside of the oven with a damp cloth.
Clean the parts, such as grill, glass turntable/revolving plate, in warm water, using a mild detergent.
If dirty, you can clean the door, the interlock and the control panel, with a lightly dampened cloth.
MATERIALS PERMITTED FOR USE IN THE MICROWAVE OVEN
Here below is a list of objects that can or cannot be used in the appliance. In the event you cannot find the object you wish to use in the list below, you can apply the following method to check whether the object is suitable for microwave use.
Fill a microwave-safe container with 250 ml of cold water and place this, together with the object to be tested, in the microwave oven. Adjust the microwave to maximum power for 1 min and switch on.
Feel the object carefully to test whether or not it is warm, if it is, it means it is not suitable for use in the microwave oven.
TAKE CARE: never cook the object for longer than 1 min in the microwave.
Materials not permitted for use in the microwave oven
Aluminium foil: Only for covering food. Small pieces of foil can be used to lay on
top of food to prevent it from overcooking. Sparks can develop if the foil is placed too close to the microwave's sides. The foil must be at least 2,5 cm from the sides.
Grill grid: according to the instructions of this manual.
The underside of the grill grid must be placed at least 5 mm above the revolving glass plate. Incorrect use can cause the revolving glass plate to crack.
Crockery: Only microwave-safe crockery. Do not use any crockery that displays cracks or chips.
Glass jug/can: only use without lids. Only to use for lightly warming. Most glasses are not heat-resistant and can break.
Glassware: heat-resistant oven glassware is permitted. Take care that the glass does not contain metal decorations or metal parts. Do not use any cracked or damaged glass.
Oven cooking bags: follow the manufacturer's instructions. Do not close the bag with a metal fastener. Make holes in the bag so that the steam can escape.
Plastic: only plastic suitable for the microwave. Follow the manufacturer's instructions. The words “microwave safe” must always be clearly visible on the plastic. Some plastic containers become soft if food is heated in them. Cooking bags and closed bags need to be pricked to allow steam to escape.
Plastic packaging: Only plastic that is microwave approved. It can be used for covering the food so that it does not dry out. Always make sure that the food does not touch the plastic.
Thermometer: only microwave-safe thermometers.
Materials permitted for use in the microwave oven
Aluminium dish: this can cause sparks. Lay the food on a microwave-safe dish.
Food container with metal handle(s): can cause sparks. Lay the food on a microwave-safe dish.
Kitchen material made from metal or with metal finish. Metal shields the food from microwave energy. Metal finishes can cause sparks.
Metal fasteners: can lead to sparks and can cause fire in the oven.
Paper bags: can cause fire in the oven.
Plastic foam: when exposed to high temperatures it can melt or contaminate the food inside the plastic foam container.
Wood: wood dries out in the microwave and through this can burst or split.

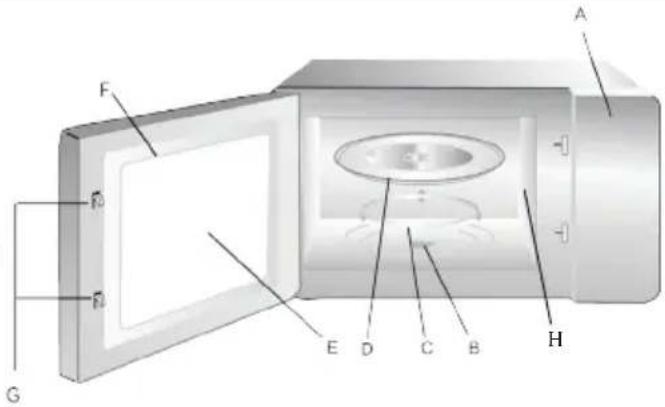

PARTS
A. Control panel
B. Revolving plate
C. Revolving plate ring
D. Glass revolving plate
E. Display window (for viewing inside)
F. Door
G. Safety lock
H. Microwave guide
I. Grill rack
First place the revolving plate ring in the middle of your microwave oven.
Place the revolving plate on the ring; make sure that the middle of the revolving ring fits in the revolving plate support.
Never place the revolving plate upside down. Always make sure that the revolving plate can turn freely steeds, without obstruction.
The revolving plate and ring must be used at all times during cooking.
All food and containers must, at all times, be placed on the glass plate during cooking. When the glass plate or the ring display any cracks, you should immediately get in touch with your nearest service centre.
ASSEMBLY
Remove all packaging material and the accessories.
Examine the oven for any possible damage such as dents or damaged door. Do not use the oven if it is damaged.
- Choose a spot to place your microwave where there is sufficient space to allow for the free circulation of air.
Make sure that a minimum distance of 10 cm is kept on the left and right-hand sides, and any cupboard. One side of the microwave must be left completely open. The rear surface of appliance should be placed against a wall.
An open space of at least 30 cm must be allowed above the microwave oven.
-
Never remove the legs underneath your oven.
-
Blocking the air intake and outlet can lead to damage to your appliance.
-
Keep the oven as far as away as possible from radio and TV.
-
Plug your oven into the socket, always check whether the voltage in your home corresponds to the voltage stated on your appliance.
Warning: Do not place the oven above a cooking stove or other heat producing appliance(s), this can damage the appliance and your guarantee will not be valid.
The accessible part of your appliance may become warm during use.
INSTRUCTIONS FOR USE
ADJUSTING THE CLOCK
When you plug the microwave into the socket, "0:00" will appear on the display.
Press on the “clock/pre-set” button; the hour will begin to flash.
Turn the round dial to set the hour between 0 - 23.
Press on the "clock-pre-set" button; the minutes will begin to flash.
Turn the round dial to set the minutes between 0 - 59.
Press on the “clock/pre-set” button to confirm the hour set.
COOKING WITH THE MICROWAVE
Press on the “micro/grill/combi” button to adjust the microwave power.
Press; 1x: P100, 2x: P80, 3x P50, 4x P30 or 5x P10.
You can also adjust the microwave power by turning the round dial.
Press on the “start/+30sec./confirm” button, to confirm the chosen microwave setting.
Turn the round dial to adjust the desired length of time.
Press on the “start/+30sec/confirm” button to start the cooking process.
The microwave power is divided as follows:
P100: 100% microwave power
P80: 80% microwave power
P50: 50% microwave power
P30: 30% microwave power
P10: 10% microwave power
COOKING WITH GRILL
Press on the “micro/grill/combi” button; “P100” will appear on the display, turn the round dial to select the grill, “G” will appear on the display.
Press on “start/+30sec/confirm” to confirm the grill setting.
Turn the round dial to adjust to the desired grilling time.
Press on “start/+30sec/confirm” to start the grill.
Note: the oven will give halfway through the set time a signal during the grilling process, this is normal. For a better result with grilling, it is best to turn the food product over. Close the door and, once again, press the “start/+30sec/confirm” button, in order to carry on the grilling process after turning the product over.
If you do not want to turn the food over then you do not need to do anything else, the grilling process will proceed automatically.
COMBINED COOKING
Press on the "micro/grill/combi" button; "P100" will appear on the display.
Turn the round dial in order to select the desired combi cooking setting:
C-1: 55% microwave - 45% grill
C-2: 36% microwave - 64% grill
Press on the “start/+30sec/ confirm button, to confirm the selection.
Turn the round dial to adjust the timer.
Press on the “start/+30sec/confirm” button to start cooking.
FAST COOKING
When the microwave oven is on the pause setting, you press once on the “start/+30sec/confirm” button.
The microwave will now heat at full power for 30 seconds.
Each time you repress the “start/+30sec/confirm” button the time duration of heating will be increased by 30 seconds. In this way you can adjust the length of time to max. 95 minutes.
You can also use the “start/+30sec/confirm” button during the use of the grill, the combined cooking or defrosting functions in order to lengthen the cooking time.
The cooking time can also be adjusted if you turn the round dial counterclockwise when the microwave is on the pause setting. When you press the “start/+30sec/confirm” button the microwave will heat at 100% during the time set.
Note: the time settings cannot be adjusted with the “start/+30sec/confirm” button during the automatic cooking programmes or during the defrosting by weight process.
DEFROSTING BY WEIGHT
Press once on the “W.T./time defrost” button; “dEF1” will appear on the display.
Turn the round dial to select the weight of the foodstuff. The weight range selections are from 100 to 2000g.
Press on the “start/+30sec/confirm” button to start defrosting.
DEFROSTING BY TIME
Press twice on the “W.T./ time defrost” button; “dEF2” will appear on the display.
Turn the round dial to set the defrosting time.
Press op de “start/+30sec/confirm” button to start defrosting.
COOKING IN DIFFERENT STEPS
You can adjust to a maximum of 2 steps. If one of the two steps is defrosting, you must set this as the first step. After each completed step you will hear a signal. The automatic cooking programmes cannot be selected when using the function “cooking in different steps”.
For example: if you wish first to defrost food for 5 minutes and then to prepare it for 7 minutes using the microwave power of 80%, you must carry out the following selection:
Press twice on the “W.T./time defrost” button; “dEF2” will appear on the display.
Turn the round dial to set the time to 5 minutes.
Press on the "micro/grill/combi" button.
Turn the round dial to adjust the microwave power to 80%; “P80” will appear on the display.
Press on the start/+30sec/confirm" button to confirm the selection.
Turn the round dial to adjust the microwave so that it is set to heat for 7 minutes.
Press on the “start/+30sec/confirm” button to start the cooking process.
COOKING WITH TIMER
First set the clock of your microwave oven to the present hour.
Select the desired cooking programme. You can select max. 2 steps. Do not set a defrost function when you are cooking with the timer.
For example, you wish to cook for 7 minutes using 80% microwave power.
Press on the "micro/grill/combi" button.
Turn the round dial to set the microwave power to "P80".
Press on the “start/+30sec/confirm” button to confirm the selection.
Turn the round dial to set the time to 7 minutes. Do NOT press now on the “start/+30sec/confirm” button. But carry out the following instructions.
Press “clock/pre-set” button, the hour will begin to flash.
Turn the round dial to set the hour at which you want the microwave oven to start working.
Press on the “clock/pre-set” button; the minutes will begin to flash.
Set the minutes now.
Press NOW on the “start/+30sec/confirm” button to confirm the selection. When the set time has been reached you will hear a signal, after which the cooking process selected will start running.
Note: take care to adjust the present time first, before using the timer.
AUTOMATIC COOKING PROGRAMMES
Your microwave oven has 8 automatic cooking programmes, in order to select these, carry out the following steps:
Turn the round dial clockwise in order to make a choice between “A-1” to “A-8”.
Press on the “start/+30sec/confirm” button to confirm the selected programme.
Turn the round dial to select the weight for the food to be cooked.
Press on the “start/+30sec/confirm” button to start the cooking process.
When the cooking programme finishes you will hear a signal.
Overview of the automatic cooking programmes.
A1: Warming up/heating
A2: Vegetables
A3: Fish
A4: Meat
A5: Pasta
A6: Potatoes
A7: Pizza
A8: Soup
CHILDPROOF LOCK
Press 3 seconds on the “stop/clear” button to engage the childproof lock.
You will hear a signal that confirms that the childproof lock is switched on and this is will be lit up and visible in the display.
In order to disengage the childproof lock you press, again for 3 seconds, on the “stop/clear” button. You will hear a signal confirming that the childproof lock is switched off and the sign in the display will disappear.
CHECKING THE SETTINGS.
If during the cooking process you wish to check the microwave power you press on the “micro/grill/combi” button. The selected power will appear for a few seconds on the display.
If during use of the timer you wish to check the settings, you press on the “clock/preset” button. The set time will be visible on the display for a few seconds.
If during the cooking process you press on the “clock/pre-set” button, the present time will be visible for a few seconds.
EXTRA INFORMATION
When you first start to turn the round dial you will hear a signal.
If you have opened the door during the cooking process you must always press the “start/+30sec/confirm” button again in order to let the cooking process continue.
If you do not press on the “start/+30sec/confirm button within 1 minute after setting the desire cooking programme, the display settings will switch back to the present time and the selection you made will be cancelled.
When you have pressed on one of your microwave's buttons correctly you will hear a signal. If you do not hear it then you have not pressed the button correctly.
You will hear a signal that repeats itself 5 times when the cooking process is completely finished.
DŮLEŽITÉ POKYNY, ABY NEDOŠLO K OZÁŘENÍ MIKROVLNAMI

