USER MANUAL DO2623CG DOMO

Modern microwave oven with black glass door and digital display (no visible text or symbols)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

Type nr. Apparaat

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

If the supply cord is damaged, it must be replaced by manufacturer of its service agent or a similarly qualified person in order to avoid a hazard.

WERKINGSTHEORIE VAN EEN MICROGOLFOVEN

A F P G E D C B H

Nota :

A F D E D C B G H

Note :

A F D E D C B G H

Hinweis :

1. Microwave is a kind of high frequency electromagnetic wave, which is commonly distributed in nature. But the existing form of microwave is dispersed so that it cannot be collected together for heating purpose. The key component of magnetron of microwave oven will transform the energy of electricity to microwave and huge energy of microwave field is established under the closed cavity. So the molecule of food is caused to vibrate at very high speed and the friction heat produced will cook the food in a fast way.

2. There is 3 properly of microwave, that is

a) absorbability, the microwave can cause the excess vibration of molecule of various food so as to obtain the heating purpose. But the infiltration ability is largely depend on the size, thickness and properties of the food.
b) penetrability, microwave can penetrate through ceramics, glass, temperature-resistant plastics.

It is required to use the containers whose material have good microwave penetrability to achieve best heating result. See the below utensils guide.

c) reflectivity, microwave would be reflected by the metal wall of interior cavity so as to establish an even magnetic field, thus can prevent the overheating of partial area.

1) To ensure sufficient ventilation, the distance of back of oven to the wall or cabinet should be at least 10 cm, side of oven to the wall or cabinet should be at least 10 cm, the top of oven to the ceiling or cabinet should be at least 30 cm.
2) Do not place any object on the top of oven.
3) The position of the oven shall be such that it is far from the TV, Radio or antenna as picture disturbance or noise may occur.
3) The oven shall be installed so that the plug is accessible.

UTENSILS GUIDE

It is strongly recommended to use the containers which are suitable and safe for microwave cooking.

Generally speaking, the containers which are made of heat-resistant ceramic, glass or plastic is suitable for microwave cooking. Never use the metal containers for microwave cooking and combination cooking as spark is likely to occur. You can take the reference of below table.

Materiaal Microgolf Grill		Convectie	Combi notes
Ceramic	yes no no		Never use the ceramics which are decorated with metal rim or glazed
Heat resistant ceramic	yes yes yes		Can not be used for long time microwave cooking.
Heat resistant plastic	yes no no
Heat resistant glas yes yes yes
Grill rack no yes yes
Plastic film yes no no			It should not be used when cooking meat or chops. The high temperature of the meat can cause the film to melt

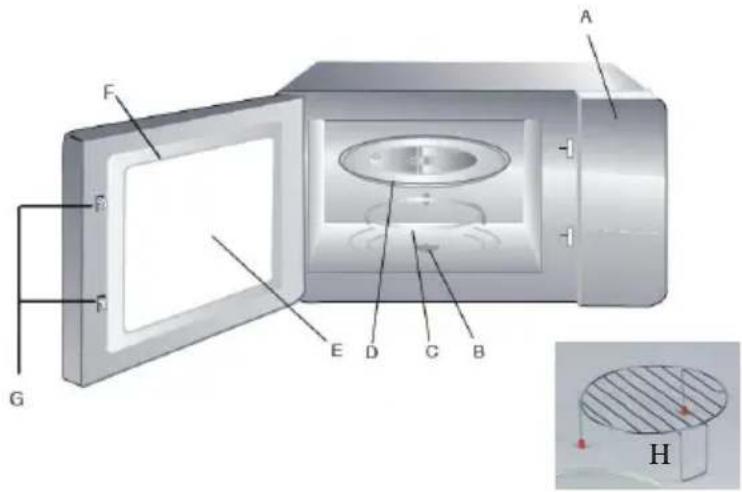

KNOW YOUR MICROWAVE

Voltage : 230V 50Hz

Wattage input : 1300W microwave

1200W convectioin

1200W grill

Microwave wattage output : 800W

Microwave frequency : 2450 Mhz

Capacity : 23L

A. Control panel

B. Turntable shaft

C. Turntable ring assembly

D. Glass tray

E. Observation window

F. Door assembly

G. Safety interlock system

H. Grill rack

A F B G E D C B H

Note :

1. The oven can not be used when the door is not properly closed. This is a safety, don't damage it.

2. The operation of the control panel is explained on the following pages.

3. Don't ever remove the microwave conductor during cleaning.

IMPORTANT SAFETY REGULATIONS

The following basic precautions should always be followed when using electrical appliance:

1. Read all instructions before using.

2. Make sure the voltage in your living area corresponding to the one shown on the rating label of the appliance. And the wall socket is properly grounded.

3. To reduce the risk of fire in the oven cavity:

A. Do not overcook the food.
B. Remove wire twist-ties from paper or plastic bags before placing bags in the oven.
C. Do not heat oil or fat for deep frying as the temperature of oil cannot be controlled.
D. After use wipe the waveguide cover with a damp cloth, followed by dry cloth to remove any food splashes and grease. Built-up grease may overheat and begin to cause smoke or catch fire.
E. If materials inside the oven should smoke or ignite, keep oven door closed, turn oven off and disconnect the power supply.
G. Close supervision is necessary when using disposable containers made from plastic, paper or other combustible material.

1. To reduce the risk of explosion and sudden boiling:

A. Do not place sealed containers in the oven. Baby bottles fitted with a screw cap or teat are considered to be sealed containers.
B. When boiling liquid in the oven, use the wide-mouthed container and stand about 20 seconds at the end of cooking to avoid delayed eruptive boiling of liquids.
5. Never operate the oven further if the door is damaged or the oven malfunction or supply cord is damaged. Return the appliance to the nearest authorised service centre for repair and maintenance. Never try to adjust or repair the oven yourself.
6. If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a qualified technician in order to avoid a shock hazard.
7. After cooking, the container is very hot. Using gloves to take out the food and avoid steam burns by directing steam away from the face and hands.
8. Slowly lift the furthest edge of dishes cover and microwave plastic wrap and carefully open popcorn and oven cooking bags away from the face.
9. To prevent the turntable from breaking:

A. Let the turntable cool down before cleaning.
B. Do not place hot foods or utensils on the cold turntable.
C. Do not place frozen foods or utensils on the hot turntable.
10. Make sure the utensils do not touch the interior walls during cooking.
11. Do not store food or any other things inside the oven.
12. Do not operate the oven without any liquid or food inside the oven. This would damage the oven.
13. This appliance is not intended for use by young children or infirm persons without supervision.
14. Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understand the hazards of improper use.
15. Any accessories not recommended by the manufacturer may cause injuries to persons.
16. Do not use outdoors.

1. Eggs with shell, Full hard boiled eggs, potatoes, sausages, chestnuts needs to be peeled or pierced before cooking.
2. The contents of feeding bottles and baby food jars are to be stirred or shaken and the temperature is to be checked before consumption, in order to avoid burns.
3. When the appliance isn't kept clean, the surface of the unit can get damaged and the life span of your appliance will be affected. Accumulated dirt can lead to

dangerous situations such as fire.

1. Attention, the appliance becomes hot during use.

1. Save these instructions.

HOUSEHOLD USE ONLY

USE OF THE CONTROL PANEL

During use the display will show the set time, selected function and the remaining operation time. The displayed information will depend on the selected function.

When plugging in the appliance the display will figure "0:00"

CLOCK SETTING

Press de "clock/pre-set" button. "0" will flash.

Turn the the round button until the desired hour is reached.

Press the “clock/pre-set” button again.

Turn the round button until the desired minutes are reached.

Press the “clock/pre-set” button again to confirm the set time.

STOP/CLEAR BUTTON

Press the “stop/clear” button once if you want to pauze the cooking process of if you want to cancel the selection you made.

Press the “stop/clear” button twice if you want to cancel all settings during cooking process and hereby cancel cooking.

MICROWAVE COOKING

Press the “microwave” button. There are 5 different microwave settings. By pressing the microwave button it will display as follows :

PRESS DISPLAY MICROWAVE POWER
1 P100 100%
2 P80 80%
3 P50 50%
4 P30 30%
5 P10 10%

Select the desired microwave power level, P100 is max. power level P10 min. power level.

After selecting the microwave power, turn the round knob to select the desired working time.

After setting the working time press “start/+30sec/confirm” to start the cooking process.

When pressing the “stop/clear” button once during operation you’ll pause the programm. To start up the programm again press the “start/+30 sec/confirm” button.

If you want to end the cooking process press “stop/clear” button twice.

GRILL COMBINATION

When pressing the “grill/combi” button the following indications will sequentially be displayed :

G1 : 100 % grill and no microwave.

C1 : 45% grill and 55% microwave.

C2 : 64% grill and 36% microwave.

Note : when half the grill time is passed the oven will give a signal, you can now turn the food over.

Select the desired grill programm.

Turn the round button to select the cooking time, max. 95 min.

Press "start/+30 sec./confirm" to start the cooking.

On the display the time will countdown.

When pressing the “stop/clear” button once the cooking will pauze, press the “stop/clear” button twice to end the cooking.

When pressing the “grill/combi” button during cooking, the preselection will be displayed for 3 sec. After 3 sec. it will display the time countdown again.

When half the cooking time is passed the oven will give a signal. For better grilling results you can turn over the food now.

DEFROST BY WEIGHT

Press “W.T/Time defrost” button once, on the display will show “dEF1”. Now you can defrost by weight.

Turn the round button to select the weight : 100, 200, 300, 400 500, 600, 700, 800, 900 or 1000g.

To cancel press the "stop/clear" button.

Press the "start/+30sec/confirm" button to start defrost.

When half the cooking time is passed the oven will give a signal. For better grilling results you can turn over the food now.

DEFROST BY TIME

Press “W.T./Time defrost” button twice, on the display will show “dEF2”, now you can defrost by time.

Turn the round button to select the defrost time.

Press the “start/+30sec/confirm” button to start defrosting.

Press “stop/clear” button once to pause the defrosting programm. Press “start/+30sec/confirm” to restart the defrosting. Press “stop/clear” twice to end the defrosting programm.

When pressing the “start/+30sec/confirm” button during defrosting the defrost time will prolong with 30 sec.

PROGRAMMING

If you want to set your microwave oven to start cooking at a later time.

- Set the clock first.

- Select the desired programm bv. Microwave, grill or convection. Defrosting cannot be programmed.

- Turn the round button to select the time.

- ATTENTION : don't press the "start/+30sec/confirm" button yet.

- Press the “clock/pre-set” button, the current time will be displayed and the hour will blink.

- Turn the round knob to adjust the hour. Time selection between 0 - 23.

- Press the “clock/pre-set” button, minutes will start to blink.

- Turn the round knob to adjust the minutes. Selection between 0-59.

- Now press “start/+30sec/confirm” button, to confirm the set programm time. The display will show the current time again.

- When the set programm time has arrived, the microwave will signal and will start operating. Make sure the door is closed properly, otherwise the unit won't start working.

AUTOMATIC COOKING PROGRAMMS

De microwave oven has 10 preset cooking programmes.

- Turn the round button to select a cooking program. The display will show a code from “A1” up to “A10”.

- Press “start/+30sec/confirm” to select the desired programm.

- Turn the round button again to select the weight.

- Press “start/+30sec/confirm” to start cooking.

- When the programm has finished a signal can be heard and the microwave will stop working.

Following programs can be selected :

MENU WEIGHT	POWER
A1 Heat up 200g,3	300g, 400g or 500g 100 % microwave
A2 Potato	230g, 460g, 690g 100% microwave
A3 Vegetables 200g, 300g, 400g or 500g 100% microwave
A4 Pasta 50, 100g of 150g 80% microwave
A5 Meat 200g, 300g, 400g or 500g 100% microwave
A6 Fish 200g, 300g, 400g or 500g 80% microwave
A7 Pizza 300g or 400g 50% microwave 50% grill
A8 Bread 50g of 100g 100% grill
A9 Chicken 750g, 1000g oder 1250g 36% microwave 64% grill
A10 Cake	475g	160°C preheat

CONVECTION

- Press “convection” button to select the temperature. Every time the “convection” button is press the temperature will change min. 100°C max. 190°C.

- Turn the round knob to select the pre-heat time.

- Press “start/+30sec/confirm” to start pre-heating. When the set temperature is reached your oven will give a signal. Place the food in the oven. Turn the round knob to select the cooking time. The max. time is 95 min.

Note: if you don't open the door after preheat time is ended, the actual cooking time cannot be set. When you don't want to pre-heat you set the actual cooking time straight away instead of pre-heating first.

- Press the “start/+30sec/confirm” to start cooking. If you want to pause the cooking time press “stop/clear” button once. If you want to restart cooking press “start/+30sec/confirm” button. Press “stop/clear” button twice to end the cooking completely.

- When pressing the “start/+30sec/confirm” button the cooking time will be prolonged with 30 sec.

- If you want to check the set temperature press “convection” button once, the set temperature will be displayed during 3 sec.

FAST COOKING

When the microwave is not operating press “start/+30sec/confirm” button. Your oven will start working immediately, 100 % microwave during 30 sec. You can prolong the cooking time with 30 sec. each time you press “start/+30sec/confirm” button.

CHILD LOCK

When the oven is not operating press “stop/clear” for 3 seconds a long signal will be heard. The child lock is now activated.

To cancel the child lock press “stop/clear” button again for 3 sec. a long signal will be heard, the child lock is now inactive.

CLEANING AND MAINTENANCE

Clean the oven at regular intervals.

Disconnect the power supply cord before cleaning.

Exterior:

The outside may be cleaned with mild soap and warm water, wipe clean with a damp cloth. Avoid the use of harsh abrasive cleaners.

Door:

Wipe the door and window on both sides, the door seals and adjacent parts frequently with a damp cloth to remove any spills or spatters. Do not use abrasive cleaners.

Control panel:

Care should be taken in cleaning the control panel. Wipe the panel with a cloth dampened slightly with water only.

Do not scrub or use any sort of chemical cleaners. Avoid the use of excess water.

Interior walls:

To clean the interior surfaces, wipe with a soft cloth and warm water for hygienic reasons. After use wipe the waveguide cover in the oven with a soft damp cloth to remove any food splashed. Build up splashes may overheat and begin to smoke or catch fire. Do not remove the waveguide cover. Do not use a commercial oven cleaner, abrasive or harsh cleaners and scouring pads on any part of your microwave oven.

Never spray oven cleaners directly onto any part of your oven.

Avoid using excess water. After cleaning the oven, ensure any water is removed with a soft cloth.

Turntable/ Rotating ring/Rotating axis

Wash with mild soapy water and dry thoroughly.

1) Arrange food carefully, place thickest areas toward outside of dish.
2) Watch cooking time, cook for the shortest amount of time indicated and add more time as needed.
3) Cover foods before cooking check recipe for suggestions: paper towels, microwave plastic wrap or a lid. Covers prevent spattering and help foods to cook evenly. (Helps keep oven clean).
4) Stir foods: From outside to centre of dish once or twice during cooking, if possible.
5) Turn foods. Foods such as chicken, hamburgers or steaks should be turned over once during cooking.

6) Rearrange foods: Like meatballs halfway through cooking both from top to bottom and from the centre of the dish to the outside.

7) Allow standing time. After cooking ensure adequate standing time. Remove food from oven and stir if possible.

Cover for standing time which allows the food to finish cooking without overcooking.

8) Check for doneness. Look for signs indicating that cooking temperature has been reached. Doneness signs include:

-Food steams throughout, not just at edge.

-Poultry thigh joints move easily.

-Pork and poultry show no pinkness..

-Fish is opaque and flakes easily with a fork.

9) Condensation. A normal part of microwave cooking. The humidity and moisture in food will influence the amount of moisture in the oven. Generally, covered foods will not cause as much condensation as uncovered foods. Ensure that the ventilation openings are not blocked.

10) Microwave safe plastic wrap for cooking food with high fat content, do not bring the wrap in contact with the food as it may melt.

11) Microwave safe plastic cookware. Some microwave safe plastic cookware are not suitable for cooking foods with high fat and sugar content.
