USER MANUAL DO1200G DOMO

Modern Domo grill with skewers and a plate of cooked fish salad, no visible text or symbols on the main subject.

NL Handleiding Duo Snack Multigrill 2-in-1

EN Instruction booklet Duo Snack Multi Grill 2-in-1

ES Manual de instrucciones Duo Snack Multigrill 2 en 1

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Close-up of a black and silver device with labeled ports, circled in a circle (no readable text or symbols)

Close-up of a black plastic heat sink with slats and a labeled component '9' (no text or symbols on the main subject)

Stacked black electronic components with grid-like slots, no visible text or symbols

Close-up of a mechanical component with two red-circled features, no visible text or symbols

DEMONTAGE

Close-up of a black electronic device with red arrows pointing to a component (no text or symbols visible)

GEBRUIK

Black handheld device with red curved arrows indicating motion or rotation, no visible text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Close-up of a device with labeled ports, showing a circular frame and a small inset image (no readable text or symbols)

1 2 7 6 5 DOMO 3 4

Two black plastic heat exchanger panels with vertical slats, one labeled with number 9 (no text or symbols on the panels themselves)

Stacked black electronic circuit boards with grid-like slots, no visible text or symbols

AVANT LA PREMIÈRE UTILISATION

Close-up of a mechanical component with two red-circled features, no visible text or symbols

DÉMONTAGE

Close-up of a black electronic device with red arrows pointing to a component (no text or symbols visible)

UTILISATION

Black handheld device with red curved arrows indicating motion or rotation, no visible text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a black and white electronic device with labeled ports, circled in a circle (no readable text or symbols)

Two black plastic heat exchanger panels with ribbed heat sinks, labeled with number 9 (no text or symbols on the panels themselves)

Stacked black electronic components with grid-like slots, no visible text or symbols

Close-up of a mechanical component with two red-circled features, no visible text or symbols

DEMONTAGE

Close-up of a black plastic electronic device with red arrows indicating component movement (no text or symbols visible)

GEBRAUCH

Black handheld device with red curved arrows indicating motion or rotation, no visible text or symbols

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

CAUTION: the appliance gets very hot during use and stays hot for some time after use. Keep the power cord away from hot parts and don't cover the appliance.

• Do not touch any hot surfaces, use the handles.
• Make sure that the air can circulate freely around the appliance.
• Do not use a metal scouring pad to clean the appliance. Metal fragments can break off and come into contact with the electrical components of the appliance, causing a short circuit.
• Do not use the appliance if it still contains water or parts are still wet from cleaning.
• If the appliance falls into water, immediately pull the mains plug from the wall socket. Do not touch or reach into the water.
• Do not use the device on a surface that can be damaged by steam or heat.
• Do not use the appliance near water or other liquids.
• Never use metal utensils. These can damage the non-stick coating of the grill plate.
• Do not use any sharp objects to remove any remains.
• Do not use this appliance with charcoal or similar flammable fuels.
  • Take care with the hot griddle and steam escaping alongside the appliance to avoid injury, burns, or fire.

- Do not move the appliance when in use or when still hot after use.

- Never use the handle to move the appliance; always hold the entire device.

• Always unplug the unit when not in use, when changing the griddles, or when cleaning the unit. Allow the unit to cool down completely.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

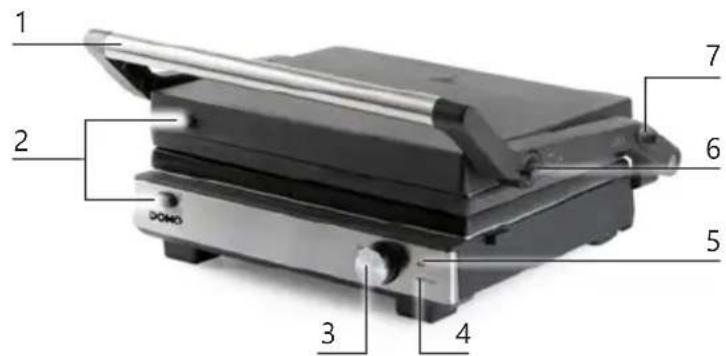

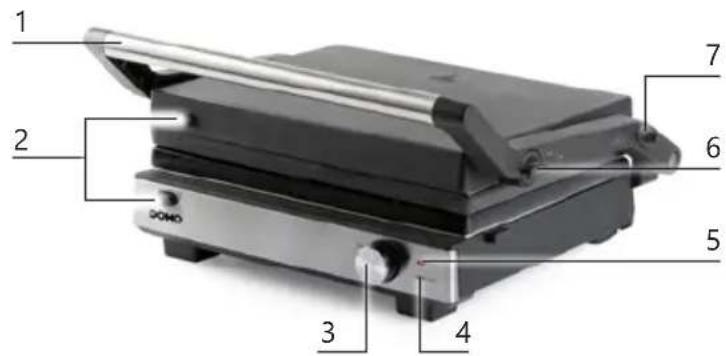

PARTS

1. Handle
2. Buttons to unlock and release the baking trays
3. Temperature knob
4. READY: "ready to use" indicator light"
5. POWER: "on/off" indicator light
6. Lock
7. Button to open 180°
8. Drip tray for excess grease and moisture

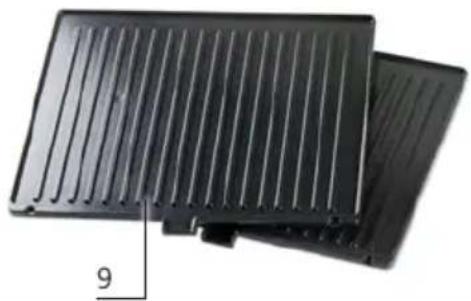

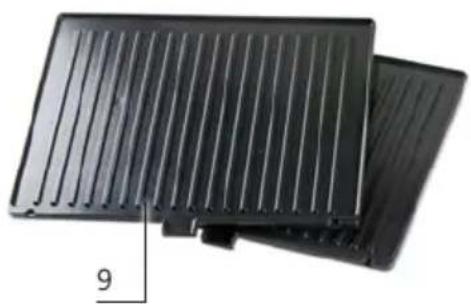

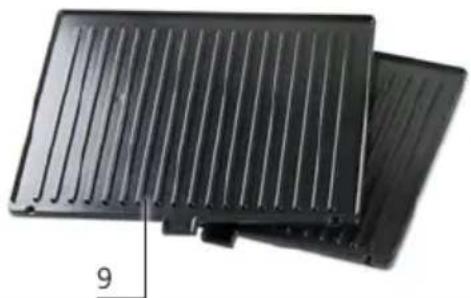

9. Baking plates for grilling

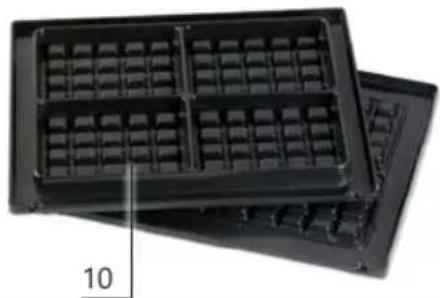

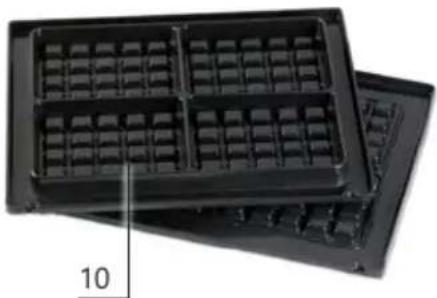

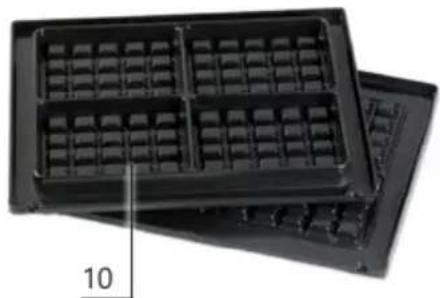

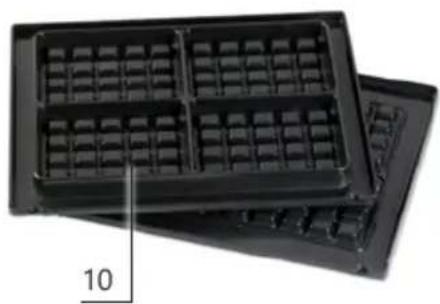

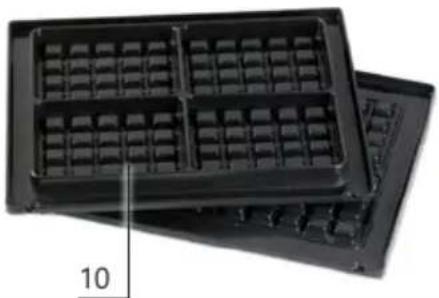

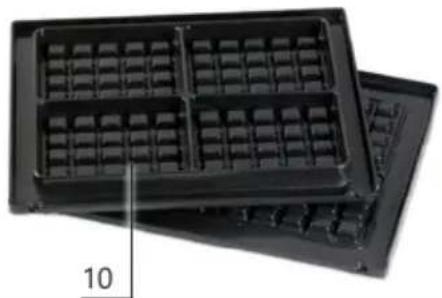

10. Baking plates for waffles

Close-up of a black and white electronic device with a labeled door and 'DOHO' button, enclosed in a circular frame (no readable text beyond label)

1 2 7 6 5 3 4 DOMO

Two black rectangular electronic components with parallel ribbed surfaces, labeled with number 9 (no text or symbols on the components themselves)

Stacked black electronic components with grid-like slots, no visible text or symbols

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
• Carefully clean the appliance before first use (See "Cleaning and maintenance").

• When using the appliance for the first time, the baking trays may emit a small amount of smoke and odour. This is normal. Clean the appliance with absorbent paper or a clean, dry cloth to remove any residue.

• Place the unit preferably on a surface that is easy to clean. The surface should also be heat-resistant. Do not place the appliance on an untreated wooden surface.

• Make sure that there is enough ventilation around the grill.
• The appliance has a high-quality non-stick coating, so you do not usually need to use additional fat. It is recommended to lightly grease the griddles before first use. with oil or butter using a pastry brush or a piece of kitchen paper.

FITTING AND REMOVING THE BAKING TRAYS

- Remove the mains plug from the wall socket and wait until the appliance has cooled down completely.

⚠️ Never use the appliance with only 1 baking tray. Always make sure 2 baking trays are fitted correctly.
Do not allow the baking trays to come into contact with metal cutlery or other metal objects in order to avoid causing damage to the non-stick coating. Always use a heat-resistant plastic or wooden spatula.

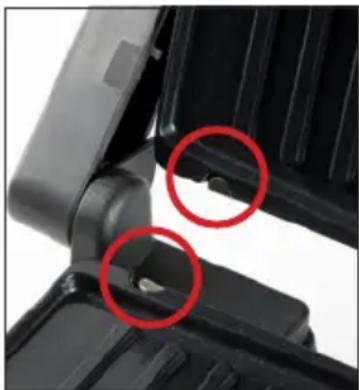

ASSEMBLY

Insert the two recesses in the griddle into the matching slots next to the hinges of the unit. Push the griddle into the unit until it clicks into place. Repeat for both griddles.

⚠ For waffle griddles, the griddle with the deep shape goes on the bottom and the griddle with the shallow shape goes on top. For the grill plates, both griddles are the same.

Close-up of a black mechanical component with two red-circled features (no visible text or symbols)

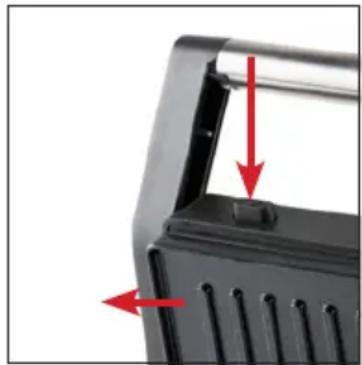

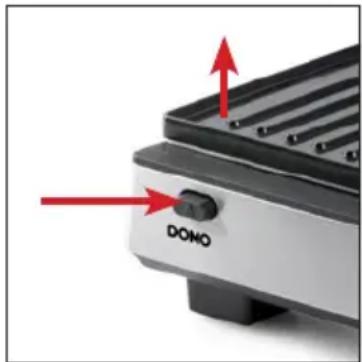

DISASSEMBLY

To remove the griddles, press the associated buttons on the front of the unit. This will release the griddles. Carefully remove the griddles from the slots.

⚠️ Remove the mains plug from the wall socket and wait until the unit has cooled down completely before removing the griddles. Open the unit before pressing the release buttons.

DOMO

Close-up of a black plastic electronic component with red arrows indicating directional movement (no text or symbols)

USE

1. Place the appliance on a dry, flat surface and ensure there is adequate ventilation.
2. Choose from one of the 2 sets of baking trays supplied: sandwich toaster, waffle or grilling. Fit the baking plates (see chapter, "Fitting and removing the baking trays").
3. Plug the power cord into a socket. The POWER and READY indicator lights will light up.

4. Set the desired temperature by turning the temperature controller. The further you turn the knob to the right (MAX), the higher the temperature.

5. The READY indicator light will turn off once the unit has reached the desired temperature.

6. For waffle plates: Open the unit and pour the batter into the waffle moulds of the lower plate. Do this evenly so that the dough spreads well over the waffle moulds.

For grill plates: Open the appliance and place the food inside.

1. Close the appliance. The floating lid adjusts automatically to the thickness of the batter or the food. This ensures the cooking surface maintains optimal contact with the batter or the food for an even grilling result.

⚠️ Never close the safety lock while the appliance is cooking. This lock should only be used for easy storage of the appliance.

⚠️ The READY indicator light will go on and off regularly as the appliance continuously maintains its temperature.

1. When your preparation has finished baking, open the lid and remove the food from the appliance using a plastic or wooden spatula. Never use metal objects as these can damage the non-stick coating.

2. To switch off the appliance, turn the temperature knob all the way to the left. Remove the mains plug from the wall socket and wait until the appliance has cooled down completely.

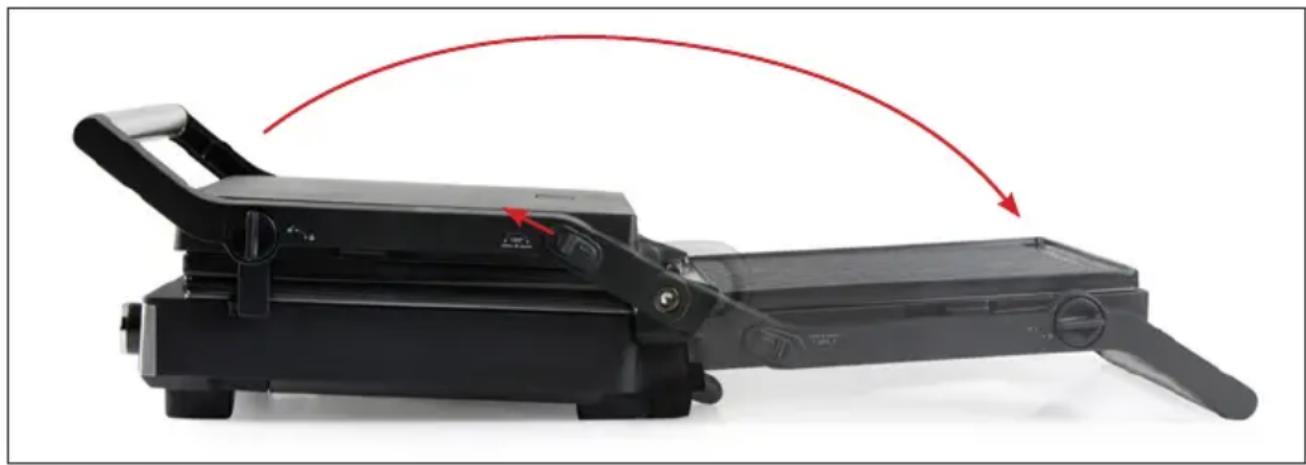

GRILLING ON A 180° OPEN APPLIANCE

You can also use this appliance as a flat baking tray. To do this, pull the button to open 180° upwards and turn the appliance fully open.

Black handheld device with red curved arrows indicating motion or movement, no visible text or symbols

⚠️Defrost frozen food before putting it in the appliance.

⚠️ The excess fat or moisture from the food is collected in the drip tray.

CLEANING AND MAINTENANCE

1. Turn the temperature knob all the way to the left and pull the plug out of the socket. Allow the unit to cool down completely.
2. It is recommended that all food residues be removed with a wooden spatula or a heat-resistant plastic utensil while the appliance is still hot. If the residues dry up, they will be harder to remove.
3. Remove the baking plates from the appliance and wash in warm water with a mild detergent. Then dry thoroughly. The baking plates are not dishwasher safe.
4. Clean the outside of the appliance using a clean, damp cloth. Dry the appliance thoroughly.

5. The drip tray for fat and moisture can be removed for easy cleaning. Clean it in hot water using a mild detergent. The drip tray is dishwasher safe.

6. Place the griddles, close the lock, and store the unit and the waffle griddle set in a dry and clean place.

⚠️Do not immerse unit, cord, or plug in water or other liquid.
⚠️ Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The appliance does not heat up. • Check that the red indicator light is on and that the appliance is connected to a working power socket.
The appliance emits a burnt smell. • When using the appliance for the first time, the baking trays may emit a little smoke and odour. This is normal. If there is a burnt smell after some use, clean the baking trays as described in the 'Cleaning and maintenance' section.
Food does not bake properly. • The selected temperature is not high enough for the food. Adjust the thermostat.
The food sticks and burns immediately.	• The selected temperature is too high for the food. Adjust the thermostat.
The waffles stick to the baking trays.	• There is not enough fat in the batter. Add some oil or melted butter to the batter or grease the baking trays.• There is too much sugar in the batter. Reduce the amount of sugar in your batter. Sugar can caramelise during baking, which causes your waffles to stick to the waffle iron.• The waffle is not yet cooked all the way through. Let the waffle cook a little longer, which reduces the chance it will stick. The waffle is fully cooked when moisture is no longer emitted from the appliance.

GUIDELINES

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Close-up of a device with labeled ports, showing a circular frame and a small inset image (no readable text or symbols)

Two black plastic heat exchanger panels with ribbed heat sinks, labeled with number 9 (no text or symbols on the panels themselves)

Stacked black electronic circuit boards with grid-like compartments, no visible text or symbols

Close-up of a mechanical component with two red-circled features, no visible text or symbols

DESMONTAJE

Close-up of a black electronic device with red arrows pointing to a component (no text or symbols visible)

USO

Black handheld device with red curved arrows indicating motion or rotation, no visible text or symbols

Symbol of a trash bin crossed with two crossed lines and a black rectangular base (no text or numbers present)

Close-up of a DOKO washing machine with a circular outline and number 8 label (no readable text or symbols beyond branding)

1 a 2 7 6 5 DOMO 3 4

Two black plastic heat exchanger panels with ribbed heat flow, labeled with number 9 (no text or symbols on the panels themselves)

Stacked black electronic circuit boards with visible internal grid patterns (no text or symbols)

PRIMA DELL'USO

Close-up of a mechanical component with two red-circled features (no visible text or symbols)

SMONTAGGIO

Close-up of a black plastic device with red arrows pointing to a small component (no text or symbols visible)

UTILIZZO

Black handheld device with red curved arrows indicating motion or movement, no visible text or symbols

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a small electronic device with a labeled door and tray, enclosed in a circular frame (no readable text or symbols)

Stack of black plastic heat sinks with ribbed top surface, labeled with number 9 (no text or symbols on the main subject)

Stacked black electronic circuit boards with grid-like compartments, no visible text or symbols

PŘED PRVNÍM POUŽITÍM

Close-up of a mechanical component with two red-circled features, no visible text or symbols

ROZEBRÁNÍ

Close-up of a black electronic device with red arrows pointing to a component (no text or symbols visible)

POUŽITÍ

Black handheld device with red curved arrows indicating motion or movement, no visible text or symbols

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Close-up of a kitchen appliance with a labeled door and handle, showing no visible text or symbols beyond the number 8.

1 2 7 6 5 3 4 DOMO

Two black plastic heat exchanger panels with ribbed heat sinks, one labeled with number 9 (no text or symbols on the panels themselves)

Stacked black electronic circuit boards with grid-like slots, no visible text or symbols

PRED PRVÝM POUŽITÍM

Close-up of a mechanical component with two red-circled features, no visible text or symbols

ROZOBRANIE

Close-up of a black electronic device with red arrows pointing to a component (no text or symbols visible)

POUŽITIE

Black handheld device with red curved arrows indicating motion or rotation, no visible text or symbols

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a circular inset showing a small object, no visible text or symbols

Two white plastic electrical connectors with mounting holes (no text or symbols visible)

White rectangular container with black interior, no visible text or symbols

Clear glass coffee maker with black handle and lid (no text or symbols visible)
