Product Type	Wireless Active Noise Cancelling Headphones
Brand	Anker
Model	Soundcore Life Q30
Power Supply	Rechargeable lithium-ion battery, 5V/0.65A input via USB-C
Charging Time	2 hours
Battery Life (ANC on)	40 hours
Battery Life (ANC off)	60 hours
Speaker Size	40 mm x 2
Bluetooth Range	15 meters
Connectivity	Bluetooth, NFC, 3.5mm aux jack, USB-C
Main Features	Active Noise Cancellation (ANC), Transparency mode, NFC mode, built-in controls, Soundcore app with equalizer and soundscapes
Control Buttons	Power button, NC button, volume +/- buttons, multifunction button (play/pause, call, Siri)
Companion App	Soundcore (Android and iOS)
Care and Cleaning	Clean with a soft, dry cloth. Do not expose to moisture. Dry the USB port completely before charging.
Safety	Do not turn on the headphones while charging. Use certified chargers. Do not expose to extreme temperatures.
Spare Parts and Repairability	Spare parts available from the manufacturer. Professional repair recommended.
General Information	Over-ear, foldable headphones, with AUX cable and USB-C cable included.

Frequently Asked Questions - Soundcore Life Q30 Anker

How to turn on and pair the Soundcore Life Q30 headphones?

To turn on the headphones, press and hold the power button for 3 seconds. To enter Bluetooth pairing mode, press and hold the same button for 5 seconds until the LED flashes blue. Then select 'Soundcore Life Tune' in your device's Bluetooth settings.

How to perform a factory reset?

Press and hold the power button and the volume up button simultaneously for 5 seconds until the LED flashes blue and red twice. This resets the headphones.

How to activate Active Noise Cancellation (ANC)?

Press the NC (Noise Cancelling) button to turn ANC on or off. You can also choose different noise reduction modes via the Soundcore app.

How to use Transparency mode?

Touch the right earcup for 1 second to activate Transparency mode, which lets in ambient sounds. Touch again to deactivate.

What is the battery life of the headphones?

Battery life is 40 hours with ANC on, and 60 hours with ANC off. Full charging takes about 2 hours.

Can the headphones connect to multiple devices simultaneously?

Yes, it supports multipoint. After connecting the first device, double-press the power button to pair with a second device. However, music playback can only occur on one device at a time.

How to use the headphones in wired mode?

Plug a 3.5mm AUX cable into the headphone jack. The headphones automatically switch to AUX mode, disabling Bluetooth and ANC. You can then use them with any audio device.

What to do if the headphones won't connect via Bluetooth?

Make sure the headphones are in pairing mode (flashing blue LED) and your device is within 15 meters. You can also reset the headphones by pressing and holding the power and volume+ buttons for 5 seconds.

How to use the voice assistant (Siri)?

Press and hold the multifunction button (▶||) for 1 second to activate Siri or your phone's voice assistant. Release to deactivate.

How to update the headphone firmware?

Download the Soundcore app on your smartphone. When the headphones are connected, the app will notify you if a firmware update is available. Follow the instructions in the app to perform the update.

USER MANUAL Soundcore Life Q30 Anker

Line drawing of a pair of electronic headphones (no text or symbols)

Soundcore Life Q30

USER MANUAL

English 01		Português 92
Čeština 08		Portugues do Brasil 99
Dansk 15		Русский	106
Deutsch 22		Slovenský Jazyk 113
ελληνικά	29	Slovenski Jezik 120
Español 36		Svenska	127
Suomi 43		Türkçe	134
Français 50			141
Magyar 57			148
Italiano 64			155
Nederlands 71			162
Norsk 78		لعربيya	169
Język polski 85		لاوي	176

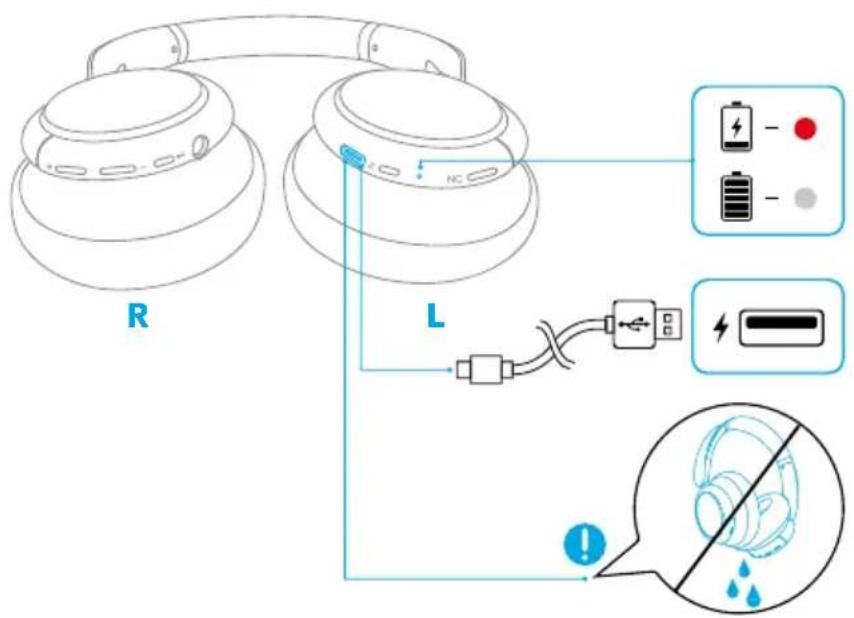

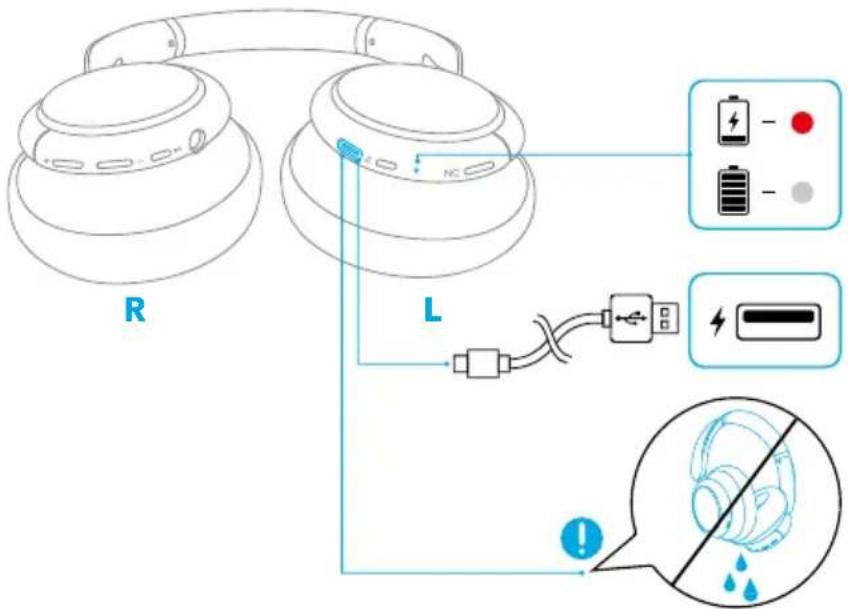

Charging

- Fully dry off the USB port before charging.

- Use a certified USB-C charging cable and charger to prevent any damage.

- Do not power on your headphone while charging.

	Flashing red once every 60 seconds Low battery
	Steady red Being charged
	Light off Fully charged

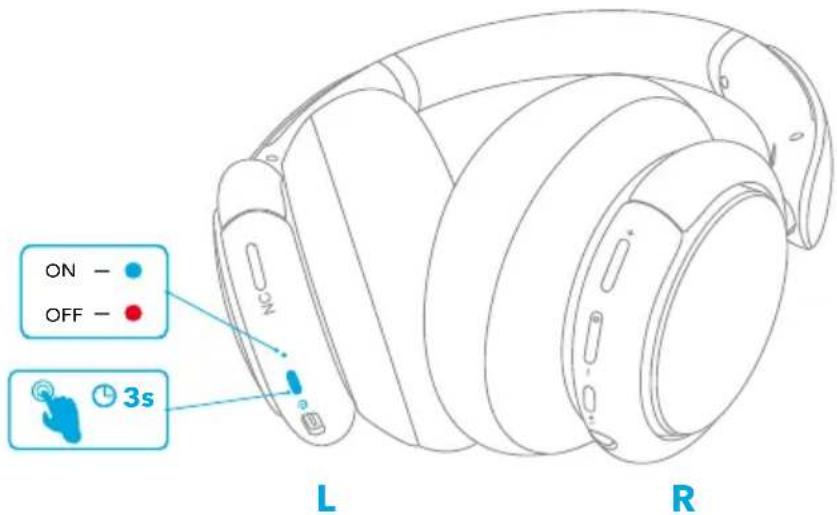

Powering On/Off

Press and hold the power button for 3 seconds to power on/off.

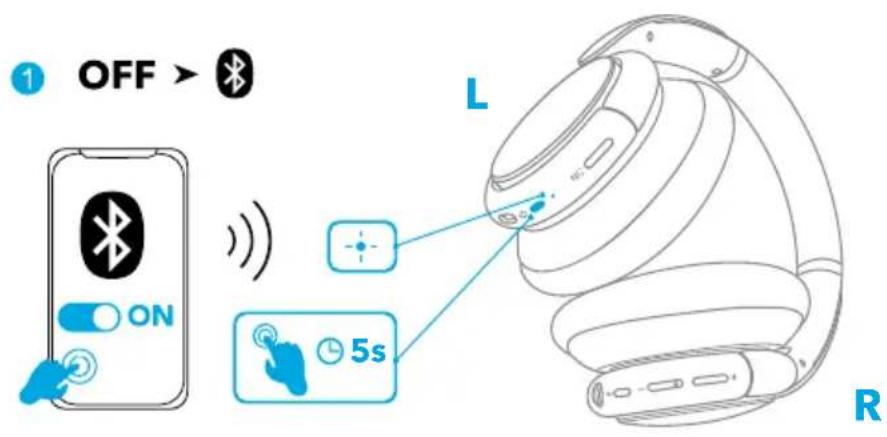

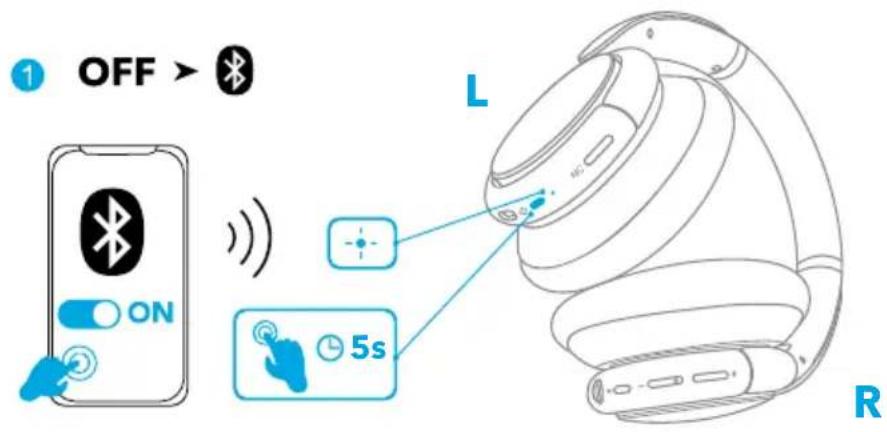

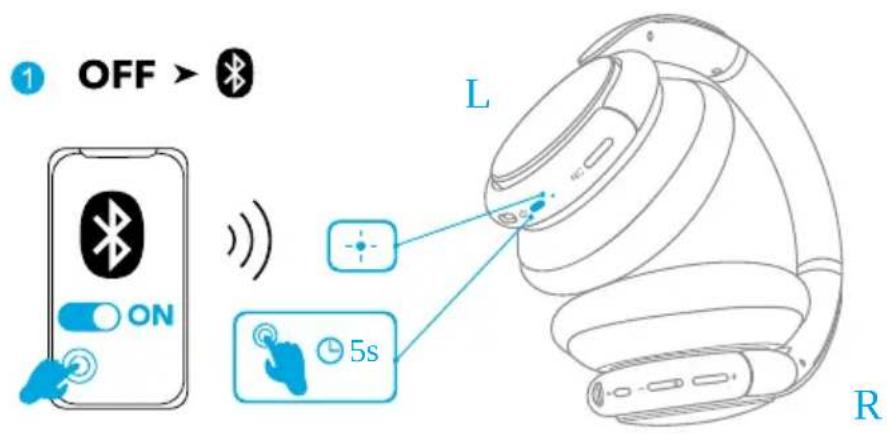

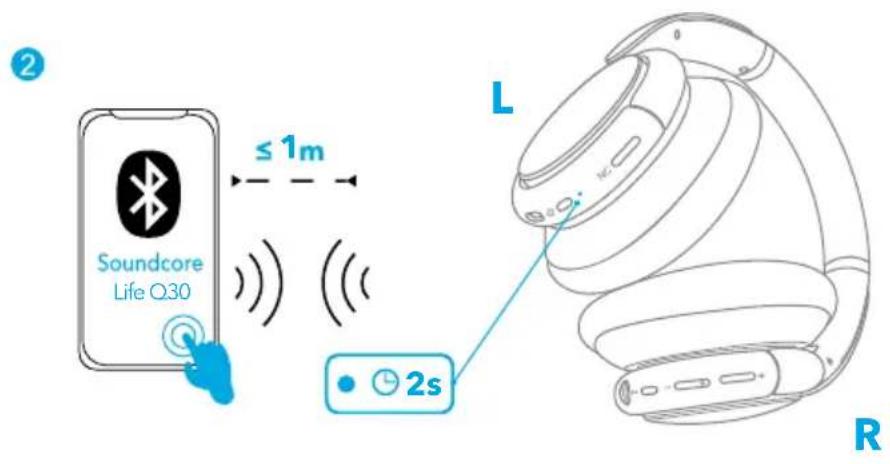

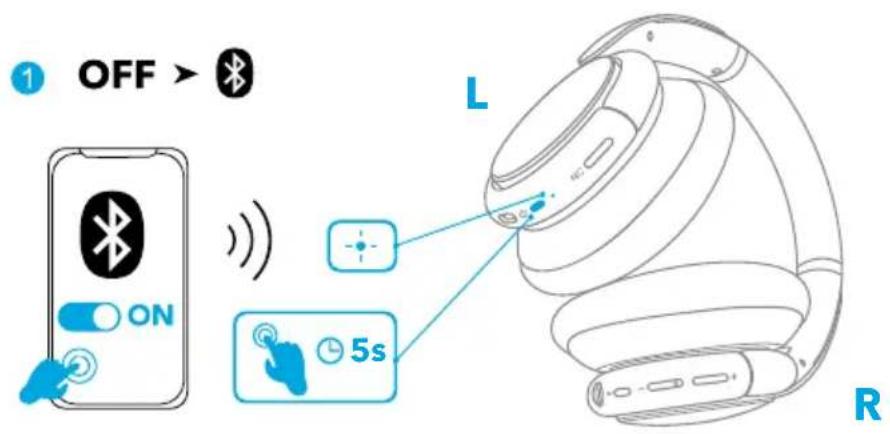

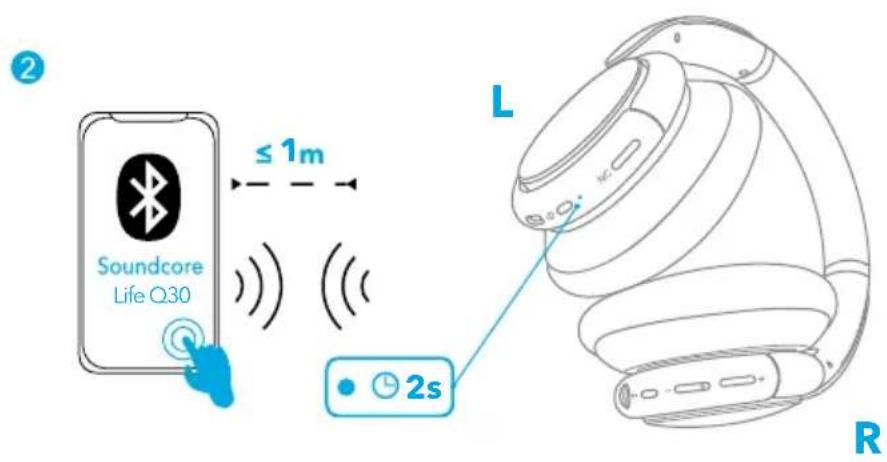

Bluetooth Pairing

1. When powered off, press and hold the power button for 5 seconds until the LED flashes blue to enter the Bluetooth pairing mode.

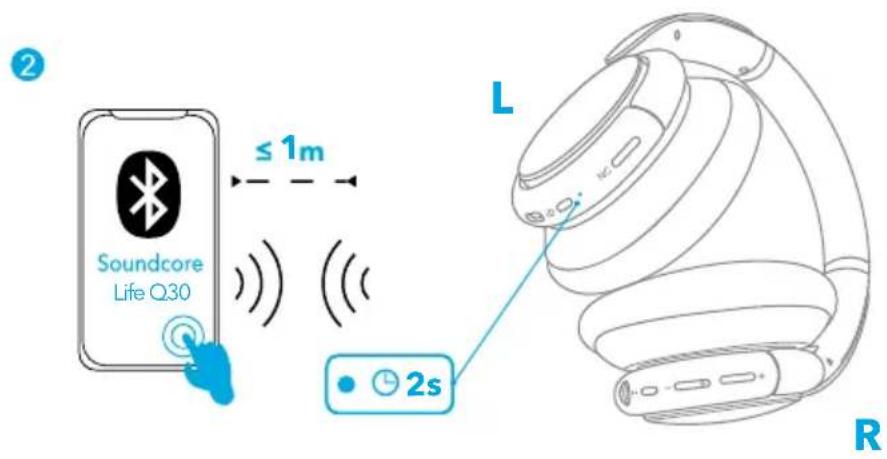

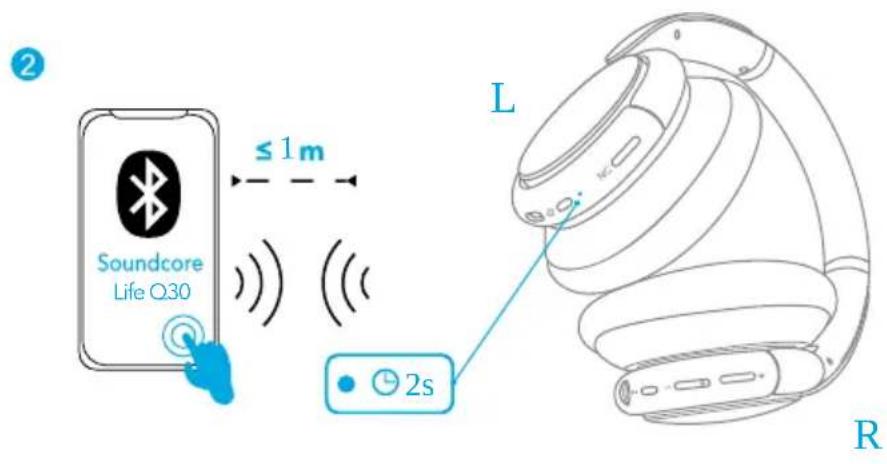

2. Select "Soundcore Life Q30" on your device's Bluetooth list to connect.

	Flashing blue Bluetooth pairing
	Steady blue (for 2 seconds) Bluetooth connected

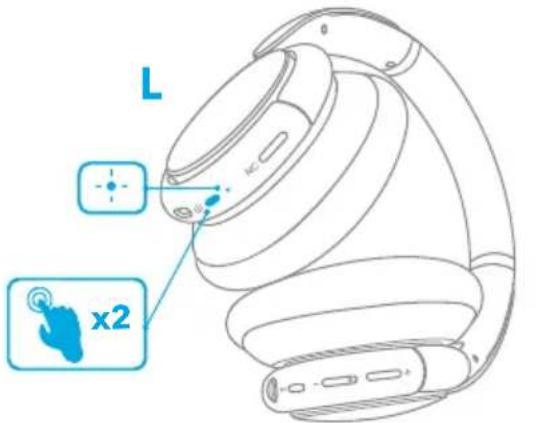

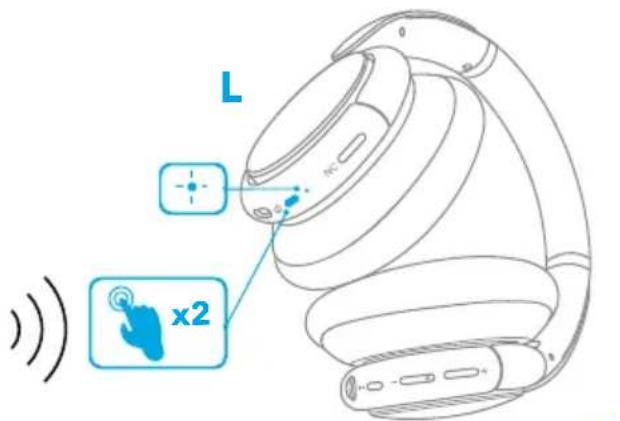

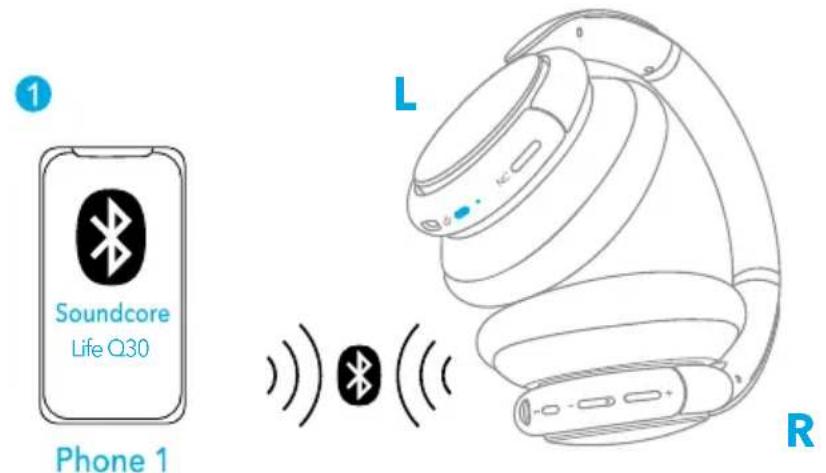

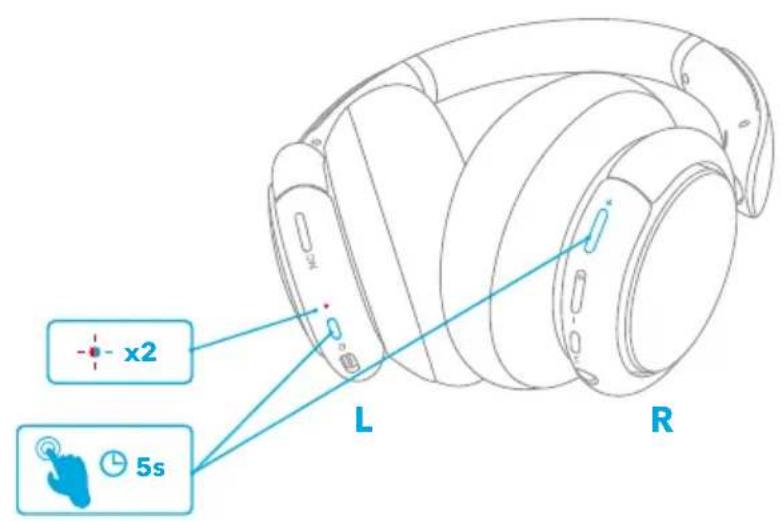

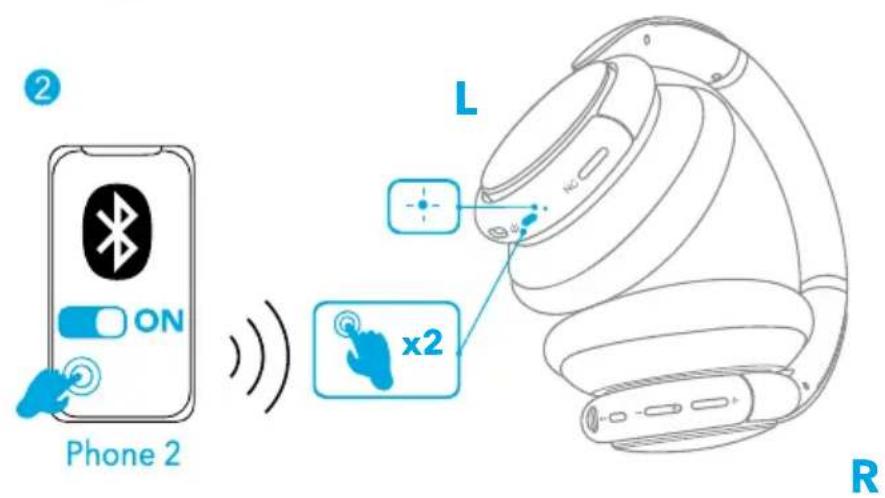

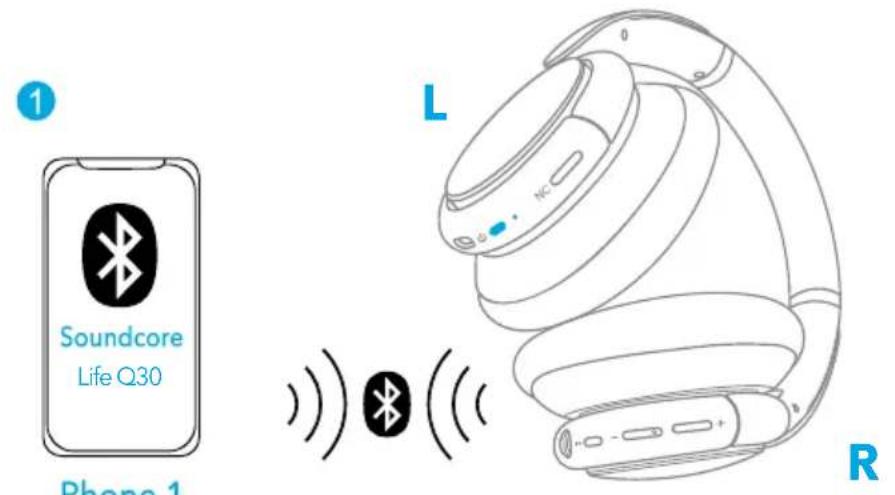

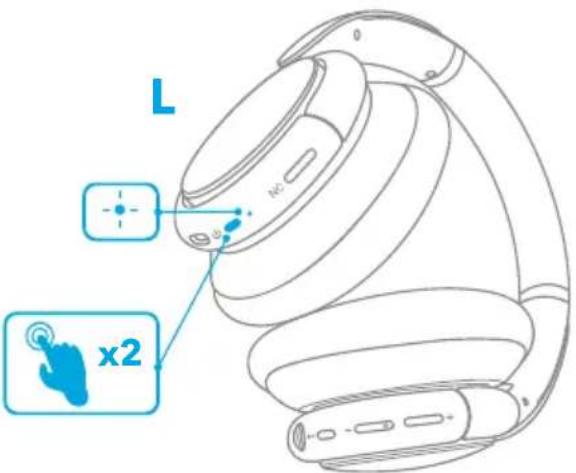

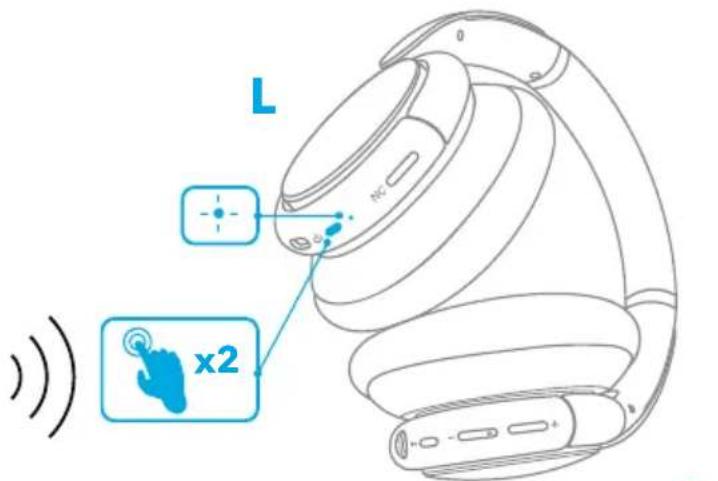

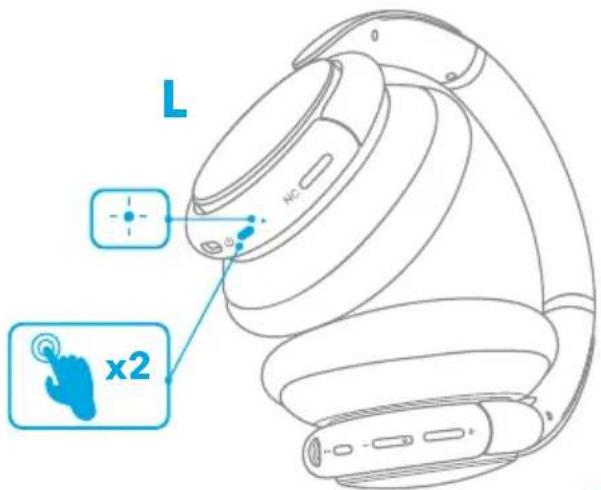

Pairing with another device

When successfully connected with the first device, press twice the power button to pair up with another device.

三

• Your Soundcore headphone can only play music on one mobile device at a time. To play from another connected device, pause the device that's currently active first.
  • Each time you power on your Soundcore headphone, it will automatically connect to your last successfully connected device if available within the Bluetooth range.

Button Controls

Play/Pause Press	▶||
Next track	+	Press and hold for 1 second
Previous track	-	Press and hold for 1 second
Volume up/down	+/-	Press
Answer/End a call	▶II	Press
Put the current call on hold and answer a new incoming call
Reject a call	▶II	Press and hold for 1 second
Switch between held call and active call

Activate Siri or other voice assistant software Press and hold for 1 second

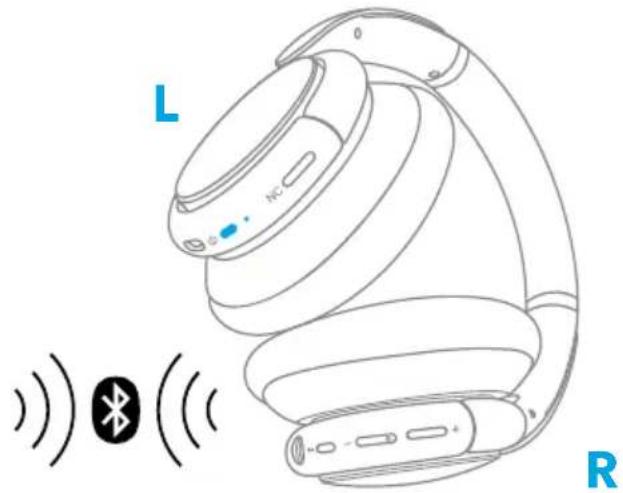

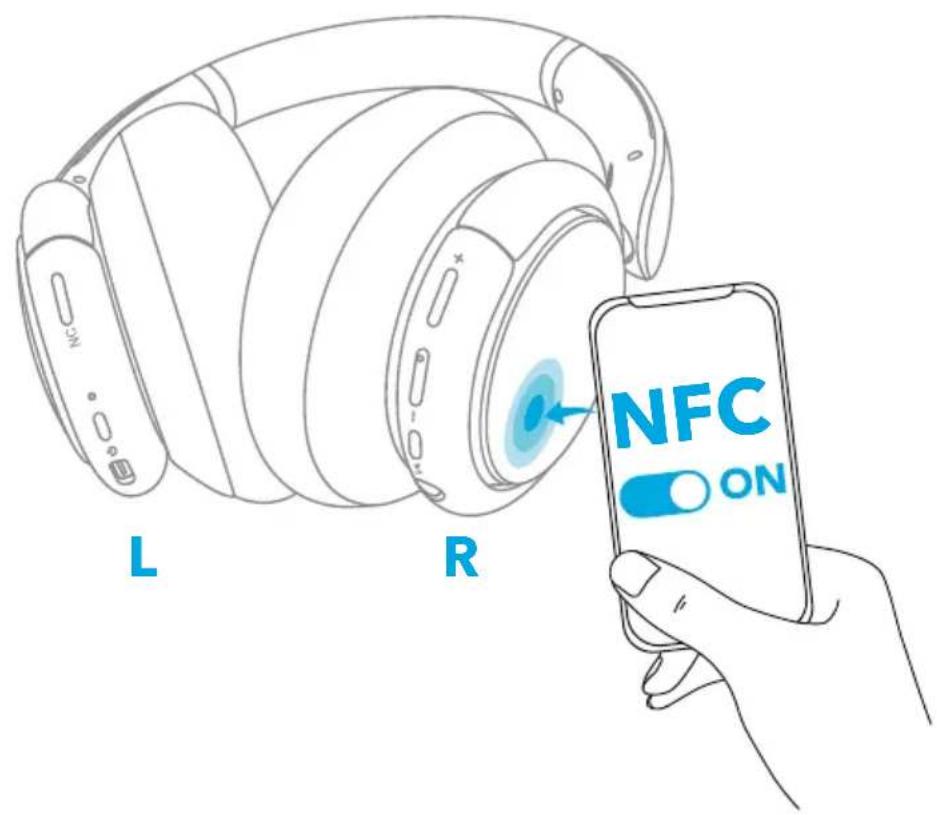

NFC Mode

Near Field Communication (NFC) is a technology that enables short-range wireless communication between various NFC compatible devices, such as mobile phones and IC tags. If your Bluetooth device supports NFC, you can connect it with your headphone easily.

1. Enable the NFC feature on your Bluetooth device (iOS devices excluded).
2. Tap the right panel of your headphones with the back of your Bluetooth device.

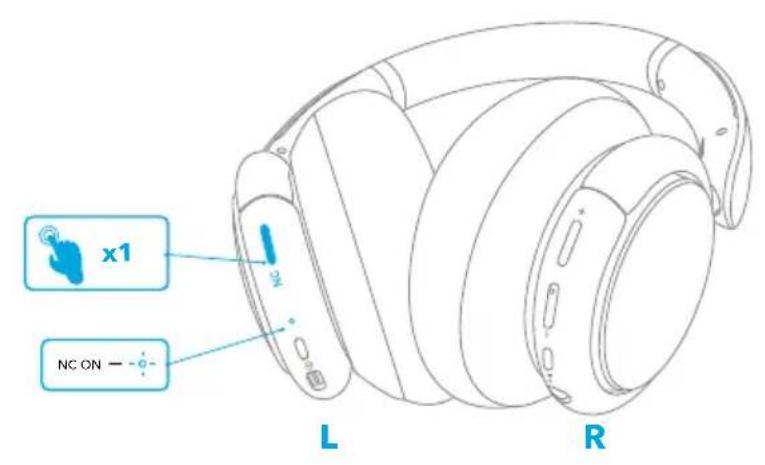

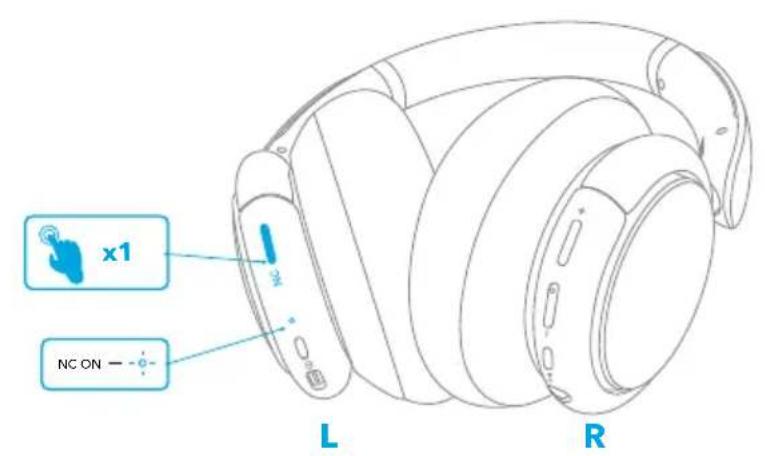

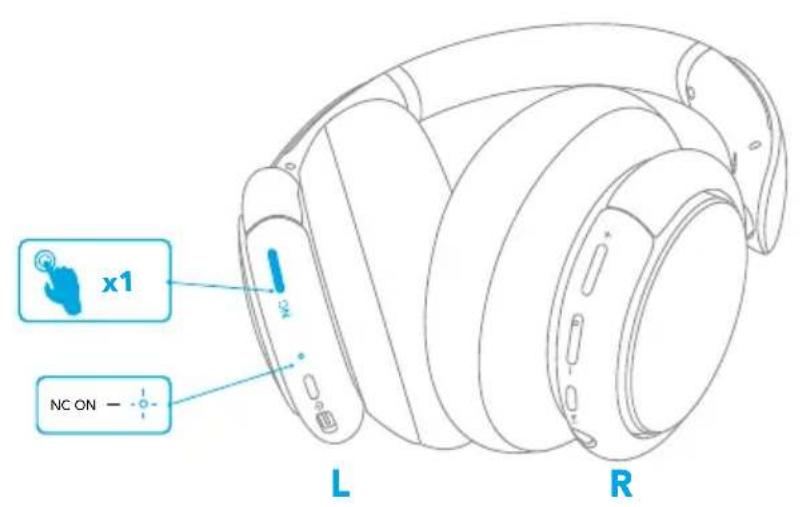

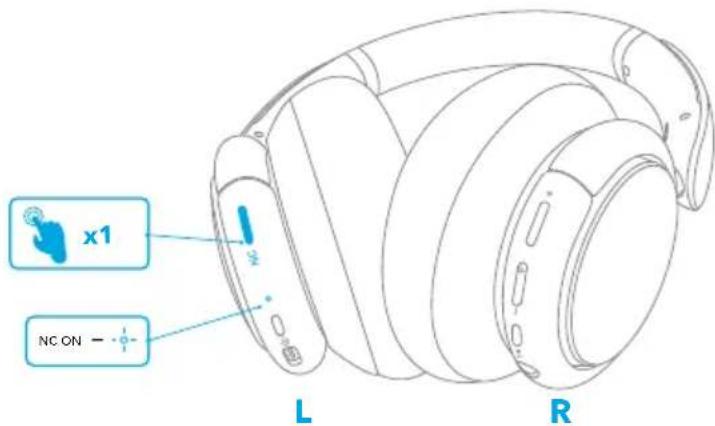

Noise Cancellation Mode

To reduce ambient noise, turn on the active noise cancellation mode by pressing the NC button. Press the NC button again to turn off.

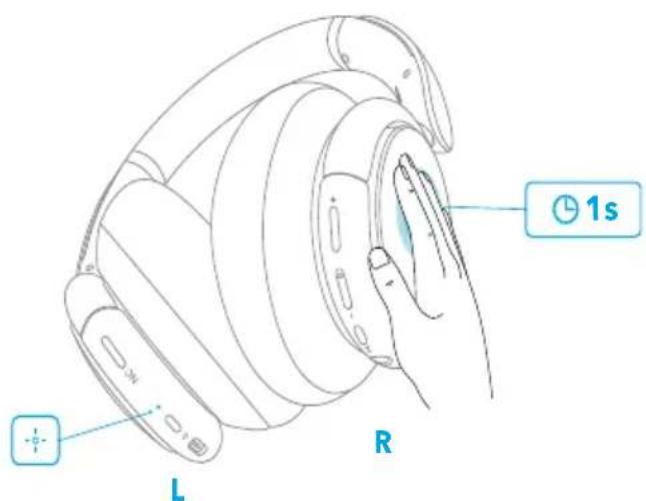

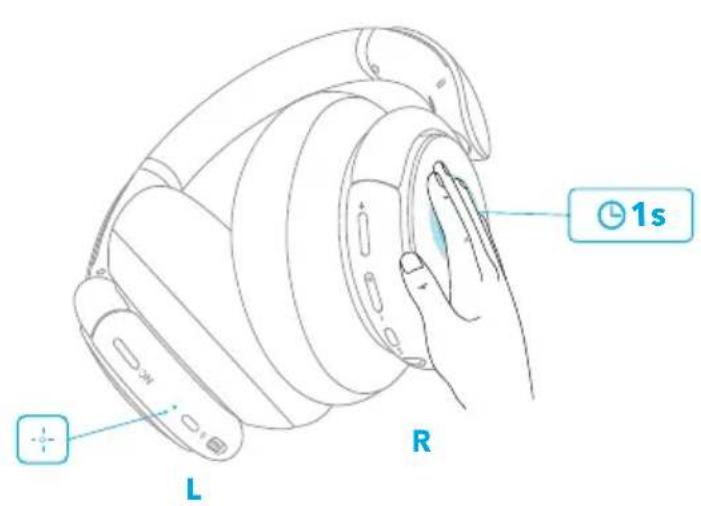

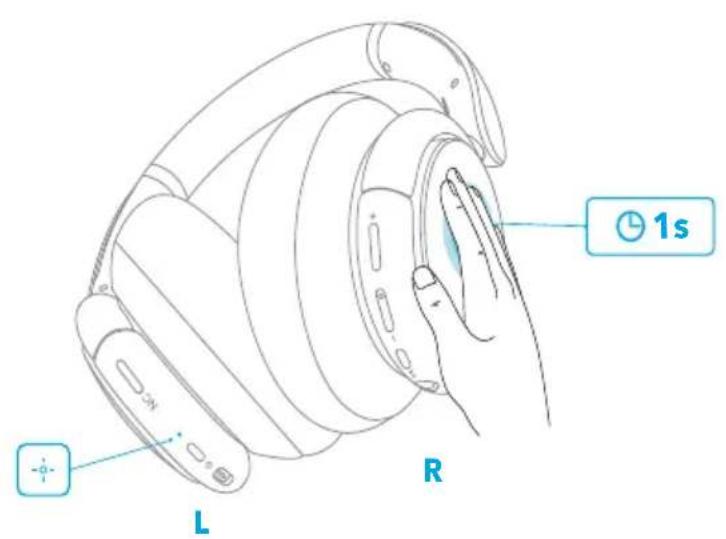

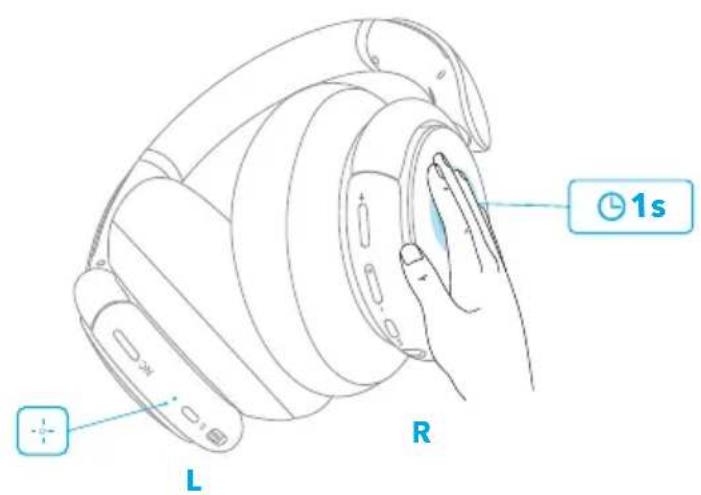

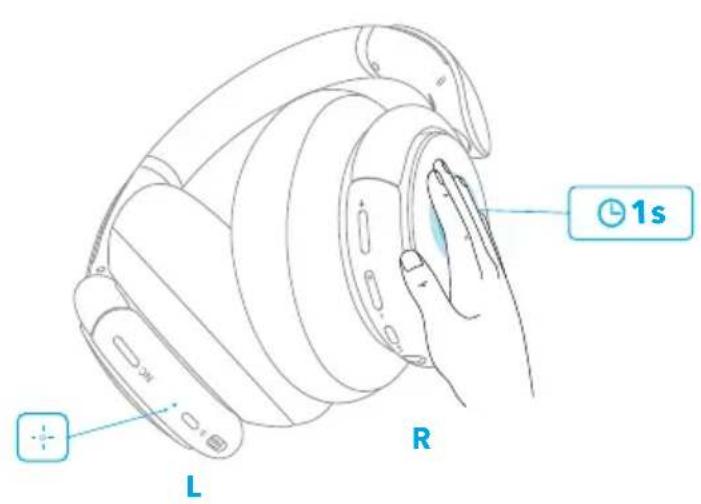

Transparency Mode

To stay aware of your surroundings by allowing ambient sounds in, touch the right panel for 1 second to activate the transparency mode.

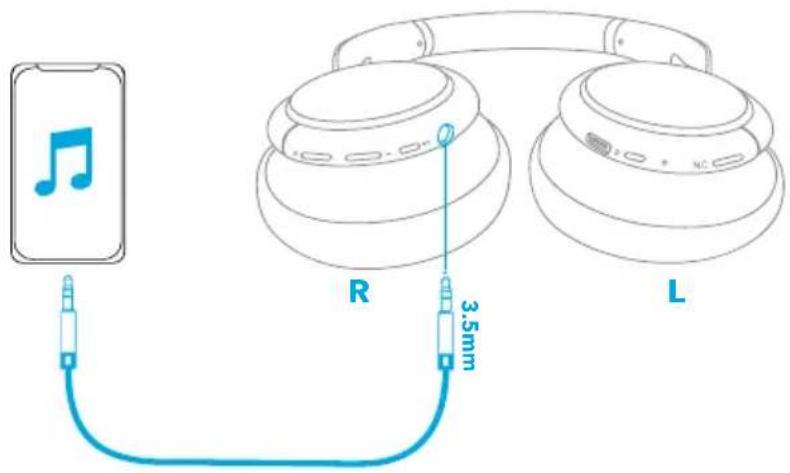

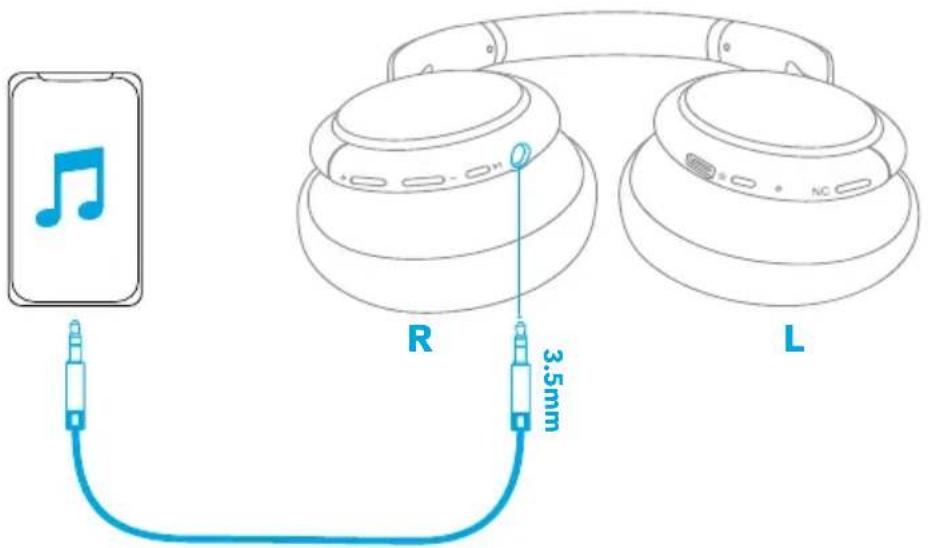

AUX Mode

Play audio on an external device by plugging in a 3.5mm AUX cable.

- Plugging in an audio cable will automatically switch to AUX mode, and Bluetooth mode and ANC will turn off.

Soundcore App

Download the Soundcore app to enhance your experience.

EQ settings: There are more than 20 EQ settings you can choose from in the app to optimize your experience while enjoying different music genres.

Noise cancellation: Choose an active noise cancellation mode to reduce ambient noise according to your surroundings.

• Transport: Targets low-end frequencies like engine and road noise for peaceful journeys and commutes.
  • Outdoor: Reduces ambient sounds in cities for less distractions.
• Indoor: Reduces voices and mid-frequency noise from coffee shops and other inside spaces.

Transparency: Stay aware of your surroundings by allowing ambient sounds in.

White noise soundscape: Tailor your own white noise soundscape when you need to rest.

Firmware update: You will be informed once the new version of firmware is detected when you connect the headphones with the app.

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

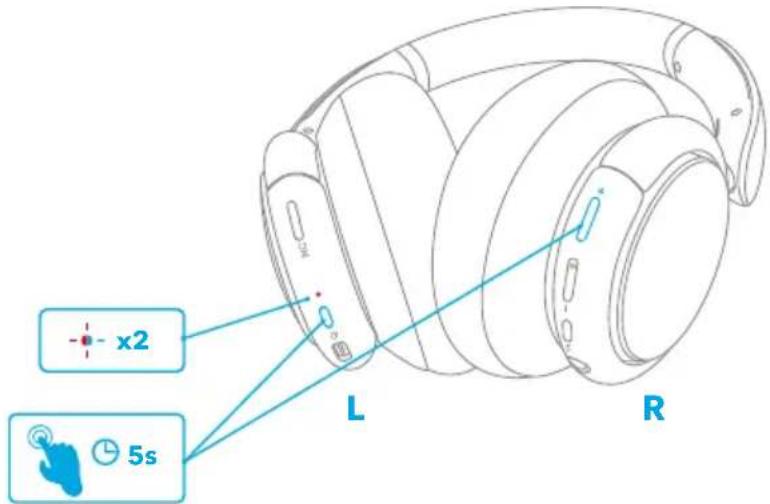

Reset

You might need to reset your headphone if you experience any connectivity problems or function issues.

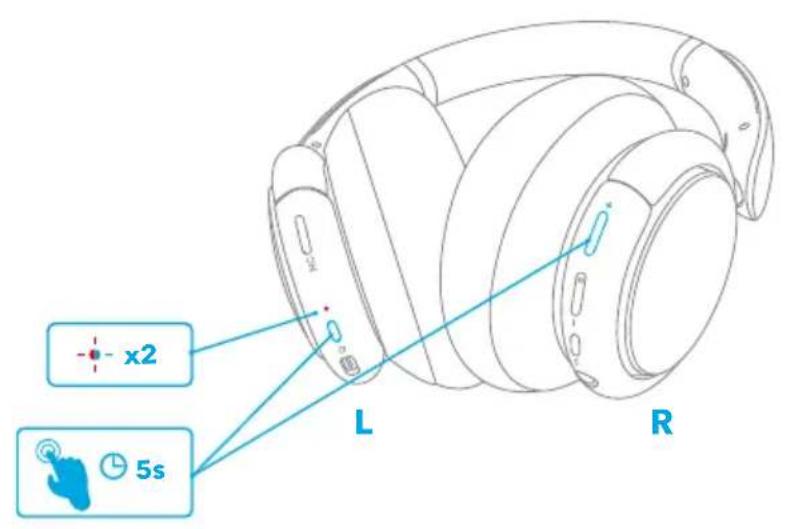

Press and hold the power button and volume up button simultaneously for 5 seconds until the LED indicator flashes blue and red alternately twice.

Specifications

Specifications are subject to change without notice.

Input 5 V 0.65 A

一

Charging time 2 hours

Playtime (with ANC mode turned on) 40 hours

Playtime (with ANC mode turned off) 60 hours

Driver size 40 mm × 2

Frequency response

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedance 16 Ω

Bluetooth version V5.0

Bluetooth range 15 m / 49.5 ft

Nabíjení

Párování Bluetooth

Transparentní režim

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Resetování

Specifikace

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedance 16 Ω

Bluetooth version V5.0

Bluetooth-parring

1. Når der er slukket, tryk og hold på strømknappen i 5 sekunder, indtil LED'en blinker blåt for at gå til Bluetooth-parringstilstand.

2. Vælg "Soundcore Life Q30" i din enheds Bluetooth-liste for at oprette forbindelse.

	Blinker blåt Bluetooth-parring
	Lyser blåt (i 2 sekunder) Bluetooth tilsluttet

三

Transparenstilstand

三

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Nulstil

Specifikationer

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedans 16 Ω

Bluetooth-version V5.0

Bluetooth-dækning 15 m / 49,5 ft

Ladevorgang

Bluetooth-Kopplung

Transparenzmodus

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Zurücksetzen

Technische Daten

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedanz 16 Ω

Bluetooth-Version V5.0

Google Play and the Google Play logo are trademarks of Google Inc.
Apple and the Apple logo are trademarks of Apple Inc.

Επαναφορά

Προδιαγραφές

三

Google Play and the Google Play logo are trademarks of Google Inc.
Apple and the Apple logo are trademarks of Apple Inc.

Restablecer

Especificaciones

Bluetooth-pariliitos

三

Vastamelutila

Läpinäkyvyystila

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Nollaaminen

Tekniset tiedot

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedanssi 16 Ω

Bluetooth-versio V5.0

Bluetoothin kantomatka 15 m / 49,5 ft

Chargement de

Couplage Bluetooth

三

Mode transparence

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Réinitialisation

Spécifications

20 Hz-20 kHz (Bluetooth) 16 Hz-40 kHz (AUX)

Impédance 16 Ω

Version Bluetooth V5.0

Bluetooth-párosítás

Zajszúró mód

Áthallhatósági mód

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Visszaállítás

Specifikációk

三

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Reset

Specifiche

Dimensioni driver 40 mm × 2

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedenza 16 Ω

Versione Bluetooth V5.0

Raggio Bluetooth 15 m

Opladen

Koppelen via Bluetooth

三

Transparantiemodus

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Resetten

Specifications

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedantie 16 Ω

Bluetooth-versie V5.0

Bluetooth-bereik 15 m

Lader

Bluetooth-paring

三

Transparentmodus

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Tilbakestill

Du må kanskje tilbakestille hodetelefonene hvis du opplever tilkoblingsproblemer eller funksjonsproblemer.

Spesifikasjoner

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedans 16 Ω

Parowanie Bluetooth

Line drawing of a wireless earbuds with Bluetooth signal icons (no text or symbols)

R

三

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Resetowanie

Dane techniczne

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedancja 16 Ω

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Repor

Especificações

Tamanho do driver 40 mm × 2

20 Hz-20 kHz (Bluetooth) 16 Hz-40 kHz (AUX)

Impedância 16 Ω

Emparelhamento Bluetooth

Phone 2

R

Google Play and the Google Play logo are trademarks of Google Inc.
Apple and the Apple logo are trademarks of Apple Inc.

Reiniciar

Especificações

20 Hz-20 kHz (Bluetooth) 16 Hz-40 kHz (AUX)

Impedância 16 Ω

1

Phone 1

2

Phone 2

R

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

一

Nabíjanie

	Bliknutie načerveno každých 60 sekúnd Slabá	batéria
	Trvalo rozsvietená červená Nabíja sa
	Nesvieti Plne nabité

Zapnutie/vypnutie

Ak chcete funkciu zapnút/vypnút, stlačte tlačidlo napájania a podržte ho 3 sekundy.

Režim redukcie hluku

Režim bez redukcie hluku

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Resetovanie

Technické údaje

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedancia 16 Ω

Verzia Bluetooth V5.0

Dosah Bluetooth 15 m/49,5 stopy

Polnjenje

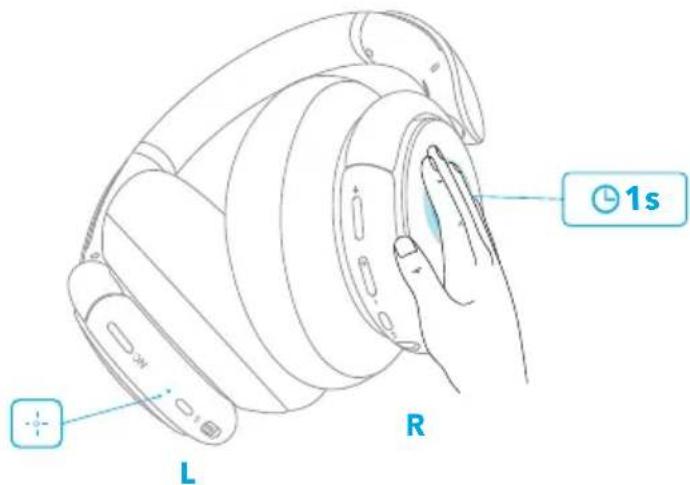

Način prosojnosti

Če želite ostati pozorni na svojo okolico, tako da dovolite zvoke iz okolice, se za 1 sekundo dotaknite desne plošče, da aktivirate način prosojnosti.

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Ponastavi

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedanca 16 Ω

Bluetooth-parkoppling

Brusreduceringsläge

Transparensläge

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Återställning

Specifikationer

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Impedans 16 Ω

Bluetooth-version V5.0

Gürültü Önleme Modu

Geçirgenlik Modu

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

Sifirlama

Teknik Özellikler

20 Hz-20 kHz (Bluetooth)

16 Hz-40 kHz (AUX)

Empedans 16 Ω

1

Phone 1

2

Phone 2

R

	▶||
	+
	-
	+/-

	▶II

Soundcore

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

一

Phone 1

2

Phone 2

R

	▶||
	+
	-
	+/-

	▶II

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

一

1

Phone 1

2

Phone 2

R

	▶||
	+
	-
	+/-

	▶II

Soundcore

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

-

1

Phone 1

2

Phone 2

R

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

-

Phone 2

R

• مرة.

وضع الشفقافية

Google Play and the Google Play logo are trademarks of Google Inc.

Apple and the Apple logo are trademarks of Apple Inc.

إعادة酔回ين

المواصفات

Bluetooth

Phone 2

R

תְקַרָה בְּרָה

•.תְבָר

Soundcore meni

Google Play and the Google Play logo are trademarks of Google Inc.
Apple and the Apple logo are trademarks of Apple Inc.

בְרַע אִי בְאָה

(Bluetooth) 20 -20 (Aux) 16

הכלה Ω 16

Bluetooth 5.0

Bluetooth 15
