USER MANUAL AW6C4824CB ARTHUR MARTIN

EN Tumble Dryer User Manual 2

Safety instructions 4

Product Description 6

Control Panel 6

Programme table 7

Options 9

Settings 10

Before first use 12

Daily use 12

Hints and tips 13

Care and cleaning 14

Troubleshooting 17

Technical data 18

Quick guide 20

Subject to change without notice.

⚠ SAFETY INFORMATION

Before beginning the installation and use of this appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.

• Keep detergents away from children.

• Keep children and pets away from the appliance when the door is open.

• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

• Do not change the specification of this appliance.
• If the tumble dryer is put on top of a washing machine, use the stacking kit. The stacking kit, available from your authorized vendor, can be used only with the appliance specified in the instructions supplied with the accessory. Read it carefully before installation (refer to the Installation leaflet).
• The appliance can be installed as freestanding or below a kitchen counter with correct space (refer to the Installation leaflet).
• Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, that would prevent the appliance door from being fully open.
• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.
• WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• Connect the mains plug to the mains socket only at the end of the installation process. Make sure that the mains plug is accessible after installation.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

• Do not exceed the maximum load of 8 kg (refer to the "Programme chart" chapter).

• Do not use the appliance if items have been soiled with industrial chemicals.

• Wipe away lint or packaging debris that has accumulated around the appliance.
• Do not run the appliance without a filter. Clean the lint filter before or after each use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should only be used as specified by the product manufacturer's instructions.
• Remove all objects from items that could be a source of fire ignition such as lighters or matches.
• WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

SAFETY INSTRUCTIONS

Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

• Do not install or use the appliance where the temperature can be lower than 5°C or higher than 35°C.

• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.

• Make sure that there is air circulation between the appliance and the floor.
  • Always keep the appliance vertical when it is being moved.
• The rear surface of the appliance must be put against a wall.
• When the appliance is in its permanent position, check if it is levelled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.

Electrical connection

WARNING! Risk of fire and electric shock.

• The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
- Do not touch the mains cable or the mains plug with wet hands.
- This appliance complies with the E.E.C. Directives.

Use

WARNING! Risk of injury, electric shock, fire, burns or damage to the appliance.

• This appliance is for household use only.
• Do not dry damaged (torn, frayed) items that contain padding or fillings.
• Only dry fabrics which are suitable for drying in a tumble dryer. Follow the instructions on the fabric label.

• If you have washed your laundry with a stain remover start an extra rinse cycle before you start the dryer.

• Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets.

• Do not sit or stand on the open door of the appliance.
• Do not dry dripping wet clothes in a tumble dryer.

Care and cleaning

WARNING! Risk of injury or damage to the appliance.

• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use any abrasive products, abrasive cleaning pads, solvents or metal objects.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

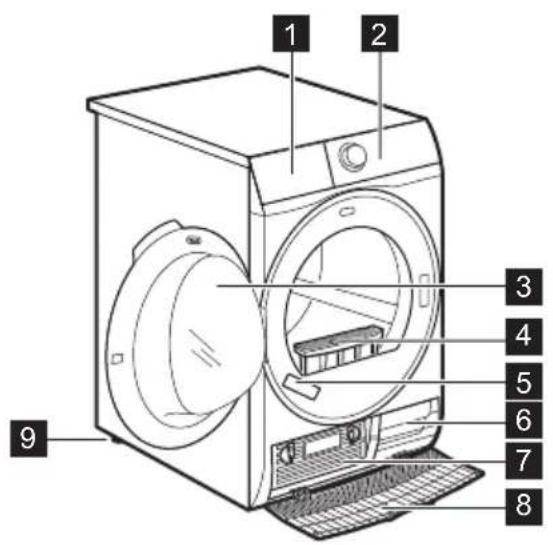

PRODUCT DESCRIPTION

1 2 3 4 5 6 7 8 9

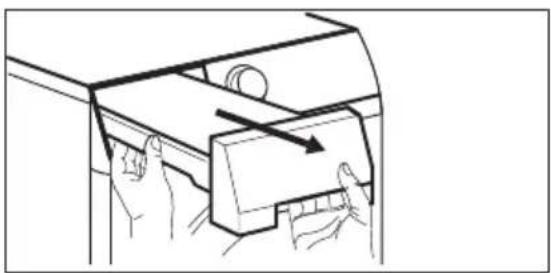

1 Water container
2 Control panel
3 Appliance door

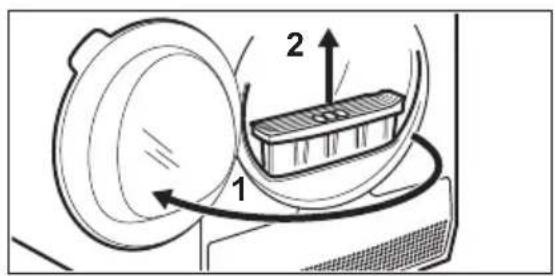

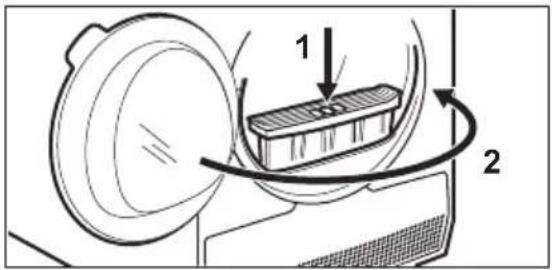

4 Filter
5 Rating plate
6 Airflow slots

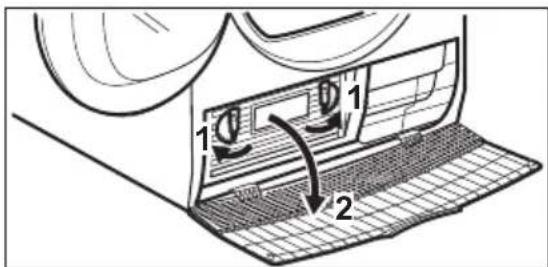

7 Heat Exchanger lid
8 Heat Exchanger cover
9 Adjustable feet

For ease of loading laundry or ease of installation the door is reversible. (see separate leaflet).

CONTROL PANEL

1 2 3 4 5 89 6

1 Programme knob and ●RESET switch
2 Display
3 Minuterie (Time Dry) touch button
4 Départ/Pause (Start/Pause) touch button
5 Départ Différé (Delay Start) touch button

6 Anti-froissage (Extra Anticrease) touch button
7 Délicats (Delicates) touch button
8 Séchage (Dryness Level) touch button
9 On/Off button

Press the touch buttons with your finger in the area with the symbol or name of the option. Do not wear gloves when you operate the control panel. Make sure that the control panel is always clean and dry.

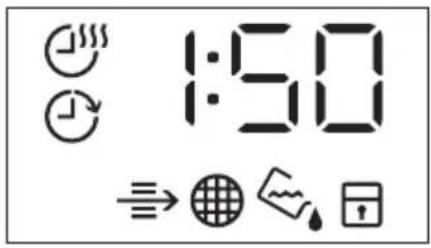

Display

1:50 ≡→

Symbol on the display Symbol description
	time drying option on
	delay start option on

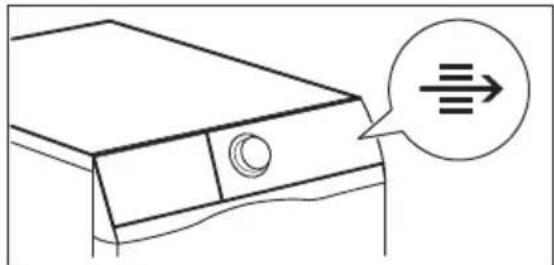

	indicator: check Heat Exchanger

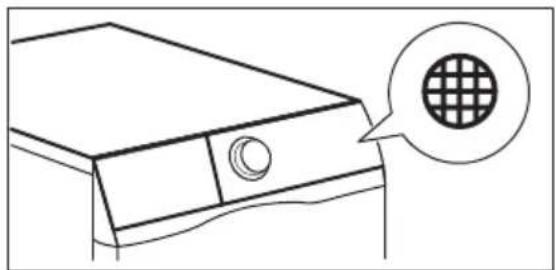

	indicator: clean filter
	indicator: drain the water container
	child lock on
	wrong selection or knob is in the "Reset" position
2:00	programme duration
:10-2:00	time Drying duration
1h-20h	delay start duration

PROGRAMME TABLE

Programme		Load 1)	Properties / Fabric type2)
Eco		0 Kg

Programme	Load 1)	Properties / Fabric type2)
Coton (Cotton) 8 kg		Cycle defined to dry all types of cotton ready to store (cupboard dry).
Synthétiques (Synthetic) 3,5 kg Synthetic and mixed fabrics.			[8Y0T]
Délicats (Delicates) 4 kg		Delicate fabrics such as viscose, rayon, acrylic, and their blends.
Repassage Facile (Easy Iron)	1 kg (or 5 shirts)	Easy care fabrics for which a minimum of ironing is necessary. The drying results can be different from one type of fabric to another.Shake the items before putting them in the appliance. When the programme has ended, immediately remove the items and put them on a hanger.	[2433]
Rafraîchir (Refresh) 1kg Refreshing textiles that were in storage.
Chemises (Shirts)	1,5kg (or 7 shirts)/	Easy care fabrics for which a minimum of ironing is necessary. The drying results can be different from one type of fabric to the other.Shake the items before you put them in the appliance. When the programme is completed, Immediately remove the items and put them on a hanger.	[CRWX]
Couette (Duvet) 3 kg		Single or double duvets and pillows (with feather, down or synthetic fillings).
Draps (Bedlinen) 3kg		Bed linen such as single and double sheets, pillowcases, duvet cover.	[10ZY]
Sports (Sports) 2 kg		Sportswear, thin and light fabrics, microfiber, polyester.
Denim (Denim) 4 kg		Leisure clothing such as jeans, sweat-shirts of different material thicknesses (e.g. at the neck, cuffs and seams).
Mixtes (Mixed) 3kg		Cotton and synthetic fabrics. Low temperature programme. Delicate programme with warm air.

1) The maximum weight refers to dry items.
2) For fabric mark meaning see chapter HINTS AND TIPS: Preparing the laundry.
3) The Coton (Cotton) Prêt à Ranger (Cupboard Dry) ECO programme is the "Standard cotton programme" according to Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry.

OPTIONS

Séchage (Dryness Level)

This function helps to increase dryness of the laundry. There are 3 options:

With this option you can set a delicate drying programme that has a low temperature. Use this option with a fabrics that have the symbol ☐ on the fabric label (e.g. acrylic, viscose).

Extends the anti-crease phase by 60 minutes at the end of the drying cycle.

This function reduces creases. The laundry can be removed during the anti-crease phase.

Minuterie (Time Dry)

You can set the programme duration, from a minimum of 10 minutes to a maximum of 2 hours. The required duration is related to the quantity of laundry in the appliance.

We recommend that you set a short duration for small quantities of laundry or for only one item.

1) Together with the programme you can set 1 or more options. To activate or deactivate them, press the related touch button.
Options table

Programmes1)	Séchage (Dryness Level)			Délicats (Delicates)	Anti-frois-sage (Ex-tra Anti-crease)	Minuterie (Time Dry)
Coton (Cotton)	###	###
	■ ■ ■ ■ ■ ■ ■
Programmes1)	Séchage (Dryness Level)			Délicats (Delicates)	Anti-froissance (Extra Anti-crease)	Minuterie (Time Dry)
Synthétiques (Synthetic)	■ ■	■ ■ ■ ■
Délicats (Delicates)	■ ■ ■
Repassage Facile (Easy Iron)		■ ■ ■
Rafraîchir (Refresh)	■ ■
Chemises (Shirts)	■ ■ ■
Couette (Duvet)	■ ■
Draps (Bedlinen)	■ ■ ■ ■ ■
Sports (Sports)	■ ■
Denim (Denim)	■ ■ ■ ■
Mixtes (Mixed)		■ ■	■ ■

SETTINGS

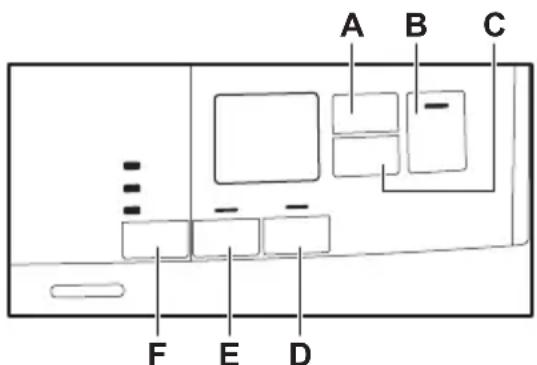

A B C F E D

A. Minuterie (Time Dry) touch button
B. Départ/Pause (Start/Pause) touch button
C. Départ Différé (Delay Start) touch button
D. Anti-froissage (Extra Anticrease) touch button
E. Délicats (Delicates) touch button
F. Séchage (Dryness Level) touch button

Child lock function

This option prevents children playing with the appliance while a programme is operating. The touch buttons are locked.

Only the on/off button is unlocked.

Activating the child lock option:

1. Press the on/off button to activate the appliance.
2. Press and hold touch button (D) for a few seconds.

The child lock indicator comes on.

It is possible to deactivate the child lock option while a programme operates. Press and hold the same touch buttons until the child lock indicator goes off. The Child Lock function isn't available for 8 s after switching on the appliance.

Adjustment of remaining laundry moisture

i Every time you enter in the "Adjustment of remaining laundry moisture" mode, previously set degree of remaining moisture will change into next value (e.g previously set will change into -1-).

To change the default degree of remaining moisture:

1. Press the on/off button to activate the appliance.
2. Use the programme knob to set any programme.
3. Wait approximately 8 seconds.
4. Press and hold buttons (F) and (E) at the same time.

One of these indicators comes on:

• • 0 - the maximum dryness
• the more dry laundry

• the standard dry laundry

• Press and hold buttons (F) and (E) again until the indicator of the correct level comes on.

If the display returns to the normal mode (the time of the selected programme from step 2. will be displayed), while setting the degree of remaining moisture, press and hold buttons (F) and (E) once again to enter to the "Adjustment of remaining laundry moisture" mode (previously set degree of remaining moisture will change into next value).

1. After 5 s the display returns to normal mode.

Water container indicator

By default, the water container indicator is on. It comes on when the programme is completed or when it is necessary to empty the water container.

If a draining kit is installed (additional accessory), the appliance automatically drains the water from the water container. In this case we recommend that you deactivate the indicator of the water container.

Deactivating the water container indicator:

1. Press the on/off button to activate the appliance.
2. Wait approximately 8 seconds.
3. Press and hold touch buttons (E) and (D) at the same time.

The display shows one of these 2 configurations:

• The display shows "Off". After 5 s the display returns to normal mode.
• The display shows "On". After 5 s the display returns to normal mode.

Buzzer on/off

To deactivate or activate the acoustic signals, press and hold for approximately

2 seconds touch buttons (A) and (C) at the same time.

BEFORE FIRST USE

Rear drum packaging is removed automatically when dryer is activated for the first time. Possible to hear some noise.

Before you use the appliance for the first time:

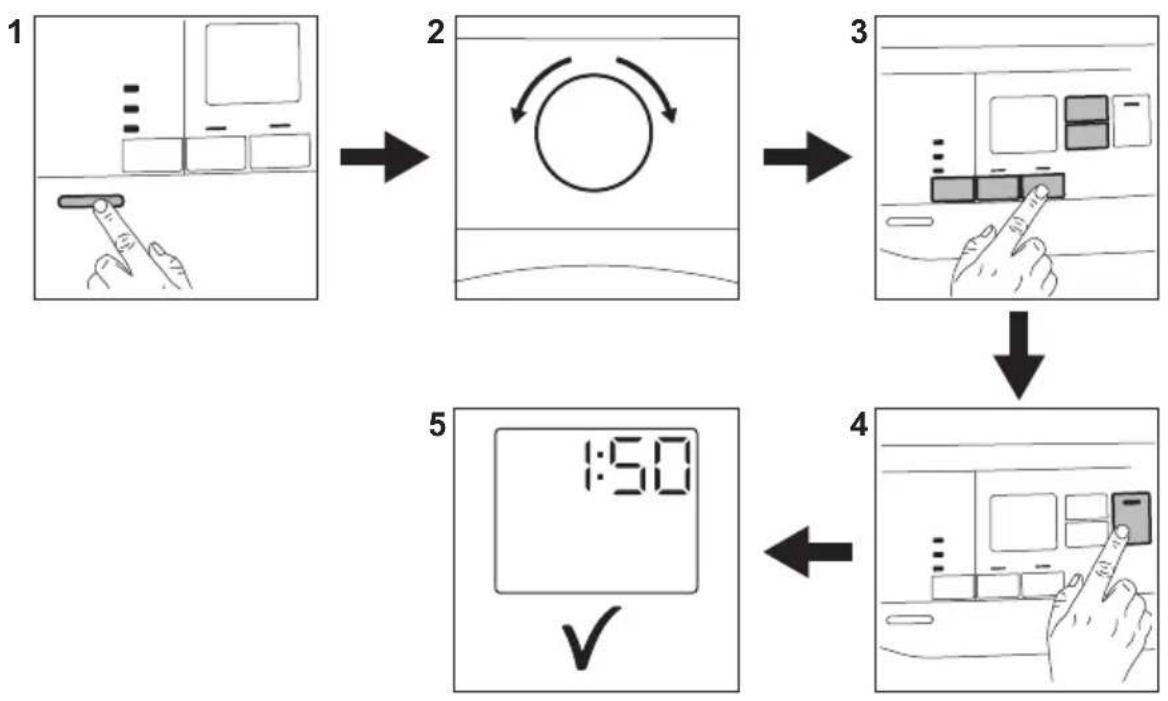

DAILY USE

Start a programme without delay start

1. Prepare the laundry and load the appliance.

CAUTION! Make sure that when you close the door, the laundry does not get caught between the appliance door and the rubber seal.

1. Press the on/off button to activate the appliance.
2. Set the correct programme and options for the type of load.

The display shows the programme duration.

The drying time you see on the display, when the cotton programme is selected, is related to the load of 5 kg and standard conditions. Real drying time will depend on type of the load (quantity and composition), the room temperature and the humidity of your laundry after spin drying phase.

1. Press the Départ/Pause (Start/Pause) touch button.

The programme starts.

• Clean the tumble dryer drum with a moist cloth.
• Start a 1 hour programme with moist laundry.

Starting the programme with delay start

1. Set the correct programme and options for the type of load.
2. Press the delay start button again and again until the display shows the delay time you want to set.

You can delay the start of a programme from a minimum of 1 hour to a maximum of 20 hours.

1. Press the Départ/Pause (Start/Pause) touch button.

The display shows the countdown of the delay start.

When the countdown is completed, the programme starts.

Change a programme

1. Press the on/off button to deactivate appliance
2. Press the on/off button to activate the appliance.
3. Set the programme.

Alternatively:

1. Rotate the selector knob to the "Reset" position.
2. Wait for 1 second. The display shows
3. Set the programme.

At the end of the programme

When the programme is completed:

• An intermittent acoustic signal operates.
  • The display shows 0 : 0 0
  • The indicators Fibre (Filter) and Bac (Tank) comes on.
• The Départ/Pause (Start/Pause) indicator is on.

The appliance continues to operate with the anti-crease phase for approximately 30 minutes or more if Anti-froissage (Extra Anticrease) option was set (see chapter Option - Anti-froissage (Extra Anticrease)).

The anti-crease phase reduces creasing.

You can remove the laundry before the anti-crease phase is completed. We recommend, for better results, that you remove the laundry when the phase is almost completed or completed.

When the anti-crease phase is completed:

• The display still shows
• The indicators Fittre (Filter) and Bac (Tank) comes on.

HINTS AND TIPS

Preparing the laundry

• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g. apron ribbons). Tie them before you start a programme.
• Remove all items from pockets.
• Turn items with the internal layer made of cotton inside out. Cotton layer must be faced outwards.
  • Always set the programme suitable for the type of laundry.

• Do not put light and dark colours together.

• Départ/Pause (Start/Pause) indicator goes off.

• Press the on/off button to deactivate the appliance.
• Open the appliance door.
• Remove the laundry.
• Close the appliance door.

Always clean the filter and empty the water container when a programme is completed.

Stand-by function

To reduce energy consumption, this function automatically deactivates the appliance:

• After 5 minutes if you do not start the programme.
• After 5 minutes from the end of the programme.

The time is reduced to 30 seconds if the selector knob is pointing to "Reset" position.

• Use suitable programme for cottons, jersey and knitwear to reduce shrinkage.
• Do not exceed the maximum load stated in the programmes chapter or shown on the display.
• Dry only the laundry that is suitable for tumble drying. Refer to the fabric label on the items.
• Do not dry large and small items together. Small items can be trapped inside the large items and remain wet.

Fabric label Description
	Laundry is suitable for tumble drying.
	Laundry is suitable for tumble drying at higher temperatures.
	Laundry is suitable for tumble drying at low temperatures only.
	Laundry is not suitable for tumble drying.

CARE AND CLEANING

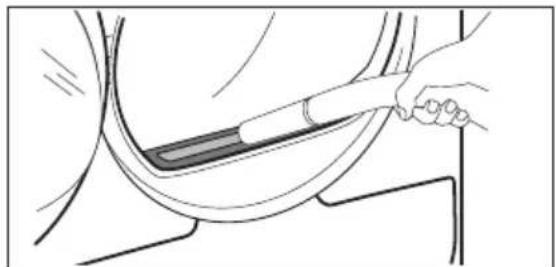

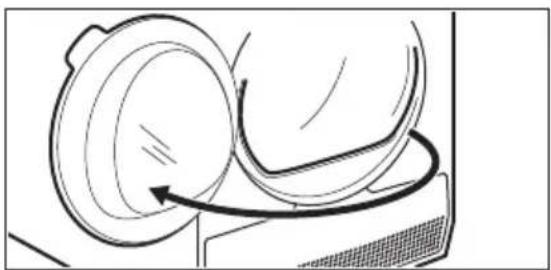

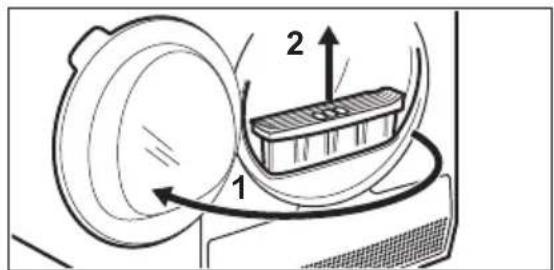

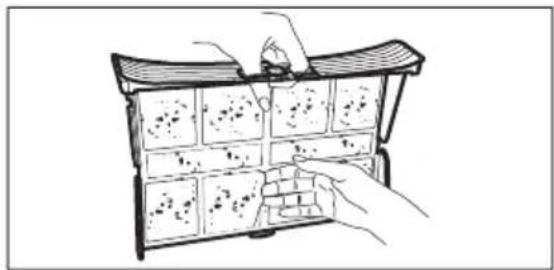

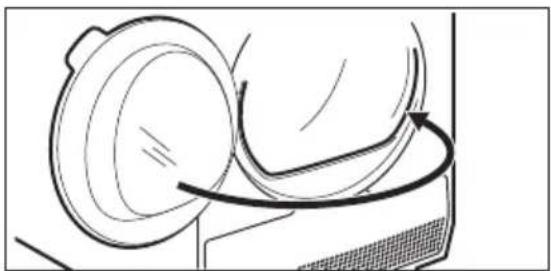

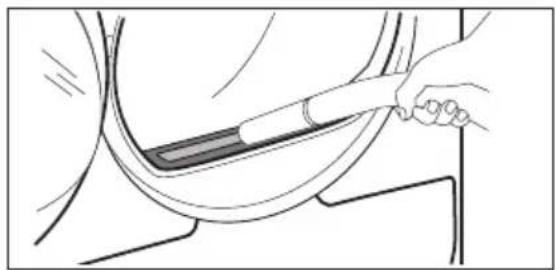

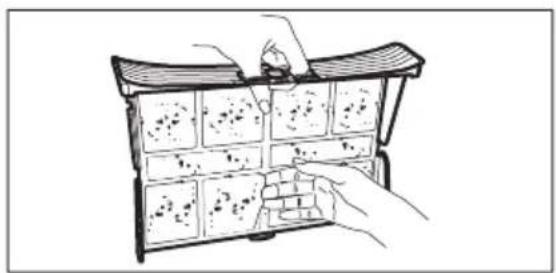

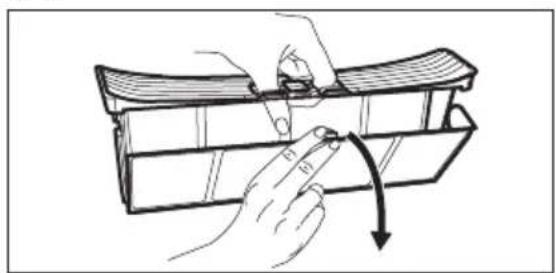

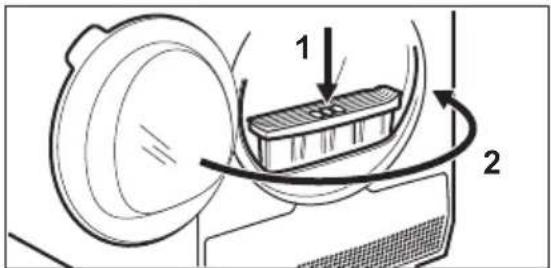

Cleaning the filter

1.2.

Line drawing of a device with a circular inset showing a grid pattern (no text or symbols)

3.4.

Diagram showing a device with labeled parts 1 and 2, indicating directional movement or assembly.

Illustration of a hand holding a small object inside a wooden frame, with an arrow indicating rotation (no text or symbols)

1. 1)

Illustration of hands holding a grid-based object with scattered particles, no text or symbols present

6.

Line drawing of a hand holding a tool interacting with a car wheel (no text or symbols)

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrows indicating motion or flow.

1) If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner.

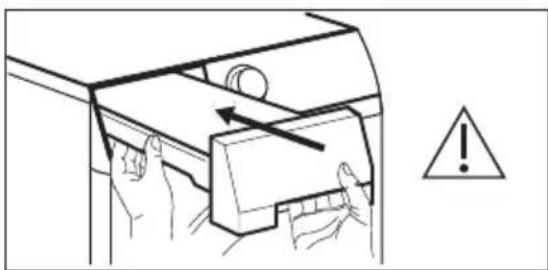

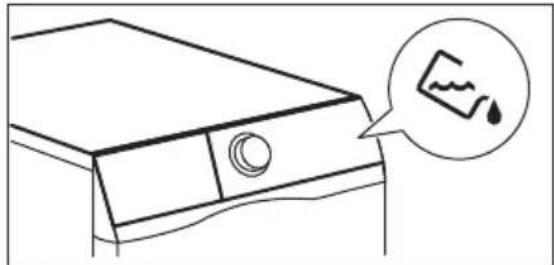

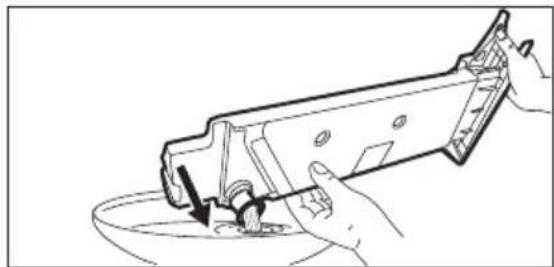

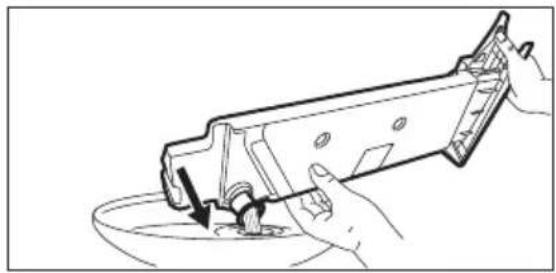

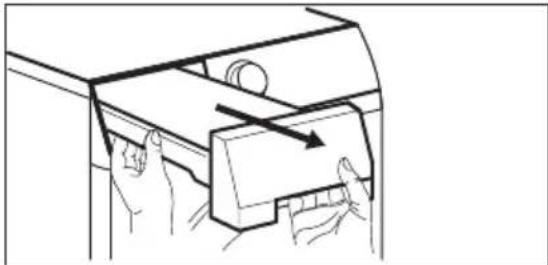

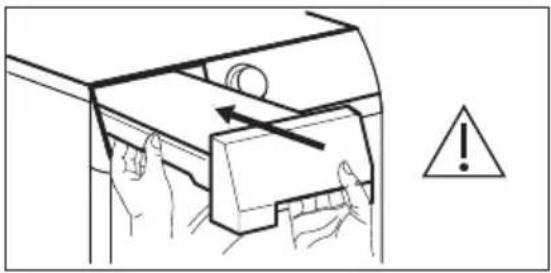

Emptying the water container

1.2.

Line drawing of a washing machine with a speech bubble showing a water drop symbol (no text or labels)

3.4.

Line drawing of a mechanical device with hands operating a component (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an exclamation mark (no text or symbols present)

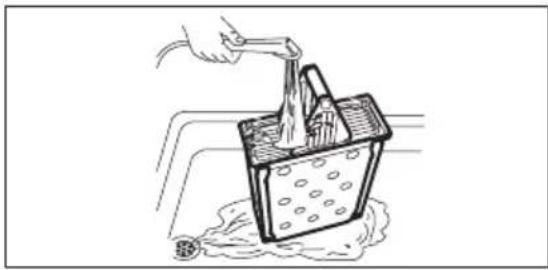

Line drawing of hands using a tool to clean or prepare a bowl (no text or symbols present)

You can use the water from the water container as an alternative to distilled water (e.g. for steam ironing). Before you use the water, remove dirt residues with a filter.

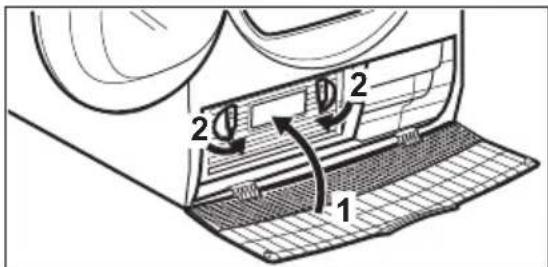

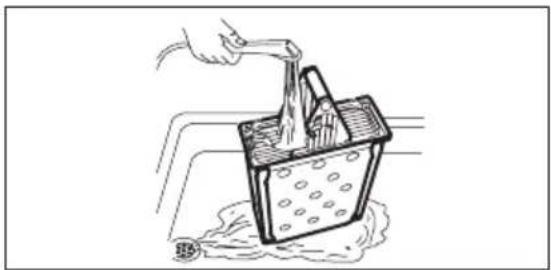

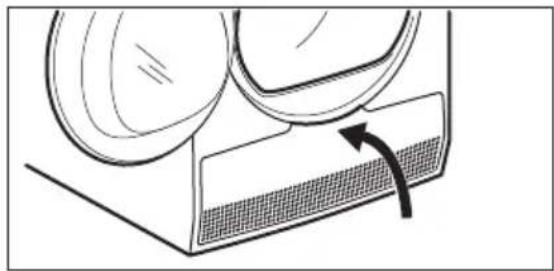

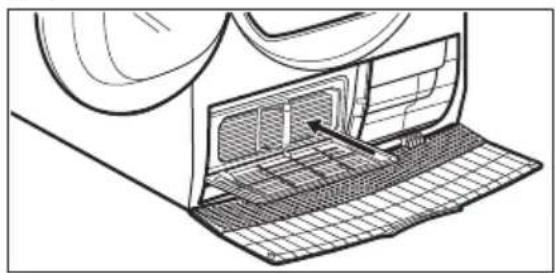

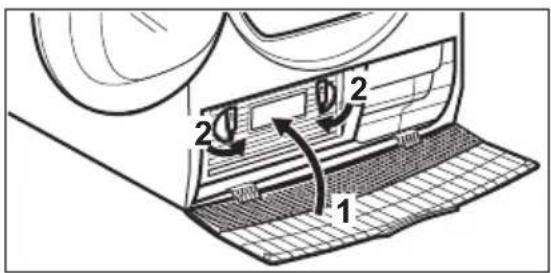

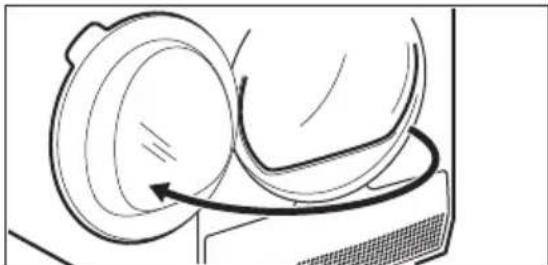

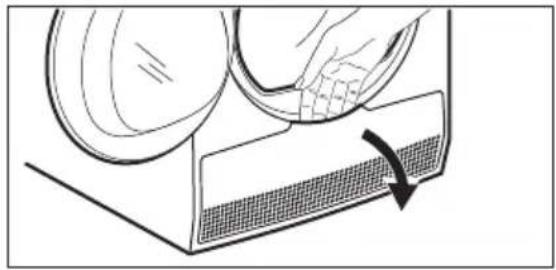

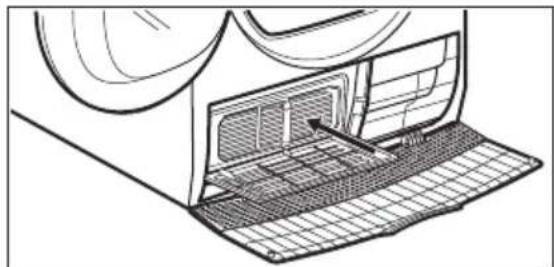

Cleaning the Heat Exchanger

1.2.

Line drawing of a front panel with a circular arrow and arrow symbol (no text or labels)

3.4.

Line drawing of a mechanical component with a curved arrow indicating motion (no text or symbols)

1 2

5.6.

Technical line drawing of a mechanical component with internal grid structure (no text or symbols)

7.8.

Diagram of a refrigerator interior showing ventilation grilles and airflow direction (no text or symbols)

1. 10.

Diagram of a container with two circular containers and a textured base, showing an arrow indicating rotation (no text or symbols present)

Cleaning the drum

WARNING! Disconnect the appliance before you clean it.

Use a standard neutral soap detergent to clean the inner surface of the drum and drum lifters. Dry the cleaned surfaces with a soft cloth.

CAUTION! Do not use abrasive materials or steel wool to clean the drum.

Cleaning the control panel and housing

Use a standard neutral soap detergent to clean the control panel and housing.

Illustration of a hand using a tool to lift a container with liquid, partially submerged in water (no text or symbols)

Technical diagram showing a mechanical component with labeled parts 1, 2, and directional arrows indicating motion or flow.

Line drawing of a mechanical component with a curved arrow indicating motion or force (no text or symbols)

Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth.

CAUTION! Do not use furniture cleaning agents or cleaning agents which can cause corrosion.

Cleaning the airflow slots

Use a vacuum cleaner to remove fluff from the airflow slots.

TROUBLESHOOTING

Problem Possible solution
You cannot activate the appliance. Make sure that the mains plug is connected to the mains socket.
Check fuse in fuse box (domestic installation).
The programme does not start. Press Départ/Pause (Start/Pause).
Make sure that the appliance door is closed.
The appliance door does not close. Make sure that the installation of the filter is correct.
Make sure that the laundry is not caught between the appliance door and the rubber seal.
The appliance stops during operation. Make sure that the water container is empty.
Load is too small, increase the load or use the Minuterie (Time Drying) programme.
The cycle time is too long or unsatisfactory drying result.1)	Make sure that the weight of the laundry is suitable for the duration of the programme.
Make sure that the filter is clean.
The laundry is too wet. Spin the laundry in the washing machine again.
Ensure that the room temperature is higher than +5°C and lower than +35°C. Optimal room temperature is 19°C to 24°C.
Set the Minuterie (Time Drying) or the Très Sec (Extra Dry) programme.2)
The display shows — — —	If you want to set a new programme, deactivate and activate the appliance.
Make sure that the options are suitable for the programme.
The display shows Error code (e.g. E51). Deactivate and activate the appliance. Start a new programme. If the problem occurs again, contact the Service centre.

1) After maximum 5 hours, the programme ends automatically.
2) It can happen that some area remains humid when drying big items (e.g. bed sheets).

If the drying results are not satisfactory

• The set programme was incorrect.
• The filter is clogged.
  • The Heat Exchanger is clogged.
• There was too much laundry in the appliance.

• The drum is dirty.

• Incorrect setting of the conductivity sensor (See chapter "Settings - Adjustment of the remaining laundry moisture degree" for better setting).

• The airflow slots are clogged.
• Room temperature is too low or too high ( optimal room temperature 19^ to 24^ )

1) With reference to EN 61121. 8 kg of cotton centrifuged at 1000 rpm.
2) With reference to EN 61121. 4 kg of cotton centrifuged at 1000 rpm.
3) Energy consumption per year in kWh, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used (REGULATION (EU) No. 392/2012).
TECHNICAL DATA

Height x Width x Depth 850 x 600 x 630 mm (maximal 665 mm)
Max. depth with the appliance door open 1100 mm
Max. width with the appliance door open 950 mm
Adjustable height 850 mm (+ 15 mm - feet regulation)
Drum volume 118 l
Maximum load volume 8 kg
Voltage 220-240 V
Frequency 50 Hz
Sound power level 65 dB
Total power 2800 W
Energy efficiency class B
Energy consumption on the standard cotton programme with the full load. 1)	4,81 kWh
Energy consumption on the standard cotton programme with the partial load. 2)	2,52 kWh
Annual energy consumption3)	560,5 kWh
Left-on mode power absorption 0,05 W
Off mode power absorption 0,05 W
Type of use Household
Allowed ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture	IPX4

Consumption data

Programme Spun at / residual humidity		Drying time1)	Energy consumption2)
Coton (Cotton) Eco 8 kg
Prêt à Ranger (Cup-board Dry)	1400 rpm / 50% 120 min. 4,10 kWh
1000 rpm / 60% 139 min. 4,81 kWh
Prêt à repasser (Iron Dry)	1400 rpm / 50% 93 min. 3,11 kWh
1000 rpm / 60% 110 min. 3,81 kWh
Coton (Cotton) Eco 4 kg
Prêt à Ranger (Cup-board Dry)	1400 rpm / 50% 69 min. 2,18 kWh
1000 rpm / 60% 79 min. 2,52 kWh
Synthétiques (Synthetic) 3,5 kg
Prêt à Ranger (Cup-board Dry)	1200 rpm / 40% 52 min. 1,56 kWh
800 rpm / 50% 68 min. 1,88 kWh

1) For partial loads, the cycle time is shorter and appliance uses less energy.
2) Improper ambient temperature and/or poorly centrifuged laundry can prolong cycle time and increase the energy consumption.

Daily use

1. Push the On/Off button to turn on the appliance.
2. Use the programme dial to set the programme.
3. Together with the programme you can set 1 or more special options. To

activate or deactivate an option touch the relevant button.

1. To start the programme, Touch the Start/Pause button.
2. The appliance starts.

Cleaning the filter

1

Diagram of a mechanical device with a lid and lever mechanism, showing motion direction (no text or symbols)

2

Hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

3

Illustration of a hand holding a tray with a grid of small objects, no text or symbols present

At the end of each cycle the filter symbol

appears on the display and you must clean the filter.

Programme table

Programme	Load 1)	Properties / Fabric type2)
3) Coton (Cotton) Eco	8 kg	Cycle to be used to dry cotton with "cotton cupboard" dryness level, with maximum energy saving.
n (Cotton) 8 kg		Cycle defined to dry all types of cotton ready to store (cupboard dry).
métiques (Synthetic) 3,5 kg Synthetic and mixed fabrics.
ats (Delicates) 4 kg		Delicate fabrics such as viscose, rayon, acrylic, and their blends.
ssage Facile (Easy Iron)	1 kg (or 5 shirts)	Easy care fabrics for which a minimum of ironing is necessary. The drying results can be different from one type of fabric to another.Shake the items before putting them in the appliance. When the programme has ended, immediately remove the items and put them on a hanger.	[DBHW]
l'chir (Refresh) 1kg Refreshing textiles that were in storage.
nises (Shirts)	1,5kg (or 7 shirts)/	Easy care fabrics for which a minimum of ironing is necessary. The drying results can be different from one type of fabric to the other.Shake the items before you put them in the appliance. When the programme is completed, Immediately remove the items and put them on a hanger.
tte (Duvet) 3 kg		Single or double duvets and pillows (with feather, down or synthetic fil- lings).
s (Bedlinen) 3kg		Bed linen such as single and dou-ble sheets, pillowcases, duvet cov-er.
s (Sports) 2 kg		Sportswear, thin and light fabrics, microfiber, polyester.
Denim (Denim) 4 kg		Leisure clothing such as jeans, sweat-shirts of different material thicknesses (e.g. at the neck, cuffs and seams).
Mixtes (Mixed) 3kg		Cotton and synthetic fabrics. Low temperature programme. Delicate programme with warm air.

1) The maximum weight refers to dry items.

2) For fabric mark meaning see chapter HINTS AND TIPS: Preparing the laundry.

3) The Coton (Cotton) Prêt à Ranger (Cupboard Dry) ECO programme is the "Standard cotton programme" according to Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cotton laundry and it is the most efficient programme in terms of energy consumption for drying wet cotton laundry.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol ☒ with the household waste.

Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

Line drawing of a washing machine with a circular grid pattern on the side (no text or symbols)

3.4.

Diagram showing a device with labeled parts 1 and 2, indicating components or functions in a mechanical or electrical assembly.

Line drawing of a hand holding a small object through a mechanical component, with an arrow indicating rotation (no text or symbols)

Illustration of hands placing a grid of small objects into a brick-like container (no text or symbols visible)

1. 1)


Line drawing of a hand holding a tool interacting with a curved mechanical component (no text or symbols)

1.

1 2

Line drawing of a washing machine with a speech bubble showing a water drop symbol (no text or labels)

Diagram of a mechanical device with hands operating a component, showing motion arrows (no text or symbols)

3.4.

Line drawing of hands using a tool to clean or wash a container (no text or symbols present)

Diagram of a hand operating a device with an arrow indicating direction, accompanied by a warning symbol (no text or labels present)

Simple line drawing of a washing machine with a circular speech bubble containing three arrows (no text or symbols)

Line drawing of a mechanical component with a curved arrow indicating motion (no text or symbols)

3.4.

Diagram showing a hand pressing down on a textured surface with an arrow indicating rotation (no text or symbols)

5.6.

Technical line drawing of a mechanical component with internal grid structure and a directional arrow (no text or symbols)

7.8.

Diagram of a refrigerator interior showing the grating and ventilation system (no text or labels)

1. 1.

Diagram of a mechanical component with a textured base and curved arrow indicating rotation (no text or symbols)

Diagram showing airflow or ventilation system with labeled components and directional arrows

Illustration of a hand pouring liquid into a container with bubbles, creating a splash (no text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or flow.

Line drawing of a mechanical component with a curved arrow indicating motion (no text or symbols)

Diagram of a mechanical device with a rotating component and a rectangular block inside, showing motion direction (no text or symbols)

2

Hand holding a curved object with an arrow indicating rotation or movement (no text or symbols)

3

Illustration of hands holding a grid-like object with no visible text or symbols
