USER MANUAL AW6F3844BB ARTHUR MARTIN

EN Washing Machine User Manual 2

Safety instructions 3

Installation 5

Accessories 8

Product description 10

Control panel 10

Dial and buttons 12

Programmes 15

Settings 19

Before first use 20

Daily use 20

Hints and tips 24

Care and cleaning 25

Troubleshooting 29

Consumption values 32

Technical Data 33

Subject to change without notice.

SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away unless continuously supervised.
• Children of less than 3 years of age should be kept away unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• If the appliance has a child safety device, it should be activated.

- Children shall not carry out cleaning and user maintenance of the appliance without supervision.

General Safety

• Do not change the specification of this appliance.
• Do not exceed the maximum load of 8 kg (refer to the "Programme chart" chapter).
• The operating water pressure at the water entry point from the outlet connection must be between 0.5 bar (0.05 MPa) and 8 bar (0.8 MPa).
• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.
• The appliance must be connected to the water mains using the new supplied hose sets, or other new hose sets supplied by the Authorised Service Centre.
• Old hose sets must not be reused.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.
• Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.
• Do not use high pressure water sprays and/or steam to clean the appliance.
• Clean the appliance with a moist cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

SAFETY INSTRUCTIONS

Installation

The installation must comply with relevant national regulations.

• Remove all the packaging and the transit bolts including rubber bush with plastic spacer.
• Keep the transit bolts in a safe place. If the appliance is to be moved in the

future they must be reattached to lock the drum to prevent an internal damage.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
- Do not install or use a damaged appliance.
- Follow the installation instructions supplied with the appliance.

• Do not install or use the appliance where the temperature can be less than 0^ or where it is exposed to the weather.
• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.
• Make sure that there is air circulation between the appliance and the floor.
• Do not install the appliance directly above a floor drain.
• Adjust the feet to have the necessary space between the appliance and the flooring.
• Do not install the appliance where the appliance door cannot be fully opened.
• Do not put a container to collect possible water leakage under the appliance. Contact the Authorised Service Centre to ensure which accessories can be used.

Electrical connection

WARNING! Risk of fire and electric shock.

• The appliance must be earthed.

• Always use a correctly installed shockproof socket.

- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

- Do not use multi-plug adapters and extension cables.

- Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.

- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

- Do not touch the mains cable or the mains plug with wet hands.

- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

- This appliance complies with the E.E.C. Directives.

Water connection

• Do not cause damage to the water hoses.
• Before connection to new pipes, pipes not used for a long time, where repair work has been carried out or new devices fitted (water meters, etc.), let the water flow until it is clean and clear.
• Ensure that there are no visible water leaks during and after the first use of the appliance.
• Do not use an extension hose if the inlet hose is too short. Contact the service centre for the replacement of the inlet hose.
• You can extend the drain hose to maximum 400 cm. Contact the service centre for the other drain hose and the extension.

Use

WARNING! Risk of injury, electric shock, fire, burns or damage to the appliance.

• This appliance is for household use only.
• Follow the safety instructions on the detergent packaging.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Make sure that all metal objects are removed from the laundry.
• Do not wash fabrics which are heavily soiled with oil, grease or other greasy substances. It can damage rubber parts of the washing machine. Prewash such fabrics by hand before loading them into the washing machine.
• Do not touch the glass door while a programme is in operation. The glass can get hot.

Service

• To repair the appliance contact an Authorised Service Centre.

- Use original spare parts only.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains electrical and water supplies.

• Cut off the mains electrical cable close to the appliance and dispose of it.

• Remove the door catch to prevent children or pets from becoming trapped in the drum.

• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

INSTALLATION

WARNING! Refer to Safety chapters.

Unpacking

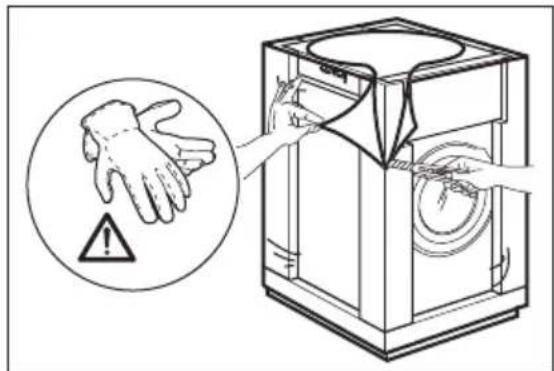

1. Remove the external film. If necessary, use a cutter.

Diagram illustrating hand protection and safety warning, showing hand gesture and warning symbol with Chinese text labels

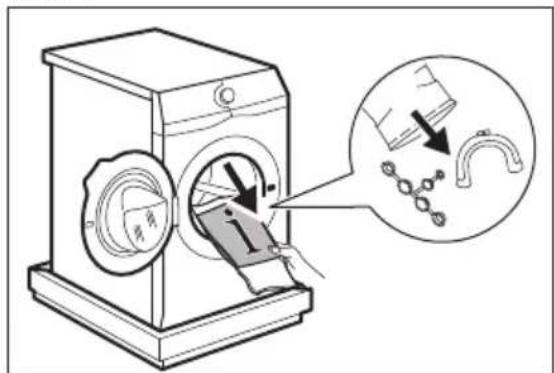

1. Open the door. Remove all the items from the drum.

Diagram illustrating a washing machine operation with labeled parts and a magnified view showing hand positioning and fabric swatches.

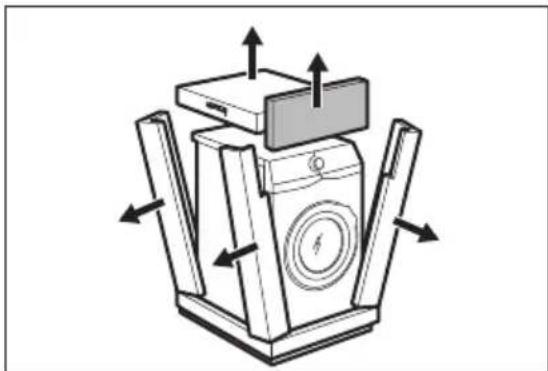

1. Remove the cardboard top and the polystyrene packaging materials.

Diagram of a washing machine with directional arrows indicating motion or force (no text or symbols)

1. Put the front polystyrene packaging element on the floor under the appliance. Carefully put down the appliance onto its rear side.

Line drawing of a hand placing a circular component into a washing machine, with an arrow indicating rotation (no text or symbols)

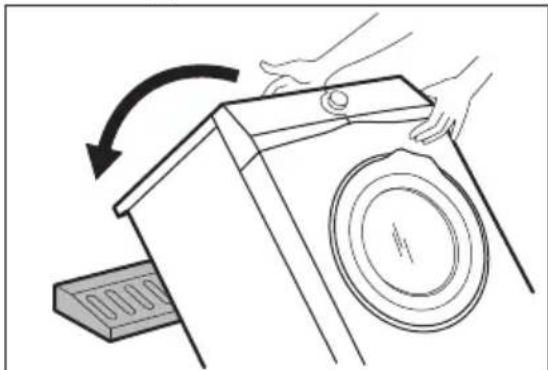

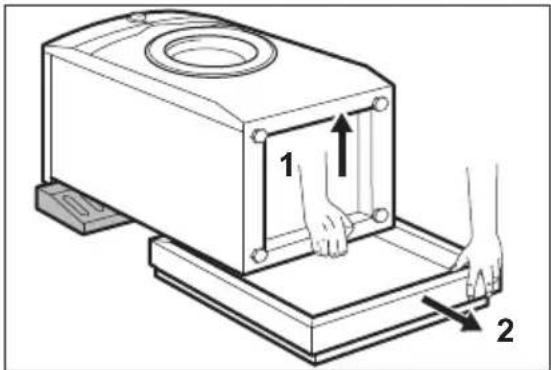

1. Remove the polystyrene protection from the bottom. Put the appliance back into an upright position.

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating movement or force.

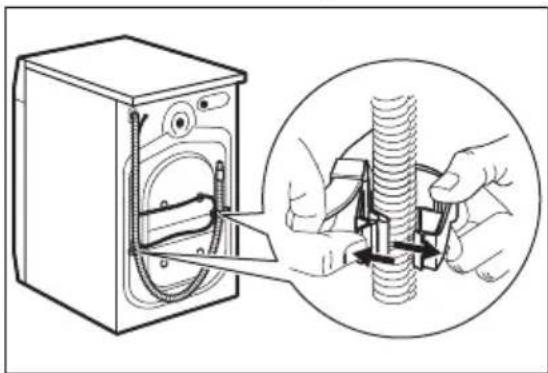

1. Remove the power supply cable and the drain hose from the hose holders.

It is possible to see water flowing from the drain hose. This is because the washing machine has been tested at the factory.

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

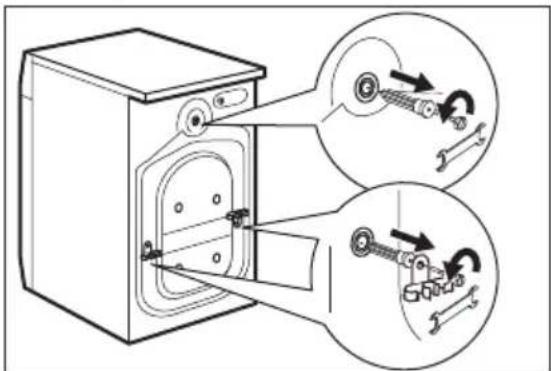

1. Remove the three transit bolts and pull out the plastic spacers.

Diagram showing a washing machine with two close-up insets illustrating the internal components of the device.

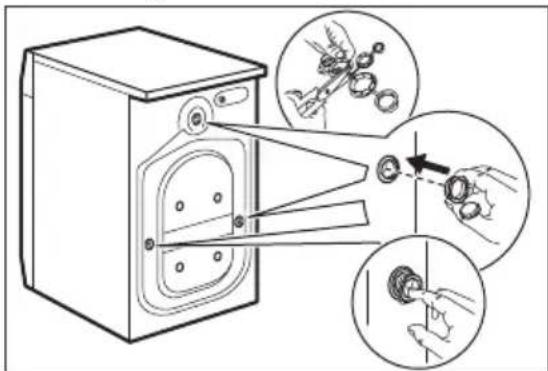

1. Put the plastic caps, that you find in the user manual bag, in the holes.

Diagram illustrating the process of hairpin cutting into a washing machine, with magnified insets showing tool positioning and cutting steps.

We recommend that you keep the packaging and the transit bolts for any transport of the appliance.

Information for installation

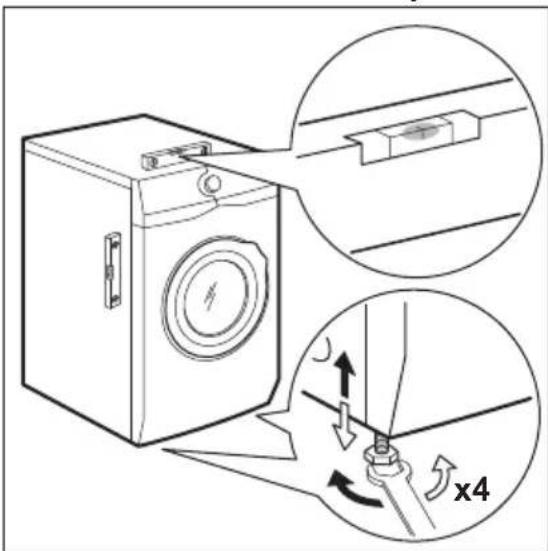

1. Positioning and levelling

Correctly adjusting the appliance so that it is level prevents vibration, noise and movement of the appliance when in operation.

1. Install the appliance on a flat hard floor. The appliance must be levelled and stable. Make sure that the appliance does not touch the wall or other units and there is air circulation below the appliance.

2. Loosen or tighten the feet to adjust the level. All feet must rest firmly on the floor.

Diagram showing a washing machine with labeled parts and a magnified view of the component being adjusted for four times.

WARNING! Do not put cardboard, wood or equivalent materials below the appliance feet to adjust the level.

2. The inlet hose

CAUTION! Make sure there is no damage to hoses and there are no leaks from the couplings. Do not use an extension hose if the inlet hose is too short. Contact the service centre for a replacement inlet hose.

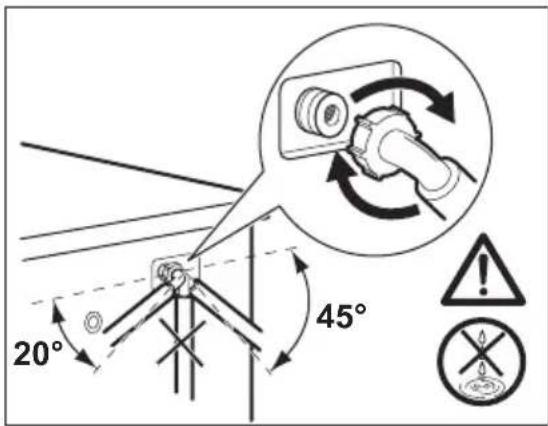

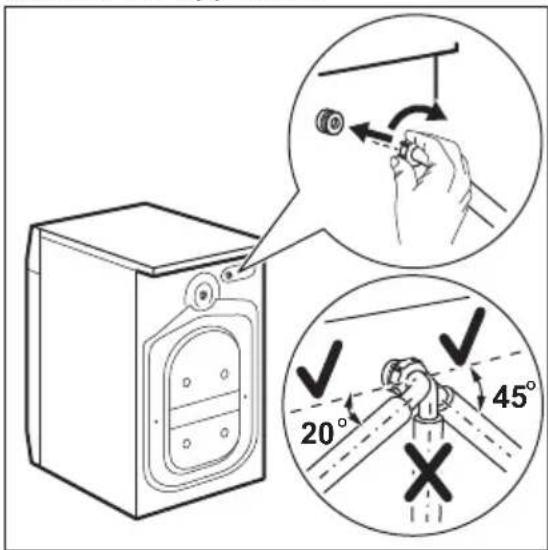

1. Connect the water inlet hose to the back of the appliance.

Diagram illustrating washing machine operation with angle annotations and hand gesture instructions

1. Position it toward left or right depending on the positon of the water tap. Make sure that the inlet hose is not in vertical position.

2. If necessary, loosen the ring nut to set it in the correct position.

3. Connect the water inlet hose to the cold water tap with 3/4" thread.

3. Water drainage

The drain hose should stay at a height of no less than 60 cm and not more than 100 cm.

You can extend the drain hose to maximum 400 cm. Contact the authorised service centre for the other drain hose and the extension.

It is possible to connect the drain hose in different ways:

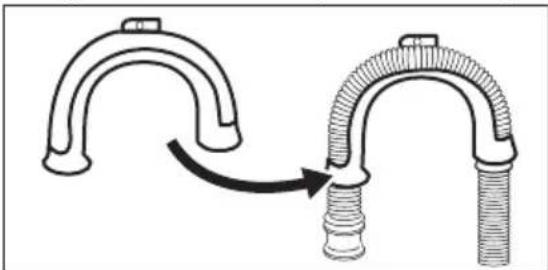

1. Make a U shape with the drain hose and put it around the plastic hose guide.

Diagram showing two curved pipe fittings with a central connector, connected by an arrow indicating rotation (no text or symbols present)

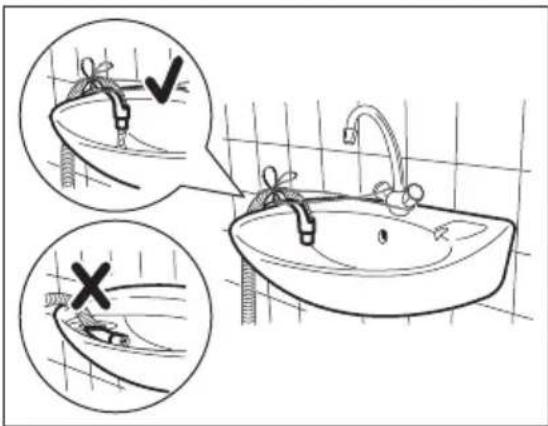

1. On the edge of a sink - Fasten the guide to the water tap or to the wall.

Diagram illustrating bathroom sink behavior with check and incorrect actions, showing water level inspection

Make sure that the plastic guide cannot move when the appliance drains and the drain hose end is not immersed in the water. There may be a return of dirty water into the appliance.

1. If the end of the drain hose looks like this (see the picture), you can push it directly into the stand pipe.

Line drawing of a hand holding a bent tube inserted into a cylindrical component (no text or symbols)

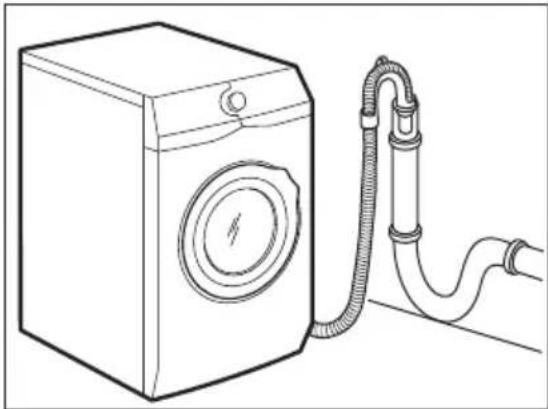

1. To a stand pipe with vent-hole - Insert the drain hose directly into a drain pipe.

Refer to the illustration.

Line drawing of a washing machine connected to a hose (no text or symbols)

i

The end of the drain hose must always be ventilated, i.e. the inner diameter of the drain pipe (min. 38 mm - min. 1.5") must be larger than the external diameter of the drain hose.

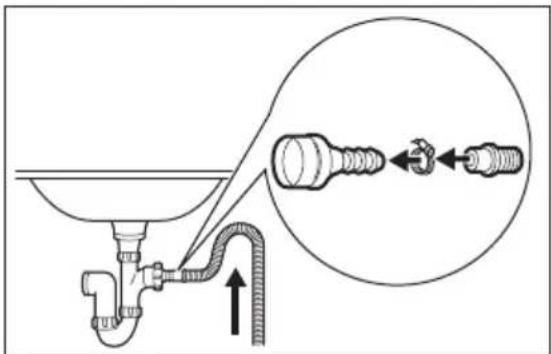

1. Without the plastic hose guide, to a sink spigot- Put the drain hose in the spigot and tighten it with a clamp. Refer to the illustration.

Diagram showing a pipe connection to a sink with a magnified inset illustrating the connector mechanism.

ACCESSORIES

Fixing plate kit (4055171146)

Available from your authorised dealer. If you install the appliance on a plinth, secure the appliance in the fixing plates.

Read carefully the instructions supplied with the accessory.

Make sure that the drain hose makes a loop to prevent particles going into the appliance from the sink.

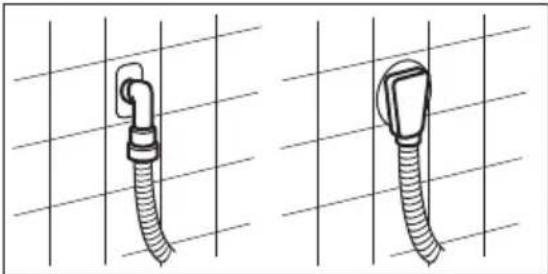

1. Position the hose directly to a built-in drain pipe in the room wall and tighten it with a clamp.

Two handbags with coiled tubing against a grid background (no text or symbols)

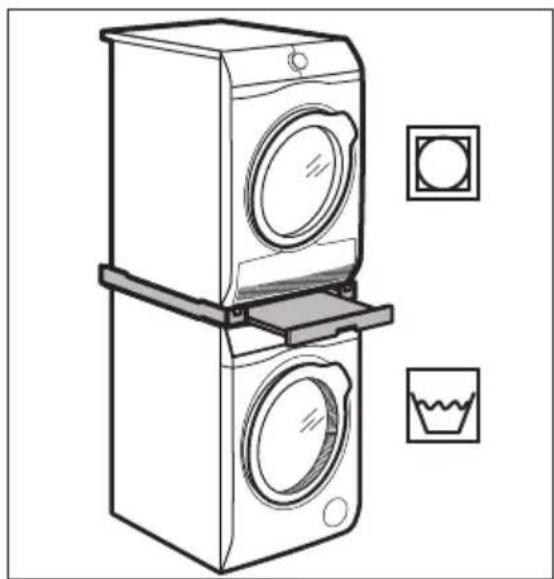

Stacking kit

Line drawing of a two-tier washing machine with front-mounted dish and side-mounted sink, accompanied by icons for laundry (no text or symbols)

The tumble dryer can be stacked on the top of the washing machine only by using the correct stacking kit manufactured and approved by ELECTROLUX.

Verify the compatible stacking kit by checking the depth of your appliances.

The stacking kit can be used only with the appliances specified in the leaflet provided with the accessory.

Read carefully the instructions supplied with the appliance and with the accessory.

WARNING! Do not put the tumble dryer under the washing machine.

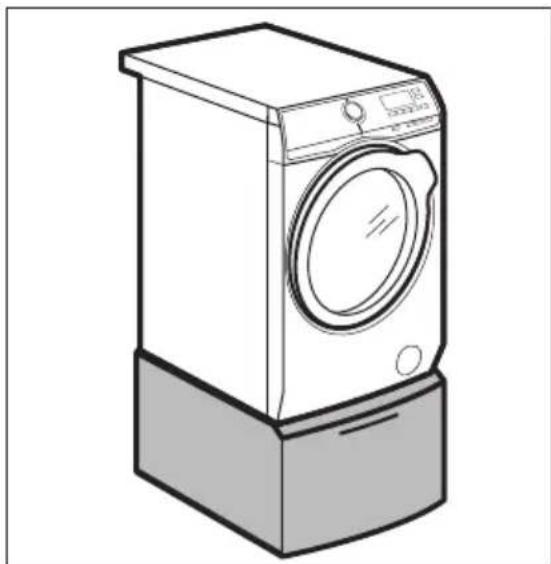

Pedestal with the drawer

Line drawing of a single washing machine with front panel and side legs (no text or symbols)

To raise your appliance and make loading and unloading laundry easier.

The drawer can be used for laundry storage e.g.: towels, cleaning products and more.

Read carefully the instructions supplied with the accessory.

Available in www.electrolux.com/shop or from authorised dealer

Only appropriate accessories approved by ELECTROLUX ensure the safety standards of the appliance. If unapproved parts are used, any claims will be invalidated.

PRODUCT DESCRIPTION

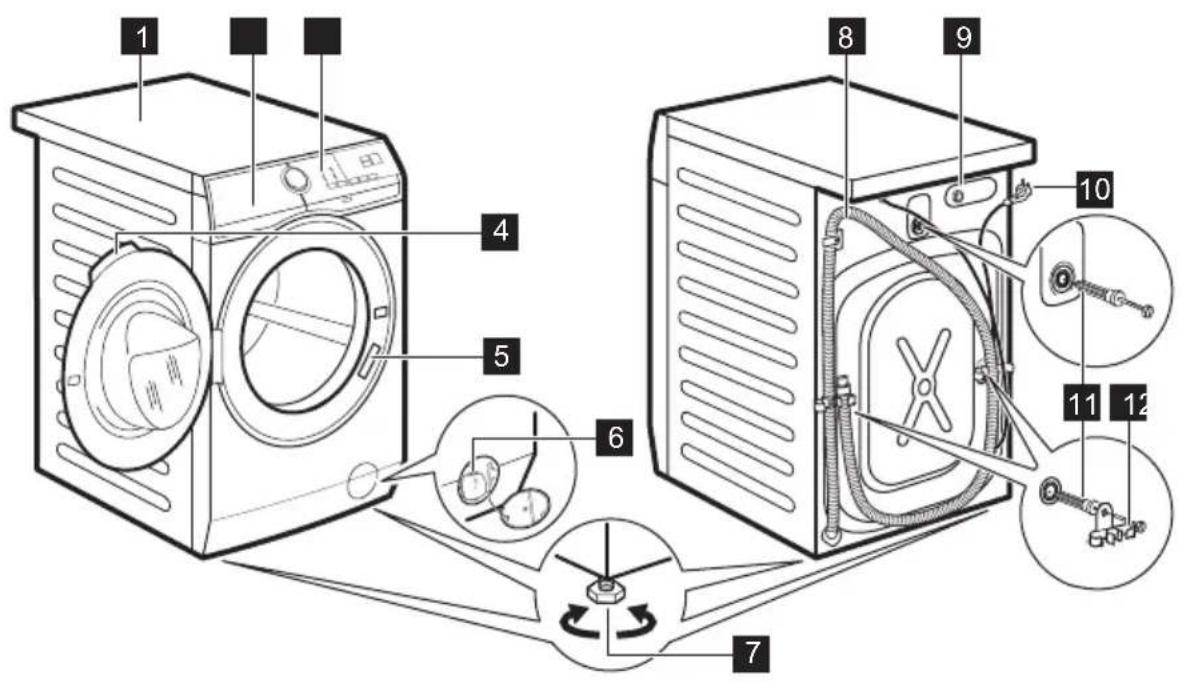

Appliance overview

Diagram of a washing machine with numbered parts for identification and assembly reference.

1 Worktop
2 Detergent dispenser
3 Control panel
4 Door handle
5 Rating plate
6 Drain pump filter
7 Feet for levelling the appliance

8 Drain hose
9 Inlet hose connection
10 Mains cable
11 Transit bolts
12 Hose support

CONTROL PANEL

Special features

Your new washing machine meets all modern requirements for an effective treatment of laundry with low water, energy and detergent consumption and will care for fabrics.

- The SensiCare System automatically adjusts the programme duration to the laundry in the drum to achieve perfect washing results in the minimum possible time.

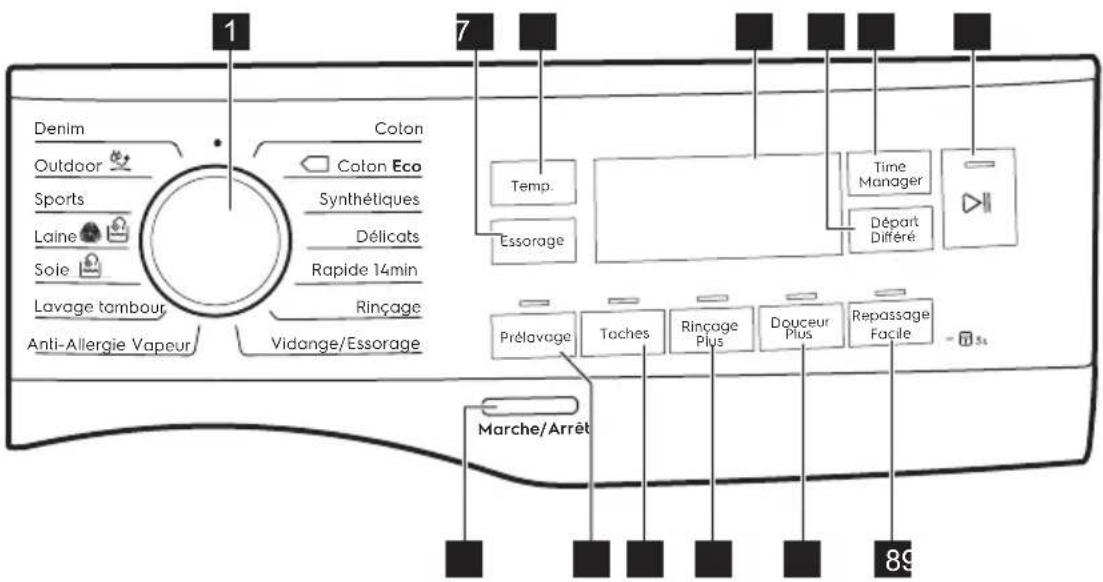

Control panel description

88° 88* 1888 8:88 9:88 MAX 88.8 kg

88--+	The Temperature area:Temperature indicatorCold water indicator
	Child safety lock indicator.
	Delay start indicator.
	Door locked indicator.
	The digital indicator can show:Programme duration (e.g.)240Delay time (e.g.)2hCycle end ().000Warning code (e.g.).E20

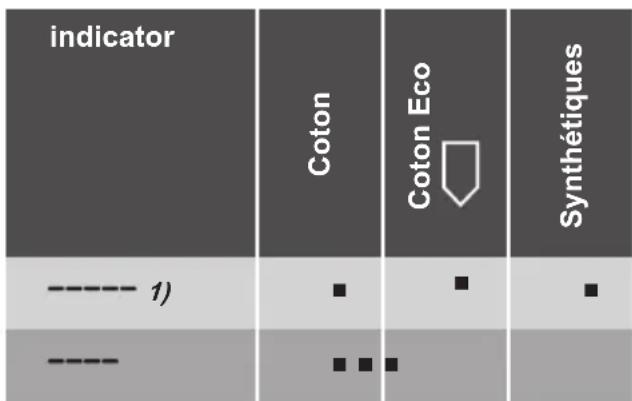

----	Time Manager bars level indicator.
88.8.	Maximum laundry weight indicator.
	Add garments indicator. Lights on during the beginning of the Wash phase, while the user can still pause the appliance and add more laundry.
	Drum clean indicator.
	Night indicator.
	Rinse Hold indicator.
1888---	The spin area:Spin speed indicatorNo Spin indicator. Spin phase is off.

DIAL AND BUTTONS

Introduction

The options/functions are not available with all washing programmes. Check the compatibility between options/functions and washing programmes in the "Programme Chart". An option/function can exclude another one, in this case the appliance doesn't allow you to set incompatible options/functions.

Marche/Arrêt

Press this button for a few seconds to activate or deactivate the appliance. Two different tunes sound while switching the appliance on or off.

As the Stand-by function automatically deactivates the appliance after several minutes to reduce the energy consumption, you may need to activate the appliance again.

For more details, refer to Stand-by paragraph in Daily Use chapter.

Temp.

When you select a washing programme, the appliance automatically proposes a default temperature.

Touch this button repeatedly until the desired temperature value appears on the display.

When the display shows the indicators _— , the appliance does not heat the water.

Essorage

When you set a programme, the appliance automatically sets the maximum spin speed allowed, except for programme Denim. With this option you can change the default spin speed.

Touch this button repeatedly to:

• Decrease the spin speed. The display shows only the spin speeds available for the set programme.
• Activate the No Spin option. Set this option to deactivate all spin phases. The appliance performs the only draining phase of the selected washing programme. Set this option for very delicate fabrics. The rinse phase uses more water for some washing programmes. The display shows the indicator - - -

- Activate the Rinse Hold option. The final spin is not performed. The water of the last rinse is not drained out to prevent the fabrics from creasing. The washing programme ends with water in the drum.

The display shows the indicator ☐ The door stays locked and the drum turns regularly to reduce creasing. You must drain the water to unlock the door. At the end of the programme, touch the Départ/Pause button: the appliance performs the spinning phase and drains the water.

The appliance empties the water out automatically after 18 hours approximately.

- Activate the Night option.

The intermediate and the final spinning phases are suppressed and the programme ends with water in the drum. This helps to reduce creasing.

The display shows the indicator ↓ The door stays locked. The drum turns regularly to reduce creasing. You must drain the water to unlock the door. As the programme is very quiet, it is suitable for use at night time when cheaper electricity tariffs are available. In some programmes the rinses are performed with more water.

At the end of the programme, touch the Départ/Pause button: the appliance performs the only draining phase.

The appliance empties the water out automatically after 18 hours approximately.

Prélavage

With this option you can add a prewash phase to a washing programme.

The corresponding indicator above the touch button illuminates.

• Use this option to add a pre-wash phase at 30 °C before the washing phase.
  This option is recommended for heavily soiled laundry, especially if containing sand, dust, mud and other solid particles.

The options can increase the programme duration.

Taches

Touch this button to add the stain phase to a programme.

The corresponding indicator above the touch button illuminates.

Use this option for laundry with hard stains to remove.

When you set this option, put the stain remover into compartment ☐.

This option increases the programme duration.

This option is not available with a temperature lower than 40 °C.

Permanent Rinçage Plus

With this option you can add a few rinses according to the selected washing programme.

Use this option for people with allergies to detergent residues and with sensitive skin.

This option increases the programme duration.

The corresponding indicator above the touch button illuminates and also stays permanently on during next cycles until this option is deactivated.

Set this option to optimise the fabric softener distribution and improve fabric softness.

Recommended when you use fabric softener.

This option increases the programme duration.

The corresponding indicator above the touch button illuminates and also stays permanently on during next cycles until this option is deactivated.

Repassage Facile

The appliance carefully washes and spins the laundry to prevent the creases.

The appliance decreases the spin speed, uses more water and adapts the programme duration to the type of laundry.

The related indicator comes on.

Départ Différé

With this option you can delay the start of a programme to a more convenient time.

Touch the button repeatedly to set the required delay. The time increases in steps of 1 hour up to 20 hours.

After touching the Départ/Pause ▷|| button, the display shows the indicator ⏻ and the selected delay time and the appliance begins the countdown and the door is locked.

Time Manager

With this option you can reduce the programme duration depending on the load size and the degree of soiling.

When you set a washing programme, the display shows the default duration and

---- dashes.

Touch Time Manager button to reduce the programme duration according to your needs. The display shows the new programme duration and a number of dashes will decrease accordingly:

---- suitable for a full load of normally soiled garments.

--- a quick cycle for a full load of lightly soiled garments.

-- very quick cycle for a smaller lightly soiled load (max. half load recommended).

- the shortest cycle to freshen up a small amount of laundry.

The Time Manager is available only with the programmes in the table.

indicator Coton Coton Eco Synthétiques -------- 1) ■ ■ ■ --------

indicator	Coton	Coton Eco	Synthétiques
---	■	■	■
--	■ ■ ■
-	■ ■ ■

1) Default duration for all programmes.

Départ/Pause ▷∥

Touch the Départ/Pause button to start, pause the appliance or interrupt a running programme.

PROGRAMMES

1) Standard programmes for the Energy Label consumption values. According to regulation 1061/2010, these programmes are respectively the «Standard 60°C cotton programme» and the «Standard 40°C cotton programme». They are the most efficient programmes in terms of combined energy and water consumption for washing normally soiled cotton laundry.
Programme Chart

Programme Default temperature Temperature range	Maximum spin speed Spin speed range [rpm]	Maxi-mum load	Programme description (Type of load and soil level)
Coton 40 °C90 °C - Cold	1400 rpm (1400-400)	8 kg White cotton and coloured cotton. Normal and heavy soil.
Coton Eco 1) 40 °C60 °C - 40 °C	1400 rpm (1400-400)	8 kg White cotton and fast-coloured cotton. Normal soil. The energy consumption decreases and the time of the washing programme is extended.
Synthétiques 40 °C60 °C - Cold	1200 rpm (1200 - 400)	3 kg Synthetic items or mixed fabric items. Normal soil.
Délicats 40 °C40 °C - Cold	1200 rpm (1200-400)	3 kg Delicate fabrics such as acrylics, viscose and mixed fabrics requiring gentler washing. Normal soil.
Rapide 14min 30 °C	800 rpm (800- 400)	1,5 kg Synthetic and mixed fabric items. Light soil and items to freshen up.
Rinçage 1400 rpm(1400-400)		8 kg All fabrics, except woollens and very delicate fabrics. Programme for rinsing and spinning the laundry. The default spin speed is the one used for cotton programmes. Reduce the spin speed accordingly to the type of laundry. If necessary, set the Rinçage Plus option to add rinses. With a low spin speed, the appliance performs delicate rinses and a short spin.
Vidange/ Essorage	1400 rpm(1400-400)	8 kg To spin the laundry and to drain the water in the drum. All fabrics, except woollens and delicate fabrics.
Anti-allergie Vapeur 60 °C	1400 rpm(1400 - 400)	8 kg White cotton items. This programme removes micro-organisms thanks to a washing phase with the temperature maintained above 60°C for some minutes. This helps in removing germs, bacteria, micro-organism and particles. The addition of vapour together with an additional rinsing phase ensures a proper removal of detergent residues and pollens/allergenic items, making it suitable for deli-cate and sensitive skins .
Lavage tam-bour 60 °C	1200 rpm(1200 - 400)	- Maintenance cycle with hot water to clean and freshen the drum and to remove residue that may cause odour. For the best result use this cycle once a month. Before running this cycle, remove all items from the drum. In the washing phase compartment of the detergent dispenser, put the flap of the compartment in upward position. Pour a cup of chlorine bleach or a washing machine cleaner in the washing phase compartment. DO NOT use both together. After the drum cleaning, run a fur-ther rinse cycle with empty drum and no detergent to remove any residue of bleach.
Soie ^(NOTD) 30 °C	800 rpm(800 - 400)	3 kg Special programme for silk and mixed synthetic items.
Laine40 °C40 °C - Cold	1200 rpm (1200-400)	1,5 kg	Machine washable wool, hand washable wool and other fabrics with «hand washing» care symbol2).
Sports30 °C40 °C - Cold	1200 rpm (1200 - 400)	3 kg	Mixed fabric sportswear. Light soil items or items to refresh.
Outdoor30 °C40 °C - Cold	1200 rpm (1200-400)	2 kg3)1 kg4)	Do not use fabric softener and make sure that there is no softener residue in the detergent dispenser.Synthetic sport items. This programme is designed to gently wash modern outdoor sportswear and is also suitable for gym, cycling or jogging clothes or similar. The recommended laundry load is 2 kg.Waterproof, waterproof-breathable and water repellent fabrics. This programme can also be used as a water repellency restoring cycle, specifically tailored for treating clothes with a hydrophobic coating. To perform the water repellency restoring cycle, proceed as follows:Pour the washing detergent in the compartmentPour a special water repellency restorer for fabric into the softener compartment of the drawerReduce the laundry load to 1 kg. To further improve the water repellency restoring action, dry the laundry in a tumble dryer by setting the Outdoor drying programme (if available and if the garment care label permits tumble drying).
Programme Default temperature Temperature range	Maximum spin speed Spin speed range [rpm]	Maximum load	Programme description (Type of load and soil level)
Denim30 °C40 °C - Cold	1200 rpm(1200 - 400)	3 kg Special programme for Denim clothing with delicate washing phase to minimize colour fading and marks. For better care a reduced load size is recommended.

The water temperature of the washing phase may differ from the temperature declared for the selected programme.

2) During this cycle the drum rotates slowly to ensure a gentle wash. It can seem that the drum doesn't rotate or doesn't rotate properly, but this is normal for this programme.
3) Washing programme.
4) Washing programme and waterproofing phase.

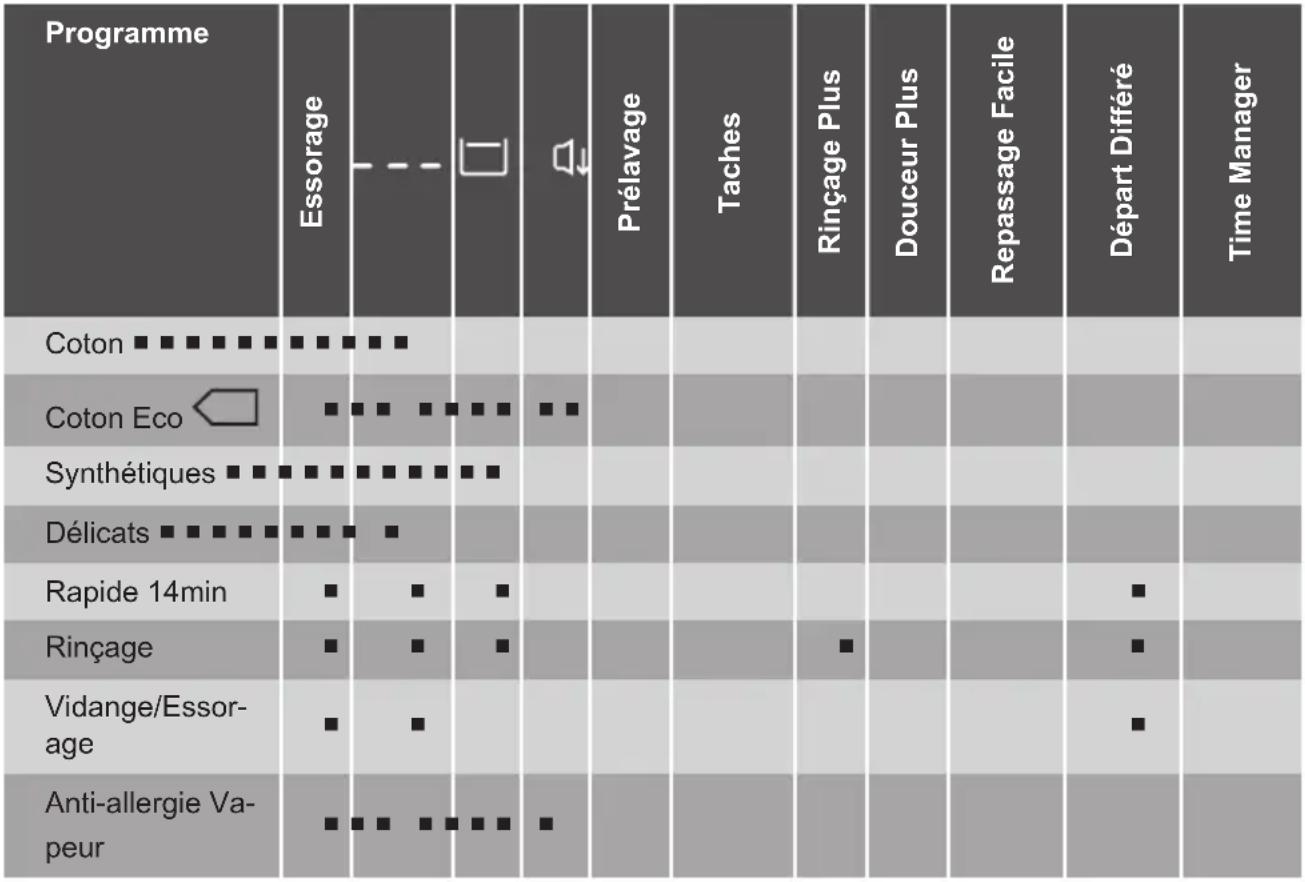

Programme options compatibility

Programme	Essorage				Prélavage	Taches	Rinçage Plus	Douceur Plus	Repassage Facile	Départ Differé	Time Manager
Lavage tambour
Soie
Laine
Sports
Outd
Denim

Woolmark Apparel Care - Blue

WOOL HAND WASH SAFE

The wool wash cycle of this machine has been approved by The Woolmark Company for the washing of wool garments labelled as «hand wash» provided that the garments are washed according to the instructions issued by the manufacturer of this washing machine. Follow the garment care label for drying and other laundry instructions. M1512

The Woolmark symbol is a Certification mark in many countries.

SETTINGS

Acoustic signals

This appliance has different acoustic signals, that operate when:

• You activate the appliance (special short tune).
• You deactivate the appliance (special short tune).
  • You touch the buttons (click sound).
• You make an invalid selection (3 short sounds).
• The programme is completed (sequence of sounds for about 2 minutes).

- The appliance has a malfunction (sequence of short sounds for about 5 minutes).

To deactivate/activate the acoustic signals when the programme is completed, touch the Prélavage and the Taches buttons simultaneously for about 2 seconds. The display shows On/Off

If you deactivate the acoustic signals, they continue to operate when the appliance has a malfunction.

Child Lock

With this option you can prevent children from playing with the control panel.

- To activate/deactivate this option, hold down the Repassage Facile button until ☐ comes on/goes off on the display.

BEFORE FIRST USE

1. Make sure that the electrical power is available and the water tap is open.
2. Pour a small quantity of detergent into the compartment marked by ☐
3. Set and start a programme for cotton at the highest temperature without any laundry in the drum.

DAILY USE

WARNING! Refer to Safety chapters.

Activating the appliance

1. Connect the mains plug to the mains socket.
2. Open the water tap.
3. Press the Marche/Arrêt button for a few seconds to activate the appliance. A short tune sounds.

Loading the laundry

1. Open the appliance door.
2. Shake the items before you put them in the appliance.
3. Put the laundry in the drum, one item at a time.
   Do not put too much laundry in the drum.
4. Close the door firmly.

The appliance will default to this option after you switch it off.

The Child Lock function may not be available for a few seconds after switching the appliance on.

This removes all possible dirt from the drum and the tub.

Medical diagram showing a catheter connected to an embryo with warning symbols and a cross mark indicating dislocation or exclusion.

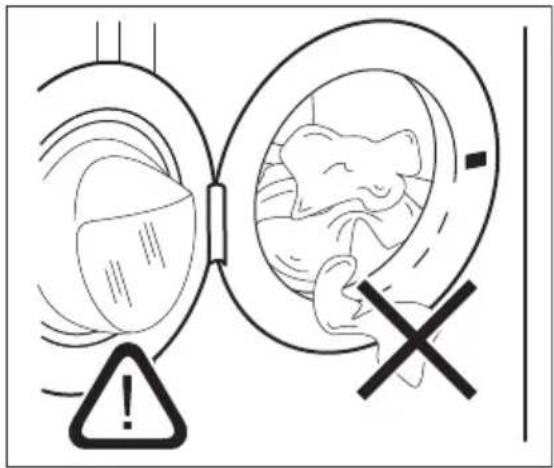

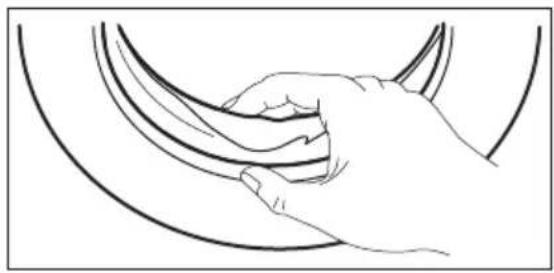

CAUTION! Make sure that no laundry gets caught between the seal and the door to avoid risk of water leakage and damage to the laundry.

Washing heavily oiled, greasy stains could cause damage to rubber parts of the washing machine.

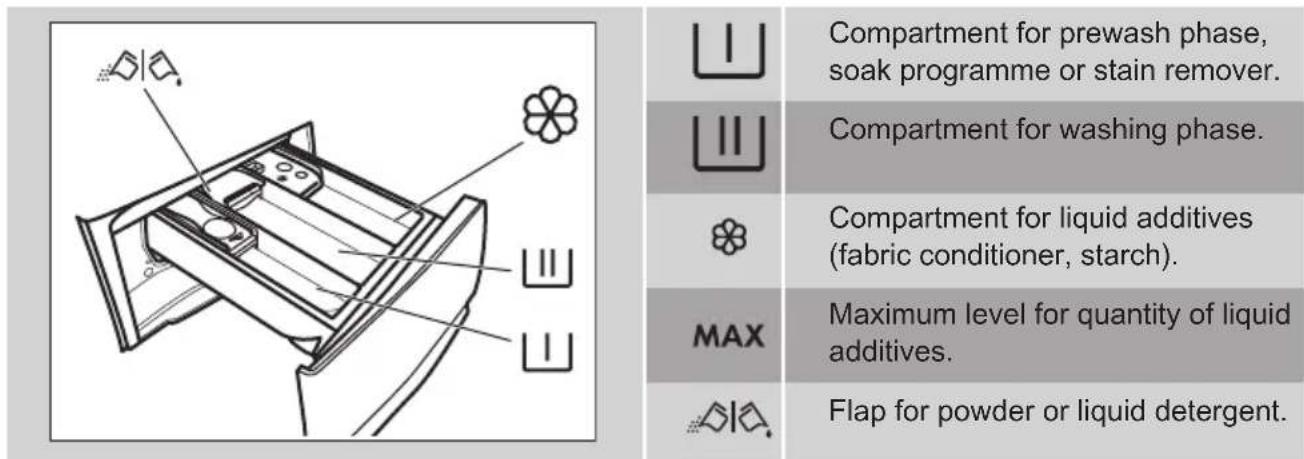

Filling the detergent and additives

Compartment for prewash phase, soak programme or stain remover. Compartment for washing phase. Compartment for liquid additives (fabric conditioner, starch). MAX Maximum level for quantity of liquid additives. Flap for powder or liquid detergent.

Always follow the instructions that you find on the packaging of the detergent products, but we recommend that you do not exceed the maximum indicated level (MAX) this quantity will however guarantee the best washing results.

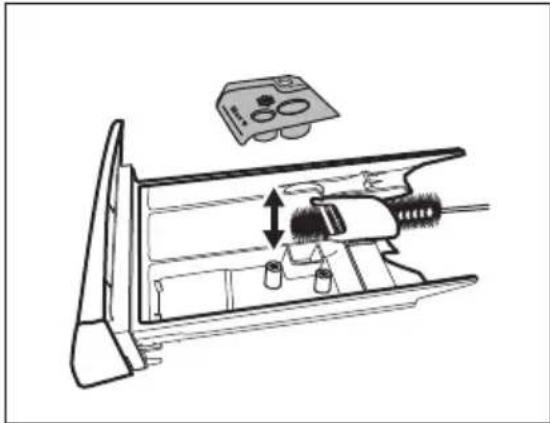

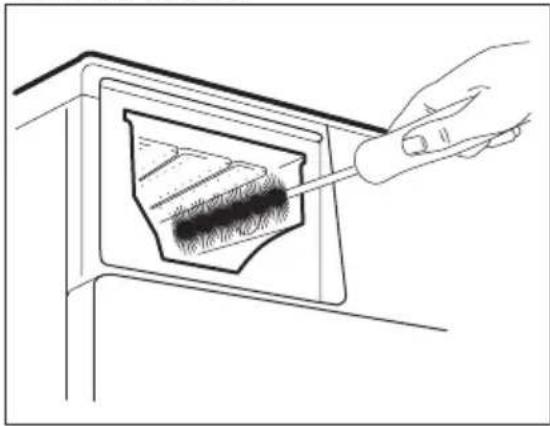

i After a washing cycle, if necessary, remove any detergent residue from the detergent dispenser.

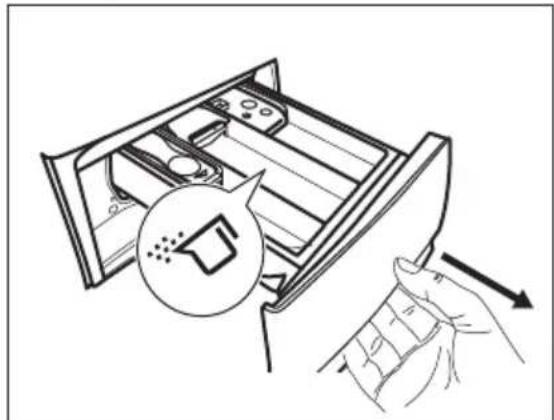

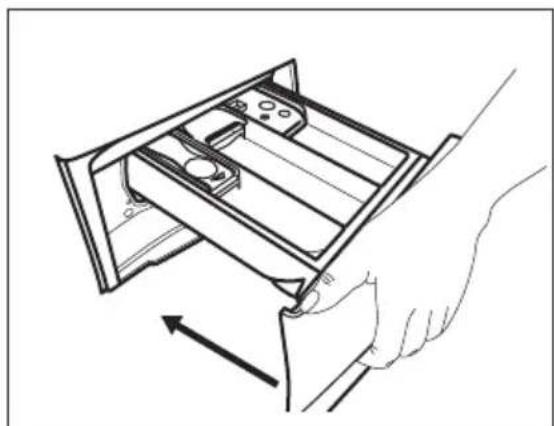

Check the position of the detergent flap

1. Pull out the detergent dispenser until it stops.

Illustration of a hand holding a device with a magnified inset showing a device emitting smoke (no text or symbols)

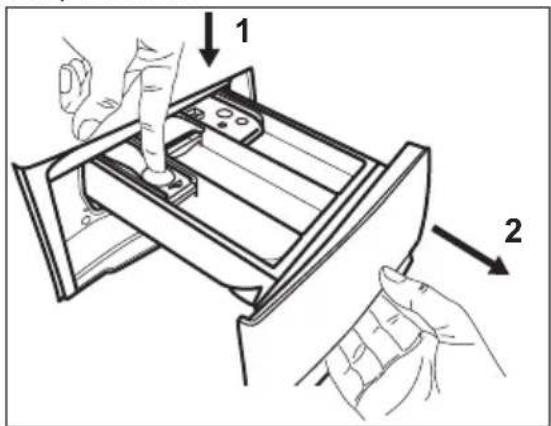

1. Press the lever down to remove the dispenser.
2. To use powder detergent, turn the flap up.
3. To use liquid detergent, turn the flap down.

Diagram showing airflow or heat transfer between layered materials with circular annotations highlighting specific processes (no text or symbols present)

With the flap in the position DOWN:

• Do not use gelatinous or thick liquid detergents.
• Do not exceed to liquid detergent dose indicated on the flap.
• Do not set the prewash phase.

• Do not set the delay start function.

• Measure out the detergent and the fabric conditioner.

• Carefully close the detergent dispenser.

Line drawing of a hand inserting a device into a rack (no text or symbols)

Make sure that the flap does not cause a blockage when you close the drawer.

Setting a programme

1. Turn the programme dial to select the desired washing programme.

The indicator of the Départ/Pause ▷∥ button flashes.

The display shows an indicative programme duration.

1. To change the temperature and/or the spin speed, touch the related buttons.

2. If desired, set one or more options by touching the related buttons. The related indicators illuminate on the display and the given information changes accordingly.

If a selection is not possible an acoustic signal sounds and the display shows — —

Starting a programme

Touch the Départ/Pause button to start the programme.

The related indicator stops flashing and stays on.

The programme starts, the door is locked.

The display shows the indicator

The drain pump can operate shortly before the appliance fills water.

Starting a programme with the delay start

1. Touch the Départ Différé button repeatedly until the display shows the desired delay time. On the display the indicator shows

2. Touch the Départ/Pause Button. The appliance door locks and starts the countdown of the delay start. The display shows the indicator When the countdown is completed, the programme starts automatically.

Cancelling the delay start after the countdown has started

To cancel the delay start:

1. Touch the Départ/Pause button to pause the appliance. The related indicator flashes.

2. Touch the Départ Différé button repeatedly until the display shows and the indicator goes off.

3. Touch the Départ/Pause ▷|| button again to start the programme immediately.

Changing the delay start after the countdown has started

To change the delay start:

1. Touch the Départ/Pause ▷|| button to pause the appliance. The related indicator flashes.

2. Touch the Départ Différé button repeatedly until the display shows the desired delay time.

3. Touch the Départ/Pause button again to start the new countdown.

The SensiCare System load detection

After touching the Départ/Pause ▷|| button:

1. The SensiCare System starts estimating the weight of the load to calculate the real programme duration. During this phase the Time Manager bars placed below the time digits play a simple animation.
2. After about 15-20 minutes the Time Manager bars disappear and new cycle duration is displayed. The appliance automatically adjusts the programme duration to the load to achieve perfect washing results in the minimum possible time.

Interrupting a programme and changing the options

When the programme is running, you can change only some options:

1. Touch the button Départ/Pause ▷ || The related indicator flashes.
2. Change the options. The given information in the display changes accordingly.
3. Touch the button Départ/Pause ▷|| again.

The washing programme continues.

Cancelling a running programme

1. Press the button Marche/Arrêt to cancel the programme and to deactivate the appliance.
2. Press the button Marche/Arrêt again to activate the appliance.

If the SensiCare System has completed and the water filling has already started, the new programme starts without repeating the SensiCare

System. The water and the detergent are not drained out in order to avoid waste.

There is also an alternative way of cancelling:

1. Rotate the selector knob to the "Reset" position :

2. Wait for 1 second. The display shows ---

Now, you can set a new washing programme.

Opening the door - Adding garments

If the temperature and level of the water in the drum are too high and/or the drum is still rotating you cannot open the door.

While a programme or the delay start operates, the appliance door is locked.

1. Touch the button Départ/Pause ▷II. In the display the related door lock indicator goes off.
2. Open the appliance door. If necessary, add or remove the items.
3. Close the door and touch the Départ/Pause ▷|| button.

The programme or the delay start continues.

End of the programme

When the programme has finished, the appliance stops automatically. The acoustic signals operate (if they are active). The display shows 0:00

The indicator of the Départ/Pause ▷|| button goes off.

The door unlocks and the indicator goes off.

1. Press button Marche/Arrêt to deactivate the appliance.

After five minutes from the end of the programme, the energy saving function automatically deactivates the appliance.

When you activate the appliance again, the display shows the end of the previous programme. Turn the programme dial to set a new cycle.

1. Remove the laundry from the appliance.
2. Make sure that the drum is empty.
3. Keep the door and the detergent dispenser slightly ajar to prevent mildew and odours.
4. Close the water tap.

Draining water out after end of cycle

If you have chosen a programme or an option that does not empty out the water of the last rinse, the programme is completed, but:

• The time area shows and the
display shows the door locked .
- The drum still turns at regular intervals to prevent creases in the laundry.
• The door stays locked.
- You must drain the water to open the door:

1. If necessary, touch the Essorage button to decrease the spin speed proposed by the appliance.

2. Press the Départ/Pause button:

- If you have set Rinse Hold the appliance drains the water and spins.

- If you have set Night the appliance only drains the water

The option indicator Rinse Hold and Night disappears.

HINTS AND TIPS

WARNING! Refer to Safety chapters.

The laundry load

• Divide the laundry into: white, coloured, synthetics, delicates and wool.
• Follow the washing instructions on the laundry care labels.
• Do not wash white and coloured items together.

• Some coloured items can discolour with the first wash. We recommend that

• When the programme is completed and the door locked indicator goes off, you can open the door.

• Press the Marche/Arrêt button for a few seconds to deactivate the appliance.

Stand-by option

The Stand-by function automatically deactivates the appliance to reduce the energy consumption when:

• You do not use the appliance for 5 minutes.
  Press the button Marche/Arrêt to activate the appliance again.
• 5 minutes after the end of the washing programme
  Press the Marche/Arrêt button to activate the appliance again.
  The display shows the end of the last programme.
  Turn the programme dial to set a new cycle.

If the dial is rotated to the "Reset" position

•, the appliance automatically turns off in 30 seconds.

If you set a programme or an option that ends with water in the drum, the Stand-by function doesn't deactivate the appliance to remind you to drain the water.

you wash them separately for the first couple of times.

• Button up pillowcases, close zippers, hooks and poppers. Tie up belts.
  • Empty pockets and unfold.
• Turn multilayered fabrics, wool and items with printed illustrations inside out.
  • Pre-treat tough stains.
• Wash heavy soil stains with a special detergent.

- Be careful with curtains. Remove the hooks and put the curtains in a washing bag or pillowcase.

- Do not wash laundry without hems or with cuts.

- Use a washing bag to wash small and/or delicate items (e.g. underwired bras, belts, tights, etc.).

- A very small load can cause balance problems with the spin phase leading to excessive vibration. If this occurs:

a. interrupt the programme and open the door (refer to "Daily Use" chapter);
b. manually redistribute the load so that the items are spaced evenly around the tub;
c. press the Départ/Pause button. The spin phase continues.

Stubborn stains

For some stains, water and detergent is not sufficient.

We recommend that you pre-treat these stains before you put the items in the appliance.

Special stain removers are available. Use the special stain remover that is applicable to the type of stain and fabric.

Detergents and other treatments

- Only use detergents and other treatments specially made for washing machines:

• powder detergents for all types of fabric, excluding delicate. Prefer powder detergents containing bleach for whites and laundry sanitization
  – liquid detergents, preferably for low temperature wash programmes (60 °C max) for all types of fabric, or special ones for woollens only.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

• Do not mix different types of detergents.
• To help the environment, do not use more than the recommended quantity of detergent.
• Follow the instructions that you find on packaging of the detergents or other treatments without exceeding the indicated maximum level (MAX)
• Use the recommended detergents for the type and colour of the fabric, the programme temperature and the level of soil.

Ecological hints

• Set a programme without the prewash phase to wash laundry with normal soil.
  • Always start a washing programme with the maximum load of laundry allowed.
• If you pre-treat the stains or use a stain remover, set a programme with a low temperature.
• To use the correct quantity of detergent, check the water hardness of your domestic system. Refer to "Water hardness".

Water hardness

If the water hardness in your area is high or moderate, we recommend that you use a water softener for washing machines. In areas where the water hardness is soft it is not necessary to use a water softener.

To find out the water hardness in your area, contact your local water authority.

Use the correct quantity of water softener. Follow the instructions that you find on the packaging of the product.

External cleaning

Clean the appliance with mild soap and warm water only. Fully dry all the surfaces.

CAUTION! Do not use alcohol, solvents or chemical products.

CAUTION! Do not clean the metal surfaces with chlorine-based detergent.

Descaling

If the water hardness in your area is high or moderate, we recommend that you use a water descaling product for washing machines.

Regularly examine the drum to check for limescale.

Regular detergents already contain water softening agents, but we recommend to run a cycle with an empty drum and a descaling product occasionally.

Always follow the instructions that you find on the packaging of the product.

Maintenance wash

The repeated and prolonged use of low temperature programmes can cause detergent deposits, fluff residues, bacterial growth inside the drum and the tub. This could generate bad odours and mildew. To eliminate these deposits and clean the inner part of the appliance, run a maintenance wash regularly (at least once a month).

Refer to Cleaning the drum chapter.

Door seal

Line drawing of a hand gripping a curved object (no text or symbols)

Regularly examine the seal and remove all objects from the inner part.

Cleaning the drum

Regularly examine the drum to prevent rust forming.

Clean the drum with special products for stainless steel.

Always follow the instructions that you find on the packaging of the product.

For a thorough clean:

- Remove all laundry from the drum. - Run the Lavage tambour programme. For more details, refer to washing programme table.

Occasionally, at the end of a cycle the display may show the icon :this is a recommendation to perform the "drum cleaning".

Cleaning the detergent dispenser

To prevent possible deposits of dried detergent or clotted fabric softener and/or formation of mould in the detergent dispenser drawer, once in a while carry out the following cleaning procedure:

1. Open the drawer. Press the catch downwards as indicated in the picture and pull it out.

Technical diagram showing hand operating a device with labeled parts and directional arrows

1. Remove the top part of the additive compartment to aid cleaning and flush it out under running warm water, to remove any traces of accumulated detergent. After cleaning, put the top part back into position.

Diagram of a refrigerator interior showing internal components and a wall-mounted device (no text or labels)

1. Make sure that all detergent residue is removed from the upper and lower part of the recess. Use a small brush to clean the recess.

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

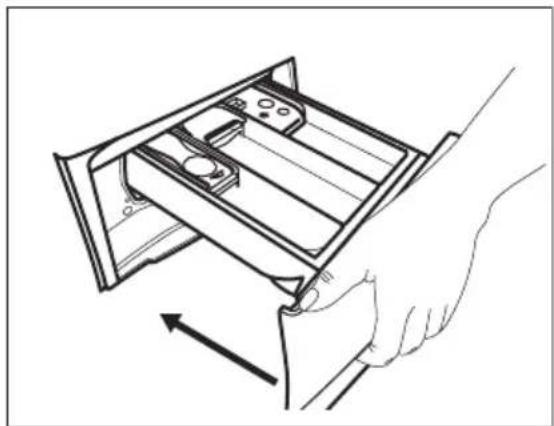

1. Insert the detergent drawer into the guide rails and close it. Run the rinsing programme without any clothes in the drum.

Line drawing of a hand holding a device with an arrow indicating motion (no text or symbols)

Cleaning the drain pump

Regularly check the drain pump filter and make sure that it is clean.

Clean the drain pump if:

• The appliance does not drain the water.
• The drum does not turn.
• The appliance makes an unusual noise because of the blockage of the drain pump.
• The display shows the alarm code E20

WARNING!

• Disconnect the mains plug from the mains socket.
• Do not remove the filter while the appliance operates.
• Do not clean the pump if the water in the appliance is hot. Wait until the water cools down.
• Repeat Step 3 several times by closing and opening the valve until the water stops flowing out.

Always keep a rag nearby to dry up any water spillages when removing the filter.

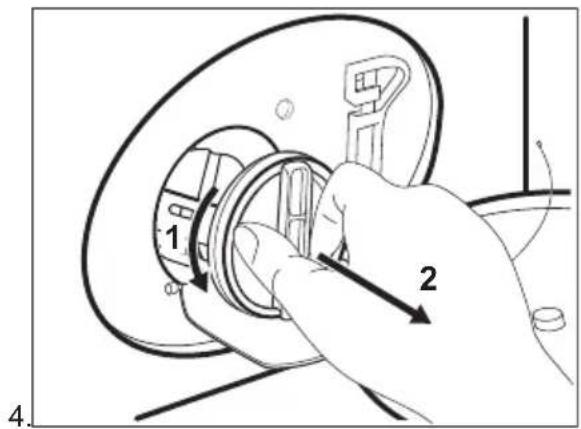

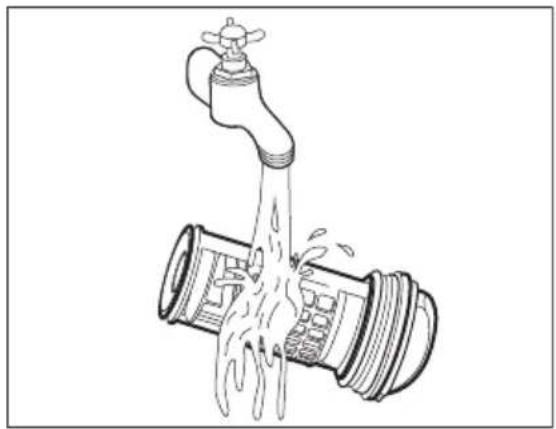

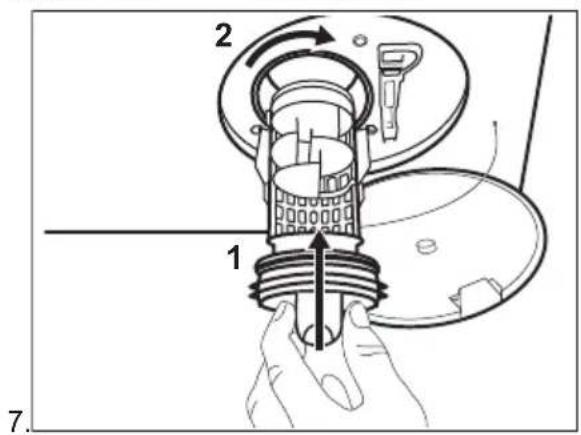

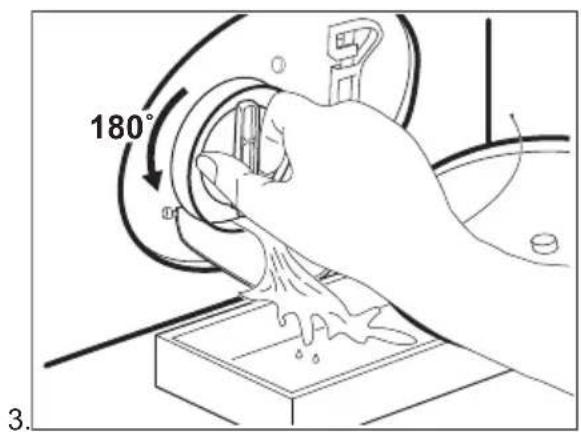

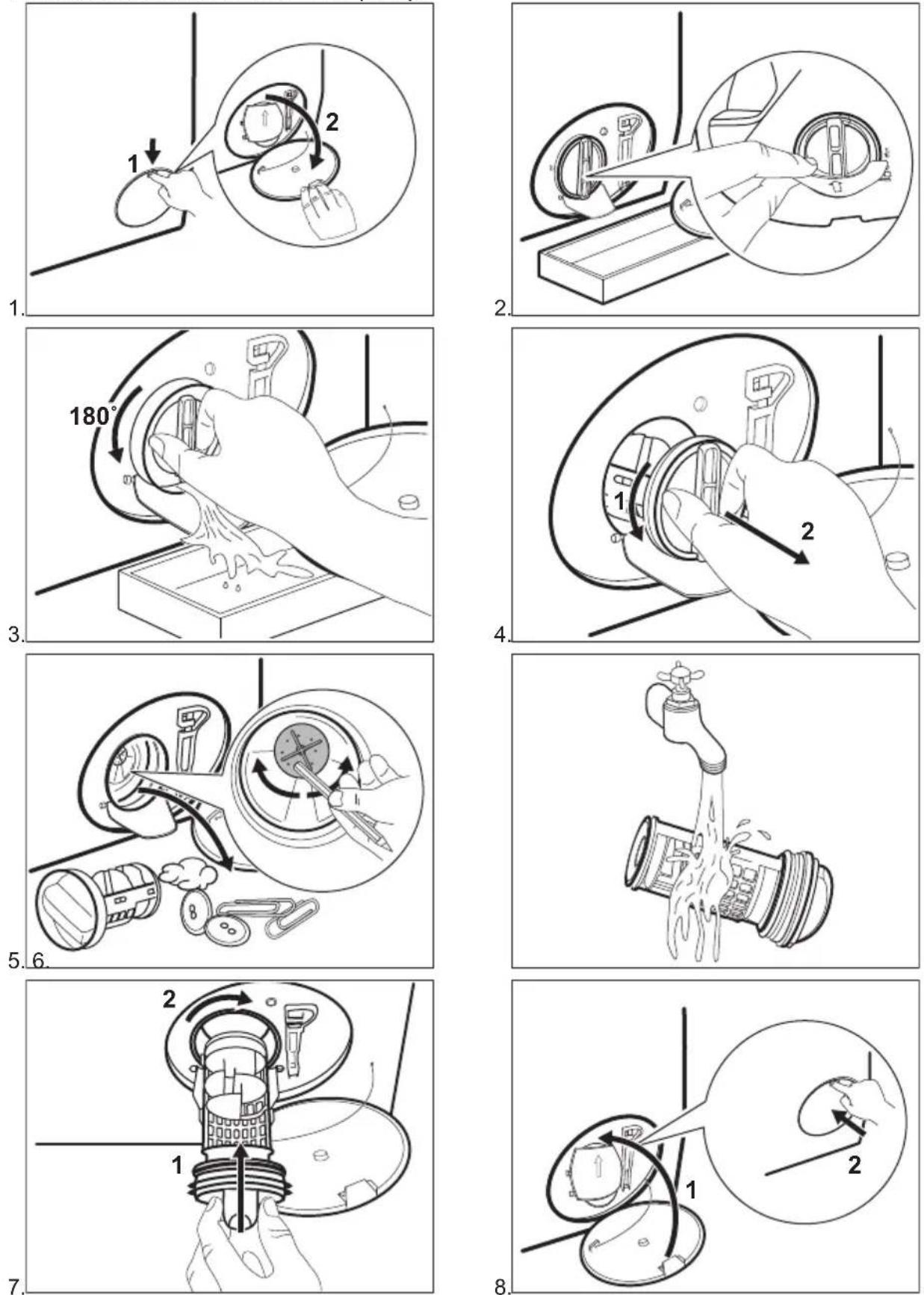

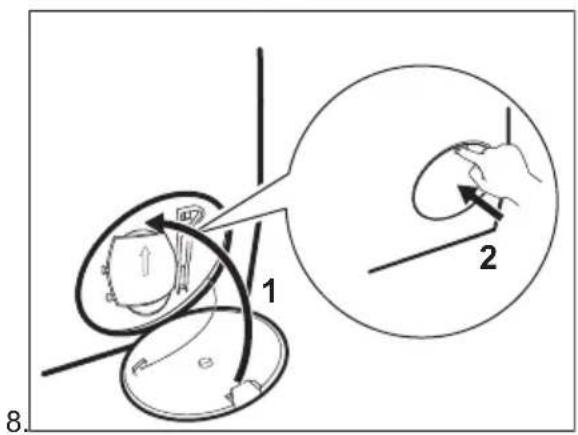

Proceed as follows to clean the pump:

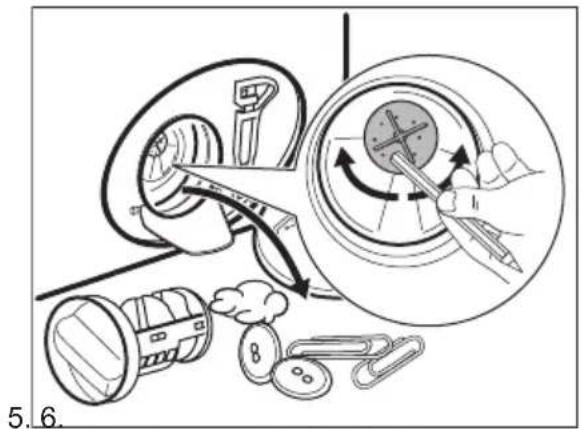

WARNING! Make sure that the impeller of the pump can rotate. If it does not rotate, contact the Authorised Service Centre. Make sure also that you tighten the filter correctly to prevent leakages.

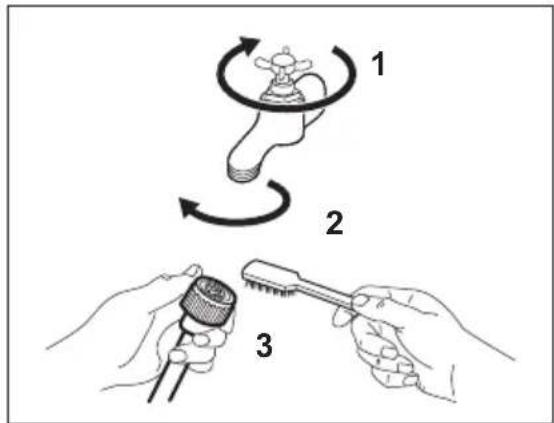

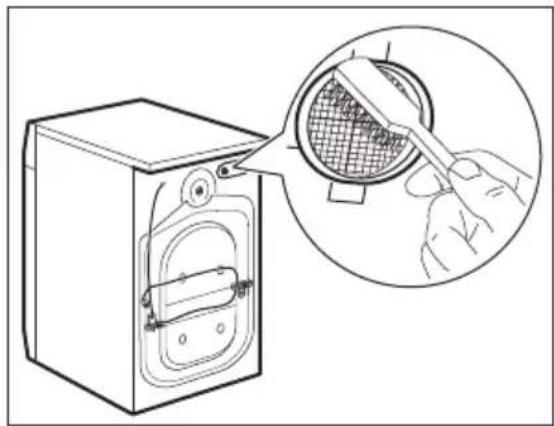

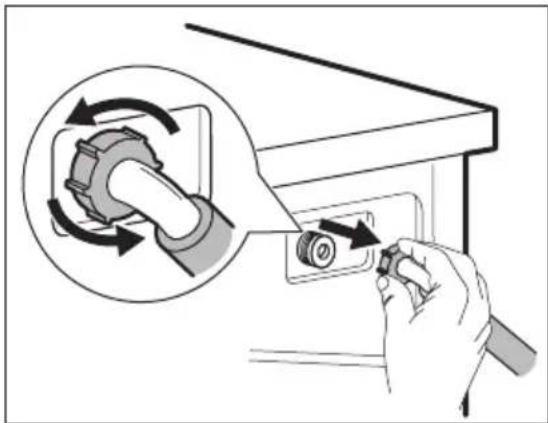

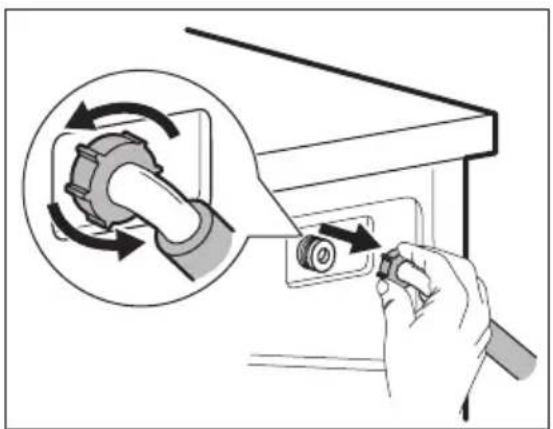

Cleaning the inlet hose and the valve filter

Diagram illustrating three-step hairpin tool manipulation: rotation, clockwise rotation, and manual grip.

Illustration of a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

20° 45°

Emergency drain

If the appliance cannot drain the water, carry out the same procedure, described in 'Cleaning the drain pump' paragraph. If necessary, clean the pump.

Frost precautions

If the appliance is installed in an area where the temperature can reach values around 0^ C or drop below, remove the remaining water from the inlet hose and the drain pump.

1. Disconnect the mains plug from the mains socket.

2. Close the water tap.

3. Put the two ends of the inlet hose in a container and let the water flow out of the hose.
4. Empty the drain pump. Refer to the emergency drain procedure.
5. When the drain pump is empty, install the inlet hose again.

WARNING! Make sure that the temperature is higher than 0 °C before you use the appliance again.

The manufacturer is not responsible for damages caused by low temperatures.

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

Introduction

The appliance does not start or it stops during operation.

First try to find a solution to the problem (refer to the table). If the problem persists, contact the Authorised Service Centre.

In case of major problems, the acoustic signals operate, the display shows an alarm code and the Départ/Pause ▷|| button may flash continuously:

• The appliance does not fill with water properly. Start the appliance again by pressing Départ/Pause ▷ II button. After 5 seconds the door will be unlocked.
• The appliance does not drain the water.

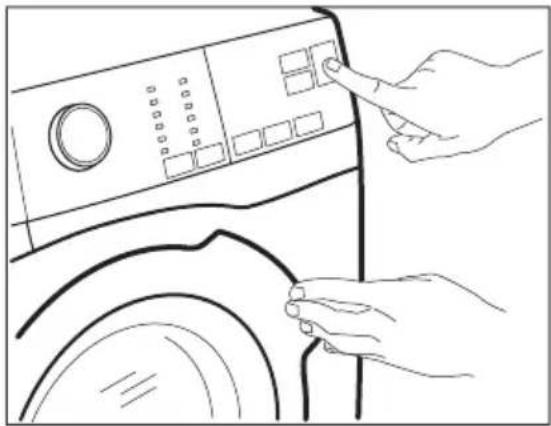

• The appliance door is open or not closed correctly. Please check the door!

If the appliance is overloaded, remove some items from the drum and/or hold the door shut while touching the Départ/Pause ▷|| button until the indicator →□ stops flashing (see the picture below).

Line drawing of hands installing or adjusting a front panel on a washing machine (no text or symbols)

• The mains supply is unstable. Wait until the mains supply is stable.
• No communication between electronic elements of the appliance. Switch it off and switch on again. The programme was not finished properly or the appliance stopped too early. If the alarm code appears again, contact the Authorised Service Centre.

WARNING! Deactivate the appliance before carrying out any check.

Possible failures

Problem Possible solution
The programme does not start.	Make sure that the mains plug is connected to the mains socket.Make sure that the appliance door is closed.Make sure that there is no damaged fuse in the fuse box.Make sure that the Départ/Pause has been touched.If the delay start is set, cancel the setting or wait for the end of countdown.Deactivate the Child Lock function if it is on.Check the position of the knob on the selected programme.
The appliance does not fill with water properly.	Make sure that the water tap is open.Make sure that the pressure of the water supply is not too low.For this information, contact your local water authority.Make sure that the water tap is not clogged.Make sure that the inlet hose has no kinks, damages or bends.Make sure that the connection of the water inlet hose is cor-rect.Make sure that the filter of the inlet hose and the filter of the valve are not clogged. Refer to 'Care and cleaning'.
The appliance fills with water and drains imme-diately	Make sure that the drain hose is in the correct position. The hose may be positioned too low. Refer to "Installation instruc-tion".
The appliance does not drain the water.	Make sure that the sink spigot is not clogged.Make sure that the drain hose has no kinks or bends.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Make sure that the connection of the drain hose is correct.Set the drain programme if you set a programme without drain phase.Set the drain programme if you set an option which ends with water in the tub.
The spin phase does not operate or the washing cycle lasts longer than usual.	Set the spin programme.Make sure that the drain filter is not clogged. Clean the filter, if necessary. Refer to "Care and cleaning".Adjust manually the items in the tub and start the spin phase again. This problem may be caused by balance problems.
There is water on the floor.	Make sure that the couplings of the water hoses are tight and there is not water leakages.Make sure that the water inlet hose and the drain hose have no damages.Make sure you use the correct detergent and the correct quantity of it.
You cannot open the ap- pliance door.	Make sure that a washing programme that ends with water in tub, has been selected.Make sure that the washing programme is finished.Set the drain or the spin programme if there is water in the drum.Make sure that the appliance receives electrical power.This problem may be caused by a failure of the appliance.Contact the Authorised Service Centre.
Problem Possible solution
The appliance makes an unusual noise and vibrates.	Make sure the levelling of the appliance is correct. Refer to "Installation instruction".Make sure that the packaging and/or the transit bolts are removed. Refer to "Installation instruction".Add more laundry in the drum. The load may be too small.
The programme duration increases or decreases during programme execution.	The SensiCare System is able to adjust the programme duration according to the type and the laundry load size. Refer to "The SensiCare System load detection" in "Daily Use" chapter.
The washing results are not satisfactory.	Increase the detergent quantity or use a different detergent.Use special products to remove the stubborn stains before you wash the laundry.Make sure that you set the correct temperature.Decrease the laundry load.
Too much foam in the drum during the washing cycle.	Reduce the quantity of detergent.
After the washing cycle, there are some detergent residues in the dispenser drawer.	Make sure that the flap is in the correct position (UP for powder detergent - DOWN for liquid detergent).Make sure you have used the detergent dispenser according the indications given in this user manual.

After the check, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Authorised Service Centre.

If the display shows other alarm codes, deactivate and activate the appliance. If the problem continues, contact the Authorised Service Centre.

CONSUMPTION VALUES

Stated values are obtained in laboratory conditions with relevant standards. Different causes can change the data: the quantity and type of laundry and ambient temperature. Water pressure, the supply voltage and the temperature of inlet water may also affect the washing programme duration.

Technical specifications may be changed without prior notice to improve the quality of product.

Programmes Load	(kg)	Energy consumption (kWh)	Water consumption (litre)	Approximate programme duration (minutes)	Remaining moisture (%) 1)
Coton 60°C 8 1,40 70 210 52
Coton 40°C 8 1,2 69 205 52
Synthétiques 40°C 3 0,60 56 140 35
Délicats 40°C 3 0,55 59 95 35
Laine 30°C 1,5 0,45 62 75 30
Standard cotton programmes
Standard 60°C cotton	8 0,80 52 275 52
Standard 60°C cotton	4 0,56 40 228 52
Standard 40°C cotton	4 0,50 40 226 52

1) At the end of spin phase.

Off Mode (W) Left On Mode (W)
0.30 0.30
The information given in the chart above is compliant with the EU Commission regulation 1015/2010 implementing directive 2009/125/EC

TECHNICAL DATA

1) Connect the water inlet hose to a water tap with a 3/4" thread.

Dimension Width/ Height/ Depth/ Total depth		600 mm/ 850 mm/ 547 mm/ 600 mm
Electrical connection Voltage		220 - 240 V
		2200 W
		10 A
		50 Hz
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture		IPX4
Water supply pressure	Minimum	0,5 bar (0,05 MPa)
	Maximum	8 bar (0,8 MPa)
Water supply 1)		Cold water
Maximum Load Cotton 8 kg
Energy Efficiency Class A+++ -20%
Spin Speed Maximum 1400 rpm

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

TABLE DES MATIÈRES

Diagram illustrating hand protection warning with a warning symbol and labeled components

Diagram of a mechanical device with arrows indicating forces or motion, no text or symbols present

Diagram illustrating a washing machine operation with labeled parts and a magnified view of the process.

Line drawing of a hand placing a circular component into a washing machine, with an arrow indicating rotation (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of a washing machine with a magnified inset showing hands adjusting a spring (no text or symbols present)

Diagram showing a washing machine with mechanical components and directional arrows indicating motion or assembly.

Diagram illustrating a washing machine operation with three steps: cutting, holding, and using a tool.

Diagram showing a washing machine with labeled parts and a magnified view of the component being adjusted for 4x speed.

sol.

Diagram showing washing machine operation with angle annotations and hand gesture instructions

Diagram showing two curved pipe fittings with a central component, connected by an arrow indicating rotation (no text or symbols present)

Diagram illustrating bathroom sink behavior with check and incorrect actions, showing water level inspection and surface finish conditions.

Line drawing of a hand holding a bent tube inserted into a cylindrical component (no text or symbols)

Line drawing of a washing machine connected to a hose (no text or symbols)

i

Diagram showing a pipe connection to a sink with a magnified inset illustrating the connector mechanism.

Two identical line drawings of a flexible hose with a loop, placed on grid paper (no text or symbols)

ACCESSOIRES

Kit de plaques de fixation (4055171146)

Line drawing of a two-tiered washing machine with front-mounted dish and side-mounted sink, accompanied by icons for laundry (no text or symbols)

Line drawing of a single washing machine with front panel and side legs (no text or symbols)

Diagram of a washing machine with numbered parts and labeled parts for assembly or maintenance reference.

88° 88* 1888 8:88 9:88 MAX 88.8 kg

WOOL HAND WASH SAFE

Medical diagram showing a catheter connected to an embryo with warning symbols and a cross mark indicating dislocation or exclusion.

Illustration of a hand inserting a device into a drawer with a magnified inset showing a speaker icon (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or flow, showing internal structure and movement (no text or symbols)

Line drawing of a hand inserting a device into a rack (no text or symbols)

Line drawing of a hand gripping a curved object (no text or symbols)

Technical diagram showing two hands operating a device with labeled parts and directional arrows indicating movement or assembly.

Diagram of a refrigerator interior showing internal components and a control panel (no text or symbols)

Line drawing of a hand using a tool to insert or mark a textured object inside a rectangular frame (no text or symbols)

Line drawing of a hand inserting a device into a rack (no text or symbols)

Nettoyage de la pompe de vidange

Diagram illustrating two steps of a hand operating a device, labeled 1 and 2 with arrows indicating direction.

180° 3.

1 2 4

5.6.

Illustration of a faucet with water flowing from it, showing fluid dispersion (no text or symbols)

1 2 7.

1 2 8.

Diagram illustrating three-step hairpin tool manipulation: step 1 shows hand turning to a foot with rotation arrows, step 2 shows hand turning to a finger with rotation arrow, and step 3 shows hand holding a key.

Illustration of a hand using a tool to adjust a mechanical component, with an inset showing a gear mechanism (no text or symbols present)

Line drawing of a washing machine with a magnified inset showing a hand using a tool to clean or inspect the interior (no text or symbols present)

20° 45°

Vidange d'urgence

Line drawing of hands operating a washing machine with a control panel (no text or symbols)
