USER MANUAL YT-828390 Yato

Labeled diagram of a mechanical tool with numbered parts for identification

Two black-and-white photos showing a hand holding a cylindrical tool, with no visible text or symbols.

Close-up of hands holding a mechanical device with a circular base (no visible text or symbols)

Close-up of a robotic hand connecting a cable, no visible text or symbols

Two-panel image showing hands holding a plastic tool, one with a curved handle and the other with a rectangular grip (no text or symbols visible)

Close-up of a hand holding a white handheld power tool with a black handle (no visible text or symbols)

Close-up of a black mechanical device with a metallic clip and adjustment lever (no visible text or symbols)

Close-up of a mechanical device with a spring scale attached to a black cylindrical component (no visible text or symbols)

Cutaway view of a mechanical chain saw with labeled component (7), no visible text or symbols

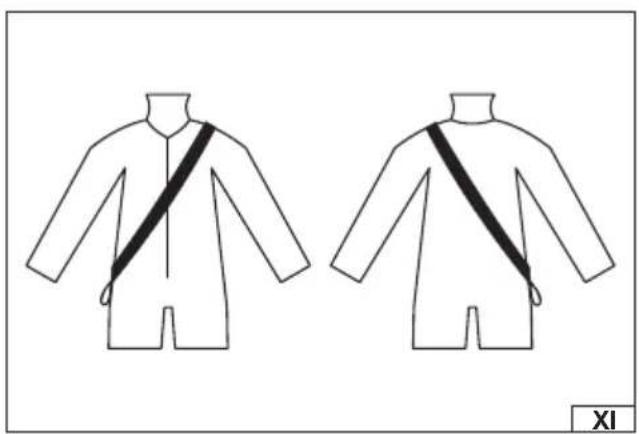

Two identical line drawings of a person's outfit with a black belt and straps, no text or symbols present.

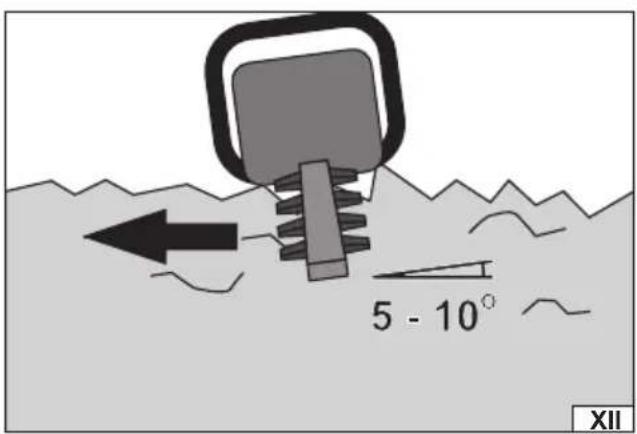

5 - 10° XII

Microscopic cross-section image showing two curved arrows pointing toward a textured surface, with a tool inserted in the background (no text or symbols)

Pure architectural line drawings of two window-like structures with checkmark indicators (no text or symbols)

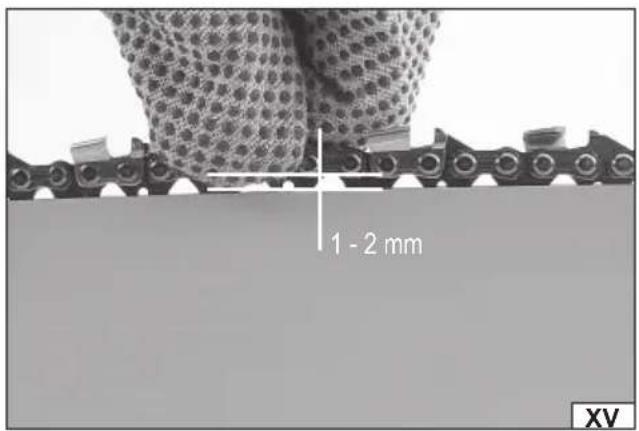

1 - 2 mm XV

X X XVII

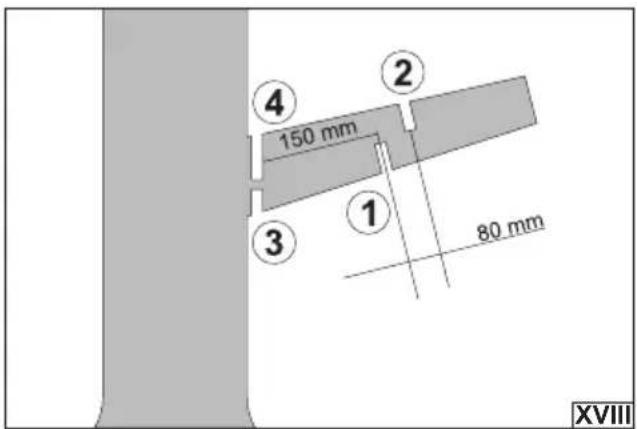

150 mm 80 mm ① ② ③ ④

21 20 18 19 XIX

PL

1. pole saw head

2. side panel

3. locking knob

4. chain tension knob

5. guide bar

6. chain

7. chain drive wheel

8. oil tank lid

9. oil level indicator

10. electric power switch

11. electrical switch locking button

12. back handle

13. front handle

14. shear head

15. rear handle rotation button

16. attachment bracket for auxiliary strap

17. carrying strap

18. battery (only for YT-828390),

19. charging station (only on YT-828390)

20. battery charge indicator

21. battery latch

22. guide bar guard

DE

Read the operating instruction

Wear protective goggles

Wear hearing protectors

Wear protective footwear

Keep a safe distance from the blades

Wear protective clothing

Do not expose to precipitation

Maintain a safe distance from power supply lines

Before adjusting, cleaning, if the cord becomes entangled or damaged, turn the device off and remove the battery from the tool socket

Beware of the power saw kickback towards the operator and avoid contact with the tip of the guide bar

Buka - snaga L _1/2

ال thường - استطاعة

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

CHARAKTERYSTYKA WYROBU

WYPOSAŻENIE PRODUKTU

PRODUCT CHARACTERISTICS

The cordless multifunctional garden tool can work as a hedge trimmer or as a pole saw. The hedge trimmer is used for trimming and shaping shrub crowns and trimming thin twigs. The pole saw is a type of chainsaw that is used to maintain the tree crowns. It allows small-diameter branches to be cut in places inaccessible to a traditional chainsaw. The adjustable boom allows for hedge formation and pruning of branches even at a considerable height. Thanks to battery power, operation is much quieter than with a traditional petrol tool, and it is also possible near buildings and in places that are inaccessible to mains-powered products. Proper, reliable, and safe operation of the tool depends on appropriate use, that is why you should:

Read the entire instructions manual before the first use of the tool and keep it for future reference.

The supplier shall not be held liable for any damage or injury resulting from improper use of the tool, failure to observe the safety regulations and recommendations of this manual. Using the tool for purposes other than those for which it was intended shall cause the loss of the user's rights to a warranty and statutory warranty.

PRODUCT EQUIPMENT

The product is supplied complete but requires assembly before first use. A chain guide, cutting chain, bar guard, blade guard, battery, charging station and carrying strap are supplied with the tool.

Caution! The product with the following catalogue number: YT-828391 is not supplied with a battery and charging station.

TECHNICAL DATA

Parameter Unit Value
Part No. YT-828390, YT-828391
Rated voltage [VDC] 18
Hedge trimmer
Cutting speed [min-1] 1500
Cutting length [mm] 415
Noise level
- LpA (pressure) [dB] (A) 74.5 ± 3.0
- LwA (power)	[dB] (A) 89.6 ± 3.0
Vibration (rear handle)	[m/s2]	1.446 ± 1.5
Weight (without battery)	[kg]	3.5
Pole saw
Chain speed	[m/s]	4.5
Rotational speed	[min-1] 2500
Guide bar length	[mm / "']	200 / 8
Chain pitch	[mm / "']	9,525 / 0,375
Guide link thickness	[mm / "']	1,27 / 0,050
Oil tank capacity	[ml]	80
Electrical protection class		III
Noise level
- LpA ± K (pressure)	[dB] (A) 74.5 ± 3.0
- LwA ± K (power)	[dB] (A) 88.0 ± 3.0
Vibration ah ± K (rear handle)	[m/s2]	1.190 ± 1.5
Weight (without the battery, guide bar and chain)	[kg]	3.4
Battery type		Li-ion
Battery capacity*	[Ah]	2
Battery energy*	[Wh]	36
Charging station*
Input voltage	[V~]	220-240
Mains frequency	[Hz]	50/60
Rated power	[W]	60
Output voltage	[VDC] 21
Output current	[A]	2.4
Charging time** [h]	1

EN

* only for models equipped with a battery and charger
** the specified charging time applies only to the battery with the capacity listed in the table

The declared noise emission value has been measured using the standard test method and can be used to compare one tool to another. The declared noise emission value can be used in the preliminary exposure assessment.

The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment.

Note! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used.

Note! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury.

Keep all warnings and instructions for future reference.

The term "power tool" used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.

Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

EN

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

Hedge trimmer safety warnings

Keep all body parts away from the blade. Do not remove the cut material or hold the cut material while the blades are in motion. The blades continue to move after the switch is turned off. A moment's inattention when operating a hedge trimmer can cause serious injury. Carry the hedge trimmer by holding the handle with the blade stopped and being careful not to use any power switch. Proper handling of the hedge trimmer will reduce the risk of unintentional triggering and resulting injury from the blades. When transporting or storing the hedge trimmer always fit the blade guard. Proper handling of the hedge trimmer will reduce the risk of injury from the blades. When removing blocked material or servicing the tool, make sure all power switches are turned off and the power cord is unplugged. Unexpected activation of the hedge trimmer when removing blocked material or servicing can cause serious injury. Hold the hedge trimmer only by the insulated handles, as the blade may come into contact with concealed electrical wires or its own power cord. Contact of the blades with a live wire can result in exposed metal parts of the hedge trimmer becoming energised and give the operator an electric shock. Keep wires and power cords away from the cutting area. Power cords or cables can be hidden in hedges or bushes and can be accidentally cut by the blade. Do not use hedge trimmers in poor weather conditions, especially if there is a risk of lightning. This avoids the risk of being struck by lightning.

Safety warnings for extended reach hedge trimmers

To reduce the risk of electrocution, never use extended reach hedge trimmers near electrical lines. Contact or use near power lines can cause serious injury or electric shock leading to death. Always use both hands when operating an extended reach hedge trimmer. Hold the extended reach hedge trimmer with both hands to avoid loss of control. Always wear head protection when operating extended reach overhead hedge trimmers. Falling debris can cause serious injury.

Warnings when working with the pole saw

When working with the pole saw, keep all parts of the body away from the chain. Make sure that the chain is not in contact with anything before starting the pole saw. A moment's distraction when working with a pole saw can lead to a cloth or a body part entangling in the pole saw chain.

Wear safety glasses and hearing protectors. It is also recommended to use head, hands, legs, and foot protections. Appropriate protective clothing reduces the risk of injury due to contact with waste or accidental contact with the chain.

Do not operate the pole saw when on a tree. Working with the pole saw while on a tree may result in injuries.

Always maintain a proper posture and work with the pole saw standing on a still, safe, and level surface. A slippery or unstable surface, e.g., a ladder, may lead to a loss of balance or control of the pole saw.

Exercise caution in terms of a kickback when cutting a tensioned branch. If the tension accumulated in the wood fibres is released, the branch may strike the operator or make him/her lose control of the pole saw.

Take special care when cutting shrubs and saplings. Slim material can catch the chain and push the pole saw towards the operator or unbalance him/her.

Handle the pole saw when turned off and away from the body. Always put on the chain guide bar guard when transporting or storing the pole saw. Correct holding of the pole saw reduces the likelihood of accidental contact with moving parts of the tool.

Observe the instructions for lubricating, tensioning the chain, and changing accessories. An improperly tensioned or lubricated chain can break and increase the chance of kickback towards the operator.

EN

Keep handles dry, clean, and free of grease and oil. The greasy or grease-coated handles are slippery and cause control loss of the pole saw.

Cut wood only. It is not allowed to use the pole saw for purposes other than it was intended. For example: do not cut plastic, concrete, or non-wooden construction materials. Using the pole saw for work other than that intended may result in dangerous situations.

When working, hold the pole saw by the insulated handles, as the chain may come into contact with a live wire, including its power cord in the case of mains-powered tools. When the chain is in contact with a live wire, this may cause the pole saw's metal parts to become live, leading to an electric shock to the operator. Keep the pole saw at a sufficient distance from power lines. Contact with a power line may lead to electric shock, serious injury, or death. Use personal protective equipment in the form of the head, eye, and hearing protections. It is also recommended to wear protective footwear and protective gloves. The use of appropriate personal protective equipment reduces the risk of injury that may occur during work.

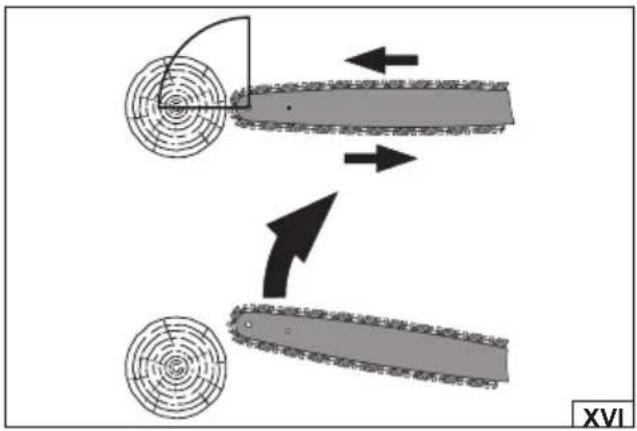

Causes and prevention of kickback towards the operator.

A kickback towards the operator may occur when the guide bar's end is in contact with an object or the cut wood jams the pole saw in the kerf. In some cases, contact between the end of a guide bar and an object can cause a violent reaction driving the guide bar up and towards the operator. Jam in the guide bar upper edge kerf can suddenly point the guide bar towards the operator. These reactions can result in a loss of control of the pole saw, leading to serious injuries. Do not rely only on safety elements built into the pole saw. The pole saw operator should take some steps to prevent accidents and injuries during work. A kickback towards the operator is the result of improper use or incorrect operating procedures or conditions. This can be avoided by taking the appropriate precautions listed below: Keep a firm grip of both hands with thumbs and fingers closing around the pole saw handles. The position of the body and shoulders should allow withstanding forces arising during the kickback. If appropriate precautions are taken, the kickback forces can be controlled by the operator. Do not allow the pole saw to move freely. Use guide bar and chain replacements only as specified by the manufacturer. Incorrect replacement of the guide bar and chain may cause chain breakage or kickback. Observe the instructions given by the manufacturer regarding the chain sharpening and maintenance. Reducing the depth of the chain guide bar groove can lead to an increased probability of kickback. It is forbidden to expose the pole saw to precipitation and use it in an atmosphere of increased humidity. It is also forbidden to use the pole saw in an atmosphere with an increased risk of fire or explosion. Avoid contact with grounded, conductive, and non-insulated objects such as pipes, radiators, or refrigerators during operation. When not in use, store the tool in a dry and closed room inaccessible to unauthorised persons. Use the cutting chain adapted to the given load. Do not use cutting chains designed for light or heavy-duty work. Always wear protective gloves when replacing, repairing, and adjusting the cutting chain. Make sure that the pole saw has been disconnected from the power supply source during transport. In the case of the mains-powered pole saw, disconnect them from the socket, and for battery-powered pole saws – disconnect their batteries. A guard must be fitted on the cutting chain guide bar. Do not handle the mains-powered pole saw by its power cord. Do not disconnect the plug from the socket by pulling the power cord. Avoid accidental starting of the pole saw. When handling the pole saw connected to the mains or with the battery connected, keep your fingers away from the power switch. Always wear suitable protective clothing adhering to the body.

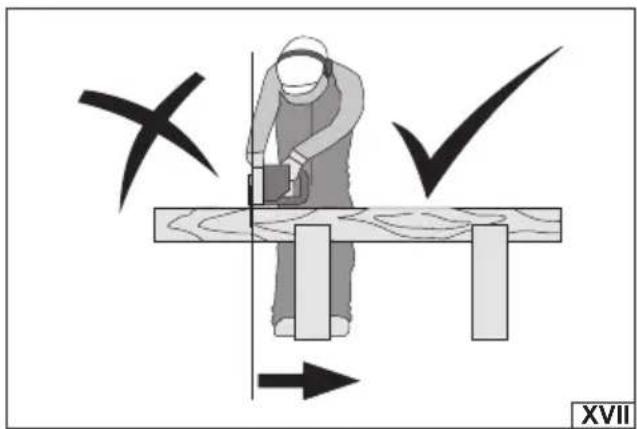

Operate the pole saw holding it with both hands. When working, secure loose pieces of wood so that they cannot move, for example, by placing them in a saw-horse. Avoid cutting wood that lays on the ground. Avoid processing wood that is not protected against movement during cutting. Do not hold the handles of the pole saw above your shoulders during the operation. Do not operate the pole saw while standing on the ladder. During work, adopt such a posture to eliminate the need to extend the hands to the full length. Keep the chain clean. The chain must be sharpened and lubricated. This will ensure more efficient and safer work. The chain can be sharpened in a specialised service centre. Check the condition of the chain before each use. In the event of cracks, broken teeth, or any other damage, replace the chain with a new one before starting work. In case of finding any damaged or broken pole saw parts, stop working or do not start working. It is essential to replace damaged parts before starting work. Use the pole saw as intended. The tool is designed only for cutting wood. When working, watch out for metal elements or stones that may be in the processed wood. Use original spare parts only. Failure to use original spare parts may increase the risk of failure and lead to injuries. The pole saw should be repaired only in service centres authorised by the manufacturer using original spare parts. This will minimise the risk of accidents and damage to the equipment.

PRODUCT OPERATION

Preparing the trimmer for use

Caution! Disconnect the tool from the power supply before performing any assembly and adjustment work. Remove the battery from the power tool socket!

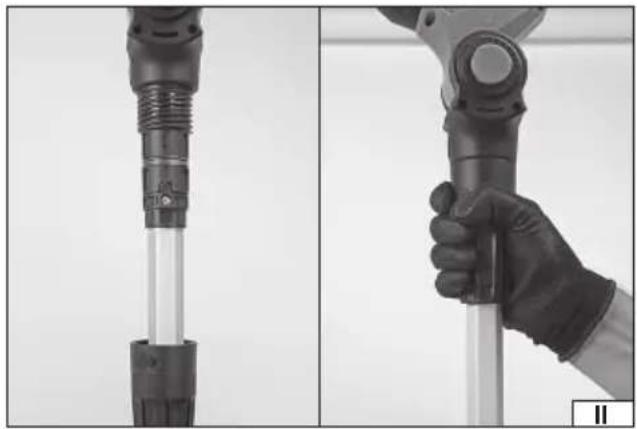

Before first use, assemble both parts of the tool (II)

Ensure that the blades have been secured by slipping on the guard. Unscrew the head mounting locking device, then slide the part with the switch into the slot of the part with the head. If a component of the part with the head is correctly inserted in the slot of the part with the switch, this means that the connection between the two parts can be secured by turning the head mounting lock. Ensure that parts of the tool do not come apart during operation. Check the technical condition of the tool before connecting it to the power supply. If any damage is detected, it is forbidden to connect it to the power supply before rectifying the damage.

Adjustment

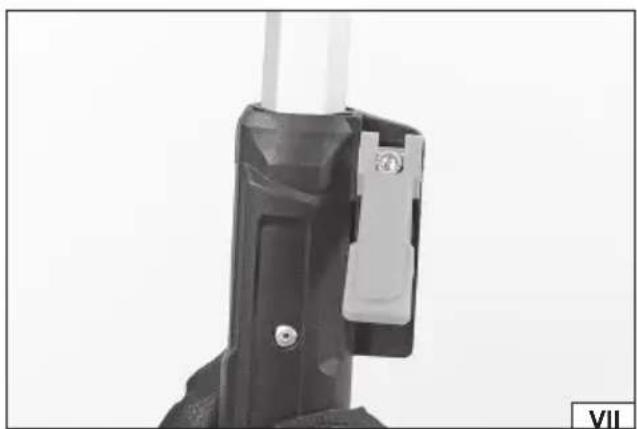

The tool length can be set by pulling back the length adjustment lock lever (VII), then adjusting the tool length and tightening the lock le-

EN

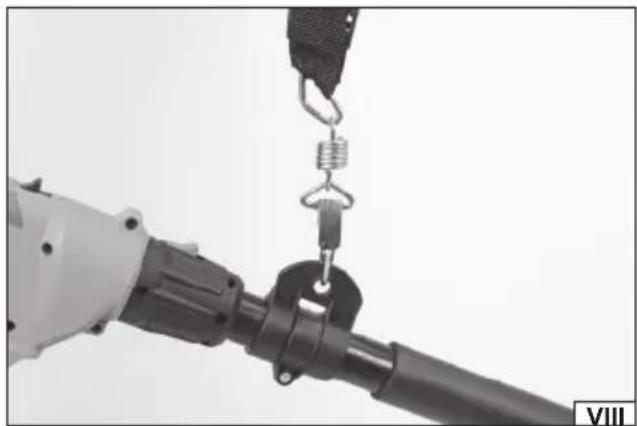

ver. Infinite adjustment of the tool length between the movement stops is possible. There is a clamp between the brackets that allows the attachment of an auxiliary carrying strap (VIII). It allows reducing the load on the hands holding the machine, especially during prolonged use. The strap latch must be passed through the opening on the top of the machine housing. The strap should be placed diagonally over the operator's body and its length adjusted so that the majority of the machine's weight rests on the belt.

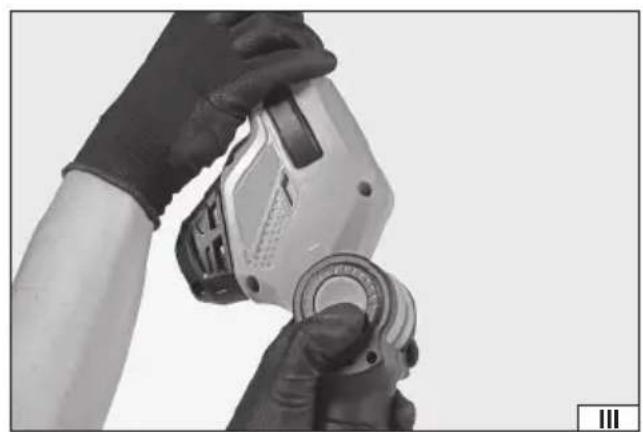

Cutting head angle adjustment (III)

The cutting head of the tool can tilt in relation to the handle. This makes it easier, for example, to form the top of a hedge or to cut off branches in the case of pole saw. Changing the angle of the cutting head is possible by pressing both head angle adjustment buttons simultaneously, holding them down and then changing the angle. The head can be locked in several positions. Ensure that the head is locked in its new position and that the lock button has returned to its rest position.

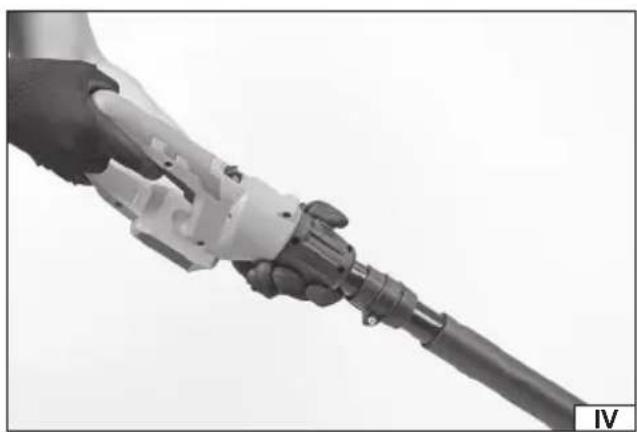

Turning the rear handle (IV)

The rear handle has the ability to rotateright or left. To rotate the rear handle, press and hold the rear handle rotation button, rotate the handle to the right or left, release the button. By rotating the handle after releasing the angle adjustment button, it will lock into one of the positions marked on the housing. Ensure that the handle is locked in its new position and that the swivel button has returned to its rest position.

Preparing the workplace

Before starting work, the site should be properly prepared to minimise the risks associated with working with the tool. Make sure that only authorised persons are present at the workplace. Ensure good visibility from the workplace; that is why take special care when cutting working in difficult terrain conditions, e.g., on slopes. It is forbidden to start work during precipitation and in case of high air humidity, e.g., fog. Wear protective clothing and personal protective equipment. Avoid cutting wires, young trees, and wooden beams. Note that cut twigs and plant debris falling may bounce off other branches or become blocked between other branches. Prepare an escape route in case of danger from falling branches or plant debris. The escape route should also be free of obstructions while working. If obstructions appear in the escape path during the work, they must be removed before continuing. Due to the possibility of working on an overhang, make sure that the trimmer does not come into contact with power lines, telephone lines, etc. Cutting or snagging on such lines can cause electric shock.

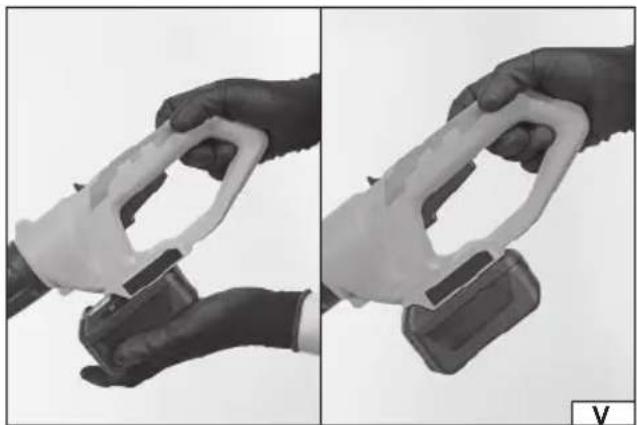

Connecting the tool to the power supply (V)

Slide the battery into the power socket with the contacts facing inside the compartment and upwards until the battery latch engages. Make sure that the battery will not slide out on its own during operation. Disconnect the battery by pressing and holding the latch and then pulling the battery out of the seat.

Only the following 18V Li-Ion YATO batteries can be used to power the tool: YT-82842, YT-82843, YT-82844 and YT-82845, which can only be charged with YATO YT-82848 or YT-82849 chargers. It is forbidden to use other batteries with a different rated voltage and not matching the tool battery socket. It is forbidden to modify the socket or battery to make them match.

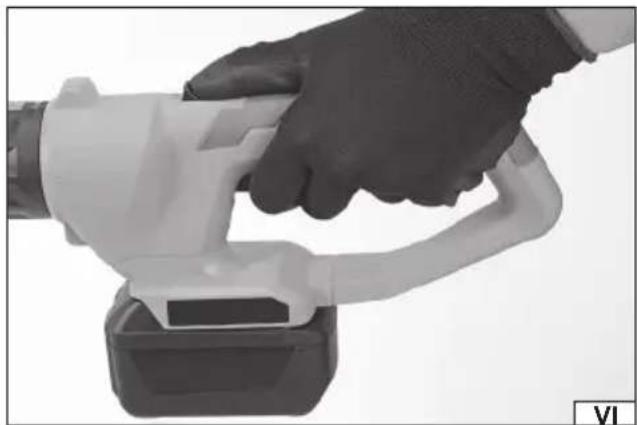

Starting the trimmer (VI)

Remove the guard from the shear blades. Grasp the trimmer with both hands by the front handle with one hand and the rear handle with the other. Ensure that the blades do not come into contact with any object or surface. Slide the electrical switch lock button on the top of the rear handle forward with your thumb. Press and hold the power switch in this position. The electrical switch lock button can be released. Wait until the motor has reached full speed and ensure that the blades are running smoothly before cutting. If you hear abnormal sounds or vibrations, turn the tool off immediately by releasing the power switch. The trimmer is turned off by releasing the power switch. Unplug the trimmer from mains and proceed with maintenance once the blade has stopped.

Working with the trimmer

Do not allow the device to operate at low speed or during start-up. The most effective work is if the cutting is done in full wide movements. For greater efficiency, the blades can be tilted at an angle of 5-10° in the cutting direction (XII). To achieve an even single hedge height, you can use string stretched along the cutting line. Cut the part of the hedge above the line. Vertical cutting of the hedge is possible. It is advisable to cut in a curved motion from bottom to top and then from top to bottom to use both sides of the blades (XIII). Useful tips when working Take care to ensure balance and correct posture when working. Exercise particular caution when working on a slippery, inclined, or uneven surface. Constantly keep an eye on the blades during operation. Do not mow in places which are out of sight.

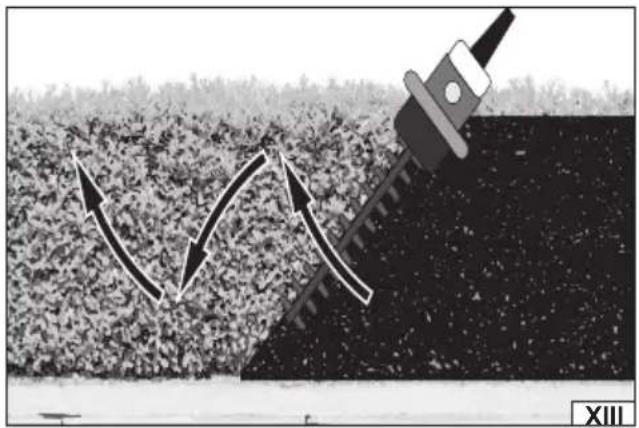

Trimmer operation tips

Maintain balance and proper posture during work. Exercise particular caution when working on a slippery, inclined, or uneven surface. Constantly keep an eye on the blades during operation. Do not mow in places which are out of sight. Before starting work, inspect the workplace thoroughly, remove all loose branches and residues from the previous mowing. Special care should be taken when treating tall hedges. The other side of the hedge should also be checked before starting work. The trimmer gear cover heats up during operation. To avoid burns, avoid contact with the gearbox cover. Take regular breaks when working. During operation, the tool emits noise and vibration, which impact the tool's operator. Taking regular breaks and wearing personal protective equipment such as gloves, hearing protectors and eye protection allows to reduce the impact of the tool on the operator's well-being. Start work when healthy and in good shape. In case of nausea, headache, sight problems (e.g., reduced visual range), hearing problems, or dizziness, immediately stop operating the tool.

EN

If the trimmer jams during operation switch it off immediately using the on/off switch and disconnect the battery, wait until the shear components have cooled completely and then proceed to remove the cause of the jam. If, due to jamming, any part of the blades or cover is damaged or deformed, replace or repair it before resuming work.

Maintenance and storage of shears

Caution! Before starting any activities described below, disconnect the trimmer from mains. In the case of mains-powered tools, disconnect them from the socket, and for battery-powered tools - disconnect their batteries. After each use, inspect the condition of the tool with particular attention to the patency of ventilation openings. Check the placement of all of the tool's components. Tighten all loose screw connections, if any. Check the condition of the blades. Clean it with a brush and then preserve them with a spray lubricant. Excess lubricant should be wiped off. If you notice any damage or dulling of the blades, replace them at an authorised service centre. It is forbidden to use shears with damaged blades. Ensure that the blades are always lubricated. This will prevent the appearance of rust, which reduces the performance of the tool and can also increase the risk of injury. The clearance between the blades should be between 0.2 and 0.4 mm, measured at the point where the blades are bolted together. The blades are sharpened at the factory to achieve optimum performance, but become dull as a result of use. The condition of the blades should be assessed before starting any work. If rounding of the upper edge of the blades is discovered or if the roundness of the lower part of the blade disappears, the blades must be sharpened (XIV). The sharpening must be done at an authorised manufacturer service centre. Before storing the trimmer for an extended period of time, the blades should be sprayed with a preservative or spread over the blades with a brush. Excess preservative should not be removed until immediately before work. This maintenance will reduce the risk of the blades rusting. Clean the tool's housing with a soft and dry cloth. Clean the housing from residues of wood, oil, grease, and other contaminants. The tool should be stored in a dry, closed room, disconnected from the mains. Store the tool in shaded and dry places with appropriate ventilation preventing steam condensation. Such place should not be accessible to unauthorised persons, especially children. During storage, the guide bar and chain must always be secured with a guard.

Preparing the pole saw for work

Caution! Disconnect the pole saw from the power supply before performing any assembly and adjustment work. Remove the battery from the power tool socket!

Mount the guide bar and cutting chain before first use. Perform the assembly with protective gloves due to the risk of injury. Turn the side panel locking knob, in the direction indicated by the arrow bearing the open padlock symbol, until the panel is removed from the head of the pole saw (IX).

Mount the guide bar and chain as shown in picture (X). Make sure that the chain and guide bar are fitted in the correct direction. The shape and direction of the links visible on the chainsaw housing should correspond to the shape and direction of the chain. If there is a visible movement direction indication on the chain links, it should have the same direction as the indication on the housing and guide bar. Make sure the chain hits the guide slot and the teeth on the sprocket. The next step is to attach and tighten the side panel. To do this, insert the side panel catches into the pole saw head housing and then tighten the locking knob in the direction indicated by the arrow bearing the closed padlock symbol. However, do it so as not to block the possibility of the guide bar movement. Use the chain tension knob to adjust the chain tension. Tighten the locking knob. Check the chain tension. To do this, set the pole saw down and lift it by holding the middle part of the chain (XV). During this test, the chain at the holding point should rise above the guide bar within the range shown in the illustration. If the chain is tightened too tight or too loose, loosen the locking knob a little and reset the chain tension level. The chain tension level should also be checked every 10 minutes of operation. Secure the fitted guide bar with the chain by means of a cover and then connect the two parts of the pole saw. Unscrew the head mounting locking device, then slide the part with the switch into the slot of the part with the head. If a component of the part with the head is correctly inserted in the slot of the part with the switch, this means that the connection between the two parts can be secured by turning the head mounting lock. Ensure that the pole saw parts do not come apart during operation.

Before connecting the pole saw to the power supply, check the condition of the tool. If any damage is detected, it is forbidden to connect it to the power supply before rectifying the damage.

Oil topping-up

Caution! Disconnect the pole saw from the power supply before performing any assembly and adjustment work. In the case of mains-powered tools, disconnect them from the socket, and for battery-powered tools – disconnect their batteries. For lubricating the chain and pole saw mechanisms use only oil intended for such purposes. It is forbidden to use worn-out motor oil. It does not fulfil its purpose, which can lead to damage to the pole saw mechanism. Make sure that there is lubricating oil in the tank. Place the pole saw on the horizontal surface and check the oil indicator. The oil level cannot be lower than the minimum indication. If there is no such indicator, the lower edge of the oil level indicator should be taken as the reference level. It is forbidden to use the pole saw with the empty oil tank. This can damage the chain, guide bar, and mechanisms of the pole saw. It is recommended to start and operate the pole saw at least 3 meters from the place where the oil topping-up procedure was performed. Perform oil topping-up away from fire and heat sources. To top up the oil, unscrew the oil tank cap, pour the oil inside the tank so the oil level levels out with a mark indicating the maximum oil level or upper edge of the oil level indicator, then screw the tank cap firmly and securely. In case of spilling the oil, thoroughly wash off any debris before connecting the pole saw to the power supply.

Starting the pole saw (VI)

Remove the guard from the guide bar and chain. Grasp the pole saw with both hands – by the front handle with one hand and the back handle with the other. Make sure that the guide bar and chain do not come into contact with any object or surface. Slide the electrical switch

EN

lock button on the top of the rear handle forward with your thumb. Press and hold the power switch in this position. The electrical switch lock button can be released. Wait until the motor has reached full speed and ensure that the blades are running smoothly before cutting. If you hear abnormal sounds or vibrations, turn the tool off immediately by releasing the power switch. The trimmer is turned off by releasing the power switch. Unplug the tool from mains and proceed with maintenance once the chain has stopped.

Working with the pole saw

Persons who intend to work with a pole saw for the first time should seek advice on work and safety from a qualified pole saw operator before starting work. During work, observe the basic occupational safety principles. Consider also the possibility of kickback in the operator's direction. The pole saw may kick back in the operator's direction when the cutting chain encounters resistance. To reduce this risk: Pay attention to the placement of the guide bar top when cutting. It is forbidden to cut with the upper quarter of the guide bar top (XVI). Cut only with the chain which moves along the bottom part of the guide bar. Only apply the started pole saw to the wood to be cut. Do not start the pole saw after having applied it to the wood being processed. Do not stand in the cutting plane. This will reduce the risk of injury in case of the pole saw kickback (XVII). During work, always hold the tool with both hands. Make sure that the chain is always sharp and appropriately tensioned. When cutting branches and boughs, do not start cutting them at the trunk, but at a distance of about 15 cm from the trunk. Make two cuts to a depth of 1/3 of the branch diameter, approximately 8 cm apart – One cut from below, one from above. Then cut the branch just at the trunk to a depth equal to 1/3 of the branch diameter. Finish the process by cutting the branch at the trunk from above. Do not cut the branches by cutting from the bottom (XVIII). If the pole saw gets stuck while cutting, never leave it in this position with the motor running. Turn off the tool's motor, unplug the tool from the power supply and use wedges to extract the pole saw from the jam. It is forbidden to use the pole saw to form hedges or shear bushes. Do not touch the ground with the cutting head, chain, or guide bar. Do not allow the tool to get contaminated with soil.

Maintenance and storage of the pole saw

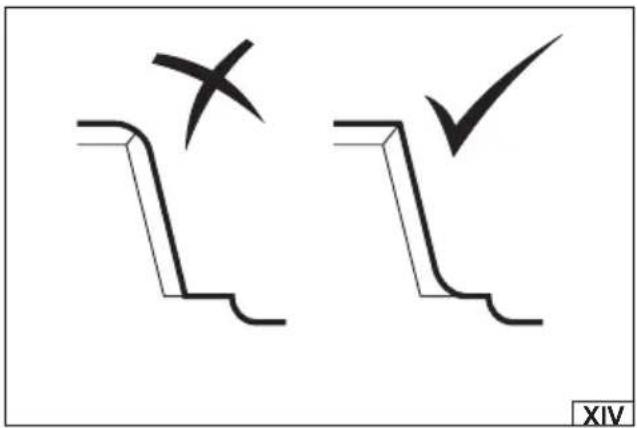

Caution! Disconnect the tool from the power supply before starting any of the operations described below. In the case of mains-powered tools, disconnect them from the socket, and for battery-powered tools - disconnect their batteries. After each use, inspect the condition of the tool with particular attention to the patency of ventilation openings. Check the placement of all of the tool's components. Tighten all loose screw connections, if any. Check the tension and condition of the chain. If any damage is observed, replace the chain with a new one. It is forbidden to use the tool with a damaged chain! A chain that is too loose can fall off the guide bar which may lead to injury to the operator. The chain must also be properly sharpened, because it requires appropriate experience and tools. It is recommended to carry out sharpening at specialised service centres. To up any oil shortages in the tank. Clean the tool's housing with a soft and dry cloth. Clean the housing from residues of wood, oil, grease, and other contaminants. The tool should be stored in a dry, closed room, disconnected from the mains. Caution! During storage of the tool, a small amount of oil may escape from the chain lubrication system, this is a normal symptom and does not affect the oil level in the tank and is not a sign of damage. Store the tool in shaded and dry places with appropriate ventilation preventing steam condensation. Such place should not be accessible to unauthorised persons, especially children. During storage, the guide bar and chain must always be secured with a guard.

Safety instructions for battery charging

Caution! Before starting charging, make sure that the power unit body, cable and plug are not cracked or damaged. It is forbidden to use a defective or damaged charging station and power unit! Use only the supplied charging station and power unit to charge the batteries. The use of another power unit may result in fire or damage to the tool. The battery should only be charged in a closed, dry room, protected against unauthorised access, especially by children. Do not use the charging station and power unit without the constant supervision of an adult! If you need to leave the room where the product is being charged, disconnect the charger from the mains by removing the power unit's plug from the mains socket. If smoke, suspicious odours, etc. are escaping from the charger, remove the charger plug from the mains socket immediately! The device is supplied with an uncharged battery and should therefore be charged according to the procedure described below with the included power unit and charging station before use. Li-ion (lithium-ion) batteries do not have the so-called “memory effect”, which means they can be recharged at any time. However, it is recommended to discharge the battery during normal operation and then charge it to full capacity. If, due to the nature of work, it is not possible to use the battery in such a manner every time, it should be done at least every several work cycles. Never discharge any batteries by short-circuiting the battery plates, as this will cause irreparable damage! In addition, do not check the battery charge status by short-circuiting the electrodes and checking their sparking.

Storing the battery

Ensure the proper storage conditions to extend the battery's life. The battery can withstand approximately 500 charge-discharge cycles. Store the battery at a temperature ranging from 0^ C to 30^ C at a relative air humidity of 50%. Charge the battery to approx. 70% of its total capacity to store it for a longer period of time. In case of prolonged storage, the battery should be periodically charged once a year. Do not over-discharge the battery as this will shorten its life and may cause irreparable damage. During storage, the battery will gradually discharge due to leakage. The self-discharge process depends on the storage temperature – the higher the temperature is, the faster the discharge process is. If the batteries are stored incorrectly, the electrolyte may leak. In case of leakage, secure the leak with a neutralising agent. In the case of electrolyte contact with eyes, rinse eyes thoroughly with water, and immediately seek medical attention. It is not allowed to use the tool with a damaged battery. If the battery is completely worn, return it to a specialist waste disposal centre.

Transporting the batteries

Lithium-ion batteries are treated as hazardous goods according to legal regulations. The user of the tool can transport the product

EN

together with the battery and the batteries alone by land. In that case, no additional conditions have to be met. If you entrust transport to third parties (e.g. a courier company), follow the regulations regarding the transport of hazardous goods. Before shipping, please contact a properly qualified person. It is not allowed to transport damaged batteries. For the duration of transport, remove the demountable batteries from the product and secure the exposed contacts, e.g. by covering them with insulation tape. Protect the batteries in the packaging in such a way that they do not move inside the packaging during transport. National regulations for the transport of hazardous materials must also be observed.

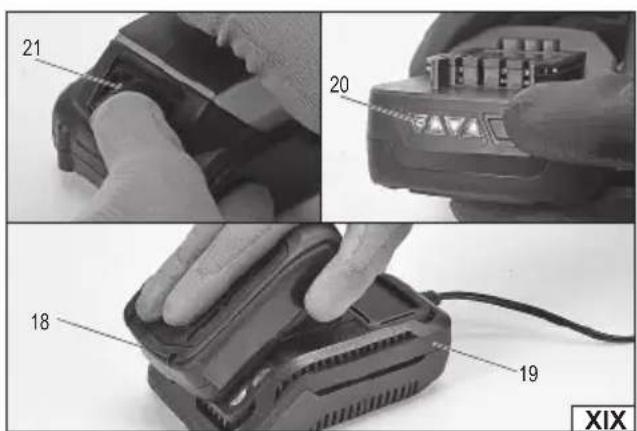

Charging the battery

Caution! Before charging, disconnect the charging station power unit from the mains by removing the plug from the mains socket. In addition, clean the battery and battery clamps of dirt and dust with a soft, dry cloth.

The battery has a built-in charge indicator. The LEDs will light up by pressing the button (XIX), the more of them come on, the more charged the battery is. If the LEDs do not light up when the button is pressed, the battery is discharged. Disconnect the battery from the tool. Slide the battery into the charger socket (XIX). Plug the charger into a mains socket. The red LED will light up, which indicates the charging process. When charging is complete, the red LED will turn off and the green LED will light up to indicate that the battery is fully charged. Pull the power unit plug out of the mains socket. Pull the battery out of the charging station by pressing the battery latch button. Caution! If the green LED lights up when the charger is connected to the mains, the battery is fully charged. In this case, the charger will not start the charging process.

PRODUKTBESCHREIBUNG

CARACTÉRISTIQUES DU PRODUIT

Transport van accu's

Transport akumulatora

DECLARATION OF CONFORMITY

0525/YT-828390/EC/2025

We declare and guarantee with full responsibility that the following products:

Cordless garden multi tool; item no. nr kat. YT-828390, YT-828391

Pole saw: 18 V d.c.; 200 mm; 2500 min ^1 ; 4,5 m/s

Hedge trimmer: 18 V d.c.; 415 mm; 1500 min ^-1

meet requirements of the following European Standards / Technical Specifications:

EN 62841-1:2015 + A11:2022

EN 62841-4-2:2019 + A1:2022 + A11:2022

EN ISO 11680-1:2021

EN IEC 55014-1:2021

EN IEC 55014-2:2021

and fulfill requirements of the following European Directives:

2006/42/EC Machinery and safety elements

2014/30/EU Electromagnetic compatibility (EMC) Directive

2011/65/EU Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

Agnieszka Rędziak

TOYA S.A., ul. Sołtysowicka 13 - 15, 51-168 Wrocław, Poland

Wrocław, 2025.05.29

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.

DECLARATION OF CONFORMITY

0525/YT-828390/EC/2025

We declare and guarantee with full responsibility that the following products:

Cordless garden multi tool; item no. nr kat. YT-828390, YT-828391

Pole saw: 18 V d.c.; 200 mm; 2500 min ^-1 ; 4,5 m/s

Hedge trimmer: 18 V d.c.; 415 mm; 1500 min ^-1

fulfil requirements of the following European Directive: 2000/14/WE

Conformity assessment procedure:

Manufacturer quality-control system

Measured sound power level on an equipment representative for this type: 88,0 dB(A)

Measured sound power level on an equipment representative for this type: 89,6 dB(A)

Guaranteed sound power level for this equipment: 98 dB(A)

conformity and references of the other Community Directives applied:

2006/42/EC Machinery and safety devices

2014/30/EU Electromagnetic compatibility

2011/65/EU Restriction of the Use of Certain Hazardous Substances

Wrocław, 2025.05.29

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.
