USER MANUAL YT-82060 Yato
PL EN DE RU UA LT LV CZ SK HU RO ES FR IT NL GR


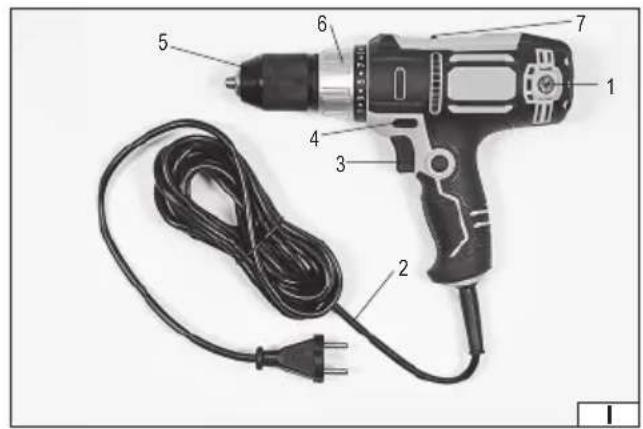

- power supply cable with plug
- switch
- rotation selector
- drill chuck
- torque selector
- adjustmens of rotation
DE
Read the operating instruction
Wear hearing protectors
Second class of insulation
Wear protective goggles
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
CHARAKTERYSTYKA WYROBU
The drill and screwer is a universal portable tool which does not require external power supply for do-it-yourself enthusiasts designed to drill holes in distinct materials (e.g. wood and wood-derived materials, metals) and to screw and unscrew bolts. Its special advantages will be appreciated by DIY enthusiasts realising assembly and finishing jobs. The tool has been designed solely for domestic work and must not be used professionally, i.e. in workshops and for remunerable jobs. A correct, reliable and safe functioning of the electric tool depends on its proper use, so:
Before you proceed to operate the device, read the manual thoroughly and keep it.
The supplier will not be held responsible for any damage resulting from the safety regulations and the recommendations indicated hereby not being observed.
EQUIPMENT
The device is supplied complete and does not require assembly.
TECHNICAL PARAMETERS
| Parameter Unit of measurements Value | ||
| Catalogue number | YT-82060 | |
| Nominal voltage | [V] ~230 | |
| Nominal frequency | [Hz] 50 | |
| Nominal power | [W] 300 | |
| Nominal rotation | [min ^-1 ] 0 - 400 / 0 - 1450 | |
| Maximum hole diameter (steel) | [mm] 13 | |
| Maximum torque [Nm] 40 | ||
| Mass [kg] 1,54 | ||
| Level of noise | ||
| Acoustic pressure [dB (A)] 86,1 ± 5,0 | ||
| Acoustic power | [dB (A)] 94,1 ± 5,0 | |
| Class of insulation | II | |
| Level of vibration | [m/s ^2 ] | 3,32 ± 1,5 |
| Grade of protection | IPX0 |
GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS
Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury.
Keep all warnings and instructions for future reference.
The term "power tool" used in warnings applies to all tools driven by power both wired and wireless.
Workplace safety
Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.
Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.
Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.
Electrical safety
The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.
Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.
Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.
Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.
Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.
In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.
EN
When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.
Personal safety
Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.
Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.
Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.
Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.
Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.
Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.
If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.
Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules. Carefree action can cause serious injuries in a fraction of a second.
Use and care of the power tool
Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.
Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.
Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.
Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.
Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.
Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.
Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.
Repairs
Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.
SAFETY WARNINGS FOR DRILLS
Safety instructions for all activities
Use hearing protection when impact drilling. Exposure to noise can cause hearing loss.
Use the additional handle(s). Loss of control can cause personal injury.
Grasp the tool properly before use. This tool generates high torque and without proper holding during operation, loss of control can cause personal injury.
Hold the power tool by its insulated grip surfaces while performing operations where the cutting part may come into contact with concealed wiring or its own cable. If the cutting part comes into contact with live cable, it may cause the exposed metal parts of the power tool to become live and electrocute the operator.
Safety instructions when using long drill bits
Never operate at a higher speed than the maximum drill speed. At higher speeds, the drill will probably bend and cause personal injury if it is allowed to rotate freely without contact with the workpiece.
Always start working at low speed and when the end of the drill is in contact with the workpiece. At higher speeds, the drill
EN
will probably bend and cause personal injury if it is allowed to rotate freely without contact with the workpiece.
Apply pressure only in the direction of the drill axis. Do not apply excessive pressure. The drill can bend, causing breakage or loss of control which will result in personal injury.
PREPARATION FOR WORK
ATTENTION! All the operations mentioned in this point must be realised with the power supply off.
Adjustments of rotation and torque

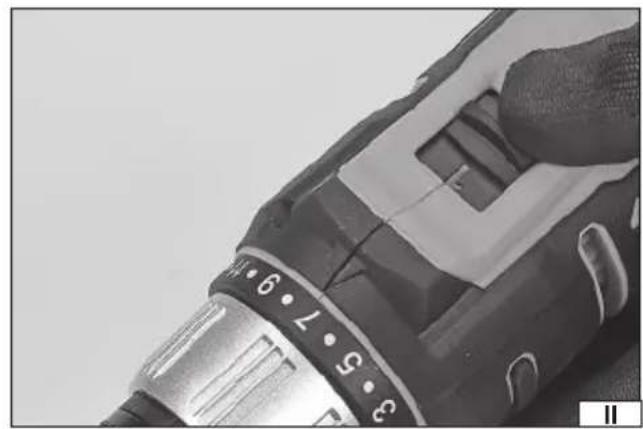

The automatic return screwdriver has two mechanical gears (II). Depending on the selected maximum rotation, it is required to select one of them. The lower rotation gear is recommended for tightening and loosening screws, while the high rotation gear is recommended for drilling.

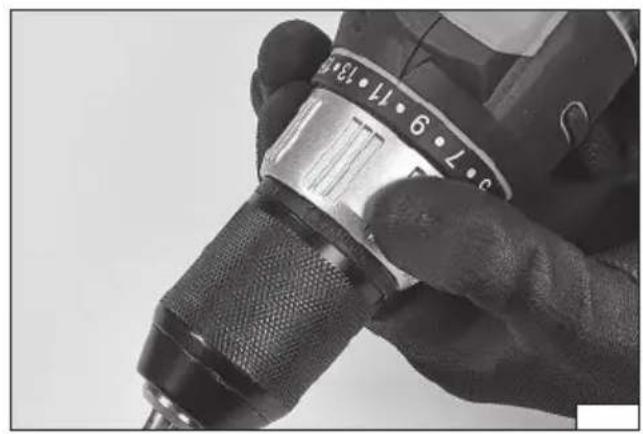

Torque is adjusted with the ring located behind the chuck (III). The higher the adjusted number, the higher the torque of the automatic return screwdriver. Do not set a higher torque than necessary for a correct work. Otherwise, the threads may be damaged. In case screws are driven directly into the material, it is required experiment with adequate torque, realising tests on waste material. If the maximum torque, which is safe for the given connection, is unknown, it is required set the lowest value, and then increase it until the value which is appropriate for the given task has been reached. When the automatic return screwdriver reaches the maximum set torque, the overload clutch will be activated, and it is required to stop tightening the bolt.
In case the tool is used to drill holes, it is required to set the ring to the drill symbol, and then the overload clutch will be deactivated, and the maximum torque will be transmitted to the drill.
Attention! Do not use settings indicated with numbers for drilling. Activation of the overload clutch during drilling may cause damage to the material or the drill and increases the risk of injuries.

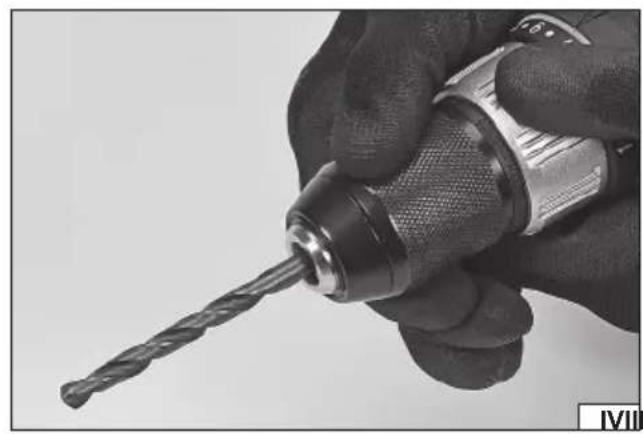

Installation of drill bits in the drill chuck
Select an adequate drill bit with a cylindrical drill shank.
Place the drill bit in the chuck. Hold the rear part of the chuck with one hand and tighten the front part of the chuck with another hand until the drill bit is secured (IV).
Select the highest torque.

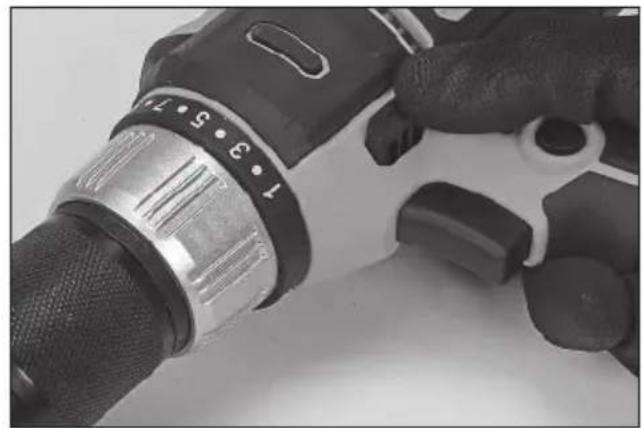

Adjustment of the direction of rotation
Place the selector of rotation, the rotation direction is marked by an arrows. (V).
Attention! The direction of rotation may be changed only if the power supply is off! It is prohibited to change the direction of rotation during operation of the drill and screwer!

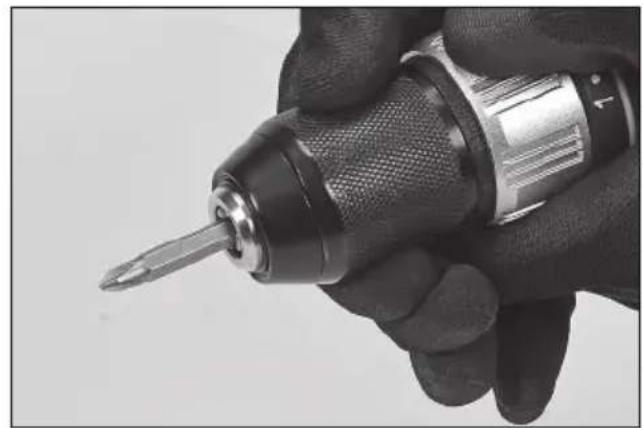

Installation of screwdriver bits in the drill chuck
Place a bit holder in the drill chuck and install an adequate bit. (VI)
Before work:
The processed material must be appropriately fixed, using an anvil or clamps.
Use tools which are appropriate for the task to be realised. Make sure they are sharpened and in good conditions.
Wear working clothes and sight and hearing protection.
Plug the cord to the mains.

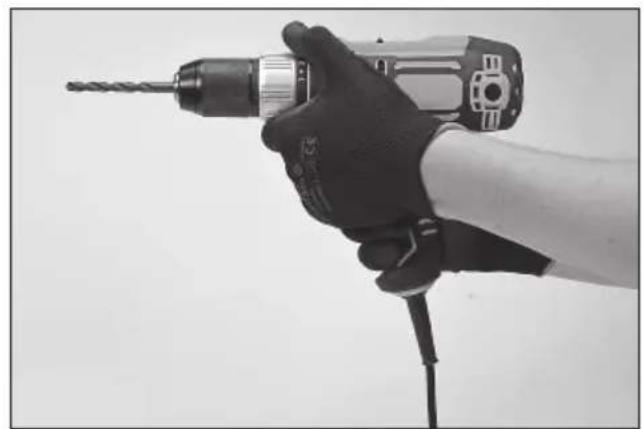

Hold the drill with both hands (VII).
Adapt a position that guarantees equilibrium.
Turn the hammer drill off, pressing the switch with a finger.
Attention! In case any suspicious sounds or smell are detected the hammer drill must be immediately disconnected from the mains.
USING OF THE TOOL
Attention! Use hearing protection while using the tool!
Using right or left rotation
The right rotation should be used while drilling with common dextrorotatory drill bits.
The left rotation should be used if the dextrorotatory drill bit is seized in the material and to remove bolts. In case of removing bolts, use the lowest rotation.
Drilling in wood
Before making a hole it is recommended to secure the material with clamps or in an anvil, and then to mark the point to be drilled
EN
with a centre punch or a nail. Secure an adequate drill bit in the drill chuck, adjust the torque, connect the tool to the battery and start drilling.
In case of making holes through the material, it is recommended to place a wooden pad under the material, so as to avoid fraying of the edge of the hole.
In case of making holes of large diameters it is recommended to drill first a smaller guiding hole.
Drilling in metals
Always secure the material to be processed. In case of thin sheet it is recommended to place it on a wooden pad so as to avoid undesired bends, etc. Then mark the points to be drilled with a centre punch and start drilling.
Use drill bits for steel. In case drilling is done in white cast iron, it is recommended to use sintered carbide drill bits.
In case of making holes of large diameters it is recommended to drill first a smaller guiding hole.
In case of drilling in steel, cool the drill bit with machine oil.
In case of drilling in aluminium, cool the drill bit with turpentine or paraffin.
In case of drilling in brass, copper or cast iron, do not use cooling agents. In order to cool the drill bit, it should be often removed from the material.
Drilling in ceramic materials
Drilling in hard, compact materials (concrete, hard bricks, stone, marble, etc.)
Applies only to hammer tools.
Before the desired hole is made, drill a smaller hole with the hammer function off. Drill the proper hole with the hammer function on. Use hammer sintered carbide drill bits in good conditions.
Drilling in glaze, soft bricks, plaster, etc.
Use hammer drill bits. Do not turn the hammer function on (if applicable). During drilling press the tool hard with constant force.
Remove the drill bit from the hole being drilled from time to time, in order to remove dust and waste.
Using the tool to screw bolts in and out
It is recommended to use the lowest rotation and adequate bits.
Bits may be installed directly in the drill chuck or with a special magnetic holder.
In order to unscrew a bolt select the left rotation (L).
Using attachments
The tool must not be used to power working attachments.
Additional information
During work do not exert excessive pressure on the processed material and do not make violent moves, so as to avoid any damage to the working tool and the drill.
Make regular breaks during work.
Do not overstress the tool. The temperature of the external surfaces must not exceed 60°C.
Once the work has been concluded, turn the drill off, remove the battery and carry out maintenance tasks and inspection.
MAINTENANCE AND OVERHAUL
ATTENTION! Before any adjustment, technical service or maintenance operations unplug the tool. Once the operations have been finished, the technical conditions of the tool must be assessed by means of external evaluation and inspection of the following elements: body and handle, conductor with a plug and deflection, functioning of the electric switch, patency of ventilation slots, sparking of brushes, noise level of functioning of bearings and gears, start-up and smoothness of operation. During the guarantee period, the user cannot dismantle the electric tools or change any sub-assemblies or elements, since it will cancel any guarantee rights. All irregularities detected at overhaul or during functioning of the tools are a signal to have the tool repaired at a service shop. Once the functioning has been concluded, the casing, ventilation slots, switches, additional handle and protections must be cleansed with a stream of air (at a pressure not exceeding 0.3 MPa), with a brush or a cloth without any chemical substances or cleaning liquids. Tools and handles must be cleansed with a clean cloth.
CHARAKTERISTIK DES ERZEUGNISSES
Bohren in Keramikmaterial
CARACTÉRISTIQUES DU PRODUIT
VEILIGHEIDSWAARSCHUWINGEN VOOR BOREN
DECLARATION OF CONFORMITY
1124/YT-82060/EC/2024
We declare and guarantee with full responsibility that the following products:
Electric impact wrench 230 V\~; 50 Hz; 300 W; 0-400/0-1450 min ^-1 ; 13 mm; item no. YT-82060
meet requirements of the following European Standards / Technical Specifications:
EN 62841-1:2015 + A11:2022
EN 62841-2-1:2018 + A11:2019 + A1:2022 + A12:2022
EN IEC 55014-1:2021
EN IEC 55014-2:2021
EN IEC 61000-3-2:2019 + A1:2021
EN 61000-3-3:2013 + A1:2019 + A2:2021
and fulfill requirements of the following European Directives:
2006/42/EC Machinery and safety elements
2014/30/EU Electromagnetic compatibility (EMC) Directive
2011/65/EU Restriction of the Use of Certain Hazardous Substances
Serial number: concern all serials numbers of item(s) mentioned in this declaration
The person authorized to compile the technical file:
Agnieszka Rędziak
(Place and date of issue)
V-CE PREZES ZARZADU
JAN SZMIDT
(Name and signature of authorized person)
TOYA S.A.
