USER MANUAL VA6111RT Atag

Safety warning symbol and diagram showing a faucet with a funnel, indicating high risk or hazard.

Labeled diagram of a refrigerator interior showing numbered components for identification

Diagram of a mechanical component with two views: one showing a circular gear and the other showing a rotating shaft (no text or symbols)

Elektronische aanpassing

Technical line drawing of a mechanical device with multiple components and no visible text or symbols

Technical diagram of a mechanical or electrical component with internal flow arrows (no text or symbols)

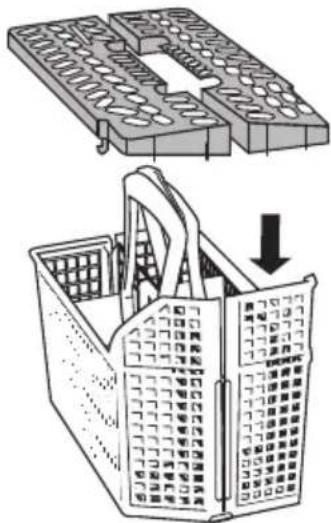

Bestekmand

Illustration of a plastic basket with a handle and a separate plastic tray (no text or symbols)

Illustration showing a basket of cutlery with a downward arrow and warning symbols including a checkmark and an exclamation mark.

Illustration of a kitchen menu with cutlery and utensils arranged in a tray (no text or symbols)

Technical line drawing of a mechanical assembly with two cylindrical components mounted on a grid-like frame (no text or symbols)

Technical line drawing of a mechanical or industrial assembly with three conical components mounted on a grid-like structure (no text or symbols)

Technical diagram of a coiled metal structure with directional arrows indicating assembly or force (no text or symbols present)

Illustration of hands tying a knot using a string, with arrows indicating force direction (no text or symbols)

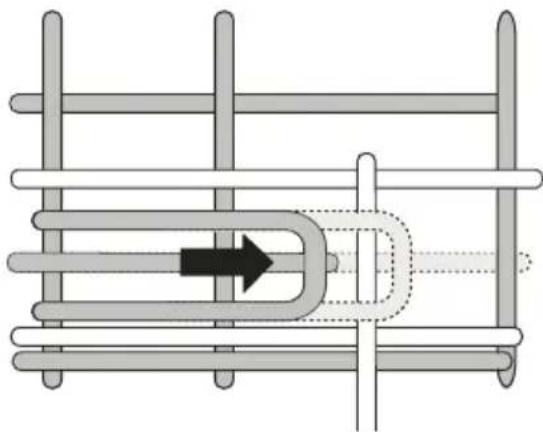

Pure mechanical diagram showing a U-shaped component inserted into a grid, with no text or symbols present.

Line drawing of a kitchen setup with cutlery, utensils, and a plate (no text or symbols)

Illustration of various kitchen utensils and kitchenware arranged on a grid surface (no text or symbols)

Diagram of a mechanical or electrical component with rotating arrows and layered structure (no text or symbols)

Diagram of a structural grid with an arrow indicating rotation or force direction, and a dome-shaped object on top (no text or symbols)

Illustration of a hand using a tool to press or install a component on a grid-patterned surface (no text or symbols)

Illustration of a hand pressing down on a perforated metal tray (no text or symbols)

Use of the appliance 27

Setting the water softener 27

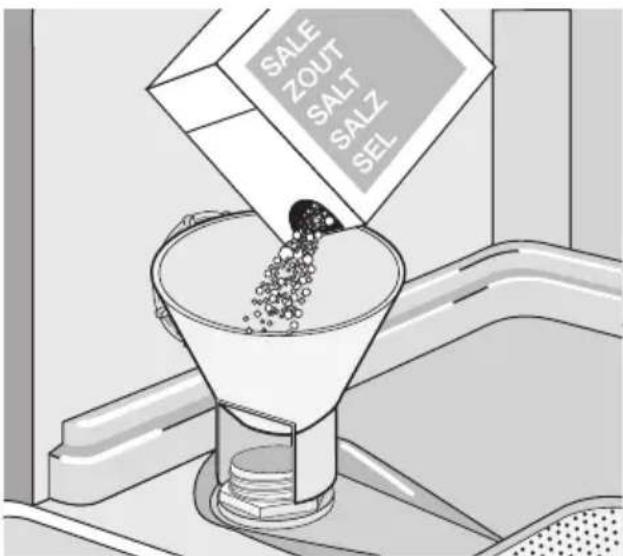

Use of dishwasher salt 28

Use of detergent and rinse aid 29

Multitab function 29

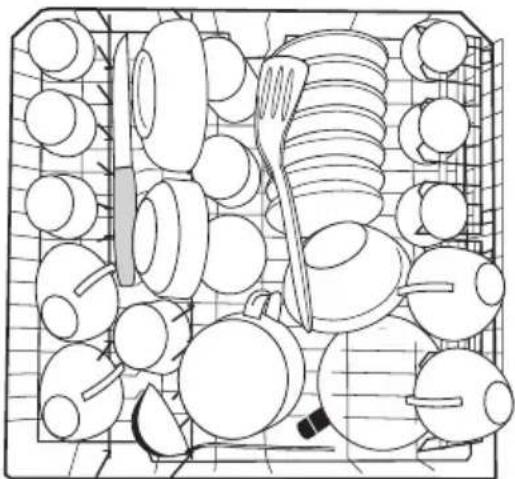

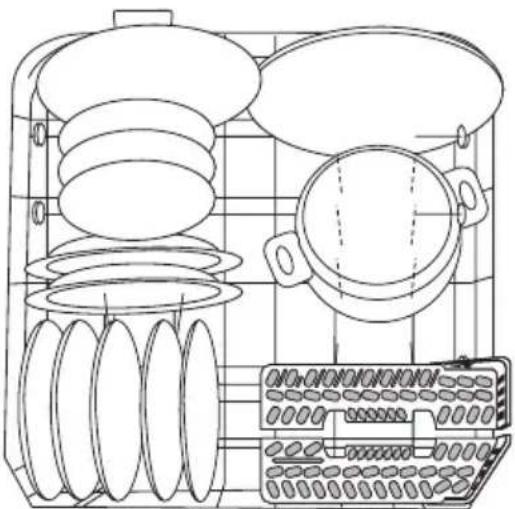

Loading cutlery and dishes 30

Select and start a washing programme

33

Washing programmes 34

Care and cleaning 36

What to do if... 37

Technical data 39

Environment concerns 40

Subject to change without notice

Safety information

Before the installation and use, read this manual carefully:

• For your safety and the safety of your property.
• To help the environment.
• For the correct operation of the appliance.

Always keep these instructions with the appliance also if you move or give it to a different person.

The manufacturer is not responsible if an incorrect installation and use causes damage.

Children and vulnerable persons safety

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge to use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety.
• Keep all packaging away from children. There is the risk of suffocation or injury.
• Keep all detergents in a safe area. Do not let the children touch the detergents.
• Keep children and pets away from the appliance when the door is open.

General safety

• Do not change the specifications of this appliance. There is the risk of injury and damage to the appliance.
• Obey the safety instructions from the detergent manufacturer to prevent burns to eyes, mouth and throat.
• Do not drink the water from the appliance. Particles of detergent can stay in your appliance.
• Do not keep the appliance door open without supervision. This to prevent injury and to fall on an open door.

- Do not sit or stand on the open door.

Use

• The appliance is only for domestic use. Do not use the appliance for other uses to prevent injury to persons and damage to property.
• Only use the appliance to clean accessories that are applicable for dishwashers.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance. Risk of explosion or fire.

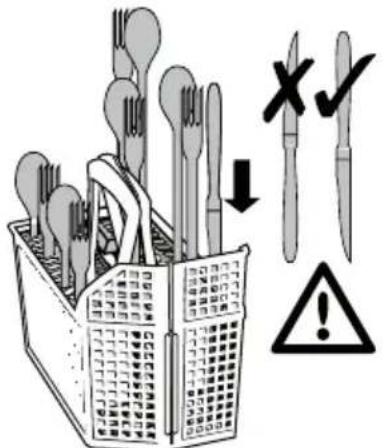

• Put the knives and all items with sharp points in the cutlery basket with their points down. If not, put in a horizontal position in the upper basket or in the knife basket. (Not all models have the knife basket).
• Use only specified products for dishwashers (detergent, salt, rinse aid).
• Types of salt that are not specified for dishwashers can cause damage to the water softener.
• Fill the appliance with salt before you start a washing programme. Remaining salt in the appliance can cause corrosion or make a hole in the bottom of the appliance.
• Do not fill the rinse aid dispenser with other products than the rinse aid, (dishwasher cleaning agent, liquid detergent). This can cause damage to the appliance.
• Make sure that the spray arms can move freely before you start a washing programme.
• The appliance can release hot steam if you open the door while a washing programme operates. There is a risk of skin burns.

- Do not remove the dishes from the appliance until the washing programme is completed.

Care and cleaning

• Before you clean the appliance, deactivate it and disconnect the mains plug from the mains socket.
• Do not use flammable products or products that can cause corrosion.
• Do not use the appliance without the filters. Make sure that the installation of the filters is correct. An incorrect installation causes unsatisfactory washing results and damage to the appliance.
• Do not use spray water or steam to clean the appliance. Risk of electrical shock and damage to the appliance.

Installation

• Make sure that the appliance is not damaged. Do not install or connect a damaged appliance, contact the supplier.
• Remove all packaging before you install and use the appliance.
• Only a qualified person must do the electrical installation, the plumbing and the installation of the appliance. This to prevent the risks of structural damage or injury.
• Make sure that the mains plug is disconnected from the mains socket during installation.
• Do not drill into the sides of the appliance to prevent damage to hydraulic components and electrical components.
• Important! Obey the instructions in the template supplied with the appliance:
• To install the appliance.
• To assemble the door panel.
• To connect to the water supply and drain.
• Make sure that the appliance is installed below and adjacent to safe structures.

Frost precautions

• Do not install the appliance where the temperature is less than 0 °C.
• The manufacturer is not responsible for frost damage.

Water connection

- Use new hoses to connect the appliance to the water supply. Do not use used hoses.

• Do not connect the appliance to new pipes or pipes not used for a long time. Let the water flow for some minutes, then connect the inlet hose.
• Make sure not to squash or cause damage to the water hoses when you install the appliance.
• Make sure that the water couplings are tight to prevent a water leakage.
• The first time you use the appliance, make sure that the hoses do not have water leaks.
• The water inlet hose has a safety valve and a double sheath with an inner mains cable. There is pressure in the water inlet hose only when the water flows. If there is a leak in the water inlet hose, the safety valve interrupts the flow of water.
• Be careful when you connect the water inlet hose:
• Do not put the water inlet hose or the safety valve in water.
• If the water inlet hose or the safety valve are damaged, immediately disconnect the mains plug from the mains socket.
• Contact the service centre to replace the water inlet hose with safety valve.

Warning! Dangerous voltage.

Safety warning symbol and diagram showing a water tap with warning sign and lightning bolt

Electrical connection

• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply.
• Always use a correctly installed shock-proof socket.
• Do not use multiple plugs and extension cables. There is a risk of fire.

• Do not replace or change the mains cable. Contact the service centre.

• Make sure not to squash or cause damage to the mains plug and cable behind the appliance.

• Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Service centre

• Only a qualified person can repair or work on the appliance. Contact the service centre.
• Use only original spare parts.

To discard the appliance

• To prevent the risk of injury or damage:

• Disconnect the mains plug from the mains socket.
• Cut off the mains cable and discard it.
• Remove the door catch. This prevents children or pets to be closed in the appliance. There is a risk of suffocation.

- Discard the appliance at the local waste disposal centre.

Warning! The dishwasher detergents are dangerous and can cause corrosion!

• If an accident occurs with these detergents, contact immediately a physician.
• If the detergent gets into the mouth, contact immediately a physician.
• If the detergent gets into the eyes, contact immediately a physician and clean the eyes with water.
• Keep dishwasher detergents in a safe area and out of children touch.
• Do not keep the appliance door open when there is detergent in the detergent dispenser.
• Fill the detergent dispenser only before you start a washing programme.

Product description

Labeled diagram of a refrigerator interior showing numbered components for identification

1 Upper basket
2 Water hardness dial
3 Salt container
4 Detergent dispenser
5 Rinse aid dispenser
6 Rating plate

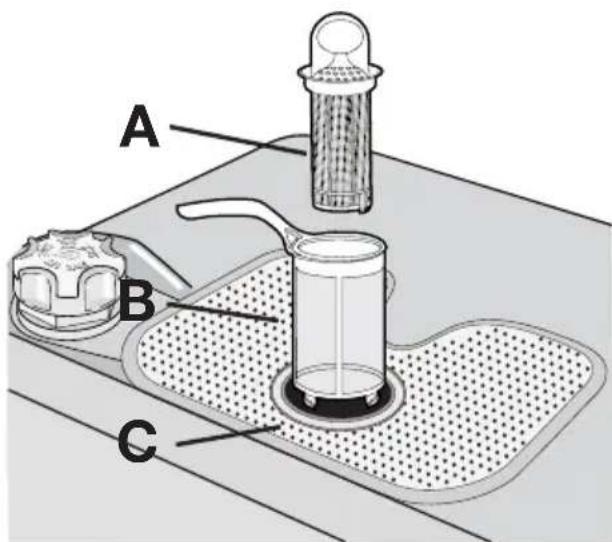

7 Filters
8 Lower spray arm
9 Upper spray arm

Optical signal

After the start of the washing programme, an optical signal shows on the floor below the appliance door:

• A red light for all the washing programme duration.

• A green light when the washing programme ends.

• A red light that flashes when there is a malfunction.
  If the appliance is installed in height, with a flush kitchen furniture door, the optical signal does not show.

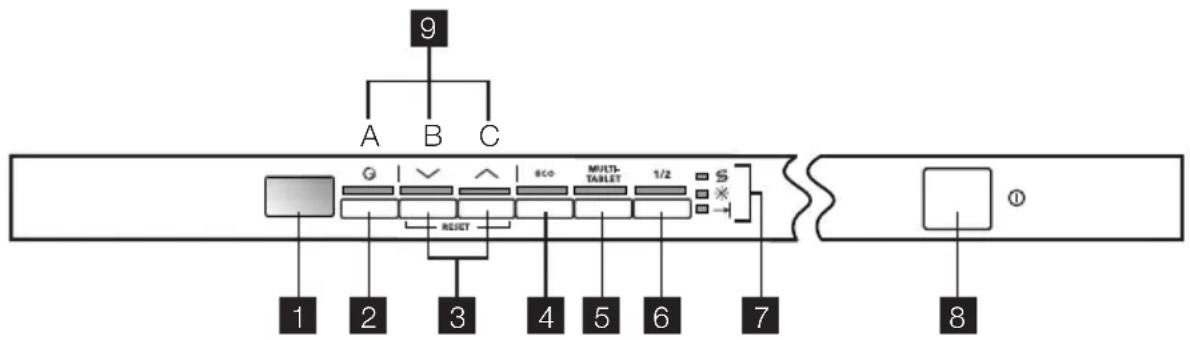

Control panel

1 Display
2 Delay start button
3 Programme selection buttons
4 Energy saver button
5 Multitab button
6Half-load button
7 Indicator lights
8 On/off button
9 Function buttons

Indicator lights
Salt^1)	It comes on when it is necessary to fill the salt container. Refer to 'Use of dish-washer salt'.After you fill the container, the salt indicator light can stay on for some hours.This does not have an unwanted effect on the operation of the appliance.
Rinse aid^1)	It comes on when it is necessary to fill the rinse aid container. Refer to 'Use of detergent and rinse aid'.
End-of-programme→|	It comes on when the washing programme is completed.

1) When the salt and/or rinse aid containers are empty, the related indicator lights do not come on while a washing programme operates.

Display

The display shows:

- The electronic adjustment of the level of the water softener.

• Activation/deactivation of the rinse aid dispenser (only with multitab function on).
• The number of the washing programme.

• Remaining time to the end of the washing programme.

• The end of a washing programme. The display shows a zero.

• Remaining time to the end of the delay start.
• Fault codes.
• Activation/deactivation of the audible signals.

Delay start button

Use this button to delay the start of the washing programme with an interval between 1 and 19 hours. Refer to 'Select and start a washing programme'.

Programme selection buttons

With these buttons you can select the washing programme. Press one of the buttons again and again until the display shows the number of the necessary programme. Refer to 'Washing programmes' for more data about the washing programmes.

Energy saver button

This function decreases the temperature in the drying phase. The energy decrease is between 10% and 25%.

The dishes can be wet at the end of the programme. We recommend that you open the appliance door and keep it ajar to let the dishes dry.

This function is available with all washing programmes. The related indicator light comes on when you press the button.

The energy saver function does not have an effect on some programmes. Refer to 'Washing programmes'.

Multitab button

Press this button to activate/deactivate the multitab function. Refer to 'Multitab function'.

Half-load button

Use this function when it is necessary to start a washing programme with baskets not fully load.

The half-load function decreases the time duration and the consumption of water and energy.

Put the dishes in the upper and lower basket and decrease the detergent dosage when you use this function.

Set the half-load function only before the start of a washing programme. It is not possible to set the function while a washing programme operates.

The half-load function is not available for all washing programmes. Refer to 'Washing programmes'.

Press the half-load button. If the function is available, the related indicator light comes on.

Function buttons

Use the function buttons for these operations:

• To adjust electronically the level of the water softener. Refer to 'Setting the water softener'.
• To deactivate/activate the rinse aid dispenser when the multitab function is on. Refer to 'What to do if...'.
• To cancel the washing programme in progress or a delay start in progress. Refer to 'Select and start a washing programme'.
• To deactivate/activate the audible signals. Refer to 'Audible signals'.

Setting mode

The appliance must be in setting mode for these operations:

• To select and start a washing programme and/or a delay start.
• To adjust electronically the level of the water softener.
• To deactivate/activate the audible signals.
• To deactivate/activate the rinse aid dispenser.

Press the on/off button. The appliance is in setting mode when:

- The display shows two horizontal bars.

Press the on/off button. The appliance is not in setting mode when:

- The display shows the duration of a washing programme or a delay start.

- It is necessary to cancel the programme or the delay start to go back to the setting mode. Refer to 'Select and start a washing programme'.

Audible signals

The audible signals indicate:

• The end of the washing programme.
• The electronic adjustment of the level of the water softener
• The appliance has a malfunction.

Do these steps to deactivate the audible signals:

1. Switch on the appliance.
2. Make sure that the appliance is in setting mode.

3. Press and hold function buttons B and C until the indicator lights of function buttons A, B and C start to flash.

4. Release function buttons A and B.

5. Press the function button C.

6. The indicator lights for function buttons A and B go off.
7. The indicator light for function button C flashes.

- The display shows the current set.

1b	Audible signals activated
0b	Audible signals de-activated

1. Press the function button C again.

- The display shows the new adjustment.

1. Switch off the appliance to keep the operation.

Do the above procedure to activate again the audible signals.

Use of the appliance

1. Be sure that the set level of the water softener agrees with the water hardness in your area. If not, adjust the water softener.
2. Fill the salt container with dishwasher salt.
3. Fill the rinse aid dispenser with rinse aid.
4. Load cutlery and dishes into the appliance.

5. Set the correct washing programme for the type of load and soil.

6. Fill the detergent dispenser with the correct quantity of detergent.

7. Start the washing programme.

If you use the combi detergent tablets ('3 in 1', '4 in 1', '5 in 1'), use the multi-tab function.

Setting the water softener

The water softener removes minerals and salts from the water supply. These minerals and salts can cause damage to the appliance.

Adjust the level of the water softener if this does not agree with the water hardness in your area.

Contact your local water authority to know the water hardness in your area.

1) Factory position.
2) Do not use salt at this level.

German degrees (°dH)	Water hardness			Water hardness adjustment manually elec- troni- cally
	French degrees (TH°)	mmol/l Clarke de- grees
51 - 70	91 - 125	9,1 - 12,5	64 - 88	2^1)	10
43 - 50	76 - 90	7,6 - 9,0	53 - 63	2^1)	9
37 - 42	65 - 75	6,5 - 7,5	46 - 52	2^1)	8
29 - 36	51 - 64	5,1 - 6,4	36 - 45	2^1)	7
23 - 28	40 - 50	4,0 - 5,0	28 - 35	2^1)	6
19 - 22	33 - 39	3,3 - 3,9	23 - 27	2^1)	5^1)
15 - 18	26 - 32	2,6 - 3,2	18 - 22	1	4
11 - 14	19 - 25	1,9 - 2,5	13 - 17	1	3
4 - 10	7 - 18	0,7 - 1,8	5 - 12	1	2
Water hardness				Water hardness adjustment
German degrees (°dH)	French degrees (TH°)	mmol/l Clarke de-grees		manually elec-troni-cally
< 4 < 7 < 0,7 < 5				12)	12)

i You must adjust the water softener manually and electronically.

Manual adjustment

Turn the water hardness dial to the position 1 or 2 (refer to the table).

Mechanical component diagram showing two circular parts with internal gear-like structures, one emitting a beam to the other (no text or symbols)

Electronic adjustment

1. Switch on the appliance.
2. Make sure that the appliance is in setting mode.
3. Press and hold function buttons B and C until the indicator lights of function buttons A, B and C start to flash.

Use of dishwasher salt

How to fill the salt container:

1. Turn the cap counterclockwise and open the salt container.
2. Fill the salt container with 1 litre of water (only for the first time you fill with salt).
3. Use the funnel to fill the salt container with salt.
4. Remove the salt around the opening of the salt container.

5. Turn the cap clockwise to close the salt container.
   i It is correct that water comes out from the salt container when you fill it with salt.

6. Release function buttons B and C.

7. Press function button A.

8. The indicator lights for function buttons B and C go off.

9. The indicator light for function button A continues to flash.
10. The display shows the current adjustment.
11. The intermittent audible signals tell the current adjustment.

Example: the display shows 5 L / 5 in-termittent audible signals = level 5.

1. Press the function button A again and again until the display shows the necessary adjustment.
2. Press the on/off button to keep the operation.
   If the water softener is set electronically to the level 1, the salt indicator light stays off.

SALE ZOUT SALT SALZ SEL

Use of detergent and rinse aid

1 2 3 4 5 6 7

Use of detergent

To help the environment, do not use more than the correct quantity of detergent.

Obey the instructions on the detergent packaging.

How to fill the detergent dispenser:

1. Press the release button 2 to open the lid 7 of the detergent dispenser.

2. Put the detergent in the dispenser 1.

3. If the washing programme has a pre-wash phase, put a small quantity of detergent on the inner part of the appliance door.

4. If you use the detergent tablets, put the tablet in the detergent dispenser 1.

Multitab function

The multitab function is for combi detergent tablets.

These tablets contain agents as detergent, rinse aid and dishwasher salt. Some types of tablets can contain other agents.

Do a check if these tablets are applicable for the local water hardness. Refer to the instructions from the manufacturer.

When you set the multitab function, it stays on until you deactivate it.

The multitab function deactivates the flow of rinse aid and salt.

The multitab function deactivates the indicator lights of salt and rinse aid.

1. Close the detergent dispenser. Press the lid until it locks into position.

Use long washing programmes when you use the detergent tablets. These cannot fully dissolve with short washing programmes and can decrease the washing results.

Use of rinse aid

i Rinse aid makes it possible to dry the dishes without streaks and stains. The rinse aid dispenser automatically adds rinse aid during the last rinsing phase.

Do these steps to fill the rinse aid dispenser:

1. Press the release button 6 to open the lid 5 of the rinse aid dispenser.

2. Fill the rinse aid dispenser 3 with rinse aid. The mark 'max' shows the maximum level.

3. Remove the spilled rinse aid with an absorbent cloth to prevent too much foam during the washing programme.

4. Close the rinse aid dispenser. Press the lid until it locks into position.

Adjust the rinse aid dosage

Factory set: position 3.

You can set the rinse aid dosage between position 1 (lowest dosage) and position 4 (highest dosage).

Turn the rinse aid selector 4 to increase or decrease the dosage.

The programme duration can increase if you use the multitab function.

i Activate the multitab function before the start of a washing programme. You cannot activate the multitab function when the programme operates.

To activate the multitab function:

- Press the multitab button. The multitab indicator light comes on.

To deactivate the multitab function and use separately detergent, salt and rinse aid:

1. Press the multitab button. The multitab indicator light goes off.
2. Fill the salt container and rinse aid dispenser.
3. Adjust the water hardness setting to the highest level.

Loading cutlery and dishes

Hints and tips

Do not use the appliance to clean objects that can absorb water (e.g. sponges, household cloths).

- Before you load cutlery and dishes, follow these steps:

• Remove remaining food.
• Make remaining burnt food in the pans soft.

- While you load cutlery and dishes, follow these steps:

• Load hollow items (e.g. cups, glasses and pans) with the opening down.
• Make sure that water does not collect in the container or in a deep base.
• Make sure that cutlery and dishes do not bond together.
• Make sure that the glasses do not touch other glasses.
• Put small objects in the cutlery basket.
• Mix the spoons with other cutlery to prevent them from bonding together.

• Arrange the items to let water touch all surfaces.

• Plastic items and pans with non-stick coatings can retain the water droplets.

• Put light items in the upper basket. Make sure that the items do not move.

Lower basket

Put the saucepans, lids, plates, salad bowls and cutlery in the lower basket. Arrange the service dishes and large lids around the edge of the basket.

1. Do a washing programme without dishes.
2. Adjust the water softener to the water hardness in your area.
3. Adjust the rinse aid dosage.

Technical line drawing of a mechanical device with multiple components and no visible text or symbols

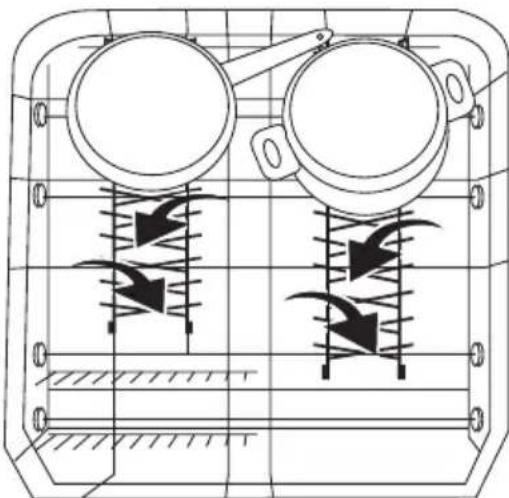

The rows of prongs in the lower basket can be flat to load pots, pans and bowls.

Technical diagram of a mechanical or electrical component with two circular components and internal flow arrows (no text or symbols)

Cutlery basket

Illustration of a plastic tray with internal compartments and a basket filled with plastic boxes (no text or symbols)

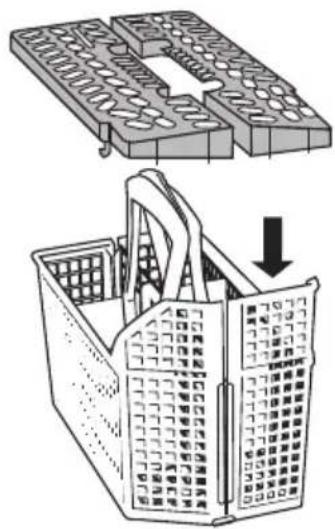

• Put the grid on the cutlery
• For larger items use only one of the cutlery grids
• Put the forks and spoons with the handles down.
• Put the knives with the handles up.

Illustration showing a basket of cutlery with a downward arrow and warning symbols including a checkmark and an exclamation mark.

- Mix the spoons with other cutlery to prevent them to bond together.

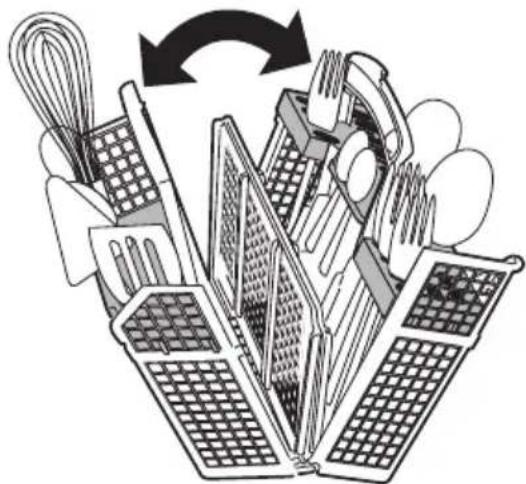

You can open the cutlery basket to remove the cutlery more easily. Do these steps to remove the cutlery:

1. Put the cutlery basket on a table or work surface.
2. Open the handle.

Illustration of a folding kitchen menu with utensils and a hand holding a fork (no text or symbols)

1. Remove the cutlery.

Hold the two parts of the handle tightly asket when you move the cutlery basket.

Beer glass holders

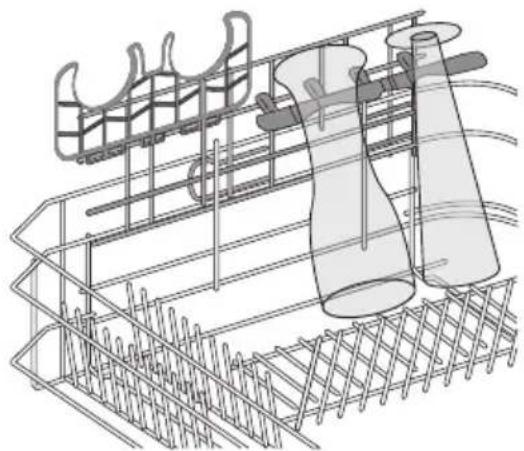

The beer glass holders on the left side in the lower basket can hold a maximum of four beer glasses.

Technical line drawing of a mechanical assembly with spring-loaded components and mesh framework (no text or symbols)

If you do not use the beer glass holders, fold them up.

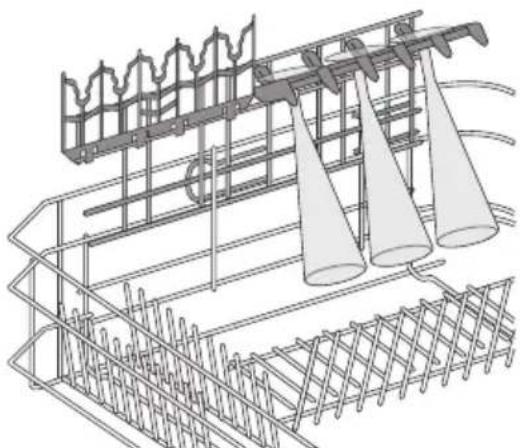

You can replace the beer glass holders with the two cup racks. You can use the cup racks for cups or for glasses with long stems.

Technical line drawing of a mechanical assembly with three conical components and meshed base (no text or symbols)

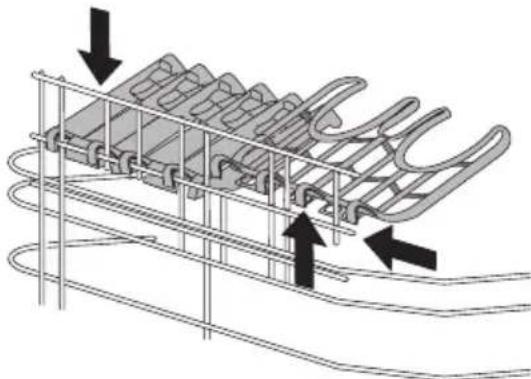

Do these steps to remove the beer glass holders:

1. Pull up the hooks and push them lightly from below.

Technical diagram of a mechanical component with coiled spring and housing, showing directional arrows (no text or symbols)

1. Use the hooks to put the cup racks on the horizontal bar.

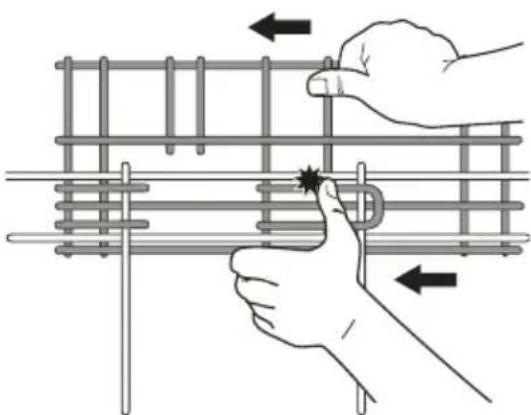

Push the support to the rear to remove the support of the beer glass holders.

Illustration of hands tying a knot using a string, with arrows indicating force direction (no text or symbols)

Push the support to the front to attach the support of the beer glass holders.

Diagram of a mechanical or electrical component with interlocking rods and a central U-shaped component, no text or symbols present.

Warning! Be careful when you remove or attach the support.

The upper basket

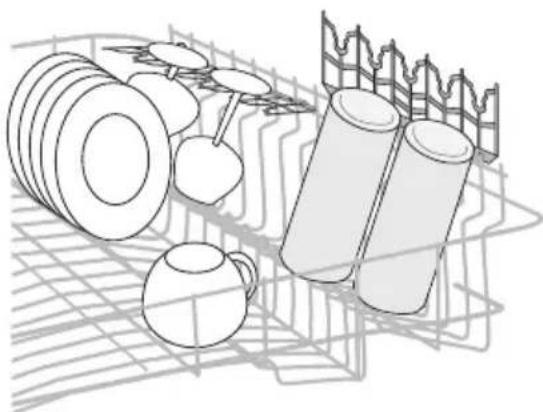

The upper basket is for saucers, salad bowls, cups, glasses, pots and lids. Arrange the items to let water touch all surfaces.

Top-down line drawing of a kitchen scene with cutlery, utensils, and a plate (no text or symbols)

- For longer items fold the cup racks up.

Line drawing of kitchen utensils and a cylindrical object on a grid background (no text or symbols)

- Put the glasses with long stems in the cup racks with the stems up.

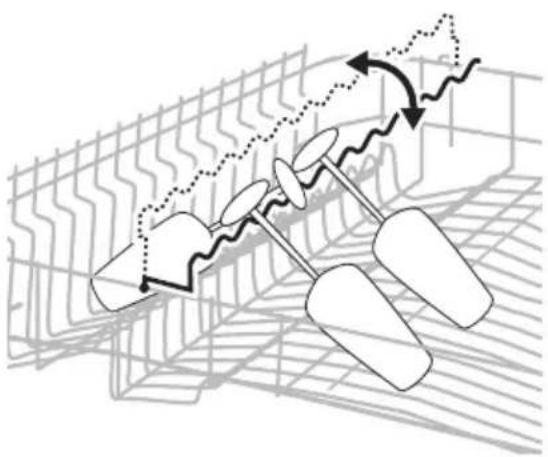

- For glasses with long stems, turn the glass holder to the left side or to the right side.

Diagram of a mechanical or electrical component with rotating parts and a dashed arrow indicating motion (no text or symbols)

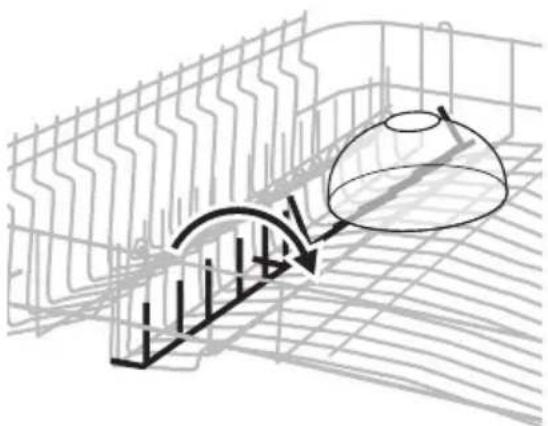

- You can fold up or down the row of prongs on the left side of the upper basket to increase the load flexibility.

Diagram of a structural grid with an arrow indicating rotation or force direction, and a spherical object on the right (no text or symbols)

Maximum height of the dishes in:
the upper	basket	the lower basket
Higher posi-tion	22 cm 30 cm
Lower posi-tion	24 cm 29 cm

Do these steps to move to the upper basket to the higher position or to the lower position:

1. Pull out the upper basket until it stops.
2. Hold the upper basket by the handle, lift it up fully and then let it down vertically. The upper basket latches into the lower position or the higher position.

Illustration of a hand using a tool to press or install a component on a grid-patterned surface (no text or symbols)

Adjustment of the height of the upper basket

You can put the upper basket in two positions to increase the load flexibility.

Select and start a washing programme

Select and start a washing programme without delay start

1. Switch on the appliance.
2. Make sure that the appliance is in setting mode.
3. Select a washing programme. Refer to 'Washing programmes'.
4. The display shows the number of the washing programme.

5. If necessary, select one or more functions.

6. Close the appliance door. The washing programme starts automatically.

Select and start a washing programme with delay start

1. Switch on the appliance and select a washing programme.
2. Press the delay start button again and again until the display shows the necessary number of hours for the delay start.
3. Close the appliance door.
4. The countdown starts automatically.

- When the countdown is completed, the washing programme starts automatically.

The opening of the appliance door interrupts the countdown. When you close the door, the countdown continues from the point of interruption.

Interruption of a washing programme

• Open the appliance door.
  – The washing programme stops.
• Close the appliance door.
• The washing programme continues from the point of interruption.

How to cancel a washing programme or a delay start

If a washing programme or a delay start has not started, you can change the selection. When a washing programme or a delay start are in progress, it is not possible to change the selection. It is necessary to cancel the washing programme or the delay start to make a new selection.

When you cancel the delay start, this automatically cancels the selected washing programme. You have to select the washing programme again.

1. Press and hold the function buttons B and C until the display shows two horizontal bars.
2. Make sure that there is detergent in the detergent dispenser before you start a new washing programme.

At the end of the washing programme

• The appliance stops automatically.
• The audible signals operate.
• Open the appliance door.
• The display shows 0.

• The end-of-programme indicator light is on.

• Switch off the appliance.

• For better drying results, keep the door ajar for some minutes.

- If you do not switch off the appliance, after three minutes from the end of the washing programme: - all indicator lights go off, - the display shows one horizontal bar, - the optical signal goes off. This helps to decrease energy consumption. Press one of the buttons (not the on/off button), the display and the indicator lights come on again.

Remove the load

• Let the dishes become cold before you remove them from the appliance. Hot dishes are easily damaged.
• First remove the items from the lower basket, then from the upper basket.
• There can be water on the sides and door of the appliance. Stainless steel becomes cool more quickly than the dishes.

Washing programmes

1) The appliance adjusts automatically the temperature and the quantity of the water. This depends if the appliance has a full load or not and on the degree of soil. The programme duration and the programme consumptions can change.
2) When you have a light load, this programme gives a timesaving solution with perfect washing results.
3) Test programme for test institutes. Refer to supplied leaflet for test data.
Washing programmes

Programme	Degree of soil	Type of load	Programme description
1AUTOAutomatic 45 - 70°C1)	Any Crockery, cutlery,pots and pans		PrewashMain wash 45 °C or 70 °C1 or 2 middle rinsesLast rinseDry
2Intensive 70 °C	Heavy soil Crockery, cutlery,pots and pans		PrewashMain wash 70 °C1 middle rinseLast rinseDry
3Quick 60 °C2)	Normal or light soil	Crockery and cutlery Main wash 60 °CRinse
4Economy 50 °C3)	Normal soil Crockery and cutlery Prewash		Main wash 50 °C1 middle rinseLast rinseDry
560 MINOne hour 55 °C	Light soil Crockery and cutlery Main wash 55 °C		1 middle rinseLast rinse
6Glass 45 °C	Normal or light soil	Delicate crockery and glassware	Main wash 45 °C1 middle rinseLast rinseDry
7Rinse	This programme gives dishes a quick rinse to prevent the remaining food to bond on the dishes and bad odours to come out from the appliance.Do not use detergent with this programme.		1 cold rinse

1) For programmes where the function has an effect, the energy saving is between 10% and 25%
Options

Programme	Energy saver1)	Half-load
1AUTOAutomatic 45 °- 70 °C	Yes, with effect. No
2Intensive 70 °C	Yes, with effect. Yes
3Quick 60 °C	Yes, without effect. No
4Economy 50 °C	Yes, with effect. Yes
560 MINOne hour 55 °C	Yes, without effect. No
6Glass 45 °C	Yes, with effect. No
Programme	Energy saver ^1)	Half-load
7Rinse	Yes, without effect. No

Consumption values

Programme	Duration (minute)	Energy (kWh)	Water (litre)
	90 - 130 1,1 - 1,7 12 - 23
COLD	140 - 150 1,5 - 1,7 16 - 18
DOWB
LAWDO	30 0,9 9
DAVAD
CAVDO	150 - 160 1,0 - 1,1 12 - 13
ITMWD	45 - 55 1,0 - 1,2 11 - 12
LAMSO
CAVDO	60 - 70 0,8 - 0,9 14 - 15
Overall
DOWB	12 0,1 4
DASSI
Rinse

The pressure and temperature of the water, the variations of power supply

and the quantity of dishes can change these values.

Care and cleaning

To remove and clean the filters

Dirty filters decrease the washing results.

The appliance has 3 filters:

1. A coarse filter (A).
2. A microfilter (B).
3. A flat filter (C).

A B C

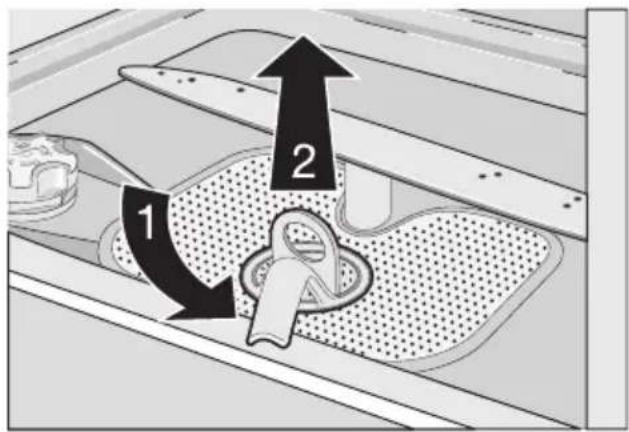

1. To unlock the filter system, turn the handle of the microfilter (B) approximately

1/4 counterclockwise. Lift the filter out from the flat filter (C).

1 2

1. Remove the coarse filter (A) from the microfilter (B).

2. Remove the flat filter (C) from the bottom of the appliance.

Illustration of a hand pressing down on a perforated metal tray (no text or symbols)

1. Clean the filters below running water.

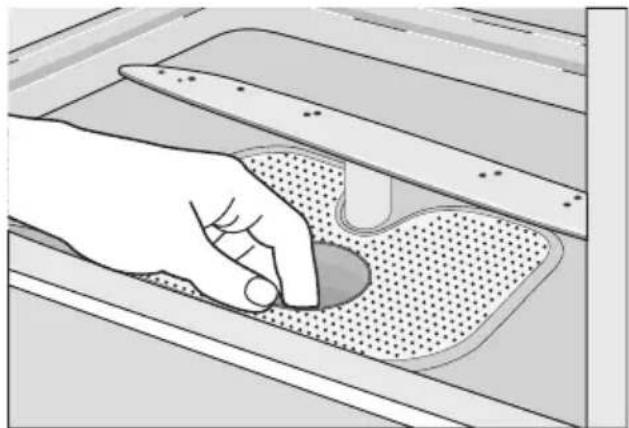

2. Put the flat filter (C) in the bottom of the appliance.
3. Put the coarse filter (A) in the microfilter (B) and push the filters together.
4. Put the filter system in position.
5. To lock the filter system, turn the handle on the microfilter (B) clockwise until it locks in position.

To clean the spray arms

Do not remove the spray arms.

If the holes in the spray arms become clogged, remove remaining parts of soil with a cocktail stick.

To clean the external surfaces

Clean the external surfaces of the appliance and control panel with a damp soft cloth.

Only use neutral detergents. Do not use abrasive products, scouring pads or solvents (e.g. acetone).

What to do if...

The appliance does not start or stops during operation.

First try to find a solution to the problem (refer to the chart). If not, contact the service centre.

Malfunction	Fault code	Possible cause	Possible solution
The appliance does not fill with water.	The display shows, 10	The water tap is blocked or is furred with limescale.	Clean the water tap.
	The water pressure is	too low.	Contact your local water authority.
	The water tap is closed.	Open the water tap.
	The filter in the water inlet	let hose is blocked.	Clean the filter.
	The connection of the	water inlet hose is not correct.	Make sure that the connection is correct.
	The water inlet hose is	damaged.	Make sure that the water inlet hose has no damages.
The appliance does not drain the water.	The display shows ,20	There is a blockage in the sink spigot.	Clean the sink spigot.
The connection of the		water drain hose is not correct.	Make sure that the connection is correct.
The water drain hose		is damaged.	Make sure that the water drain hose has no damages.
The anti-flood device operates.	The display shows ,30	Close the water tap	and contact the service centre.
The programme does not start.	The appliance door is	open.	Close the door correctly.
The mains plug is not		connected in.	Put in the mains plug.
Blow out fuse in the		household fuse box.	Replace the fuse.
The delay start is set. If you want to cancel			the delay start, refer to 'Select and start a washing programme'.

After the check, switch on the appliance.

The programme continues from the point of interruption.

If the malfunction shows again, contact the service centre.

If the display shows other fault codes, contact the service centre.

The necessary data for the service centre is on the rating plate.

We recommend that you write the data here:

Model (MOD.) ......

Product number (PNC) ....

Serial number (S.N.) ....

The washing results and drying results are not satisfactory

Problem Possible cause Possible solution
The dishes are not clean. The selected washing programme was not applicable for the type of load and soil.		Make sure that the washing programme is applicable for the type of load and soil.
The baskets were not loaded	correctly, water did not touch all surfaces.	Load the baskets correctly.
The spray arms could not turn	freely because of incorrect arrangement of the load.	Make sure that an incorrect arrangement of the load does not cause a blockage of the spray arms.
The filters are dirty or not as-	sembled and installed correctly.	Make sure that the filters are clean and correctly assembled and installed.
The quantity of detergent was	not sufficient or missing.	Make sure that the quantity of detergent is sufficient.
Limescale particles on the dishes.	The salt container is empty. Fill the salt container with dish-washer salt.
Incorrect water softener adjustment	ment	Adjust the water softener.
The salt container cap is not closed correctly.	Closed correctly.	Make sure that the salt container cap is closed correctly.
There are streaks, milky stains, or a bluish layer on glasses and dishes.	Rinse aid dosage is too high. Decrease the rinse aid dosage.
Dry water drop stains on glasses and dishes.	Rinse aid dosage is too low. Increase the rinse aid dosage.
	The detergent can be the cause.	Use a different brand of detergent.
The dishes are wet. You have set a washing programme without drying phase or with a decreased drying phase.	Let the door stay ajar for some minutes before you remove the dishes.
The dishes are wet and dull. The rinse aid dispenser is empty.	Fill the rinse aid dispenser with rinse aid.
The multitab function is on.	(The rinse aid dispenser is automatically off).	Activate the rinse aid dispenser. Refer to 'How to activate the rinse aid dispenser'.

How to activate the rinse aid dispenser

1. Switch on the appliance.
2. Make sure that the appliance is in setting mode.
3. Press and hold function buttons B and C.

4. The indicator lights for function buttons A, B, and C start to flash.

5. Release function buttons B and C.

6. Press function button B.

- The indicator lights for function buttons A and C go off.

- The indicator light for function button B continues to flash.

Technical data

Dimensions Width 596 mm
Height 818 - 898 mm
Depth 550 mm
Water supply pressure	Minimum	0,5 bar (0,05 MPa)
Maximum	8 bar (0,8 MPa)
Water supply 1)	Cold water or hot water	maximum 60 °C
Capacity	Place settings	12

1) Connect the water inlet hose to a water tap with a 3/4" thread.

The rating plate on the inner edge of the appliance door shows the electrical connection data.

• The display shows the current set.

0d	Rinse aid dispenser de-activated
1d	Rinse aid dispenser ac-tivated

1. Press function button B again.

- The display shows the new adjustment.

1. Switch off the appliance to keep the operation.

If the hot water comes from alternative sources of energy, (e.g. solar panels, photovoltaic panels and aeolian), use a

hot water supply to decrease energy consumption.

Environment concerns

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Recycle the materials with the symbol 📋. Put the packaging in applicable containers to recycle it.

Sommaire

Safety warning symbol and diagram showing a faucet with a downward lightning bolt, indicating hazard or caution.

Labeled diagram of a refrigerator interior showing numbered components for identification

Mechanical component diagram showing two circular parts with internal gear-like structures, one emitting a beam to the other (no text or symbols)

Technical diagram of a device front panel with numbered components and labeled parts in Chinese

Technical line drawing of a mechanical assembly with rollers and housing (no text or symbols)

Technical diagram of a mechanical or electrical component with two circular components and directional arrows indicating flow or movement (no text or symbols present)

Panier à couverts

Illustration of a plastic basket with a handle and a separate plastic tray with internal compartments (no text or symbols)

Illustration showing a basket of cutlery with a downward arrow and checkmark symbols, including a warning sign.

Illustration of a computer setup with hands, menus, and keyboard (no text or symbols)

1. Retirez les couverts.

Technical line drawing of a mechanical assembly with two cylindrical components mounted on a grid-like frame (no text or symbols)

Technical line drawing of a textile loom with conical flutes and mesh structure (no text or symbols)

Technical diagram of a mechanical component with curved and straight sections, showing directional arrows (no text or symbols)

Illustration of hands tying a knot using a string, with arrows indicating movement direction (no text or symbols)

Diagram of a mechanical or electrical component with internal channels and a central arrow, no text or symbols present

Top-down line drawing of a kitchen layout with kitchen utensils, bowls, and a griddle (no text or symbols)

Illustration of various mechanical components and tools arranged in a grid-like structure (no text or symbols visible)

Diagram of a mechanical or electrical component with zigzag lines and arrows indicating motion (no text or symbols)

Diagram of a structural grid with an arrow indicating rotation or force direction, and a spherical object on top (no text or symbols)

Illustration of a hand using a tool to press down a grid-patterned device (no text or symbols visible)

Illustration of a hand pressing down on a perforated metal tray (no text or symbols)

Safety warning symbol and warning sign with hazard symbol and lightning bolt

Labeled diagram of a refrigerator interior showing numbered components for identification

Mechanical component diagram showing two circular parts with internal gears and a rotating shaft (no text or symbols)

Technical diagram of a device front panel with numbered components and labeled parts in Chinese

Technical line drawing of a mechanical device with multiple components and housing (no text or symbols)

Technical diagram of a mechanical or electrical component with two circular components and internal flow arrows (no text or symbols)

Besteckkorb

Illustration of a plastic basket with a handle and a plastic tray, showing structural components (no text or symbols)

Illustration showing a basket of cutlery with a downward arrow and warning symbols including X, ✓, and !

Illustration of a computer setup with hands, cutlery, and a keyboard (no text or symbols)

Technical line drawing of a mechanical assembly with meshed metal frame and two cylindrical components (no text or symbols)

Technical line drawing of a mechanical assembly with three conical components and a grid-like base (no text or symbols)

Technical diagram of a mechanical component with curved and straight sections, showing internal structure and directional arrows (no text or symbols)

Illustration of hands tying a knot using a string, with arrows indicating force direction (no text or symbols)

Pure mechanical diagram showing a U-shaped pipe connection with arrows indicating direction (no text or symbols)

Line drawing of a kitchen setup with plates, utensils, and a fork (no text or symbols)

Line drawing of various household appliances and fixtures arranged on a grid background (no text or symbols)

Diagram of a mechanical or electrical component with rotating parts and a zigzag path, no visible text or symbols

Diagram of a structural grid with an arrow indicating rotation or force direction, and a dome-shaped object on the right (no text or symbols)

Illustration of a hand using a tool to press or install a component on a grid-patterned surface (no text or symbols)

Illustration of a hand pressing down on a perforated metal tray (no text or symbols)
