USER MANUAL DHVB1401 Vacmaster

Vacmaster 14.8V Hand Vac with Motorized Nozzle

Cleva North America, Inc.

601 Regent Park Court, Greenville, SC 29607

Made in China / Hecho en China / Fabrique en Chine

TABLE OF CONTENTS

SECTION

Important Safety Instructions. 3-5

Warranty. 6

Technical Data. 6

Getting To Know Your Vacuum. 7-8

General Assembly Instructions. 9-11

Operating Instructions. 12-13

Maintaining Your Vacuum. 14-18

Troubleshooting 19-21

Thank you for purchasing this Vacmaster® vacuum cleaner. With it you are obtaining a high-quality product that is engineered for optimal performance.

FOR YOUR SAFETY

Read and understand this manual before use.

Keep this manual and your sales check (receipt) in a safe place for future reference.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING - To reduce the risk of fire, electric shock, or injury:

• Do not use or charge outdoors or on wet surfaces.
• Do not allow your vacuum to be used as a toy. Close attention is necessary when used by or near children, pets or plants.
• Use only manufacturer's recommended attachments. Do not use attachments other than those supplied with this vacuum.
• Do not handle vacuum, charging base, including charger plug, and charger terminals with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Switch off the appliance before connecting the accessories.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not pick up toxic solution such as chlorine bleach, ammonia or drain cleaner.
• Do not use without dust cup and filter in place.
• Do not charge the unit outdoors.
• Prevent unintentional starting. Ensure the product does not operate before connecting or disconnecting the motorized brush, picking up or carrying the appliance.
• Do not carry the appliance with your finger on the switch.
• Do not attempt to charge the appliance with the switch in the on position.
• Do not attempt to use this charging adapter with any other product nor attempt to charge this product with another charging adapter.

• To recharge vacuum, use only with Mootree SUS014A-180050 charger.

• Do not use an appliance that is damaged or modified. A damaged or modified appliance may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

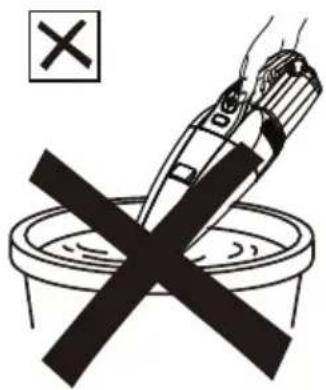

• Do not immerse vacuum cleaner, or charging adapter in water or other liquids.
• Store the cordless vacuum indoors. Put the cordless vacuum away after use to prevent accidents.
• Keep your work area well lit.
• Do not vacuum up any liquids.
• Do not use in an enclosed space where vapors are present from paint, paint thinner, moth-proofing substances, flammable dust or other explosive or toxic materials.
• Do not pick up hard or sharp objects such as glass, nails, screws or coins that could damage the vacuum cleaner.
• To avoid excessive heat and damage to unit or batteries, do not operate the vacuum while charging.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Do not expose an appliance to fire or excessive temperature. Exposure to fire or temperature above 265^ (130^) may cause explosion.
• Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on skin, wash quickly with water. If liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.
• While there is no shock hazard from electrical terminals located on the vacuum, a burn could result from metal objects being inserted into the terminal areas. Vacuum cleaner terminals should always be kept free of objects.
• Store the charging base indoors in a cool, dry area, not exposed to weather to avoid electrical shock and/or damage to the vacuum cleaner.
• Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• You are responsible for making sure that your vacuum cleaner is not used by anyone who is unable to operate it properly.

• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

• Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in the instructions for use and care.

• This appliance is designed for household use only!

SAVE THESE INSTRUCTIONS

WARNING

Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Product Disposal

This product contains an internal Lithium-ion battery pack formulated from environmentally sensitive materials. This product must be disposed of properly with due care for the environment. Do not dispose of product with household garbage. Consult your local waste authority for information regarding available recycling or disposal options.

WARRANTY

FOR ONE YEAR from the date of sale, this product is warranted against defects in material or workmanship when it is assembled (or, for deliveries in the State of California, one year from the date of delivery), operated and maintained according to all supplied instructions.

WITH PROOF OF SALE, a defective appliance will be replaced free of charge. For warranty coverage details to obtain free replacement, visit the web page: www.vacmaster.com or call 1-866-384-8432.

• This warranty does not cover filters, which are expendable parts that can wear out from normal use within the warranty period.
• This warranty is void if this product is ever used for other than private household purposes.
• This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

TECHNICAL DATA

14.8V Hand Vacuum

Voltage: 14.8V 2.0Ah 29.6Wh

Charger

Model Number: SUS014A-180050

Input: 100-240VAC, 50-60Hz

Output: 18.0V DC, 0.5A

GETTING TO KNOW YOUR VACUUM

GETTING TO KNOW YOUR VACUUM

REPLACEMENT PARTS

Item Part No.

Filter 561127101

Motorized Brush 561127102

Brushroll 561127103

Charging Base 561127104

Crevice Nozzle 561127105

Small Brush 561127106

Precision Nozzle 561127107

Curved Nozzle 561127108

Available online at www.vacmaster.com or call 1-866-384-8432.

GENERAL ASSEMBLY INSTRUCTIONS

1. The vacuum comes assembled. If the filter is not installed, refer to page 16 for installation instructions.
2. Align and insert the selected accessory into the hand vacuum as shown. A 'click will be heard when the motorized brush is locked into place.

NOTE: The two contact pins on the motorized brush must be pushed into the contact socket on the underside of the suction opening.

Installation of Charging Base

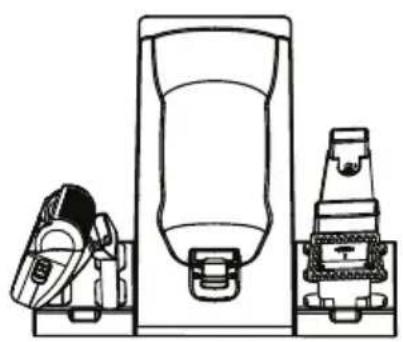

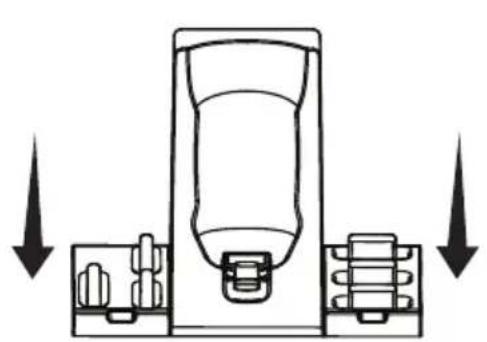

1. Align and install the two accessory holders onto the charging base. Place the accessories in the accessories holders for convenient storage.

1. To charge the vacuum, place the charging base on a level, hard surface, or mount it on the wall depending on your needs.

To mount the charging base on the wall (Optional):

A drill and a Phillips screwdriver are required.

Ensure that there are no power cables or water pipes in the wall at the location where you intend to drill the holes for the charging base. Drilling into a current-carrying electric cable can be potentially fatal!

1) Select a suitable installation location for charging base:

• It must be possible to remove the hand vacuum cleaner easily.
• It cannot be more than 5.9 ft (1.8m) from an electrical outlet.
• There should be no power or water lines in the wall.

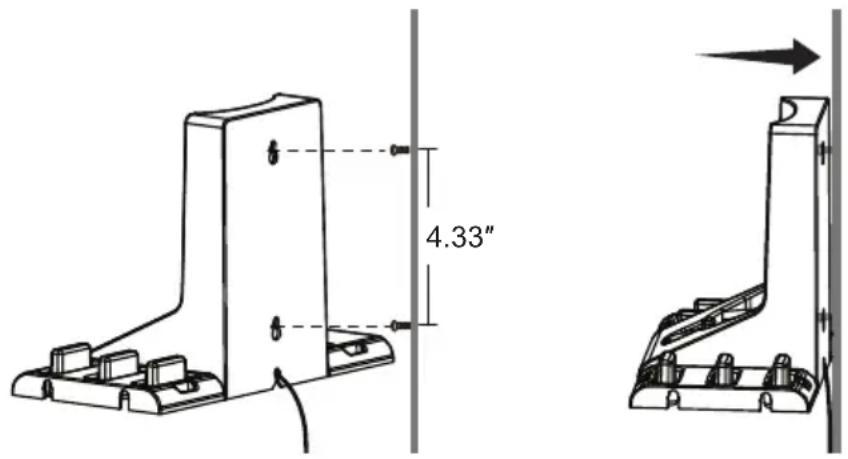

2) Drill 2 holes into the wall at a distance of approximately 4.33'' (110mm) from each other. The holes must be suitable for 0.236" (6mm) expansion tubes.

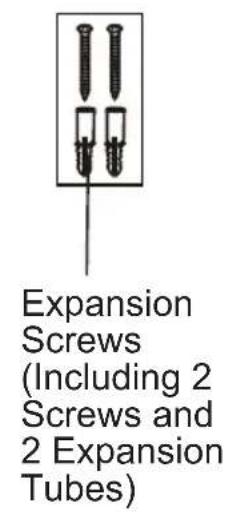

3) Insert the expansion tubes into the holes and then insert the screws so that the screwheads only protrude a few millimeters.
4) Hang the charging base to the wall. Ensure that the screws slide into the slots. The charging base should lie flush against the wall. You can adjust the distance to the wall and compensate for any unevenness in the wall by screwing in or unscrewing the screws.
5) Ensure that the power cable is not trapped and that it lies properly in the cut-out.

Charging

NOTE: Before using the vacuum for the first time, charge vacuum to full capacity. The charging time is approx. 4-4.5 hours.

1. Make sure the On/Off switch is pushed back to the "O" OFF position.

2. Plug the charging adapter into a wall outlet.

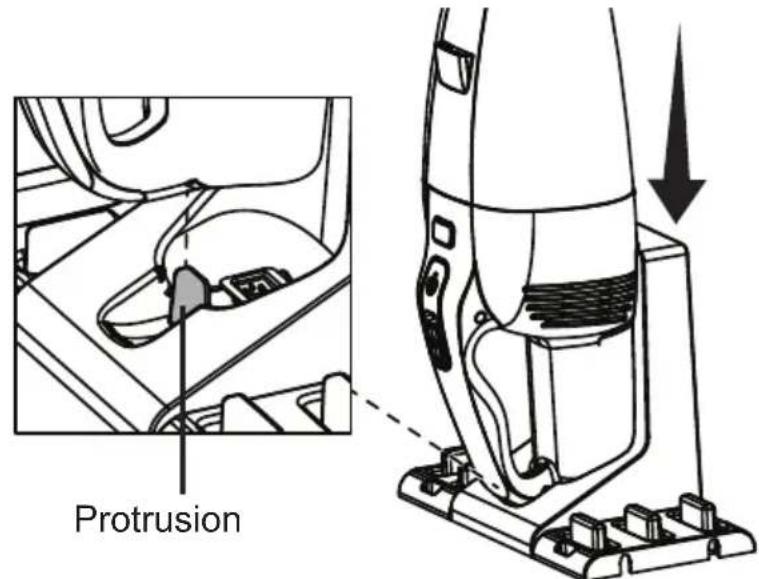

3. Align the hand vacuum with the charging base and slide it down into the charging base. The protrusion on the charging base should slide into the recess on the bottom of the hand vacuum.

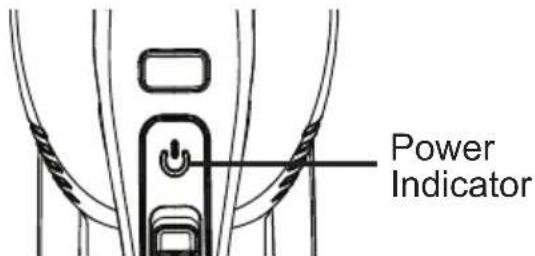

1. The power indicator on the vacuum flashes red when charging. When the battery is charged, the indicator lights up green.

Power Indicator Status

Red, Flashing Charging

Green, Solid Fully Charged

NOTE: Do not start the hand vacuum while it is charging.

If the power indicator does not flash red when charging, check to ensure that the hand vacuum is properly seated onto the charging base, and the power adapter is properly plugged into the wall outlet.

1. Remove the hand vaccum from the charging base. Remove the power adapter from the outlet.

CAUTION

Use only original charger for charging to avoid damaging the vacuum. Never charge the vacuum in temperatures above 104^ (40^) or below 39.2^ (4^) . It is normal for the charger to become warm when charging.

OPERATING INSTRUCTIONS

Using Your Hand Vacuum

This hand vacuum is for dry vacuuming only.

NOTE: Make sure the hand vacuum is completely assembled and selected accessory is attached.

The suction opening must always be open and cannot be blocked. Blockages lead to overheating and damage to the motor.

Make sure the dust cup is empty before using.

Do not operate vacuum cleaner without the filter in place.

1. Make sure that the vacuum is fully charged before use.

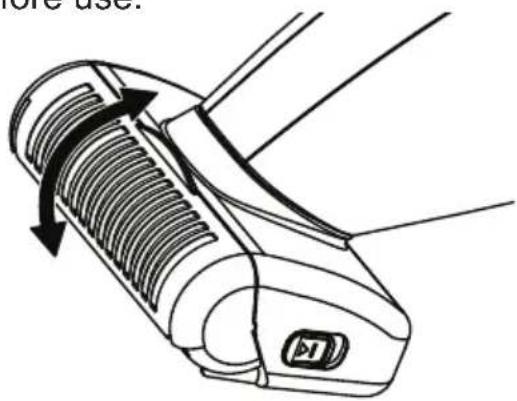

2. Regular Vacuuming: Lift the brushroll cover to expose the motorized brush, ideal for spot cleaning floors and other standard surfaces.

Soft Surface Cleaning: Lower the brushroll cover to safely clean delicate fabrics such as curtains, bed sheets, and tablecloths.

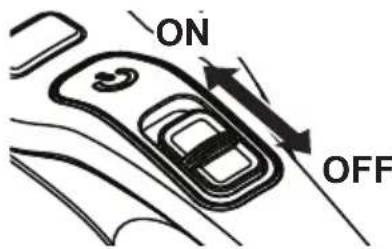

1. To turn the vacuum on, slide the On/Off switch forward to the 'I' or 'II' position.

2. The vacuum has two-speed controls, 'I' and 'II'. Change speed by sliding the On/Off switch between 'I' or 'II' position. The power indicator lights up yellow in speed setting I, and green in II. The LED headlight turns on.

3. To turn off the vacuum, slide the On/Off switch back to the 'O' OFF position. Both the indicator light and LED headlight turn off.

CAUTION

Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll in the motorized brush when the vacuum is on. Contacting the brushroll while it is rotating can cause other injuries. Always turn off before servicing. Use caution when operating near children.

1. Empty the dust cup once the power of the vacuum cleaner has become noticeably weaker. Follow instructions on page 14-16.
2. The vacuum will require charging once the power indicator begins flashing green and when you notice the power has become weaker.
3. If the power indicator flashes alternately green and red, the battery is almost completely discharged and the vacuum will shut off after approx. 1 minute. This protects the vacuums battery.

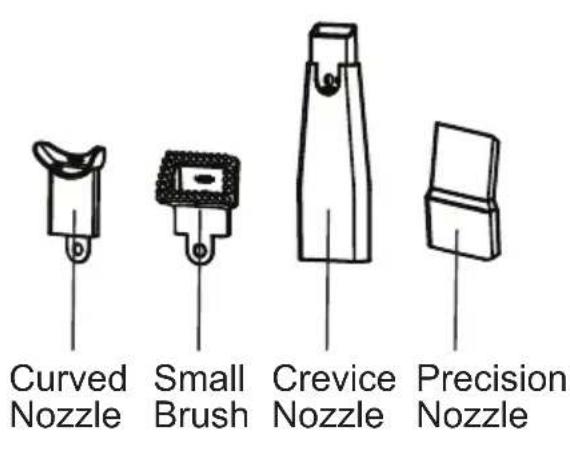

Using Accessories

Selecting the right accessory according to information below:

Accessory Usage
Motorized Brush	For cleaning upholstery and carpets.
Curved Nozzle		For cleaning various surfaces. Can only be used in combination with the crevice tool.
Small Brush		For gently cleaning delicate surfaces or smaller objects (such as computer keyboards, electrical appliances, etc.). Can only be used in combination with the crevice tool.
Crevice Nozzle		For cleaning narrow, hard-to-access areas such as grooves in furniture or radiator ribs, etc.
Precision Nozzle		Particularly well suited for cleaning in tight corners and other hard-to-reach areas.

MAINTAINING YOUR VACUUM

CAUTION

To reduce the risk of shock, remove hand vacuum from the charging base, and turn off before performing any service or maintenance.

Cleaning and Storage

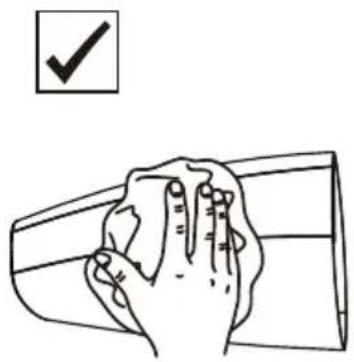

1. Do not use aggressive, chemical or abrasive cleaning agents. These could damage the outer surface of the unit. Use only a soft moist cloth to clean the outside of the unit and the accessories. Do not allow any kind of liquid to enter the vacuum, or motorized brush.
2. Dry all parts thoroughly before using the vacuum again or storing it. Before storage, empty the dust cup. Clean and dry the inside and outside of the dust cup. Store the vacuum in a dust-free and dry location.
3. The filter is re-usable and should be cleaned regularly. For best performance, it is suggested to clean the filter after every use.

Emptying the Dust Cup and Cleaning the Filter

WARNING

Never use the vacuum without the dust cup and filter in place.

CAUTION

Cleaning the filter should not be done indoors in living areas.

For best performance, empty dust cup after every use or once the power of the vacuum cleaner has become noticeably weaker.

1. Verify that the switch is in the OFF position and the accessory is removed.

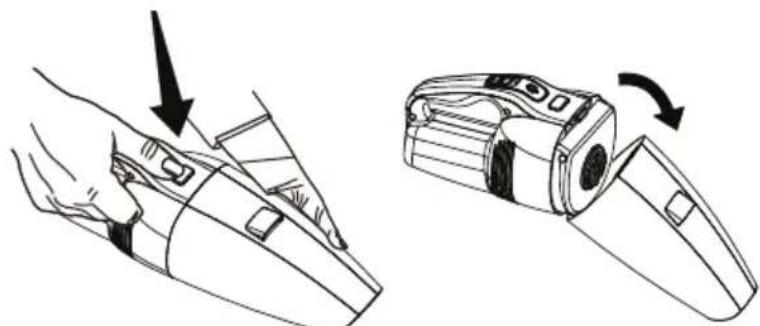

2. Press the dust cup release button and remove the dust cup.

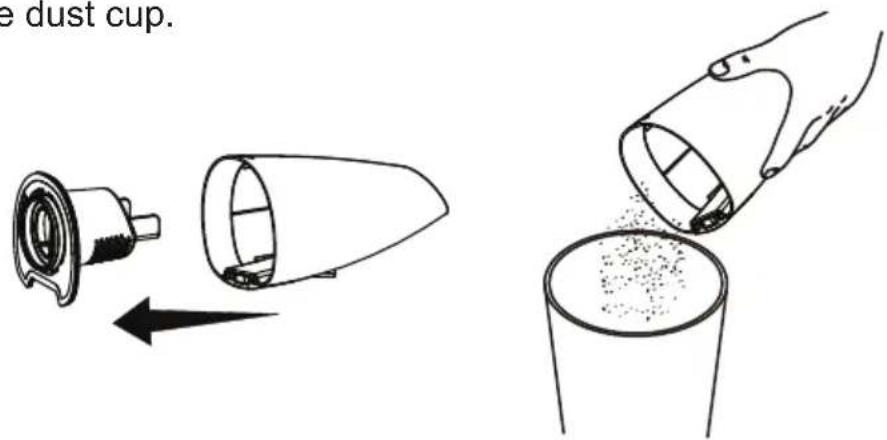

1. Remove the reusable washable filter and the filter holder from the dust cup. Clean any loose dust off the filter and filter holder with a soft bristle brush.

2. Empty the dust cup.

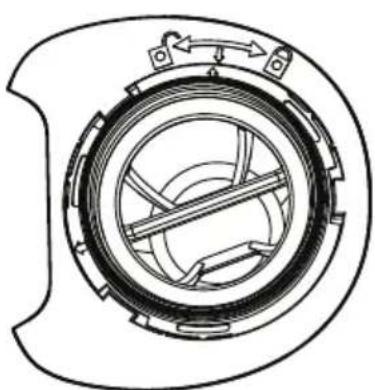

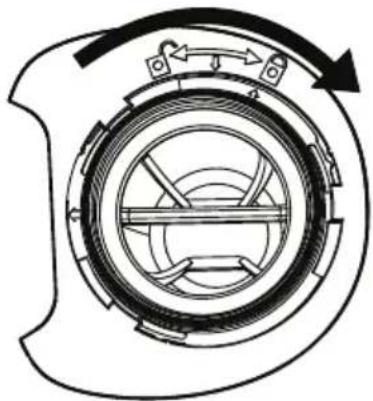

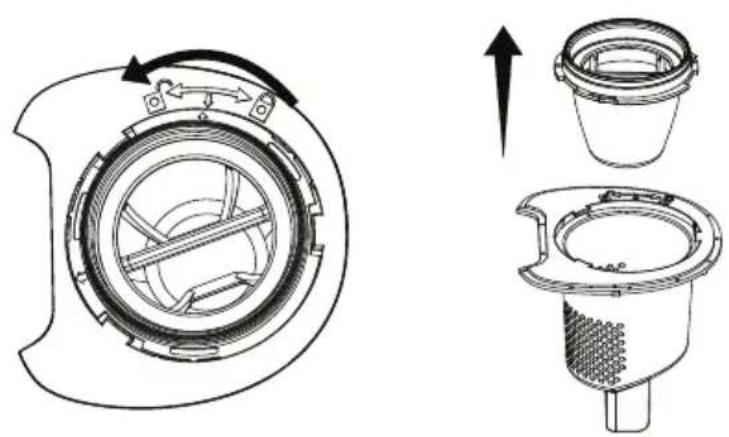

1. Remove the reusable washable filter from the filter holder by turning it counterclockwise towards the symbol and pulling it out.

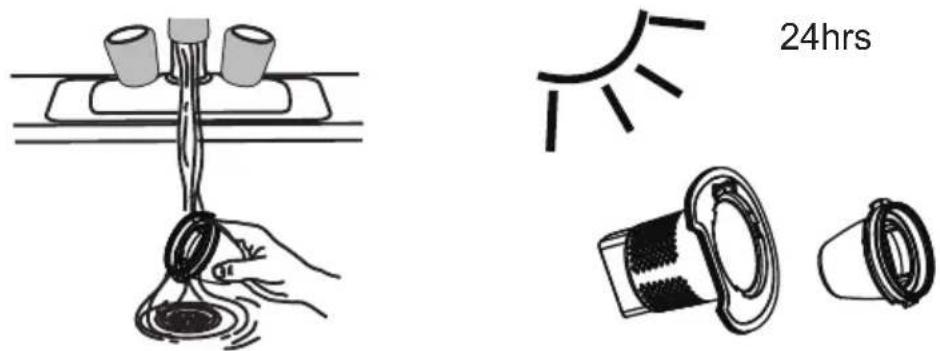

1. Use a mild soap and water solution to wash the filter and filter holder and rinse with clean water. Allow the filter to air dry for 24 hours before fitting into the filter holder. For optimal performance, a new filter is recommended after 6-8 months.

1. Make sure the dust cup, the filter holder and reusable washable filter are clean and dry before using it again. DO NOT immerse the vacuum in water.

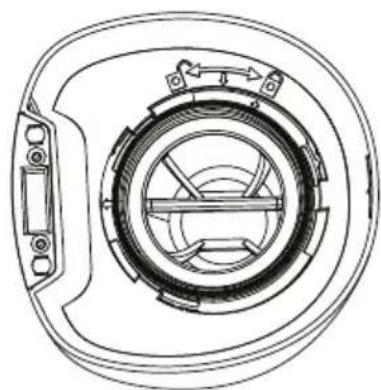

1. Align and re-insert the filter into the filter holder. The catches on the filter fit into the corresponding recesses on the filter holder. Turn the filter clockwise to secure.

1. Refit the filter holder and reusable washable filter into the dust cup.

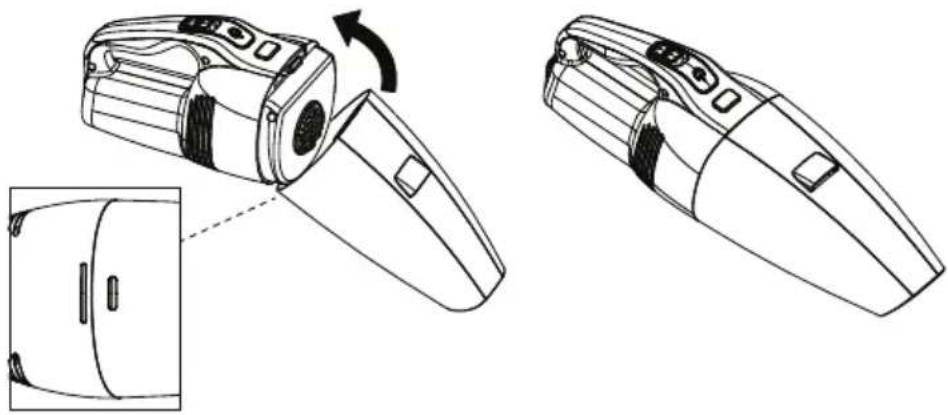

1. Refit the dust cup onto the vacuum. Make sure the dust cup clicks into place.

Cleaning the Motorized Brush

Check the motorized brush regularly for blockages. Any hair, thread or dirt should be removed.

To simplify cleaning, the brushroll in the motorized brush can be removed.

1. Verify that the switch is in the OFF position.

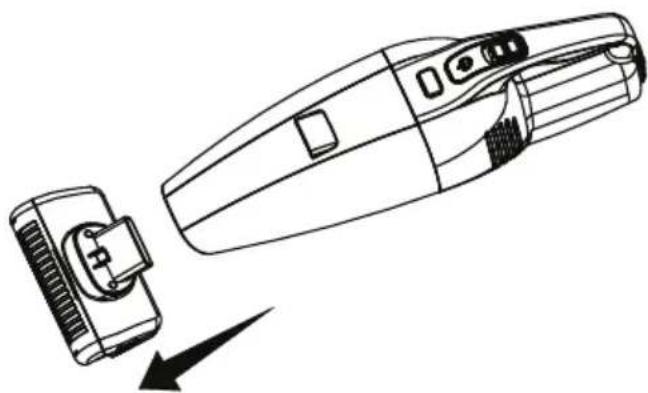

2. Pull the motorized brush out of the suction opening with force.

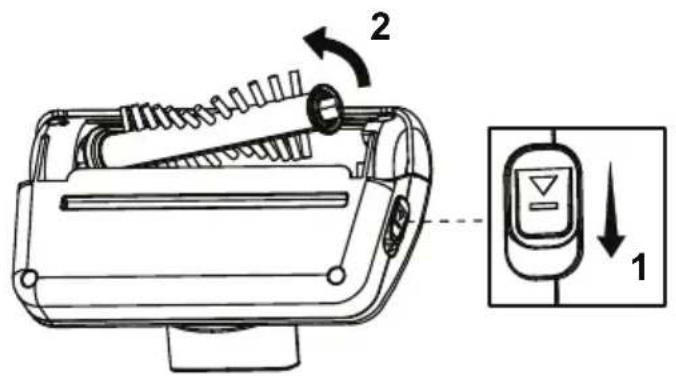

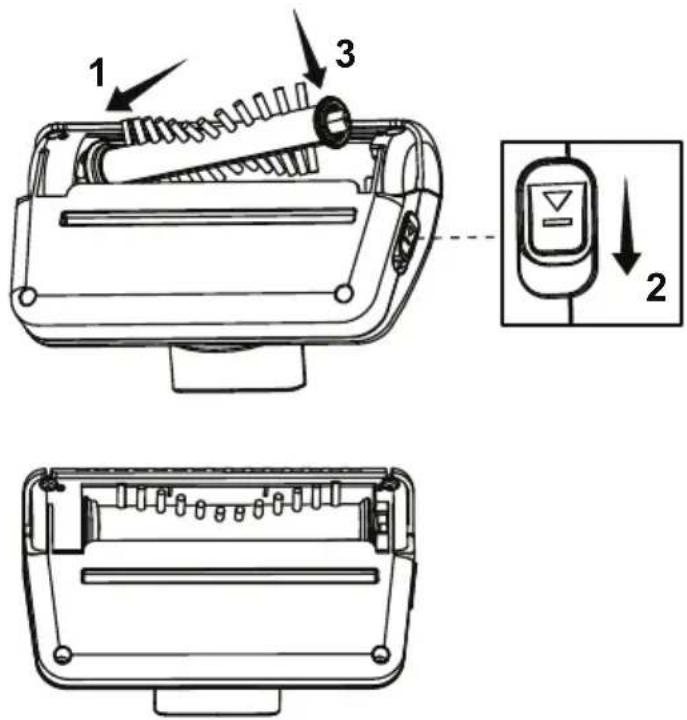

1. Push the release switch on the brush to unlock the brushroll. Lift the brushroll out of the housing. Clean off debris and anything wrapped around the brushroll.

1. Install the brushroll back into the housing. First push the hexagon end onto the drive shaft. Then push the release switch and hold it there. Press down the other end into place and release the switch to lock the brushroll.

TROUBLESHOOTING

Should you have any problem(s) with your vacuum cleaner, review the table below for solutions to minor performance issues.

WARNING

Remove the hand vacuum from the charging base, and turn off before performing maintenance. Failure to do so could result in electrical shock or personal injury.

PROBLEM	POSSIBLE CAUSE SOLUTION
Vacuum will not power on.	Battery may be depleted.	Charge the battery as instructed on page 10-11.
	Hand vacuum or battery is damaged.	Call 1-866-384-8432 for assistance.
	The hand vacuum and the charging base are not properly connected when charging.	Be sure the hand vacuum is properly seated into the charging base when charging.
	Charging plug is not fully inserted into outlet when charging.	Be sure charging plug is fully inserted into outlet when charging.
The vacuum will not charge.	Charging adapter is not plugged into outlet firmly.	Be sure the charging plug is plugged in properly to the outlet.
	The hand vacuum and the charging base are not properly connected.	Be sure the hand vacuum is properly seated into the charging base.
	Debris accumulated on the charging contacts on the hand vacuum and charging base.	Be sure no debris is accumulated on the charging contacts on the hand vacuum and charging base.
	No power at electrical outlet. Check circuit breakers.
	The battery is damaged.	Call 1-866-384-8432 for assistance.
	The power indicator is damaged.
Motorized brushroll is not turning.	Brushroll is jammed.	Remove the obstruction. Follow instructions on page 17-18.
	Brushroll needs to be reset.	Turn the unit off and remove the obstruction, then turn back on.
	Brushroll is not installed properly.	Remove brush roll and reinstall following instructions on page 17-18.
	Debris accumulated on metal contacts connecting the dust cup and the motorized brush.	Remove the debris and reinstall the motorized brush.
	The dust cup is installed incorrectly.	Reinstall the dust cup correctly as instructed on page 16.
	The motorized brush is installed incorrectly.	Reinstall the motorized brush correctly as instructed on page 17-18.
The vacuum is not picking up or suction power is weak.	Dust cup is full. Empty the dust cup.
	The filter needs cleaning. Follow	filter cleaning instructions.
	The filter needs to be replaced.	Purchase online at www.vacmaster.com or call 1-866-384-8432.
	Battery may be depleted.	Charge the battery as instructed on page 10-11.
	The dust cup is installed incorrectly.	Reinstall the dust cup correctly as instructed on page 16.
	There are blockages in the motorized brush.	Remove any debris or blockage from the inside of the motorized brush.
Dust escapes from vacuum.	Filter is missing or installed incorrectly.	Check filter for correct installation.
	Filter is damaged and needs to be replaced.	Purchase online at www.vacmaster.com or call 1-866-384-8432.
	Dust cup is full or is installed incorrectly.	Empty dust cup or reinstall the dust cup correctly.
Vacuum turns off on its own.	Battery may be depleted.	Charge the battery as instructed on page 10-11.
	Motor protection system activated.	Turn off the vacuum. Check the brushroll in the motorized brush for blockages. Remove obstructions if any. Check the two metal terminals connecting the vacuum main body and dust cup for any metal parts or water stains attached.Clean if needed. Reinstall the vacuum properly as instructed on page 9-10 and re-start.
	The battery is damaged. Call 1-8	66-384-8432 for assistance.

For further questions, call our support team at 1-866-384-8432.

TABLE DE CONTENIDOS

SECCION

PÁGINA
