307616 - Jar opener Arendo - Free user manual and instructions

Product type	Automatic jar opener
Brand	Arendo
Model	307616
Power supply	2 AA 1.5V batteries (non-rechargeable)
Compatible jar diameter	3 cm to 10 cm
Jar type	Screw lid
Main functions	Automatic opening, inner and outer jaws, on/off button, auto return
Maintenance	Clean with a damp cloth and mild detergent; do not immerse; remove batteries before cleaning
Safety	Do not place fingers near the jaws; use under adult supervision; do not use on plastic, bulging, or broken jars
Operating temperature	0°C to 40°C
Use	Household only
Package contents	Jar opener, quick start guide
Battery polarity	Observe the + and - markings in the compartment
Warranty	Void if repair not performed by the supplier
Recycling	Do not dispose of with household waste; take to a recycling center or store

Frequently Asked Questions - 307616 Arendo

How to insert batteries into the jar opener?

Open the battery compartment located on the top of the product. Insert 2 AA 1.5V batteries, observing polarity (the + and - signs must match). Close the compartment.

What types of jars can be opened with this device?

The device is designed for screw-lid jars with a diameter of 3 cm to 10 cm. Do not use on plastic, irregularly shaped, bulging lid, or broken jars.

What to do if the device does not turn on?

Check that the batteries are inserted correctly and are full. Replace them if necessary. Make sure the battery compartment is properly closed.

How to clean the jar opener?

Remove the batteries. Clean the device with a damp cloth and mild detergent. Never immerse the device in water or rinse it under running water. Dry it with a clean cloth.

The device turns slowly, what should I do?

Check the battery status. Replace them with new batteries of the same type. If the problem persists, contact customer service.

Can I use rechargeable batteries?

No, use only non-rechargeable AA batteries. Rechargeable batteries may have different voltage and damage the device.

The jaws do not move, how to fix?

Try moving the arms manually or press the power button again to restart the device. If the inner arms are stuck vertically, turn them manually to reposition them.

The device slips off the jar lid, why?

The jar used may be too large or too small, or its surface is slippery. Check that the diameter is between 3 and 10 cm and that the outer jaws are properly adjusted.

The jar opener stops randomly during use, what to do?

Move the arms manually or press the power button again to restart. If the problem persists, check the batteries.

How to recycle the device at the end of its life?

Do not dispose of the device with household waste. Take it to an appropriate collection point (recycling center, store) or use your municipal collection service. Used batteries must be removed and disposed of separately.

USER MANUAL 307616 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Technical line drawing of a mechanical device with two views: top shows a cylindrical component with a circular end, bottom shows a rectangular housing with a labeled panel (no text or symbols present)

Instructions for use

- Read all instructions carefully before use.

- Please only use AA batteries and not rechargeable batteries.

- Do not immerse the device in water or other liquids!

- Before cleaning the device, remove the batteries for safety reasons and remove the bottom cover. Clean the device with a damp cloth or sponge and a mild, non-abrasive cleaning agent. Then dry it thoroughly with a clean, dry cloth.

- Do not use old and new batteries together.

- Ensure that the polarity is correct when inserting the batteries.

arenio

• Do not throw batteries into a fire as they could explode. If you are disposing of large quantities of batteries, please contact your
• disposal company or the municipal waste disposal service for instructions.
• Remove the batteries if you are not going to use the appliance for a long period of time.
• This product is not a toy! Only use it under adult supervision.

Thank you for purchasing a product from Arendo. To ensure that you can enjoy your purchased appliance for a long time, please read the following brief instructions carefully. Before using the delivered goods, please check that they are complete, free of defects and undamaged.

1. Scope of delivery

• Glass opener
• Quick guide

2. Technical details

Power supply 2x 1.5V AA batteries
Ambient temperature + 0-3°C to 35-40°C

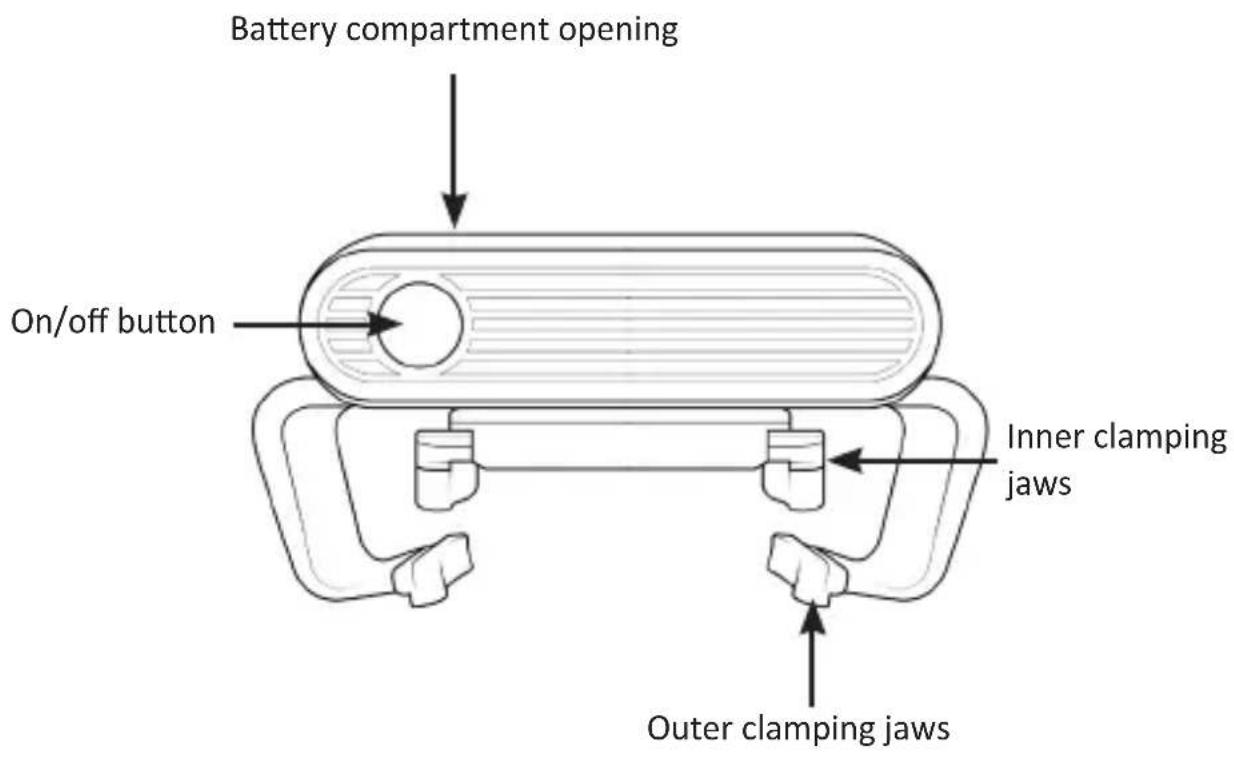

3. Product details

Battery compartment opening On/off button Inner clamping jaws Outer clamping jaws

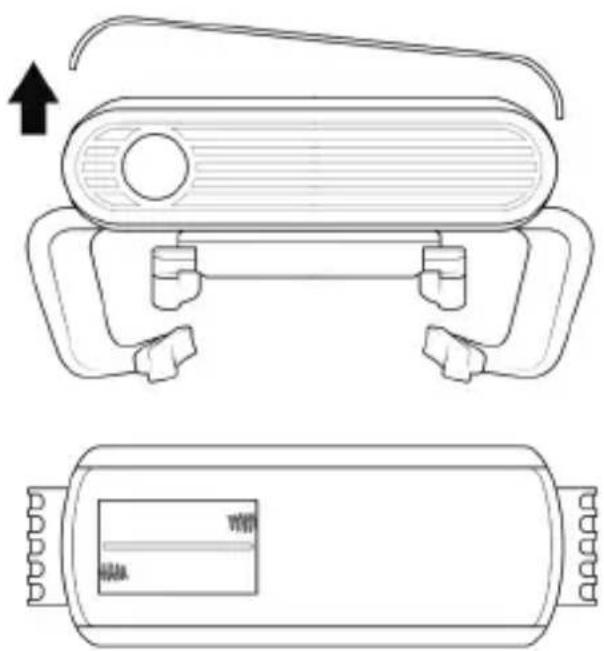

4. Commissioning

Remove the product from the packaging and remove all packaging material. Open the battery compartment on the top of the product and insert 2x 1.5V AA batteries. Ensure that the polarity of the contacts is correct.

Technical line drawing of a mechanical device with two views: top shows a cylindrical component with a curved handle, bottom shows a rectangular housing with a labeled panel (no text or symbols present)

Then close the battery compartment again. The device is now ready for operation.

5. Operation

Caution! Never place your fingers or other body parts or hair near the clamping jaws during use!

1. Place the desired jar on a flat and non-slip surface.
2. Place the jar opener on the lid.
3. Adjust the ends of the outer clamping jaws to the angle of the jar to be opened.
4. Press the switch-on button. The inner arms enclose the lid and the outer arms enclose the jar.
5. The appliance opens the jar and the arms automatically move back to their maximum position after the jar has been opened.
6. Pressing the button again during the process cancels the process and resets the appliance to its original state.

Note:

• The appliance may start automatically if the arms are moved manually. This is normal.
• The rubber grips on the outer arms are adjustable to fit the glass.
• Hold the appliance by the top during operation to prevent it from jumping up after opening the container.

Additional safety instructions

This machine is suitable for normal screw-top jars with a diameter of 3 cm to 10 cm and is intended for domestic use only.

Do not use this machine to open the following jars:

• plastic lenses
• irregularly shaped jars
• jars with domed lids
• broken jars

6. Troubleshooting

Error Cause
The appliance is not working.	Check the battery compartment and make sure that the batteries are inserted with the correct polarity.Please make sure that the batteries are full.
The appliance rotates slowly. Check the	batteries and replace them.
The appliance slips off the lid	The glass used is too large or too small or has a slippery surface
The appliance stops randomly	Try moving the arms manually or press the power button again to restart the device.
Inner arms stop vertically on the jar opener	Manually rotate the inner arms to their position.
Jar opener runs automatically after inserting the batteries	This is normal. Allow the arms to open fully and stop automatically
Jar opener does not latch onto the jar	This jar opener is suitable for opening jars with a diameter of 3 cm to 10 cm

7. Maintenance and care

Do not immerse the device in water or rinse it under running water. Do not use solvents or aggressive cleaning agents.

Remove the battery compartment cover from the device and then remove the batteries. Wipe the device with a slightly damp cloth and, if necessary, with a little mild detergent.

8. Safety instructions and disclaimer

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, please only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic parts. Check the device for damage before use. The appliance should not be used if it has been knocked or damaged in any other way. Please observe the national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy.

Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the appliance that is not carried out by the original supplier will invalidate the warranty or guarantee. The appliance may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

9. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be recycled or disposed of separately, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly. As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

10. Information on battery disposal

In connection with the sale of batteries or the delivery of devices containing batteries, the supplier is obliged to inform the customer of the following:

The customer is legally obliged to return used batteries as the end user. The customer can return used batteries, which the supplier carries or has carried as new batteries in the range, free of charge to the supplier's dispatch warehouse (dispatch address). The symbols shown on the batteries have the following meaning: Pb = battery contains more than 0.004 per cent lead by mass, Cd = battery contains more than 0.002 per cent cadmium by mass, Hg = battery contains more than 0.0005 per cent mercury by mass.

The crossed-out dustbin symbol means that the battery must not be disposed of with household waste.

WEEE Directive 2012/19/EU WEEE Register No.: DE 67896761

Hereby, WD Plus GmbH declares that the device 306993 / 307616 is in compliance with the essential requirements and other relevant provisions. You can obtain a complete declaration of conformity from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany

Technical line drawing of a mechanical device with two views: top shows a cylindrical component with a handle and mounting bracket, bottom shows a rectangular housing with a labeled panel (no text or symbols)

Technical line drawing of a mechanical device with two views: top shows a cylindrical component with a curved handle, bottom shows a rectangular housing with a labeled panel (no text or symbols present)

MO-FR 9:30am - 18pm CET

QR code image containing encoded data, no visible human-readable text

www.arendo.de
