USER MANUAL GCG2000MT GORENJE

Exterior view of a gorenje grating appliance with control knobs and a flat top (no visible text or symbols on main body)

USER MANUALS

GCG2000MT

EN....3 3

DE....10

FR....17

IT....24

ES....31

HR....38

SL....45

SQ....52

SR....59

BS....66

RO....73

RU....80

CZ....87

HU....95

PL 102

SK....110

YKP....117

BG....124

MK 131

ET....140

LT....147

KA....154

KZ....161

LV....168

DEAR CUSTOMER

We sincerely thank you for your purchase. We believe you will soon find evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report.

We wish you a lot of pleasure with your new household appliance.

INSTRUCTIONS FOR USE

These instructions are intended for the user.

They describe the grill and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

Never touch the surfaces of heating or cooking appliances. They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

WARNING!

This product does not apply to persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge (including children under the age of 8), unless they are under the supervision of an adult with civil conduct;

• Use only on AC 220-240 Volt, 50 Hz. Use only for household.
• Do not touch hot surfaces. Use handle or knobs. • To protect against risk of electric shock, do not immerse the cord, plug or cooking unit in water or any other liquid. • Close supervision is necessary when any appliance is used by or near children. •
  Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning appliance. • Do not operate any appliance with a damaged has malfunctioned or has been damaged in any manner. In order to avoid the risk of an electric shock, never try to repair the Grill Toaster yourself. Take it to an authorized service station for examination and repair. An incorrect reassembly could present a risk of electric shock when the Grill Toaster is used. • The use of accessory attachments not recommended by the manufacturer may result in fire, electrical shock, or risk of injury to persons. • Do not use outdoors or for commercial purposes.
• Do not let power cord hang over the edge of the table or counter, or touch hot surfaces. • Do not place on or near a hot gas or electric burner or heated oven. • Unplug the unit when finished using. • Do not use appliance for other than intended use. • Do not intend to operate by means of an external timer or separate remote-control system.

WARNING!

- Extreme caution must be exercised when moving an appliance containing hot oil or other hot liquids. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years. • The temperature of accessible surfaces may be high when the appliance is operating. • The appliances are not intended to be operated by means of an external timer or separate remote-control system. • CAUTION: hot surface.

FOR HOUSEHOLD USE ONLY - GROUNDED PLUG

To reduce the risk of electric shock this appliance has a grounded plug. If the plug does not fit fully into the electrical outlet contact a qualified electrician. Do not modify the plug in any way or use an appropriate adaptor.

PRODUCT SPECIFICATIONS

Product number : GCG2000MT

Rated voltage/frequency: 220\~240 V, 50/60 HZ

Upper plate rated power: 1000 W

Lower plate rated power : 1000 W

Grill plate size: 290 x 230 mm

Product size: 364 x 165 x 335 mm

Package size: 394 x 204 x 371 mm

Net weight: 4,25 Kg

Gross weight: 4,8 Kg

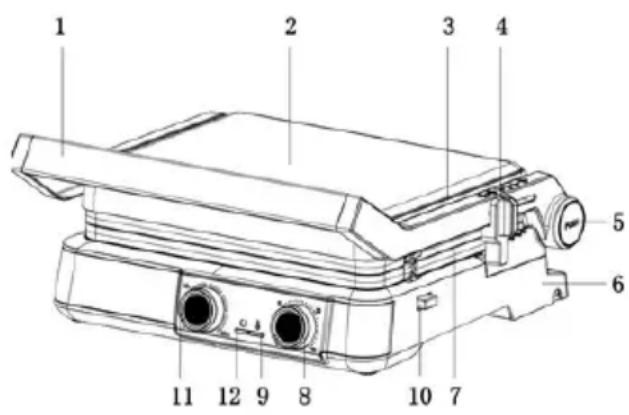

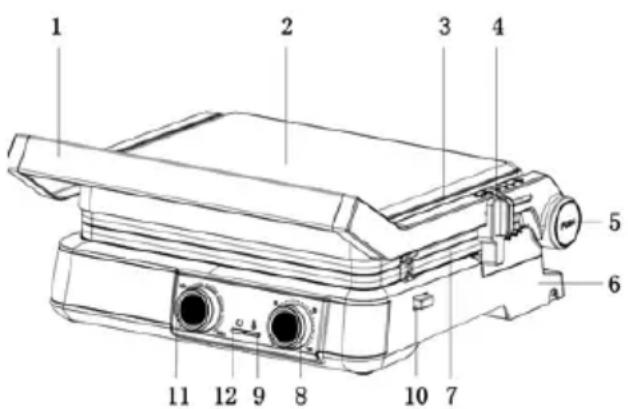

GRILL COMPONENTS GCG2000MT

1 2 3 4 5 6 7 8 9 10 11 12

Two technical illustrations of rectangular heat exchanger or cooling unit designs, shown from different angles (no text or symbols)

1. Handle
2. Decorative plates
3. Upper Housing
4. Lift lever Button
5. Angle button
6. Bottom Housing
7. Grill Non stick Plate Double sided grill tray
8. Timer Knob
9. Ready Light
10. Plate Release Button
11. Thermostat Knob
12. Power Light

BEFORE FIRST USE

• Read all instructions carefully and keep them for future reference.
• Remove all packaging • Clean the Cooking Plates by wiping a sponge or cloth dampened in warm water.

DO NOT IMMERSE THE UNIT AND DO NOT RUN WATER DIRECTLY ONT THE COOKING SURFACES.

- Dry with a cloth or paper towel. • For best results, lightly coat the cooking plates with a little cooking oil or cooking spray.

Notice: When your Grill Toaster is heated for the first time, it may emit slight smoke or odor. This is normal with many heating appliances. This does not affect the safety of your appliance.

USING YOUR GRILL

1. Select the plates you want to use (grill or flat surface).
2. Install them firmly and check if they are OK.
3. Close the grill and plug it into the wall socket.
4. Start the timer and you will find red power light start working.
5. Now set the thermostat knob to your desired value.
6. Green light means grill is pre-heating.
7. Once green light goes off, your grill is ready.

NOTE THAT PRE-HEATING TIME CAN BE APPROXIMATELY 3 TO 5 MINUTES.

GRILL WILL START WORKING ONLY WHEN TIMER IS SET AND THERMOSTAT SET TO YOUR DESIRE.

ONCE FINISHED PUT TIMER AND THERMOSTAT TO ZERO AND UNPLUG THE GRILL FROM WALL SOCKET.

LET IT COOL DOWN BEFORE STORAGE.

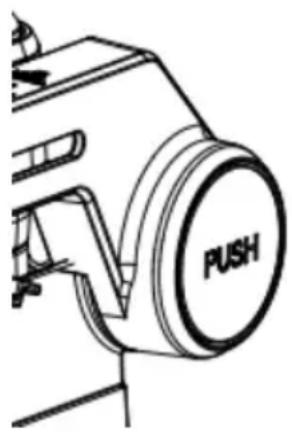

IF USING OPEN GRILL OPTION PRESS BUTTON ON THE SIDE LIKE ON PICTURE BELOW.

Line drawing of a mechanical component with a labeled 'PUSH' button (no other text or symbols)

STORAGE:

• Always unplug the Grill Toaster before storage.
• Always make sure the Grill Toaster is cool and dry before storing.
- The power cord can be wrapped around the bottom of base for storing.

WARNING

Before cleaning, the power cord must be unplugged; stand by and cool the plate completely to avoid burns.

Do not immerse the power cord, plug or the entire appliance in water or other liquids.

When cleaning, do not use metal cleaning objects, such as cleaning balls and scouring pads.

When cleaning, do not use metal spatulas and scrapers to clean the grill plate.

After each use, wipe the inner and outer surfaces with a damp cloth or sponge; there is a charged body inside, so it cannot be soaked in water.

The plates can be immersed in water for cleaning; it can also be cleaned in the dishwasher.

When cleaning, you can add an appropriate amount of alkaline cleaning solution.

After all parts are cleaned, dry them with a clean rag to prevent oxidation and rust.

Finally, according to the correct steps, put the plates into the body for the next use.

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center

Two metallic heating fans or heat exchangers shown side by side (no text or symbols visible)

.Griff

Technical line drawing of a mechanical component with 'PUSH' label (no other text or symbols)

LAGERUNG:

SPÉCIFICATIONS DU PRODUIT

Technical diagram of a portable air conditioner unit with numbered components and internal structure details

Line drawing of a mechanical component with a labeled 'PUSH' button (no other text or symbols)

STOCKAGE :

Technical diagram of a portable device with numbered components and a separate view of the internal structure.

Line drawing of a mechanical component with 'PUSH' label, no readable text or symbols beyond the label

CONSERVAZIONE:

Technical diagram of a portable device with numbered components and a separate view of its internal structure.

.Asa

Line drawing of a mechanical device with a labeled 'PUSH' button (no other text or symbols)

ALMACENAMIENTO:

Technical diagram of a portable device with numbered components and a separate view of its internal structure.

.Ručka
. Ukrasne ploče
. Gornje kućište
. Gumb za podizanje ploče
. Gumb za postavljane kuta
. Donji dio kućišta
. Neprianjajuća ploča roštilja
Dvostrana posuda za roštilj
. Regulator za odabir vremena
. Lampica spremnosti
. Gumb za otpuštanje ploče roštilja
. Regulator termostata
. Lampica napajanja

PRIJE PRVE UPORABE

• Pročitajte sve upute i spremite ih za buduću uporabu.
• Uklonite svu ambalažu • Očistite ploče za pečenje spužvom ili krpom navlaženom u toploj vodi.

NE URANJAJTE UREĐAJ I NE PUŠTAJTE VODU IZRAVNO NA POVRŠINU PLOČE ZA PEČENJE.

- Obrišite temeljito krpom ili papirnatim ručnikom. • Za najbolje rezultate lagano premažite ploče za pečenje s malo ulja ili uljem u spreju.

Napomena: Kada se roštilj prvi put zagrije, može ispuštati blagi dim ili miris. To je normalno kod mnogih uređaja koji se zagrijavaju. To ne utječe na sigurnost uređaja.

1. Odaberite ploče koje želite koristiti (roštilj ili ravna površina).
2. Čvrsto ih postavite i provjerite jesu li dobro postavljene.
3. Zatvorite roštilj i uključite ga u zidnu utičnicu.
4. Pokrenite tajmer i vidjet ćete da crveno svjetlo za napajanje počinje raditi.
5. Sada postavite regulator termostata na željenu vrijednost.
6. Zeleno svjetlo znači da se roštilj zagrijava.
7. Kad se zeleno svjetlo ugasi, roštilj je spreman.

IMAJTE NA UMU DA VRIJEME ZAGRIJAVANJA MOŽE BITI PRIBLIŽNO 3 DO 5 MINUTA.

ROŠTILJ ĆE POČETI RADITI TEK KADA JE TAJMER PODEŠEN I KADA JE TERMOSTAT PODEŠEN PO VAŠOJ ŽELJI.

KADA ZAVRŠITE, POSTAVITE TAJMER I TERMOSTAT NA NULU I ISKLJUČITE ROŠTILJ IZ ZIDNE UTIČNICE.

PUSTITE DA SE OHLADI PRIJE SKLADIŠTENJA.

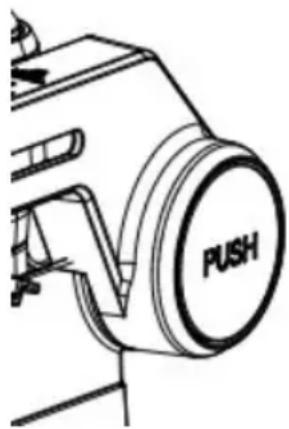

AKO KORISTITE OPCIJU OTVORENOG ROŠTILJA, PRITISNITE TIPKU NA BOČNOJ STRANI KAO NA SLICI ISPOD.

Line drawing of a mechanical component with a labeled 'PUSH' button (no other text or symbols)

SKLADIŠTENJE:

Technical diagram of a portable air conditioner unit with numbered components and a separate view of its internal structure.

Line drawing of a mechanical component with a labeled 'PUSH' button (no other text or symbols)

SHRANJEVANJE:

• Pred shranjevanjem vedno izključite napravo.
• Pred shranjevanjem se vedno prepričajte, da je naprava hladna in suha.
• Napajalni kabel lahko za shranjevanje ovijete okoli dna podnožja.

OPOZORILO

Technical diagram of a portable device with numbered components and a separate view of the internal structure.

Line drawing of a mechanical device with a labeled 'PUSH' button (no other text or symbols)

RUAJTJA:

Technical diagram of a portable air fryer with numbered components and internal structure details

.Ručka
. Ukrasne ploče
. Gornje kućište
. Dugme za podizanje ploče
. Dugme za podešavanje ugla
. Donji deo kućišta
. Nelepljiva ploča grila
Obostrana posuda za gril
. Dugme tajmera
. Lampica spremnosti
. Dugme za otpuštanje ploče grila
. Dugme termostata
. Lampica napajanja

PRE PRVE UPOTREBE

• Pažljivo pročitajte sva uputstva i sačuvajte ih za buduću upotrebu.
• Uklonite svu ambalažu • Očistite ploče za pečenje sunderom ili krpom navlaženom u toploj vodi.

NE POTAPAJTE UREĐAJ I NE PUŠTAJTE VODU DIREKTNO NA POVRŠINE ZA PEČENJE.

- Osušite krpom ili papirnim ubrusom. • Za najbolje rezultate, lagano premažite ploče za pečenje sa malo ulja ili uljem u spreju.

Line drawing of a mechanical component with a labeled 'PUSH' button (no other text or symbols)

SKLADIŠTENJE:

• Uvek isključite gril pre skladištenja.
• Uvek se uverite da je gril hladan i suv pre skladištenja.
• Kabl za napajanje se može omotati oko dna baze za skladištenje.

UPOZORENJE

Pre čišćenja kabl za napajanje mora biti isključen; sačekajte da se ploče potpuno ohlade kako biste izbegli opekotine.

Technical diagram of a portable air conditioner unit with numbered components and internal structure details

.Ručka
. Ukrasne ploče
. Gornje kućište
. Dugme za podizanje ploče
. Dugme za podešavanje ugla
. Donje kućište
. Neprianjajuća ploča roštilja
Dvostrana posuda za roštilj
. Regulator tajmera
. Lampica spremnosti
. Dugme za otpuštanje ploče roštilja
. Regulator termostata
. Lampica napajanja

PRIJE PRVE UPOTREBE

• Pažljivo pročitajte sva uputstva i sačuvajte ih za buduću upotrebu.
• Uklonite svu ambalažu • Očistite ploče za pečenje spužvom ili krpom navlaženom u toploj vodi.

NEMOJTE URANJATI UREĐAJ I NEMOJTE PUŠTATI VODU DIREKTNO NA POVRŠINE ZA PEČENJE.

- Osušite krpom ili papirnim ubrusom. • Za najbolje rezultate lagano premažite ploče za pečenje s malo ulja ili uljem u spreju.

Line drawing of a mechanical component with a labeled 'PUSH' button (no other text or symbols)

SKLADIŠTENJE:

Two technical illustrations of rectangular heat exchanger or cooling unit designs, shown from different angles (no text or symbols)

Line drawing of a mechanical component with a labeled 'PUSH' button (no other text or symbols)

DEPOZITARE:

Two technical illustrations of rectangular electronic components with internal slots and mounting holes (no text or symbols)

Ручка

Декоративные панели

Верхний корпус

Line drawing of a mechanical component with a labeled 'PUSH' button (no other text or symbols)

ХРАНЕНИЕ

Two technical illustrations of rectangular heat exchanger or cooling unit designs, shown from different angles (no text or symbols)

Line drawing of a mechanical device with a labeled push button (no text or symbols beyond the label)

UCHOVÁVÁNÍ:

Technical diagram of a portable electronic device with numbered components and internal structure views

Line drawing of a mechanical component with 'PUSH' label, no readable text or symbols beyond the label

PRZECHOWYWANIE:

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Line drawing of a mechanical component with a labeled 'PUSH' button (no other text or symbols)

UCHOVÁVANIE:

Two technical illustrations of rectangular heat exchanger or cooling unit designs, shown from different angles (no text or symbols)

.Ручка

Line drawing of a mechanical component with 'PUSH' label, no readable text or symbols beyond the label

ЗБЕРІГАННЯ:

Technical diagram of a portable device with numbered components and internal structure views

Line drawing of a mechanical device with a labeled 'PUSH' button (no other text or symbols)

СЪХРАНЕНИЕ:

Technical diagram of a portable electronic device with numbered components and a separate view of its internal structure.

Line drawing of a mechanical device with a labeled push button (no text or symbols beyond the label)

СКЛАДИРАЊЕ:

Simple line drawing of a trash bin with crossed lines and a horizontal bar below (no text or symbols)

Two technical illustrations of rectangular heat exchanger or cooling unit designs, shown from different angles (no text or symbols)

Line drawing of a mechanical component with a labeled 'PUSH' button (no other text or symbols)

HOIUSTAMINE

GRILIO DALYS GCG2000MT

1 2 3 4 5 6 7 8 9 10 11 12 C 4

Two technical illustrations of rectangular metal components with internal slots and mounting holes (no text or symbols)

Rankenèlè

Line drawing of a mechanical device with a labeled 'PUSH' button (no other text or symbols)

SAUGOJIMAS:

z g s m m b s g g m ,

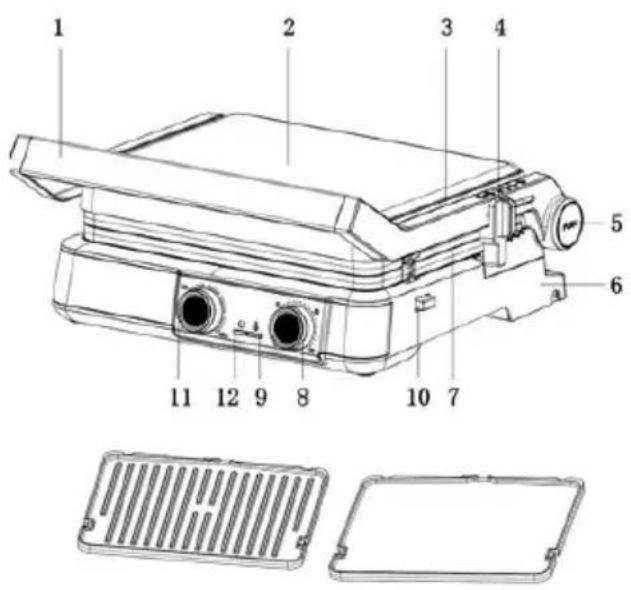

gǎoǒu 3mǎ3m6b6gǎo GCG2000MT

Technical diagram of a portable flat-screen device with numbered components and internal structure details

Technical line drawing of a mechanical component with 'PUSH' label (no other text or symbols)

∂θδsθzs:

Two technical line drawings of a heat exchanger or cooling unit (no text or symbols)

Line drawing of a mechanical device with a labeled 'PUSH' button (no other text or symbols)

CAKTAY:

Line drawing of a mechanical device with a labeled 'PUSH' button (no other text or symbols)

UZGLABĀŠANA:
