Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• This appliance is designed for single household domestic use in an indoor environment.

• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

• Before carrying out any maintenance, disconnect the appliance from the power supply.

• CAUTION: Accessible parts may become hot during use with cooking appliances.

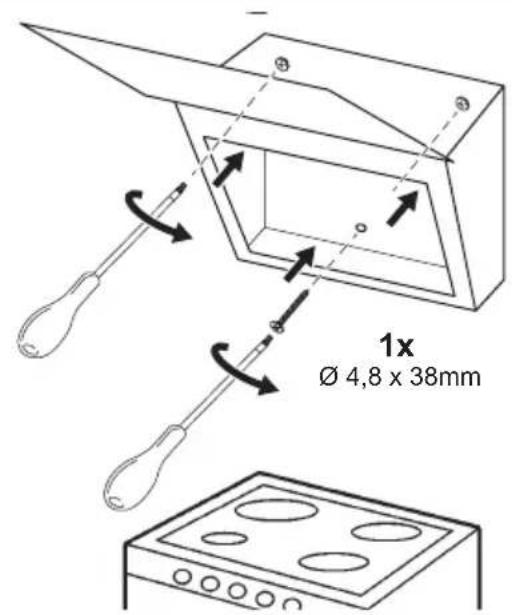

• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions. Install the appliance in a safe and suitable place that meets installation requirements.
• WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions for the appliance or hob.
• The discharge of air must comply with local authorities regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.
• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).
• When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

• If the cord set is damaged, it must be replaced by a special cord set available from the manufacturer or its Authorised Service Centre.

• If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• Do not flambé under the appliance.
• Do not use to exhaust hazardous or explosive materials and vapours.
• Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.

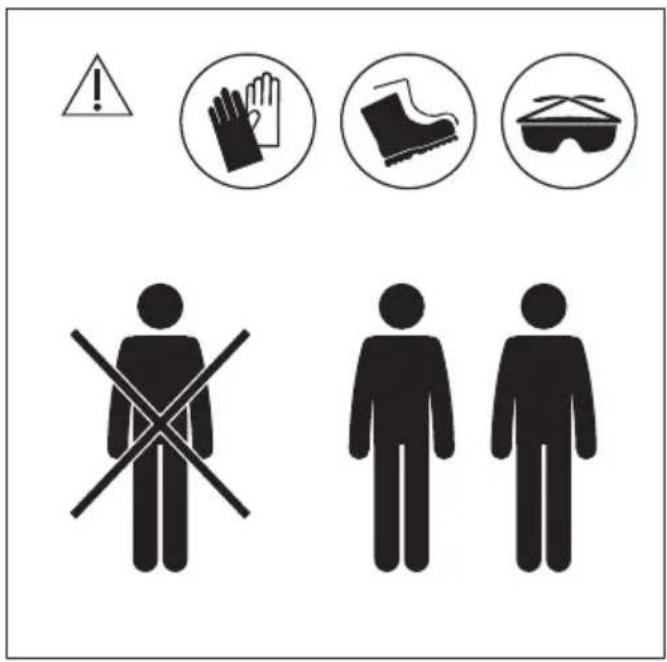

  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance remove all the packaging, the labelling and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol (☐) is not printed on the rating plate, the appliance must be earthed.
  • Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for any other purpose.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grills.
• Do not use the appliance as a storage surface.
• Do not pour liquids over the appliance.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.
• If the appliance works with other devices, the maximum developed pressure must not exceed 4 Pa (4x10-5 bar).

2.4 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications

and are not suitable for household room illumination.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

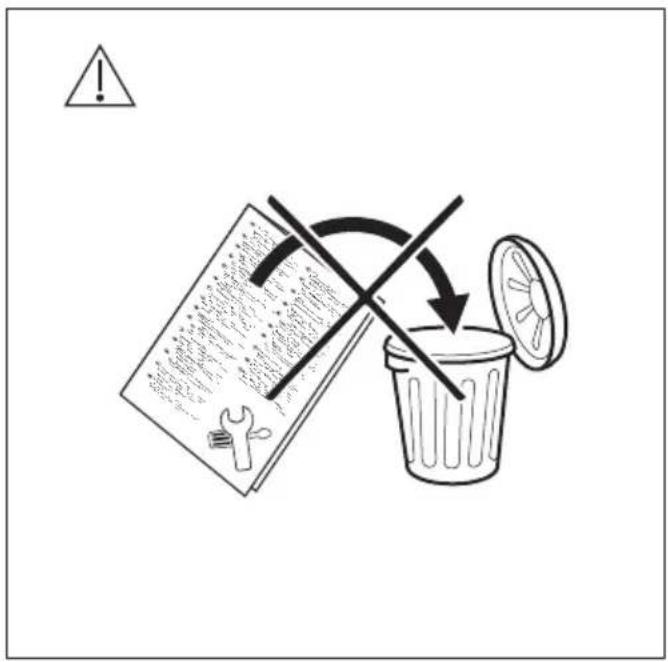

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

ES

1. ⚠TURVALLISUUSTIEDOT

ELECTROLUX APPLIANCES AB

BUSINESS SECTOR EMA-EMEA (SEE)

ST GÖRANSGATAN 143

SE-105 45 STOCKHOLM

SWEDEN

TEL: [phone]

FAX: [phone]

www.electrolux.com

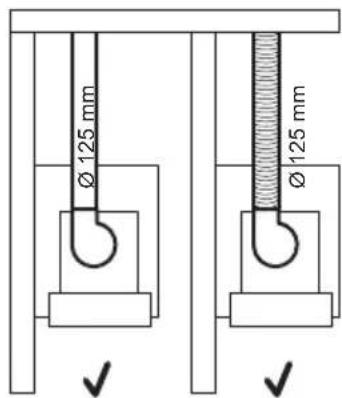

Ø 125 mm Ø 125 mm X X

Motor outlet diameter 120 mm

Ø 125 mm Ø 125 mm

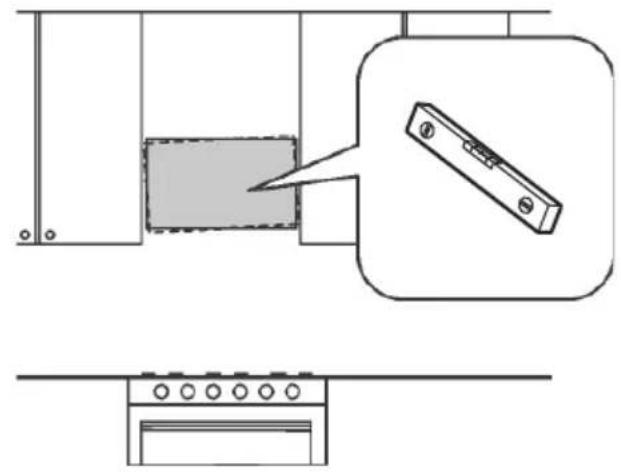

Pure technical diagram of a rectangular block with an oval highlight, no text or symbols present

Warning sign showing a flame symbol crossed out by a circular icon next to a cylindrical object, with a speech bubble pointing to it.

Technical illustration of a rectangular block with a magnified inset showing a rectangle and two smaller blocks (no text or symbols)

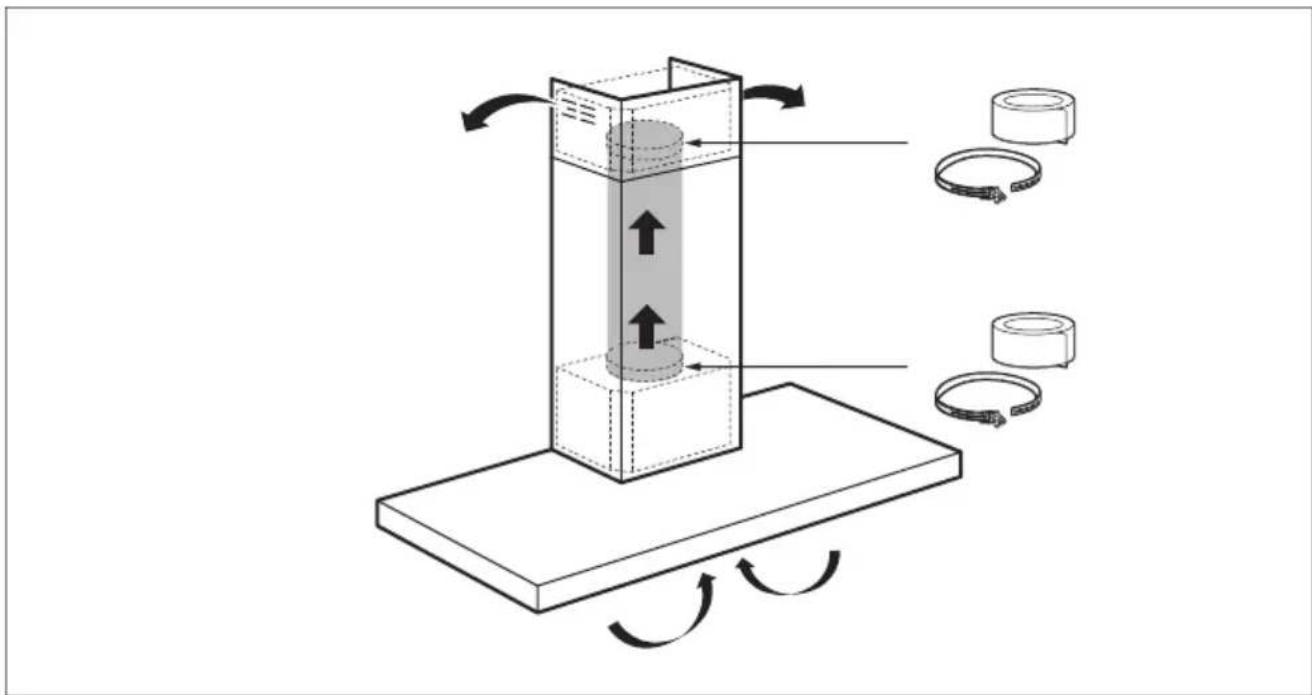

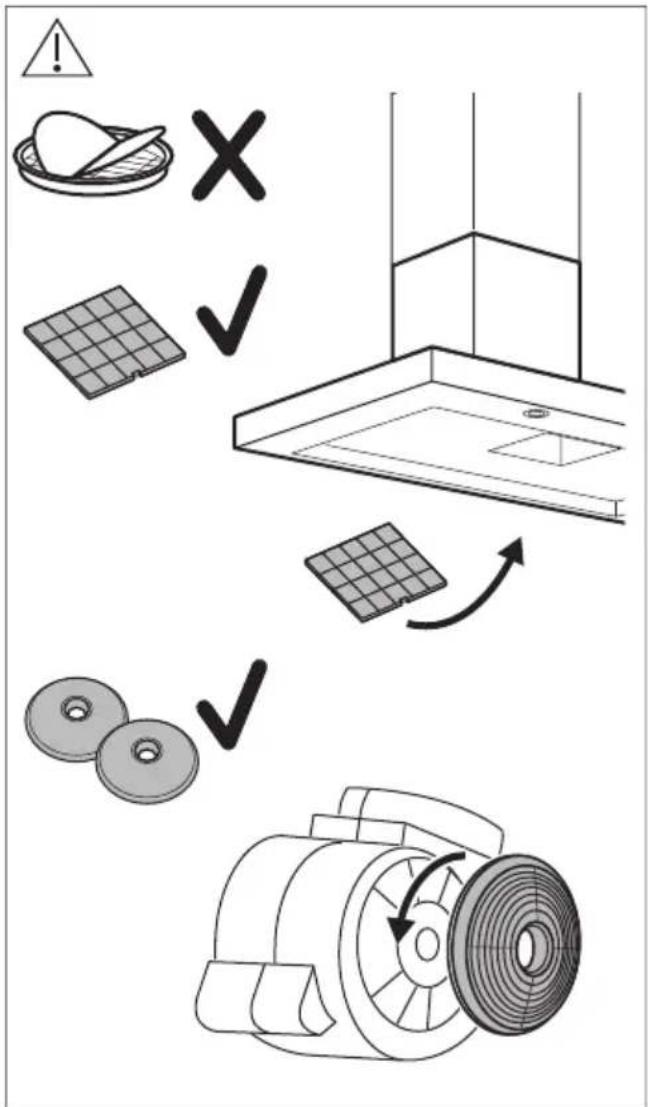

RECIRCULATION MODE

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

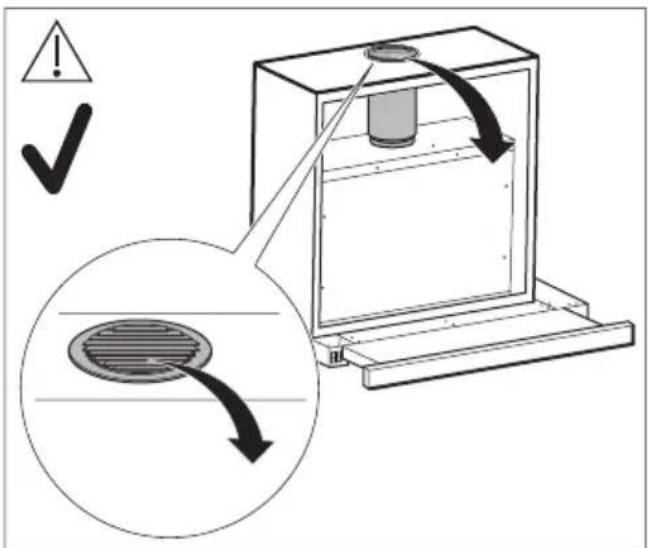

Diagram illustrating installation or cleaning process with warning symbols, solar panel, fan, and motor components

Technical diagram illustrating a mechanical assembly or inspection process with labeled components and warning symbols

Diagram illustrating a mechanical or electrical system with warning symbols and a magnified inset showing fluid flow direction.

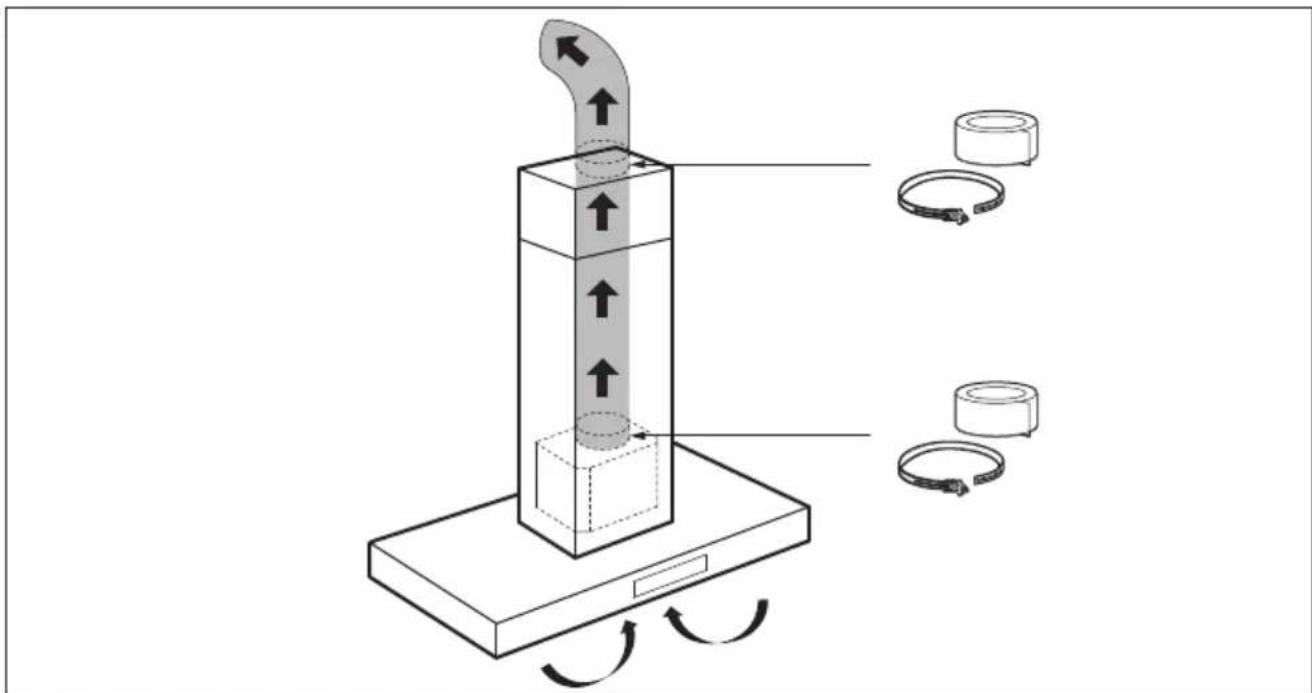

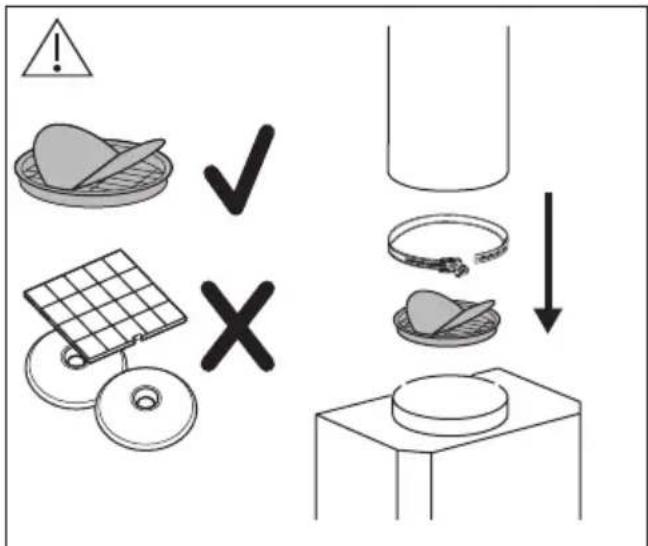

EXTRACTION MODE

Diagram illustrating a mechanical or electrical component with directional arrows and labeled parts, including rings and rotating arrows.

Diagram illustrating food safety and storage process with warning symbols and labeled icons

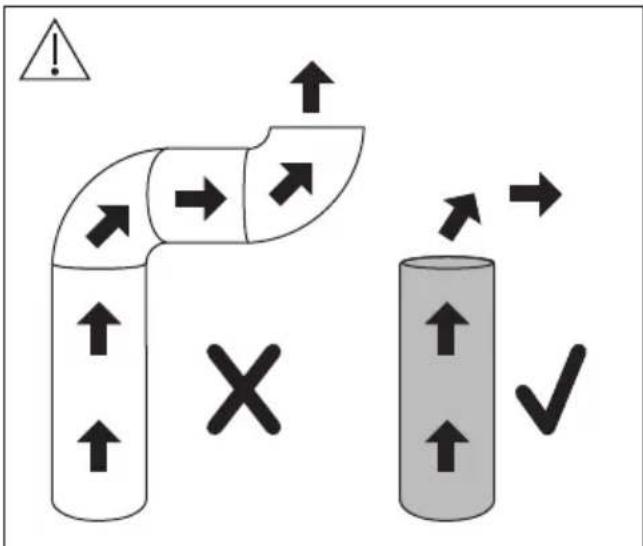

Diagram illustrating directional flow between two pipes with warning symbols and a cross symbol, likely representing fluid or material movement.

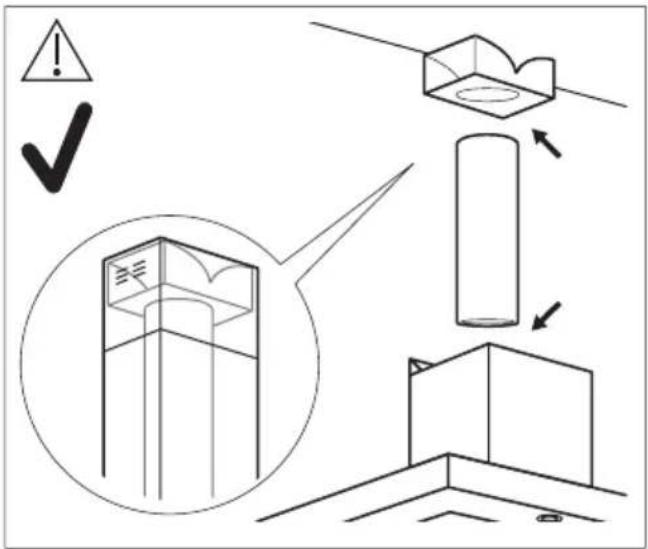

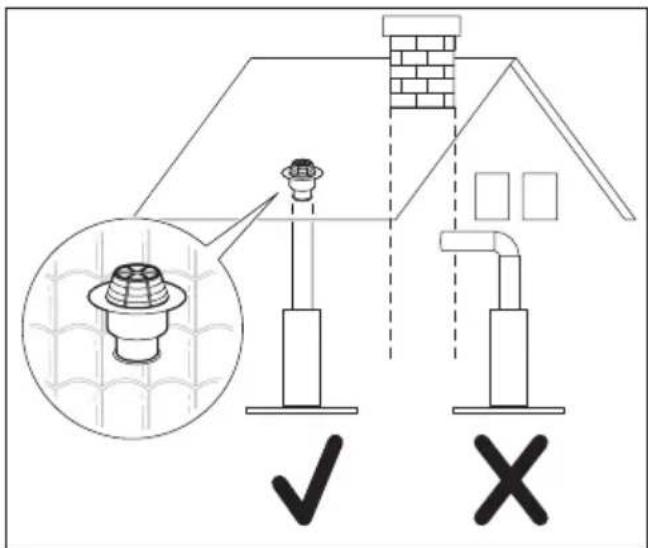

Diagram illustrating a roof structure with labeled components and checkmark indicators for installation or inspection.

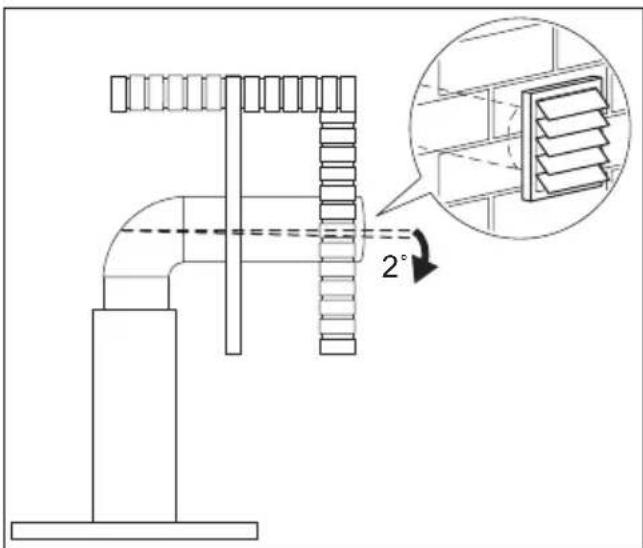

Technical diagram of a pipe fitting with an inset showing a 2° angle measurement for structural detail.

Warning sign with pictograms and symbols including a warning triangle, hand gesture, boot, and helmet

Warning symbol and waste disposal illustration showing a document with tools and a trash bin with a crossed-out arrow

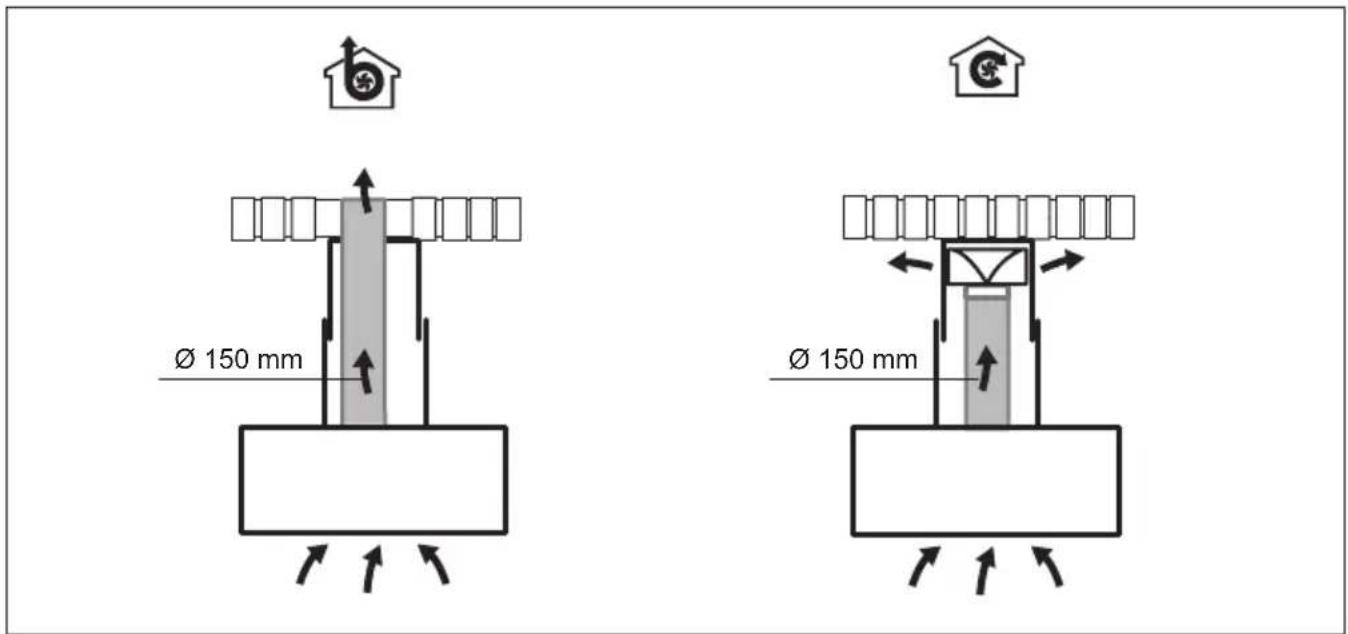

Ø 150 mm Ø 150 mm

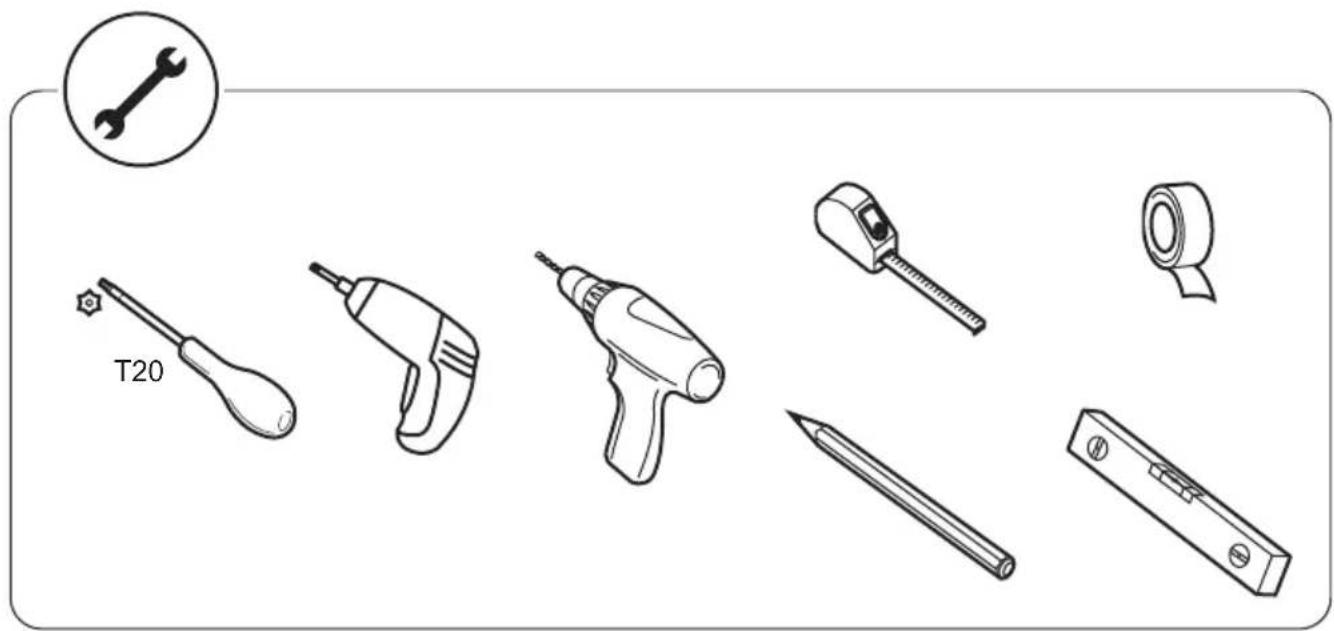

T20

Simple line drawing of a rectangular box with cutouts and internal compartments (no text or symbols)

1x

Ø 4,8 x 38mm Ø 8

5x

5x

1x

2x1x

∅ 150 mm

1x

2x

∅ 150 mm

1x

2x

1x

∅ 3,9 x 13mm
2x

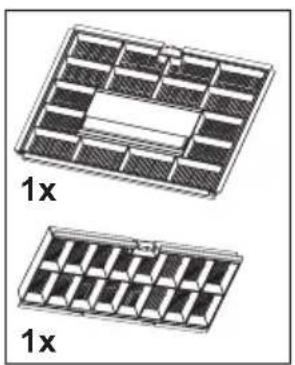

3D diagram of a rectangular grid structure with shaded cells and a central rectangular space (no text or symbols)

1x

1x

MCFB87

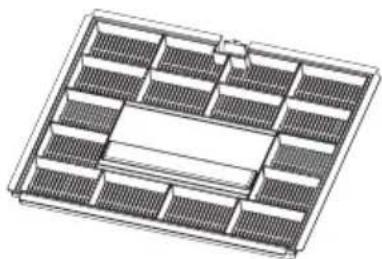

3-6 months

Technical line drawing of a rectangular grid structure with uniform compartments (no text or symbols)

Technical line drawing of a grid-like structure with rectangular elements, no text or symbols present

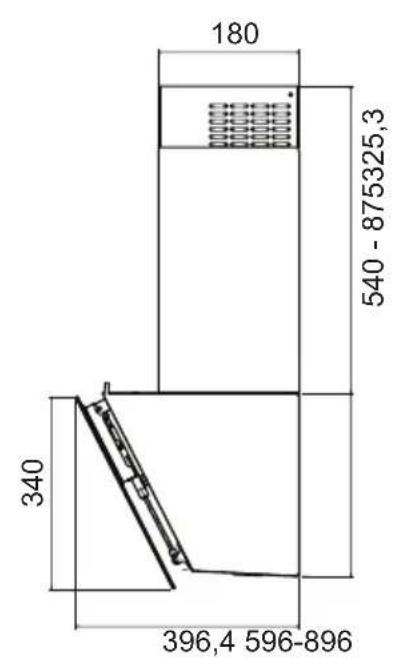

180 540 - 875325,3 340 396,4 596-896

200

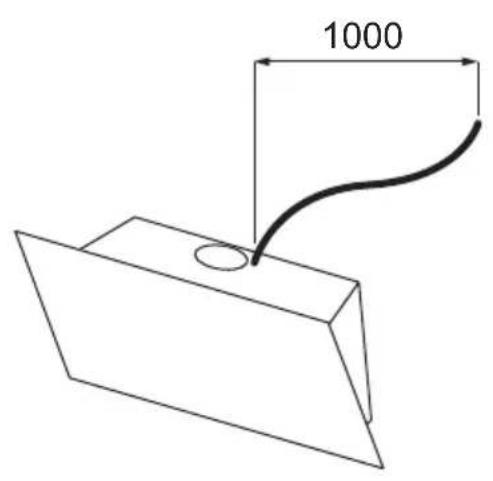

1000

Simple line diagram showing a curved arrow above a horizontal line and a ladder-like structure below, with no text or symbols present.

Simple line drawing of a mechanical bracket with no text or symbols

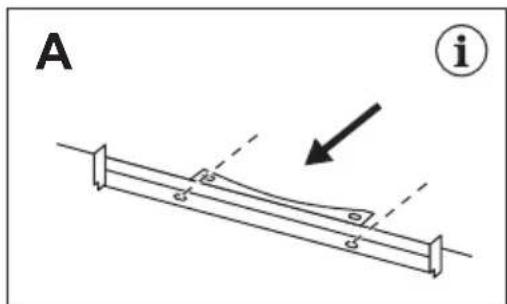

A ①

B

Pure mechanical diagram showing a beam with supports and a downward force arrow (no text or symbols)

5A.

Pure electrical circuit lines without any symbols

i A

120 16

1.2.

Diagram showing a pencil striking a beam with a dashed line indicating direction (no text or symbols)

2x Ø 8

3.4.

2x Ø 8

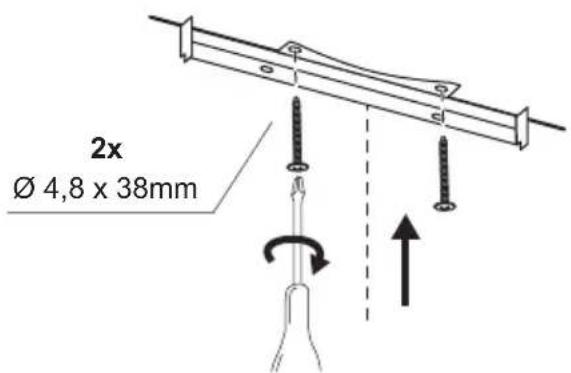

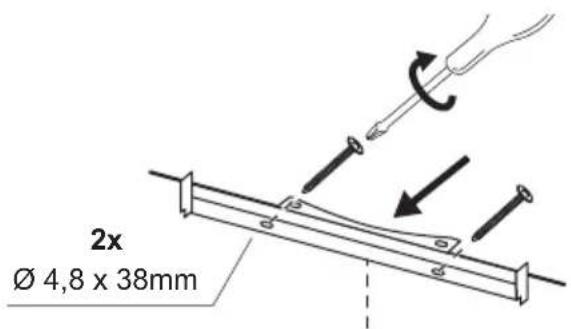

2x Ø 4,8 x 38mm

5B.

Simple line drawing of a horizontal bar with a vertical dashed line extending from its center (no text or symbols)

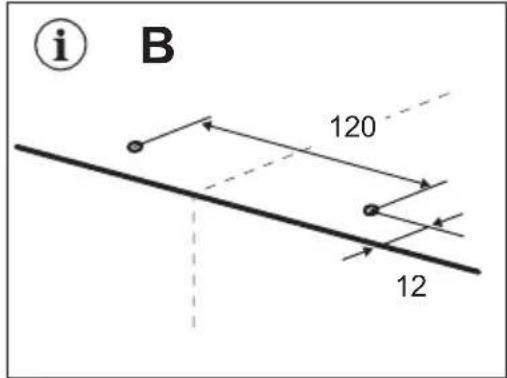

i B 120 12

1.2.

Diagram of a lever mechanism with an upward arrow and pencil, no text or symbols present

2x Ø 8

3.4.

2x Ø 8

2x Ø 4,8 x 38mm

1.

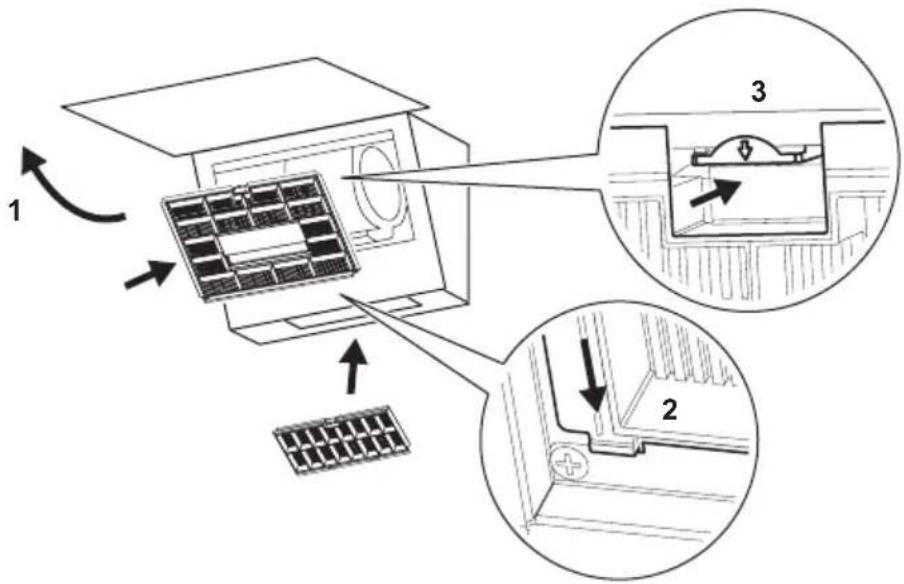

Diagram of a microwave oven with a grating and a labeled component (no text or symbols)

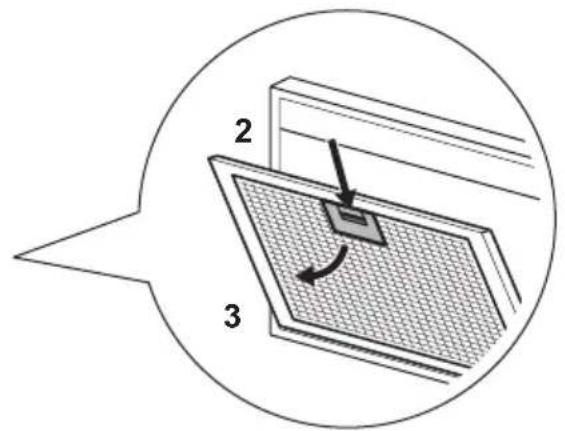

2 3

1.

3D diagram of a mechanical part with an arrow indicating rotation (no text or symbols)

Diagram showing a mechanical joint or bracket with two directional arrows indicating rotation (no text or symbols present)

3D rendering of a geometric object with a pointed tip and rectangular body (no text or symbols)

1.

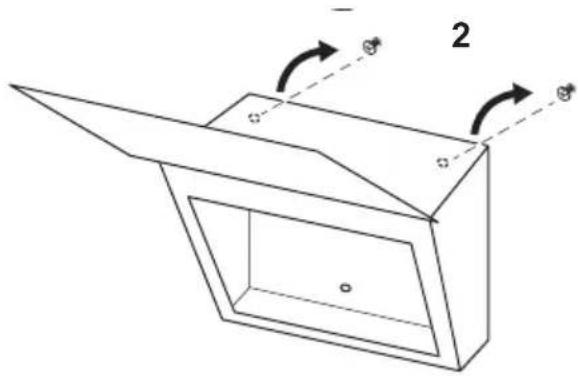

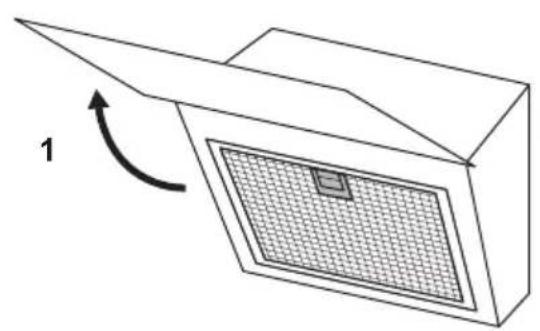

Simple line drawing of a 3D rectangular box with an open lid and a curved arrow labeled '1' indicating rotation (no text or symbols beyond the label)

Technical line drawing of a 3D mechanical part with angular annotations and dimension lines (no readable text or symbols)

Line drawing of a portable stove with four circular vent holes on top (no text or symbols)

1.

Diagram showing a room interior with a door panel and a close-up of a wall-mounted device (no text or symbols)

1.

1x Ø 4,8 x 38mm

1x Ø 4,8 x 38mm

1.
   A1.

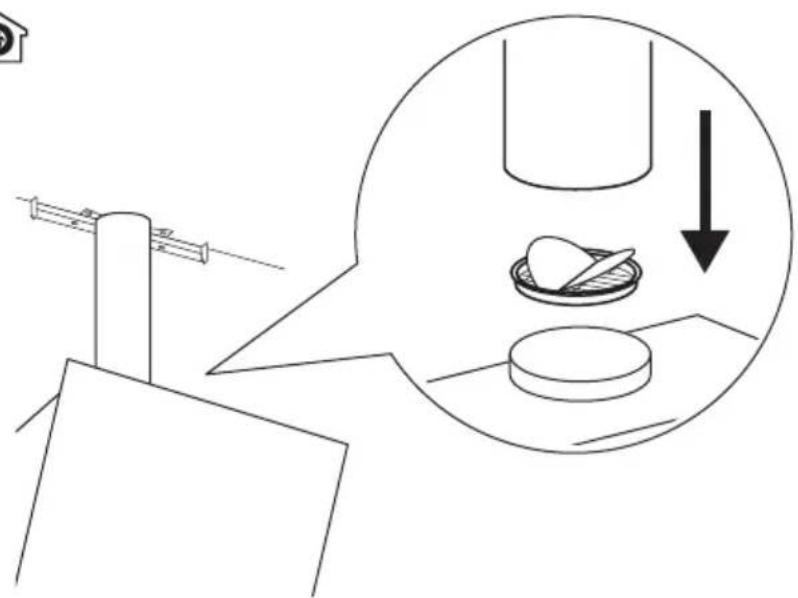

Diagram illustrating a mechanical or electrical setup with an inset showing a device and a downward arrow, likely indicating a process or safety concept.

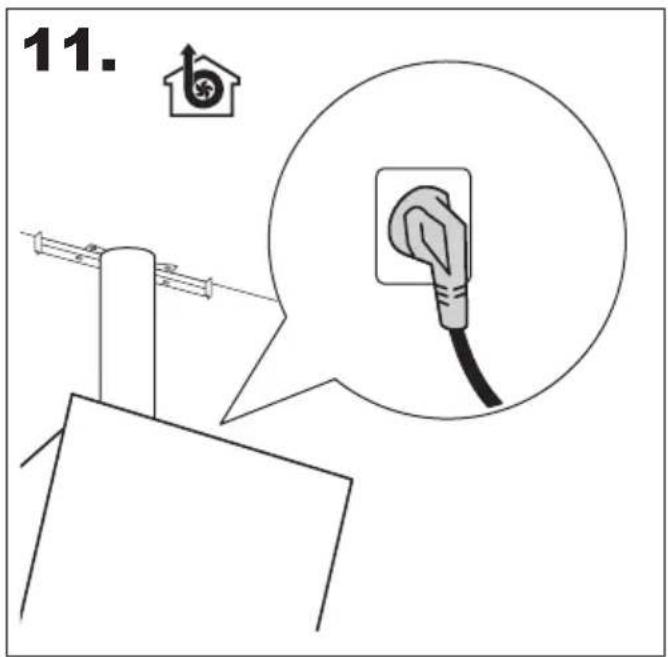

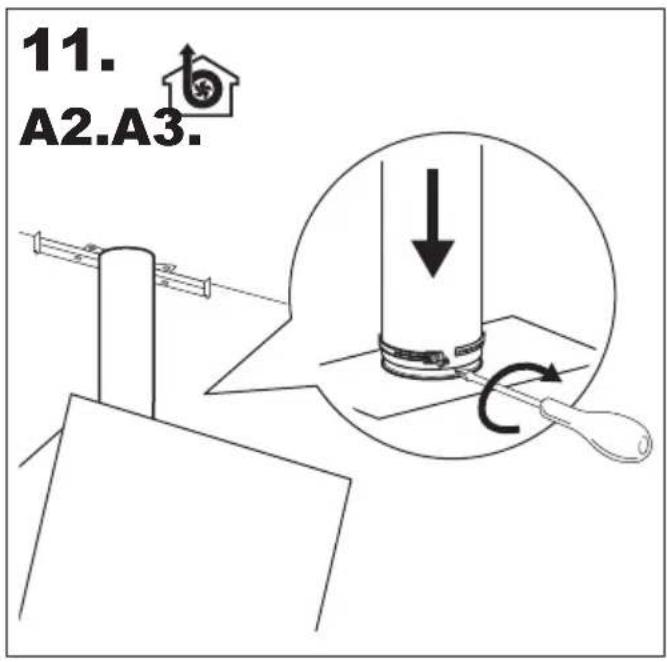

11. A2.A3.

11.

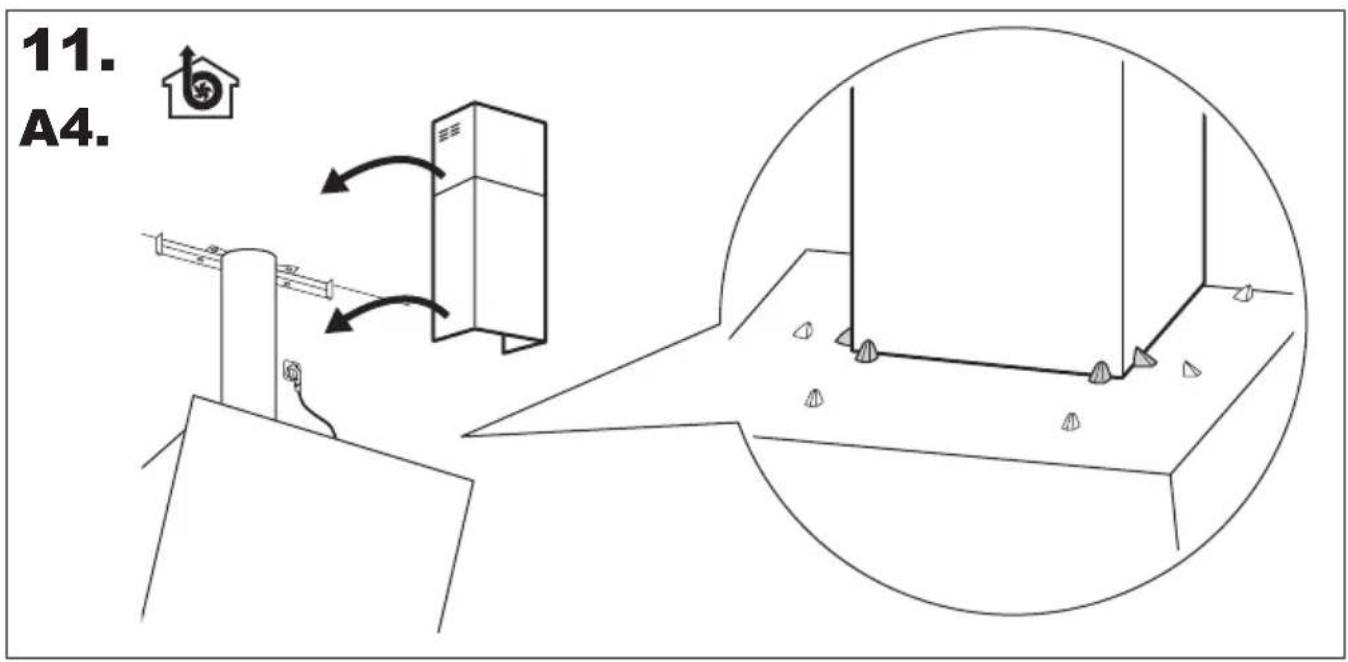

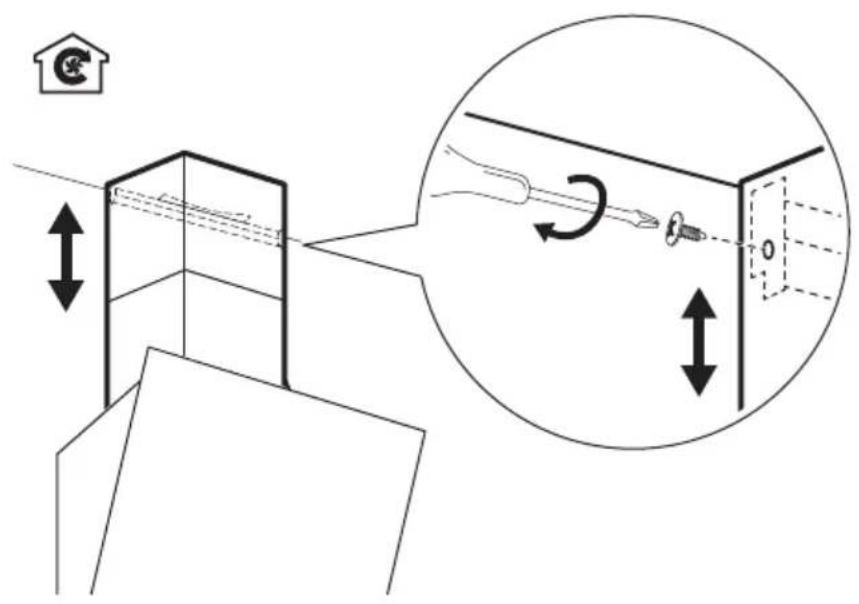

11. A4.

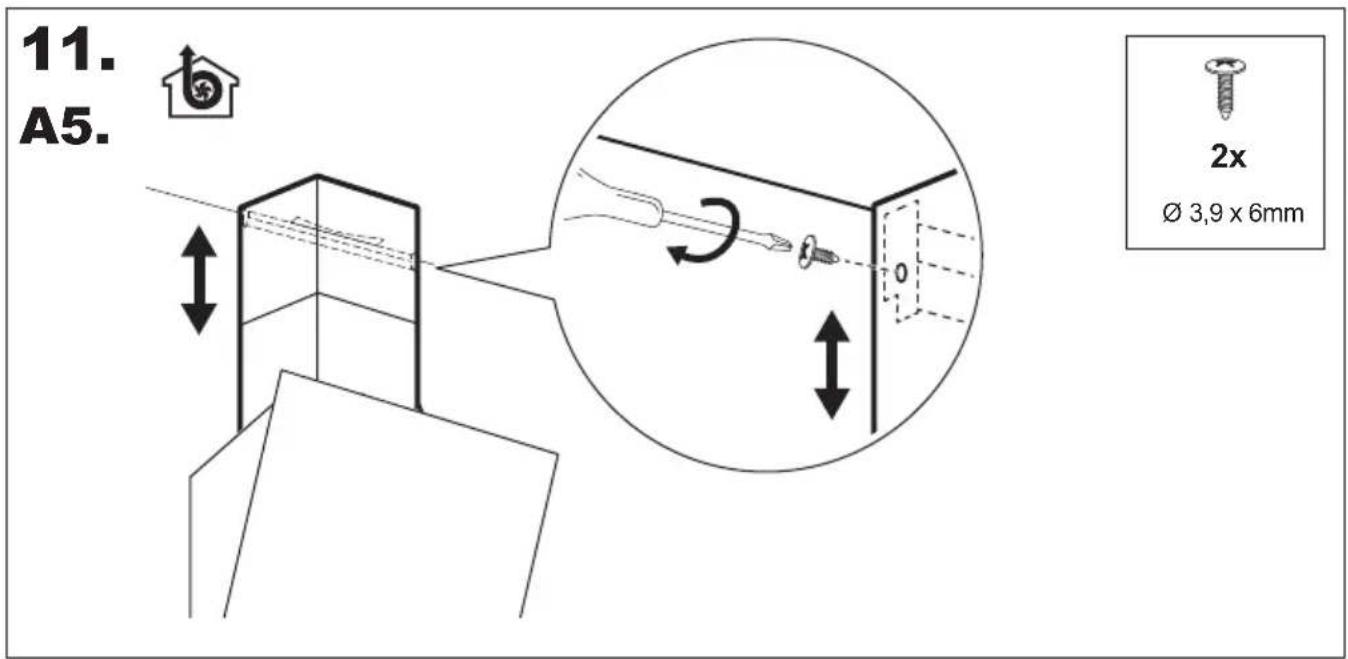

11. A5. 2x Ø 3,9 x 6mm

11. B1.

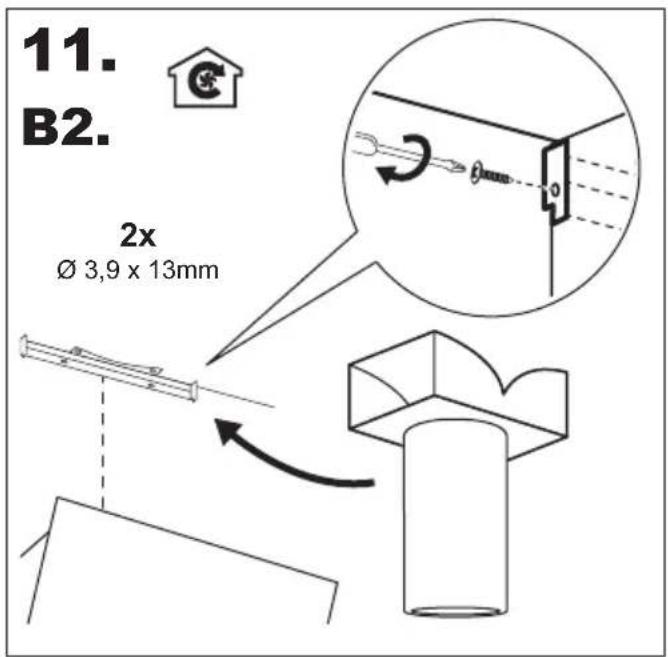

11. B2. 2x Ø 3,9 x 13mm

B3.

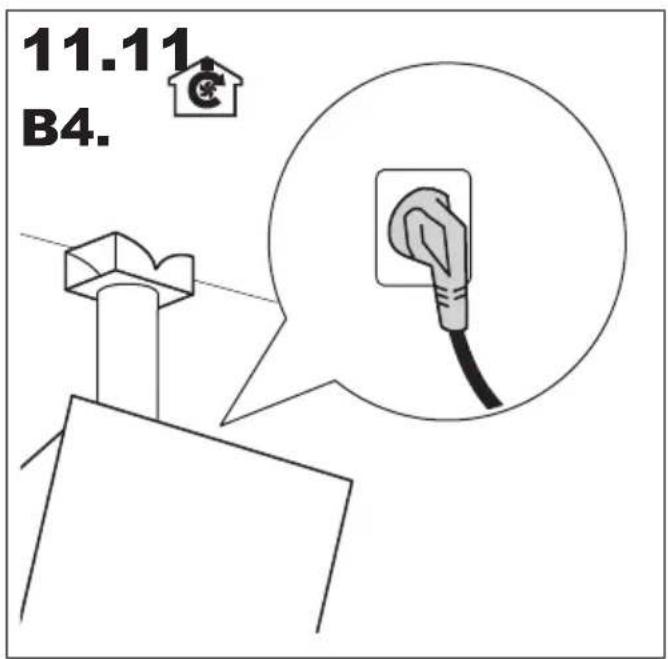

11.11 B4.

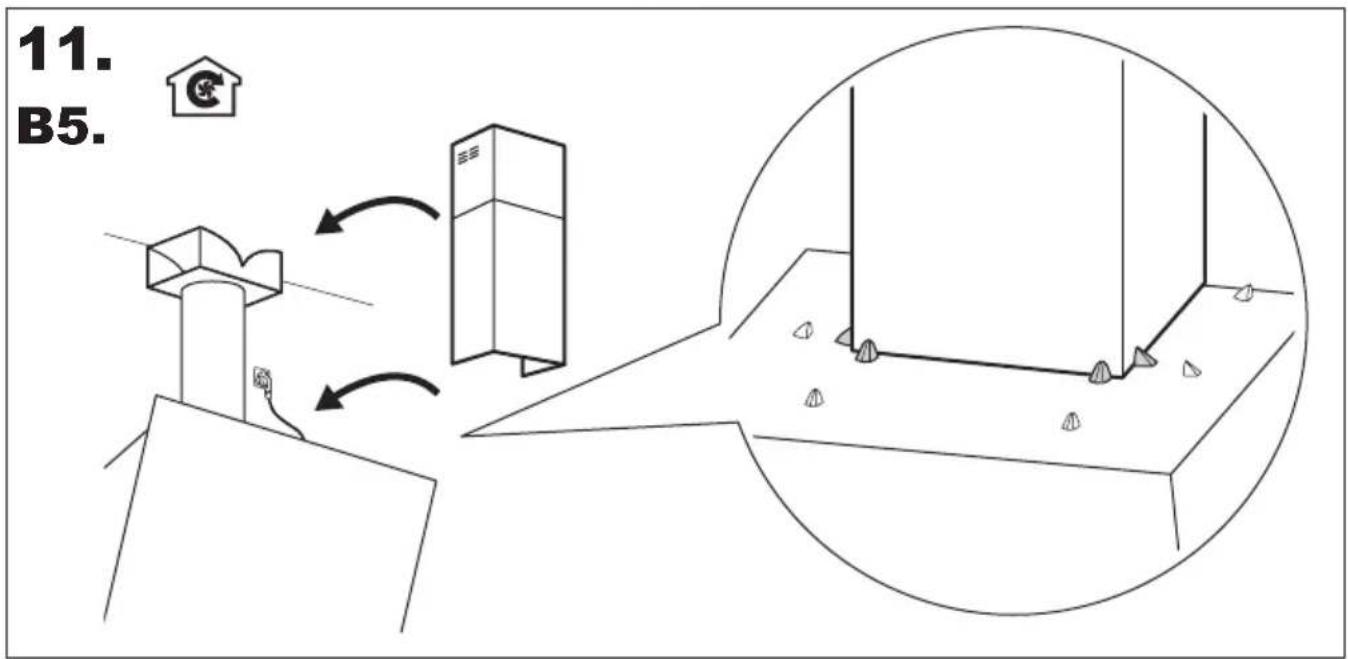

11. B5.

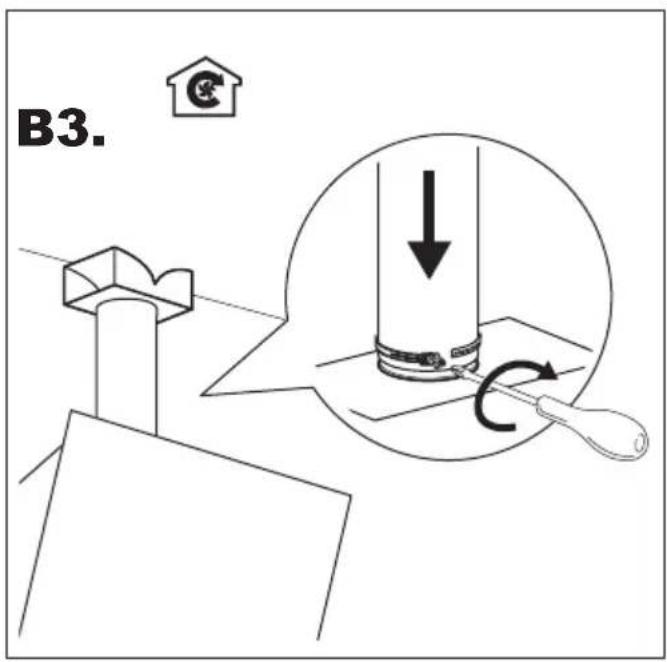

1. B6
