USER MANUAL 66930 Lund


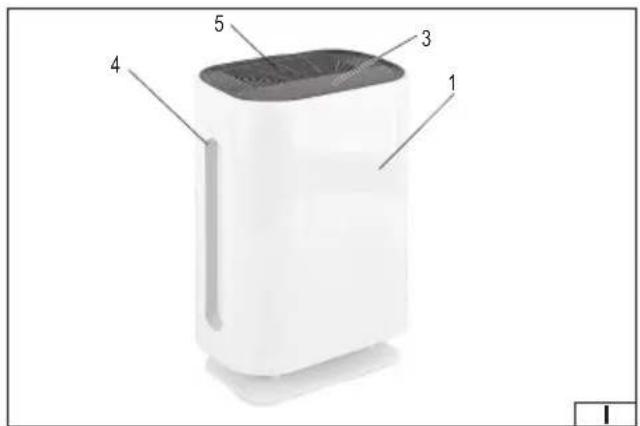

- filter cover
- filter
- control panel
- handle
- vents
DE
Read the operating instruction
Second class of insulation
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
The air purifier is used to filter the air in rooms. The air is passed through a set of filters which remove particles from the air. Quiet and efficient work allows uninterrupted operation. The appliance is intended for home use only. The correct, reliable, and safe operation of the appliance depends on its proper use, therefore:
Read and keep the entire manual before the first use of the appliance.
The supplier shall not be liable for any damage resulting from failure to comply with the safety instructions and recommendations specified in this manual.
ACCESSORIES
The appliance is delivered complete but requires preparation before beginning operation.
SAFETY INSTRUCTIONS
Recommendations concerning transport and installation
The appliance must be placed on a hard, flat, level and non-flammable surface. Maintain at least 20 cm of free space around the side walls of the appliance and at least 30 cm of free space above the appliance. The location should ensure that the outlet and inlet vents are not obstructed. No solids or liquids may enter the inlet ports. This can cause damage to the appliance, which can result in an electric shock. Do not place the appliance near gas appliances, heaters or fireplaces. Avoid locations where the appliance will be exposed to direct sunlight or heat. Do not set anything on the appliance or place any objects over the appliance. Do not stand or sit on the appliance. It is recommended to set the appliance directly on the ground. However, if it is placed on other objects, it should not be placed too close to the edge to prevent it from falling. It is forbidden to drill any holes in the appliance, as well as to make any other modifications of the appliance not described in the manual. Disconnect the power cord from the socket before moving the appliance. Move the appliance by grasping the handle or housing. Do not move the appliance by pulling on the power cord.
Recommendations for connecting the product to the power supply
Before connecting the appliance to the power supply, make sure that the voltage, frequency and performance of the power supply correspond to the values shown on the appliance's rating plate. The plug must fit into the socket. It is forbidden to modify the plug or socket in any manner to make them fit. The appliance must be connected directly to a single power supply socket. It is forbidden to use extension cords, adapters or double sockets. Avoid contact of the power cord with sharp edges, hot objects or surfaces. During operation, the power cord must always be fully extended and the position of the power cord must be set so that it does not become an obstacle during operation. The power cord should not be placed in a manner which would pose a risk of tripping. The power supply socket should be located in a place where it is always possible to quickly remove the appliance power cord plug. Always pull the power cord by the plug housing when unplugging it, never by the cord. If the power cord or the plug is damaged, immediately disconnect it from the power supply and contact an authorised service centre of the manufacturer for replacement. Do not use the appliance with a damaged power cord or plug. The power cord or plug cannot be repaired and must
EN
be replaced with a new one which is free of defects if these components are damaged. If the plug has a ground contact, it must be connected to a power supply socket which is also equipped with a ground contact.
Instructions for use
Warning! The appliance does not remove gaseous pollutants such as carbon monoxide (CO) and must not be used for smoke removal. Before using the appliance, make sure it is properly assembled. During operation, do not allow water or other liquids to enter the appliance. Do not spray flammable liquids near the appliance. Do not use the appliance in a room where insect repellents or oil-containing substances such as incense have been sprayed. The appliance must not operate in rooms with high humidity and/or high temperature, e.g. bathroom or kitchen. Do not use the appliance even in rooms exposed to high temperature fluctuations. These conditions may cause condensation to form inside the appliance. The appliance does not replace regular cleaning and airing of rooms. Do not place fingers or other objects in the appliance vents. Use only original filters supplied with the appliance or replacement ones specified by the manufacturer. Maintenance of the appliance should be carried out in accordance with the manual. Do not use aggressive substances, solvents, caustics, alcohol, petrol or abrasives for cleaning. The appliance may be used by children aged 8 years and over if they are supervised or instructed to use the appliance in a safe manner and if they understand the risks involved. Cleaning and maintenance should not be carried out by children unless they are 8 years or older, and are supervised. Keep the appliance and its power cord out of reach of children under 8 years of age.
APPLIANCE OPERATION
Preparing for operation
Unpack the appliance by removing all packaging components. The covers can be secured during transport with adhesive tape, which must be removed. The filters can be factory packed in plastic bags. Before starting operation, remove the filters from the bags and install them in the correct order and in the correct manner in the appliance. Clean the outer surfaces of the appliance according to the instructions in the section "Appliance maintenance".
Installation of fi Iters
Warning! Before removing the filter cover, make sure that the appliance is disconnected from the power supply. and the power cord is unplugged from the power supply socket.
Caution! If the appliance has more than one filter, always replace all filters.

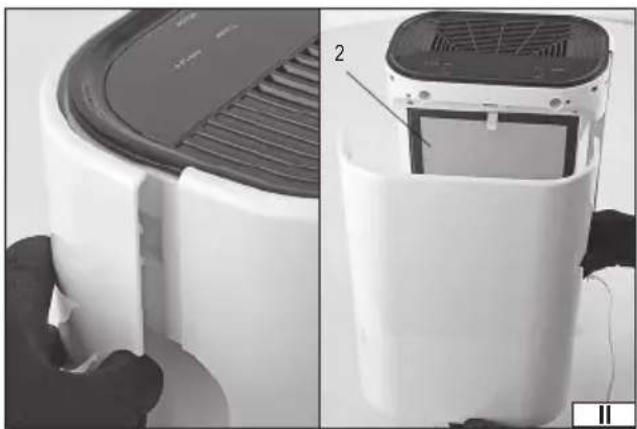

Remove the filter cover (II).

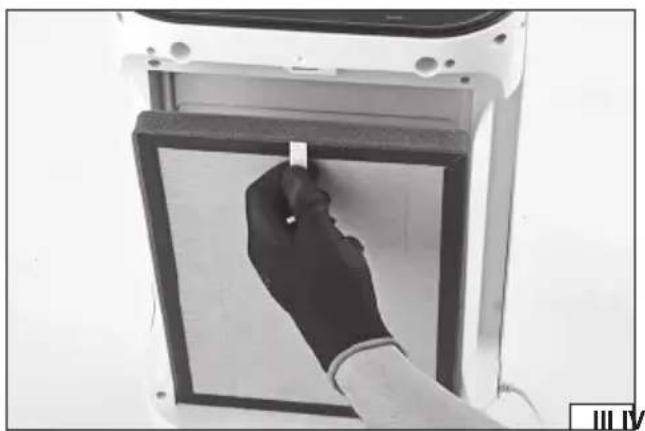

Remove the filter(s) by pulling the ribbon at the edge of the filter(s) (III).
The filter(s) should be installed in such a manner that the ribbons are placed outside and allow easy removal of the filter. Installing the filter wrong will result in incorrect air filtration and the appliance will not function properly.
After the filter(s) have been installed, the appliance cover must be mounted.
Remote control
The remote control has buttons which are described and operate in the same manner as the control panel buttons. Batteries must be installed in the remote control for proper operation, paying attention to the correct polarity of the batteries.

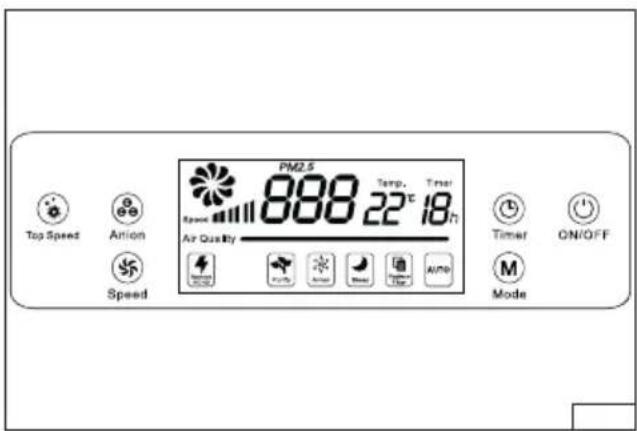

Control panel
The control panel allows you to control the operation of the appliance. The panel is equipped with touch buttons and indicator lights informing about the appliance settings.
The "ON/OFF" button is used to turn the appliance on and off. When the appliance is switched off, only the switch is illuminated. When the appliance is on, all buttons and selected indicator lights are illuminated.
EN
The “Timer” button is used to set the operating time. The next press of a button increases the operation time which is indicated by the appropriate indicator light. If the indicator light goes out, it means that the appliance is running continuously.
Use the "Mode" button to set the operating mode of the appliance. Normal mode of operation is possible, where the user enters all settings manually. Automatic mode, where the appliance automatically selects the operating parameters - the "Auto" indicator light will come on. Night mode, where the appliance switches off the control panel in addition to the "Sleep" indicator light. This mode should be set for the night when the appliance is to operate in the same room where people are sleeping.
The "Speed" button is used to set the fan speed. Higher speed increases operation capacity, but also causes more noise.
The “Anion” button starts or stops the air ioniser. When the ioniser is activated, oxygen anions are produced in the appliance, which can have a positive effect on your well-being.
The "Top Speed" button activates the highest fan speed. Pressing this button again will restore the previous fan speed setting.
The "Speed" indicator light shows the graphical representation of the fan speed.
The "PM2.5" indicator light shows the amount of PM2.5 particles in the air in g / m^3 .
The "Temp." indicator light shows the air temperature in the room where the appliance operates.
The "Timer" indicator light shows the set operation time. After the set time has elapsed, the appliance will automatically switch off.
The “Air Quality” indicator light shows the air quality using the illumination colour. Green - good quality, orange - medium quality, red - bad quality.
The “Remove HCHO” indicator light - function of removal of HCHO compounds (formaldehydes) through air purification. This function activates on its own once the appliance is switched on and cannot be switched off.
The “Purify” indicator light - air cleaning function. This function activates on its own once the appliance is switched on and cannot be switched off.
The "Anion" indicator light - illuminates when air ionisation is on.
The "Sleep" indicator light - illuminates when the night mode is on.
The "Remove filter" indicator light - illuminates when filter replacement is required.
The "Auto" indicator light - illuminates when automatic operation mode is running.
MAINTENANCE, TRANSPORT AND STORAGE
Warning! All maintenance works and transport must be carried out with the appliance's electric power supply disconnected. Pull the plug out of the power supply socket.
Clean the appliance from outside with a slightly damp cloth and then wipe dry with a dry cloth. Clean the inlet and outlet vents with a paintbrush or soft bristle brush. The filters do not require cleaning, dirty filters should be replaced with new ones. The filters cannot be regenerated or cleaned.
If the water tank is installed in the appliance, it must be emptied. In addition to the removable tank, there is a fixed tank in the appliance, which must be emptied by pulling water from it using a pump (not included). Water should be removed from the tanks not less frequently than every three days. Do not keep the water in the tank due to the possibility of growth of microorganisms. Before refilling, clean the tank with clean water. Remove any scale, sediments or film which has accumulated on the walls or inside the tank. Then wipe the tank dry. Pour one tablespoonful of citric acid into the tank and 100 ml of warm water with the temperature not exceeding 70°C. Mix the acid and leave the solution in the tank for 5 minutes. Then empty the tank, rinse with clean water and leave it open until completely dry.
Never use solvents, acids, or alcohol for cleaning. Clean the base and the lid with a soft, damp cloth. Never immerse the appliance in water or any other liquid.
Transport the appliance by gripping the handles. Transport in operating position. If transported over longer distances, transport the appliance in a packaging which protects it from damage. Store the appliance in rooms which protect against dust and moisture and are well ventilated. It is recommended to store the appliance in its original packaging. Do not place anything on the appliance during storage.
Caution! During long-term storage, the filters wear out, although at a lower rate than during use. For long-term storage, it is recommended to pack the filters in airtight plastic bags. Remove the filters from the bags before use.
TECHNICAL DATA
| Parameter Unit Value | ||
| Catalogue No. 66930 | ||
| Rated voltage [V~] 220 - 240 | ||
| Rated frequency [Hz] 50/60 | ||
| Rated power [W] 40 | ||
| Protection class | II | |
| Maximum particulate removal capacity | [m3/h] 220 | |
| Operation area | [m2] | 20 - 35 |
| Weight | [kg] | 4.1 |
| Noise level – sound pressure L_w | [dB(A)] | <70 |
