68014 - Waffle Maker Lund - Free user manual and instructions

USER MANUAL 68014 Lund

Black plastic container with perforated top and side slots, no visible text or symbols

CE

Black plastic electric motor with hexagonal grid tray and connected power outlet (no text or symbols visible)

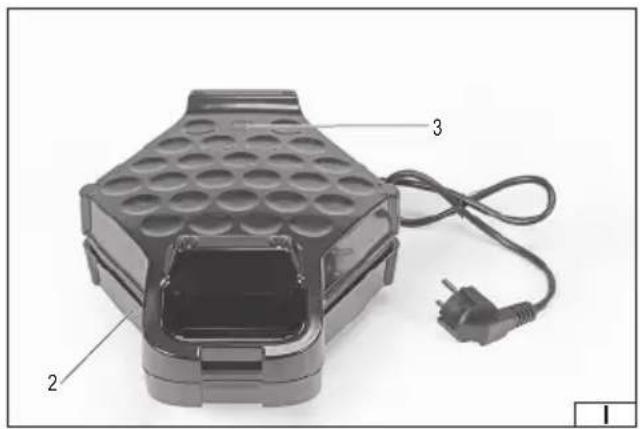

Exterior view of a black waffle-shaped device with labeled parts (no text or symbols on the main body)

PL EN

Read the operating instruction

Safe contact with food

Caution! Hot surface

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

The waffle maker is an appliance designed for baking waffles. The appliance is not intended for commercial use. Proper, reliable and safe operation of the appliance depends on appropriate use, that is why you should

Read the entire instructions manual before the first use of the appliance, and keep it for future reference.

The supplier shall not be held liable for any damage or injury resulting from improper use of the appliance or failure to observe the safety regulations and recommendations of this manual. Use of the appliance for purposes other than those for which it was intended shall cause the loss of the user's rights under warranty and statutory warranty.

ACCESSORIES

The appliance is supplied complete and does not require assembly. However, before using the appliance, remove all packaging and transport protection elements. Preparations described later in this manual are also required.

GENERAL INSTRUCTIONS FOR USE

The appliance has been designed for domestic use and it is not allowed to use it for commercial applications, e.g., in catering facilities. The appliance is intended for indoor use only. Do not expose the appliance to rain or other precipitation. The appliance can be used only for heat processing of food placed directly on the cooking plate. It is forbidden to use the appliance in any other way, for example as a heater for the products inside a dish. It is forbidden to repair, disassemble, or modify the appliance by yourself. All repairs to the appliance must be carried out by an authorised service centre. Keep the appliance under constant supervision during operation.

WARNING! During operation, the appliance heats up to a high temperature, do not touch the cooking plate and the walls of the appliance during operation, as this may cause severe burns. The appliance is not intended for use by children under at least 8 years of age and by persons with reduced physical or mental abilities and by persons without experience in or understanding of the operation of the appliance, unless they will be supervised or instructed to use the appliance safely, in a manner ensuring that the risks involved are understood. Children should not play with the appliance. Unattended children should not be allowed to perform the cleaning and maintenance of the appliance.

Recommendations for transporting and installing the appliance

The appliance may only be placed on a hard, flat, level, and non-flammable surface. The surface should withstand the weight of the appliance itself and the food placed on it. Ensure that there is a minimum distance of 10 cm around the appliance's side walls and do not place non-high temperature resistant materials above the appliance. This will allow for the proper ventilation of the appliance. Do not place near edges of, e.g., a table. Do not place the appliance near flammable materials, e.g., curtains or drapes.

Do not place any electrical equipment above the appliance. During operation, water vapour is released, which can cause a short circuit in the electrical system and lead to electric shock. It is forbidden to drill any holes in the product, as well as make any other modifications to the appliance not described in the manual. Move the appliance only when cooled down, grasp-

EN

ing the housing. Do not move the appliance by pulling on the power cord. The temperature at the place of installation and use of the appliance must be within the range of +10^ ÷ +38^ , and the relative humidity must be below 90% without condensation.

Recommendations for connecting the appliance to the power supply

Before connecting the appliance to the power supply, make sure that the voltage, frequency and performance of the mains correspond to the values shown on the appliance's rating plate. The plug must fit into the socket. It is forbidden to modify the plug in any way. The appliance must be connected directly to a single mains socket. It is forbidden to use extension cords, adapters or double sockets. The mains circuit must be fitted with a protective conductor and a 16 A protective appliance.

Avoid contact of the power cord with sharp edges, hot objects or surfaces. During operation, the power cord must always be fully extended and the position of the power cord must be set so that it does not become an obstacle during operation. The power cord should not be placed in a manner which would pose a risk of tripping. The power socket should be located in a place where it is always possible to quickly remove the appliance's power cord plug. Always pull the power cord by the plug housing when unplugging it, never by the cord. If the power cord or the plug is damaged, immediately disconnect it from the mains and contact an authorised service centre of the manufacturer for replacement. Do not use the appliance with a damaged power cord or plug. The power cord or plug cannot be repaired and must be replaced with a new one that is free of defects if these components are damaged. Replacement of the power cord and plug must be carried out by an authorised service centre of the manufacturer.

Recommendations for the appliance use

WARNING! The cooking plate surface can be hot after use. Do not touch it, as it may cause severe burns. Allow the cooking plate to cool down. When preparing dishes that may spread hot food fragments, personal protective equipment should be worn to protect from burns.

Make sure that the floor near the appliance is not slippery. This will prevent slipping, which can cause serious injuries. Observe the food at all times and prevent it from burning during its preparation. Food left unattended can burn, which can cause fire and serious burns. When preparing dishes, touch the cooking plate surface only with utensils made of wood or plastic.

The utensils should be able to withstand the temperature generated by the cooking plate. It is forbidden to remove and distribute food using hands.

If any food is left on the cooking plate during or after preparation, remove the food remains before preparing another dish. Food leftovers can be burned, causing smoke, unpleasant smell, and affect the taste of the prepared food. They may also be the cause of fire. Use utensils made of wood or plastic able to withstand the temperature generated by the cooking plate. Do not use sharp or metal utensils.

Such utensils can damage the cooking plate surface.

If the preparation of a dish requires the use of oil, spread it on the surface of the cooking plate with a soft brush. The appliance cannot be used for preparing dishes by deep-frying.

EN

APPLIANCE OPERATION

Installation, start-up and operation of the appliance

The appliance must be unpacked, and all parts of the packaging completely removed. It is recommended to keep the packaging, as it can be helpful for further transport and storage of the appliance.

Prepare the appliance according to the instructions specified in the "Appliance maintenance" section.

Insert the power cord plug into the socket. The ready indicator light lights up and the cooking plates start to heat up. The end of the heating process will be indicated by the ready indicator light going out.

Carefully open the lid, spread the waffle dough on the bottom cooking plate. Try to spread the dough over the entire surface of the plate. Then close the lid. The ready indicator light will light up again. Wait until it goes out, then carefully lift the lid and remove the baked waffles from the cooking plate. If necessary, redistribute the dough and repeat all the steps to bake another portion of waffles.

The appliance can be switched off at any time by removing the power cord plug from the socket. Do not leave the appliance unattended during operation. After the indicator light goes out, the appliance will not switch off automatically and will start to heat up again after a while. Leaving the appliance unattended with waffles between the cooking plates can lead to fire.

WARNING! Special care should be taken when opening the heated lid. Use gloves to protect against high temperatures, grasp the lid only by the handle.

The cooking plate heats up to a high temperature, contact with unprotected body parts can lead to serious burns. When preparing food, care should be taken not to touch the cooking plate, and the food should be checked using appropriate utensils, e.g. tongs or paddles made of plastic or wood.

When selecting utensils, it is important to take into account whether they can withstand the temperature generated by the cooking plate. Do not use metal utensils or utensils with sharp edges. Such utensils can damage the cooking plate surface.

Appliance maintenance

ATTENTION! All maintenance activities must be performed with the appliance disconnected from the mains. To do this, remove the power cord plug from the socket.

The appliance is used to prepare food placed directly on the cooking plate, therefore care must be taken to maintain proper hygiene so that the preparation of food is safe.

The cooking plate can be protected with a preservative agent for transport and storage. Before first use, after cleaning, heat the cooking plate to its maximum temperature and allow all residues of the preservative agent to evaporate. The evaporating preservative agent can cause smoke, which is a normal phenomenon. Therefore, evaporation should be carried out in a place with efficient ventilation. Do not inhale the vapours of the preservative agent.

After the evaporation is finished and the smoke stops flowing, disconnect the appliance from the power supply, wait until the cooking plate cools down completely and clean it again with a cleaning agent. Only then can the cooking plate be used for food preparation.

Clean the cooking plate and other parts of the appliance with a cloth soaked in a water solution of a mild dishwashing liquid. Remove any residues of the solution with a cloth soaked in water. After cleaning, wipe the appliance dry. The cooking plate should be cleaned after each use, once it cooled down completely. Remove any food residue remaining on the cooking plate to prevent it from burning when the appliance is used again, and to prevent its performance from being impaired.

Do not use solvents, corrosive agents, alcohol, petrol or abrasives for cleaning.

Clean the ventilation openings with a vacuum cleaner.

Caution! Never immerse the appliance in water or any other liquid.

Storage

If the appliance will not be used for an extended period of time, disconnect it from the power supply.

During storage, keep the appliance indoors, and make sure it is not exposed to dust, dirt, or moisture. It is recommended to store the appliance in its original packaging.

Store the appliance in its working position. Do not stack products in layers. Do not place other items on the product during storage.

TECHNICAL DATA

Parameter Unit Value
Catalogue No. 68014
Rated voltage [V~] 220 – 240
Rated frequency [Hz] 50/60
Rated power [W] 700
Insulation class I
Cooking plate dimensions	[cm]	21 × 18
Net weight	[kg]	0.9
