USER MANUAL EVOX J11 RCF

The symbols used in this document give notice of important operating instructions and warnings which must be strictly followed.

	CAUTION	Important operating instructions: explains hazards that could damage a product, including data loss
	WARNING	Important advice concerning the use of dangerous voltages and the potential risk of electric shock, personal injury or death.
	IMPORTANT NOTES	Helpful and relevant information about the topic
	SUPPORTS, TROLLEYS AND CARTS	Information about the use of supports, trolleys and carts. Reminds to move with extreme caution and never till.
	WASTE DISPOSAL	This symbol indicates that this product should not be disposed with your household waste, according to the WEEE directive (2012/19/EU) and your national law.

IMPORTANT

This manual contains important information about the correct and safe use of the device. Before connecting and using this product, please read this instruction manual carefully and keep it on hand for future reference. The manual is to be considered an integral part of this product and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions. The company will not assume any responsibility for the incorrect installation and/or use of this product.

All the precautions, in particular the safety ones, must be read with special attention, as they provide important information.

SAFETY PRECAUTIONS

GENERAL SAFETY PRECAUTIONS

1. Protect loudspeaker AC and signal lines from damage. Make sure they are positioned in a way that they cannot be stepped on or crushed by objects
2. To prevent the risk of electric shock, never open this product: there are no parts inside that the user needs to access. Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.
3. If this product begins emitting any strange odours or smoke, in case of an active speaker immediately switch it off and disconnect the power cable; in case of a passive speaker switch the amplifier off and remove it from the line.
4. Contact your authorized service centre or qualified personnel if any of the following occur:

The device does not function (or works in an anomalous way).
The cable has been damaged.
- Objects or liquids are inside the loudspeaker.
The loudspeaker has been damaged due to heavy impacts or fire.

1. Make sure that no objects or liquids can get into this product, as this may cause a short circuit. This apparatus shall not be exposed to dripping or splashing. No objects filled with liquid, such as vases, shall be placed on this apparatus. No naked sources (such as lighted candles) should be placed on this apparatus.
2. Do not connect this product to any equipment or accessories not foreseen. For suspended installation, only use the dedicated anchoring points and do not try to hang this product by using elements that are unsuitable or not specific for this purpose. Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers. To prevent the risk of falling equipment, do not stack multiple units of this product unless this possibility is specified in the user manual.
3. The company strongly recommends to install this product only by professional qualified installers (or specialised firms) who can ensure correct installation and certify it according to the regulations in force. The entire audio system must comply with the current standards and regulations regarding electrical systems.

8.

Supports, trolleys and carts: The equipment should be only used on supports, trolleys and carts, where necessary, that are recommended by the manufacturer. The equipment / support / trolley / cart assembly must be moved with extreme caution. Sudden stops, excessive pushing force, floors may cause the assembly to overturn. Never tilt the assembly.

1. Hearing loss: Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure. To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices. When a transducer capable of producing high sound levels is being used, it is necessary to wear ear plugs or protective earphones. See the technical specifications in the instruction manual for the maximum sound pressure the loudspeaker can produce.

ACTIVE DEVICES: ACTIVE SPEAKERS and AMPLIFIERS

1. The mains voltage is sufficiently high to involve a risk of electrocution; install and connect this product before plugging it in.
2. Before powering up, make sure that all the connections have been made correctly and the voltage of your mains corresponds to the voltage shown on the rating plate on the unit, if not, please contact your dealer.
3. The metallic parts of the unit are earthed through the power cable. An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection by a 3-pole power cord.
4. Protect the power cable from damage; make sure it is positioned in a way that it cannot be stepped on or crushed by objects.
5. If the product is not used for a long period, disconnect the power cable.
6. Ensure that no children have access to the installation materials and components.
7. Before powering up, make sure that all the connections have been made correctly and the voltage of your mains corresponds to the voltage shown on the rating plate on the unit. If not, please contact your dealer.
8. Always make sure the power cord and and all plug assemblies are certified and suitable for the use in the particular countries where the product shall be installed.
9. Use the mains plug to disconnect the apparatus from the mains.
10. If the device is provided with internal fuse or if it requires operations, contact your authorized service centre or qualified personnel as defined in the IEC 62368-13rd Ed. Interfaces at ES3 level present.
11. If the device is provided with power socket with accessible fuse holder, or accessible independent fuse holder, disconnect mains cable device before fuse replacement. The fuse on the AC mains input may be on the neutral, the AC mains shall be disconnected to de-energize the phase.

PASSIVE DEVICES and ACCESSORIES

1. Loudspeaker lines (amplifier outputs) can have a sufficiently high voltage to involve a risk of electrocution: never install or connect this loudspeaker when amplifiers are switched on.
2. Make sure all connections have been made correctly and the loudspeaker input impedance is suitable for the amplifier output.
3. To ensure a correct sound reproduction, loudspeaker phase is to be respected (loudspeakers are connected respecting the amplifier polarity). This is important when loudspeakers are installed adjacent one another, for instance, in the same room.
4. To prevent inductive effects from causing hum, noise and a bad system working, loudspeaker lines should not be laid together with other electric cables (mains), microphone or line level signal cables connected to amplifier inputs.
5. The loudspeaker cable shall have wires (twisted, if possible, to reduce inductive effects due to surrounding electro-magnetic fields) with a suitable section and a sufficient electrical insulation. Refer to local regulations since there may be additional requirements about cable characteristics.
6. Do NOT connect loudspeaker low impedance (8 - 4 Ω) inputs to 100/70 V constant voltage lines.

SUSPENDED DEVICES

1. Suspending any object is a potentially dangerous operation and should only be attempted by individuals who have a thorough knowledge of the techniques and regulations of rigging objects overhead.
2. The company strongly recommends that all devices should be suspended taking into account all current national, federal, state and local regulations. It is the responsibility of the installer to ensure that all devices are safely installed in accordance with all such regulations.
3. The company strongly recommends to inspect the system at least once a year. If any sign of weakness or damage is detected remedial actions should be taken immediately.
4. The user is responsible for making sure that the supporting surfaces and any additional hardware used is capable of supporting the system. Any hardware used to suspend a loudspeaker array that is not provided by or associated with the company is not reccomended and is under the responsibility of others.

OPERATING PRECAUTIONS

• Install the product in accordance with manufacturer's instructions.
• Mechanical and electrical factors need to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc.).
• If the product needs to be used in a cold environment, slowly warm up the voice coils by sending a low-level signal for about 15 minutes before sending high-power signals.
• Place this product far from any heat sources and always ensure an adequate air circulation around it.
• Do not overload this product with too much power or for a long time.
• Never force the control elements (keys, knobs, etc.).

IMPORTANT

To prevent the occurrence of noise on line signal cables, use screened cables only and avoid putting them close to:

• Equipment that produces high-intensity electromagnetic fields
• Power cables
• Loudspeaker lines

WARNING! CAUTION! To prevent the risk of fire or electric

shock, never expose this product to rain or humidity.

WARNING! To avoid the risk of electric shock, do not connect to the

mains supply if the device is open or, in the case of speakers, while the grille is removed.

WARNING! To reduce the risk of electric shock, do not disassemble this

product unless you are qualified. Refer servicing to qualified service personnel.

CORRECT DISPOSAL OF THIS PRODUCT

This product should be handed over to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on

the environment and human health due to potentially hazardous

substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of thisproduct will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste

authority or your household waste disposal service.

CARE AND MAINTENANCE

To ensure a long-life service, this product should be used following these advices:

• If the product is intended to be set up outdoors, be sure it is under cover and protected to rain and moisture.
• In the case of fixed installations, it is recommended to schedule periodic checks of the entire system and all its parts for the entire duration of the installation.
• All personnel involved in the installation must be adequately trained and educated on safety procedures and equipped with appropriate personal protective equipment (PPE).
• If it is necessary to replace a part, always contact authorized centers only or use only parts supplied by RCF.
• RCF is not responsible for problems or malfunctions encountered in the case of replacements of parts or modifications to the system initiated by the user.
• Do not use abrasives, cleaning solvents, alcohol, benzene or other volatile substances for cleaning the external parts of this product. Always use a dry cloth to clean the exterior surfaces of the speaker and always do it when the power is turned off.

WARNING! CAUTION! For powered devices, clean only when

the power is turned off.

FCC NOTES

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

RCF S.p.A. reserves the right to make changes without prior notice to rectify any errors and / or omissions.

Always refer to the latest version of the manual on www.rcf.it.

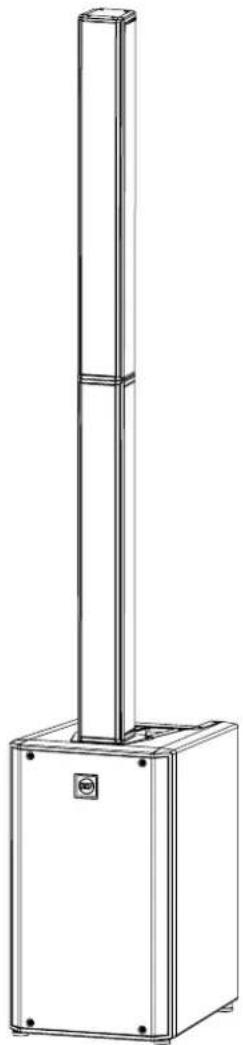

EVOX J11 - ACTIVE THREE WAY MUSIC SYSTEM

The RCF EVOX J11 is a speaker system designed to deliver top-level audio performance in any setting. Thanks to its 1.75" compression driver, twelve 3" satellite speakers, and powerful 12" woofer dedicated to low frequencies, the EVOX J11 ensures high sound pressure with perfectly balanced dispersion, ideal for covering any audience with exceptional clarity and precision. At the heart of the system lies a 3500W Class-D amplifier, delivering unmatched power to the three-way system for crystal-clear, uncompromised sound quality.

Lightweight, easy to install, and featuring a modern, sleek design, the EVOX J11 is perfectly suited for a variety of applications: from DJ sets and small bands to lively parties and corporate events where elegance and quality take center stage.

EVOX J11

12" Woofer

12 × 3^ neo Fullrange

1.75 neo Compression Driver

132 dB Max SPL

Directivity H 120^ x V 40°

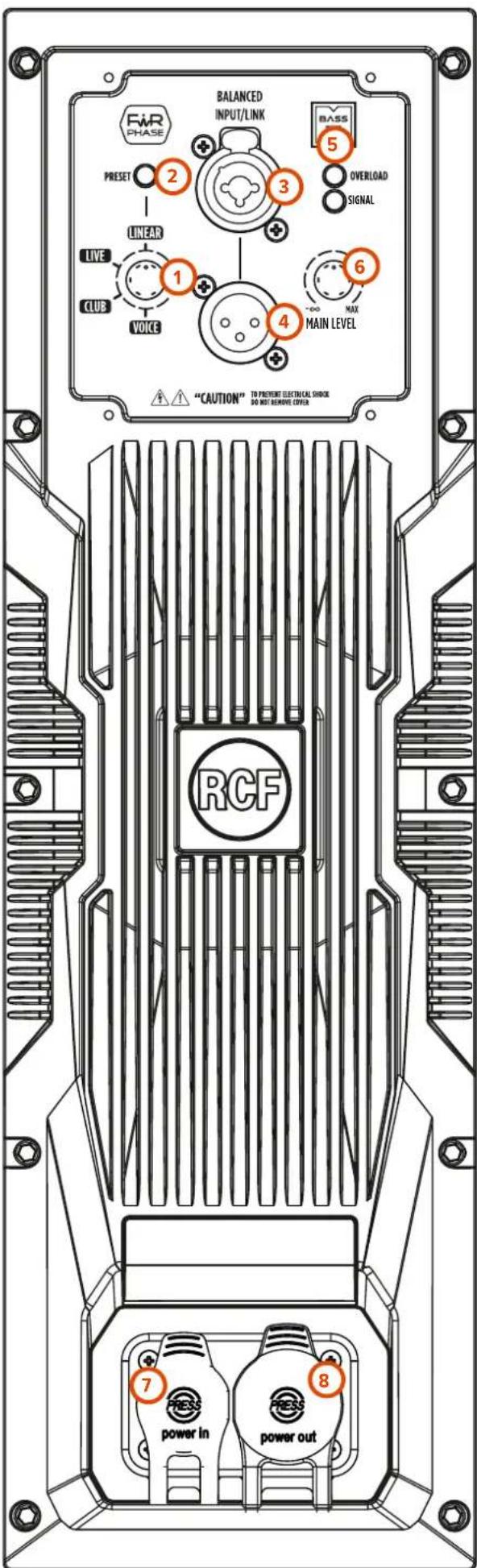

3. REAR PANEL FEATURES AND CONTROLS

1 PRESETS SELECTOR

OVERLOAD/SIGNAL LEDs These LEDs indicate

LINEAR (LED lights purple): a preset that provides a linear frequency response, delivering a natural and balanced sound.
LIVE (LED lights green): is a preset designed to achieve a sound that supports a live performance, ideal for bands or solo performers.
CLUB (LED lights blue): a preset that emphasizes the extreme frequencies, especially powerful low frequencies, for an intense and immersive sound experience. Perfect for DJ sets or music playback at medium to low volumes with a loudness effect.
VOICE (LED lights yellow): a preset that highlights the vocal frequency range, ensuring maximum clarity and intelligibility. Ideal for conferences, presentations, or spoken word programs.
2 PRESET LEDs These LEDs indicate the selected preset.
3 FEMALE XLR/JACK COMBO INPUT This LINE level balanced input accepts a standard JACK or XLR male connector.
MALE XLR SIGNAL OUTPUT This XLR output connector provides a loop trough for speakers daisy chaining.

SIGNAL

The SIGNAL LED lights green if there is a signal present on the main COMBO input.

OVERLOAD

The OVERLOAD LED indicates an overload on the input signal. It is okay if the OVERLOAD LED blinks occasionally. If the LED blinks frequently or lights continuously, turn down the signal level avoiding distorted sound. Anyway, the amplifier has a built-in limiter circuit to prevent input clipping or overdriving the transducers.

6

VOLUME CONTROL Adjusts the master volume.

7

POWERCON INPUT SOCKET PowerCON TRUE1 TOP IP-Rated power section.

8

POWERCON OUTPUT SOCKET Sends the AC power to another speaker.

HING! CAUTION! Loudspeaker connections should be

only made by qualified and experienced personnel having the technical know-how or enough specific instructions (to ensure that connections are made correctly) in order to prevent any electrical danger.

To prevent any risk of electric shock, do not connect loudspeakers when the amplifier is switched on.

Before turning the system on, check all connections and make sure there are no accidental short circuits.

The entire sound system shall be designed and installed in compliance with the current local laws and regulations regarding electrical systems.

Since EVOX J11 is made up of several components and requires subsequent assembly, it is delivered in two separate packages:

-BOX1of2
-BOX2of2.

This solution ensures easier transportation, reduces the risk of damage to individual parts, and facilitates handling during delivery and assembly.

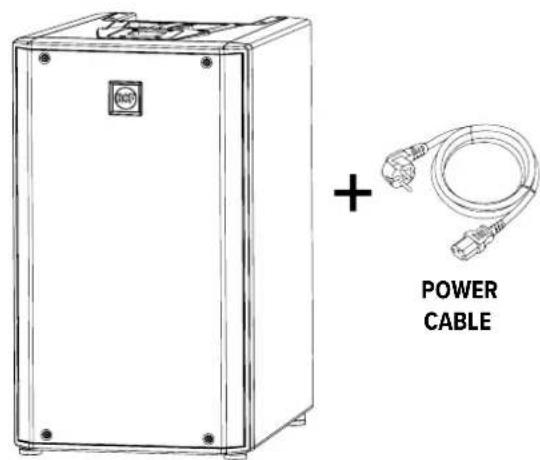

The package labeled 1 of 2 contains:

• the Subwoofer.
• the system's power cable

SUBWOOFER

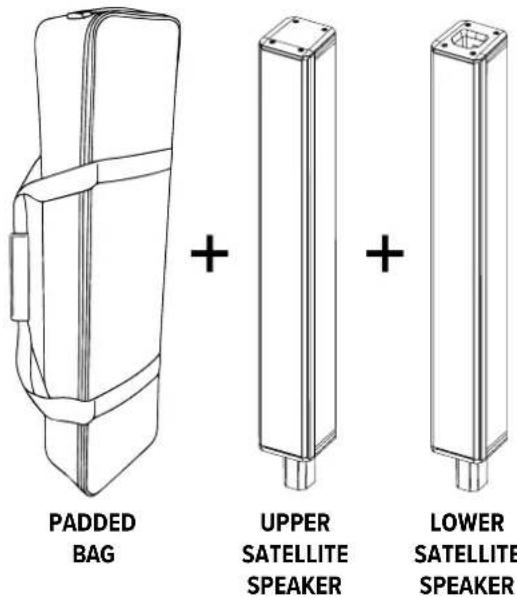

The package labeled 2 of 2 contains a convenient padded bag equipped with:
the upper satellite speaker
- the lower satellite speaker

5. INSTALLATION

缶

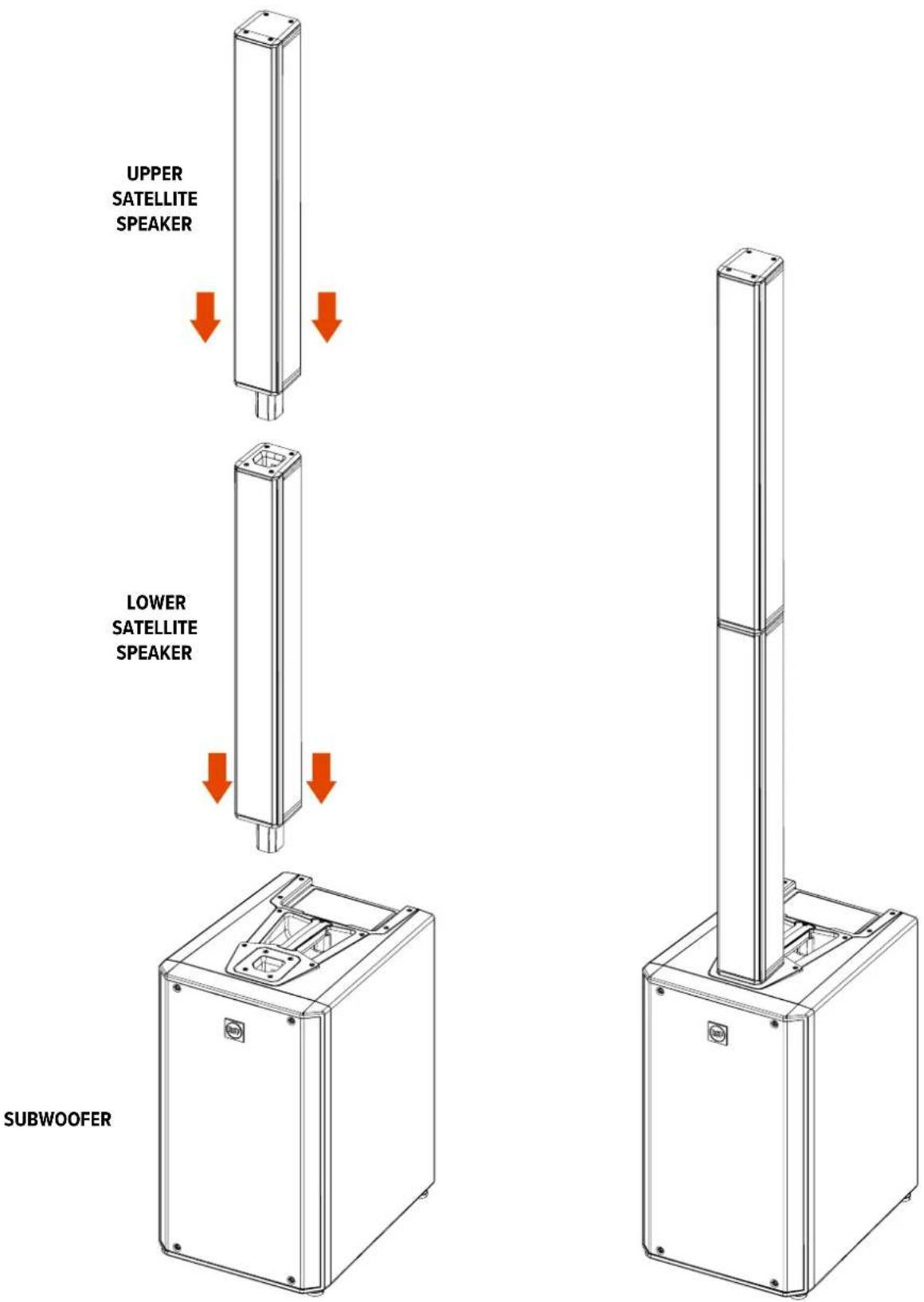

To assemble the system, insert the lower satellite speaker into the dedicated slot on the subwoofer unit, then mount the upper satellite speaker onto the lower one. At this point, the system is complete and ready for use: connect the power cable found in the "1 of 2" package, and the EVOX J11 will be ready to deliver powerful, high-quality sound.

The connectors must be wired according to the standards specified by the AES (Audio Engineering Society).

MALE XLR CONNECTOR Balanced wiring

FEMALE XLR CONNECTOR Balanced wiring

PIN1=GROUND（SHIELD）

PIN2=HOT（+）

PIN3 = COLD(-)

TRS CONNECTOR Unbalanced mono wiring

TRS CONNECTOR Balanced mono wiring

SLEEVE = GROUND (SHIELD)

TIP = HOT (+)

RING = COLD (-)

On the rear panel you will find all the controls, signal and power inputs. At first verify the voltage label applied to the rear panel (115 Volt or 230 Volt). The label indicates the right voltage. If you read a wrong voltage on the label or if you can't find the label at all, please call your vendor or authorized RCF SERVICE CENTRE before connecting the speaker. This fast check will avoid any damage.

In case of need of changing the voltage please call your vendor or authorized RCF SERVICE CENTRE. This operation requires the replacement of the fuse value and is reserved to an RCF SERVICE CENTRE.

You can now connect the power supply cable and the signal cable. Before turning on the speaker make sure the volume control is at the minimum level (even on the mixer output). It is important that the mixer is already ON before turning on the speaker. This will avoid damages to the speaker and noisy "bumps" due to turning on parts on the audio chain. It is a good practice to always turn on the speakers at last and turning them off immediately after their use. You can now turn ON the speaker and adjust the volume control to a proper level.

PROTECTIONS

ART Series active speakers are equipped with a complete system of protection circuits. The circuit is acting very gently on audio signal, controlling level and maintaining distortion at acceptable level.

VOLTAGE SETUP (RESERVED TO THE RCF SERVICE CENTRE)

200-240 Volt, 50 Hz

100-120 Volt, 60 Hz

(FUSE VALUE T6.3 AL 250V)

7. TROUBLESHOOTING

Make sure the speaker is switched on and connected to an active AC power

THE SPEAKER IS CONNECTED TO AN ACTIVE AC POWER BUT DOESN'T TURN ON

Make sure the power cable is intact and connected correctly.

Check if the signal source is sending correctly and if the signal cables are not damaged.

THE SOUND IS DISTORTED AND THE OVERLOAD LED BLINKS FREQUently

Turn down the output level of the mixer.

THE SOUND IS VERY LOW AND HISSING

The source gain or the output level of the mixer might be too low.

THE SOUND IS HISSING EVEN AT PROPER GAIN AND VOLUME

The source might send a low quality or noisy signal

HUMMING OR BUZZING NOISE

Check out the AC grounding and all the equipments connected to the mixer input including cables and connectors.

1. AVVERTENZE PER LA SICUREZZA E INFORMAZIONI GENERALI

DISPOSITIVI PASSIVE ACCESSORI

Directivity H 120^ x V 40°

1 SELETTORE DI PRESET

ÉLIMINATION CORRECTE DE CE PRODUIT

-CARTON1sur2
-CARTON2sur2.

L'ENCEINTE EST ALLUMEE MAIS NE PRODUIT AUCUN SON

LE SON EST TRÉS FAIBLE, AVEC DU SOUFFLE

TECHNICAL SPECIFICATIONS
Acoustical specifications Frequency Response 37 Hz - 20000 Hz
Max SPL @1m 132 dB
Horizontal coverage angle 120°
Vertical coverage angle 40°
Transducers Compression Driver 1 x 0.75" neo, 1.75" v.c
Fullrange 12 x 3.0" neo, 1.0" v.c
Woofer 1 x 12", 2.5" v.c
Input/Output section Input signal bal/unbal
Input connectors Combo XLR/Jack
Output connectors XLR
Input sensitivity +4 dBu
Processor section Crossover Frequencies 160 Hz / 1800 Hz
Protections Thermal, RMS
Limiter Soft Limiter
Controls	Volume, Presets: LINEAR/LIVE, CLUB, VOICE
Power section Total Power	3500 W Peak
High frequencies	1500 W Peak
Low frequencies	2000 W Peak
Cooling	Convection
Connections	Powercon TRUE1 TOP IN/OUT
Standard compliance Safety agency	CE compliant
Physical specifications Cabinet/Case Material	PP Composite
Handles	1 Top
Pole mount/Cap	Quick-fit socket
Grille	Steel
Color	Black / White RAL 9003
Size / Weight Height	2080 mm / 81.88 inches
Width	350 mm / 13.77 inches
Depth	463 mm / 18.22 inches
Weight	29 kg / 63.93 lbs
