USER MANUAL PerfectMix SB14PS AEG

GB Instruction book. 17-21

Before using the appliance for the first time, please read the safety advice on page 18 carefully.

D

GR

NL

F

GB

DC

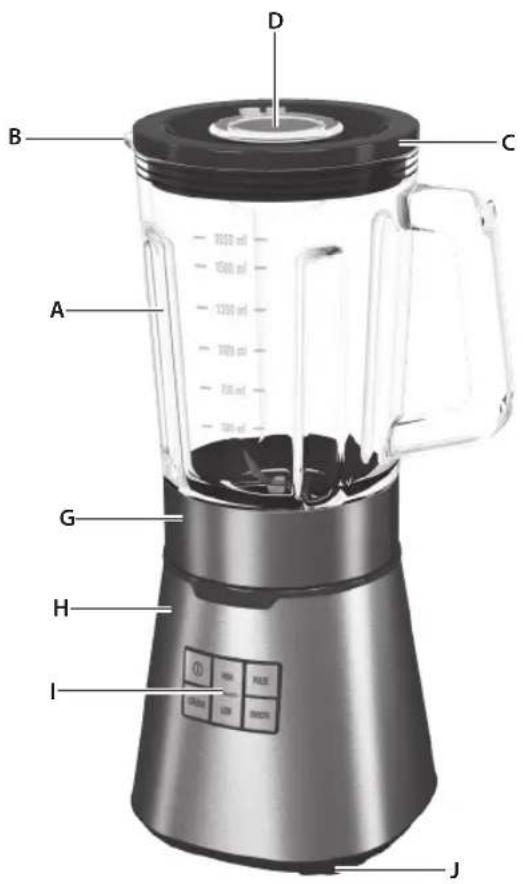

Teile

A. Jug
B. Spout
C. Lid with filler hole
D. Measuring cup
E. Rubber seal
F. Blade assembly, detachable
G. Locking collar
H. Motor housing
I. Control panel
J. Non-slip feet

Read the following instruction carefully before using the appliance for the first time.

• This appliance shall not be used by children. Keep the appliance and its cord out of reach of children. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.
• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.
• Always place the appliance on a flat, level surface.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Never touch the blades or inserts with your hand or any tools while the appliance is plugged in.
• The blades and inserts are very sharp! Danger of injury! Caution when assembling, disassembling after use or when cleaning! Ensure that the appliance is disconnected from the mains supply.
• Do not immerse the appliance in water or any other liquid.
• Do not let the blender run for more than 2 minutes at a time using heavy loads. After running for 2 minutes with heavy loads, the blender should be left to cool for at least 10 minutes.
• Do not exceed the maximum filling volume as indicated on the appliances.
• Never process boiling liquids (max 90^ ).
• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Never operate appliance without lid.
• Do not let the power cord touch hot surfaces or hang over edge of table or counter.
• Never use accessories or parts made by other manufactures not recommended or sold; may cause a risk of injury to persons.
• The appliance can not be used for blending or grinding hard and dry substance, except for ice cubes.
• Keep hands and utensils out of the blender during operation to reduce the risk of severe injury to persons or damage to the blender.
• Ensure that the blender is switched off before removing it from the stand.
• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.
• CAUTION - NEVER PLACE BLADE ASSEMBLY ON BASE UNLESS ASSEMBLED TO JAR.

Getting started

GB

1. Before using the blender for the first time, wash all parts except for the motor housing. Assembling: Place the blade rubber seal on top of the blade assembly (A). Then place the blade assembly with the rubber seal into the collar (B). Carefully assemble the blades and collar into the jug. Tilt the collar slightly for easy access of knives into the jug. Once in place, turn the collar counterclockwise to lock in place (C).

1. Place the blender on a flat surface and then place the jug on top of the motor housing. The jug can be placed is several different positions with handle on either sides, or in front. Put the ingredients in the jug.

(Do not exceed the maximum level as indicated on the jug.)

1. Close the lid (A) and insert the measuring cup in the filler hole and (B) lock into position. (You can use the measuring cup to add ingredients while the blender is running. Close the filler hole immediately after, to avoid splashing.)

Caution! When processing hot liquids, see paragraph 4.

1. Processing hot liquids: We recommend to allow hot liquids to cool down (max 90^ ) before filling the jug. Fill the jug only half full and start processing on low speed. The blender jug can become very warm - take care to protect your hands and to ventilate steam out through the filler hole. Always replace the lid before use.

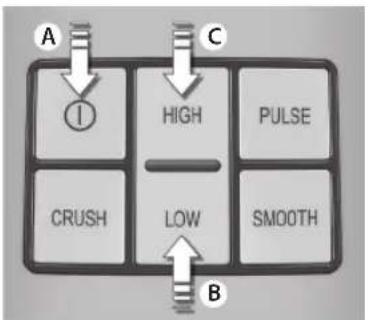

1. Start the blender: Plug into mains. Press the On/Off button (A), the LED light will illuminate. Press the "Low" (B) or "High" (C) button to select your desired processing speed, or choose one of 3 special functions. Light will indicate the speed selected. To pause, press the selected speed button again.

Auto-Off: If the machine is not turned off manually, the Safety Auto-Off function turns it off after 30 minutes.

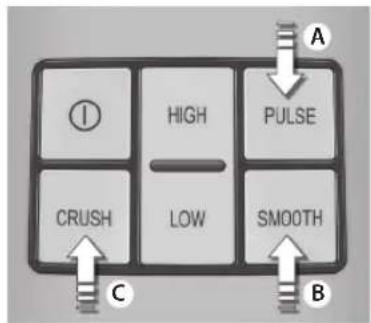

1. Pulse Function: Press the "Pulse" button (A) when you need a short burst of power.

Smoothe Function: Press the "Smooth" button (B) to get ice crushed and your smoothie blended to the desired consistency.

Crush Ice Function: Press the "Crush" button (C) to crush ice. (For best results, work in small batches.)

Cleaning and care

GB

1. Quick cleaning: Pour warm water into the jug, add a few drops of detergent. Mix water and detergent by pressing the "PULSE" button. Finally, rinse the jug under running water.

1. Thorough cleaning: Turn the blender off and unplug the power cord. Wipe the motor housing with a damp cloth.

Warning! Never immerse the housing, plug, and cord in water or any other fluid.

1. Remove the lid and jug.

Turn the collar clockwise to unlock. Then carefully remove the collar and knives by pulling the collar downwards. Lift off the blade assembly and the rubber seal from the collar. Rinse the blade assembly in water and detergent. Caution! Handle carefully, the blades are very sharp! The lid, jug and measuring cup can be washed in the dishwasher.

Troubleshooting

Troubleshooting
SymptomCauseSolution
The blender does not switch on.	Components are not fixed properly. Check if al	the components are properly locked into position.
	The On/Off button is not pressed. Make sure th	the On/Off button is illuminated. If not, press the On/Off button to turn the blender on.
	The jug is overfilled. Empty the jug so you do n	not exceed the maximum level.
	The plug is not properly connected to the power outlet.	Check the connection of the plug to the out-let or try another outlet.
	Power outage. Wait until power outage is over
	Functional problem. Contact authorized service.

Recipes

Maximum Processing time with heavy load

2 min

Maximum Capacity

1650 ml

D GR NL F

Recommended blending speed
Recipe Ingredients Quantity Time Speed
Pureeing raw vegetables	Carrots 20~80 g		20~30 s High
	Potatos 20~80 g
	Onions 20~80 g
	Water 60~160 g
Strawberries margaritas (Cocktail)	Tequila 240 ml		≤ 90 s Smooth
	Triple sec 60 ml
	Frozen strawberries 225 g
	Frozen Lemonade concentrate 145 g
	Ice cubes 150 g
Pineapple-apricots Smoothie	Pineapple in slices 250 g		≤ 90 s	High
	Dried Apricots	40 g
	Yoghurt	300 g
Milkshake	Milk	150-300 ml	20~30 s	Smooth
	Vanilla Ice cream	200-400 g
	Banana	\( \frac{1}{4} -\frac{1}{2} \)pcs
	Chocolate syrup	30-60 g
Potato leek soup Leek	Potatoes	400 g	30~40 s High
	400 g
	Water 800 g
Pancake (Batters)	Wheat flour	150 g	30~40 s	Smooth
	Salt	1 Pinch
	Eggs	3 pcs
	Milk	250 ml
	Water 140 ml
	Butter	50 g

GB

Disposal

Recycle the materials with the symbol

1. Put the packaging in applicable tainers to recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with

the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
