WBFCHP30OZ - Heat press Vevor - Free user manual and instructions

Product Type	Heat Press
Brand	Vevor
Model	WBFCHP30OZ
Rated Voltage (Europe)	230 V ~ 50 Hz
Rated Voltage (USA)	120 V ~ 60 Hz
Power (Europe)	500 W
Power (USA)	580 W
Temperature Range	0-250°C / 32-480°F
Compatible Cup Size	30 oz
Settings	Temperature, timer, °C/°F conversion
Digital Display	Yes, with SET, +, - buttons
Safety	Burn protection, auto-stop in case of anomaly, do not immerse
Operating Surface	Stable, fireproof, ventilated surface
Cleaning	Unplug before cleaning, do not use liquid
Warranty and Support	E-warranty, technical support at www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Youxiangongsi, Shanghai, China
Australian Importer	SIHAO PTY LTD, Astwood NSW
US Importer	Sanven Technology Ltd, Anaheim
Weight (estimated)	Approx. 3 kg (reference standard heat press)
Dimensions (estimated)	Approx. 30 x 20 x 20 cm (reference mug press)

Frequently Asked Questions - WBFCHP30OZ Vevor

How do I adjust the temperature on the Vevor WBFCHP30OZ heat press?

Press the SET button to display 'p1', then use the + or - buttons to adjust the temperature. Press SET again to confirm.

How do I set the pressing time?

Press the SET button to display 'p2', then use + or - to set the time in seconds or minutes depending on the display.

How do I switch between Celsius and Fahrenheit?

Hold down the SET button until 'p3' appears, then press + or - to toggle between °C and °F. Hold SET again to save.

What is the maximum temperature of the press?

The maximum temperature is 250°C (480°F). Do not exceed this limit to avoid damaging the appliance or holders.

Can I use the press for cups of different sizes?

The press is designed for 30 oz cups. For other sizes, check compatibility. Always use heat-resistant cups.

What safety precautions should I take?

Do not touch the heating plate during use. Use on a stable and fireproof surface. Unplug the appliance after use and do not immerse it in water.

How do I clean the heat press?

First unplug the appliance. Let it cool down completely, then wipe the plate with a damp cloth. Do not use abrasive cleaners or liquids.

What should I do if the press does not heat?

Check that the appliance is plugged in and the outlet works. Make sure the set temperature is not too low. If the problem persists, contact Vevor support.

Where can I find technical support for this press?

Technical support and the e-warranty certificate are available at www.vevor.com/support. You can ask your questions there.

What voltage should I use for this appliance?

Check the label: Europe version 230 V ~ 50 Hz, USA version 120 V ~ 60 Hz. Always use the indicated voltage to avoid risks.

USER MANUAL WBFCHP30OZ Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HEAT PRESS MACHINE PRODUCT MANUAL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order v are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

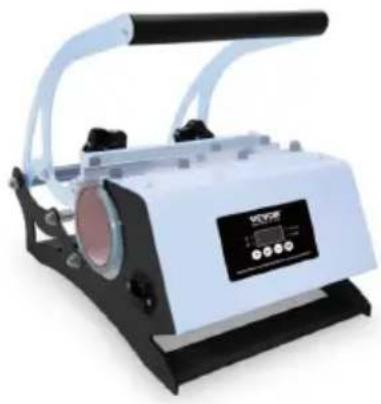

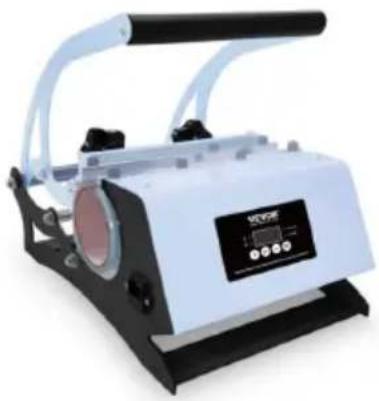

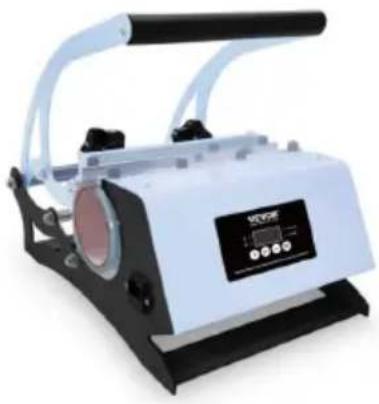

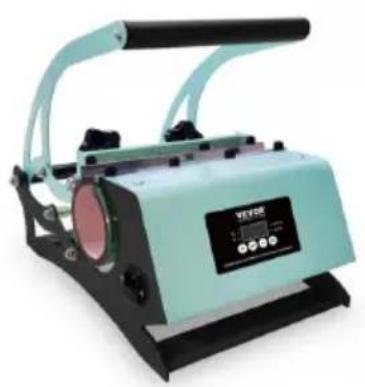

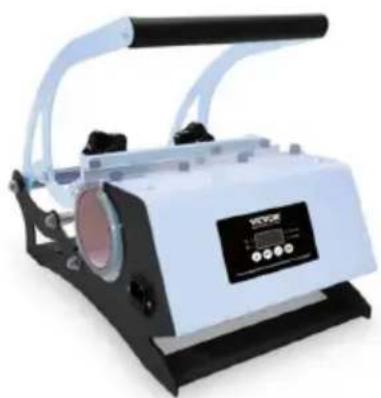

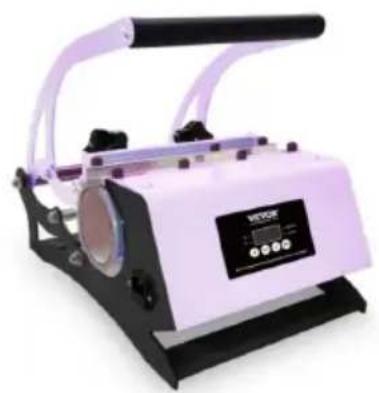

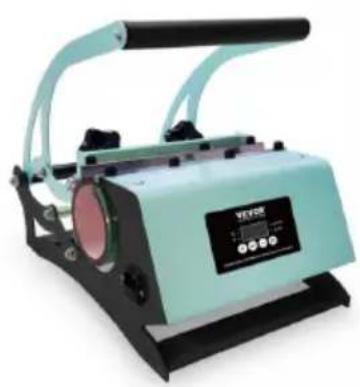

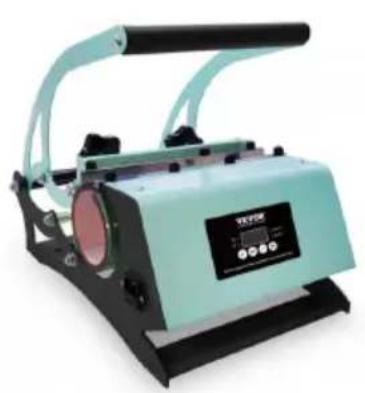

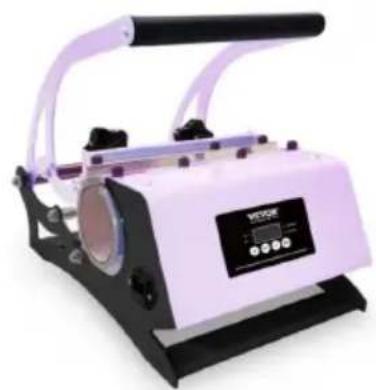

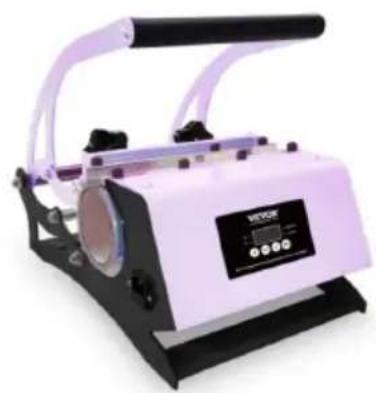

HEAT PRESS MACHINE

MODEL: WBFCHP30OZ

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must read t instructions manual carefully.
	This symbol, placed before a safety comment, indicates a ki precaution , warning, or danger. Ignoring this warning may le an accident. To reduce the risk of injury, fire, or electrocutio please always follow the recommendation shown below.
	CORRECT DISPOSAL:This product is subject to the provision of European Directive 2012/ 19/ EC . The symbol showing a wheelie bin crossed indicates that the product requires separate refuse collection European Union . This applies to the product and all accessories marked with this symbol . Products marked as s may not be discarded with normal domestic waste , but mut taken to a collection point for recycling electrical and electro devices .

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the product and receiver.

• - Connect the product into an outlet on a circuit different from that to which the receiver is connected.
• - Consult the dealer or an experienced radio/TV technician for help.

WARNING

1. Warnings must be followed carefully to avoid body injury, improper use may result in electric shock, fire, personal injury and other damage: 1) Keep unplug when moving the machine. 2) Keep unplug when installing accessories 3) Place on a fat and stable platform and operate under ventilated conditions 4) Wear special protective equipment when operating the machine 5) Do not use this machine in a hazardous-location. 6) Do not use when the machine is not working properly. 7) Do not disassemble and repair this machine. 8) Do not use an unsuitable AC Outlet. 9) Do not touch the heating plate when the machine is heating 10) Do not use in humid environment or contact with water. Do not infiltrate liquid in the machine to prevent fire or electric shock caused by short circuit 11) Do not use the power supply that does not meet the rated voltage. The power supply that does not meet the specified voltage may cause fire or electric shock. 12) Ensure that the machine is grounded so as not to cause harm to body. 13) Do not touch the rotating rod or bearing part with your fingers during use in case of injuries. 14) If the machine is not in use for a long time, please unplug the power from the socket. 15) Do not use the machine during thunderstorms or lighting to avoid damage to the machine. 16) Place the machine smoothly on the flame-retardant table and keep away from flammable and explosive items. 17) Please stop using it if the machine smokes, emits a peculiar smell, or becomes noisy and in other abnormal conditions. 18) This appliance can be used by children aged from 8 years and above ar persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge 19) if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision 20) Type X attachment: If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. 21) In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching

device, such as a timer, or connected to a circuit that is regularly switched and off by the utility.

To avoid injuries or death caused by electric shock, please read all the instructions before using the machine. Please read the warnings carefully to avoid potential injuries.

Do not touch the heating area while in use to avoid burns. (Includes: insulated cover, insulated base and heating pad).

PRODUCT INTRODUCTION

1. Description

Heat press machine uses temperature and pressure for a certain amount of time to transfer an image onto an item, the transferred image will permanently embedded in the product.

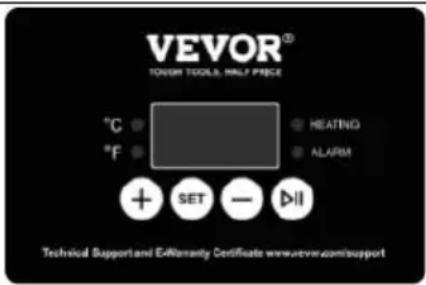

2. Setting Temperature, Time and Conversion Fahrenheit Degrees Celsius

Press the SET button to display p1 and then press + or - to adjust the temperature.

Press the SET button to display p2. Press + or - to adjust time.

Press and hold the SET button to display p3, then press + or - to adjust °F/°C. Press and hold SET again to save the setting.

Main parameters

Product Name	Heat Press Machine
Model	WBFCHP30oz
Rated voltage/frequency	230V~ 50Hz 500W For European users
Rated voltage/frequency	120V~ 60Hz 580W For US users
Max.Temperature	0-250°C/32-480°F
Compatible Mug Size	30OZ

COMPLY WITH THE INSTRUCTIONS

1. Do not touch the machine when it is heating. Caution: Risk of burns.
2. Do not open the digital panel and make changes to the device.
3. Do not allow liquid objects inside the hot press.
4. Don't pull the cable to disconnect the plug.
5. Power off the machine when finishing using!
6. Use extreme caution when using near children.
7. Make sure that the device is used in a ventilated environment.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX
