Index

BEFOREUSING THEAPPLIANCE 2

Recommendations 3

Installation and Switching On The Appliance 4

Before Switching On 4

THE VARIOUS FUNCTION AND POSSIBILITIES .... 5

Thermostat Setting 5

ACCESSORIES....6

Ice tray 6

ARRANGING FOOD IN THE APPLIANCE 7

Refrigerator Compartment 7

Freezer Compartment 7

Changing of Door Opening Direction 9

BEFORECALLING YOUR AFTER SALES SERVICE ....10

THE PARTS OF THEAPPLIANCEAND THE COMPARTMENTS ...... 11

PART-1. BEFORE USING THE APPLIANCE

Special Instructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.

• Do not use mechanical devices or other artificial means to accelerate the defrosting process.
• Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.
• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.
• Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Recommendations

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not use adopters or shunts which could cause overheating or burning.
• Do not plug old, warped power supply cables.
• Do not twist and bend the cables.

Illustration of three hands performing rope knotting techniques (no text or symbols)

• Do not allow children to play with the appliance. Children must NEVER sit on drawers/shelves or hang from the door.
• Do not plug the power supply with wet hands.
• Do not place containers (glass bottles or tin containers) of liquids into the freezer especially gassy liquids as they could cause the container to burst during freezing.
• Bottles, which contain a high percentage of alcohol must be sealed well and placed vertically in the refrigerator.
• Do not touch the cooling surfaces, especially with wet hands as you could be burnt or hurt.
• Do not eat ice, which have just been removed from the freezer.
• If the supply cord is damaged it must be replaced by the manufacturer or service agent or appointed qualified person.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.
• If the supply cord is damaged it must be replaced by the manufacturer or service agent or similar qualified people in order to avoid a hazard.

Cartoon illustration of a character peeking out of a door, with arms and legs bent (no text or symbols)

Installation and Switching On The Appliance

• This appliance is connecting to 220-240V and 50 Hz.

- You can offer help from the service to install and switching on the appliance.

- Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system in your home.

- If the socket does not match the refrigerator plug, replace the plug with a suitable one (at least 16 A)

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact, we suggest you call an electrician for assistance.

- Manufacturer is not responsible for failure to complete the ground connection as described in this booklet.

- Do not place the appliance in direct sunlight.

- Do not use in open air and shall not be exposed to the rain.

- Place the refrigerator far from heat sources and in a well-ventilated position. The refrigerator should be at least 50 cm from radiators, gas or coal stoves and 5 cm far from electrical stoves.

- Keep the top free for at least 15 cm.

- Do not place heavy and lots of things on the appliance.

- If the appliance is installed next to another refrigerator or freezer, observe a minimum distance of 2cm to prevent condensation

- The appliance must be stand firmly and level on the floor Use the two front levelling-feet to compensate for an even floor.

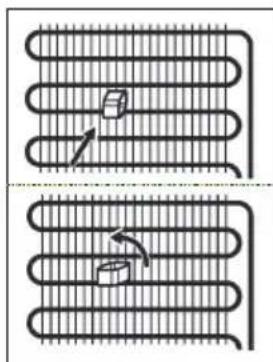

- In order to have air circulation under the appliance, the space under the appliance must be open. Don't close it with carpet, etc.

- The outside of the appliance and the accessories inside should be cleaned with a solution of water and liquid soap; the inside of the appliance with sodium bicarbonate dissolved in lukewarm water. After drying replace all the accessories.

Cartoon illustration of a distressed refrigerator with arms and legs, no text or symbols present

Diagram showing two curved heat exchanger-like structures with internal flow indicators (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

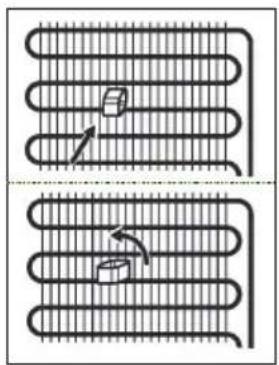

Before Switching On

- Wait after 3 hours before plugging the appliance in to the main power to ensure proper performance.

- There can be an odour when you first switch on the appliance. It will disappear after the appliance starts to cool.

PART-2. THE VARIOUS FUNCTION AND POSSIBILITIES

Thermostat Setting

FREEZER THERMOSTAT REFRIGERATOR THERMOSTAT

Close-up of a hand pressing a button on a wall with oval cutouts (no text or symbols visible)

Hand holding a knob on a car intake tray (no visible text or symbols)

Freezer and refrigerator thermostat automatically regulates the inside temperature of the compartments. By rotating the freezer thermostat knob from position 1 to 4 and refrigerator thermostat knob from MIN to MAX, colder temperatures can be obtain. In cold seasons, you can set lower positions in order to decrease the energy consumption.

1 MIN 2 3 4 5 6 MAX

Note that: freezer and refrigerator temperatures affect each other. For example; when the refrigerator thermostat is at maximum, for obtaining lower temperatures in refrigerator compartment, set the freezer thermostat to a higher value. When the freezer thermostat is at its maximum, for obtaining lower temperatures in freezer compartment, set the refrigerator thermostat to a lower value.

CLIMATE	WINTER	SPRING / AUTUMN	SUMMER
Ambient temperature	10^ < T_amb < 16^	16^ < T_amb < 25^	25^ < T_amb < 43^
Cooler Thermostat	Set to appropriate position between 1 and 2.	Set to appropriate position between 2 and 3.	Set to appropriate position between 3 and 6.
Freezer Thermostat	Positions 2.5 and 3 would be enough according to your refrigerator model.	Positions 2.5 and 3 would be enough according to your refrigerator model.	Positions 2.5 and 3 would be enough according to your refrigerator model.
	If your refrigerator is in an extremely cold place with an ambient temperature of 10^ , and if you think the cooler compartment is cold with cooler thermostat set to minimum, you can set freezer thermostat to lower positions.		With ambient temperatures over 38^ , if your cooler compartment is not cool enough as you want, you can set freezer thermostat to higher positions.
Remarks	Default positions values of your refrigerator are 2.5-3 for freezer compartment thermostat, and 3 for cooler compartment thermostat.
	We advise you not to change your freezer thermostat positions except above mentioned conditions. Your cooler thermostat can be set according to the ambient temperature as mentioned above.
	The values mentioned in the table are recommended thermostat positions. These values can change according to usage conditions.

Note that; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator and freezer compartment. If required, change the temperature setting.

• In order to prevent sweating and accumulation of bacteria inside the refrigerator compartment, it is recommended not to set the refrigerator thermostat to MIN position even there is no storage of food inside.
• When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and do not place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugging the unit in order not to damage the compressor.

- It is suggested to freeze fresh foods at the upper shelf and far from the thermostat.

PART-3. ACCESSORIES

Ice tray

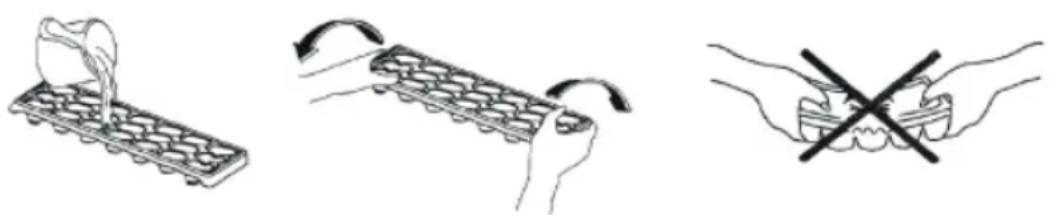

• Fill the ice tray with water and place in freezer compartment.
• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three steps of a hand holding an abacus, with one hand crossed out and another marked by a crossed-out black 'X' symbol (no text or symbols present)

PART-4. ARRANGING FOOD IN THE APPLIANCE

Refrigerator Compartment

• To set the refrigerator compartment to 2-3 graphic bar will be enough for normal conditions.
• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Arrange the meat and cleaned fish (wrapped in packages or sheets of plastic) which you will use in 1-2 days.
• You can put the fruits and vegetables into crisper without packing.

Freezer Compartment

- To set the freezer compartment to 2-3 graphic bar will be enough for normal conditions.

- The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.

- Do not put fresh and warm foods to the freezer door shelves to be frozen. Only use for storage of frozen foods.

- Do not put fresh and warm food with frozen food side by side as it can thaw the frozen food.

- Use the fast freezing shelf to freeze home cooking (and the foods which is wanted to freeze) more quickly because of the freezing room's greater freezing power.

- While freezing fresh foods (i.e. meat, fish and mincemeat) divide them in parts you will use in one time.

- While freezing fresh foods; Maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

- It is suggested to freeze fresh foods at the upper shelf and far from the thermostat.

- For storing the frozen foods; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.

- When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.

- Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.

- If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.

- The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

PART-5. CLEANING AND MAINTENANCE

• Disconnect unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The refrigerator and freezer compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water
• Clean the accessories separately with soap and water. Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed reconnect the plug of the unit with dry hands.

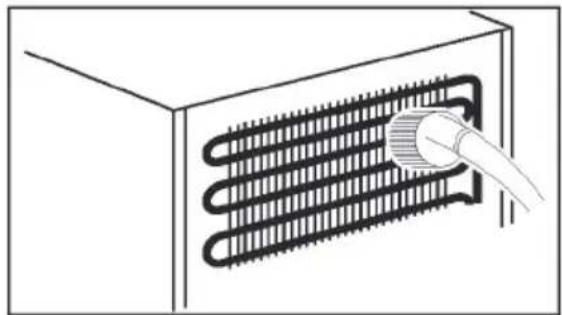

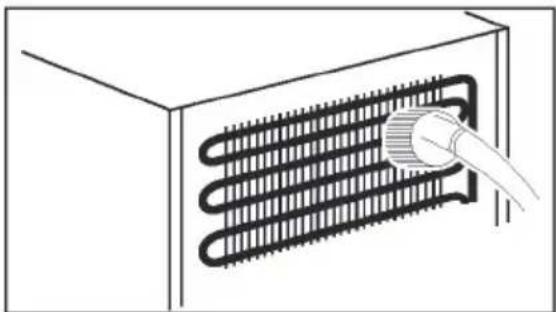

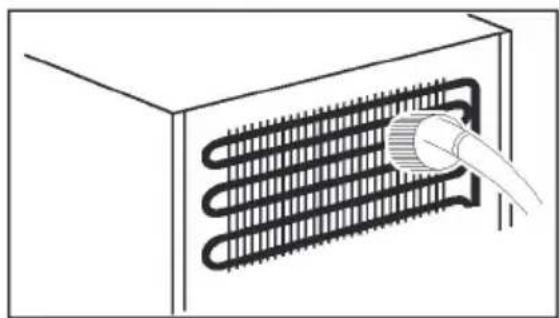

• You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.

Simple line drawing of a smiling square character and a hand holding a rounded object (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand cleaning it, accompanied by two smaller containers (no text or symbols)

Cartoon illustration of a smiling refrigerator with two smaller bottles nearby (no text or symbols)

Diagram of a heat exchanger with a coiled tube inserted into the air gap (no text or symbols)

THEPOWERSUPPLYMUSTBEDISCONNECTED.

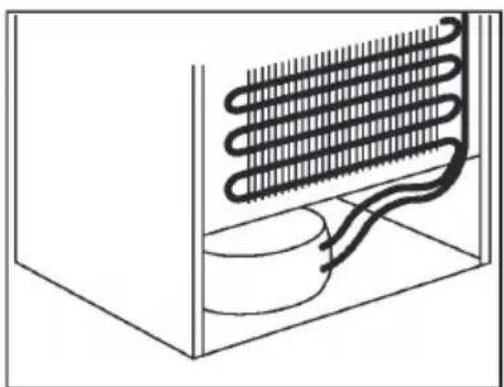

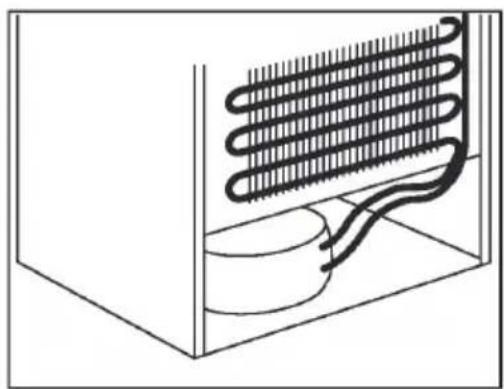

Defrosting

- Defrosting occurs fully automatically during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

Diagram of a heat exchanger with coiled heat exchangers inside a container (no text or labels)

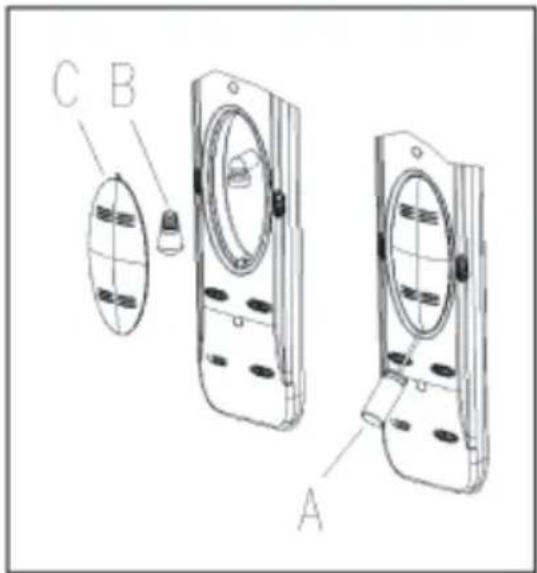

Replacing The Light Bulb

1. Unplug the unit from the power supply,
2. Remove the refrigerator light cover with a minus screw driver, and take out the cover. (A)
3. Change the present light bulb with a new one of not more than 15 W. (B)
4. Replace the light cover (C) and after waiting 5 minutes plug the unit.

C B A

PART-6. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

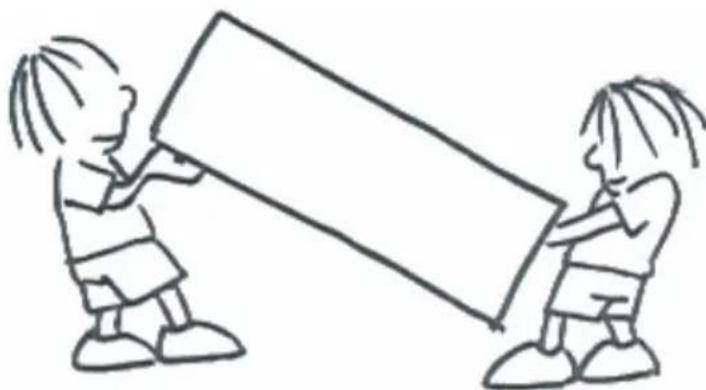

• The original packages and foamed polystyrene (PS) can be concealed if required.
• In transportation the appliance should be tied with a wide stripe or a strong rope. The rules written on the corrugated box must be applied while transporting.
• Before transporting or changing old installation position, all the moving objects (i.e., shelves, crisper...) should be taken out or fixed with bands in order to prevent the shake.

Simple line drawing of two children playing a board game (no text or symbols)

Changing of Door Opening Direction (For some models)

In case you need to change door-opening direction, please consult the domestic after sales service.

PART-7. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate;

Check that;

• Thereisnopower,
• The general switch in your home is disconnected,
• The thermostat setting is on «1 / MIN» position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly;

Check that;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

• The appliance is well levelled
- Nothing is touching the rear.
- The stuffs on the appliance are vibrating.

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

• Tropical Climate Class is described as between 16^ and 43^ of ambient temperatures according to EN ISO15502 standards.
• Appliance complies with EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Recommendations

• If the appliance is not used for long time (for example during the summer holidays) unplug and clean the refrigerator leaving the door open to prevent the formation of mildew and smell.
  • To stop the appliance completely, unplug from main socket (for cleaning and when the doors are left open)

PART-8.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

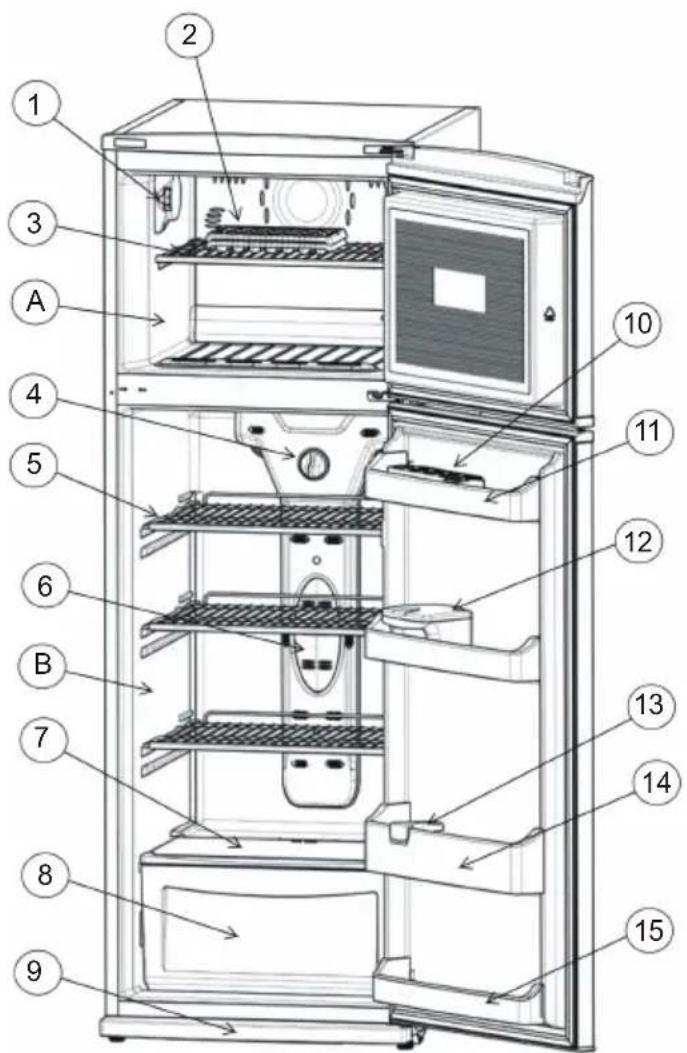

Labeled diagram of a refrigerator interior with numbered components for identification

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Sommaire

AVANT D'UTILISER CET APPAREIL 14

FONCTIONS DIVERSES ....17

TRANSPORT ET DEPLACEMENT 22

Simple line drawing of a trash bin with crossed lines and a grid pattern below (no text or symbols)

Illustration of three hands performing rope knotting techniques (no text or symbols)

Cartoon illustration of a person opening a door with arms outstretched (no text or symbols)

Cartoon illustration of a distressed refrigerator with arms and legs, no text or symbols present

Diagram showing two stages of a coiled heat exchanger with internal flow arrows (no text or labels)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

Illustration of a hand pressing down on a device panel with ventilation slots (no text or symbols visible)

THERMOSTAT DU REFRIGERATEUR

Illustration of a hand holding a small object inside a container with control buttons (no text or symbols visible)

Illustration showing three steps of a dental abacus: pressing a tooth with a brush, moving the abacus with arrows indicating rotation, and removing teeth into a cross (no text or symbols present)

Simple diagram with a black circle and a warning symbol (no text or labels)

Simple line drawing of a smiling square character holding a small object, with a hand reaching toward it (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands holding a cup and a bag nearby (no text or symbols)

Cartoon illustration of a refrigerator with a sad face and two smaller food containers nearby (no text or symbols)

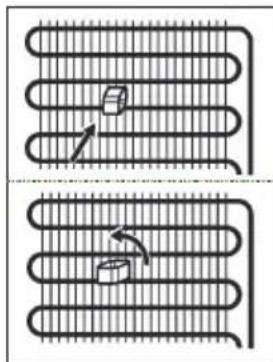

Diagram of a heat exchanger with cooling fins and a pipe inserted (no text or symbols)

Diagram of a heat exchanger with coiled heat exchangers and insulation layers (no text or labels)

SECTION 5. TRANSPORT ET DEPLACEMENT

Simple line drawing of two children playing a board game (no text or symbols)

Labeled diagram of a refrigerator interior with numbered components for identification

A) COMPARTIMENT CONGELATEUR
B) COMPARTIMENT REFRIGERATEUR

1) BOITIER DU THERMOSTAT DU CONGELATEUR
2) BAC A GLAÇONS
3) ETAGERE DU CONGELATEUR
4) THERMOSTAT DU REFRIGERATEUR
5) ETAGERES DU REFRIGERATEUR
6) BOITIER/COUVERCLE DE L'AMPOULE DU REFRIGERATEUR
7) COUVERCLE DU BAC A LEGUMES
8) BAC A LEGUMES
9) PLINTHE
10) SUPPORTAOEUFS
11) BAC SUPERIEUR
12) COMPARTIMENTAAROMATES
13) PORTE-BOUTEILLES
14) ETAGEREA BOUTEILLES
15) BAC INFERIEUR

(*) en option

Illustration of three hands performing a rope knotting technique (no text or symbols present)

Cartoon illustration of a person peeking out of a door, with arms and legs bent (no text or symbols)

Cartoon illustration of a distressed refrigerator with arms and legs (no text or symbols)

Diagram showing two stages of a coiled heat exchanger with internal flow arrows (no text or symbols)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

Antes del Encendido

Close-up of a hand pressing a button on a wall with oval cutouts (no text or symbols visible)

Hand holding a knob on a vehicle door panel (no visible text or symbols)

1 MIN 2 3 4 5 6 MAX

Illustration showing three steps of a dental abacus: pressing, moving, and removing a tooth (no text or symbols present)

Simple line drawing of a smiling square character and a hand holding a circular object (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a small cup and a bag (no text or symbols)

Cartoon illustration of a refrigerator with a sad face and two smaller bottles nearby (no text or symbols)

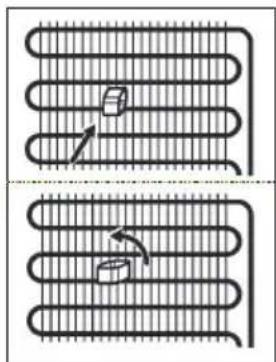

Diagram of a heat exchanger or cooling unit with a pipe inserted, showing internal structure and cooling fins (no text or symbols)

Diagram of a heat exchanger or cooling unit with coiled heat exchangers and insulation layers (no text or labels)

Sustituir la bombilla

Simple line drawing of two children playing a board game (no text or symbols)

Labeled diagram of an refrigerator interior with numbered components for identification

A) COMPARTIMENTO CONGELADOR
B) COMPARTIMENTO REFRIGERADOR

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Illustration of three hands performing a knotting or wire manipulation technique (no text or symbols present)

Cartoon illustration of a character peeking out of a door (no text or symbols)

Cartoon illustration of a distressed refrigerator with arms and legs (no text or symbols)

Diagram showing two stages of a coiled heat exchanger with internal flow arrows (no text or labels)

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

Close-up of a hand pressing down on a wall with ventilation slots (no text or symbols visible)

Illustration showing three steps of a hand holding an abacus, with one being crossed out and the other no crossing (no text or symbols present)

ORGANIZAR OS ALIMENTOS NO ELECTRODOMÉSTICO

Compartimento do frigorífico

Simple line drawing of a smiling face on a square object and a hand holding a circular object (no text or symbols)

Cartoon illustration of a refrigerator with a smiling face, accompanied by a cup and a bag (no text or symbols)

Cartoon illustration of a refrigerator with a sad face and two smaller bottles nearby (no text or symbols)

Diagram of a heat exchanger or cooling unit with a pipe inserted, showing internal cooling fins (no text or symbols)

Diagram of a heat exchanger with coiled heat exchangers and insulation layers (no text or labels)

Simple line drawing of two children playing a board game (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge, and a grid pattern below (no text or symbols)

Illustration of three hands performing a cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of a character climbing from a door (no text or symbols)

Cartoon illustration of a distressed refrigerator with arms and legs (no text or symbols)

THV δε κολά

Cartoon illustration of a smiling refrigerator with hands giving thumbs up, next to a bowl and utensils (no text or symbols)

Close-up of a hand pressing a button on a wall with oval cutouts (no text or symbols visible)

Hand holding a small circular object inside a vehicle intake tray (no text or symbols visible)

Illustration showing three steps of a robotic arm: moving a keyboard, rotating the button, and removing a mouse (no text or symbols present)

Cartoon illustration of a refrigerator with a smiling face, accompanied by a cup and a bag (no text or symbols)

Cartoon illustration of a refrigerator with a sad face and two smaller penguin characters nearby (no text or symbols)

Diagram of a heat exchanger with cooling fins and a pipe inserted (no text or symbols)

Απόψυξη

Diagram of a heat exchanger with cooling fins and internal tubing, no text or symbols present

Simple line drawing of two children playing a board game (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification

Modern metallic wall-mounted device with vertical slats and a black handle (no text or symbols visible)

Exterior view of a modern microwave oven with digital display and control panel (no visible text or symbols)

White electric stove with open door and front-mounted top (no visible text or symbols)

Exterior view of a red and gray vacuum cleaner (no text or symbols visible)

Yellow gas stove with four black stoves on a metal base (no text or symbols visible)

Exterior view of a stainless steel laboratory oven with control panel and ventilation duct (no visible text or symbols)

Exterior view of a stainless steel industrial appliance with a glass door and control panel (no visible text or symbols)

Exterior view of a modern stainless steel industrial appliance (no visible text or symbols)

Exterior view of a modern office building (no signage)

Exterior view of a silver washing machine with a digital display and circular vent (no visible text or symbols)

Exterior view of a stainless steel outdoor grill with control panel and menu (no visible text or symbols)

Exterior view of a modern stainless steel refrigerator with dual doors and a blue water dispenser (no visible text or symbols)

www.electrolux.com

CE

PNC CODE: 924000977

52043429
