INHOUD

1. VEILIGHEIDSVOORSCHRIFTEN 3
2. BESCHRIJVING VAN HET PRODUCT 6
3. BEDIENINGSPANEEL 7
4. DAGELIJKS GEBRUIK 8
5. NUTTIGE AANWIJZINGEN EN TIPS 10
6. ONDERHOUD EN REINIGING 11
7. PROBLEEMOPLOSSING 12
8. MONTAGE 14
9. LAWAAI 17
10. TECHNISCHE GEGEVENS 19

VOOR PERFECTE RESULTATEN

1 2 3 6 9 10 5 7 H1 H2 H3 H4 H5 12

1 Fruitlades
2 Glazen plateau
3 Glazen plateau
4 Glazen plateau
5 Flessenrek
6 Glazen plateau
7 Bedieningseenheid
8 Boterschap

9 Deurplateau
10 Deurplateau
11 Flessenrek
12 Vriesmand
13 Maxibox-mandje
14 Frostfree-mandje
15 Koudemodule
16 Typeplaatje

3. BEDIENINGSPANEEEL

Line drawing of a hand holding a wooden plank over a shelf (no text or symbols)

Diagram of a wine bottle being lifted by ropes, showing fluid flow direction (no text or symbols)

"T" SENSOR

Diagram of a refrigerator interior with labeled parts and directional arrows indicating movement or force

Illustration of a hand holding a tool inside a circular frame, with arrows indicating rotation (no text or symbols)

7. PROBLEEMOPLOSSING

LET OP!

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a bolt and nut assembly with directional arrows indicating movement (no text or labels)

Diagram showing a mechanical component with a circular inset labeled '1' and directional arrows indicating motion or force.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing fluid flow around a test tube.

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com

Register your product for better service: www.aeg.com/productregistration

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available.

The information can be found on the rating plate. Model, PNC, Serial Number.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

1. ⚠️ SAFETY INSTRUCTIONS

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

1.1 Children and vulnerable people safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

1.2 General safety

WARNING!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- The appliance is intended for keeping foodstuff and/or beverages in a normal household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
– catering and similar non-retail applications.

• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

• avoid open flames and sources of ignition
  – thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

WARNING!

Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

7. This appliance is heavy. Care should be taken when moving it.

8. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
9. Avoid prolonged exposure of the appliance to direct sunlight.
10. Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

1.3 Daily Use

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)
• Frozen food must not be re-frozen once it has been thawed out.

• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.

• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

1.4 Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

1.5 Installation

For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.

• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If a water connection is foreseen).

1.6 Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• Do not remove the LED light cover. Contact the nearest After Sales Service Force to replace the LED light board, if it is necessary.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

1.7 Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

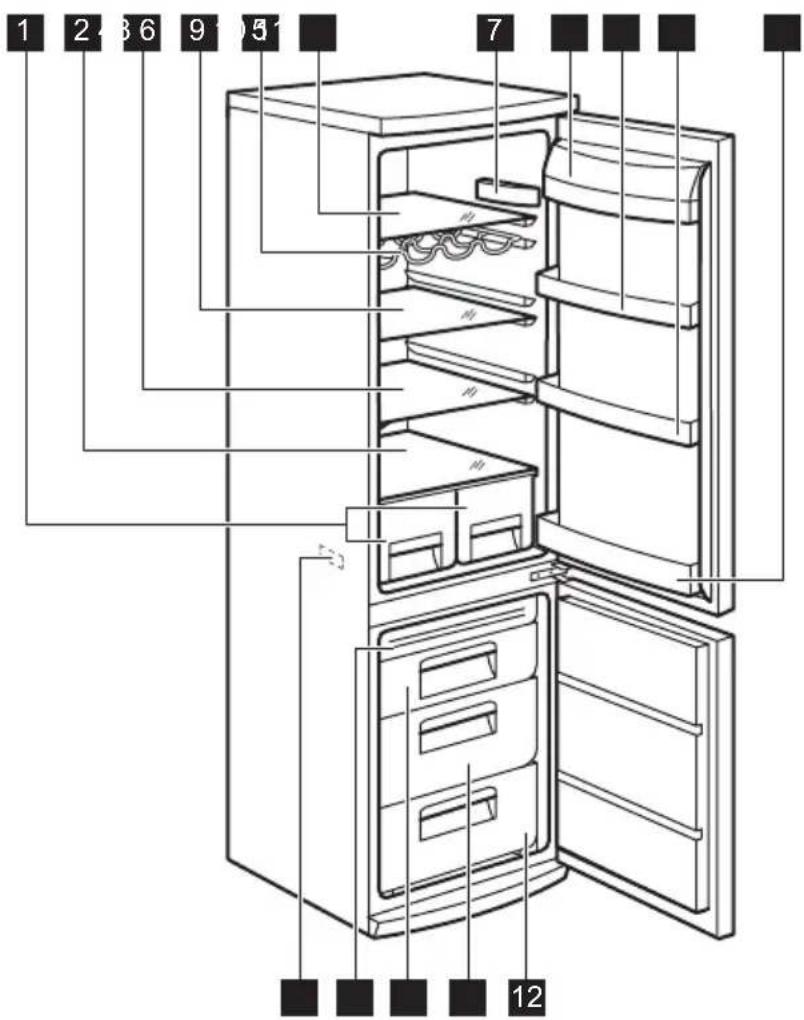

2. PRODUCT DESCRIPTION

1 2 3 6 9 10 5 7 H1 H2 H3 H4 H5 12

1 Fruit drawers
2 Glass shelf
3 Glass shelf
4 Glass shelf
5 Bottle rack
6 Glass shelf
7 Control unit
8 Butter shelf

9 Door shelf
10 Door shelf
11 Bottle shelf
12 Freezer basket
13 Maxibox basket
14 Frostfree basket
15 Cold module
16 Rating plate

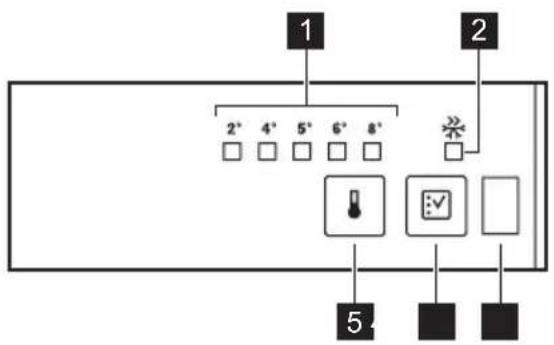

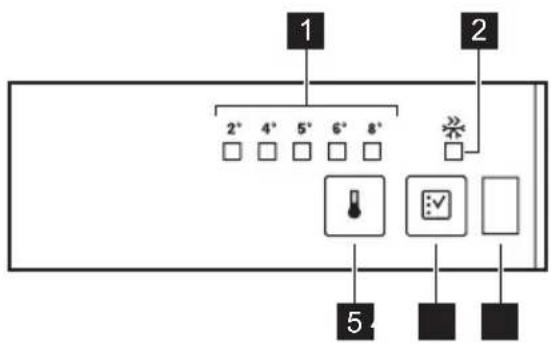

3. CONTROL PANEL

1 Temperature indicator LED

2 Fast Freeze indicator

3 Door sensor

4 Fast Freeze button

5 Temperature regulator

3.1 Switching on

Insert the plug into the wall socket.

3.2 Temperature regulation

To operate the appliance, proceed as follows:

- touch the temperature regulator button until the LED corresponding to the required temperature lights up. Selection is progressive, varying from 2 to 8°C.

At first button touch actual setting LED keeps blinking.

Any time the button is touch the set temperature is moved to 1 position. Corresponding LED will blink for a while.

Touch the setting button until the required temperature is selected. The set will be fixed

coldest setting: +2°C

warmest setting: +8°C

A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature
  • how often the door is opened
  • quantity of food stored
• appliance location.

3.3 Fast Freezing function

You can activate the Fast Freezing function by pressing the Fast Freezing button.

The LED corresponding to the symbol Fast Freezing indicator lights up.

You can deactivate the Fast Freezing function by pressing the Fast Freezing button again.

The Fast Freezing indicator will light off.

This function stops automatically after 52 hours.

3.4 Door sensor

The appliance is equipped with an optical sensor to detect door open.

Do not put anything in front of the corresponding window, to maintain proper functioning.

4. DAILY USE

4.1 Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours.

The freezer drawers ensure that it is quick and easy to find the food package you want. If large quantities of food are to be stored, remove all drawers except for the bottom drawer which needs to be in place to provide good air circulation. On all shelves it is possible to place food that protrude until 15 mm from the door.

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer that the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

4.2 Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

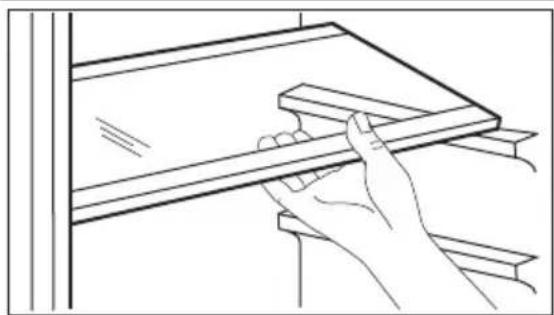

4.4 Movable shelves

Line drawing of a hand holding a wooden plank over a shelf (no text or symbols)

To freeze fresh food activate the Fast Freeze function at least 24 hours before placing the food to be frozen in the freezer compartment.

Place the fresh food to be frozen in the bottom compartment.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

4.3 Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

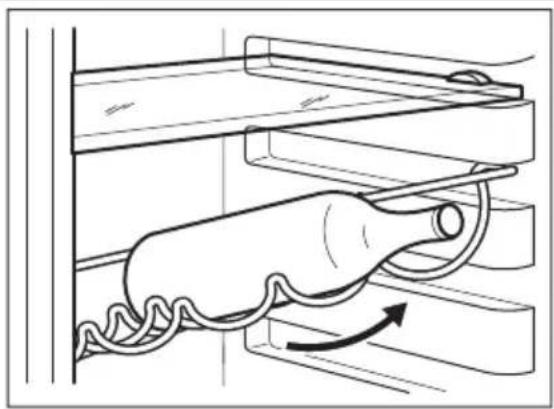

4.5 Bottle rack

Diagram of a bottle being lifted by ropes, showing fluid flow direction (no text or symbols)

Place the bottles (with the opening facing front) in the pre-positioned shelf.

If the shelf is positioned horizontally, place only closed bottles.

This bottle holder shelf can be tilted in order to store previously opened bottles. To obtain this result, pull the shelf up so it can rotate upwards and be placed on the next higher level.

4.6 Sensor label

"T" SENSOR

The appliance is equipped with an optical sensor to detect open door.

Please do not remove the butter self or the above label from the present position.

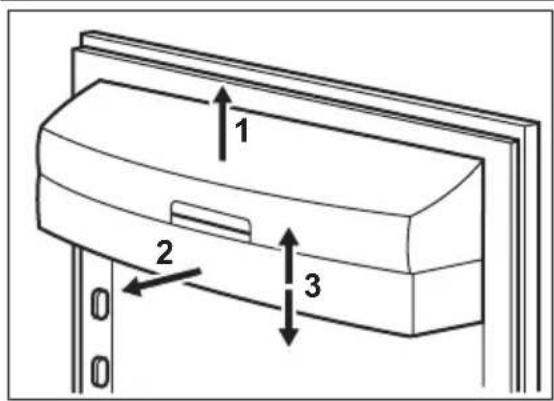

4.7 Positioning the door shelves

1 2 3

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

To make these adjustments proceed as follows:

gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

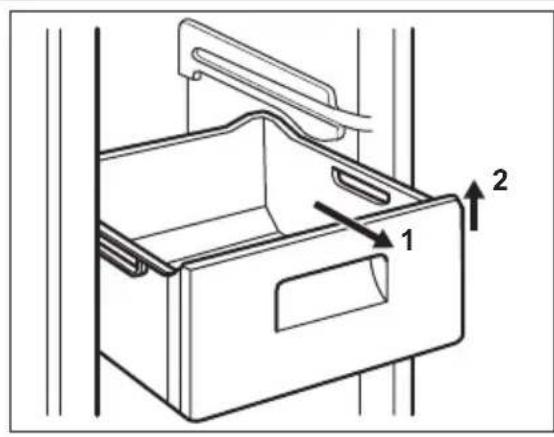

4.8 Removal of freezing baskets from the freezer

Diagram of a refrigerator interior with labeled parts and directional arrows indicating movement or force

The freezing baskets have a limit stop to prevent their accidental removal or falling out. At the time of its removal from the freezer, pull the basket towards yourself and, upon reaching the end point, remove the basket by tilting its front upwards.

At the time of putting it back, slightly lift the front of the basket to insert it into the freezer. Once you are over the end points, push the baskets back in their position.

5. HELPFUL HINTS AND TIPS

5.1 Normal Operating Sounds

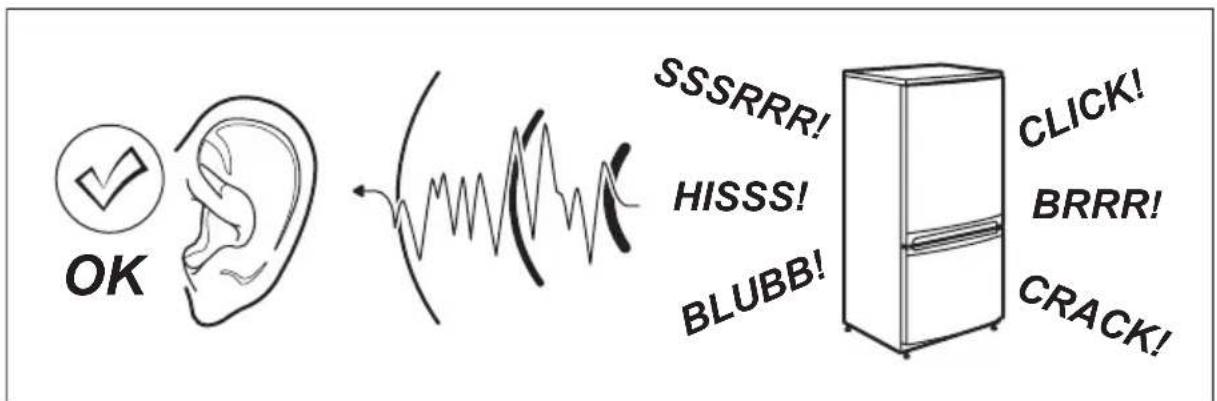

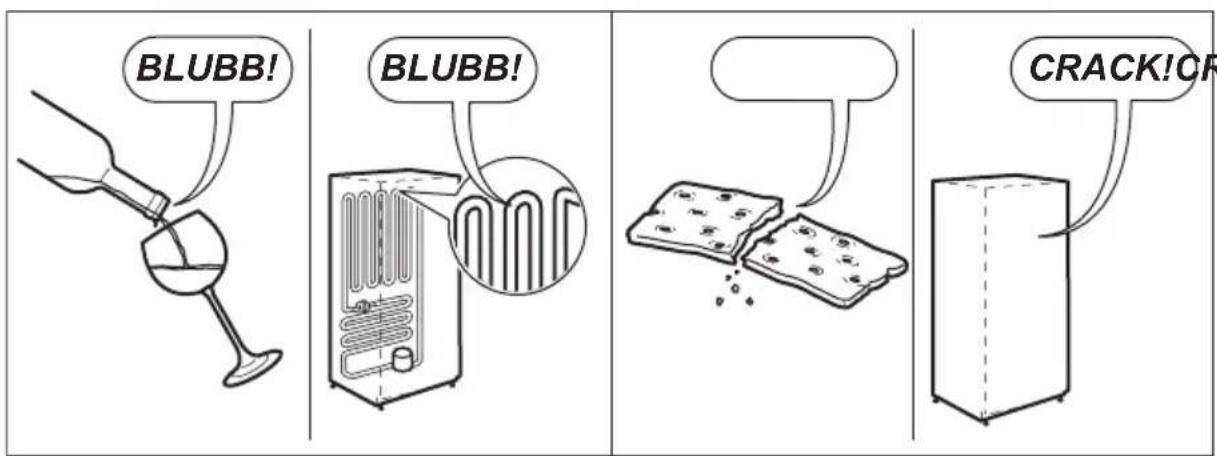

• You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped through the coils or tubing. This is correct.
• When the compressor is on, the refrigerant is being pumped around and you will hear a whirring sound and a pulsating noise from the compressor. This is correct.
• The thermic dilatation might cause a sudden cracking noise. It is natural, not dangerous physical phenomenon. This is correct.
• When the compressor switches on or switches off, you will hear a faint "click" of the temperature regulator. This is correct.

5.2 Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

5.3 Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
- position food so that air can circulate freely around it

5.4 Hints for refrigeration

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruits and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided. When in contact, lemon juice can discolor the plastic parts of your fridge. It is therefore recommended to keep citruses in separate containers.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Bottles: these should have a cap and should be stored either on the bottle rack or the door bottle shelf.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

6. CARE AND CLEANING

6.1 Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

CAUTION!

Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Many proprietary kitchen surface cleaners contain chemicals that can attack/ damage the plastics used in this appli- ance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

6.2 Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Do not pull, move or damage any pipes and/or cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Take care of not to damage the cooling system.

6.3 Defrosting the refrigerator

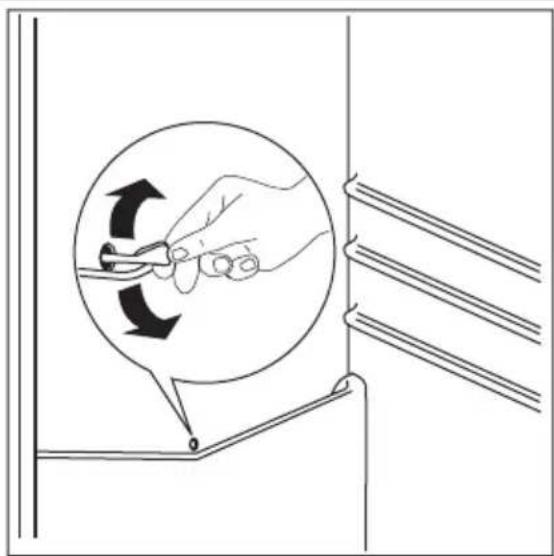

Illustration of a hand holding a tool inside a circular frame, with arrows indicating rotation direction (no text or symbols)

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a drain hole into a special container at the back of the appliance, over the motor compressor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

6.4 Defrosting of the freezer

The freezer compartment of this model, on the other hand, is a "no frost" type. This means that there is no buildup of frost when it is in operation, neither on the internal walls nor on the foods.

The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan.

7. TROUBLESHOOTING

CAUTION!

Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance is noisy.	The appliance is not installed properly.	Check if the appliance stands stable (all the feet should be on the floor).
The appliance does not operate.	The plug is not connected to the mains socket correctly.	Connect the plug to the mains socket correctly.
The appliance has no power. There is no voltage in the mains socket.		Connect a different electrical appliance to the mains socket.Contact a qualified electrician.
The light device does not work.	The light device is in stand-by.	Close and open the door.
The unit is defective. Refer to "Replacing the control unit".
The compressor operates continually.	The temperature is not set correctly.	Set a higher temperature.
The door is not closed correctly.		Refer to "Closing the door".
The door has been opened too frequently.		Do not keep the door open longer than necessary.
The food temperature is too high.		Let the food temperature decrease to room temperature before storage.
The room temperature is too high.		Decrease the room temperature.
Water flows on the rear plate of the refrigerator.	During the automatic defrosting process, frost de-frosts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged.	Clean the water outlet.
Products prevent that water flows into the water collector.		Make sure that products do not touch the rear plate.
Water flows on the ground.	The melting water outlet does not flow in the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
The temperature in the appliance is too low/high.	The temperature regulator is not set correctly.	Set a higher/lower temperature.

If your appliance is still not working properly after making the above checks, contact the After Sales Centre.

7.1 Replacing the control unit

The appliance is equipped with a long-life LED interior light.

Only service is allowed to replace the control unit. Contact your Service Center.

7.2 Closing the door

1. Clean the door gaskets.
2. If necessary, replace the defective door gaskets. Contact the After Sales Service.

8. INSTALLATION

WARNING!

Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.

8.1 Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climateclass	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

8.3 Location

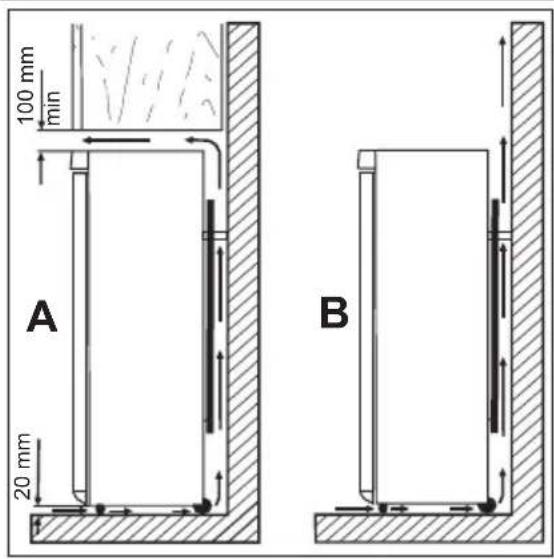

100 mm min 20 mm A B

8.2 Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet.

WARNING!

It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

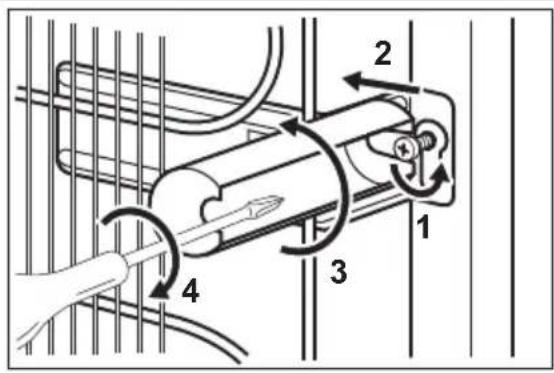

8.4 Rear spacers

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

You can find the two spacers in the bag with documentation.

Do these steps to install the spacers:

1. Release the screw.
2. Engage the spacer below the screw.
3. Turn the spacer to the right position.
4. Tighten again the screws.

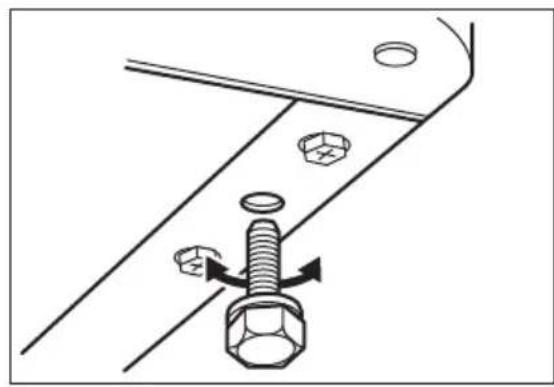

8.5 Levelling

Technical diagram of a bolt and nut assembly with directional arrows indicating movement (no text or labels)

When placing the appliance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front.

8.6 Door reversibility

WARNING!

Before carrying out any operations, remove the plug from the power socket.

To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations.

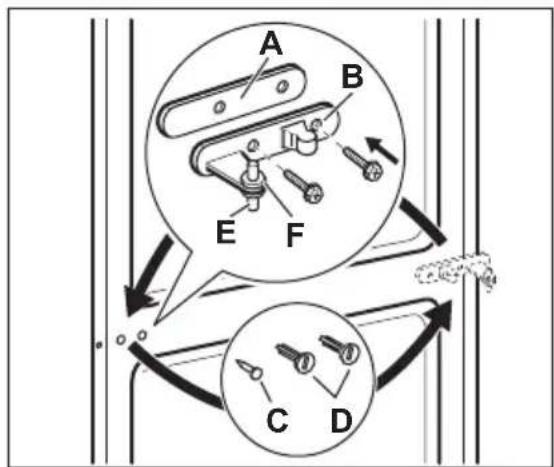

• Remove the spacer (A) and move to the other side of the hinge pivot (B).
• Remove the doors.
• Remove the left-hand cover pin of the middle hinge (C,D) and move to the other side.
• Fit the pin of the middle hinge (B) into the left-hand hole of the lower door.


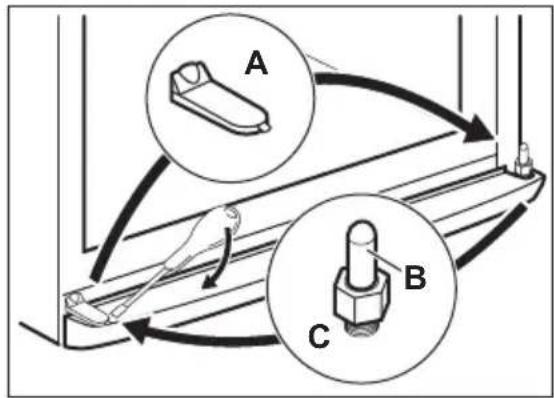

- Remove using a tool the cover (A). Unscrew the lower hinge pivot (B) and the spacer (C) and place them on the opposite side.

Diagram showing a mechanical component with a circular inset labeled '1' and directional arrows indicating motion or force.

- Re-insert the cover (1) on the opposite side.

Diagram illustrating a mechanical or electrical setup with labeled components and directional arrows, including a magnified inset showing fluid flow.

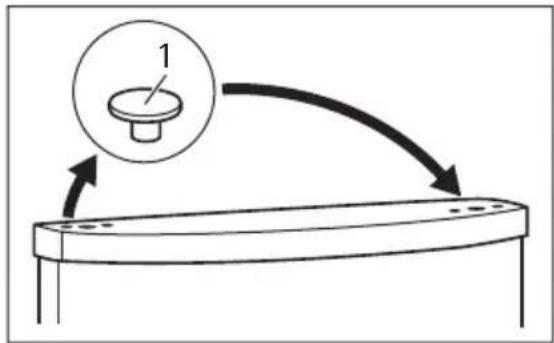

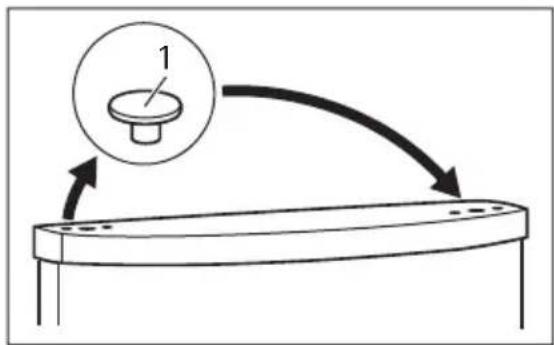

• Remove the plugs on the upper side of both doors and move them to the other side
• Re-insert the lower door on the lower hinge pivot.
• Insert the middle hinge into the left drill of the lower door.

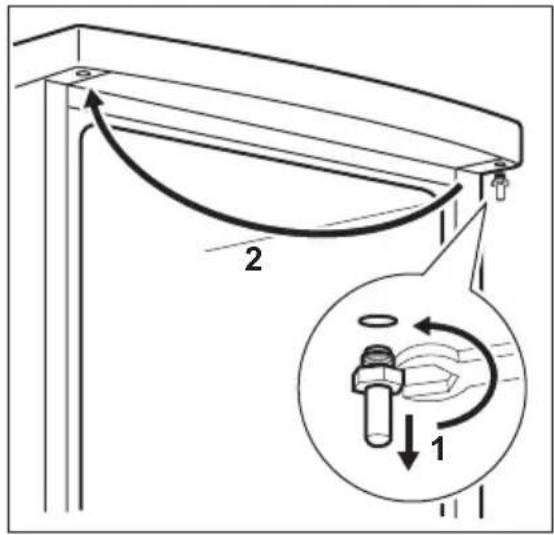

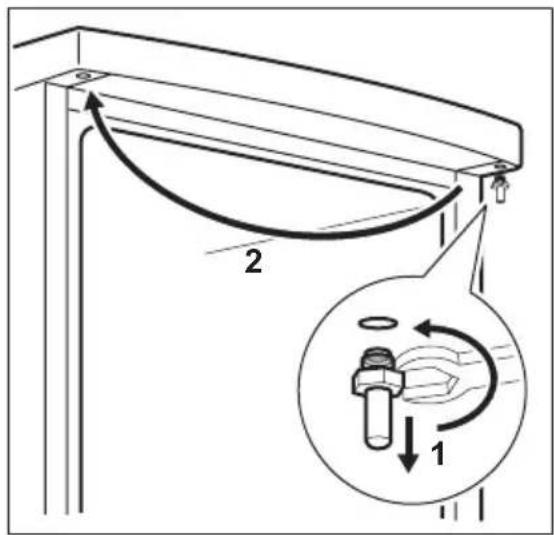

• Unscrew the upper hinge pivot and place it on the opposite side.
• Fit the upper door on the upper door pivot.
• Re-insert the upper door on the middle hinge pivot slightly tilting both doors.
• Re-screw the middle hinge. Do not forget the plastic spacer.

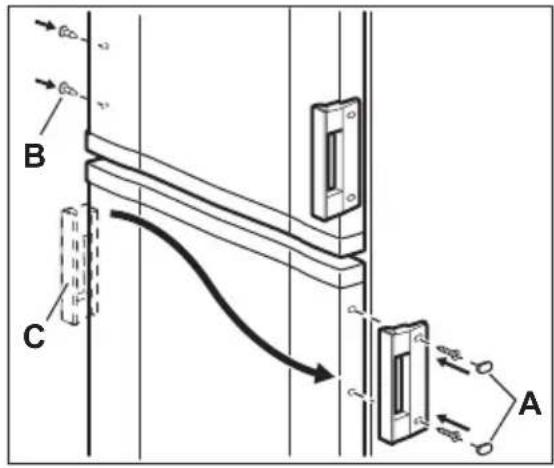

A B C

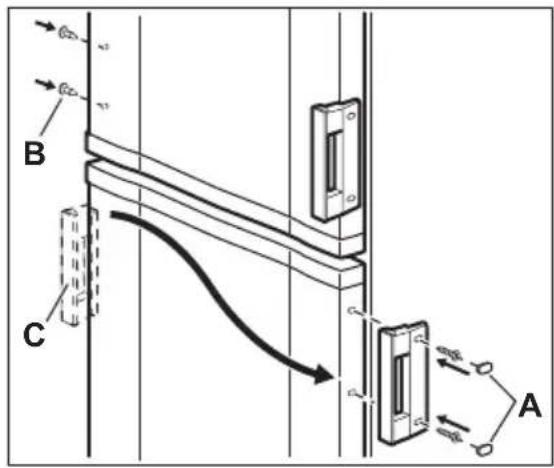

• Remove the covers (B). Remove the cover pins (A).
• Unscrew the handles (C) and fix them on the opposite side.

• Re-insert the cover pins (A) on the opposite side.
  Do a final check to make sure that:

• All screws are tightened.

• The magnetic seal adheres to the cabinet.

- The door opens and closes correctly. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket.

In case you do not want to carry out the above mentioned operations, contact the nearest After Sales Service Force.

The After Sales Service specialist will carry out the reversibility of the doors at your cost.

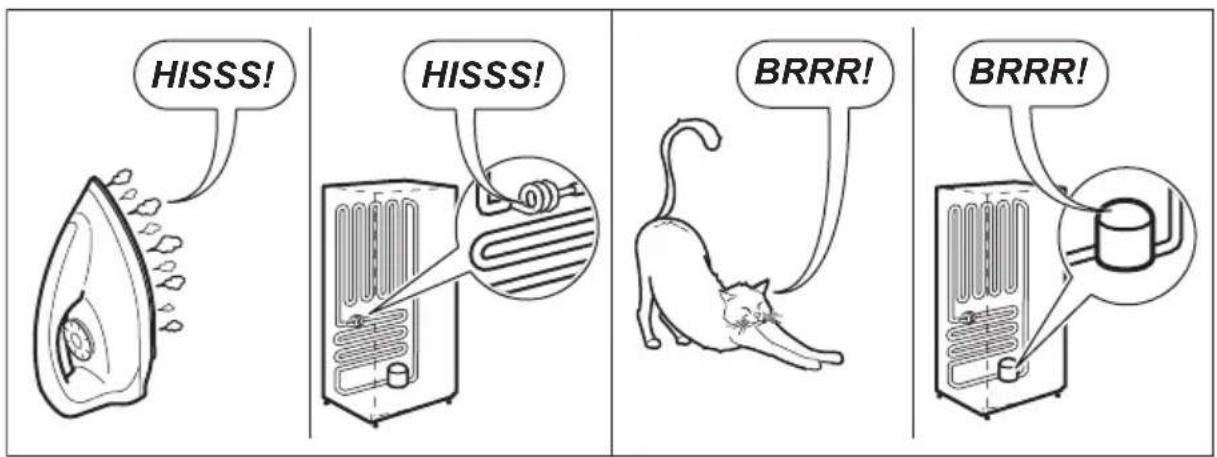

9. NOISE

There are some sounds during normal running (compressor, refrigerant circulation).

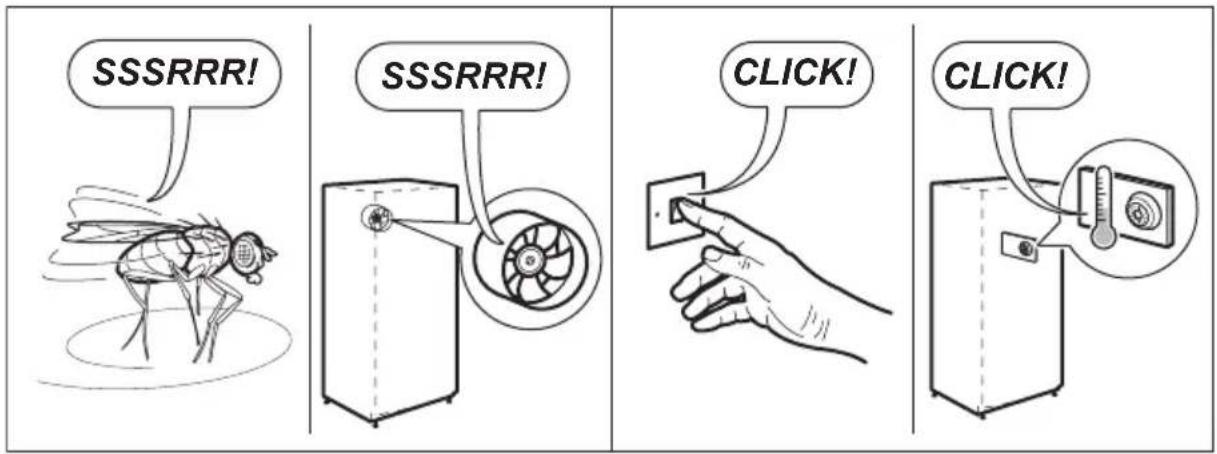

OK SSSRRR! HISSS! BLUBB! CLICK! BRRR! CRACK!

SSSRRR! SSSRRR! CLICK! CLICK!

HISSS! HISSS! BRRR! BRRR!

BLUBB! BLUBB! CRACK!CR

10. TECHNICAL DATA

Dimension of the recess

Height 1850 mm

Width 595 mm

Depth 658 mm

Rising Time 18 h

Voltage 230 - 240 V

Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

11. ENVIRONMENT CONCERNS

Recycle the materials with the symbol ⚙. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic

appliances. Do not dispose appliances marked with the symbol ✗ with the household waste. Return the product to your local recycling facility or contact your municipal office.

SOMMAIRE

1. INSTRUCTIONS DE SÉCURITÉ 39
2. DESCRIPTION DE L'APPAREIL 42
3. BANDEAU DE COMMANDE 43
4. UTILISATION QUOTIDIENNE 44
5. CONSEILS UTILES 46
6. ENTRETIEN ET NETTOYAGE 47
7. EN CAS D'ANOMALIE DE FONCTIONNEMENT 48
8. INSTALLATION 50
9. BRUITS 53
10. CARACTÉRISTIQUES TECHNIQUES 55

POUR DES RÉSULTATS PARFAITS

1 2 3 6 9 10 5 7 H1 H2 H3 H4 H5 12

Line drawing of a hand holding a wooden plank over a flat surface (no text or symbols)

Diagram of a bottle being lifted by ropes, showing fluid flow direction (no text or symbols)

"T" SENSOR

Diagram of a refrigerator interior with labeled parts and directional arrows indicating movement or force

Illustration of a hand holding a tool inside a circular frame, with arrows indicating rotation (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a bolt and nut assembly with directional arrows indicating movement (no text or labels)

Diagram showing a mechanical component with a circular inset labeled '1' pointing to a shaft, indicating motion or assembly.

Technical diagram showing a mechanical assembly with labeled components and a magnified inset illustrating fluid flow or motion around a bolt.

A B C

www.aeg.com/productregistration

1 2 3 6 9 10 5 7 H1 H2 H3 H4 H5 12

Line drawing of a hand holding a wooden plank over a shelf (no text or symbols)

Diagram of a wine bottle being lifted by ropes, showing flow direction (no text or symbols)

"T" SENSOR

Diagram of a refrigerator interior with labeled parts and directional arrows indicating movement or force

Illustration of a hand holding a tool inside a circular frame, with arrows indicating rotation (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or flow.

Technical diagram of a bolt and nut assembly with directional arrows indicating movement (no text or labels)

Diagram illustrating a mechanical or electrical system with labeled components A, B, and C, showing directional flow and component placement.

Diagram showing a mechanical setup with a rotating component and directional arrows, labeled with number 1.

Technical diagram showing a mechanical assembly with labeled components and a magnified inset illustrating rotational motion.
