USER MANUAL EWA5230 AEG

Exterior view of a modern silver AEG water heater with black handle and digital display (no text or symbols on the main body)

WATERKETTLE MODEL EWA 51xx / 52xx
D·GR·NL·F·GB

With Electrolux, the choice of professionals.

AEG

GB Instruction book .....11–15

Before using the appliance for the first time, please read the safety advice on page 12 carefully.

1L Model D B E C F A G H J I

DG

Teile

White portable kettle with a patterned lid and a cross symbol, next to an open electrical plug (no text or labels visible)

D

Diagram showing a wall-mounted power plug connected to a circular socket with a black connector, next to a separate electrical outlet (no text or symbols present)

Close-up of a white digital water heater with a handle and internal components, showing liquid level adjustment (no text or symbols visible)

White kettle with a lid and a close-up inset showing its interior design (no text or symbols visible)

1. Die Abdeckung schließen und sicherstellen, dass sie einrastet. Andernfalls funktioniert die automatische Abschaltung nicht zuverlässig. Den Wasserkocher auf die Basis setzen. Den EIN/AUS-Schalter herunterdrücken; die Anzeige leuchtet auf und der Wasserkocher beginnt mit dem Erhitzen.
2. Κλείστε το καπάκι και βεβαιωθείτε ότι κλειδώνει κανονικά. Διαφορετικά, η λειτουργία αυτόματης απενεργοποίησης δεν θα λειτουργεί κανονικά. Καθαρισμός της εστίας θέρμανσης – στην εστία θέρμανσης μπορεί να εμφανιστούν επιφανειακές κηλίδες σκουριάς. Η ενδεικτική λυχνία θα ανάψει και ο βραστήρας θα αρχίσει να ζεσταίνεται.
3. Sluit de klep zodat deze goed vastklikt. Anders werkt de functie voor automatisch uitschakelen niet goed. Plaats de waterkoker op de voet. Druk de AAN/UIT-schakelaar naar beneden; het indicatielampje gaat branden en de waterkoker wordt opgewarmd.
4. Fermez le couvercle et assurez-vousqu'il soit fermé correctement. Si le couvercle est mal enclenché, l'arrêt automatique ne fonctionnera pas correctement. Placez la bouilloire sur son socle. Appuyez sur l'interrupteur marche/arrêt ; le voyant s'allume et la bouilloire commence à chauff er.

Simple icon showing a pot with steam rising above it, no text or symbols present

White kettle with a digital display and an inset showing a small mechanical component (no text or symbols visible)

White kettle with a patterned cloth and power plug, next to a small cross symbol (no text or labels visible)

D

White electric kettle with open lid and power cord, showing internal compartments and a small battery (no text or symbols visible)

White digital water heater with digital display and a plastic bottle beside it (no visible text or symbols)

1. Je nach Wasserhärte sollte das Gerät regelmäßig entkalkt werden. Den Wasserkocher der Produktanleitung entsprechend mit Wasser und Entkalker füllen. Die Lösung nicht kochen lassen, da sie überschäumen könnte. Danach den Wasserkocher gründlich mit frischem Wasser ausspülen.

2. Η αφαλάτωση συνίσταται τακτικά, ανάλογα με τη σκληρότητα του νερού. Γεμίστε το βραστήρα με νερό και αποσκληρυντικό σύμφωνα με τις οδηγίες χρήσης του αποσκληρυντικού. Μη βράζετε το διάλυμα γιατί μπορεί να ξεχειλίσει. Στη συνέχειαξεπλύνετε καλά το βραστήρα με τρεχούμενο νερό.

3. Ontkalken doet u bij voorkeur regelmatig, afhankelijk van de hardheid van het water. Vul de waterkoker met water en ontkalker, volgens de gebruiksaanwijzing van het ontkalkingsproduct. Laat de oplossing niet koken, aangezien deze kan gaan schuimen. Naderhandspoelt u de waterkoker grondig na met schoon water.

4. Il est recommandé de procéder à un détartrage régulier en fonction de la dureté de l'eau. Remplissez la bouilloire d'eau et de détartrant en respectant les consignes d'utilisation du produit détartrant. Ne laissez pas bouillir la solution, car la mousse formée pourrait déborder. Puis, rincez soigneusement l'intérieur de la bouilloire à l'eau claire.

1L Model D B E C F A G H J I

GB

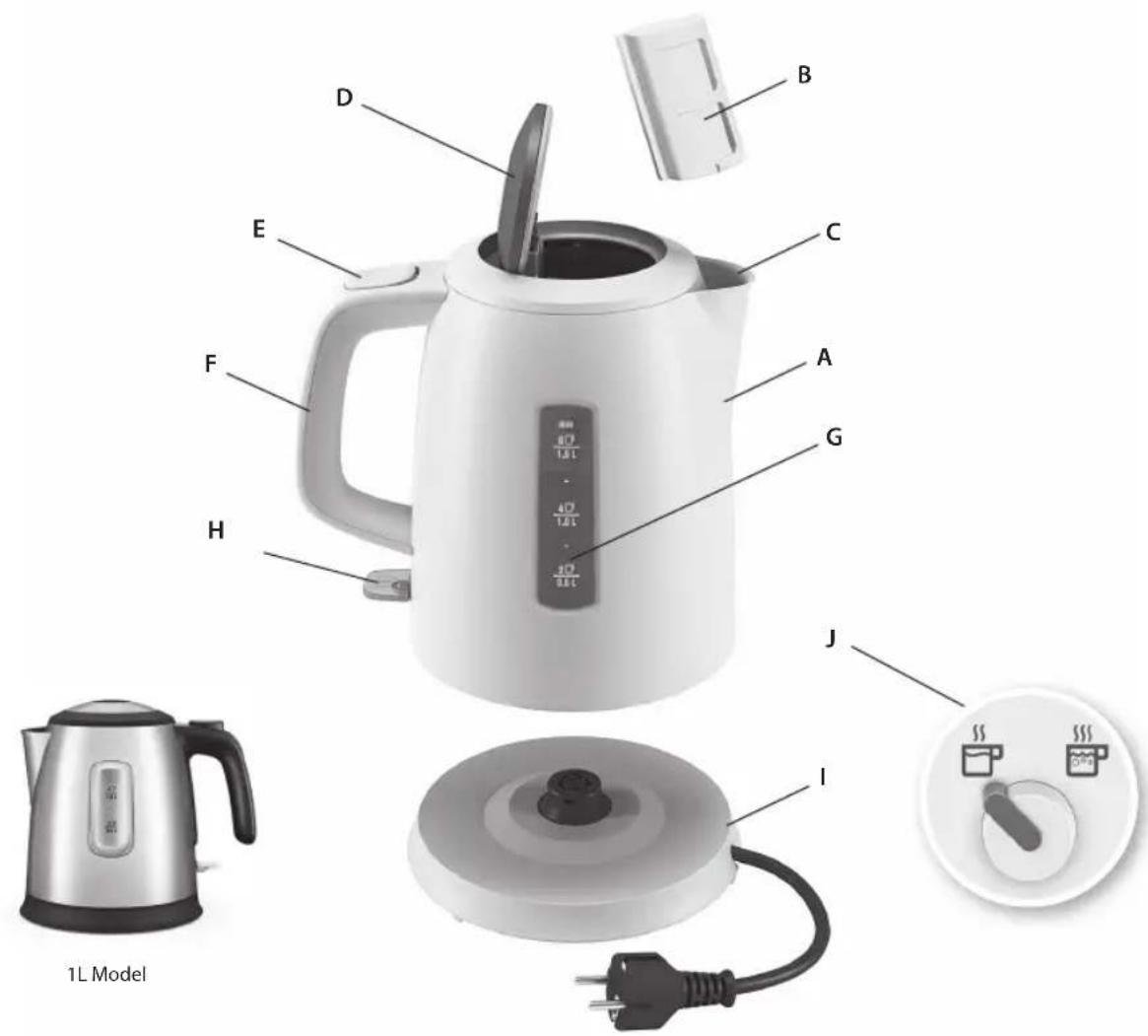

Components

A. Jug

B. Removable mesh filter

C. Spout

D. Lid

E. Opening lid button

F. Handle

G. Water level indicator

H. ON/OFF switch with indicator light

I. Separate base and mains cable

J. Temperature selector*

*EEWA 5120

Safety advice

GB

Read the following instruction carefully before using the appliance for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if – the supply cord is damaged, – the housing is damaged."
  • The appliance must only be connected to an earthed socket. If necessary an extension cable suitable for 10 A can be used.
• If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

• Always place the appliance on a flat, level surface.
• The appliance must be switched off and the mains plug withdrawn before cleaning and maintenance.
• The appliance and accessories become hot during operation. Use only designated handles and knobs. Allow to cool down before cleaning or storage.
- The mains cable must not come into contact with any hot parts of the appliance.
- Do not immerse the appliance in water or any other liquid.
' Attention: If the kettle is overfilled there is a risk that the boiling water may spray out, which could scald or burn! Therefore never fill the kettle above the maximum marking.
- Never operate appliance with open lid.
- Do not use or place the appliance on a hot surface or near source of heat.
- Only use the kettle for heating water!
- The kettle can only be used with the stand provided.
• Appliance is for indoor use only.

• This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

Getting started

GB

White kettle with a patterned cloth and power plug, next to a small cross symbol (no text or labels visible)

1. Before first use, rinse the inside and wipe the outside of the kettle with a damp cloth.

Diagram showing a wall-mounted power plug connected to a socket with a black cable, next to a separate electrical outlet (no text or symbols present)

1. Place the base unit on a firm and fl at surface. Plug the mains plug into a wall socket. Excess cord can be wound into the bottom of base unit.

Close-up of a white digital water heater with a handle and control panel, showing a drop and magnified detail (no text or symbols visible)

1. Press the button to open the lid, pour water into the kettle. It is also possible to fill the kettle through the spout, without opening the lid. Make sure water level is visible in the water level indicator, but not exceeding the Max. mark.

GB

White kettle with digital display showing a drop in the interior (no text or symbols visible)

1. Close the lid and make sure it snaps in correctly. Otherwise the auto switch off function will not work reliably. Place the kettle onto the base. Press down the ON/OFF switch; the indicator light will illuminate and the kettle will start to heat up.

Simple icon showing a speedometer with two steaming cups above it, no text or symbols present.

1. Temperature setting*. Depending on what drink you wish to prepare (green tea/instant coff ee or black tea), you can select between hot or boiling water by turning the knob to the respective symbol.

*EEWA 5120

White digital water heater with a close-up inset showing its internal components (no text or symbols visible)

1. The automatic switch off function.

When the water has boiled or the kettle is moved from the base, it will switch off automatically. If you wish to stop the heating process before the water is boiling, simply lift up the ON/OFF switch to the OFF position.

Cleaning

White kettle with a patterned lid and power plug, next to a black X symbol (no text or labels visible)

GB

1. Before cleaning, always unplug the appliance. Never rinse or immerse the kettle or base unit in water. Just wipe with a damp cloth, using no abrasive detergents. Occasionally rinse out the kettle with clean water.

White electric kettle with open lid and power cord, no visible text or symbols

1. To clean the mesh fi Iter, grab the strainer insert and lift out. Cleaning the heating plate – superfi cial spots of rust may appear on the heating plate. Remove with a stainless steel cleaning agent.

White kettle with digital display and water drop, next to a white bottle (no visible text or symbols)

1. Decalcifying is recommended regularly, depending on water hardness. Fill the kettle with water and decalcifier according to decalcifier product instructions. Do not boil the solution as it could foam over. Afterwards, rinse kettle thoroughly with fresh water.

Troubleshooting

GB

Problem Possible cause Solution
The appliance switches off before boiling. Too much lime scale at the heating element of the kettle.	Run the decalcifying procedure.
The appliance does not switch off . Close lid until it locks.
	Insert the mesh filter correctly.
The appliance cannot be switched on. After operating with little or no water, the appliance has not cooled down sufficiently.	Allow to cool a short time and try again.

Disposal

GB

Disposal

Packaging materials

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help

prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
