Product type	Extractor hood
Brand	AEG
Model	AIH9800BM
Usage	Domestic
Minimum safety distance (cooktop - hood)	650 mm
Minimum duct diameter	120 mm
Grease filter	Dishwasher safe, clean every 2 months
Odor filter (activated carbon)	Not washable, replace every 4 months
Number of suction speeds	4 (3 normal + 1 intensive)
Intensive speed function	Yes, duration 5 minutes
Delayed shutdown function	Yes, 20 minutes
Grease filter alarm	After 100 hours of operation
Carbon filter alarm	After 200 hours of operation
Lighting	Yes, maximum intensity
Installation type	External exhaust
Safety	Do not use for flambé, do not leave open flames
Maintenance	Unplug before cleaning
Original parts	Use only AEG spare parts
After-sales service	Contact with model, PNC, serial number
Accessories	Available at www.aeg.com/shop
Recycling	Do not dispose with household waste, take to recycling center

Frequently Asked Questions - AIH9800BM AEG

What is the minimum safety distance between the hood and the cooktop?

The minimum safety distance is 650 mm. If the cooktop instructions specify a larger distance, that must be respected.

How to clean the grease filters?

The grease filters are dishwasher safe. It is recommended to clean them every 2 months, or more often with heavy use.

When should the carbon filters be replaced?

Activated carbon filters are not washable and must be replaced every 4 months, or more often if the hood is used intensively.

What does the display 'C' mean on the hood?

The display 'C' indicates that it is necessary to replace the carbon filters and wash the grease filters. This alarm activates after 200 hours of operation.

How to reset the filter alarm?

To reset the alarm, press the D button for about 3 seconds when the motor is off.

How does the intensive speed work?

Intensive speed is activated by pressing the D button from any speed or motor off. It lasts 5 minutes, then the hood returns to the previous speed.

How to use the delayed shutdown?

Delayed shutdown is activated by pressing the E button. The hood will automatically turn off after 20 minutes. To deactivate, press the E button again or turn off the motor.

Can I use the hood with a gas cooktop?

Yes, but you must respect the safety distance of 650 mm, never leave open flames under the hood, and ensure adequate ventilation of the room if other combustion appliances are used.

What to do if the power cord is damaged?

Do not use the hood. Have the cord replaced by the manufacturer or after-sales service to avoid any risk.

How to activate or deactivate the carbon filter alarm?

With the motor and lighting off, press and hold the E button for 5 seconds. If the C light flashes 2 times, the alarm is activated; 1 flash, it is deactivated.

USER MANUAL AIH9800BM AEG

Modern kitchen interior with white cabinets, a large stainless steel refrigerator, and a black stove (no visible text or symbols)

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

ACCESSORIES AND CONSUMABLES

In the AEG webshop, you'll find everything you need to keep all your AEG appliances looking spotless and working perfectly. Along with a wide range of accessories designed and built to the high quality standards you would expect, from specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags...

Visit the webshop at: www.aeg.com/shop

ENVIRONMENT CONCERNS

Recycle the materials with the symbol △Put the packaging in applicable containersto recycle it.

Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

CUSTOMER CARE AND SERVICE

We recommend the use of original spare parts.

When contacting Service, ensure that you have the following data available The information can be found on the rating plate.

Model ____

PNC ____

Serial Number ____

1. RECOMMENDATIONS AND SUGGESTIONS

• The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.
• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by the technical service department, in order to prevent any risks.
• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account. Regulations concerning the discharge of air have to be fulfilled.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the

hood when it is in operation.

• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• “CAUTION: Accessible parts may become hot when used with cooking appliances”.

3. MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).

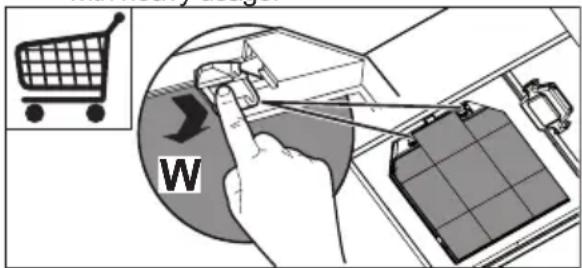

- Activated charcoal filter W These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

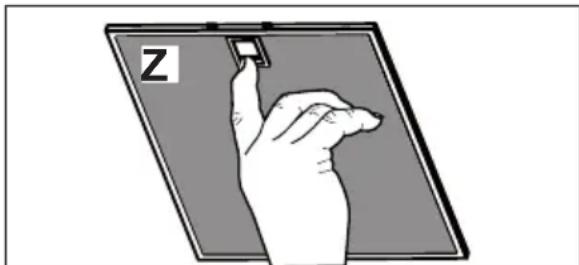

- Grease filters Z The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.

Illustration of a hand holding a small object on a flat surface, with no text or symbols present.

- Control lights, if present.

- Clean the hood using a damp cloth and a neutral liquid detergent.

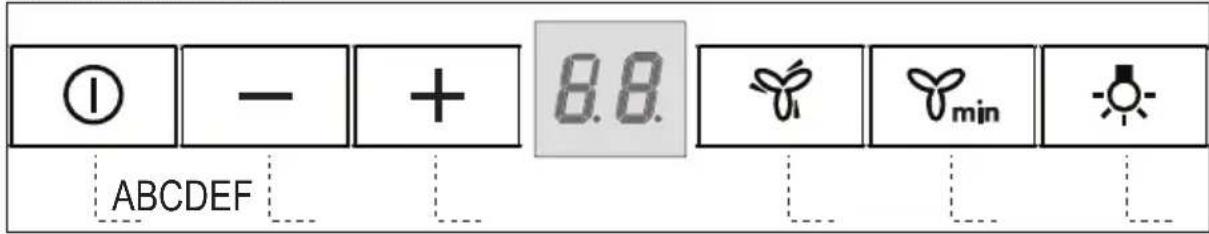

4. CONTROLS

Button	Function Display
A Turns the suction motor on and off at speed one. Displays the set speed
B Decreases the working speed. Displays the set speed
C	Increases the working speed. Displays the set speed
D	Activates intensive speed from any other speed, including motor off. This speed is set to operate for 5 minutes, after which the system returns to the speed that was set before. Suitable to deal with maximum levels of cooking fumes.	Displays HI and the time remaining once every second.
	When the filters alarm is triggered, the alarm can be reset by pressing and holding this button for approximately 3 seconds. These indications are only visible when the motor is turned off.	F indicates the need to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 100 working hours.C indicates the need to change the activated charcoal filters, and also to wash the metal grease filters. The alarm is triggered after the Hood has been in operation for 200 working hours.
E	Delay functionActivates automatic switch-off with a 20' delay. Suitable to complete elimination of residual odours. Can be activated from any position, and is disabled by pressing the button or turning the motor off.	Displays the operating speed and the dot at the bottom right flashes alternately with the remaining time.
	Press and hold the button for approximately 5 seconds, with all the loads turned off (Motor and Lights), to turn the Activated Charcoal Filter alarm On and Off.	- C flashes twice - A.C. Filter alarm Activated.- C flashes once - A.C. Filter alarm Deactivated
F Turns the lighting system on and off at maximum intensity.

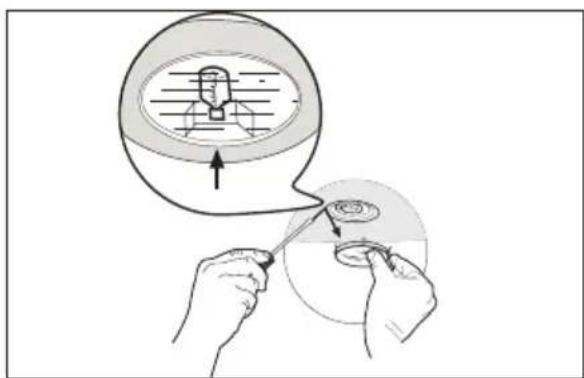

5. LIGHTING

Illustration of hands performing a medical procedure with a magnified view of a patient's head and surgical instrument (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component, with no visible text or symbols.
