USER MANUAL H-6710 Uline

Line drawing of a manual pallet jack with handle and wheels (no text or symbols)

TECHNICAL DATA

MODEL	H-2708/H-2900/H-3045/H-5387/H-7504	H-6710	H-8921	H-9612
Capacity	5,500 lbs.	5,500 lbs.	5,500 lbs.	4,400 lbs.
Max. Fork Height	7.5"	7.5"	7.5"	6.5"
Min. Fork Height	3.0"	3.0"	3.0"	2.0"
Fork Length	48"	48"	72"	48"
Overall Fork Width	27"	21"	27"	27"
Fork Wheel Diameter	3" Polyurethane	3" Polyurethane	3" Polyurethane	2" Polyurethane
Steering Wheel Diameter	7" Polyurethane	7" Polyurethane	7" Polyurethane	7" Polyurethane
Net Weight	165 lbs.	152 lbs.	258 lbs.	203 lbs.

OPERATION

WARNING! Operator must read and understand instructions here and on truck prior to use.

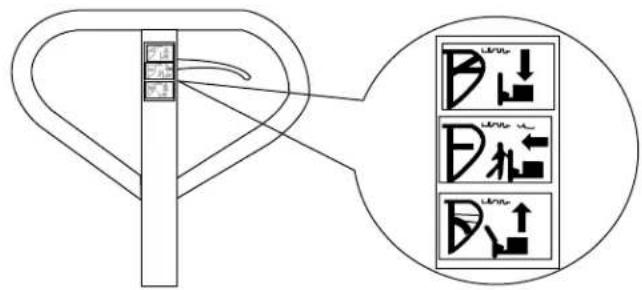

On the handle of the pallet truck, you will find the control lever, which can be set in three positions. (See Figure 1)

Figure 1

Diagram showing a mechanical component with three directional arrows and a magnified inset highlighting the component's direction.

• LOWER = to lower the forks
• NEUTRAL = to move the load

• RAISE = to raise the forks

• If the forks elevate while pumping in the NEUTRAL position, turn the setting screw clockwise until pumping the handle does not raise the forks and the NEUTRAL position functions correctly.

• If the forks descend while pumping in the NEUTRAL position, turn the setting screw counterclockwise until the forks do not lower.
• If the forks do not descend when the control lever is in the LOWER position, turn the setting screw clockwise until raising the control lever lowers the forks. Then check the NEUTRAL position as per step 1 and 2.
• If the forks do not lift while pumping in the RAISE position, turn the setting screw counterclockwise until the forks elevate while pumping in the RAISED position. Then check the NEUTRAL and LOWER position as per steps 1, 2 and 3.

NOTE: When viewing the truck from the handle side, the setting screw is located on the right side of the pump above the right wheel. The truck will lower faster or slower depending on how far in or out the screw is adjusted.

MAINTENANCE

HOW TO EXPEL AIR FROM THE PUMP UNIT

Air may enter the unit over time or when the seals are replaced. To expel the air, lift the control lever to the LOWER position and pump the handle up and down several times.

DAILY CHECK AND MAINTENANCE

Daily checks of the pallet truck can limit wear and tear on the unit. Pay special attention to the wheels, axles, handle, forks and lift and lower controls.

LUBRICATION

Use motor oil or grease to lubricate all movable parts.

SAFETY

For safe operation, please read all warning signs and instructions here and on the pallet truck prior to use.

1. Do not operate the pallet truck unless you are familiar with it and have been trained and authorized to do so.
2. Do not use the truck on sloping ground.
3. Never place any part of your body in the lifting mechanism or under the forks or load. Do not carry passengers.
4. Operators should wear gloves and safety shoes.

5. Do not handle unstable or loosely stacked loads.

6. Do not overload the truck.

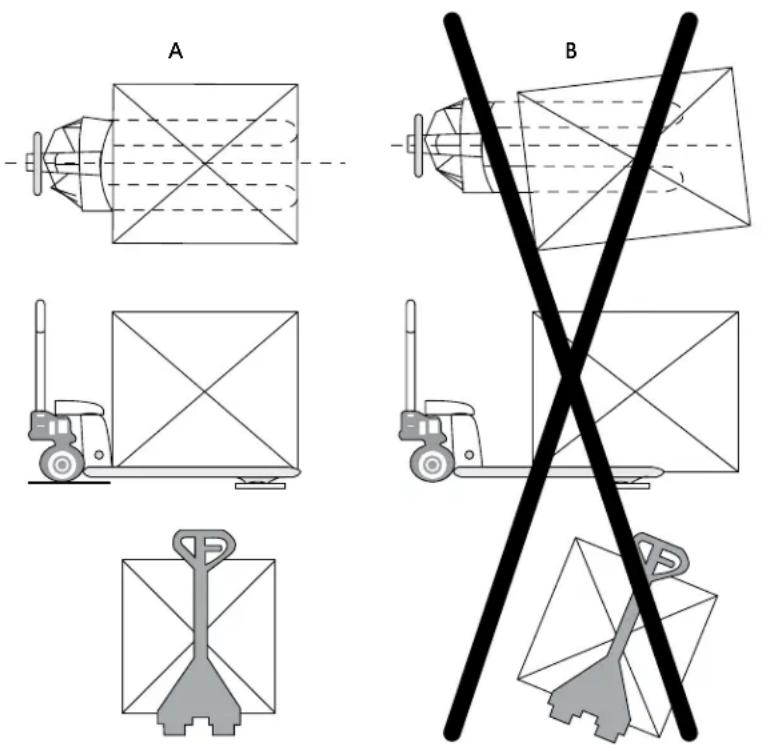

7. Always center loads on the forks, not at the end of the forks. (See Figure 2)
8. The capacity of the truck assumes an evenly distributed load with the center of the load being at the halfway point of the length of the forks. (See Figure 2)
9. Make sure that length of the forks matches the length of the pallet load. (See Figure 2)
10. Lower the forks to lowest height when the truck is not being used.

Figure 2

TROUBLESHOOTING

OPERATING ISSUE CAUSES	RECOMMENDATIONS
The forks do not raise. The setting	screw is not in the correct position.Air in the hydraulic oil.	Adjust the setting screw.(See Operation)Expel the air. (See Maintenance)
The forks do not descend. The rod	and/or cylinder are deformed resulting from a seriously unbalanced load.A part has been broken or deformed resulting from an unbalanced load.The setting screw is not in the correct position.	Replace the rod and/or cylinder.Repair or replace component.Adjust the setting screw.(See Operation)
Leaks. Seals worn out or damaged.	Some parts may be cracked or worn out.	Replace seals with new ones.Replace pump.
The forks descend without being lowered.	Air in the hydraulic oil.Components worn out or damaged.The setting screw is not in the correct position.	Expel the air. (See Maintenance)Replace components.Adjust the setting screw.(See Operation)

NOTE: Do not attempt to repair the pallet truck unless you are trained and authorized to do so.

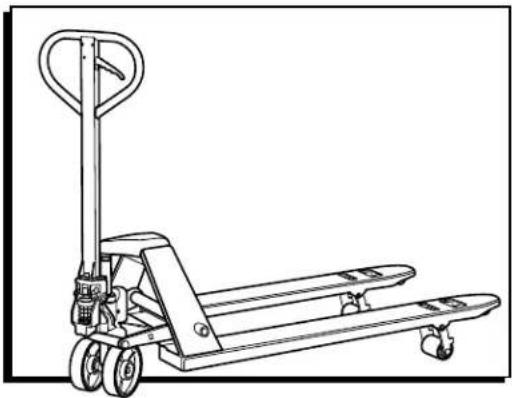

PATÍN HIDRÁULICO INDUSTRIAL

Line drawing of a manual pallet jack with handle and wheels (no text or symbols)

DATOS TÉCNICOS

MODELO	H-2708/H-2900/H-3045/H-5387/H-7504	H-6710	H-8921	H-9612
Capacidad	2,495 kg (5,500 lbs.)	2,495 kg (5,500 lbs.)	2,495 kg (5,500 lbs.)	1,995 kg (4,400 lbs.)
Altura Máx. de Horquilla	19 cm (7.5")	19 cm (7.5")	19 cm (7.5")	16.51 cm (6.5")
Altura Mín. de Horquilla	8 cm (3.0")	8 cm (3.0")	8 cm (3.0")	5 cm (2.0")
Longitud de Horquilla	122 cm (48")	122 cm (48")	183 cm (72")	121 cm (48")
Ancho Total de Horquillas	69 cm (27")	53.3 cm (21")	68.6 cm (27")	68.6 cm (27")
Diámetro de la Llanta de Horquilla	Poliuretano de 8 cm (3")	Poliuretano de 8 cm (3")	Poliuretano de 8 cm (3")	Poliuretano de 5 cm (2")
Diámetro de la Llanta de Dirección	Poliuretano de 18 cm (7")	Poliuretano de 18 cm (7")	Poliuretano de 18 cm (7")	Poliuretano de 18 cm (7")
Peso Neto	74.8 kg (165 lbs.)	68.9 kg (152 lbs.)	117 kg (258 lbs.)	92 kg (203 lbs.)

FUNCIONAMIENTO

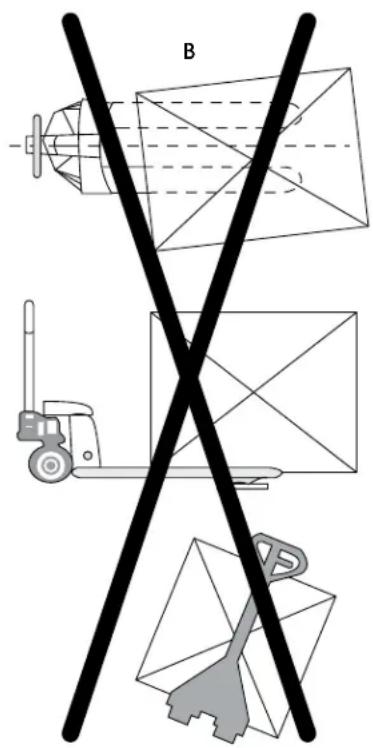

Diagram showing a vertical structure with labeled components and three directional icons below, likely illustrating a mechanical or architectural design concept.

Three technical diagrams showing a motor, a pallet box, and a pallet jack (no text or labels present)

B

Line drawing of a manual pallet jack with handle and wheels (no text or symbols)

DONNÉES TECHNIQUES

MODÈLE	H-2708/H-2900/H-3045/H-5387/H-7504	H-6710	H-8921	H-9612
Capacité	2 494,8 kg (5 500 lb)	2 495 kg (5 500 lb)	2 495 kg (5 500 lb)	1 995 kg (4,400 lbs.)
Hauteur max. des fourches	19,1 cm (7,5 po)	19 cm (7,5 po)	19 cm (7,5 po)	16.51 cm (6.5")
Hauteur min. des fourches	7,6 cm (3 po)	8 cm (3 po)	8 cm (3.0 po)	5 cm (2.0")
Longueur des fourches	1,2 m (48 po)	1,2 m (48 po)	1,8 m (72 po)	121 cm (48")
Largeur totale des fourches	68,6 cm (27 po)	53,3 cm (21 po)	68,6 cm (27 po)	68,6 cm (27 po)
Diam. des roues des fourches	7,6 cm (3 po), polyuréthane	7,6 cm (3 po),polyuréthane	7,6 cm (3 po),polyuréthane	5 cm (2 po),polyuréthane
Diam. des roues directrices	17,8 cm (7 po), polyuréthane	17,8 cm (7 po),polyuréthane	17,8 cm (7 po),polyuréthane	17,8 cm (7 po),polyuréthane
Poids net	74,8 kg (165 lb)	68,9 kg (152 lb)	117 kg (258 lb)	92 kg (203 lb)

FONCTIONNEMENT

Diagram showing a mechanical component with directional arrows and three labeled diagrams below indicating movement or force directions.
