UH.2185, H-2186 CORROSION RESISTANT PALLET TRUCK

1-800-295-5510 uline.com

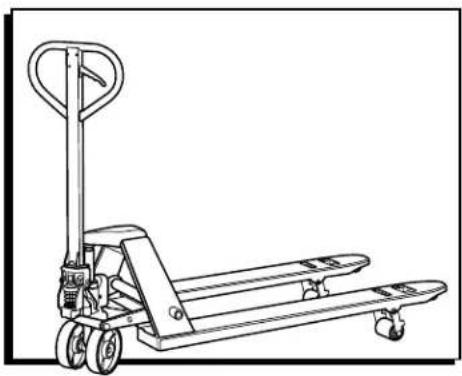

Line drawing of a manual pallet jack with wheels and handle (no text or symbols)

TECHNICAL DATA

MODEL H-2185 H-2186
Capacity	5,500 lbs.	5,500 lbs.
Max. Fork Height	7.5"	7.5"
Min. Fork Height	3"	3"
Fork Length	48"	48"
Overall Fork Width	27"	27"
Fork Wheel Diameter	3" Nylon	3" Nylon
Steering Wheel Diameter	7" Nylon	7" Nylon
Net Weight	173 lbs.	157 lbs.

OPERATION

WARNING! Operator must read and understand instructions here and on truck prior to use.

On the handle of the pallet truck, you will find the control lever, which can be set in three positions. (See Figure 1)

Figure 1

Diagram showing a vertical barrier mechanism with directional arrows and three labeled directional indicators below it.

• LOWER = to lower the forks
• NEUTRAL = to move the load
• RAISE = to raise the forks

If the forks elevate while pumping in the NEUTRAL position, turn the setting screw clockwise until pumping the handle does not raise the forks and the NEUTRAL position functions correctly.

1. If the forks descend while pumping in the NEUTRAL position, turn the setting screw counterclockwise until the forks do not lower.
2. If the forks do not descend when the control lever is in the LOWER position, turn the setting screw clockwise until raising the control lever lowers the forks. Then check the NEUTRAL position as per step 1 and 2.
3. If the forks do not lift while pumping in the RAISE position, turn the setting screw counterclockwise until the forks elevate while pumping in the RAISED position. Then check the NEUTRAL and LOWER positions as per steps 1, 2 and 3.

NOTE: When viewing the truck from the handle side, the setting screw is located on the right side of the pump above the right wheel. The truck will lower faster or slower depending on how far in or out the screw is adjusted.

MAINTENANCE

HOW TO EXPEL AIR FROM THE PUMP UNIT

Air may enter the unit over time or when the seals are replaced. To expel the air, lift the control lever to the LOWER position and move the handle up and down several times.

DAILY CHECK AND MAINTENANCE

Daily checks of the pallet truck can limit wear and tear on the unit. Pay special attention to the wheels, axles, handle, forks and lift and lower controls.

LUBRICATION

Use motor oil or grease to lubricate all moveable parts.

SAFETY

For safe operation of the pallet truck, read all warning signs and instructions here and on the pallet truck prior to use.

1. Do not operate the pallet truck unless you are familiar with it and have been trained and authorized to do so.
2. Do not use the truck on sloping ground.
3. Never place any part of your body in the lifting mechanism or under the forks or load. Do not carry passengers.
4. We advise that operators should wear gloves and safety shoes.

5. Do not handle unstable or loosely stacked loads.

6. Do not overload the truck.

7. Always center loads on the forks, not at the end of the forks. (See Figure 2)
8. The capacity of the truck assumes an evenly distributed load with the center of the load being at the halfway point of the length of the forks.
9. Make sure that length of the forks matches the length of the pallet load.
10. Lower the forks to lowest height when the truck is not being used.

Figure 2

TROUBLESHOOTING

OPERATING ISSUE CAUSES	RECOMMENDATIONS
The forks do not raise. The setting	screw is not in the correct position.Air in the hydraulic oil.	Adjust the setting screw.(See Operation)Expel the air. (See Maintenance)
The forks do not descend. The rod	and/or cylinder are deformed resulting from a seriously unbalanced load.A part has been broken or deformed resulting from an unbalanced load.The setting screw is not in the correct position.	Replace the rod and/or cylinder.Repair or replace component.Adjust the setting screw.(See Operation)
Leaks. Seals worn out or damaged.	Some parts may be cracked or worn out.	Replace seals with new ones.Replace pump.
The forks descend without being lowered.	Air in the hydraulic oil.Components worn out or damaged.The setting screw is not in the correct position.	Expel the air. (See Maintenance)Replace components.Adjust the setting screw.(See Operation)

NOTE: Do not attempt to repair the pallet truck unless you are trained and authorized to do so.

Line drawing of a manual pallet jack with handle and wheels (no text or symbols)

DATOS TÉCNICOS

MODELO H-2185 H-2186
Capacidad 2 494.8 kg (5,500 lbs.)	2 494.8 kg (5,500 lbs.)
Altura Máx. de Horquilla	19.1 cm (7.5")	19.1 cm (7.5")
Altura Mín. de Horquilla	7.6 cm (3")	7.6 cm (3")
Longitud de Horquilla	1.2 m (48")	1.2 m (48")
Ancho Total de Horquillas	68.6 cm (27")	68.6 cm (27")
Diámetro de la Llanta de Horquilla	Nylon de 7.6 cm (3")	Nylon de 7.6 cm (3")
Diámetro de la Llanta de Dirección	Nylon de 17.8 cm (7")	Nylon de 17.8 cm (7")
Peso Neto	78.5 kg (173 lbs.)	71.2 kg (157 lbs.)

FUNCIONAMIENTO

Diagram showing a mechanical component with labeled parts and three directional arrows indicating movement or flow directions.

Line drawing of a manual pallet jack with handle and wheels (no text or symbols)

DONNÉES TECHNIQUES

MODÈLE H-2185	H-2186
Capacité	2 494,8 kg (5 500 lb)	2 494,8 kg (5 500 lb)
Haut. max. des fourches	19,1 cm (7,5 po)	19,1 cm (7,5 po)
Haut. min. des fourches	7,6 cm (3 po)	7,6 cm (3 po)
Longueur des fourches	1,2 m (48 po)	1,2 m (48 po)
Largeur totale des fourches	68,6 cm (27 po)	68,6 cm (27 po)
Diam. des roues des fourches	7,6 cm (3 po), nylon	7,6 cm (3 po), nylon
Diam. des roues directrices	17,8 cm (7 po), nylon	17,8 cm (7 po), nylon
Poids net	78,5 kg (173 lb)	71,2 kg (157 lb)

UTILISATION

Diagram showing a mechanical component with three directional control buttons and a magnified view of the same buttons.
