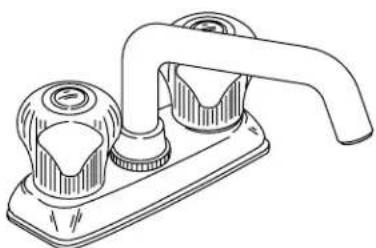

Line drawing of a faucet with two handles and a central screw (no text or symbols)

Line drawing of a faucet with two circular fixtures and a handle (no text or symbols)

M product numbers are for Mexico (i.e. K-12345M)

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and web site are listed on the back cover. Thanks again for choosing Kohler Company.

Before You Begin

□ Observe all local plumbing and building codes.
□ Shut off the water supplies.
□ Carefully inspect waste and supply tubing for any sign of damage and replace if necessary.
☐ For new installations, assemble the faucet on the sink before installing the sink.
Before installation, unpack the new faucet and inspect it for damage. Return the faucet to the carton until you are ready to install it.
☐ Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book.

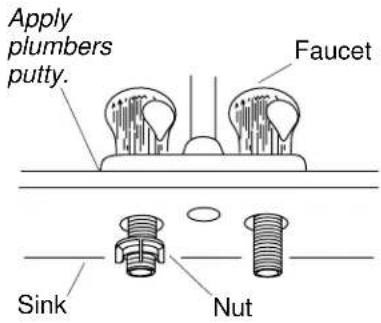

Apply plumbers putty. Faucet Sink Nut

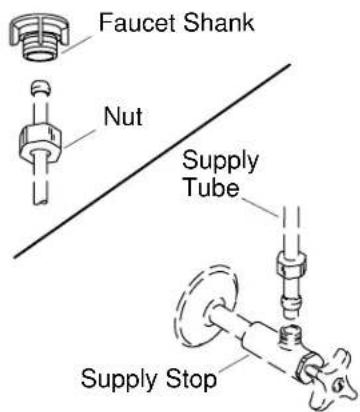

Faucet Shank Nut Supply Tube Supply Stop

1. Faucet Installation

□ Apply plumbers putty or other sealant to the underside of the faucet according to the manufacturer's instructions.
□ Center and align the faucet on the sink.
□ Securely hand tighten the nuts from underneath the sink.
□ Remove any excess putty or sealant.

2. Supply Installation

NOTE: If the supply tubes need to be cut, allow for required penetration of the tube into the supply stop.

NOTE: If the sink is not installed, install it at this time. Be sure to follow all instructions packed with the sink.

□ Slip the nuts onto the supply tubes.
☐ Position the round end of the supply tube squarely to the inlet of the faucet shank and supply stop.
□ Tighten the nuts.

Line drawing of a bathroom sink with faucet and two side knobs (no text or symbols)

3. Installation Checkout

☐ Ensure that both faucet handles are turned off. Hot is clockwise close and cold is counterclockwise close.
□ Turn on the hot and cold water supplies.
□ Check for leaks.
□ Remove the aerator by turning it counterclockwise.
☐ Turn on the hot and cold faucet handles for one minute to flush debris from the faucet.
□ Close the hot and cold faucet handles.
☐ Reattach the aerator by turning it clockwise until hand tight.

Line drawing of a bathroom sink with faucet and two side knobs (no text or symbols)

Line drawing of a bathroom sink with faucet and two side knobs (no text or symbols)
