Carafe K-18865 - Faucet KOHLER - Free user manual and instructions

Brand	Kohler
Model	K-18865
Product Type	Kitchen faucet with filtration option
Required drilling diameter	3.3 cm (1-5/16")
Recommended orientation	45 degrees from the front of the sink
Water connections	Hot water (left) and cold water (right)
Filtration compatibility	Yes, use with water filtration system (recommended Kohler K-200)
Handle type	Lever
Seal gasket	Rubber gasket included
Fiber and metal washers	Included
Threaded ring and screw	Included
Use with instant hot water	Not recommended
Minimum temperature	Above freezing (avoid freezing)
Exposure	Avoid direct sunlight and excessive heat
Plumbing code	Follow all local plumbing and building codes
Care and cleaning	Clean with a soft cloth and soapy water; do not use abrasive products
Safety	Risk of injury or damage: be careful of water lines and electrical cables

Frequently Asked Questions - Carafe K-18865 KOHLER

What drilling diameter is required to install the K-18865 faucet?

The required drilling diameter is 3.3 cm (1-5/16 inches).

Can I use this faucet without a water filtration system?

Yes, but you will need to plug the filtration inlet pipe with a male cap (not included).

What filtration system is recommended for this faucet?

The Kohler K-200 water filtration system is recommended, but other compatible systems may be used.

How to connect the hot and cold water supplies?

Connect hot water on the left and cold water on the right. Tighten all connections and check for leaks.

What precautions should be taken before installation?

Turn off the main water supply, inspect the piping, and follow local plumbing codes. Avoid areas exposed to freezing, sunlight, or heat.

Is this faucet compatible with instant hot water systems?

No, this product is not intended for use with instant hot water systems.

What tools are needed for installation?

You will need an adjustable wrench and a Phillips screwdriver.

How to orient the faucet on the sink?

The faucet has an asymmetrical design; it is recommended to position it at 45 degrees from the front of the sink.

What to do if a leak is detected after installation?

Check the tightness of the connections and retighten if necessary. If the leak persists, repair or replace the seals.

How to maintain the faucet?

Clean with a soft cloth and soapy water. Avoid abrasive products that could damage the finish.

USER MANUAL Carafe K-18865 KOHLER

Kitchen Faucet with Water Filtration Option

Mproduct numbers are for Mexico (i.e. K-12345M)

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

ToolsandMaterials

Adjustable Wrench

Phillips
Screwdriver

BeforeYouBegin

CAUTION: Risk of property damage. Do not install the unit where the temperature may drop below freezing, may be exposed to direct sunlight, or may be exposed to heat.

CAUTION:Riskofpersonalinjuryorpropertydamage.Use caution when installing near water pipes or electrical lines.

NOTE: This faucet is designed for use with a water filtration system. The Kohler K-200 water filtration is recommended.

NOTE: This faucet features an asymmetrical design. Although the faucet body may be positioned at any location around the sink, we recommend the faucet body be located at 45 degrees to the front of the sink.

• Observe all local plumbing and building codes.
  Shut off the main water supply.
  Inspect the tubing for any sign of damage. Replace if necessary.
  □ If possible, install this faucet before installing the sink.
  This product is not for use with instant hot water systems.

BeforeYouBegin(cont.)

If a water filtration system willnotbe connected, a male plug (not provided) will be needed to cap the filtration inlet hose.
Kohler Co. reserves the right to make revisions in the design of.
faucets without notice, as specified in the Price Book.

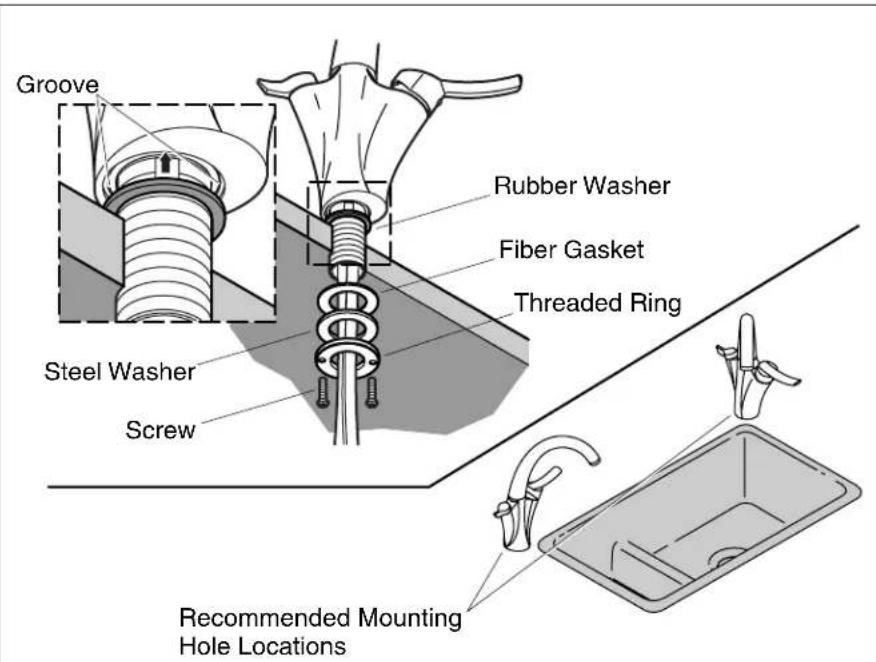

1.InstalltheFaucetBody

Determine the mounting hole location based on the user's preference. We recommend the faucet body be located at 45 degrees to the front of the sink.
Drill a 1 - 5 / 16^ (3.3cm) hole through the mounting surface according to the surface manufacturer's instructions.
Install the rubber washer into the groove in the bottom of the faucet body.
Position the hoses and shank through the mounting hole, then properly position the faucet body.
From under the sink, slide the fiber washer and steel washer onto the shank.
- Thread the threaded ring onto the shank to secure the faucet body to the mounting surface.
- Thread the two screws into the threaded ring, then tighten with a Phillips screwdriver.

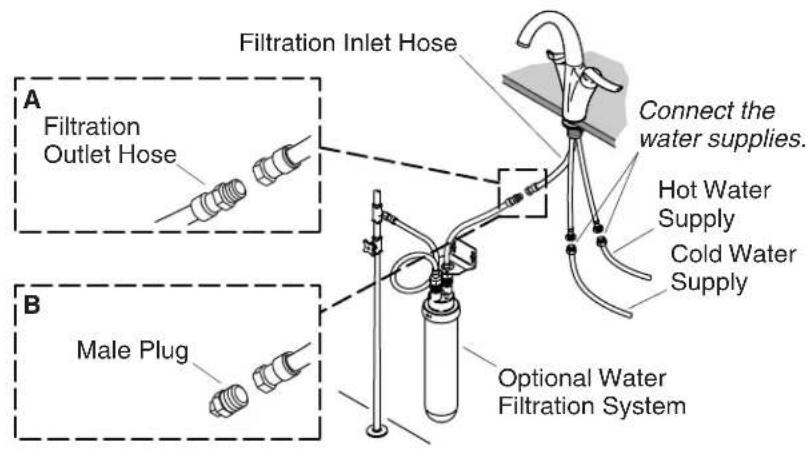

2. ConnecttheSupplies

Forallinstallations:

• Install the sink (if needed) according to the sink manufacturer's instructions.
• Connect the hot and cold water supplies. Left is hot, right is cold.
• Tighten all connections.

NOTE: Although the water filtration system selected may differ from the one illustrated (Kohler Model K-200), the instructions still apply.

• Connect the filtration inlet hose to the filtration outlet hose of the water filtration system. Refer to the installation instructions packed with the water filtration system.
  Turn on the main water supply and check for leaks. Repair as needed.
  Run water through the system for several minutes to remove any air in the system.

Forinstallationswithoutwaterfiltrationsystem(B):

Cap the filtration inlet hose with a male plug.
Turn on the main water supply and check for leaks. Repair as needed.
