USER MANUAL VT6183 Campbell Hausfeld

Operating Instructions

Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage! Retain instructions for future reference.

Portable Air Compressors

Description

Air compressor units are intended to provide compressed air to power pneumatic tools and operate spray guns. The pumps on these units are oil lubricated. A small amount of oil carryover is present in the compressed air stream. Applications requiring air free of oil or water should have the appropriate filter installed. The air compressor unit must be mounted on a solid floor or solid ground. Any other use of these units will void the warranty and the manufacturer will not be responsible for problems or damages resulting from such misuse.

Safety Guidelines

This manual contains information that is very important to know and understand. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the following symbols.

DANGER

Danger indicates

an imminently

hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Warning indicates

a potentially

hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

Caution indicates a

potentially

hazardous situation which, if not avoided, MAY result in minor or moderate injury.

NOTICE

Notice indicates

important

information, that if not followed, may cause damage to equipment.

Unpacking

After unpacking the unit, inspect carefully for any damage that may have occurred during transit. Make sure to tighten fittings, bolts, etc., before putting unit into service.

AWARNING

Do not operate

unit if damaged

during shipping, handling or use. Damage may result in bursting and cause injury or property damage.

General Safety Information

Since the air compressor and other components (material pump, spray guns, filters, lubricators, hoses, etc.) used, make up a high pressure pumping system, the following safety precautions must be observed at all times:

1. Read all manuals included with this product carefully. Be thoroughly familiar with the controls and the proper use of equipment.

1. Follow all local electrical and safety codes as well as in the United States, the National Electrical Codes (NEC) and Occupational Safety and Health Act (OSHA).

2. Only persons well acquainted with these rules of safe operation should be allowed to use the compressor.

3. Keep visitors away and NEVER allow children in the work area.

4. Wear safety glasses and use hearing protection when operating the unit.

5. Do not stand on or use the unit as a handhold.

DANGER

Breathable Air Warning

This compressor/pump is NOT equipped and should NOT be used "as is" to supply breathing quality air. For any application of air for human consumption, you must fit the air compressor/pump with suitable in-line safety and alarm equipment. This additional equipment is necessary to properly filter and purify the air to meet minimal specifications for Grade D breathing as described in Compressed Gas Association Commodity Specification G 7.1 - 1966, OSHA 29 CFR 1910. 134, and/or Canadian Standards Associations (CSA).

DISCLAIMER OF WARRANTIES In the event the compressor is used for the purpose of breathing air application and proper in-line safety and alarm equipment is not simultaneously used, existing warranties are void, and Campbell Hausfeld disclaims any liability whatsoever for any loss, personal injury or damage.

1. Before each use, inspect compressed air system and electrical components for signs of damage, deterioration, weakness or leakage. Repair or replace defective items before using.
2. Check all fasteners at frequent intervals for proper tightness.

AWARNING

Motors, electrical equipment and controls can cause electrical arcs

that will ignite a flammable gas or vapor. Never operate or repair in or near a flammable gas or vapor. Never

REMINDER: Keep your dated proof of purchase for warranty purposes! Attach it to this manual or file it for safekeeping.

General Safety Information (Continued)

store flammable liquids or gases in the vicinity of the compressor.

AWARNING

Never operate compressor without a beltguard. This unit can start automatically without warning. Personal injury or proper could occur from contact parts.

1. Do not wear loose clothing or jewelry that will get caught in the moving parts of the unit.

CAUTION

Compressor parts may be hot even if the unit is stopped.

1. Keep fingers away from a running compressor; fast mo parts will cause inju
2. If the equipment should start to vibrate abnormally, STOP the engine/motor and check immediately for the cause. Vibration is generally a warning of trouble.
3. To reduce fire hazard, keep engine/motor exterior free of oil, solvent, or excessive grease.

AWARNING

An ASME code safety relief valve with

a setting no higher than the pressure vessel's maximum allowable working pressure (M.A.W. P.) MUST be installed in the tank for this compressor. The ASME safety valve must have sufficient flow and pressure ratings to protect the pressurized components from bursting.

ACAUTION

See compressor specification decal

for maximum operating pressure. Do not operate with pressure switch or pilot valves set higher than the maximum operating pressure.

1. Never attempt to adjust ASME safety valve. Keep safety valve free from paint and other accumulations.

ADANGER

Never attempt to repair or modify a tank! Welding, drilling or any other modification will weaken the tank resulting in damage from explosion. Always replace or damaged tanks.

NOTICE

Drain liquid from tank daily.

1. Tanks rust from moisture build-up, which weakens the tank. Make sure to drain tank regularly and inspect periodically for unsafe conditions such as rust formation and corrosion.
2. Fast moving air will stir up dust and debris which may be harmful. Release air slowly when draining moisture or depressurizing the compressor system.

SPRAYING PRECAUTIONS

AWARNING

Do not spray flammable materials in vicinity of open flame or near ignition sources includin unit.

1. Do not smoke when spraying paint, insecticides, or other flammable substances.

2. Use a face mask/respirator when spraying and spray in a well ventilated area to prevent health and fire hazards.

1. Do not direct paint or other sprayed material at the compressor. Locate compressor as far away from the spraying area as possible to minimize overspray accumulation on the compressor.
2. When spraying or cleaning with solvents or toxic chemicals, follow the instructions provided by the chemical manufacturer

AWARNING

Disconnect, tag source, then

release all pressure from the system before attempting to install, service, relocate or perform any maintenance.

Introduction

Refer to Figure 1 to locate the following items.

Pressure switch - Auto/Off Switch - In the "AUTO" position, the compressor shuts off automatically when tank pressure reaches the maximum preset pressure. In the "off" position, the compressor will not operate. This switch should be in the "OFF" position when connecting or disconnecting the power cord from the electrical outlet or when changing air tools. (See Figure 8.) When the pressure switch turns the motor off you will hear air leaking out of the Pressure Switch Unloader Valve for a short time. This releases the air pressure from the discharge tube and allows the compressor to restart easier.

Regulator - The regulator controls the amount of air pressure in the air hose. The air hose is attached at the outlet of the regulator.

ASME Safety Valve - This valve automatically releases air if the tank pressure exceeds the preset maximum.

Discharge tube - This tube carries compressed air from the pump to the check valve. This tube becomes very hot during use.

AWARNING

To avoid the risk of severe burns, never tube.

Check valve - One-way valve that allows air to enter the tank, but

Discharge Tube Check Valve Intake Filter Handle Belt Guard Breather/Dipstick & Oil Fill Hole Safety Valve Regulator Pressure Switch Tank Drain Petcock

Figure 1 (Vertical unit not shown)

Introduction (Continued)

prevents air in the tank from flowing back into the compressor pump.

Handle - Designed to move the compressor.

AWARNING

Never use the handle to lift the

unit completely off the ground.

Belt Guard - Covers the belt, motor pulley and flywheel.

AWARNING

Never

operate compressor without a beltguard. This unit can start automatically without warning. Personal injury or damage could occur from moving parts.

Tank Drain Valve - This valve is located on the bottom of the tank. Use this valve to drain moisture from the tank daily to reduce the risk of corrosion.

Reduce tank pressure below 10 psi, then drain moisture from tank daily to avoid tank corrosion. Drain moisture from tank(s) by opening the drain valve located underneath the tank.

Tank Pressure Gauge - Indicates amount of air pressure stored in tank.

Hose Pressure Gauge - Indicates amount of air pressure in hose used to operate tools. This pressure is increased or decreased by the regulator.

Assembly

HORIZONTAL TANK UNITS ONLY

HANDLE

1. Remove the handle screw from the tank baseplate, if preinstalled.
2. Insert handle into both sides of tank baseplate. Squeeze handle to fit into special openings in baseplate (See Figure 2).

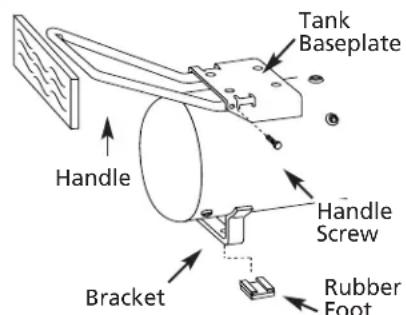

Tank Baseplate Handle Handle Screw Bracket Rubber Foot

Figure 2

1. Place a short piece of wood against end of handle and tap with a mallet or hammer until the hole in the handle lines up with the hole in the baseplate.
2. Insert and tighten the handle screw into the hole in the baseplate and through the handle. Make sure the screw goes through the handle.

WHEEL ASSEMBLY

The items marked with an asterisk (*) in Figure 3 were shipped loose with the unit. Assemble as follows:

1. Insert shoulder bolt through wheel hub with the bolt head on the opposite side of the protruding hub section.
2. For the 8 inch diameter wheels, insert the shoulder bolt in the lowest hole of the tank axle iron and tightly secure with locknut.
3. For the 10 inch diameter wheels, insert the shoulder bolt in the upper hole in the tank axle iron and tightly secure with the locknut. Repeat this step on the opposite side.

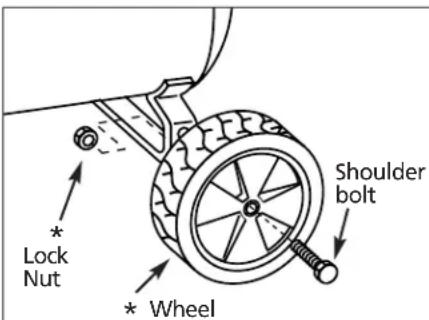

Lock Nut * Wheel Shoulder bolt

Figure 3 - Wheel Assembly

When assembled, the tank must sit level or slope slightly towards the tank drain valve to allow tank to drain properly.

VERTICAL TANK UNITS ONLY

HANDLE ASSEMBLY

Insert four handle screws through holes in handle and tighten to tank baseplate (See Figure 4).

FOOT ASSEMBLY

The items marked with an asterisk (*) were shipped loose with the unit (See Figure 5).

1. Tilt unit to allow access to front foot and secure properly to ensure unit does not tip over.

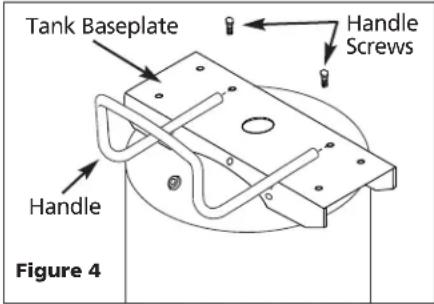

Tank Baseplate Handle Handle Screws Figure 4

1. Insert bolt through foot and bracket. The foot should be on the lower side of bracket.
2. Tightly secure with the lock nut. Repeat on opposite side.

WHEEL ASSEMBLY

The items marked with an asterisk (*) were shipped loose with the unit (See Figure 5).

1. Insert shoulder bolt through wheel hub. The bolt hex head should be on the opposite side of protruding hub center.
2. Feed the shoulder bolt through the hole on the tank axle iron and tightly secure with the locknut. Repeat on the opposite side.

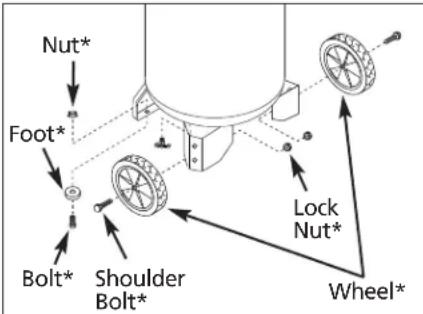

Nut* Foot* Bolt* Shoulder Bolt* Lock Nut* Wheel*

Figure 5 - Foot and Wheel Assembly

LUBRICATION

ACAUTION

THIS UNIT IS SHIPPED WITHOUT

OIL! Follow lubrication instructions before operating compressor.

Ensure oil drain extension and cap has been installed (if included) then remove the dipstick breather (See Figure 6) and fill pump oil according to Chart 1.

OIL DRAIN EXTENSION

Some models include an oil drain extension and cap (found with the owner's manual). Install the oil drain extension and cap before adding oil to the pump. To avoid oil leaks, it is highly recommended to apply PTFE thread sealant tape or paste type sealant to the threads on each end of the oil drain extension. Screw the cap onto

one end of Assembly (Continued)

the extension. Remove the oil drain plug from the base of the pump and install the oil drain extension (See Figure 6).

See specification label on air tank for pump model number and refer to Chart 1 for the proper oil capacity. Use SAE 30 industrial grade air compressor oil or full synthetic motor oil like Mobil 1 10W-30.

Do not use regular automotive oil

such as 10W-30. Additives in regular motor oil can cause valve deposits and reduce pump life. For maximum pump life, drain and replace oil after the first hour of run time. Proper oil fill level is illustrated in Figure 6.

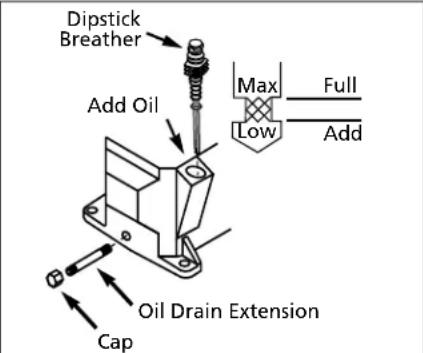

Dipstick Breather Add Oil Max Full Low Add Oil Drain Extension Cap

Figure 6

Pump ModelApprox. Oil Capacity

VS260000KB 6 oz

VT470000KB 12 oz

VT470200KB 11.5 oz

TC100000KB 12 oz

Chart 1

WIRING

Local electrical wiring codes differ from area to area. Source wiring, plug and protector must be rated for at least the amperage and voltage indicated on your motor nameplate, and meet all electrical codes for this minimum. Use a slow blow fuse type T or a circuit breaker.

ACAUTION

Overheating, short circuiting and fire damage will result from inadequate wiring.

NOTE: 120 volt, 15 amp units can be operated on a 120 volt 15 amp circuit under the following conditions:

1. No other electrical appliances or

lights are connected to the same branch circuit.

1. Voltage supply is normal.
2. Circuit is equipped with a 15 amp circuit breaker or a 15 amp slow blow fuse type T (For Canada use Type D).

If the above conditions cannot be met or if nuisance tripping of the current protection device occurs, it may be necessary to operate the compressor from a 120 volt 20 amp circuit. Some models convert to 240 volt operation, see DUAL VOLTAGE MOTOR.

GROUNDING INSTRUCTIONS

1. This product must be grounded. In the event of an electric short circuit, grounding reduces the risk of electrical shock by providing an escape wire for the electric current. Unit is equipped with a cord that has a grounding prong. It will fit one of the common outlet types shown in Figure 7. If plug will not fit in the desired outlet, have the plug or the outlet replaced by a qualified electrician.

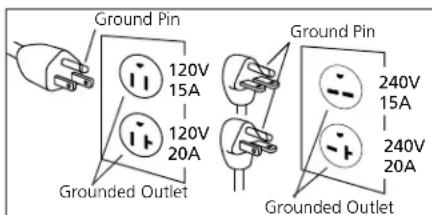

Ground Pin 120V 15A 120V 20A Grounded Outlet Ground Pin 240V 15A 240V 20A Grounded Outlet

Figure 7

DANGER

Improper use of grounding plug can result in a risk of electrical shock.

NOTE: Do not use grounding adapter.

1. If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal. The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire.
2. Check with a qualified electrician or serviceman if the grounding instructions are not completely understood, or if in doubt as to whether the product is properly

grounded. Do not modify the plug provided; if it will not fit the outlet, have the proper outlet installed by a qualified electrician.

PLUGS AND RECEPTACLES

1. If the plug on the electrical cord of the unit is unfamiliar to you or will not fit your particular receptacle, Figure 7 will help you understand why by illustrating the different plugs and the voltages they are to be used with.

2. Make sure that the product is connected to an outlet having the same configuration as the plug.

3. The receptacles must be connected to circuits rated to carry at least the voltage and amperages shown.
4. NEVER have a receptacle replaced with one of a higher amperage before determining the change can be made according to all electrical codes affecting your particular area. The installation should be made by a qualified electrician. If the products must be reconnected for use on different types of circuits, the reconnection should be made by qualified personnel.

DUAL VOLTAGE MOTORS (SOME MODELS)

Dual voltage motors may be connected for either 120 volts or 240 volts. By comparing the plug on the cord with the receptacles shown in Figure 7, you can determine for which voltage your compressor is factory wired. Also check motor decal to change from low voltage to high voltage.

AWARNING All wiring must be performed by a qualified electrician.

To change connections for alternate voltage:

1. Disconnect cord from power source
2. Remove motor terminal cover.
3. Find connection diagram on back side of the cover or on motor nameplate and reconnect to desired voltage as indicated on diagram.

WARNING If you do not understand this wiring diagram you must find a qualified electrician that does understand wiring diagrams.

1. Change plug to match voltage and current requirements.

Assembly (Continued)

AWARNING

When converting to an alternate

voltage, be sure the green ground wire of the cord connects to the ground pin of the plug and to the metal body of the pressure switch.

Operation

START-UP

NOTICE

This compressor pump must be

filled with oil before startup. See lubrication section.

ACAUTION

Do not attach air tools to open end

of the hose until start-up is completed and the unit checks OK.

1. Remove the dipstick breather and fill pump to the proper oil level. See Lubrication Section.
2. Open tank drain valve.
3. Turn pressure switch lever or knob to OFF position and plug in power cord.
4. Turn pressure switch lever or knob to AUTO position and run unit for 30 minutes to break in the pump parts (See Figure 8).

Knob Auto/Off
Figure 8

Lever - Off

Lever - Auto

1. Turn regulator knob fully counterclockwise. Compressor will build to maximum preset pressure and shut off.
2. Turn regulator knob clockwise to cause air to bleed off. Compressor will restart at preset pressure.
3. Turn pressure switch lever or knob to OFF position and unplug powercord. Slowly turn regulator knob clockwise to allow all air pressure to be released. Do not proceed to the next step until the tank pressure reaches zero (0).
4. Attach hose, then add chuck or other tool to open end of hose. Plug in powercord. Turn pressure switch lever to AUTO position. When full pressure is reached turn

regulator knob clockwise until desired outlet pressure is achieved.

1. After use, turn pressure switch lever or knob to the OFF position.

2. If compressor is not used for a long time period, bleed air from line and use drain valve to drain water from the tank. Then, follow the maintenance schedule.

NOTE: Electric models are equipped with a pressure switch that automatically turns the motor OFF when the tank pressure reaches a preset level. After air is used from the tank and drops to a preset low level, the pressure switch automatically turns the motor back on.

Maintenance

AWARNING

Disconnect, tag and lock out power source, then release all pressure from the system before

attempting to install, service, relocate or perform any maintenance.

All repairs should be performed by an authorized service representative.

Perform the following test to verify free operation of the safety valve weekly and follow maintenance schedule below.

1. Pull ring on safety valve and allow the ring to snap back to normal position (See Figure 9). This valve automatically releases air if the tank pressure exceeds the preset maximum.

ACAUTION A large amount of fast moving air will be release if the safety valve is actuated with air pressure in the tank.

ADANGER Do not attempt to tamper with this valve. This valve should be checked occasionally. If air leaks after the ring has been released, or the valve is stuck and cannot be actuated by the ring, the safety valve must be replaced.

1. With motor OFF and unplugged, clean debris from motor, flywheel, tank, air lines and pump cooling fins.

Figure 9

MOISTURE IN COMPRESSED AIR

Moisture in compressed air will form into droplets as it comes from an air compressor pump. When humidity is high or when a compressor is in continuous use for an extended period of time, this moisture will collect in the tank. When using a paint spray or sandblast gun, this water will be carried from the tank through the hose, and out of the gun as droplets mixed with the spray material.

Important: This condensation will cause water spots in a paint job, especially when spraying other than water based paints. If sandblasting, it will cause the sand to cake and clog the gun, rendering it ineffective.

A filter or air dryer in the air line, located as near to the gun as possible, will help eliminate moisture.

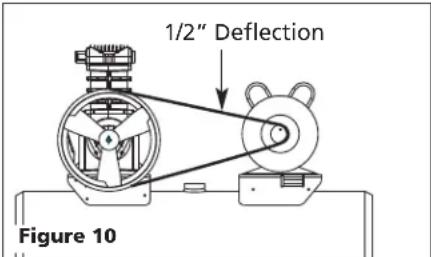

1/2" Deflection Figure 10

DRIVE BELT

Belts will stretch in normal use. Properly adjusted, a 5-pound pressure applied to the belt between the motor pulley and the pump will deflect the belt about 1/2" (See Figure 10).

TO ADJUST DRIVE BELT:

1. Remove belt guard.
2. Loosen the four fasteners holding the motor to the baseplate.
3. Shift the motor in the proper direction. The belt must be properly aligned when adjustment is made.
4. Adjust flywheel or motor pulley so that the belt runs straight.
5. If necessary, use a gear puller to move the pulley on the motor shaft. Tighten setscrew after pulley is positioned.
6. Attach belt guard.

STORAGE

1. When not in use, hose and compressor should be stored in a cool dry place.

2. Tanks should be drained of moisture and hose should be disconnected and hung with open ends down to allow any moisture to drain.

3. Protect the electrical cord from possible damage by winding the cord loosely around the handle of the unit or coiling the cord up.

TORQUE REQUIREMENTS (in/lbs.) Compressor Bearing Model Head Bolts Cap Bolts

VS 100-125	50-120
VT	225-300	50-120
TC 225-300	50-120

Chart 3

Technical Support

For technical support regarding operation or repair of this product, please call 1-800-543-6400.

MAINTENANCE SCHEDULE

Operation Daily Weekly Monthly 3 Months

Check Oil Level ●
Drain Tank ●
Check Air Filter ●
Check Safety Valve ●
Clean Unit ●
Check Belt Tightness ●
Change Oil ●

Chart 2

Troubleshooting Chart

Symptom	Possible Cause(s)	Corrective Action
Low discharge pressure	1. Air demand exceeds pump capacity2. Air leaks3. Restricted air intake4. Blown gaskets5. Leaking or damaged valves	1. Reduce air demand or use a compressor with more capacity.2. Listen for escaping air. Apply soap solution to all fittings and connections. Bubbles will appear at points of leakage. Tighten or replace leaking fittings or connections.3. Clean the air filter element.4. Replace any gaskets proven faulty on inspection.5. Remove head and inspect for valve breakage, misaligned valves, damaged valve seats, etc. Replace defective parts and reassemble.ACAUTION Install a new head gasket each time the head is removed
Pump overheating causes air filter to melt	1. Insulating gasket between filter and head is missing2. Broken valves/blown gasket	1. Install gasket.2. Replace valves or install new gasket.
Excessive noise (knocking)	1. Loose motor or compressor pulley2. Lack of oil in crankcase3. Worn connecting rod4. Worn piston pin bores5. Piston hitting the valve plate	1. Loose motor or compressor pulleys are a very common cause of compressors knocking. Tighten pulley clamp bolts and setscrews.2. Check for proper oil level; if low, check for possible damage to bearings. Dirty oil can cause excessive wear.3. Replace connecting rod. Maintain oil level and change oil more frequently.4. Remove piston assemblies from the compressor and inspect for excess wear. Replace excessively worn piston pin or pistons, as required. Maintain oil level and change oil more frequently.5. Remove the compressor head and valve plate and inspect for carbon deposits or other foreign matter on top of piston.

Troubleshooting Chart

Symptom Possible Cause(s) Corrective Action
Excessive noise(knocking)Continued	6. Noisy check valve in compressor system	Replace head and valve plate using new gasket. See Lubrication section for recommended oil.6. Replace.ADANGERDo not disassemble check valve with air pressure in tank
Large quantity of oil in the discharge airNOTE:In an oil lubricated compressor there will always be a small amount of oil in the air stream.	1. Worn piston rings2. Compressor air intake restricted3. Excessive oil in compressor4. Wrong oil viscosity	1. Replace with new rings. Maintain oil level and change oil more frequently.2. Clean filter. Check for other restrictions in the intake system.3. Drain down to full level.4. Use Mobil 1® 10W-30
Water in discharge air/tank	1. Normal operation. The amount of water increases with humid weather	1. Drain tank more often. At least daily.2. Add a filter to reduce the amount of water in the air line.
Motor hums and runs slowly or not at all	1. Use of extension cord2. Malfunctioning check valve or unloader valve3. Low voltage4. Malfunctioning pressure switch - contacts will not close	1. Do not use an extension cord. Use longer air hose with larger diameter.2. Replace check valve, unloader valve or pressure switch.ADANGERDo not disassemble check valve with air pressure in tank3. Check with voltmeter, check reset switch on motor. If reset switch trips repeatedly, find and correct the cause. See next item.4. Repair or replace pressure switch.
Reset mechanism cuts out repeatedly or fuses blow repeatedly	1. Too many devices on same circuit2. Incorrect fuse size or circuit breaker3. Malfunctioning check valve4. Pressure switch set too high5. Loose wiring6. Malfunctioning motor	1. Limit the circuit to the use of only the air compressor.2. Be sure that fuses or circuit breakers are rated properly.3. Replace check valve.ADANGERDo not disassemble check valve with air pressure in tank4. Adjust or replace.5. Check all electrical connections.6. Replace motor.
Tank does not hold pressure when compressors off and the shut off valve is closed	1. Worn check valve2. Check all connections and fittings for leaks3. Check tank for cracks or pin holes	1. Replace check valve.ADANGERDo not disassemble check valve with air pressure in tank2. Tighten.3. Replace tank. Never repair a damaged tank.
Pressure switch continuously blows air out the unloader valve	1. Malfunctioning check valve	1. Replace the check valve if the unloader valve bleeds off constantly.ADANGERDo not disassemble check valve with air pressure in tank
Pressure switch does not release air when the unit shuts off	1. Malfunctioning unloader valve on pressure switch	1. Replace the pressure switch if it does not release the pressure for a short period of time when the unit shuts off.ADANGERDo not disassemble pressure switch with air pressure in tank
Excessive vibration	1. Loose fasteners2. Belt needs replaced3. Belt alignment	1. Tighten.2. Replace with correct size.3. Align flywheel and pulley.

Limited Warranty

1. DURATION: From the date of purchase by the original purchaser as follows: One Year, Two Years, Three Years, Four Years, or Five Years as indicated on product specification label.

2. WHO GIVES THIS WARRANTY (WARRANTOR):

Campbell Hausfeld / Scott Fetzer Company, 100 Production Drive, Harrison, Ohio, 45030, Telephone: [phone]

1. WHO RECEIVES THIS WARRANTY (PURCHASER): The original purchaser (other than for purposes of resale) of the Campbell Hausfeld compressor.

2. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: Any Campbell Hausfeld air compressor.

3. WHAT IS COVERED UNDER THIS WARRANTY: Parts and Labor to remedy substantial defects due to material and workmanship during the first year of ownership with the exceptions noted below. Parts only to remedy substantial defects due to material and workmanship during remaining term of coverage with exceptions noted below.

4. WHAT IS NOT COVERED UNDER THIS WARRANTY:

A. Implied warranties, including those of merchantability and FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED FROM THE DATE OF ORIGINAL PURCHASE AS STATED IN THE DURATION. If the compressor is used for commercial, industrial or rental purposes, the warranty will apply for ninety (90) days from the date of purchase. Two-stage compressors are not limited to a ninety (90) day warranty when used in commercial or industrial applications. Some States do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you

B. ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE, OR MALFUNCTION OF THE CAMPBELL HAUSFELD PRODUCT. Some States do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

C. Any failure that results from an accident, purchaser's abuse, neglect or failure to operate products in accordance with instructions provided in the owner's manual(s) supplied with compressor.

D. Pre-delivery service, i.e. assembly, oil or lubricants, and adjustment.

E. Items or service that is normally required to maintain the product, i.e. lubricants, filters and gaskets, etc.

F. Gasoline engines and components are expressly excluded from coverage under this limited warranty. The Purchaser must comply with the warranty given by the engine manufacturer which is supplied with the product

G. Additional items not covered under this warranty:

1. Excluded items pertaining to All Compressors

a. Any component damaged in shipment or any failure caused by installing or operating unit under conditions not in accordance with installation and operation guidelines or damaged by contact with tools or surroundings.

b. Pump or valve failure caused by rain, excessive humidity, corrosive environments or other contaminants.

c. Cosmetic defects that do not interfere with compressor functionality.

d. Rusted tanks, including but not limited to rust due to improper drainage or corrosive environments.

e. The following components are considered normal wear items and are not covered after the first year of ownership.

Electric motor, check valve, pressure switch, regulator, pressure gauges, hose, tubing, pipe, fittings and couplers, screws, nuts, hardware items, belts, pulleys, flywheel, air filter and housing, gaskets, seals, oil leaks, air leaks, oil consumption or usage, piston rings.

f. Tank drain valves.

g. Damage due to incorrect voltage or improper wiring.

h. Other items not listed but considered general wear parts.

i. Pressure switches, air governors, load/unload devices, throttle control devices and safety valves modified from factory settings.

j. Damage from inadequate filter maintenance.

k. Induction motors operated with electricity produced by a generator.

1. Excluded items specific to Lubricated Compressors:

a. Pump wear or valve damage caused by using oil not specified.

b. Pump wear or damage caused by any oil contamination.

c. Pump wear or damage caused by failure to follow proper oil maintenance guidelines, operation below proper oil level or operation without oil.

H. Labor, service call, or transportation charges after the first year of ownership of stationary compressors. Stationary compressors are defined as not including a handle or wheels.

1. RESPONSIBILITIES OF WARRANTOR UNDER THIS WARRANTY: Repair or replace, at Warrantor's option, compressor or component which is defective, has malfunctioned and/or failed to conform within duration of the warranty period.

2. RESPONSIBILITIES OF PURCHASER UNDER THIS WARRANTY:

A. Provide dated proof of purchase and maintenance records.

B. Portable compressors or components must be delivered or shipped to the nearest Campbell Hausfeld Authorized Service Center. Freight costs, if any, must be borne by the purchaser.

C. Use reasonable care in the operation and maintenance of the products as described in the owner's manual(s).

D. Repairs requiring overtime, weekend rates, or anything beyond the standard manufacturer warranty repair labor reimbursement rate.

E. Time required for any security checks, safety training, or similar for service personnel to gain access to facility.

F. Location of unit must have adequate clearance for service personnel to perform repairs and easily accessible.

1. WHEN WARRANTOR WILL PERFORM REPAIR OR REPLACEMENT UNDER THIS WARRANTY: Repair or replacement will be scheduled and serviced according to the normal work flow at the servicing location, and depending on the availability of replacement parts.

This Limited Warranty applies in the U.S., Canada and Mexico only and gives you specific legal rights. You may also have other rights which vary from State to State or country to country.
