USER MANUAL Sentry K-7500 KOHLER

Self-Closing and Single Control Faucets

K-7500 K-7504

Line drawing of a faucet with handle and flange (no text or symbols)

Line drawing of a faucet with handle and flange (no text or symbols)

K-7510 K-7520

Line drawing of a bathroom sink with faucet and toilet (no text or symbols)

K-7524

Line drawing of a mechanical component with a flanged base and attached lever (no text or symbols)

M product numbers are for Mexico (i.e. K-12345M)

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Tools and Materials

Adjustable Wrench

Blade Screwdriver

Phillips Screwdriver

Plumbers Putty

Before You Begin

□ Observe all local plumbing and building codes.
□ Shut off the main water supply.
☐ Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified in the Price Book.

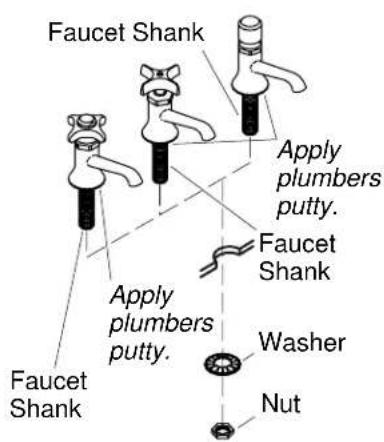

Faucet Shank Apply plumbers putty. Faucet Shank Apply plumbers putty. Washer Nut

1. Faucet Installation

□ When using hot and cold faucets, hot (H) is on the left and cold (C) is on the right.
□ Apply plumbers putty or other sealant according to the manufacturer's instructions to the underside of the faucet. Then place through the hole.
□ Align faucet spout into basin area.
□ From the underside, slip washer onto faucet shank and tighten nut securely.

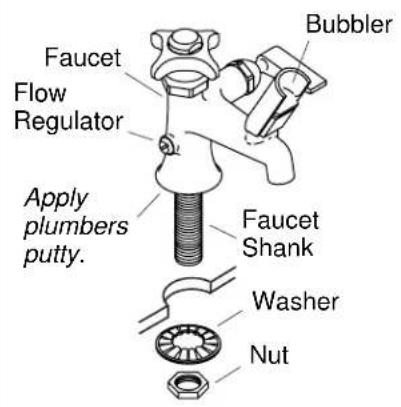

Bubbler Faucet Flow Regulator Apply plumbers putty. Faucet Shank Washer Nut

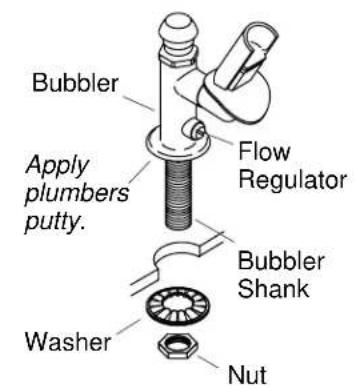

Bubbler Apply plumbers putty. Flow Regulator Bubbler Shank Washer Nut

2. Bubbler Installations

NOTE: Both models are for cold water only. The flow regulator on either model controls the water flow through the bubbler.

For K-7520 and K-7524 Models

□ Apply plumbers putty or other sealant according to the manufacturer's instructions to the underside of the faucet or bubbler. Then place through the hole.
□ Align faucet or bubbler spout into basin area.
□ From the underside, slip washer onto faucet or bubbler shank and tighten nut securely.

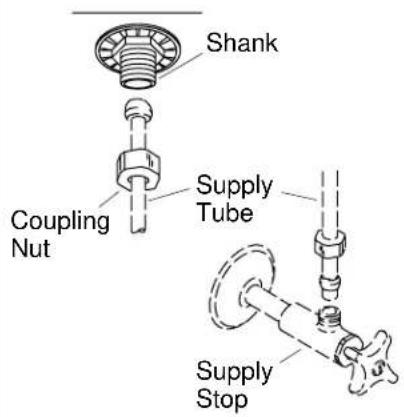

Shank Coupling Nut Supply Tube Supply Stop

Line drawing of a faucet with handle and flange (no text or symbols)

3. Supply Connections

☐ Ground joint: slip coupling nut onto supply tube.
□ Carefully position round end of supply tube squarely to inlet of faucet or bubbler shank and supply stop.
□ Tighten all nuts.

4. Installation Checkout

☐ Turn on the main water supply and check for leaks. Repair as needed.
☐ Turn on hot and cold faucet handles and run water for about a minute to remove debris.
□ Turn faucet handles off.

Line drawing of a faucet with handle and top component (no text or symbols)

Line drawing of a faucet with handle and flange (no text or symbols)
