USER MANUAL EBC 10V Essentiel B

General instructions

• This kitchen scale is for household use only. Any other use (medical or commercial) is excluded.
• Always place the scale on a horizontal, flat and stable surface. Do not place the scale on the edge of a table or worktop.
• Place the container or other food to be weighed in the centre of the platform.
• The scale is a high-precision electronic weighing appliance: use it with care. Do not try to take it apart and do not subject it to strong vibrations and shocks.
• Do not press on it or drop the scale.
• Do not store objects on the appliance.
• Do not expose the device to direct sunlight. Keep it away from any source of heat and moisture.
• Make sure that children do not play with the appliance.
• Do not overload the scale (maximum capacity: 10kg ).
• If the result is displayed incorrectly, check that the batteries and contact points are touching.

Replace the batteries if the scale has not been used for a long time, then try again.

• Do not use the kitchen scale in places where magnetic fields could interfere with the information transmitted by the scale.
• When moving the scale to a place with a temperature difference of more than 10^ , leave it to rest for at least two hours before switching it on.
• Never submerge the appliance in water or any other liquid and do not expose it to splashing water.
• Make sure that no liquids get inside the scale.

Battery recycling

• Do not dispose of batteries in the household waste.
• To protect the environment, dispose of batteries in accordance with applicable regulations.
• Drop them in your nearest battery container or return them to your store.

• Do not recharge the batteries, dismantle them or throw them into a fire.

• Do not expose them to high temperatures or direct sunlight.

• Do not incinerate them.

your product

艺

Technical features

Maximum capacity of the scale: 10kg
Graduation: 1 g
Minimum weight detected: 5g
- Units of measurement: g, lb:oz, oz, ml
- Manual or automatic shutdown after 2 minutes of non-use
- Converting liquids
Overload indicator
- Low/dead battery indicator
- Unstable weight indicator
- Tare function to weigh successive ingredients
Non-slip feet
- Works with 2 × 1.5V LR03/AAA batteries (supplied)
- 50 × 22mm LED display

Using the appliance

Inserting/replacing batteries

1. Remove the battery compartment cover on the back of the scale.
2. Insert 2 × 1.5 V LR03/AAA batteries (supplied) with the positive and negative poles in the proper direction as indicated in the compartment (see figure below).
3. Put the cover back on.

COMMENTS:

• Use only the battery type specified in this manual.
• Replace the batteries when they are dead or if they leak.
• Remove the batteries if the scale is not to be used for a prolonged period.

Turning the scale on

To turn on the scale, first place it on a flat, stable surface.

Press the centre of the scale until it lights up.

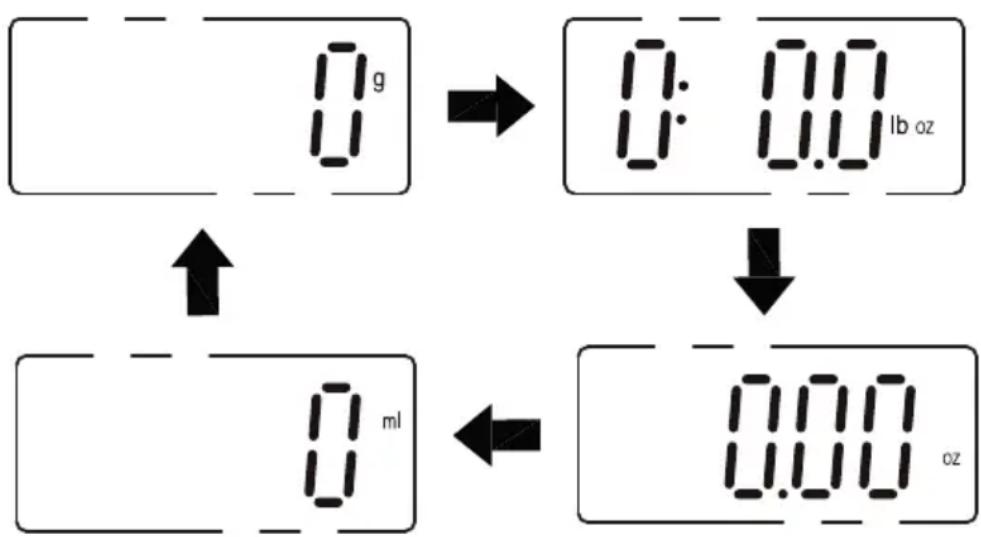

Choose the unit of measurement

• By default, the unit of measurement is grams (g).
• Select the unit of measurement by pressing the "UNIT" button one or more times. It switches from grams (g) to solid ounces (lb:oz) followed by fluid ounces (oz) and then millilitres (ml) before returning to grams (g).

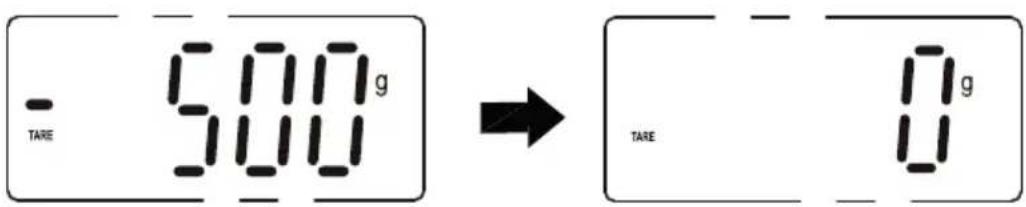

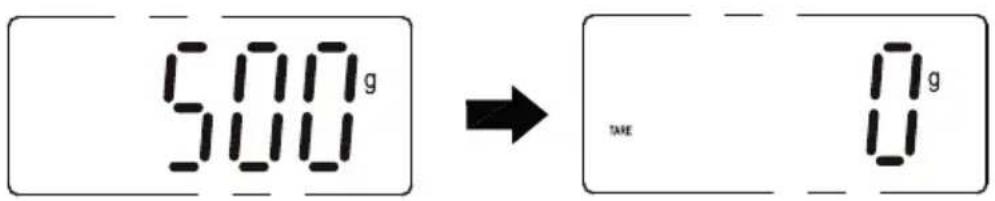

Taring/resetting the screen

• When the weight of the food is displayed on the screen, press the "OFF/TARE" so that the display returns to zero. This function is useful for weighing a number of ingredients in sequence.

• If you add another ingredient to the scale, its weight is displayed independently of the previous weight.

• Press the "OFF/TARE" button so that the display returns to zero. This function is useful for weighing a number of ingredients in sequence.
• If you remove all the ingredients, the display shows a negative weight (with the "-" sign). Press the "OFF/TARE" button so that the display returns to zero.

Switching off the scale

• You can turn off the scale by pressing and holding the "" for 2 seconds.
• Note that the scale switches off automatically after 2 minutes of non-use, including when a container or ingredients are placed on it.

艺

Low/dead battery indicator

• When the battery is low, the following indication appears on the screen to let you know that you will soon need to replace the battery:

• When the battery is low and needs to be replaced, the following indication is displayed on the screen:

Refer to the "Inserting/removing the battery" section to replace it.

Unstable weight indicator

• If the weight on the scale is not stable or if the scale is not placed on a hard, flat and stable surface, the following indication appears on the display:

• Place the scale on a flat, level and stable surface, and try again.

Overload indicator

• The maximum weight supported by the scale is 10,000g ( 10kg ). If the scale is overloaded, the following message appears on the screen:

• Remove the food or container to prevent any malfunction. If you want to weigh large quantities of ingredients, weigh them in batches.

Cleaning and maintenance

• Wipe the scale platform with a soft damp sponge and a little washing-up liquid. Be careful not to let water or other liquids get inside the appliance, especially in the battery compartment. Then dry with a soft cloth.
• Do not use abrasive detergents or scouring sponge for cleaning as this will damage the coating.
• Do not immerse the appliance in water or any other liquid.

Characteristicas techniques

All information, designs, drawings and pictures in this document are the property of SOURCING & CREATION. SOURCING & CREATION reserves all rights to its brands, designs and information. Any copy and reproduction through any means shall be deemed and considered as counterfeiting.

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance at its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.
