USER MANUAL CX8411D Atag

Line drawing of a kitchen oven with a control panel and handle (no text or symbols)

GEBRUIKSAANWIJZING

COMBIMAGNETRON

NL

CX86xxD

CX84xxD

QR code image with no surrounding text or symbols

Technical diagram of a device casing with numbered components for identification

Diagram illustrating the installation and connection of a kitchen oven, showing steps from heating to cooling.

Pure diagram of a mechanical or electrical component with internal flow arrows and no text or symbols

Diagram illustrating the steps of a kitchen appliance with labeled parts including oven, mouse, and mouse assembly.

Diagram showing a washing machine with a hand holding a screwdriver, and its cross-section view (no text or symbols)

Three-step diagram showing a kitchen oven with a door, a tray with a bag, and a hand placing a button into a container (no text or symbols present)

Technical line drawings of a microwave oven and its internal structure, showing heat transfer and cooling mechanism (no text or symbols)

Three-panel line drawing showing a washing machine interior with a hand holding a tool, and its side view of the door (no text or symbols)

Line drawing of a kitchen oven with a control panel and handle (no text or symbols)

MODED'EMPLOI

FOUR À MICRO-ONDES COMBINÉ

FR

CX86xxD

CX84xxD

Tables des matières

QR code image with no surrounding text or symbols

Interrupteursurlaportedufour

Diagram illustrating the installation and connection of a washing machine, showing steps from oven to outlet with a close-up view.

Diagram of a mechanical or electrical component with directional arrows and a central circular feature (no text or symbols)

Diagram illustrating the steps of a washing machine with labeled components including inlet, cable, and mouse positioning.

Diagram showing a washing machine with a circular vent and a hand using a tool to press down the lid (no text or symbols present)

Three-step diagram showing a kitchen oven with a door, a tray with a bag, and a hand placing a button into the interior (no text or symbols)

Technical line drawings of a microwave oven and its internal structure, showing heat transfer and cooling mechanism (no text or symbols)

Technical line drawings of a kitchen appliance showing internal components and a hand holding a tool (no text or symbols)

Line drawing of a kitchen oven with a control panel and handle (no text or symbols)

GEBRAUCHSANWEISUNG

KOMBINIERTER MIKROWELLENHERD

DE

CX86xxD

CX84xxD

QR code image with no surrounding text or symbols

Diagram showing four steps of a kitchen appliance installation: opening, cooling, pouring into a pipe, and ending with a cable.

Diagram of a mechanical or electrical component with directional arrows and a central circular feature (no text or symbols)

KONVENTIONELLEPRODUKTE-GEFROREN

			[KSWH]	260/45	Pom 25-35*1260-210/360
Pommes frites, 2 Ebenen	60	2+4		200-210	30-40*
	45	1+3			40-50*
			[4ZZS]	260/45	Hüh 20-30*1210-220/360
Fischstäbchen	60	3	[TTSH]	210-220	25-35*
		245			20-30*
Lasagne, 400 g	60/45	2	[TSHC]	210-220**	40-50

Diagram illustrating the steps of a washing machine with labeled components including inlet, outlet, cable, and mouse.

Diagram showing a washing machine with internal components and a hand using a tool to clean or adjust the interior (no text or symbols present)

Three-step diagram showing a kitchen oven with a door, a tray with a bag, and a hand placing a button into the interior (no text or symbols)

Technical line drawings of a microwave oven and its internal structure, showing heat transfer and cooling mechanism (no text or symbols)

Technical line drawing showing three views of a kitchen appliance: front view, interior panel with tool, and side view with hand cleaning (no text or symbols)

Line drawing of a kitchen appliance with a handle and top panel (no text or symbols)

INSTRUCTIONSFORUSE

COMBINED MICROWAVE OVEN

EN

CX86xxD

CX84xxD

Contents

	3Introduction......	31Endofco
	4Safetyprecautions......	32Generals
Safe use of the microwave oven ......	5	35Wi-Fimar
	7Otherimportantsaetywarnings......	35Using Wi-
	9Conneclife.the oven remote control......	35
	10Appliancedescription......	37Generalti
	10Appliance equipment ......	38Cooking t
	12Cooking with a food probe......	45
	14Beforefirstuse......	48Cleaning
Switching on for the first time ......	14	49Cleaning
	16Using the oven and cleaning the wire guides ....	49
	16Home menu ......	50Replacing
	18Manual cooking mode ......	51Troubles
	21Cooking with Microwaves ......	51Troublesh

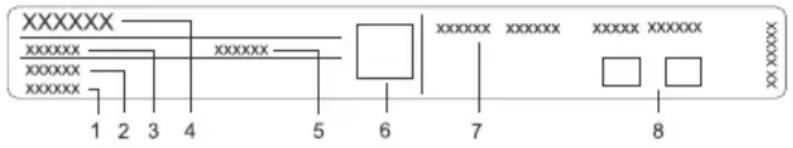

Duration of operation - Time function ......	23 Label – appliance information ......	52
Plus menu - additional settings ......	23	53Compliant
	27Auto programs ......	54Environn
	28Extra functions ......	55Cookingl
	30Startingthecookingprocess......

We thank you for your trust and the purchase of our appliance.

This detailed instruction manual is supplied to make the use of this product easier. The instructions should allow you to learn about your new appliance as quickly as possible.

Make sure you have received an undamaged appliance. If you do find transport damage, please contact the seller from which you purchased the appliance, or the regional warehouse from which it was supplied. The telephone number can be found on the invoice or on the delivery note.

Carefully read the instructions for use before connecting the appliance. Repair or any warranty claim resulting from incorrect connection or use of the appliance shall not be covered by the warranty.


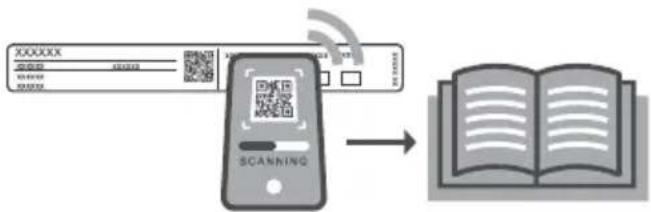

For more detailed instructions and tips scan the QR code on the rating plate.

The following symbols are used throughout the manual and they have the following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning –general danger

ConnectLife

Connect your oven to a Wi-Fi network and the ConnectLife app to access all its functions, including advanced features and remote control.

IMPORTANTSAFETYPRECAUTIONS-CAREFULLYREADTHE INSTRUCTION SANDSAVETHEMFORFUTUREREFERENCE.

The appliance may only be connected to the power mains by an authorized service technician or expert. Tampering with the appliance or nonprofessional repair thereof may result in risk of severe injury or damage to the product.

Appliance must be connected to fixed wiring which has incorporated means of disconnection. Fixed wiring must be made in accordance with the wiring rules.

For the UK market, fixed wiring is required if the device has more than 3 kW. Only the service department should connect the appliance.

For stationary appliances permanently connected to the fixed wiring, compliance with this requirement is deemed to be met if the disconnection instruction incorporated into the fixed wiring complies with AS/NZS 3000 (Australia only).

The appliance must not be installed behind a decorative door in order to avoid overheating.

WARNING: A damaged power cord or connector must only be replaced by the manufacturer, an authorized service technician, or a qualified professional. Improper handling may result in electric shock, fire, or serious injury.

This appliance can be used by children aged 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way, and if they understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

WARNING: The appliance and its accessible parts become hot during use; avoid contact with heating elements. Children under 8 years of age must be kept away unless continuously supervised.

The appliance is not intended to be controlled by external timers or separate remote control system.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass/ the glass of hinged lids of the hob (as appropriate), since they can scratch the surface, which may result in shattering of the glass.

Do not use steam cleaners or high-pressure cleaners to clean the appliance as this may result in an electric shock.

Never pour water directly on the bottom of the oven cavity. Temperature differences could result in damage to the enamel coating.

Safeuseofthemicrowaveoven

WARNING: Due to the extremely high temperatures generated when the appliance is used in combination mode, it is recommended that children only use the oven under adult supervision.

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

WARNING: It is extremely hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of covers protecting against exposure to microwave energy.

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

The appliance is intended for use in households and similar environments, such as:

• staff pantries in stores and other working environments;
• family farms;
• accommodation units for guests at hotels, motels, and other accommodation or lodging establishments;
  • bed and breakfast establishments.

Only use utensils suitable for use in microwave ovens.

Safety precautions

When cooking with microwaves, do not use metal containers for food or beverages.

When heating food in plastic or paper containers, keep an eye on the oven, as such packaging may ignite.

Microwave heating of beverages can result in delayed eruptive boiling. Therefore, take care when handling the container with the heated beverage. To prevent this, place a non-metal object (e.g., a wooden, glass, or plastic spoon) into the container during the heating-up process.

To avoid burns, the contents of baby bottles and baby food jars should be shaken or stirred, and their temperature checked before feeding.

Eggs in their shell should not be heated in microwave ovens since they may explode even after microwave heating has ended.

If you observe smoke, switch off or unplug the appliance and keep the oven door closed to stifle any flames.

The microwave oven is intended for heating food and beverages. Drying food or clothing and heating of hot packs or pads, slippers, sponges, moist cloths etc. may result in injury, ignition, or fire.

The oven should be cleaned regularly, and any food deposits should be removed.

Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

If the appliance is integrated into a kitchen cupboard with a door, the cupboard door should be open while the appliance is in use.

Other important safety warnings

The appliance is intended for household use. Do not use it for any other purpose, such as room heating, drying of pets or other animals, paper, fabrics, herbs etc. As this may lead to injury or fire hazard.

The appliance may only be connected to the power mains by an authorized service technician or expert. Tampering with the appliance or nonprofessional repair thereof may result in risk of severe injury or damage to the product.

We recommend that (due to appliance weight) at least two persons carry and install the appliance.

Do not lift the appliance by holding it by the door handle.

Oven door hinges may be damaged when under excessive load. Do not stand or sit on the open oven door, and do not lean against it. Also, do not place any heavy objects onto the oven door.

If the power cords of other appliances located in the vicinity of the oven become entangled in the oven door, they may get damaged, which may cause a short circuit. Therefore, make sure that the power cords of other appliances are at a safe distance.

Make sure the vents are never covered or obstructed in any other way.

Do not line the oven walls with aluminium foil and do not place baking trays or other containers on the bottom of the oven. This would reduce air circulation in the oven, obstruct and slow down the baking process and destroy the enamel coating.

We recommend you avoid opening the oven door during baking, as this increases power consumption and condensate accumulation.

At the end of the baking process, and during baking, be careful when opening the oven door, as there is danger of scalding.

To prevent limescale accumulation, leave the oven door open after baking or using the oven, to allow the oven cavity to cool down to room temperature.

Clean the oven when it has completely cooled down.

Eventual mismatches in colour shades between different appliances or components within a single design line may occur due to various factors, such as different angles under which the appliances are observed, different coloured backgrounds, materials, and room illumination.

Do not use the appliance if it is damaged. Unplug the appliance from the power mains and call an authorized service centre.

The oven can be safely used with or without baking pan guides.

Do not store items in the oven, which could cause danger when the oven is switched on.

Heed the minimum distance between the upper edge of the oven and the closest object above it.

The microwave oven is intended for heating food and beverages. Drying food or clothing and heating of hot packs or pads, slippers, sponges, moist cloths etc. may result in injury, ignition, or fire.

Always use oven mitts to remove dishes from the oven. Some pots, pans, or trays may absorb the heat from the food and thus become very hot.

Make sure to only use the cookware that is suitable for use in a microwave oven. Do not use steel cookware or cookware with golden or silver decorative edges or ornaments.

Do not leave any accessories or utensils in your oven when it is off. Do not switch on an empty oven to avoid damaging it.

Other important safety warnings

Do not use porcelain, ceramic, or earthenware cookware if such materials are porous or if such cookware is not glazed on the inside. Once heated up, the moisture that would penetrate these pores could cause cracking. Only use cookware intended for use in a microwave oven.

Always read and observe the instructions for heating in a microwave oven, specified on the food packaging.

Be careful when heating alcohol-containing food, as a combustible mixture of alcohol and air may form inside the oven. Be careful when opening the door.

Use of metal cookware, forks, spoons, knives or staples or fasteners on frozen food packages is not recommended when cooking or heating with microwaves or a combination of microwaves and convection baking. After heating, stir the food or leave it to rest until the heat is evenly distributed.

Do not connect the appliance to power supply if an ELCB (earth-leakage circuit breaker) is installed in the power supply circuit.

WARNING!

Carefullyreadtheinstructionsforusebeforeconnectingtheappliance.Repairorany warrantyclaimresultingfromincorrectconnectionoruseoftheapplianceshallnotbe coveredbythewarranty.

Connecting the appliance to the ConnectLife application

ConnectLife is a smart home platform that connects people, devices and services. The ConnectLife application includes advanced digital services and carefree solutions that allow users to monitor and control appliances, receive notifications from a smartphone, and update software (supported features may vary depending on your appliance and the region/country in which you are located).

To connect your smart device, you need a home Wi-Fi network (only 2.4 GHz networks are supported) and a smartphone equipped with the application ConnectLife.

ConnectLife

QR code image with no visible text or symbols beyond the matrix pattern

To download the ConnectLife, application, scan the QR code or search for ConnectLife in your favourite app store.

1. Install the ConnectLife application and create an account.
2. In the ConnectLife application, go to the "Add device" menu and select the appropriate type of device. Then scan the QR code (it can be found on the nameplate of the appliance; you can also enter the AUID/MV number manually).
3. The application then guides you through the entire process of connecting the appliance to your smartphone.
4. After a successful connection, the appliance can be operated remotely via the mobile application.

INFORMATION!

If this setting is not available, then your oven is not fitted with a Wi-Fi module and does not support internet connectivity.

When the Wi-Fi module is enabled and connections are successfully set up and synchronized, then the oven can be controlled and operated via a mobile device and the ConnectLife app.

The Wi-Fi connection works in the same frequency range as some other devices (e.g. microwave ovens and remote-controlled toys). Consequently, temporary or permanent disruption of the connection is possible. In such cases, the availability of the offered functions cannot be guaranteed.

Ensuring the quality of the functions offered depends heavily on the signal strength. If the router is far away from the appliance, there may be problems with the reliability of the connection.

WARNING!

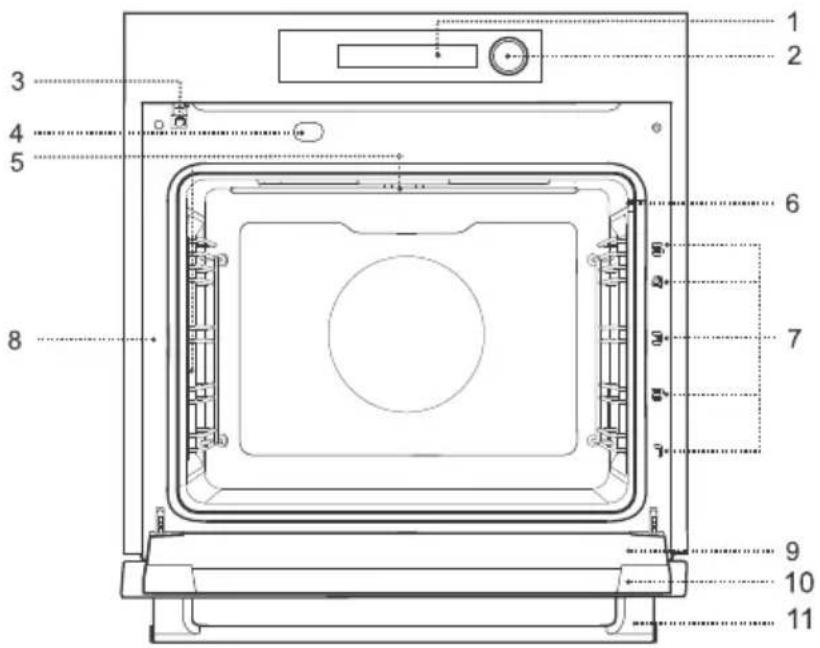

Appliancefunctionsandequipmentdependonthemodel.

1 2 3 4 5 6 7 8 9 10 11

1.User interface
2.Jog dial
3. Door sensor
4. Automatic steam removal
5. Lighting
6.Food probe socket
7. Guides -rack levels
8.Label
9. Door glass
10.Oven door
11. Door handle

Appliance equipment

(depending on the model)

Ovendoorswitch

If the oven door is opened during oven operation, the switch turns off the heaters, microwaves, and fan in the oven cavity.

Guides

Wire guides – always insert the wire rack and baking tray into the guide.

NOTE: Guides – rack levels are counted from the bottom up.

Ovenequipmentandaccessories

WARNING!

Therack, universalbakingtray, Airfrymeshbakingtray, stainlesssteelsteamtrayorany othermetalpartsmustnotbeusedinmicrowavesystems.

Wire rack—used for grilling/broiling or as support for a pan, baking tray or baking dish.

NOTE: When inserting the wire rack into the guide, always make sure its elevated part is at the back and on the top side.

There is a safety latch on the wire rack. Therefore, the wire rack has to be lifted slightly at the front when pulling it out from the oven.

Glass baking tray – is used to cook food with all oven systems and microwaves. It can also be used as a serving tray.

Appliance description

Tablecontinuedfromlastpage

	All-purpose baking tray – a versatile baking tray useful for baking pastries, bakery products, cooking vegetables and all types of meat. It can also be used as a drip tray.
	Airfry grid tray – (baking tray with holes) used for cooking with hot air + top heater (air fry) functions. The holes allow for better air flow around the food and contribute to greater crispness.

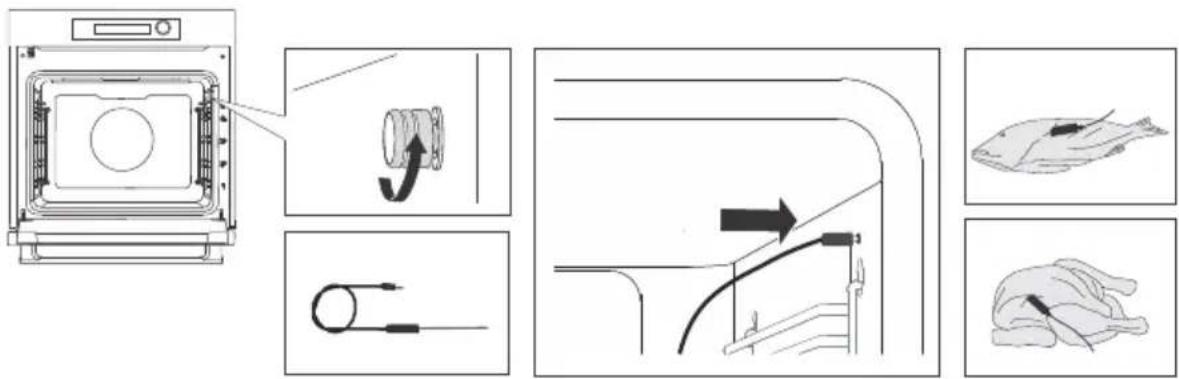

	Foodprobe- (FOOD PROBE)It can be used to measure the core temperature of a dish. When the desired temperature is reached, cooking will stop automatically.

Appliance description

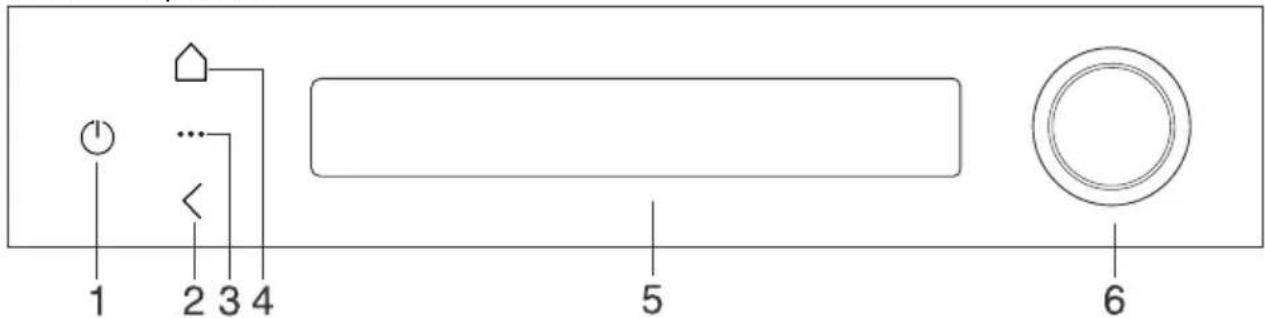

Control panel

1 2 3 4 5 6

		UseKey
1.		The on/off button is for:- switching the oven on and off,- switching to standby mode- forced restart - long press (8 seconds).
2.		This button is used to:- go back,- close the menu,- cancel a menu or function
	...	Additional settings button3.
	[6802]	Main Menu (HOME) button4.
5.	Touchscreen for selecting oven settings and viewing the current settings.
6.	Jog dial for selecting and confirming settings on the screen.
NOTE:For better key response, touch them with as much surface area of your fingertip as possible and in the center of the jog dial. A sound signal is emitted with each key press (when the function is available).

You can select and confirm the settings on the SCREEN or by using the JOG DIAL. The selected field turns white.
press	swipe left and right	swipe up and down		pressureturn

Jogdialanimationsandcolours

The jog dial of the oven has an integrated LED ring that clearly shows the current status or operating mode of the oven through different colours and animations.

	MeaningColouronthejogdial
White colour	Displays the standby mode.
Amber colour	The oven requires the user's attention (e.g. warning or confirmation of a message).
Green colour	Indicates a confirmed setting and shows that the oven is connected to the network.
Red colour	Indicates that the basic cooking mode or the conventional oven is selected.
Purple colour	Indicates that the microwave cooking program is selected.
Turquoise colour	Indicates that the cleaning program is selected.
Red + purple colour	Indicates that the Combi micro program is selected.
Colour light stays on - means that the program is running and no additional attention is required.Colour light flashes softly - draws attention to background processes or required user interaction.
1.	Remove oven utensils and any packaging (cardboard, polystyrene foam, plastic) from the oven.
2.	Wipe the oven accessories and interior with a damp cloth. Do not use abrasive or aggressive cloths or cleaners.
3.	Switch on the oven (see chapter: Switching on for the first time ).

Switching on for the first time

Calibrationonfirst-timeswitch-on-Onboarding

When connecting the appliance to the power mains for the first time or resetting it to factory settings, you will need to perform a calibration procedure when switching on the oven.

The program will guide you through the settings to set up the connection to the mobile app during the calibration. When the oven is connected to the Cloud, the date and time will be updated automatically.

Follow the steps on the display. On the display, first press Let's get started.Swipe through the menu. After you select a setting, press NEXT.
1.	LanguagesettingThe display shows the default language (English). If the language in which the text is displayed is not suitable, select another language from the drop-down list.
2.	ExplanationoftheuserinterfaceFor ease of use, the display shows the button names on the control panel.
3.	InstallationandconnectiontotheConnectLifeapplicationThe display shows the QR code to install the ConnectLife app. Use the app to control, monitor and remotely access the oven controls from your smart device.Connect to the Wi-Fi network to install software updates: these are useful for enhanced security, new features, improve performance, bug fixes.Press Connect and follow the steps in the app.
4.	SettingtheclockAutomatic time setting, including time zone and time format (12 or 24 hours) is available when the oven is connected to the internet via the app. If the connection is not established, manual time setting will be required.
5.	SettingthedateSelect the display format.
6.	Openingthedoor-WakingupThis function can be switched on or off as desired. When switched on, the function allows you to switch the oven on or off automatically by simply opening the oven door.
7.	CalibrationwiththefoodprobeThe calibration procedure ensures the accuracy of the temperature measurement, as it automatically eliminates any deviations (with a maximum of ±1 °C). As part of the process, a heating process is also carried out, which removes the residues of the production process and any unpleasant odours through a special heating programme at high temperature. This way, the unpleasant smells will not be transferred to the food prepared in the oven.

Tablecontinuedfromlastpage

The total calibration time is up to 4 hours. In the event that you decide to skip the procedure, the device will not send further pop-up notifications about performing the procedure. Calibration can be done at any time in the settings menu.

NOTE: During the heating process, unpleasant odours or the characteristic "new smell" may come from the oven. Thoroughly ventilate the room throughout the duration of the programme.

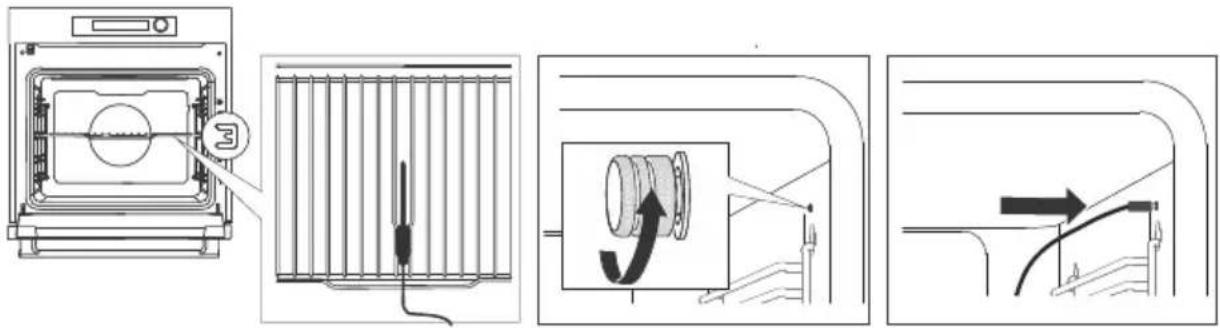

Calibrationwiththefoodprobe

(depending on the model)

During the calibration process, the food probe allows accurate measurement of the temperature at the centre of the oven (+/-1°C).

Diagram illustrating the installation and connection of a kitchen oven, showing steps from heating to lighting and ventilation.

1.	Remove any loose accessories from the oven. Place the wire rack to the third position.
2.	Place the probe in the centre of the rack, with the tip facing the back of the oven.
3.	Unscrew the socket cover (only on some models) on the front in the upper righthand corner of the oven and plug the probe into the socket.
4.	The total calibration process lasts for 4 hours. Do not open the oven door during calibration.
5.	A sound signal is emitted, the calibration is complete. The probe can be switched off and safely put away.
The food probe calibration process can be skipped and performed at a later point in time using the Settings menu.

Home menu

By touching the main menu with all the functions opens on the screen (depending on the model).

Note: swipe left and right to scroll through the menu. Select the desired function by touching the key or pressing the jog dial.

Mainfunctions

OVENThis allows the even baking and cooking of food using different cooking methods (see chapter: Manualcookingmode).

MICROWAVEQuick access to the Microwave systems. Used for the quick reheating, defrosting and cooking of food (see chapter: Microwaves).

COMBIMICROQuick access to the combination microwave systems (see chapter: CombinedMicrowavessystems).

AUTOPROGRAMSIt includes a list of predefined programs that provide optimal results for different types of food and dishes, divided into categories: Single Ingredient, Bakery, Dishes, Ready Meals and Snacks, and Favourites (see chapter: Autoprograms).

STAGECOOKINGThis function allows you to set cooking in three steps. Combine three consecutive cooking steps into one cooking routine (see chapter Stage cooking).

COOLDONThe function allows you to quickly switch from high to lower temperatures.

CLEANINGThese programs make it easier to remove dirty marks from the inside of the oven (see chapter: Cleaningandmaintenance).

SAVEDPROGRAMSThis mode allows you to select programs you have previously saved – up to 50 manually set programs (see chapter: Save your own oven programs).

DEFROSTUsed for the slow defrosting of frozen food (cakes, pastries, bread and fruit).Halfway through defrosting, turn the food over, move the pieces around, and separate the pieces if they are stuck to each other.

PRESERVINGUsed to heat-treat food to reduce the activity of micro-organisms and enzymes in the food, thus prolonging its shelf-life.

Tablecontinuedfromlastpage

NONFOOD

It is used for reheating cutlery, hot stones and sterilising bottles. You can set the temperature and the heating start and end times.

WARMING

Used to reheat food and keep it warm. You can set the temperature and the start and end times for heating.

Manual cooking mode

1.	Switch on the appliance ⏻ . In the main menu, select ⬇ OVEN.
2.	Select the cooking system (see the Choosing Cooking Systems table below –depends on the model).
3.	Depending on the choice of cooking system, you will be shown settings for:- temperature- grill power level from 1 to 5 (if you selected the large grill system)
4.	Use quick preheating if you want to heat the oven to the desired temperature as quickly as possible. By touching ⚠ you can select preheating. You can also turn it off. When the set temperature is reached, an acoustic signal sounds and the display shows Insert dish, preheating complete. Open the door and insert the dish.Fast Preheat as default - The inside of the oven heats up as soon as possible. The food should not be inserted into the oven during this process.Preheat as default - The inside of the oven heats up quickly and efficiently. The food should not be inserted into the oven during this process.No Preheat as default - Heating starts gradually with the set program, which allows immediate insertion of food for even cooking.
5.	Additionally, you can set:- ⏻ Duration (see chapter: Duration of operation - Time function).- + menu (see chapter: Plus menu - additional settings).
	To start cooking, touch .6ART ▶
Note: On the left of the screen you can press ⓙ to see additional information about the system.

Choosingthebakingsystem

(depending on the model)

	UseSymbol
	Top+BottomUse this system for conventional cooking on a single rack, making soufflés, and cooking at low temperatures (slow cooking).
	Top30+Bottom70The lower heating element delivers more heat than the upper one. Suitable for cooking dishes on a single rack, such as wet pastries, cakes, and dishes where you want the bottom part to be more cooked.
	HotAirHot air allows for better air circulation around the dish. In this way, it dries its surface more and creates a thicker crust. For roasting meat, baking cakes, cooking vegetables and for drying food on one or more racks at the same time.
	ECOHotAir ^1) For gentle, slow and even cooking of meat, fish and pastries on one level. This way of cooking retains a higher proportion of water in the meat, which leaves it juicier and softer, while the pastry becomes evenly browned/baked. The used temperature range is between 140 °C and 220 °C.
	DryHotAirThis allows for a better flow of hot air around the food. Combined with moisture extraction, it provides dry air that more quickly bakes and browns food on one or more racks at the same time.
	HotAir+BottomPerfect for making pizza and pastries with a higher water content. For cooking on one level when you want your dishes cooked and crisp as quickly as possible.
	Top+Bottom+FanFor even cooking of dishes on one level and making souffles.
	AirFryThis cooking method gives the food a crispy crust, without added fat. It is a healthy version of "fast food" with a lower calorie content. Suitable for small cuts of meat, fish, vegetables and pre-cooked frozen products (French fries, chicken medallions, etc.). For best results, we recommend placing your food in a cold oven. If the oven is preheated, set the temperature up to 20 °C higher than indicated on the food packaging.
	LargeGrillFor cooking large quantities of flat foods, such as toasted bread, canapees, grill sausages, steaks, fish, skewers, as well as for gratinating and achieving a nice crispy crust. The heaters mounted on the top of the oven cavity heat the entire surface evenly.
	LargeGrill+FanFor roasting poultry and grilling large pieces of meat.

Using the oven

Tablecontinuedfromlastpage

	UseSymbol
—	BottomHeatSuitable for leavening dough and extra cooking on the underside.

1) ThisfunctionisusedtodeterminetheenergyefficiencyclassaccordingtoEN60350-1.

Cooking with Microwaves

Microwaves are used for cooking and defrosting of food. They allow quick and efficient cooking without changing the colour or shape of the food.

Microwaves are a type of electromagnetic radiation. Such radiation is commonly found in our environment in the form of radio-electric waves, light or infrared rays. Microwave frequency is in the 2,450 MHz range.

WARNING!

Neveruseoractivateamicrowavesystemiftheovenisempty.

Pure diagram of a mechanical or electrical component with internal flow arrows and no text or symbols

Following are their characteristics:

• microwaves are reflected by metals,
• microwaves travel through other materials,
• microwaves are absorbed by water, fat, and sugar molecules.

When food is exposed to microwaves, the molecules begin to move rapidly, thereby generating heat.

The microwaves penetrate approximately 2.5 cm deep into the food. If the food is thicker, the core of the food will be cooked by conduction, as in conventional cooking.

Operatingpower

	UsePower
1000 W	Quickly reheating beverages, water and dishes containing a large volume of liquid.
750 W	Cooking fresh or frozen vegetables.
600 W	Melting chocolate.Cooking meat and seafood.Cooking side dishes.
360 W	Reheating and cooking of delicate egg-based dishes.
180 W	Defrosting other food, softening butter, softening ice cream.
90 W	Defrosting cream pastry, fruit, vegetables, and ground/minced meat.

CombinedMicrowavessystems

1.	Switch on the appliance ⏻ . In the main menu, select the function [IMAGE] COMBI MICRO.
2.	Select the system (see table below).
3.	Depending on the choice of cooking system, you will be shown settings for:- temperature- power- microwave cooking time- preheat options
4.	Additionally, you can set:- + menu (see chapter: Plus menu - additional settings).
	To start cooking, touch .5ART ▶

	UseSymbol
	HotAir+MicrowaveHot air allows for better air circulation around the dish. In this way, it dries its surface more and creates a thicker crust. It is intended for faster cooking or baking of meat, pastry and vegetables. The microwave function works in a supporting capacity to reduce cooking time.
	LargeGrill+Fan+MicrowaveFor faster cooking of poultry, fish and for grilling larger pieces of meat.The microwave function works in a supporting capacity to reduce cooking time.
	MicrowaveThey are used to quickly reheat, defrost and cook food.
	Top+Bottom+Fan+MicrowaveUsed for the faster preparation of gratin dishes. The microwave function speeds up the cooking process.
	AirFry+MicrowaveA healthy version of frying food that provides a crispy crust without added fat.
The microwave function enables faster food preparation.

Microwaves

1.	Switch on the appliance ⏻ . In the main menu, select the function ∧ ∧ MICROWAVE.
2.	Select the system (see table below).
	Settings are shown for:- microwave power and cooking time
3.	Additionally, you can set:- + menu (see chapter: Plus menu - additional settings).
	To start cooking, touch .START ▶

Duration of operation - Time function

In this mode, you can specify the duration of operation for the oven.

INFORMATION!

If the appliance has been connected to the cloud, the time and date are automatically set.

1.	To select the timer function, press 📧 .
2.	Select the duration for oven operation.
	To start cooking, touch .START ▶

Plus menu - additional settings

The + function provides additional settings. The menu varies depending on the control options available at the time.
	Start|EndUse this mode when you want the food in the oven to start cooking after a time delay (see chapter Settingadelayedstart).
	NumberofTraysThis function is available when using hot air systems and allows you to adjust the air circulation according to the number of trays in the oven.The system automatically adjusts the airflow according to the selected option and ensures optimal cooking results.
	GratinThis function is used in the last phase of cooking, when we add a dressing/topping to the dish or we want to additionally brown the top. When using the gratin function, a crispy golden yellow crust is formed on the dish, which protects the food from drying out, and at the same time gives the dish a pleasing appearance and a better taste (see chapter Gratin).
	ReduceMoistureThis mode allows the door to be automatically opened and closed in order to release moisture inside the oven during cooking (see chapter: Reducing humidity in the oven).
	FoodProbeThe food probe allows for accurate monitoring of the core temperature of food during cooking (see chapter: Food Probe).
	AddStageThree-step cooking setting with various parameters (see chapter Stage cooking).
	SaveIn this mode you can save your favourite settings (see chapter Save your own oven programs).

Settingadelayedstart

INFORMATION!

Delayed start cannot be set on cleaning programs.

In the menu + select 📄 . There are two types of delayed start:
1.	ChangingthestarttimeIf you have not set the duration of operation in the basic settings, you can set a start delay.Set the desired start of cooking setting and confirm your choice.
2.	ChangingthestartorendtimeIn the basic settings, first set the cooking duration.In the menu select and you can set the time at which you want the dish to be ready.Confirm your selection. The program automatically calculates the start time for cooking.
	To start cooking, touch .START ►The screen will show the cooking start time.The oven goes into standby mode until the start time. The selected settings are automatically switched on and off at the selected times.
After the set time has expired, the oven stops working automatically. A short beep will be emitted.You can reset the selected setting by pressing × .

Gratin

This function is used in the last phase of cooking, when we add a dressing/topping to the dish or we want to additionally brown the top.

INFORMATION!

This function can be used if you have set the cooking duration.

1.	In the menu select .
2.	Set the operating time of the au gratin function (max. 15 min). The function will be activated at the end of cooking when the set cooking time has elapsed. Confirm with √ .
	To start cooking, touch .3ART ▶
4.	The function can also be switched off while it is in operation. Turn off cooking by pressing < .

WARNING!

Control the cooking. When using the augratin function, the oven reaches hight temperatures. The augratin function works for a maximum of 15 minutes, then the ovens switches off automatically.

Reducinghumidityintheoven

The function allows the door to be automatically opened and closed during appliance operation. It is recommended when the user wants to release excess steam during cooking, so that the dishes cook faster and develop a crunchy crust.

Moisture reduction is recommended when preparing:

• bakery products (towards the end of baking): for a nicely baked and crisp crust;
• meat (towards the end of cooking): to create a nicely cooked and crisp surface;
• vegetables: use the function several times during cooking to release excess moisture from the oven;
• french fries, biscuits and similar pastries (towards the end of baking): for an improved texture.

1.	In the menu select .
2.	Set the time for the first release of steam and confirm the selection.
3.	Now set a time for the second and third release. The number depends on the duration of operation.
The oven door automatically opens and closes according to the time that has been set.You can reset the selected setting by pressing × .

WARNING!

Thedoorclosesautomaticallywhenopened.Manualpushingorforcedclosingmaydamage themechanism.

Stagecooking

This function allows you to set the cooking in three steps (combine three consecutive cooking steps in one cooking process).

INFORMATION!

This function can be selected in the + menu or in the Main Menu.

1.	Step1Press 📄 . You can select the settings for the first step: cooking system, temperature and cooking duration. You can also choose quick preheating. Confirm your selection.NOTE: You can also set the first step in the basic settings if you select a cooking duration.
2.	Step2Select the settings for Step 2 and Step 3.You can also change the steps prior to the start of cooking.
3.	To start cooking, touch .START ►The oven initially starts with the settings for Step 1.
NOTE: You can remove an individual step by touching × .

Saveyourownovenprograms

This allows you to save your favourite and most frequently used settings in memory and use them again at another time. Up to 50 presets can be stored.

1.	SavinginsettingsFrom the settings, you can save your selected parameters in your preset and use them again in the future.By pressingyou open the keyboard for naming your preset. There is no limit on the length of the name. Confirm with √ .
2.	Savingthesettingaftercookinghasended.After completion of the operation, the screen shows. Press this key to save the preset.The main menu appears on the screen.
3.	ShowalreadysavedsettingsYou can re-select your favourite recipes by entering the Main Menu and selectingSAVED PROGRAMS. The names of all saved recipes are displayed.NOTE: You can also change the preset values for already saved recipes and save them under a new name after cooking.
4.	DeletingpreviouslysavedsettingsSelect the preset. Press + and select. You will see a warning on the screen. Confirm your selection.

Auto programs

The program offers you a large selection of recipes that were approved by chefs and nutritionists.

1.	Switch on the appliance ⏻ . In the main menu, select ➔ AUTO PROGRAMS.
2.	Select the type of food and then the selected dish. Confirm with √ .The recipes have a predetermined system, temperature and cooking time.Auto programs are classified into the main categories:Single ingredients:programs designed to prepare individual foods such as meat, vegetables, eggs, or fruits.Dishes:programs for dishes that include more ingredients and require more complex preparation.Bakery:programs for bakery products such as bread and various types of pastry.Ready meals and snacks:programs for frozen or pre-prepared dishes and cooked snacks such as fries or popcorn.Favourites:a selection of programs that you mark as favourites from the categories above.NOTE: For some dishes, you can also change the programs parameters.
3.	Additionally, you can set:- + menu (see chapter: Plus menu - additional settings).
4.	The auto program allows you to select additional functions for the selected dish (See later chapters).
Note: On the left of the screen you can press ⓘ to see additional information about the program.

Search

The search function allows you to search by entering a word or part of a word, such as the name of an auto program or an ingredient.

1.	Switch on the appliance ⏻ . In the main menu, select ➕ AUTO PROGRAMS.
2.	Press 🔒 and write the name of the dish or part of the name of the dish you are looking for.
3.	Confirm your selection with . √
Search results are shown automatically after just one character has been entered.

INFORMATION!

If the browser does not find any matching results, a "no results" message is displayed.

Addtofavourites

Favourited programs provide quick access to frequently used routines.

1.	Switch on the appliance ⏻ . In the main menu, select ➔ AUTO PROGRAMS.
2.	Select the type of food and then the selected dish.

Using the oven

Tablecontinuedfromlastpage

3.	Press + and select ♥. Confirm your selection.
To delete a preset, select .

INFORMATION!

The Favourites list is displayed in alphabetical order.

Customprogram

With this function, you can change the programs parameters according to your preferences.

1.	Switch on the appliance ⏻ . In the main menu, select ➕ AUTO PROGRAMS.
2.	Select the type of food and then the selected dish.
3.	Press and select . ⏻You are shown options and presets that allow you to adjust and manage key parameters such as temperature, system, humidity and power, according to your needs.
4.	Confirm your selection with . √

INFORMATION!

Custom settings can be saved as presets.

Extra functions

(depending on the model)

A number of additional features can be selected. By pressing △ the main menu appears on the screen.

DEFROST
	DefrostwithMicrowaveUsed for the quick defrosting of frozen food (cakes, pastries, bread and fruit). Halfway through defrosting, pieces should be turned over, moved around, and separated if stuck together.
[###]	PRESERVING
	DryingFunction intended for drying out food. Suitable for drying fruits and vegetables.
	DryingHerbsFunction intended for drying out food. Suitable for drying herbs

Tablecontinuedfromlastpage

	PasteurizationThe function prevents the growth of bacteria using heat. Suitable for juices.
	CanningFor sealing jars for preserved foods (such as compote, jam, applesauce, tomato sauce pickled food, preserved vegetables, etc.).
NONFOOD
	PlateWarmingUse this function to warm crockery before serving food on it so that the food stays warm for longer. You can set the temperature and the start and end times for heating.
[1YXT8]	HotStonesUsed for preparing hot stones. Place the clean stones on the baking tray and place on the second rack.
	SterilizingFor non-food items such as glass jars, baby bottles, etc.
WARMING
[OCTY]	ReheatwithHotAirThis function enables gentle reheating of prepared dishes. Avoid opening the door unnecessarily during operation.
	KeepWarmUsed to keep food warm. You can set the temperature and the start and end times for heating.
	ReheatwithMicrowave
Note: some features allow you to select pre-defined programs.

Starting the cooking process

Start cooking by pressing . START ▶

The following parameters appear on the display (depending on the selected settings):

• cooking system
  • the current and set temperatures
• microwave power
  •duration of operation
• delayed start

After cooking is completed, the display shows ENJOY!. A beep sounds.

You can also cancel the operation by pressing < .

By pressing the button, you can select a new setting.Menu content varies depending on the control options available at that time.
ResumeProgram	By selecting this, you extend the cooking by 5 minutes. The duration and cooking system can be set.
Save	The mode allows you to save the selected settings to your favourites and use them again later (if you used manual cooking mode) (see chapter: Saveyourownovenprograms).
Cool Down	This mode allows you to quickly switch from high to low temperatures.
KeepWarm	This mode allows you to maintain the heat level in the oven (the food in the oven stays warm).
Removesteamwhen programends	Automatic door opening enables automatic steam removal.Note: the screen caption appears if you do not have this function selected in the General settings (see chapter: General settings).

INFORMATION!

After the operation is completed, the cooling fan will continue to operate for some time.

Condensation in the oven cavity and on the inner door after a baking program is a normal occurrence and does not affect the baking result. After cooking with steam, however, more condensation is present because the system uses water during the steam process. We recommend wiping the oven interior clean after the program ends, before the next use.

WARNING!

Afterapowerfailureorswitchingofftheappliance,thesettingsoftheadditionalfunctions areretained.

By pressing ••• you enter the selection menu.
	REMOTESTARTBy pressing this button you can activate the remote control (see chapter: Wi-Fi operation).
	OVENLIGHTPress this button to switch the oven light on or off.
	REMINDERSThe alarm operates independently of the operation of the oven. The maximum possible setting is 24 hours.You can set three different alarms. To turn off the alarm, set the time to 0:00.NOTE: If the appliance is switched off, the alarm will still be active.
	DISPLAYLOCK-AUTOMATEActivate/deactivate the oven safety key lock to protect the oven from accidental use.Lock the screen by touching the key.To unlock the screen, touch the screen or any key. Swipe the screen from left to right and then press the BUTTON.If the lock is activated with no timer function engaged (only clock is displayed), then the oven will not operate.If the lock is activated after a timer function has been set, then the oven will operate normally; however, it will not be possible to change the settings.When the keys are locked, you cannot change the cooking systems or additional functions. You can only turn off the cooking.The keys remain locked even after the oven is switched off. To select a new system, you must deactivate the lock.
	SETTINGSOn pressing the button, you can choose between different settings and adjust them (see table below).

By pressingyou can select and edit different settings.
	LANGUAGE-TIMESelect your preferred language, date and time from the drop-down list.
	COOKINGYou can choose between different settings:•DEFAULTPREHEATThe function automatically activatesFast Preheat as default, where the inside of the oven is heated as soon as possible, orPreheat as default, where the inside of the oven is heated quickly and efficiently. When you selectNo Preheat as default,

Tablecontinuedfromlastpage

	heating starts gradually with the set program, which allows immediate insertion of food for even cooking.
	•COOKINGSETTINGST You can choose between the general settings or your selected most recent settings, which are retained at the end of operation.
	•REMOVESTEAMWHENPROGRAMENDSThe function allows the door to be opened automatically and allows steam to be removed automatically.
	•REMINDERSYou can select a reminder when the desired temperature is reached and a reminder at the end of cooking (from one to five minutes).
	•CALIBRATIONANDBURN-INThe calibration process takes 4 hours. You activate it by pressing START.
	MODESUPon confirming your selection, you will see a column with active modes on the righthand side of the menu. By tapping on this column, the screen will display the settings that can be changed (ECO, NIGHT MODE, SABBATH, SHOP MODE).
	CONTROLYou can choose between different settings:•DOOROPEN-WAKEUPTo always display the home screen when the door opens, select On. Power consumption may increase when this function is switched on.
	•STARTUPSCREENTo make the display visible even after the oven is switched off, select On.
	•INACTIVITYSelect the length of time you want the screen to stay on during inactivity.
	•CLOCKSCREENVISIBILITYThe function allows you to turn the daytime on and off.
	•DISPLAYLOCKSelect On if you want the display to lock while the oven is not working.
	DISPLAYSelect the desired screen brightness.
	SOUNDYou can choose between different sound modes.
	LIGHTYou can set the light operating time.You can change the light intensity from 10% to 100% and the colour temperature from 2700K to 5000K (from warm yellow to cold white).
	CONNECTYou can set up the connection, oven connectivity and additional users.
	UPDATE-RESETThe function allows you to reset to factory settings and update.

General settings

Tablecontinuedfromlastpage

INFO-SUPPORTThe function provides assistance to the user with instructions for use and information about the device.

By touching you can select and edit different functions. The selected function is marked with .√
	SABBATHThe Sabbath function allows food in the oven to stay warm without having to switch the oven on and off.Set the duration (24 or 80 hours) and temperature. By touching xthe countdown begins. All sounds and operation are switched off, except for the key x.NOTE: In case of a power outage, Sabbath mode will be deactivated and the oven will return to its initial state.
	ECOECO mode is designed to increase energy efficiency by automatically using predefined ECO settings. This function reduces energy consumption while maintaining full functionality for cooking and cleaning programs, providing an environmentally friendly solution without compromising on performance.
	NIGHTMODEThe function automatically reduces brightness from higher to lower intensity and turns off the daytime display and acoustic signals. To activate the night mode, specify the start and end times. Turn off the night mode by pressing x.
	DEMDemo mode is an exhibition setting in which the appliance simulates the operation with virtual values and allows you to change and save the settings. When deactivated, all configurations are retained and the appliance returns to normal operation

Using Wi-Fi

1.	SwitchingontheWi-FimoduleEnter the additional menu. Touch ⚙, select CONNECT and then select the option CONNECT OVEN.Turn on the Wi-Fi connection by toggling the switch to ON.
2.	ConnectingtheapplianceSelect CONNECT OVEN. In the additional menu, press ⚙ to select ⚙ . Then, under Wi-Fi, select CONNECT. Follow the steps in the ConnectLife app. When the connection is successful, the display shows "Your oven is now connected". This process is limited to 5 minutes.NOTE: The device is connected to the user account in the smart app after the connection is established.
3.	ConnectingadditionalusersUse this setting to connect additional users to the appliance using ConnectLife.In the additional menu, touch ⚙ to select ⚙ . Choose the option CONNECT.Select CONNECT USER and then PAIR. To continue setting up your device, follow the instructions in the ConnectLife app. This process is limited to 3 minutes.
4.	RemoveallconnectedusersUse this setting to remove all connected users from the app. ConnectLifeIn the additional menu, touch ⚙ to select ⚙ . Select the option CONNECT. Touch CONNECT USER and then UNPAIR ALL. After confirming the selection, the display shows Allusers/devicesarenowunpaired.
5.	SwitchingofftheWi-FimoduleIn the additional menu, touch to select . Choose the option CONNECTOVEN. Turn off the Wi-Fi connection by toggling the switch to OFF.

INFORMATION!

Connecting is a one-time process.

Only reconfigure the connection if you change the router or change the password on your local network.

Managing the oven remote control

WARNING!

Theremotemonitoringfunctionviaamobiledevices should not be used to be placed direct personalsupervision of the cooking process in the oven. Always regularly check, in person, what is actually going on the oven.

In the additional menu, press 📋. If the appliance is not connected to the Wi-Fi network, the shortcut for connecting the appliance is displayed. Otherwise, a menu is displayed allowing you to select the duration of remote oven control Always on or 24 hours. After confirming one of the options, the following pop-up is displayed Remote control is on.

The display shows the

symbol to indicate the possibility of remote control via ConnectLife.

INFORMATION!

For safety reasons, some functions are not available via remote access.

• Cancellation or completion of the baking program or process is the only option that remains available regardless of whether remote control is enabled or not.
• Remote control is disabled when using a microwave system (not applicable to combined microwave systems).

WARNING!

Alwaysmakesuretheovenisusedcorrectlyandincompliancewiththeinstructions, especiallywhenusingremotecontrol.Donotruntheovenviaremoteaccessunlessyou arecertainaboutwhatexactlyisintheoven.

				CauseWi-Fistatusonthedisplayunit
		REMOTE(ON)		REMOTE(OFF)
				Wi-Fi disabled (OFF).
				Symbol flashes:- Wi-Fi is ON, but not connected to the server or to the cloud (including when connection to the router or cloud is temporarily lost).

Equipment:

• Use equipment made of heat-resistant non-reflective materials (supplied baking trays and dishes, enamel-coated cookware, tempered glass cookware). Bright-coloured materials (stainless steel or aluminium) materials reflect heat. As a result, thermal processing of food in them is less effective.
• Always insert the baking sheets and trays to the end of the guides. When baking on the wire rack, place the baking dishes or trays in the middle of the rack.
• Do not place the baking trays directly onto the oven cavity bottom.
• Do not cover the oven cavity bottom or the wire rack with aluminium foil.
  • Always place the baking dishes onto the wire rack.
• If you are using parchment paper, make sure it is resistant to high-temperatures. Always trim it accordingly. Parchment paper prevents the food from sticking to the baking tray and makes it easier to remove the food from the baking tray.
• When cooking directly on the wire rack, insert the all-purpose baking tray one level lower to serve as a drip tray.

Foodpreparation:

• In the event that Top + Bottom the system delivers food that is undercooked from the underside, adjust the cooking level, temperature and time or use the following system Top 30 + Bottom 70.
• For optimum food preparation, we recommend observing the guidelines specified in the cooking table. Choose the lower specified temperature and the shortest specified cooking time. When this time expires, check the results and then adjust the settings as necessary.
• When cooking according to recipes from older cookbooks, use the bottom and top heater system (as in conventional ovens) and set the temperature 10 °C lower than specified in the recipe.
• When cooking larger cuts of meat or pastry with higher water content, a lot of steam will be generated inside the oven, which in turn may condense on the oven door. This is a normal phenomenon which will not affect the operation of the appliance. After the cooking process, wipe the door and the door glass dry.

Efficientuseofenergy

• Preheat the oven only if indicated in the recipe or in the tables in this instruction manual. If you are using quick preheating, do not put food in the oven until the oven is fully heated, unless otherwise recommended. When heating an empty oven, a lot of energy is consumed, so if possible, we recommend that you prepare several dishes in a row or several dishes at the same time.
• Remove all unnecessary equipment from the oven during baking
  • Unless it is absolutely necessary, do not open the oven door during baking.
• With longer cooking programs, you can switch off the oven approximately 10 minutes before the end of cooking time to make use of the accumulated heat.

Useofmicrowaves

• Use suitable cookware (glass, ceramic etc.).
• Use cookware with a lid for cooking vegetables. Add 1 tablespoon of water per 100 g of food.
- Turn or stir the food during the defrosting process.

General tips and advice for baking

Cooking table

NOTE: Dishes requiring a fully pre-heated oven are indicated with a single asterisk in the table. * Dishes that only require a 5-minute preheating of the oven are indicated with two asterisks. ** . In this case, do not use the quick preheating mode.

Dish	□cm			°C	min
PASTRYANDBAKERYPRODUCTS
pastry/cakesinmoulds
			—		30-40160-170**160/
pie with filling	60	2	—		60-80170-180
	45	1	—
			—		50-70180-190260/4
cake with leavened dough, Gugelhupf (Bundt cake, pound cake)			—		50-60170-180160/4
open pie, tart	60	3			35-45170-180
	40	2
brownies	60		⊗	170-1802	35-45
					30-4045
pastryonbakingtraysanddishes
			⊗		50-60170-180260/4
			⊗		80-100200-210260/4
sponge roll	60	3	⊗	160-170	30-40
			—		25-35145
			—		30-40180-190260/4
biscuits,cookies
cupcakes			—		25-35140-150**360
			—		20-30160-170245
yeast-leavened small pastry	60	3	—		20-30170-180
	45	2

General tips and advice for baking

Tablecontinuedfromlastpage

Dish	cm		°C	min
yeast-leavened small pastry, 2 levels		2+460	160-170	20-30
				30-401+345
puff pastry	60	3	—	10-20190-200
	45	1
puff pastry, 2 levels		2+460	160-170**	15-25
				10-201+345
cookies/biscuits
piped cookies			2	30-40140-150360
				35-45140-150**245
cookies/biscuits	60	3	2	15-25160-170**
	45	2
biscuits, 2 levels		2+460	2	15-25160-170**
		1+345
meringue	60		—	110-130802
	45
meringue, 2 levels		2+460	2	110-130100**
		1+345
macarons	60	3	—	10140
				15-20130
	45	2		10140
				15-20130
bread
rising and proofing	60	2	2	30-6035
	45	1
bread on a baking tray	60	1	—	15220 **
				25-40190
	45	2		15220 **
				25-40190

General tips and advice for baking

Tablecontinuedfromlastpage

Dish	cm		°C	min
bread in a tin 20-25180	60	1	—	20-25230
				40-50200 **45
		260/45 flatbread (focaccia)		20220 **
				5-15180
fresh bread rolls (Semmel/morning rolls)	60	3	—	15-25200-210 **
	45	2
fresh bread rolls (Semmel/morning rolls), 2 levels	60		200-210 **2+4	20-30
				15-2545
toast	60	5	—	5-15L5
	45	4
			—	3-10L2460/45open
pizzaandotherdishes
homemade pizza	60	1	max	4-12
			max**45
homemade pizza, 2 rack levels	60	2+4	max	15-25
	45	1+3		20-30
frozen pizza	60	2	210-220	15-20
				15-2545
frozen pizza, 2 levels	60	2+4	210-220	15-25
	45	1+3
savoury pie, quiche	60	2	190-210	50-60
	45
burek	60	1	200-210	35-45
				40-5045
MEAT
beefandveal
beef roast (loin, rump), 1.5 kg	60/45	2	160-170	160-190
sirloin, medium done, 1 kg	60/45	2	180-190	35-45

General tips and advice for baking

Tablecontinuedfromlastpage

Dish	cm		(ZWS)	°C	min
beef roast, slow cooked	60	2	(XYCK)		150-240100-120
	45	1
beef steaks, well done, 3 cm thickness					20-30L3360/45
burgers, thickness 3 cm	60	4	(DXYI)		30-40L4
	45	3
veal roast, 1.5 kg	60	2	[80BA]		90-110190-200
	45	1	—
pork
pork roast, rump, 1.5 kg	60	3	(WATT)	190-200	70-100
			—		85-100245
pork roast, shoulder, 1.5 kg	60	2			90-110190-200
	45	1	—
pork loin, 400 g, slow cooked	60			100-1202	200-300
			—		250-35045
pork roast, slow cooked	60	2			150-240100-120
	45	1	—
pork ribs, slow cooked	60	3			210-310120-140
	45	2	—
pork chops, thickness 3 cm	60/45	4	[2xST]	220-230	25-35
poultry
poultry, 1.2–2.0 kg	60/45	1	[8734]	200–210/360	45-60
poultry with stuffing, 1.5 kg	60/45	2	[5H63]	170-180	110-130
poultry, breast	60	3	[W2BW]		60-90170-180
	45	2
					20-30190–200/6001
chicken wings	60	3			35-45210-220
	45	2

General tips and advice for baking

Tablecontinuedfromlastpage

Dish	□cm	□	□	8°C	○min
poultry, breast, slow cooked	60	3	—		40-80100-120
	45	2
meatdishes
meat loaf, 1 kg	60		◎	180-1902	55-65
					50-6045
grill sausages, bratwurst	60	4	~~~	L4	30-40*
					20-30*345
FISHANDSEAFOOD
whole fish, 350 g	60	3			12-17*200-240/360
			~~~		20-30*200-220**45
fish fillet, thickness 1 cm	60	4			5-15210-220
	45	3*
fish steak, thickness 2cm	60	4			15-25160-170
	45	3
scallops	60	4			5-15220-230 **
	45	3
shrimps	60	4	~~~	L4	20-30
					15-2545
VEGETABLES
broccoli, whole, 500 g			//A		8-10750160/45
broccoli, florets, 500 g			//A		5-15750160/45
peas, 2.5 kg			//A	750160/45	20-30
cauliflower, blossoms, 500 g			//A		8-10750160/45
carrots, whole, 500 g		160/45	//A	1000	13-14
asparagus, 500 g			//A		8-10750160/45
baked potatoes, wedges	60	3	◎	190-210	40-50*
	45	2

General tips and advice for baking

Tablecontinuedfromlastpage

Dish	cm		°C	min
baked potatoes, halved	60	3		30-40200-220
	45	2
stuffed potato (jacket potato)	60	3		25-35200-210
	45	2
French fries, home-made	60	3		15-30210-220
	45	2
mixed vegetables, wedges	60	4	200-210	10-20
				15-25245
stuffed vegetables	60		—	40-50200-2102
	45

CEREALSANDPASTA

		160/45rice		20-30750
				2-10600
		160/45brown rice		25-30750
				2-10600
				20-30750160/45riso
				15-251000160/45pa
		160/45wholemeal pasta		10-151000
			600	5
		160/45raviol		101000
				3-5750

CONVENTIONALPRODUCTS-FROZEN

				260/45	Fren25-35*200-210/360
french fries, 2 levels	60	2+4		200-210	30-40*
	45	1+3			40-50*
				260/45	chic20-30*210ie20/360
fish fingers	60	3		210-220	25-35*
		245			20-30*
lasagne, 400 g	60/45	2		210-220**	40-50

General tips and advice for baking

Tablecontinuedfromlastpage

Dish	□cm	□	□	8°C	○min
			○		30-40200-210/3602
croissants	60	3	○		20100
					15-20170
	45	1			20100
					15-20170
BAKEDPUDDINGS,SOUFFLÉSANDDISHESAUGRATIN
potato moussaka			○	200-210/360160	20-30
			○	180-190245
			○		45-55180-190260/4
sweet baked pudding			○		15-25750160
			○		35-45170-180245
sweet soufflé			○		11-14360160
			—		16-20180 **245
dishes au gratin	60		—		3-10L4-L5/
	45
			○		10-20180-190260/4
grilling cheese	60	4	—	L3	15-25*
					10-15*345
OTHER
			○	1000160/45pop2en
			○	1000160/45liquiós
		160/45melting butter/90et80ate			3-10

General tips and advice for baking

Cooking with a food probe (AFOOD PROBE)

(depending on the model)

The food probe allows for accurate monitoring of the core temperature of the food during cooking.

WARNING!

The food probes should not be indirect vicinity of the heating elements.

Diagram illustrating the steps of a kitchen oven with labeled parts including opening, lifting cable, and cutting tool.

1.	Stick the metal end of the probe into the thickest part of the food.NOTE: To enter the cooking process with the food probe, the current cooking process must first be interrupted and then the food probe must be plugged into the socket. By inserting the probe into the socket, the previously set functions on the oven are deleted.
2.	Unscrew the socket cover in the upper righthand corner of the front of the oven (depending on the appliance model) and plug the probe into the socket.In manual mode, press + and select ⬤ . Set the cooking temperature (up to 200°C). Also determine the core temperature of the food (in the range from 30 to 99 °C).In automatic mode, first select the dish and then the probe program. The presets use a predetermined system, temperature and cooking time. You can change the degree of browningNOTE: When using the probe, setting the cooking time is not possible.
	To start cooking, touch .START ▶During the cooking process, set and current food core temperature alternate on the display unit. You may change the cooking temperature or the target food core temperature during the cooking process.
4.	When the set core temperature is reached the oven will stop. An audible signal will be heard, which you can silence by pressing any button. Otherwise, the audible signal will turn off automatically after one minute.

INFORMATION!

The food probe cannot be used simultaneously with the gratin function.

Correctuseoftheprobe,bytypeoffood:

• poultry: stick the probe in the thickest part of the breast;

General tips and advice for baking

• red meat: stick the probe into a lean part that is not marbled with fat;
• smaller chunks with bone: stick them into an area along the bone;
- fish: stick the probe behind the head, towards the spine.

WARNING!

Afteruse, carefully remove the probefrom the food and socket, clean it, and tighten the socket cover.

Recommendeddonenesslevelsfordifferenttypesofmeat

Typeoffood	blue(raw) [°C]	mediumrare [°C]	medium [°C]	mediumwell [°C]	welldone [°C]
BEEF
					68-7359-6553-5848
					63-6658-6254-5749
					63-6658-6254-5749
					71-7466-6860-6354
VEAL
					63-6658-6254-5749
					63-6658-6254-5749
PORK
					75-8565-70///roast, /60-69///pork, loin
					80-85///meat loaf
LAMB
					77-8072-7666-7160
MUTTON
					77-8072-7666-7160
GOATMEAT
					77-8072-7666-7160
POULTRY
					82-90///poultry, whc
					62-65///poultry, bre
FISHANDSEAFOOD
					/62-65///trout

General tips and advice for baking

Tablecontinuedfromlastpage

Typeoffood	blue(raw)[°C]	mediumrare[°C]	medium[°C]	mediumwell[°C]	welldone[°C]
					/55-60///tuna
					58-6052-55///salmor

WARNING!

Besuretounplugtheappliancefromthepowersupplyandwaitfortheappliancetocool down.

Childrenshouldnotcleantheapplianceorperformmaintenancetaskswithoutproper supervision.

• For easier cleaning, oven cavity and baking tray are coated with special enamel for a smooth and resistant surface.
• Regularly clean the appliance and use warm water and hand dishwashing liquid to remove larger impurities and limescale. Use a clean soft cloth or sponge cloth.
• Never use aggressive or abrasive cleaners and accessories (abrasive sponges and detergents, stain and rust removers, scrapers for glass ceramic plates).
• Food residue (fat, sugar, protein) can ignite during the use of the appliance. Therefore, remove larger chunks of dirt from the oven interior and accessories before each use.
• Oven equipment is dishwasher-safe.

Exterioroftheappliance	Use hot soapy water and a soft cloth to remove impurities and wipe the surfaces dry.
Interioroftheappliance	For stubborn dirt or grime, use conventional oven cleaners. After using such agents, wipe the appliance thoroughly with a wet cloth to remove any residual cleaning agents.
Utensilsandguides	Clean with hot soapy water and a damp cloth. In case of persistent dirt, we recommend prior soaking and the use of a brush.
If the cleaning results are not satisfactory, repeat the cleaning process.

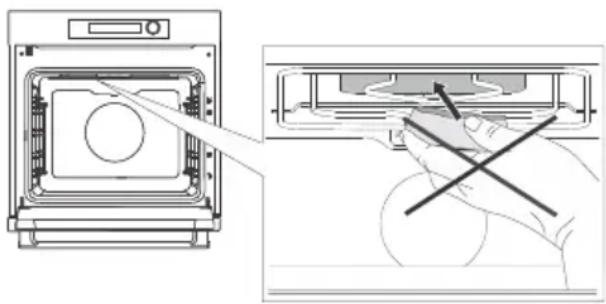

WARNING!

Do not use corrosive, abrasive, or aggressive cleaning agents when cleaning the oven's front panel. Such agents may damage the surface, cause scratches, or permanently alter its appearance.

Diagram showing a washing machine with internal components and a hand holding a tool, no text or symbols present

Never use aggressive cleaners, abrasive cleaners or sponges, stain and rust removers etc. on the oven cavity ceiling cover.

By touching △ you open the main menu with the basic functions. Select ◆ CLEANING.

Cleaning the Microwave

This program makes it easier to remove any stains from inside the oven.

The function is the most effective if used regularly, after each use.

Before running the cleaning program, remove all large visible chunks of dirt and food residues from the oven cavity.

WARNING!

UsetheMicrowaveCleansystemwhentheovenhasfullycooleddown..

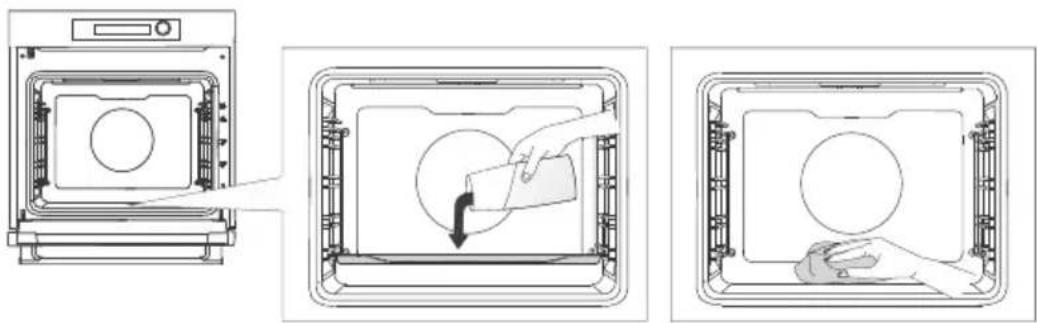

Three-step diagram showing a kitchen oven with a door, a tray with a bag, and a hand placing a button into the interior (no text or symbols)

1.	Insert the glass baking tray into the first guide and pour 0.15 l of warm water into it.
2.	Select the function Microwave Clean and press START ▶ .
3.	The program runs for 8 minutes. At the end of the program, the display will show FINISHED.
4.	When the program is completed, carefully remove the baking tray, using oven mitts (there can still be some water on the baking tray). Wipe down the stains with damp cloth and soapsuds. Thoroughly wipe the appliance with a wet cloth to remove all cleaner residue.If the cleaning process is not successful (in case of particularly stubborn dirt), repeat it.

INFORMATION!

When cleaning the pull-out guides, pull them out and remove after the procedure has been completed.

The pull-out guides can turn yellow, become louder and more rigid, but after repeated use, they should once again run smoothly and without making a noise. This does not affect the functionality of the oven or accessories.

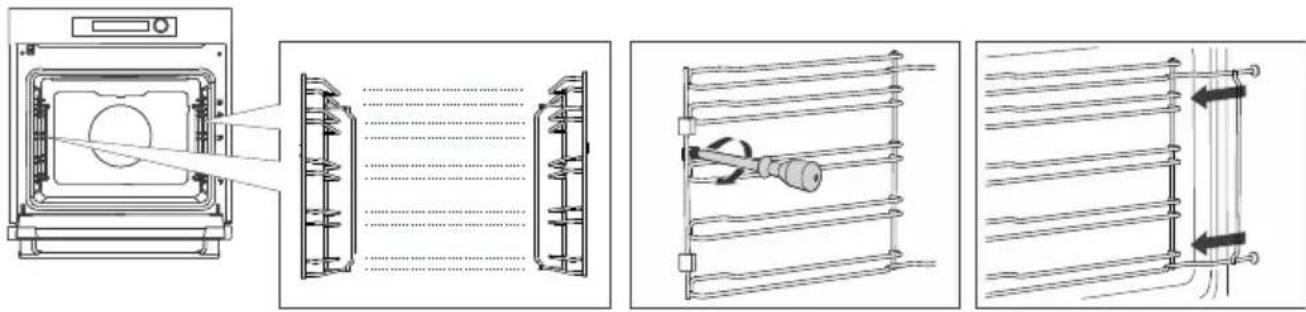

Removing and cleaning the wire guides

INFORMATION!

When removing the guides, take care not to damage the enamel coating.

Cleaning and maintenance

Technical line drawings of a microwave oven and its internal structure, showing internal components and heat dissipation (no text or symbols)

1.	Use a screwdriver to remove the screw (you can also use a suitable coin that fits the indentation in the screw head).
2.	Remove the guides from the holes in the back wall.
NOTE: Take care not to lose the spacers fitted on the wire guides. Replace the spacers after cleaning; otherwise, sparks may appear.After cleaning, re-tighten the screws on the guides with a screwdriver. When replacing the wire guides, make sure you mount them on the same side they were installed on prior to removal.

Replacing the bulb

WARNING!

Theovenhasabuilt-inLEDlight, whichcanonlybereplacedbyanauthorisedtechnician.

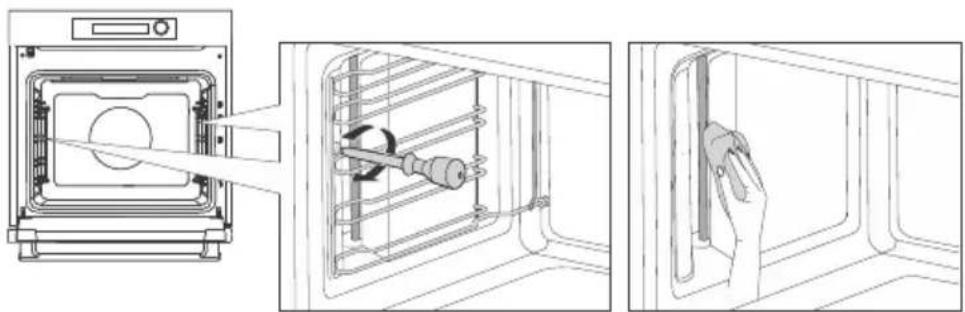

Three-step diagram showing a kitchen oven with a tool inserted into the opening, then being handled by a hand (no text or symbols present)

1.	Remove the guide rails (see chapterRemoving and cleaning the wire guides).
2.	For less stubborn dirt, cleaning with a damp cloth is sufficient.In case of stubborn stains, the LED light can be cleaned with a dedicated oven cleaner.

Duringthewarrantyperiod,onlyaservicecenterauthorizedbythemanufacturermaycarry outanyrepairs.

• Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet.
• Any unauthorized repairs of the appliance may result in electric shock and short circuit hazard; therefore, do not perform them. Leave such work to an expert or a service technician.
• In case of minor problems with appliance operation, check this manual to see if you can fix the problem yourself.
• If the appliance is not operating properly or at all due to inappropriate operation or handling, a visit from a service technician shall not be free of charge, even during the warranty period.
• Save the instructions for future reference and pass them on to any subsequent owners or users of the appliance.
• Following is some advice on rectifying some common problems.

Troubleshooting table

	CauseProblem/error
The main fuse in your home trips often.	Call a service technician.
Theovenlightingdoesnotwork.	The process of changing the light bulb in the oven is described in the chapter Replacing the bulb.
Controlunitisnotresponding,the screenisfrozen.	Press and hold the On/Off button for 8 seconds until the screen is reset.Disconnect the appliance from the power mains for a few minutes (undo the fuse or switch off the main switch); then, reconnect the appliance and switch it on.
ThedisplayshowstheerrorErrX.Incaseofadouble-digiterrorcode,thedisplaywillshowErrXX.	There is an error in the electronic module operation.Disconnect the appliance from the power mains for a few minutes.If the error is still indicated, call a service technician.
ThedisplaywillshowSEnSwhenthe foodprobeisnotconnected.	Clean the socket.Try to connect and disconnect the food probe several times in succession.
Sparksappearintheoven.	Make sure all lamp covers are securely fastened and that all spacers are fitted on the wire guides.Make sure the guides in the oven are correctly placed.
Steamaccumulatingonthedisplay whenopeningthedoor.	Open the oven door completely, do not keep it somewhat closed.
Largeamountofsteamwhencooking.	Certain foods contain a lot of water, so a large amount of steam is normal.
Meatprobeappearsonthescreen,althoughitisnotinuse.	The cause of the error may be drops or dirt in the socket of the meat probe. We recommend inserting and removing the meat probe several times to clean the socket.

Troubleshooting

Tablecontinuedfromlastpage

CauseProblem/error

If the problems persist despite observing the above advice, call an authorized service technician. Repair or any warranty claim resulting from incorrect connection or use of the appliance shall not be covered by the warranty. In this case, the user will cover the cost of repair.

Label – appliance information

A rating plate with basic information about the appliance is attached to the edge of the oven. Precise information on appliance type and model can also be found on the warranty sheet.

xxxxxxx xxxxxxx xxxxxxx xxxxxxx 1 2 3 4 5 6 7 8

1. Serial number
2. ID/code
3. Model
4. QR code
5. Type
6. Technical information
7. Brand
8. Compliance labels/symbols

Compliance information

Radio equipment type:

Built-in WiFi/BLE module

Wi-Fi

Operating frequency range:

2412 \~ 2472 MHz

Maximum output power:

19.99 dBm EIRP

3.26 dBiMaximum antenna gain:

Bluetooth

2402 \~ 2480 MHz Frequency range:

10.00 dBmCarrier Output:

F1DEmission type:

The company declares that the device with the function Connectlife complies with the essential requirements and other relevant provisions of Directive 2014/53/EU. The detailed Declaration of Conformity can be found at the web address https://auid.connectlife.io on the page of your device among the additional documents.

Environment protection

Our product packaging is made of environmentally friendly materials that can be recycled, disposed of, or destroyed without any hazard to the environment. To this end, packaging materials are labelled appropriately.

Thesymbol on the product or its packaging indicates that the product should not be treated as normal household waste. Take the product to an authorized collection centre for waste electric and electronic equipment processing.

Correct disposal of the product will help prevent any negative effects on the environment and health of people, which could occur in case of incorrect product removal. For detailed information on removal and processing of the product, please contact the relevant municipal body in charge of waste management, your waste disposal service, or the store where you bought the product.

We reserve the right to any changes and errors in the instructions for use.

EN60350-1: Only use equipment supplied by the manufacturer.

Always insert the baking tray all the way to the end position on the wire guide. Place pastry or cakes baked in moulds as shown in the image.

* Preheat the appliance until it reaches the set temperature. Do not use the rapid preheat mode.
** Preheat the appliance for 5 minutes. Do not use the rapid preheat mode.
*** Preheat the appliance for 10 minutes. Do not use the rapid preheat mode.

1) Turn after 2/3 of cooking time.

BAKING

	EquipmentDish	mould placement	cm		°C	min
shortbread – single rack	all-purpose baking tray					25-35140-150**360
						30-45140**245
shortbread – single rack	all-purpose baking tray					30-40140-150360
						40-55120-130**245
shortbread – two racks/levels	all-purpose baking tray					40-50135**2460
						40-501401,345
small cakes – single rack	all-purpose baking tray					20-30160-170***360
						25-35150-160**245
small cakes – single rack	all-purpose baking tray					20-30155-165***360
						25-35160-170***245
small cakes – two racks/levels	all-purpose baking tray					40-50140-1502,460
						40-50160-170**1,345
sponge cake	round metal mould, diameter 26 cm/wire rack					25-35160***160
						25-35160***245
sponge cake	round metal mould, diameter 26 cm/wire rack					25-35170-180**360
						25-35155-165145
apple pie	2 × round metal mould, diameter 20cm/wire rack	○○				70-90160-170***160
						70-90170-180***245

Tablecontinuedfromlastpage

BAKING
apple pie	2 × round metal mould, diameter 20cm/wire rack					70-90175360
						70-90155-165245
BROILING
	wire racktoast					5-15max560/45
Burgers ^1)	wire rack + shallow baking sheet as drip tray					30-45max460/45

THERMALPROCESSINGWITHMICROWAVES

EquipmentDish				omin	[BYG2]
custard cream, 1000 g	glass baking dish, 25 × 25 cm, uncovered + glass baking tray			25-353601	//
sponge cake	round glass baking dish, diameter 22 cm, uncovered + glass baking tray			15-253601	//
meat loaf, 900 g	glass baking dish, 25 × 12.5 cm, uncovered + glass baking tray	1	600360	1010-15	//
defrosting ground meat, 500 g		1glass baking tray		813-18	//
defrosting raspberries, 250 g	glass baking dish, uncovered + glass baking tray			6-91801	//

BAKINGWITHCOMBINEDSYSTEMS

Dish	Equipment
potatoes au gratin	round glass baking dish, diameter 22 cm, uncovered + glass baking tray				180-19251-40600
cake	round glass baking dish, diameter 22 cm, uncovered + glass baking tray				180-19071-25180	[TYXY]
chicken, 1.2 kg	glass baking dish, uncovered + glass baking tray				210-22451-55360	[KGZH]

ATAG
