USER MANUAL MERS530FGE02 MIDEA

Simple diagram of two vertical rectangular shapes with rounded corners, no text or symbols present.

Refrigerator

SIDE BY SIDE SERIES

USER MANUAL

MERS530FGE

MDRS710FGD

LANGUAGES

EN English

DE Deutsch

IT Italian

FR French

ES Spanish

PT Portuguese

GR Greek

PL Polish

LV Latvian

SR Serbian

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SPECIFICATIONS 02

PRODUCT OVERVIEW 03

PRODUCT INSTALLATION 05

OPERATION INSTRUCTIONS 10

CLEANING AND MAINTENANCE 15

TROUBLESHOOTING 16

APPENDIX 18

SPECIFICATIONS

Product model MERS530FGE
Rated Voltage/Frequency 220-240V~/50Hz
Rated Current 1.55A
Total Volume 548L
Fresh Food Storage Compartment Volume 347L
Two-star Section Volume 16L
Four-star Compartment Volume 185L
Freezing Capacity 14kg/24h
Temperature Rise Time 7h
Overall Dimension (W x D x H) 897x706x1765mm

Product model MDRS710FGD
Rated Voltage/Frequency 220-240V~/50Hz
Rated Current 1.55A
Total Volume 555L
Fresh Food Storage Compartment Volume 349L
Four-star Compartment Volume 206L
Freezing Capacity 12kg/24h
Temperature Rise Time 10h
Overall Dimension (W x D x H) 897x706x1765mm

PRODUCT OVERVIEW

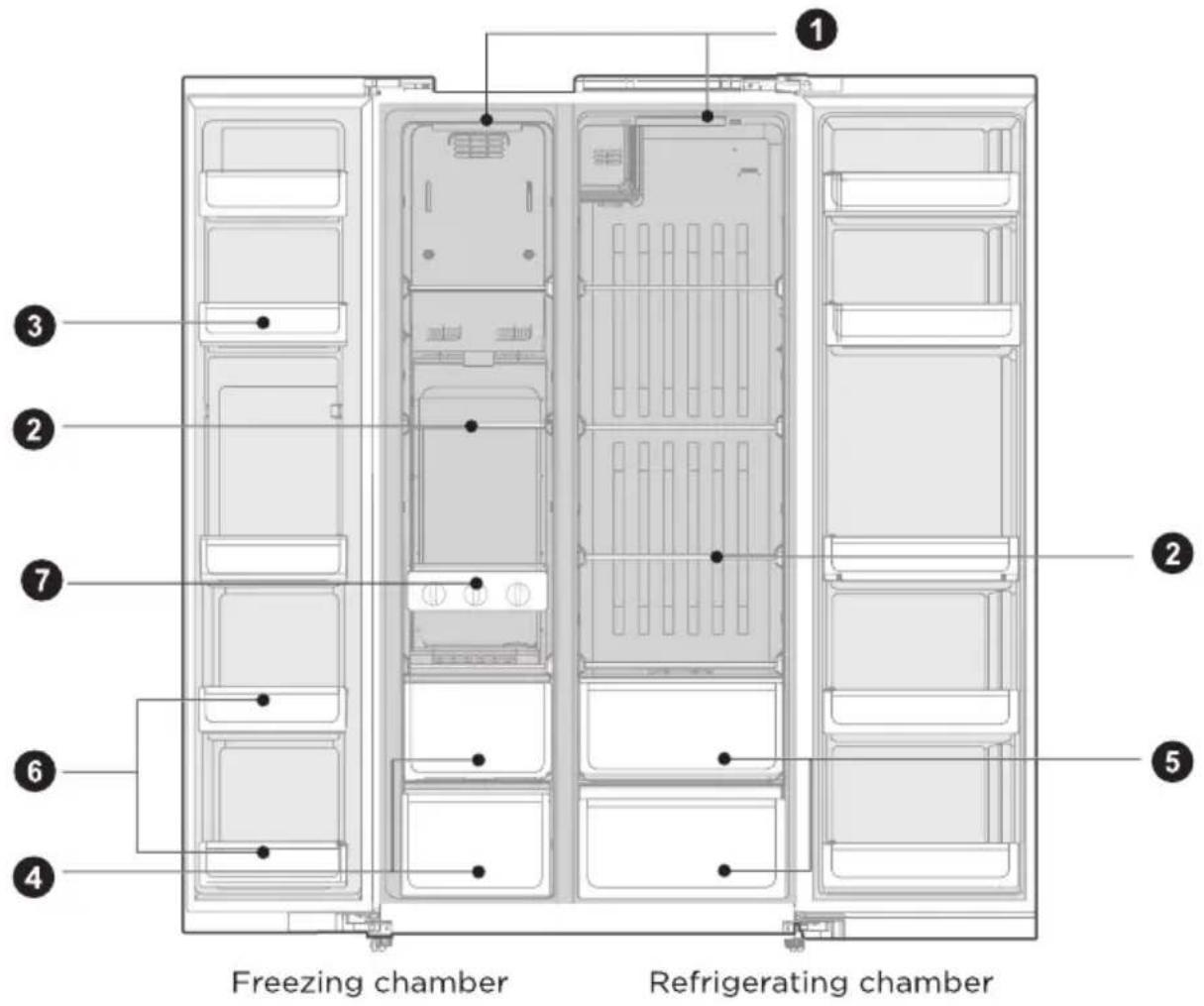

Names of components

Type A

1 2 3 7 6 4 Freezing chamber Refrigerating chamber 2 5

1 LED Lamp

5 Fruits And Vegetables Box

2 Glass Shelf

6 Two-Star Door Tray

3 Door Tray

7 Ice Tray (Optional)

4 Drawer

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

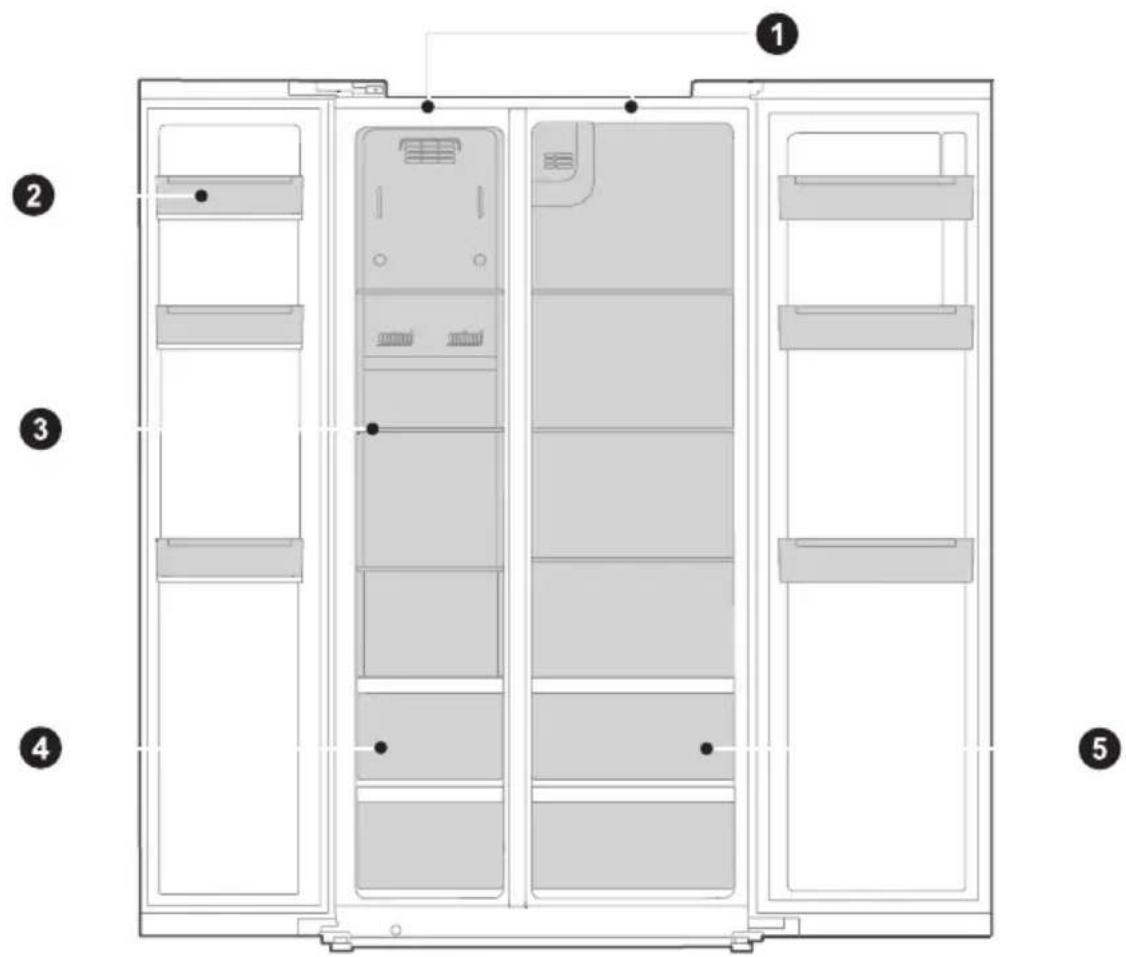

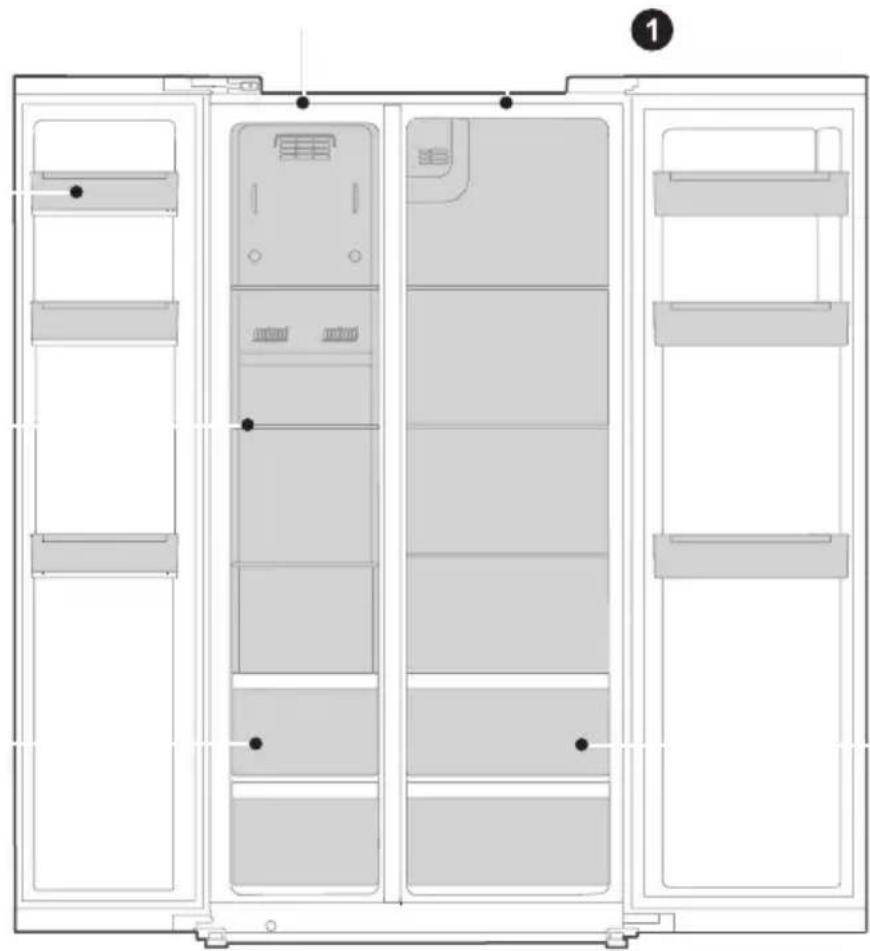

Type B
EN

Technical diagram of a refrigerator interior with numbered components for identification

1 LED Lamp

4 Drawer

2 Door Tray

5 Fruits And Vegetables Box

3 Glass Shelf

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

PRODUCT INSTALLATION

Install Instruction

For refrigerating appliances with climate class

• Depending on the climate class, This refrigerating appliance is intended to be used at ambient temperatures range as specified following table.
• The climate class can be found on the rating plate. The product may not operate properly at temperatures outside of the specific range.
• You can find the climate class on the product label.

Effective temperature range

- The product is designed to operate normally in the temperature range specified by its class rating.

Class Symbol		Ambient temperature range °C
		IEC 62552 (ISO 15502) ISO 8561
Extended temperate SN	+ 10 to + 32	+ 10 to + 32
Temperate N + 16 to + 32	+ 16 to + 32
Subtropical ST + 16 to + 38	+ 18 to + 38
Tropical T + 16 to + 43	+ 18 to + 43

Dimensions and Clearances

- Too small of a distance from adjacent items may result in the degradation of freezing capability and increased electricity costs. Allow over 100 mm of clearance from each adjacent wall when installing the appliance.

>100mm >100mm >100mm >100mm

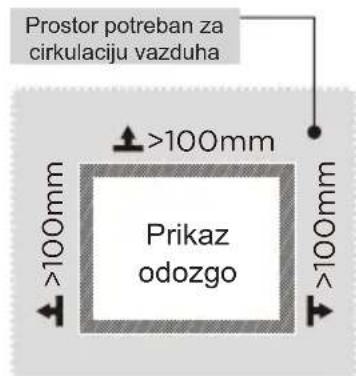

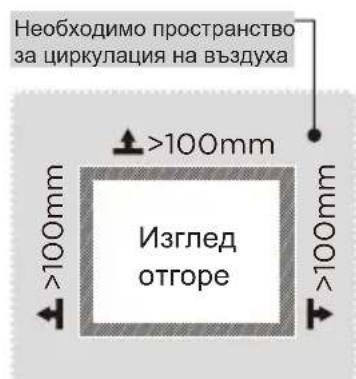

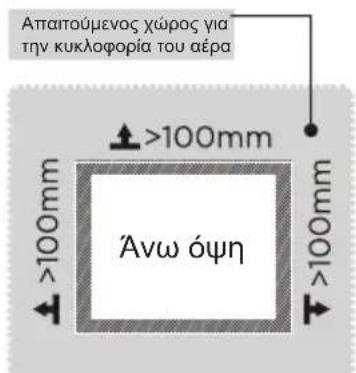

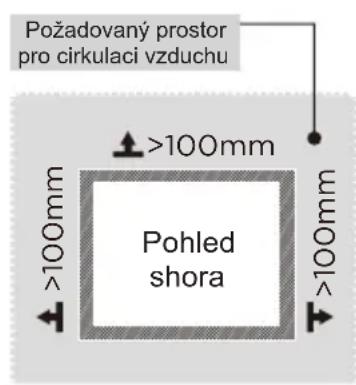

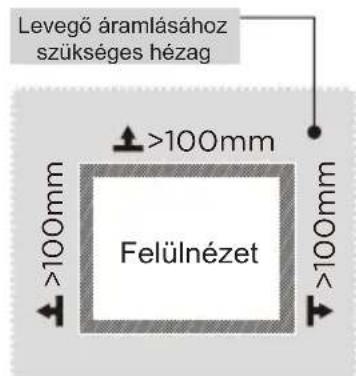

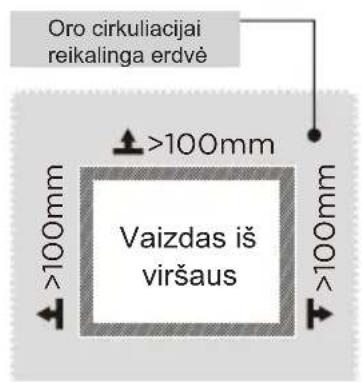

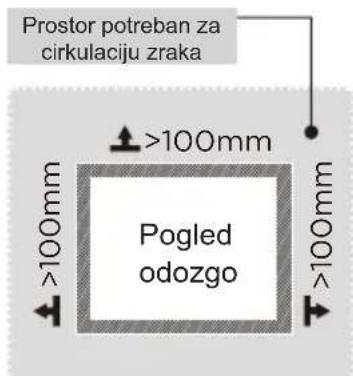

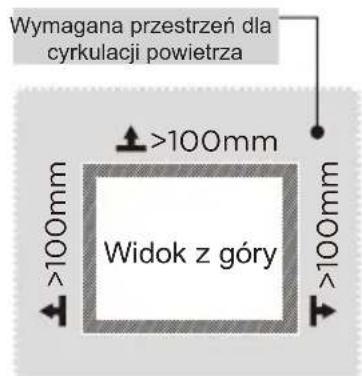

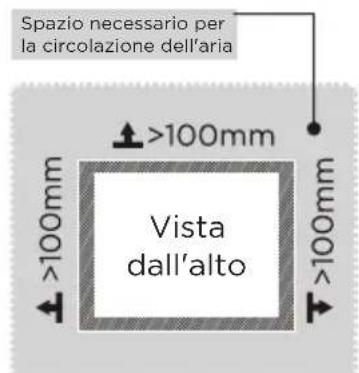

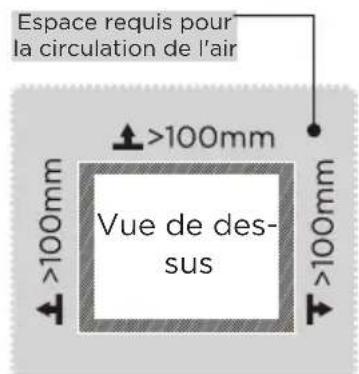

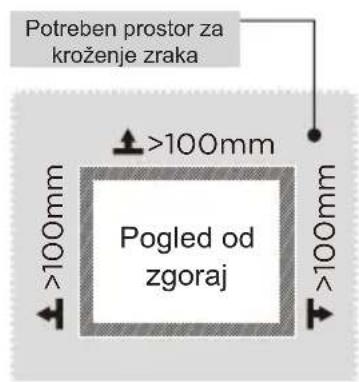

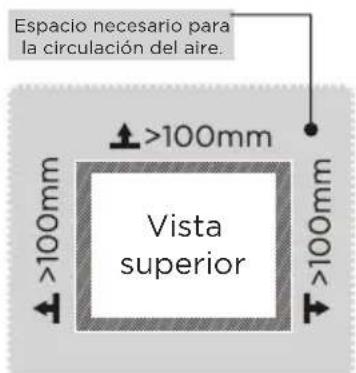

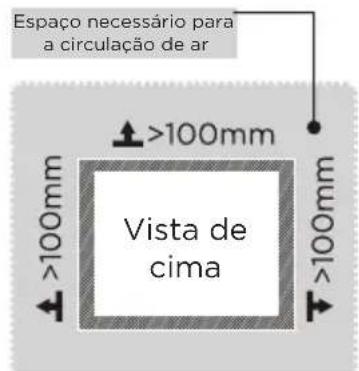

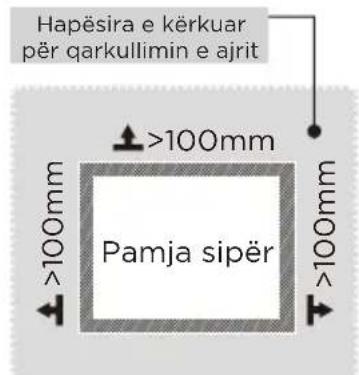

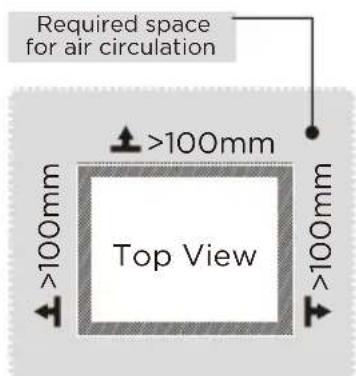

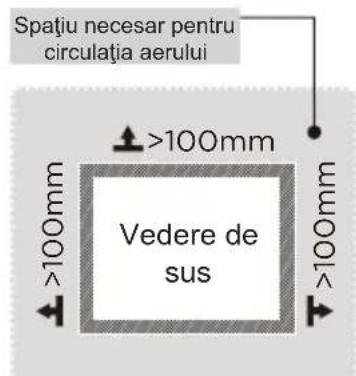

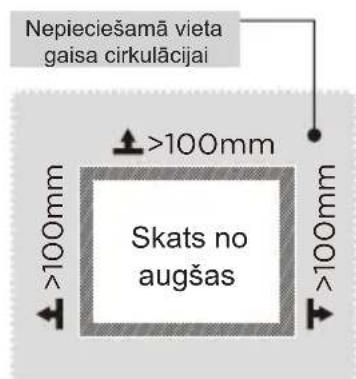

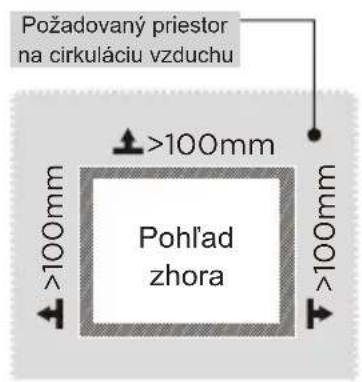

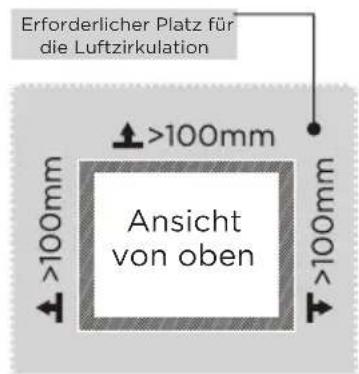

Required space for air circulation >100mm Top View >100mm >100mm

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

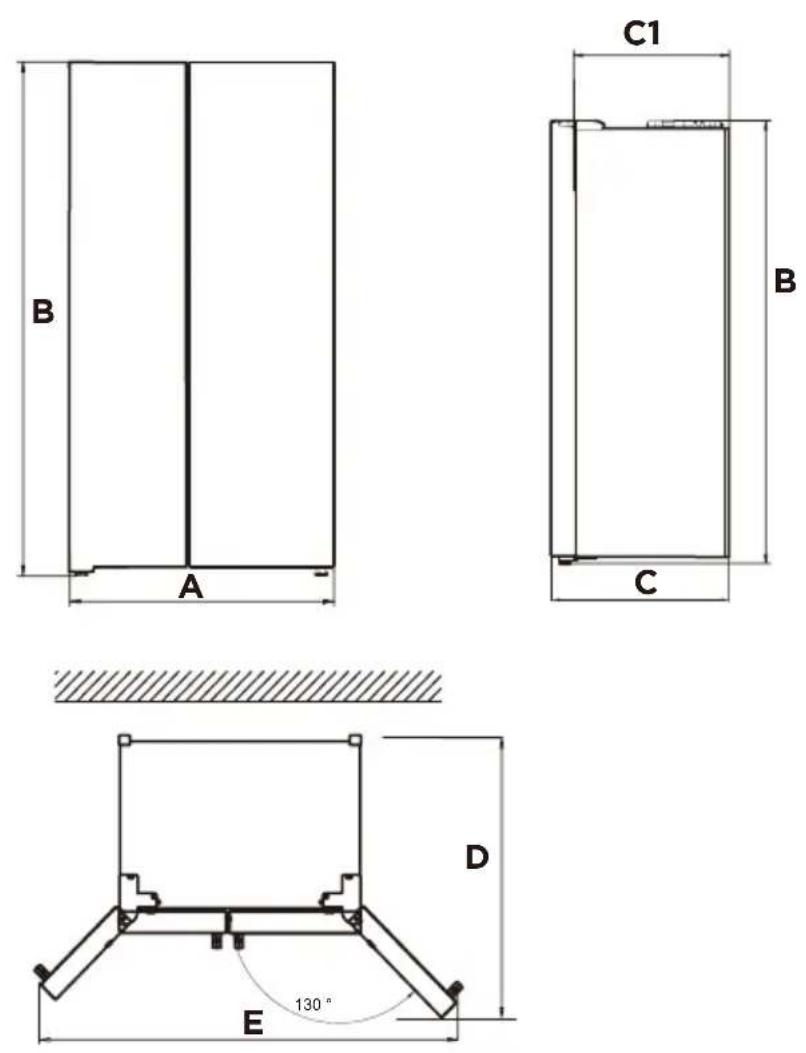

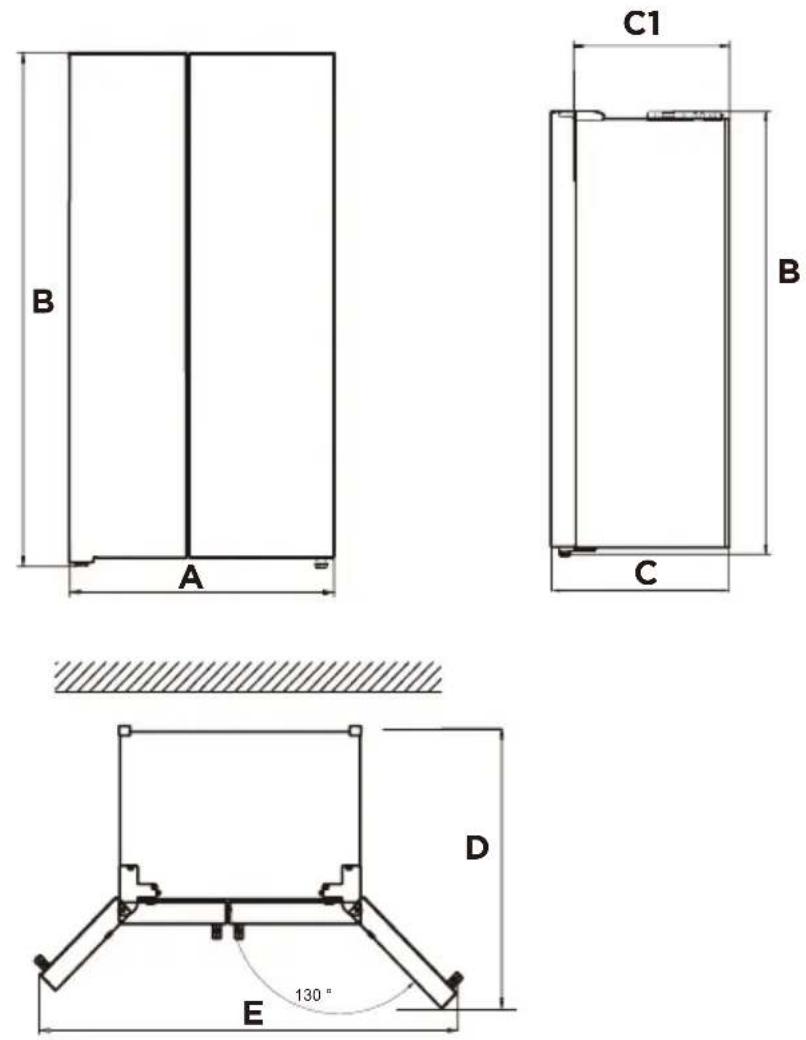

Space requirement diagram (when the door is open and when the door is closed)

EN

Width	Overall Height	Depth Without door	Depth doors open 130°	Width doors open 130°
A B C C1 D E
897 1765 706 600 960 1700

Notice: All dimensions in mm

Leveling feet

To avoid vibration, the unit must be leveled.

If required, adjust the leveling screws to compensate for the uneven floor.

The front should be slightly higher than the rear to aid in door closing.

Leveling screws can be turned easily by tipping the cabinet slightly.

Turn the leveling screws counterclockwise ↩ to raise the unit, clockwise to lower it.

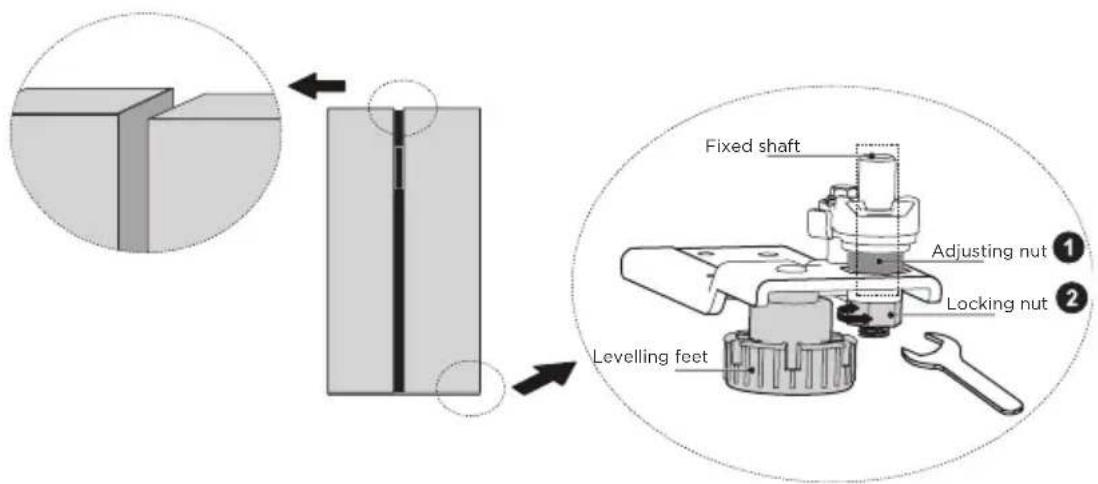

Leveling doors

If the doors are not at the same height, the door can be adjusted with a spanner.

A- To raise the door, turn the nut (1) anticlockwise.

B- To lower the door, turn the nut (1) clockwise.

C- When the door is correctly aligned, fix it with the nut (2).

Fixed shaft Adjusting nut Locking nut Levelling feet

Moving the appliance

1. Remove all food from inside the appliance.
2. Pull the power plug out, insert and fix it into the power plug hook at the rear or on top of the appliance.
3. Tape parts such as shelves and the door handle to prevent from falling off while moving the appliance.
4. Move the appliance with more than two people carefully. When transporting the appliance over a long distance, keep the appliance upright.
5. After installing the appliance, connect the power plug into a socket out to switch on the appliance.

ATTENTION

Precautions before operation:

Before making changes the refrigerator must be disconnected from power.

precautions should be taken to prevent any personal injury.

Changing the light

- Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

ATTENTION

This product contains two light sources of energy efficiency class (G).

EN

Connecting the appliance

After installing the appliance, connect the power plug into a socket outlet.

ATTENTION

After connecting the power supply cord (or plug) to the outlet, wait 2 or 3 hours before you put food into the appliance. If you add food before the appliance has cooled completely, your food may spoil.

Tips for energy saving

• Do not place the appliance near cookers, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and for longer, resulting in increased energy consumption.
• Ensure that there is sufficient ventilation at the base of the appliance, on the sides of the appliance and at the back of the appliance. Never cover ventilation openings.
• Please also observe the spacing dimensions in the chapter "Installation".
• The arrangement of drawers, shelves and racks as shown in the illustration offers the most efficient use of energy and should therefore be retained as far as possible. All drawers and shelves should remain in the appliance to keep the temperature stable and save energy.
• To obtain a larger storage space (e.g. for large refrigerated/frozen goods), the middle drawers can be removed. The top and bottom drawers and shelves should be removed last if necessary.
• An evenly filled refrigerator/freezer compartment contributes to optimal energy use. Therefore, avoid empty or half-empty compartments.
• Allow warm food to cool before placing it in the refrigerator/freezer. Food that has already cooled down increases energy efficiency.
• Allow frozen food to defrost in the refrigerator. The coldness of the frozen food reduces the energy consumption in the refrigerator compartment and thus increases the energy efficiency.
• Open the door only as briefly as necessary to minimize cold loss. Opening the door briefly and closing it properly reduces energy consumption.
• The door seals of your appliance must be perfectly intact so that the doors close properly and energy consumption is not increased unnecessarily.

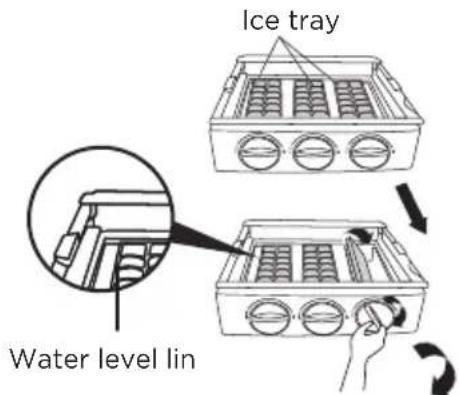

How to make ice (optional)

Ice tray Water level lin

* Picture is only for illustration

• Gently pull out the ice tray and fill the ice tray with water to the water level line. Then carefully replace the ice tray horizontally.

- When the ice cubes are ready, turn the knob clockwise (turn to the end and release), the ice cubes will drop from the ice tray into the ice box.

ATTENTION

• In order to make ice cubes quickly, set the freezer to the lowest temperature, or select the SUPER FRZ. Mode. This will make the temperature of the freezer lower.
• Do not over-fill with water. It may become difficult to remove the ice cubes from ice tray and any trickle of water into the ice box will make the ice cubes freeze together.
• If the knob is turned before the ice cubes are ready, any remaining water will trickle into the ice box and cause the ice cubes to freeze together.

OPERATION INSTRUCTIONS

Control panel

EN

REF. FRZ. -88°C F SUPER SUPER COOL FRZ. SWITCH A TEMP. SELECT C MODE D E Hold 3sec. Unlock

	Display Button
1	Refrigeraor	A	Temperature up
2	Freezer	B	Temperature range selection
3	Super cool	C	Temperature down
4	Super freezer	D	Mode / function setting
5	Lock / unlock	E	Lock / unlock
6	Vacation

ATTENTION

The actual control panel may differ from model to model. The control panel will turn off automatically for energy saving.

Lock / unlock

- In the non locking state, press the key “Hold 3sec.Unlock” for 3 seconds to enter the operation locking state, and the locking pattern is displayed ⏻ In the locked state, press the key “Hold 3sec.Unlock” for 3 seconds to display the unlocking ⏻ pattern and unlock.

After 30 seconds without key operation, the refrigerator will automatically enter the locked state. The following functions must be operated in the unlocked state.

Mode setting

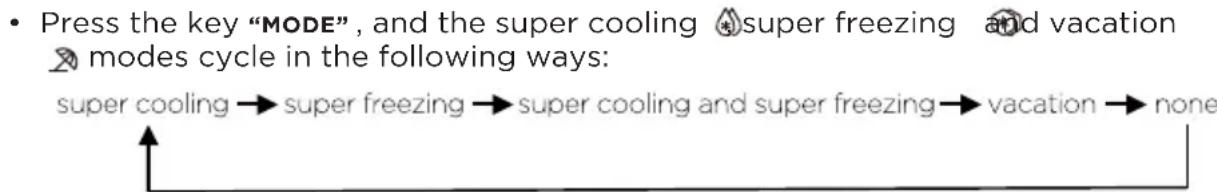

Press the key "MODE", and the super cooling ➕ super freezing and vacation ➕ modes cycle in the following ways: super cooling → super freezing → super cooling and super freezing → vacation → none

In vacation mode, the temperature of the freezer is automatically set to -18^ , tthe refrigerating chamber is closed.

In the super cooling mode, the temperature of the refrigerating chamber is automatically set to 2^ C; When exiting the super cooling mode, the set temperature of the refrigerating chamber will automatically return to the set temperature before the super cooling mode.

Exit the super cooling mode if one of the following conditions is met:

A- Exit the super cooling mode through key operation;

B- Rapid cooling time ≥ 6h;

In the super freezing mode, the freezing chamber temperature is automatically set to -24^ ; When exiting the super freezing mode, the set temperature of the freezing chamber will automatically return to the set temperature before the super freezing mode.

Exit the super freezing mode when one of the following conditions is met:

A- Exit the super freezing mode by pressing the key;

B- super freezing time ≥ 24h;

ATTENTION

The super-freezing function is designed to maintain the nutritional value of the food in the freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one time, it is recommended that the user turn on the super-freezing function and put the food in. At this time, the freezing speed of the freezer compartment is increased, which can quickly freeze the food, effectively lock the nutrition of the food, and facilitate storage.

Temperature setting

• Press the key "TEMP.SELECT" to select the refrigerating chamber ⚙freezing chamber ⚙, and the temperature zone icon and the set temperature of the corresponding icon will be displayed;
  Select the room to be adjusted, and press the up temperature key to adjust the temperature upward. Each time you press it, the temperature will be increased by 1 degree;
  Select the room to be adjusted, press the down temperature key vto adjust the temperature downward. Each time you press it, the temperature will be reduced by 1 degree;
  The setting range of refrigerating chamber is 2 and 8°C, and the setting range of freezing chamber is -24 and -16°C; The new set temperature takes effect after locking. When it is set to the boundary value, pressing the corresponding temperature adjustment key will prompt the key invalid sound.
  Recommended setting: Refrigerated chamber 4°C, freezing chamber - 18°C.

Door opening prompt tone

- When the refrigerator door is opened, the door opening music ring. At the same time, long press the "up temperature key + down temperature key" combination key for 3 seconds to turn on / off the door opening prompt tone (on by default).

Door opening alarm

- When the refrigerator door is not closed for more than 120 seconds, the refrigerator sounds an alarm sound, indicating that the door is not closed. Please close the door in time or click any key in the operation area of the display screen to close the alarm sound.(If the door is not closed for a long time, the food will be damaged. Please close the door in time)

Storage upon power failure

- In case of power failure, the instant working state will be locked and maintained till re-electrification.

Fault indication

- The following warnings appearing on the display indicate corresponding faults of the refrigerator. Though the refrigerator may still have cold storage function with the following faults, the user shall contact a maintenance specialist for maintenance, so as to ensure optimized operation of the appliance.

Fault Code Fault Description

E1 Temperature sensor failure of refrigerating chamber

E2 Temperature sensor failure of freezing chamber

E5 Freezing defrost sensor detection circuit error

E6 Communication error

E7 Ambient temperature sensor error

Tips on storing food

Freezer compartment

• The freezer is designated for the storage of food frozen at very low temperature, long-term storage of frozen food, and for the production of ice.
• Only use the shelves in the door of the freezer to store frozen food, not for storing hot food designated for freezing.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing fresh food (such as meat, fish or chopped meat), cut them into parts that can be used at the same time.
• Storing frozen food: instructions are usually stated on the packages, which must be followed. If there is no information on the packaging, food should not be stored for longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable packages to retain the quality and should be returned to the freezer compartment as soon as possible.
• If a package of frozen food shows moisture or abnormal bulging, it is probable that it was stored at the wrong temperature and the content is spoiled.
• The storage period for frozen food depends on the room temperature, the thermostat setting, the frequency of opening the door of the freezer, the type of food and the time of transporting the product from the shop to the household. Always follow the instructions printed on the packaging and never exceed the maximum storage time stated on the package.

Cooling compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.
• Never put warm foods in the refrigerator. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the refrigerator, which can be used in 1-2 days.
• Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables.

ATTENTION

The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 °C .

Order	Compartments TYPE	Target storage temp. [°C]	Appropriate food
1 Fridge +2 ~ +8			Eggs, cooked food, packaged food, fruits and vegetables, dairy products, cakes, drinks and other foods are not suitable for freezing.
2 (***)-Freezer	≤-18		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
3 ***-Freezer	≤-18		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
4 **-Freezer	≤-12		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
5 *-Freezer	≤-6		Seafood (fish, shrimp, shellfish), freshwater aquatic products and meat products (recommended for 3 months, the longer the storage time, the worse the taste and nutrition), suitable for frozen fresh food.
6 0-star -6 ~ 0			Fresh pork, beef, fish, chicken, some packaged processed foods, etc. (Recommended to eat within the same day, preferably no more than 3 days).Partially encapsulated processed foods (non-freezable foods).
7 Chill -2 ~ +3			Fresh/ frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0°C and above 0°C is recommended for consumption within that day, preferably no more than 2 days).Seafood (less than 0 for 15 days, it is not recommended to store above 0°C.
8 Fresh food 0 ~ +4			Fresh pork, beef, fish, chicken, cooked food, etc.(Recommended to eat within the same day, preferably no more than 3 days)
9 Wine +5 ~+20 Red wine, white wine, sparkling wine, etc.

ATTENTION

please store different foods according to the compartments or target storage temperature of your purchased.

CLEANING AND MAINTENANCE

Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

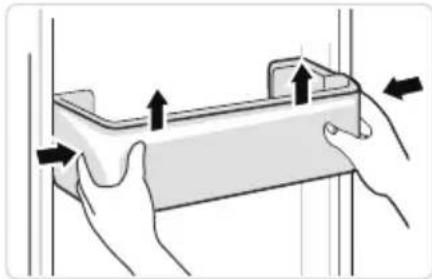

Cleaning of door tray

- According to the direction arrow in the figure below, use both hands to squeeze the tray, and push it upward, then you can take it out. - After washing the tray having been taken out, you can adjust its installing height in accordance with your requirement.

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Cleaning of glass shelf

- As the innermost part of the refrigerator liner where contacting the shelves has a backstop, you shall raise the shelves upward, then you can be able to take it out. - Adjust or clean the shelves according to your requirement.

Illustration of a hand interacting with a flatbed surface, showing upward arrows and a magnified view of a folded paper or document (no text or symbols)

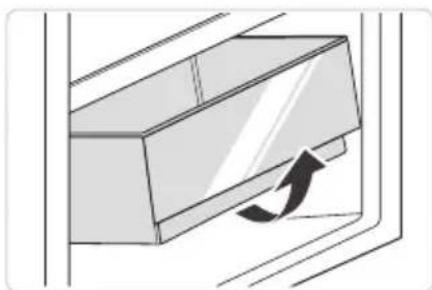

Cleaning the vegetable drawer

1. Remove the contents of the drawer. Hold the handle of the vegetable drawer and pull it out completely until it stops.
2. Lift the vegetable drawer up and remove it by pulling it out.

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATTENTION

Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on. Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Problem Possible reason
Failed operation	·Check whether the appliance is connected to power or whether the plug is in well contact
	·Check whether the voltage is too low
	·Check whether there is a power failure or partial circuits have tripped
Odor	·Odorous foods shall be tightly wrapped
	·Check whether there is any rotten food
	·Clean the inside of the refrigerator
Long-time operation of the compressor	·Long operation of the refrigerator is normal in summer
	·when the ambient temperature is high it is not suggestible having too much food in the appliance at the same time
	·Food shall get cool before being put into the appliance
	·The doors are opened too frequently
Light fails to get lit	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged
	·Have the light replaced by a specialist
Door can not be properly closed	·The door is stuck by food packages Too much food is placed
	·The refrigerator is tiltedr
Loud noises	·Check whether the floor is level and whether the refrigerator is placed stably
	·Check whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door seal
	Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting
	The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal When housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel

EN

APPENDIX

Special for new European standard

The ordered parts in the following table can be acquired from Service provider channel

Ordered part Provided by		Minimum time required for Provision
Thermostats Professional maintenance personnel		At least 7 years after the last model is launched on the market
Temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
Light sources Professional maintenance personnel		At least 7 years after the last model is launched on the market
Door handles Professional repairers and final users		At least 7 years after the last model is launched on the market
Door hinges Professional repairers and final users		At least 7 years after the last model is launched on the market
Trays Professional repairers and final users		At least 7 years after the last model is launched on the market
Baskets Professional repairers and final users		At least 7 years after the last model is launched on the market
Door gaskets Professional repairers and final users		At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy.

(Remember to bring the purchase invoice)

1. If your product breaks down which needs to repair, please contact after-sales service provider.

ATTENTION

The model information in the product database, as well as the model identifier, can be obtained througha weblink scanned by a QR code, if any, on the energy efficiency label of the product.

For more information about the energy efficiency of the appliance, visit https://ec.europa.eu and search using the model name.

The model name can be found on the rating label of the appliance.

Coldest zone in the refrigerator

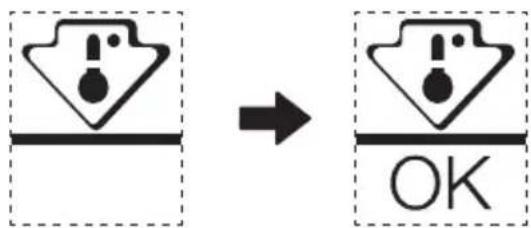

OPTIONAL: OK-temperature indicator

- The OK-temperature indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate "OK".

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

- To ensure the temperature in this area, do not change the positioning of the shelf. Inforced air refrigerators (equipped with a fan or No Frost models), the symbol of the coldest zone is not represented because the temperature inside is homogeneous.

Temperature indicator setting

• To help you set your refrigerator well, it is equipped with a temperature indicator that will monitor the average temperature in the coldest zone.

- WARNING: This indicator is intended to work only with your refrigerator, do not use it in another refrigerator (in fact, the coldest zone is not the same), or for any other use.

Checking the temperature in the coldest zone

- With the temperature indicator, you can check regularly that the temperature of the coldest zone is correct. Indeed, the internal temperature of the refrigerator depends on several factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening. Take these factors into consideration when setting the device.

- When the indicator shows « OK », this means that your thermostat is well adjusted and the internal temperature correct.

- If the indicator of temperature turns WHITE, this means that the temperature is too high; in this case, increase the refrigerator temperature control setting and wait for 12 hours before performing a new visual inspection of the indicator. When fresh food has been introduced or the door has been left open, it is possible for the indicator of temperature to turn WHITE after a while.

DANKESBRIEF

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Architectural diagram of a double-door refrigerator with doors open and internal compartments (no text or labels)

5

>100mm >100mm >100mm >100mm

super cooling → super freezing → super cooling and super freezing → vacation → none

Simple horizontal line with an upward arrow at the top (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface, showing upward arrows and a magnified view of a terrain feature (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ACHTUNG

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior with numbered labels pointing to different compartments

1 Lampada a LED

4 Cassetto

2 Vassoio porta

>100mm >100mm >100mm >100mm

super cooling → super freezing → super cooling and super freezing → vacation → none

Simple horizontal line with an upward arrow at the top (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATTENZIONE

Diagram showing a warning symbol with exclamation mark inside a box and an 'OK' button below it, indicating cancellation or error.

INSTALLATION DU PRODUIT 05

INSTRUCTIONS D'OPÉRATION 10

NETTOYAGE ET ENTRETIEN 15

DÉPANNAGE 16

ANNEXE----18

SPÉCIFICATIONS

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior with numbered labels pointing to different compartments

1 Lampe LED

4 Tiroir

INSTALLATION DU PRODUIT

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows, showing a magnified view of the object (no text or symbols present)

Diagram of a door handle with an arrow indicating direction (no text or symbols)

ATTENTION

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior layout with numbered compartments and labeled fixtures

1 Luz de LED

4 Cajón

2 Bandeja de puerta

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows indicating movement or force (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATENCIÓN

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior with numbered labels pointing to different compartments

1 Lâmpada LED

4 Esquema

2 Bandeja da porta

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Limpeza de prateleiras de vidro

Illustration of a hand pressing down on a flat surface with upward arrows, no text or symbols present

Limpeza da gaveta dos legumes

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATENÇÃO

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Technical diagram of a refrigerator interior with numbered components and labeled parts

1 Λαμπτήρας LED

4 Συρτάρι

2 Θήκη για πόρτες

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand pressing down on a flat surface with upward arrows, showing a magnified view of the surface (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ΠΡΟΣΟΧΗ

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior layout with numbered compartments and labeled fixtures

1 Światło LED

4 Szuflada

2 Balkonik na drzwi

5 Szuflada na owoce i warzywa

3 Szklana półka

UWAGA

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

Illustration of a hand interacting with a flat surface, showing upward arrows and a magnified inset of a building (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

UWAGA

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

PRODUKTA PÄRSKATS 03

PRODUKTA UZSTĀDĪŠANA 05

LIETOŠANAS INSTRUKCIJAS 10

TİRİŞANA UN APKOPE 15

TRAUCĒJUMMEKLĒŠANA 16

PIELIKUMS 18

SPECIFIKĀCIJAS

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior layout with numbered compartments and labeled fixtures

1 LED lampina

4 Atvilkte

2 Durvju plaukts

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

UZMANIBU!

Diagram showing a warning symbol before and after an operation, with 'OK' indicating completion.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Komora za zamrzavanje Komora za rashlađivanje

1 LED sijalica 5 Kutija za voće i povrće
2 Staklena polica 6 Posuda za vrata sa dve zvezdice
3 Polica za vrata 7 Posuda za led (opciono)
4 Fioka

PAŽNJA

Slika iznad služi samo za referencu. Stvarna konfiguracija će zavisiti od kupljenog proizvoda ili izjave distributera.

TIP B

2
3
4

Architectural diagram of a double-door refrigerator with doors open and internal compartments, no text or symbols present

5

1 LED sijalica
2 Polica za vrata
3 Staklena polica

>100mm >100mm >100mm >100mm

Prostor potreban za cirkulaciju vazduha >100mm Prikaz odozgo >100mm >100mm >100mm

PAŽNJA

Slika iznad služi samo za referencu. Stvarna konfiguracija će zavisiti od kupljenog proizvoda ili izjave distributera.

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Čišćenje staklene police

• Kako najdublji unutrašnji deo podloge frižidera gde kontakt sa policama ima graničnik, morate da podignite police nagore, a zatim ih možete izvaditi.
• Podesite ili očistite police prema vašim potrebama.

Illustration of a hand interacting with a flat surface, showing upward arrows and a magnified view of the surface (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

PAŽNJA

Za čišćenje se preporučuju meki peškiri ili suđer umočeni u vodu i nekorozivni neutralni deterdženti. Zamrzivač se mora na kraju očistiti čistom vodom i obrisati suvom krpom. Otvorite vrata za prirodno sušenje pre nego što se uključi napajanje. Nemojte koristiti tvrde četke, čelične kuglice za čišćenje, žičane četke, abrazivna sredstva (kao što su paste za zube), organske rastvarače (kao što su alkohol, aceton, ulje banane, itd.), ključalu vodu, kisele ili alkalne predmete da očistite frižider s obzirom da to može da ošteti površinu i unutrašnjost frižidera.

REŠAVANJE PROBLEMA

Diagram showing a warning symbol before and after an operation, with 'OK' indicating completion.

- Da bi se održavala ujednačena temperatura u ovoj oblasti, nemojte menjati položaj police. Kod frižidera sa protokom vazduha (uređaji sa ventilatorom ili modeli „bez zaleđivanja”) simbola najhladnije zone nema jer je temperatura unutrašnjosti svuda ista.

Indikator podešavanja temperature

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Komora za zamrzavanje Rashladna komora

Diagram of a refrigerator interior layout with numbered compartments and labeled fixtures

1 LED žaruljica

4 Ladica

2 Polica u vratima

>100mm >100mm >100mm >100mm

Prostor potreban za cirkulaciju zraka >100mm Pogled odozgo >100mm >100mm

PAŽNJA

Gornja slika služi samo kao referenca. Stvarna konfiguracija ovisit će o fizičkom proizvodu ili izjavi distributera.

Dijagram zahtjeva za prostorom (s otvorenim i zatvorenim vratima)

HR

Širina	Sveukupna visina	Dubina Bez vrata	Dubina s vratima otvorenim pod kutom od 130 °	Širina s vratima otvorenim pod kutom od 130 °
A B C C1 D E
897 1765 706 600 960 1700

Napomena: Sve dimenzije u mm

Nožice za niveliranje

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Čišćenje staklene police

Illustration of a hand holding a flat surface with arrows indicating upward movement, no text or symbols present

Čišćenje ladice za povrće

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

PAŽNJA

Za čišćenje se preporučuju mekani ručnici ili spužva umočeni u vodu i nekorozivni neutralni deterdženti. Zamrzivač konačno očistite čistom vodom i suhom krpom. Otvorite vrata za prirodno sušenje prije nego što se napajanje uključi. Ne upotrebljavajte tvrde četke, čiste čelične kuglice, žičane četke, abrazive, kao što su paste za zube, organska otapala (poput alkohola, acetona, banana ulje itd.), kipuću vodu, kiseline ili alkalne predmete čistite hladnjak s obzirom da to može oštetiti površina i unutrašnjost hladnjaka.

RJEŠAVANJE PROBLEMA

Diagram showing a warning symbol before and after an operation, with 'OK' indicating completion.

- Kako biste osigurali temperaturu u tom području, nemojte mijenjati položaj police. Hladnjaci s hlađenjem pod pritiskom (opremljeni ventilatorom ili modeli bez inja), simbol najhladnije zone nije predstavljen jer je unutarnja temperatura homogena.

Postavka indikatora temperature

- Kao pomoć pri pravilnom postavljanju hladnjaka imate indikator temperature koji će pratiti prosječnu temperaturu u najhladnijoj zoni.

- UPOZORENJE: Ovaj indikator namijenjen je isključivo radu s vašim hladnjakom, nemojte ga koristiti na drugom hladnjaku (najhladnija zona nije ista) ili za drugu namjenu.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior with numbered compartments and labeled storage areas

HU

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

Üvegpolc tisztítása

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

FIGYELEM

Diagram showing a warning symbol with exclamation mark inside a box and an arrow pointing to a 'OK' button, indicating a change or modification.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior layout with numbered compartments and labeled fixtures

SL

1 LED-lučka

4 Predal

2 Pladenj za vrata

5 Predal za sadje in zelenjavo

3 Steklena polica

POZOR

>100mm >100mm >100mm >100mm

Potreben prostor za kroženje zraka >100mm Pogled od zgoraj >100mm >100mm

POZOR

Illustration of hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

Čiščenje steklene police

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

POZOR

Diagram showing a warning symbol before and after an operation, with 'OK' indicating completion.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Compartiment de congelare Compartiment frigorific

Diagram of a refrigerator interior layout with numbered compartments and labeled fixtures

RO

1 Lampă LED

4 Sertar

2 Tavă uşă

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface, showing upward arrows and a magnified view of the object (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ATENTIE

Diagram showing a warning symbol with exclamation mark inside a box and an arrow pointing to a 'OK' button, indicating a change or modification.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior layout with numbered compartments and labeled fixtures

BG

1 LED лампа

4 Чекмедже

2 Рафт на вратата

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand interacting with a flat surface, showing upward arrows and a magnified view of the object (no text or symbols)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

ЗАБЕЛЕЖКА

Diagram showing a process step with warning symbols and an 'OK' button, indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior layout with numbered compartments and labeled fixtures

LT

1 LED lemputé

4 Stalčius

2 Durelių dėklas

>100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

DÈMESIO

Diagram showing a warning symbol before and after an operation, with 'OK' indicating completion.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Dhoma e ngrirjes Hapësira e ftohjes

Diagram of a refrigerator interior with numbered compartments and labeled storage areas

1 Llamba LED

2 Tabakaja e derës

3 Rafti i xhamit

4 Sirtar

INSTALIMI I PRODUKTIT

>100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

Pastrimi i raftit prej xhami

Illustration of a hand holding a flat surface with arrows indicating upward motion, and an inset showing a magnified view of a device (no text or symbols present)

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

MBANI PARASYSH

Diagram showing a warning symbol before and after change, with 'OK' indicating completion or cancellation.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Diagram of a refrigerator interior layout with numbered compartments and labeled fixtures

1 LED světlo

4 Šuplík

2 Police dveří

>100mm >100mm >100mm >100mm

Illustration of hands holding a rectangular object with arrows indicating movement or force (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward movement, no text or symbols present

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

UPOZORNĚNÍ

Diagram showing a warning symbol before and after an operation, with 'OK' indicating completion.

Technical diagram of a refrigerator internal structure with numbered labels pointing to different compartments

Mraziaca komora Chladiaca komora

1 LED svetlo

5 Skrinka na ovocie a zeleninu

2 Sklenená polica

Diagram of a refrigerator interior layout with numbered compartments and labeled fixtures

1 LED svetlo

4 Zásuvka

2 Dverná zásuvka

5 Skrinka na ovocie a zeleninu

3 Sklenená polica

SK

UPOZORNENIE

>100mm >100mm >100mm

Požadovaný priestor na cirkuláciu vzduchu >100mm Pohl'ad zhora >100mm >100mm

SK

UPOZORNENIE

Simple horizontal line with an upward arrow at the top (no text or symbols)

V dovolenkovom režime sa teplota mrazničky automaticky nastaví na -18 °C, chladiaca komora je zatvorená.

V režime super chladenia sa teplota chladiacej komory automaticky nastaví na 2 °C. Pri ukončení režimu super chladenia sa nastavená teplota chladiacej komory automaticky vráti na teplotu nastavenú pred režimom super chladenia.

Illustration of hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

Illustration of a hand holding a flat surface with arrows indicating upward motion, no text or symbols present

Čistenie priehradky na zeleninu

Diagram of a door handle with an arrow indicating clockwise motion (no text or symbols)

UPOZORNENIE

Diagram showing a warning symbol before and after transformation, with 'OK' indicating completion or cancellation.

make yourself at home
