WD1712D - Oven Atag - Free user manual and instructions

Product type	Warming drawer
Brand	Atag
Model	WD1712D
Dimensions (H x W x D)	140 x 550 x 560 mm
Weight	Approx. 15 kg
Power supply	220-240 V, 10 A, class I, earthed
Temperature range	30 °C to 80 °C
Capacity	Up to 12 place settings
Main functions	Preheating dishes, keeping warm, low-temperature cooking
Heating indicator	Flashing LED while heating, steady when temperature reached
Safety	Hot surface, do not use steam cleaner, disconnect before maintenance
Maintenance and cleaning	Clean with a damp cloth, appliance unplugged and cooled down
Spare parts	Use genuine Atag parts
Repairability	Service by an approved installer only

Frequently Asked Questions - WD1712D Atag

How to set the temperature of the warming drawer?

Turn the rotary knob located at the front (visible when the drawer is open) to set the temperature between 30 °C and 80 °C. The LED flashes during heating and stays steady when the temperature is reached.

How long does it take to preheat dishes?

The time depends on the material, thickness, and load. As a guide, at 60 °C, allow about 30 minutes for a 6-person setting and 40 minutes for 12 persons.

Can I use plastic dishes in the warming drawer?

It is not recommended to use plastic dishes not suitable for heat. The maximum temperature is 80 °C, but check the heat resistance of your containers.

What to do if the appliance does not heat?

Check that the drawer is properly closed (heating only works with drawer closed). Make sure the temperature knob is set to a non-zero value. If the problem persists, unplug the appliance and contact after-sales service.

How to clean the warming drawer?

Unplug the appliance and let it cool down. Clean the inside and outside with a damp cloth and mild detergent. Never use a steam cleaner or abrasive products.

Can I use a steam cleaner to clean the appliance?

No, using a steam cleaner is prohibited because steam can reach live parts and cause a short circuit. Clean only with a damp cloth.

What is the power consumption of the warming drawer?

The appliance is protected by a 10 A fuse at 220-240 V. The exact power is not specified, but it is suitable for standard domestic use.

Does the appliance make noise during operation?

A slight fan noise is normal during heating. If abnormal noises occur, check that nothing is blocking the protection grille and contact after-sales service if necessary.

Can I build the warming drawer under a worktop?

Yes, the appliance is designed for built-in installation. Respect the built-in dimensions (min. 550 mm width, 560 mm depth, 140 mm height) and ensure sufficient ventilation. Do not close a decorative door during use.

Where to find spare parts for my Atag warming drawer?

Use only genuine Atag parts. Contact Atag after-sales service or an approved installer to order spare parts.

USER MANUAL WD1712D Atag

Circular mechanical component with internal striped pattern and labeled ports (no text or symbols)

Five safety and compliance symbols: hazard, warning triangle, open book, prohibited sign, and no-smoking figure.

Toestelafmetingen

552 135 597 524

Inbouwmaten

min. 550 560 140 8 4

Installatie

Inbouwen

Isometric line drawing of a rectangular electronic device with two screws on top (no text or symbols)

Diagram of a drawer with an open drawer and a handle, showing internal structure without any text or symbols.

Diagram of a drawer with an arrow pointing to one pan, no text or symbols present

± 2mm

Diagram showing a hand removing a trash bin into a trash bin, with an inset illustrating the disposal method.

Afvoerenvanhettoestelenverpakking

Warning symbol for a trash bin with crossed lines indicating no waste or discharge, and a black rectangle below.

Circular mechanical component with internal striped pattern and labeled ports (no text or symbols)

			ApplicationFonctionTempératurelcône
			-Éteint00
		Décongeler30°C	Pourdécongelerdesaliments.Faireleverdelapâte.
		Décongeler40°C
			Préchaufferdestassesàcafé.Préchaufferdesve
		Préchaufferunservice.60°C	Préchaufferdesassiettesetdes plats.Garderdesplatsauchaud (oeufs,pain).
		Garderdesplatsauchaud.70°C	Garderdesplatsauchaud (viande,poisson,légumes).
	10°C	Maintienauchaudetréchauffage	Garderauchaudetréchaufferdes plats.

ATTENTION!

Five safety and hazard symbols: construction worker, warning triangle, open book, no-smoking, and person wearing glasses.

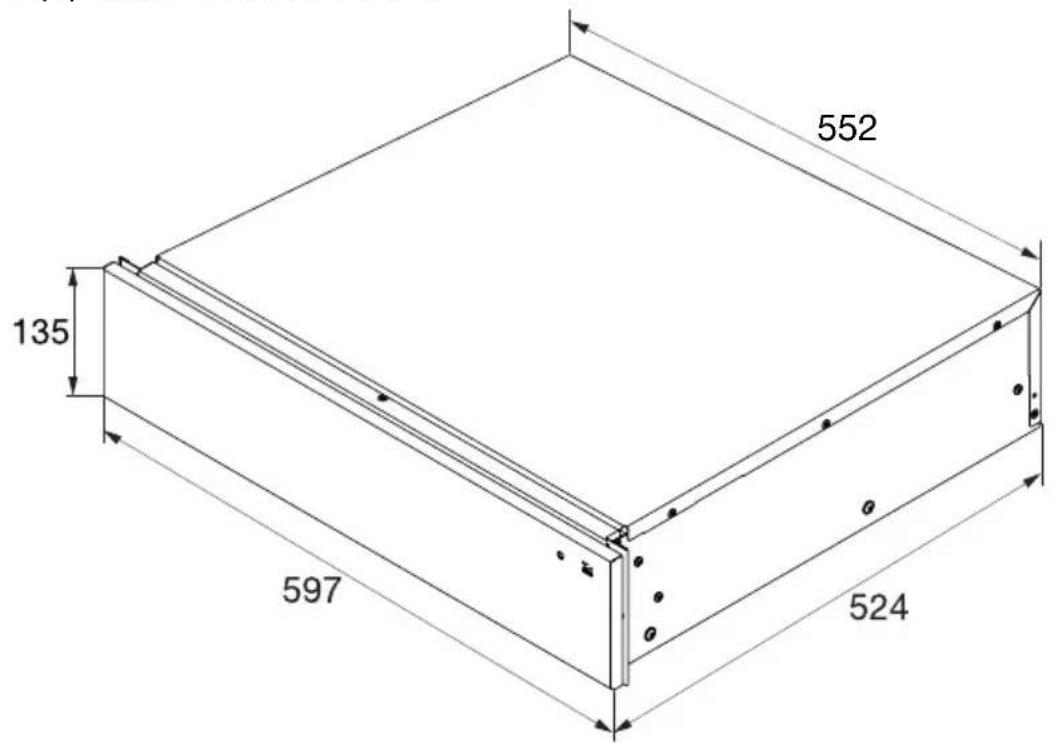

Dimensionsdel'appareil

552 135 597 524

Isometric line drawing of a rectangular electronic device with two screws on top (no text or symbols)

Diagram of a drawer with an open drawer and a handle, showing internal structure without any text or symbols.

Diagram of a drawer with an arrow pointing to one pan, no text or symbols present

± 2mm

Diagram showing a person disposing of trash into a bin, with an inset illustrating the disposal method.

Miseaurebutdel'appareiletdel'emballage

Warning symbol for a trash bin with crossed lines indicating no waste or discharge, and a black rectangle below.

Circular mechanical component with internal striped pattern and labeled ports (no text or symbols)

Safety warning symbols including hazard, warning triangle, open book, no-smoking, and person wearing safety goggles

Geräteabmessungen

135 597 524 552

Einbaumaße

min. 550 560 140 8 4

Installation

Einbau

Simple line drawing of a rectangular box with two screws on top (no text or symbols)

Diagram of a drawer with an open drawer and a handle, showing internal structure without any text or symbols.

Diagram of a drawer with an arrow pointing to one pan, no text or symbols present

± 2mm

Diagram showing a trash bin disposal mechanism with an inset image of a person using a bin for waste disposal.

Symbol of a trash bin with crossed-out lanes and a blank space below, indicating no waste or discharge.

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

4Safetyregulations......

6Use....

7Operation....

8Warmingtime......

9Installation....

9Safety....

11Preparatic

11Appliance

11 Built-indin

12Built-in.....

13Environn

13Disposalo

The following symbols are used throughout the manual, and they have the following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning—general danger

ELECTRICSHOCK!

Warning—dangerofelectricshock

HOTSURFACE!

Warning—dangerofhotsurface

DANGEROFFIRE!

Warning—dangeroffire

It is important that you carefully read the instructions.

WARNING!

READCAREFULLYANDKEEPITFORFUTUREREFERENCE!

EU

WARNING!

This appliance and the accessible parts will become hot during use. Donottouchhotparts. Keep children younger than 8 away from the appliance unless they are under continuous supervision.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in asafeway and understand the hazards involved.
• Childrenshallnotplaywiththeappliance.Cleaningandusermaintenanceshallnotbemadebychildrenwithoutsupervision.

- Neveruseasteamcleanerforcleaningtheappliance.

Onlycleantheappliancewhenswitchedoff. Thesteamofasteam cleanercouldreachtheconductingpartsandcauseanelectrical short.

- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

- Adefectiveappliancemaycauseelectricshock.Neverswitch onadefectiveappliance.Disconnectitandcontactcustomer service.

- Improperinstallationandmaintenanceworkorrepairsare dangerous. Donottouchanyconductingconnectionsanddonot changetheelectricalandmechanicaldesignoftheappliance. These may only be performed by authorized and trained technicians. If the appliance has a defect, pleased disconnect and contact customers service.

- Donotoperatetheappliancewithwethandsorincontactwith water.

• This appliance is intended to be used in a household only.
• The appliance must not be installed behind a decorated door in orderto avoid overheating.
• The appliance and its accessible parts become hot during use. Careshould betakento avoid touching heating elements.

ELECTRICSHOCK!

WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

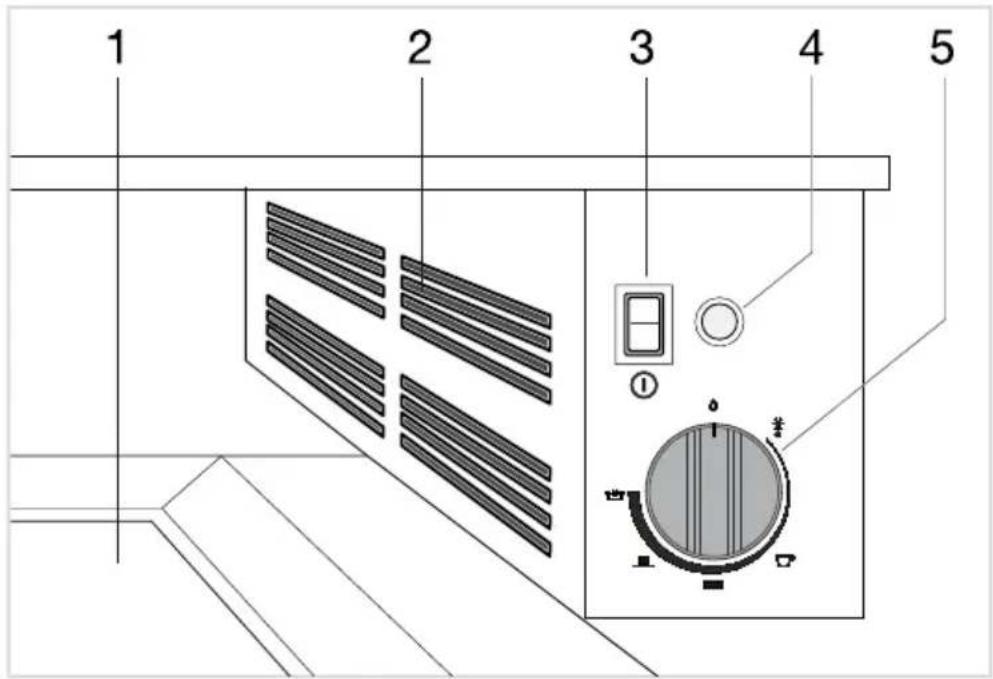

1 2 3 4 5

1. Anti-slipmat
   2.Fanandheating
2. On/offswitch

3. Indicatorlight

4. Flashesiftheapplianceisswitchedon.
   • Lightsupiftheapplianceisswitchedonandthedrawerisclosed.

5. Dialforsettingthetemperature.

6. Thetemperaturesetisthetemperatureofthehotplateatthebottomofthedrawerwhenthe drawerisempty.Measurementsusinganexternalthermometercanvaryandarenotsuitable forcheckingthetemperatureprecisely.
   •The appliance will only heat up when the drawer is closed.

ThedrawerhasanON/OFFandtemperatureregulationdial. Thisdialisonlyvisiblewhenthedrawer isopen. Whenthedrawerisclosed, the indicatorlightonthefrontshowswhethertheapplianceis switchedon.

1. Placethecrockeryorplateswithfoodinthedrawer.
2. Setthedesiredtemperature.

• The 'applianceon' indicator will flash.
- Use the temperature knob to set at temperature between 30^ and 80^ .

3.Closethedrawer.

• The 'applianceon' indicator will lightup.

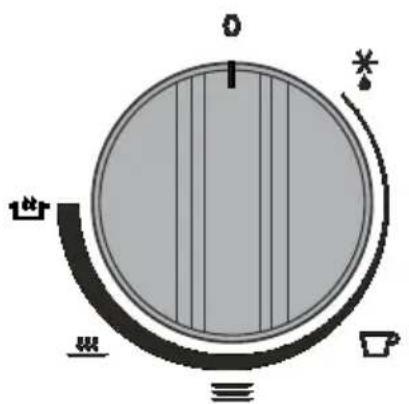

Circular mechanical component with internal striped pattern and labeled ports (no text or symbols)

			ApplicationFunctionTemperatureIcon
			-Off00
		Defrosting30°C	Fordefrostingfood.Allowingdoughtorise.
		Defrosting40°C
			Warmingcoffeecups.Warmingcupsandglasse
		Warmingcrockery.60°C	Warmingplatesanddishes.Keepingfoodwarm(eggs,bread).
		Keepingfoodwarm.70°C	Keepingfoodwarm(meat,fish,vegetables).
	80 °C	Keeping warm and Heating up	Keeping food warm and reheating.

WARNING!

Aprotectivegrillepreventscontactwiththeelementsandthefan.

Operation

Warmingtime

Thewarmingtimefortablewaredependsonseveralfactors:

•Filllevel.
•Distributionoftheload.
•Temperaturecontrol.

- Materialandthicknessofthetableware.

This mean that it is not possible to give precise data in advance.

Afewrecommendations:

Evenwarmingatatemperatureof60°Cwilltake:

• approximately30minsforcrockeryforamealforsixpeople.
• approximately40minsforcrockeryforamealfortwelvepeople.

Youwilllearnfromexperiencewhichtimingsuitsyourcrockerybest.

Safety

• Thisapplianceshouldonlybeconnectedbyaregisteredinstaller!
• Theelectrical connection must comply with national and local regulations.
• Thewallplugsocketandplugshouldalwaysbeaccessible.
• If the power cord is damaged, it should be replaced by the manufacturer or an authorised service technician, inordertoavoidhazard.
• If you want to make a fixed connection, makes sure that a omnipolars switch with a contact separation of least 3 mmis fitted in the supply cable.
• If a stationary appliance is not fitted with a supply cord and a plug, or with other means for disconnectionfromthesupplymainshavingacontactseparationinallpolesthatprovidefull disconnectionunderovervoltagecategorylllconditions,theinstructionsshallstatethatmeans fordisconnectionmustbeincorporatedinthefixedwiringinaccordancewiththewiringrules.
• WARNING: Neveropentheappliancecasing. The casing may only be opened by aservice technician.
• Prior to connecting the drawer, ensure that all cables in your home's electrical system are of sufficientdiametertosupplytheapplianceproperly.
• Completeallelectricalconnectionsbeforebuildingintheappliance.
• Improperinstallationandmaintenanceworkorrepairsaredangerous. These may only be performed by authorized and trained technicians. If the appliance has a defect, pleased disconnect and contact customers service.
• If the appliance is mounted behind a furniture front (e.g. a door), never close it while the appliance isinuse.Heatandhumidityaccumulatebehindaclosedfurniturefront.Thismaydamagedrawer, cupboardandfloor.
• Onlyuseoriginalreplacementparts.Thesemeettherequiredsafetyspecifications.
• Plesenotethattheappliancemustnotbemountedtiltedorupended. Thesignofthe applianceincludesanoil-containingpump.Pleaserefertotheinstallationinstructions.
• The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructionsandwarnings.

Electricalconnection

• This appliance is manufactured in Class I; this means the device must be grounded.
• For AU/NZS: Means providing full disconnection under overvoltage category III conditions must be incorporated in the fixed wiring in accordance with AS/NZS3000.
• Check whether the power of the electrical mains corresponds to the power on the identification plateontheappliance.
• Beforeconnectingtotheelectricalmains, checkwhetherthepowersocketisgrounded.
• The device is equipped with a plug. When installing the appliance, remember that this plug must remain accessible.

Thiswarmingdrawerisdesignedforusebyindividualsintheirhome.Itisonlyintendedfor pre-warmingtableware,keepingfoodwarmandslowcooking.Anyotheruseisprohibitedandmay bedangerous.Themanufacturerdisclaimsliabilityintheeventofimproperuse.

Undercertainconditions, the outside of the warming drawermayreach 70^ C (depending on the selected temperature and length of fuse). Always use oven mittsorglovestoremovethewarmed tableware from the drawer.

WARNING!

Ifastationaryapplianceisnotfittedwithasupplycordandaplug,orwithothermeansfor disconnectionfromthesupplymainshavingacontactseparationinallpolesthatprovidefull disconnectionunderovervoltagecategorylllconditions,themeansfordisconnectionmustbe incorporatedinthefixedwiringinaccordancewiththewiringrules. Thisisalsoapplicablefor applianceswithasupplycordandplugwhentheplugisnotaccessibleafterinstallingthe appliance. Usinganomnipolarswitchwithacontactseparationofatleast3mmfittedinthefixed wiringwillfulfilthisrequirement.

Prioroconnectingthedrawer,ensurethatallcablesinyourhome'selectricalsystemare ofsufficientdiameter.Yoursystemshouldbeprotectedbya10-ampfuse.

Preparation

Five safety and compliance symbols: hazard, warning triangle, open book, no-smoking, and person wearing glasses.

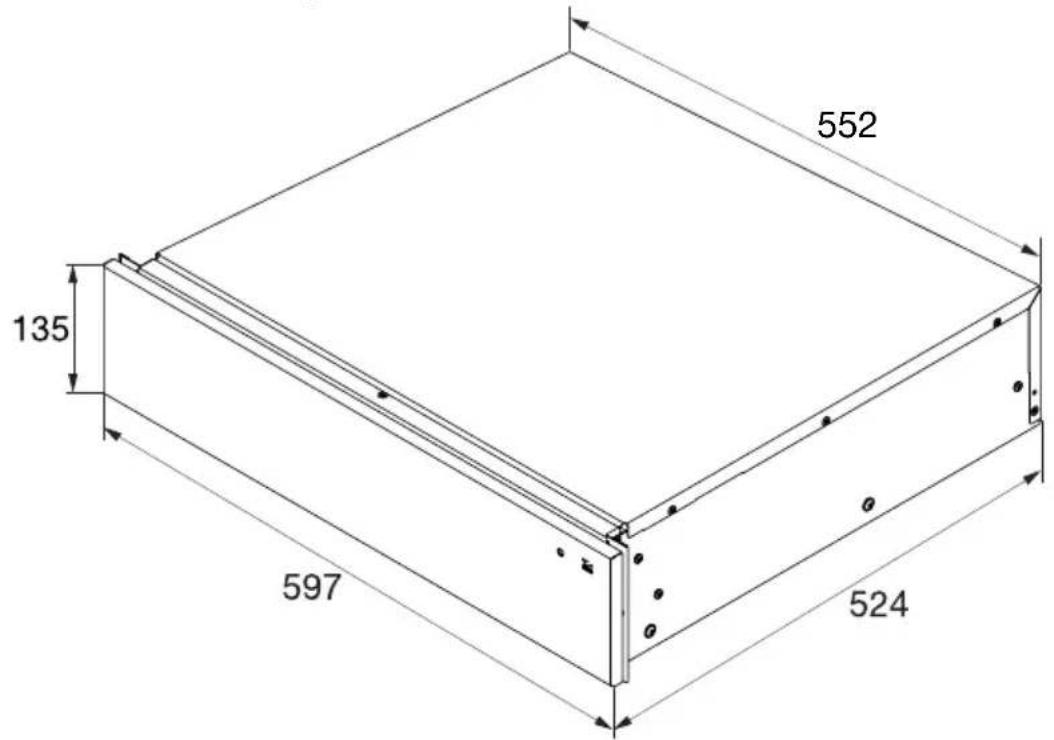

Appliancedimensions

135 597 552 524

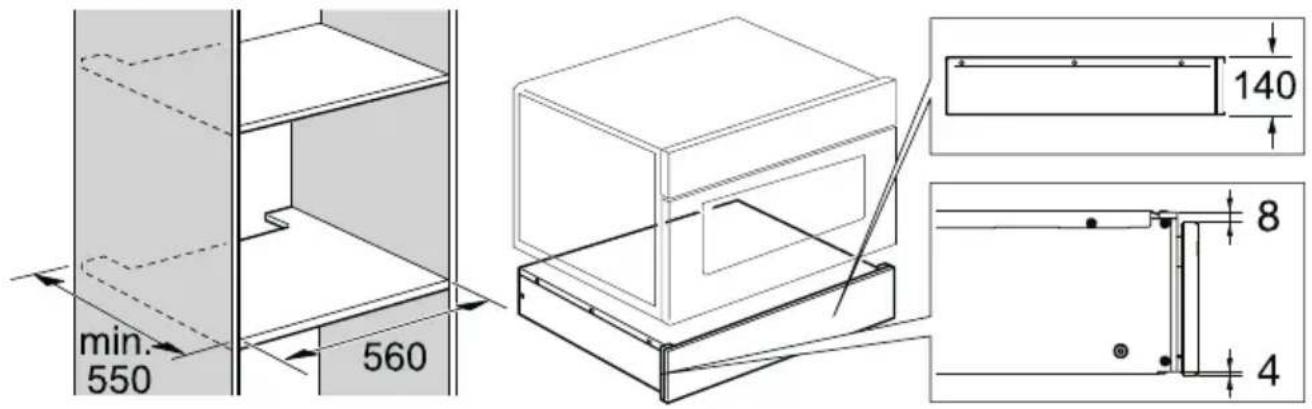

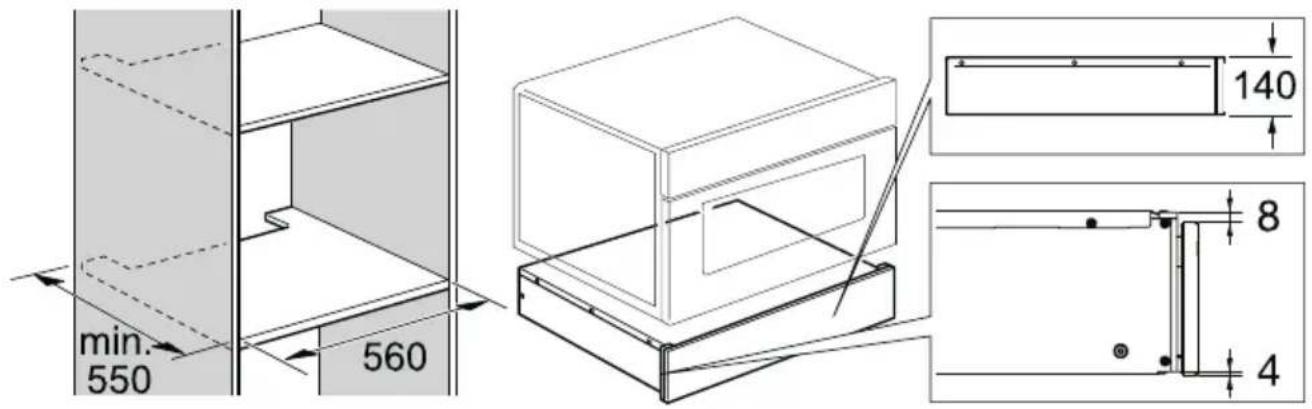

Built-indimensions

min. 550 560 140 8 4

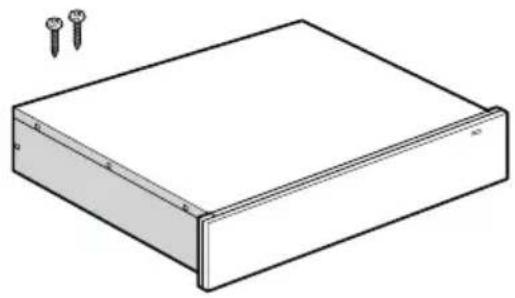

Installation

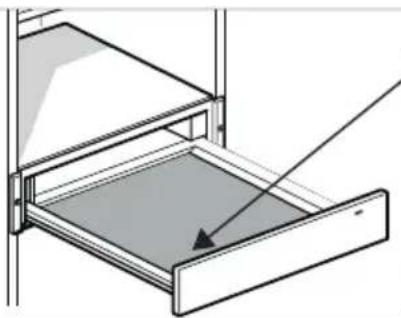

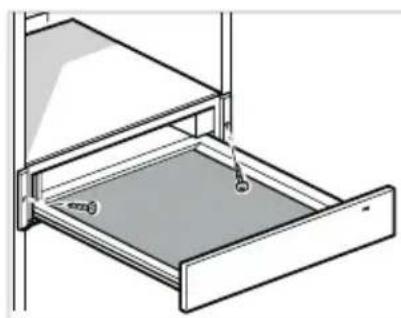

Built-in

Simple line drawing of a rectangular box with two screws on top (no text or symbols)

Diagram of a drawer with an open drawer and a handle, showing internal structure without any text or symbols.

Diagram of a drawer with an arrow pointing to one pan, no text or symbols present

± 2mm

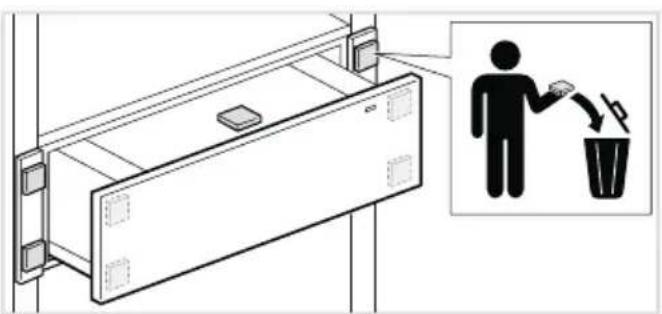

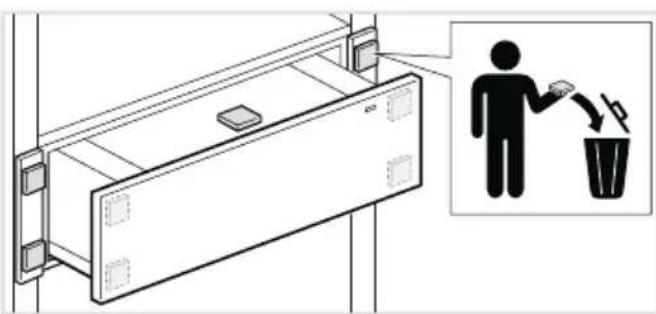

Diagram showing a person disposing of trash into a bin, with an inset illustrating the disposal method.

Disposal of the appliance and packaging

Sustainable material have been used during the manufacture of this appliance. This appliance must be disposed of responsibly at the end of its service life. Ask your local authorities for more information about how to do this.

The appliance packaging is recyclable. The following may have been used:

• cardboard;
  •polyethylenefilm(PE);
  •CFC-freepolystyrene(PSrigidfoam).

Disposeofthesematerialsinaresponsiblemannerandinaccordancewithgovernmentregulations.

Warning symbol for a trash bin with crossed lines indicating no waste or discharge, and a black rectangle below.

The product has been marked with across-dust bins symbol to remind you of the obligation to dispose of electrical household appliances separately. This means that the appliance may not be included with normal domestic refuse at the end of its service. The appliance must be a special municipal centre for separated waste collection to a dealer providing this service.

Aseparate collection of household appliances help to prevent any potential negative impact on the environment and human health caused by improper disposal. It ensures that them also of which the appliance is composed can be recovered to obtain significant savings in energy and raw materials.

NOTE!

Pleasenote!Donotthrowabrokenceramicglassplateintheglassrecyclingbinbuttakethis totheMunicipality'swasterecyclingcentre.

Declarationofconformity

WeherebydeclarethatourproductssatisfytheapplicableEuropean directives, ordersandregulations, aswellastherequirementsstated inthereferencedstandards.

Yournotes

ATAG

www.atag.nl

www.atag.be
