USER MANUAL 15471 Real Madrid

Compact Weather station

Circular logo featuring Real Madrid's 'F' and crown, no text or symbols present

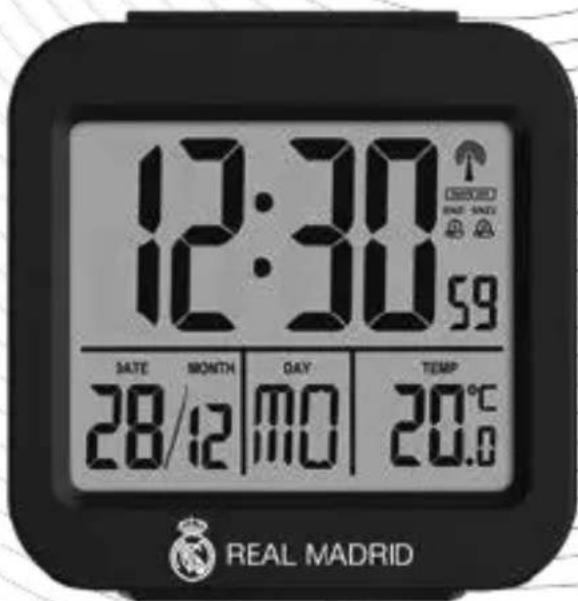

12:30 59 SATÉ MONTH QAY TEMP 28/12 MO 20.0°C REAL MADRID

EN Visit our website via the following QR Code or web link to find further information on this product or the available translations of these instructions.

QR code image containing encoded data, no visible human-readable text

FSC® www.fsc.org MIX Paper | Supporting responsible forestry FSC® C144615

GARANTIE · WARRANTY · GARANTÍA · GARANZIA

QR code image containing encoded data, no visible human-readable text

www.bresser.de/warranty_terms

EN MO TU WE TH FR SA SU

FR LU MA ME JE VE SA DI

IT LU MA ME GI VE SA DO

ES LU MA MI JU VI SA DO

NE MA DI WO DO VR ZA ZO

DA MA TI ON TO FR LO SO

12. DATOS TÉCNICOS

Unidad principal

• DCF
• Pilas: 2xAAA
• Unidad de medida de temperatura: °C / °F
• Rango de visualización de temperatura: -20^ - 50^
• Rango de visualización de humedad: HR 20% - 95%
  • 433MHZ
• Temperatura:
• 20^ 0^: ± 2^
• 0^ +50^: ± 1^

13. LIMPIEZA Y MANTENIMIENTO

1. About this manual 21
2. General safety instructions 21
3. Scope of delivery 23
4. Features 23
5. Parts Overview 26
6. Setting up power supply 28
7. Time setting 28
8. Alarm Setting 30
9. Backlight 31
10. Low Battery Indicator 31
11. Week Display 31
12. Technical data 32
13. Cleaning and Maintenance 32
14. Disposal 33
15. EC Declaration of Conformity 33
16. Warranty & Service 34

1. ABOUT THIS MANUAL

This instruction manual is to be considered part of the device. Before using the device, please read the safety instructions and the user manual carefully.

Keep this user manual for future reference. If the device is sold or passed on, the instruction manual must be provided to the new owner/user of the product.

2. GENERAL SAFETY INSTRUCTIONS

- RISK OF CHOKING! Keep packaging material, like plastic bags and rubber bands, out of the reach of children, as these materials pose a choking hazard.

- RISK OF ELECTRIC SHOCK! This device contains electronic components that operate via a power source (batteries). Children should only use the device under adult supervision. Only use the device as described in the manual; otherwise, you run the risk of an electric shock.

- RISK OF CHEMICAL BURN! Leaking battery acid can lead to chemical burns. Avoid contact of battery acid with skin, eyes and mucous membranes. In the event of contact, rinse the affected region immediately with a plenty of water and seek medical attention.

- RISK OF FIRE/EXPLOSION! Use only the recommended

batteries. Do not short-circuit the device or batteries, or throw them into a fire. Excessive heat or improper handling could trigger a short-circuit, a fire or an explosion.

• Use only the recommended batteries. Always replace weak or empty batteries with a new, complete set of batteries at full capacity. Do not use batteries from different brands or with different capacities. Remove the batteries from the unit if it has not been used for a long time.
• The manufacturer is not liable for damage related to improperly installed batteries!

• Do not use rechargeable batteries (accumulators).

• Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary.

• Check this device, cables and connections for damage before use.
• Do not immerse the unit in water.
• Do not subject the unit to excessive force, shock, dust, extreme temperature or high humidity, which may result in malfunction, shorter electronic life span, damaged batteries and distorted parts.
• Place your device so that it can be disconnected

from the power supply at any time. The power outlet should always be near your appliance and should be easily accessible, as the plug of the power cord serves as a disconnect device from the mains supply.

- To disconnect the unit from the mains, always pull the mains plug and never pull the cable!

3. SCOPE OF DELIVERY

Weather station, 2x AAA batteries

4. FEATURES

1. Radio controlled with DCF
2. Time, Calendar, Dual alarms, Snooze
3. 12/24hr, °C/°F,
4. Indoor temperature
5. Low battery indicator
6. 7 languages Week display LED Blue Backlight

12 10:30 10:30 50 DATE MONTH DAY TEMP 10/10 TU 26.6 WAVE OK SNZ1 SNZZ 4 5 6 7 8 9

13 CDEF 14 15 16 17 100 111

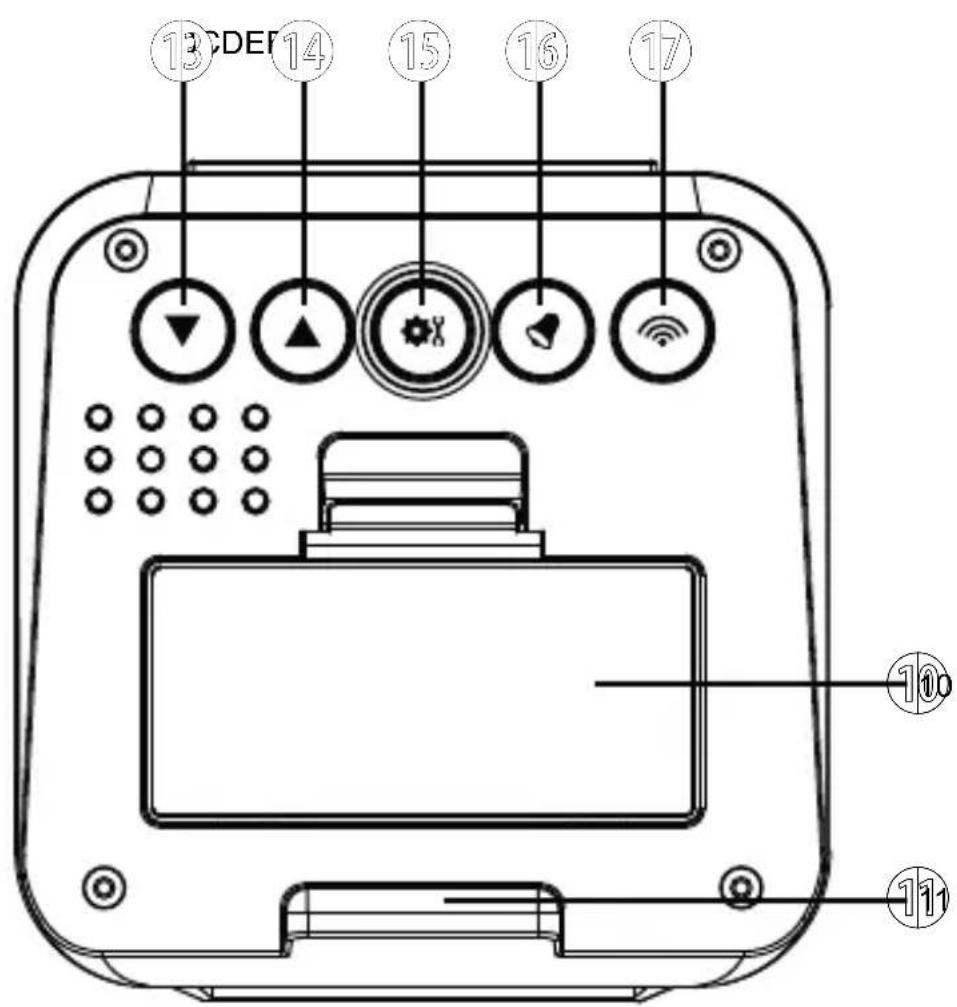

5. PARTS OVERVIEW

1. DST (Daylight Saving Time)

This function automatically adjusts the time by one hour during the Daylight Saving Time period, helping you stay in sync with seasonal time changes.

2. Time with DCF

The weather station receives time signals from the DCF77 radio transmitter in Germany, ensuring accurate and automatic synchronization of time and date settings.

3. Calendar

Displays the full calendar including day, month, providing a clear overview of the current date.

4. RCC Symbol (Radio Controlled Clock)

The RCC symbol appears on the display when the weather station is receiving or has successfully received the DCF time signal, indicating automatic time synchronization.

5. Alarm 2

This is the second alarm setting, allowing you to set a separate wake-up or reminder time in addition to Alarm 1.

6. Alarm 1

Primary alarm function that can be set to alert you at your preferred time with a buzzer sound.

7. 7 Languages Week Display

You can choose to display the weekday in one of 7 languages.

8. Low Battery Indicator

This icon shows when the battery power is low, reminding you to replace the batteries to ensure proper functioning of the device.

9. Indoor Temperature

The current indoor temperature is displayed in either Celsius (°C) or Fahrenheit (°F), helping you monitor room conditions.

10. Battery Cover

Located at the back of the device, this covers and protects the battery compartment. Remove it when replacing batteries.

11. Stand

A stand on the back of the weather station that allows it to be placed securely on a flat surface like a desk or shelf.

12. snooze and backlight button

1. down button for settings (Click to switch in between °C and °F)
2. ♠ button for settings (After pressed the alarm button, press this button to turn on/ff the alarm 1 or 2.)
3. Settings button
4. alarm button
5. DCF button

6. SETTING UP POWER SUPPLY

Base device

1. Remove the battery compartment cover.
2. Insert the batteries into the battery compartment. Ensure that the battery polarity (+/-) is correct.
3. Replace the battery compartment cover.
4. Wait until the indoor temperature is displayed on the main unit.

7. TIME SETTING

After the power is restored, the unit automatically searches for the radio signal. It takes approximately 3-8 minutes for this process

to complete. (If the indoor signal is poor, it is recommended to try again in the garden or near the window where the signal is better.) If the radio signal is received correctly, the date and time are set automatically and the reception symbol is displayed.

If no radio signal is received, proceed as follows:

1. Press the button to activate reception of the radio signal. Reception is now initialized again.

Manual time setting

1. Press and hold button for approx. 3 seconds to enter to the time setting mode.
2. Digits to be set are flashing.
3. Press ▲ button to change the value.
4. Press button to confirm and continue to the next setting.
5. Settings order: Year> Month> Date >7 Languages Week Display >12/24HR > Time Zone > Hour > Minute > Exit
6. Finally press the button to save the settings and exit the setting mode.

In normal mode, press ▼ button to select the temperature unit in °C or °F.

8. ALARM SETTING

1. In normal mode, press button to check the alarm time 1 and alarm time 2.
2. When check the alarm time, Press button to turn on or turn off the alarm.
3. In normal mode, press and hold the button for approx. 3 seconds to enter the alarm setting mode. Digits to be set are flashing.
4. Press of button to change the value.
5. Press button to confirm and continue to the next setting. Settings order: Alarm 1 Hour>Alarm 1 Minute>Alarm 2 Hour>Alarm 2 Minute >Exit.
6. Finally press the button to save the settings and exit the Alarm setting mode.

When the alarm sounds (will sound for 2 minutes), press the button to activate the snooze function. SNZ1 or SNZ2 flashes. The alarm will ringing again after 5 minutes.

When the alarm sounds, press any other key to stop the alarm until the set alarm time is reached again.

9. BACKLIGHT

When power by b atteries, press the ⏻ button to turn on the backlight for 5 seconds.

10. LOW BATTERY INDICATOR

When the level of the batteries in the base station reaches a critical level, the battery level symbol appears in the appropriate area on the display.

The battery symbol is only displayed when the batteries are empty. No battery symbol is displayed when the batteries are full.

11. WEEK DISPLAY

Language Monday Tuesday Wednesday Thursday Friday Saturday Sunday

GE MO DI MI DO FR SA SO

EN MO TU WE TH FR SA SU

FR LU MA ME JE VE SA DI

IT LU MA ME GI VE SA DO

ES LU MA MI JU VI SA DO

NE MA DI WO DO VR ZA ZO

DA MA TI ON TO FR LO SO

12. TECHNICAL DATA

Main unit

• DCF
• Batteries: 2xAAA Battery
  • Temperature measuring unit: °C / °F
• Temperature display range: -20°C – 50°C
  • Humidity display range: RH 20% - 95%
• 433MHZ
• Temperature:
• 20^ 0^: ± 2^
• 0^ +50^ : ± 1^

13. CLEANING AND MAINTENANCE

Before cleaning the device, disconnect it from the power supply (remove batteries)!

Only use a dry cloth to clean the exterior of the device. To avoid damaging the electronics, do not use any cleaning fluid.

Protect the device from dust and moisture. The batteries should be removed from the unit if it has not been used for a long time.

14. DISPOSAL

Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.

Do not dispose of electronic devices in the household garbage!

As per Directive 2012/19/EU of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately and recycled in an environmentally friendly manner.

15. EC DECLARATION OF CONFORMITY

CE Hereby, Bresser GmbH declares that the equipment type with article number 15471 is in compliance with Directive: 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

The regular warranty period is 2 years and begins on the day of purchase. To benefit from an extended voluntary warranty period as stated on the gift box, registration on our website is required.

You can consult the full warranty terms as well as information on extending the warranty period and details of our services at www.bresser.de/warranty_terms.
