USER MANUAL ClimateTemp NDV-NEO BRESSER

FR MANUEL D'INSTRUCTIONS

NL HANDLEIDING

Visit our website via the following QR Code or web link to find further information on this product or the available translations of these instructions.

FR

1. Validity note....18
2. General Information....18
3. General Warnings....19
4. Scope of delivery 19
5. Parts Overview....20
6. Main Function Sensor....22
7. AC Power Adapter Set....22
8. Setting up power supply 23
9. Battery status display 24
10. Time Setting....24
11. Alarm setting 25
12. Barometer setting....25
13. °C/°F Display change....25
14. Max / Min temperature and humidity record.....26
15. Channel select....26
16. Backlight 26
17. Temperature Alert....26
18. Ice Alert 27
19. Weather Forecast......27
20. Weather Forecast....28

21. Moon Phase....28

22. Barometer....29

23. Technical data....29
24. EC Declaration of Conformity ....30
25. DISPOSAL....30
26. Warranty....31

1. Validity note

This documentation is valid for the products with the following article numbers: 7004360

Manual version: 0225

Manual designation:

Manual_7004360_ClimateTemp-NDV-NEO_de-en-fr-nl-es-it_BRESSER_v022025a

Always provide information when requesting service.

2. General Information

About this Instruction Manual These operating instructions are to be considered a component of the device.

Read the safety instructions and the instruction manual carefully before using this device.

Keep these instruction manual in a safe place for future

reference. If the device is sold or passed on, the instruction manual must be passed on to any subsequent owner/user of the product.

3. General Warnings

DANGER!

This device contains electronic components which operate via a power source (power supply and/or batteries). Only use the device as described in the manual, or you run the risk of an electric shock.

Keep batteries out of the reach of children! Make sure you insert the batteries correctly. Empty or damaged batteries could cause burns if they come into contact with the skin. If necessary, wear adequate gloves for protection.

! ATTENTION!

Do not disassemble the device. In the event of a defect, please contact your dealer. The dealer will contact the Service Centre and can send the device in to be repaired, if necessary. Do not expose the device to temperatures above 60°C.

Do not expose the device to high temperatures. Use only the supplied power supply or the recommended batteries. Do not short-circuit the device or batteries or throw them into a fire! Excessive heat or improper handling could trigger a short-circuit, a fire or an explosion.

Use only the recommended batteries. Always replace weak or empty batteries with a new, complete set of batteries at full capacity. Do not use batteries from different brands or with different capacities. The batteries should be removed from the unit if it has not been used for a long time.

4. Scope of delivery

RC Weather station ClimateTemp NDV-NEO Thermo-Hygrosensor incl. 2 AAA/LR03 type batteries 1.5V EU/UK Power adapter

23 22 1 2 3 4 5 6 7 8 9 10 1 21 20 19 18 17 16 15 4 10:58 10.20° MON 10:25 MPa 188.8 °C 23.5 °C 88 % 42 % BRESSER

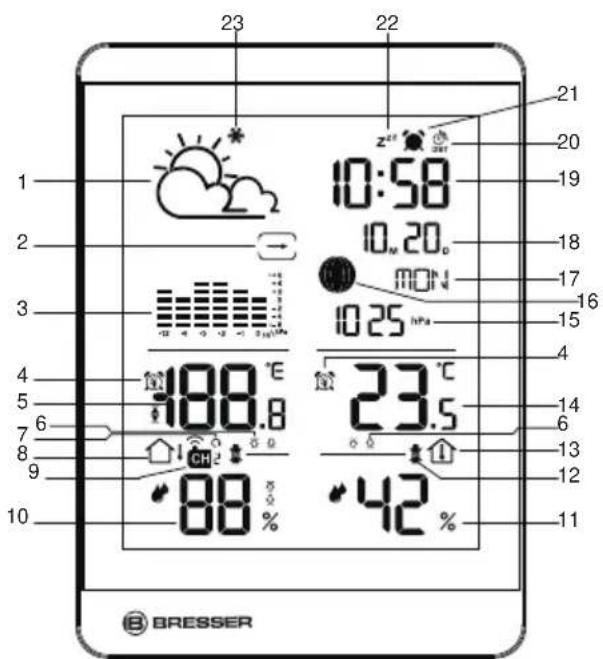

5. Parts Overview

1. Weather forecast (5 kinds of weather forecast: Sunny, Partly Sunny, Cloudy, Rainy, Snowy)
2. Temperature trend arrow
3. Barometer history

4. Temperature alert

5. Outdoor temperature

6. MAX and MIN arrows
7. Channel flow
8. Outdoor symbol
9. Channel number
10. Outdoor humidity

11. Indoor humidity

12. Low battery indicator

13. Indoor symbol
14. Indoor temperature
15. Barometer value
16. Moon phase
17. 7 languages week display (EN, DE, FR, SP, IT, DU, DA)

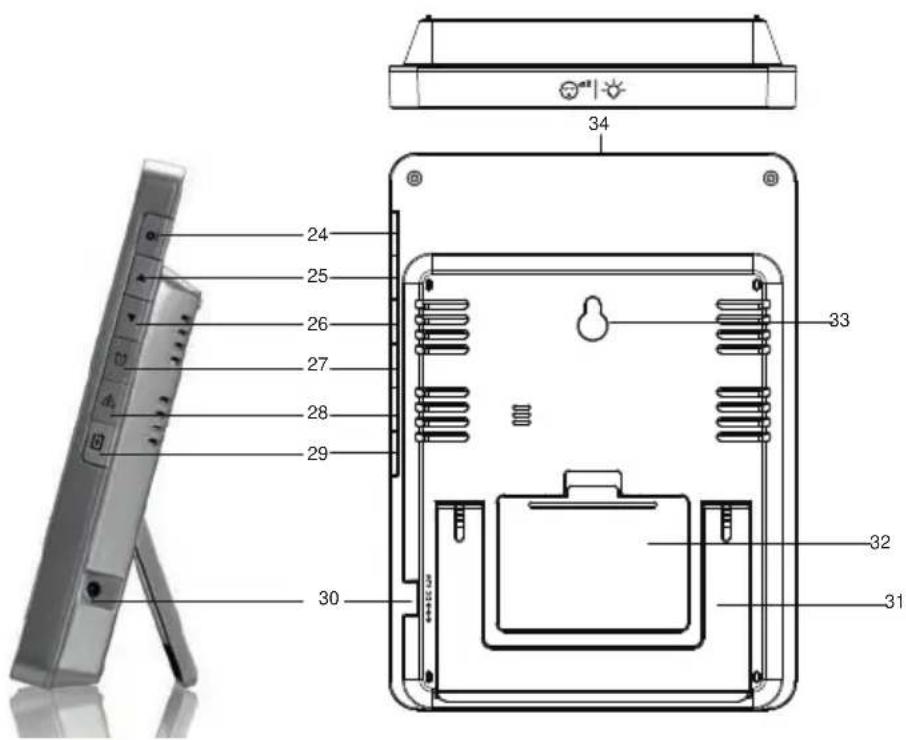

24 25 26 27 28 29 30 31 32 33 34

1. Calendar
2. Time with DCF
3. DST Summertime
4. Alarm clock
5. Snooze-Symbol

6. Ice-Alert

7. Lutton

8. button
9. button
10. button
11. button

12. button

13. DC power socket

14. Stand
15. Battery cover
16. Hanging hole
17. button (set snooze function/display brightness)

A B D 18.2°C 46 % C BRESSER

E F G H

4 3 2 1 5

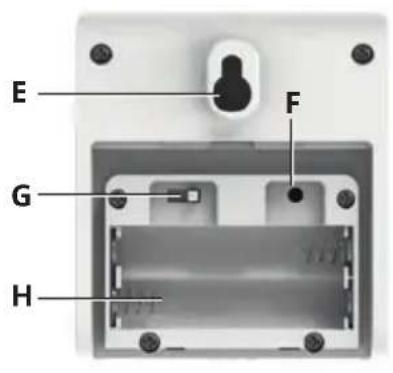

6. Main Function Sensor

A. Temperature
B. Current channel
C. Humidity
D. LED INDICATOR

E. Wall Mount
F. °C/°F knob
G. Transmission channel (1-3)
H. Battery Compartment for 2x AAA/LR03 (incl.)

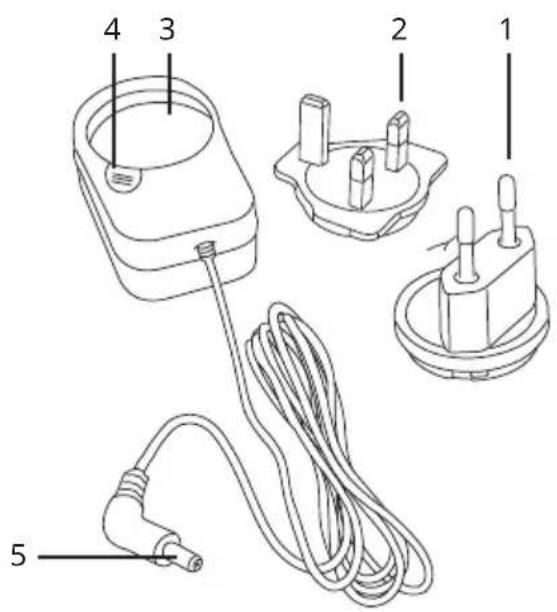

7. AC Power Adapter Set

1. Euro plug adapter
2. UK plug adapter
3. Adapter fixture
4. Locking knob
5. DC barrel connector

8. Setting up power supply

Base device:

1. Insert the DC connector into the connection socket (29) of the base station.
2. Insert the mains plug into the power outlet.
3. The device is energized directly.
4. Wait until the indoor temperature is displayed on the base station.

NOTICE! For permanent operation, mains power supply is recommended. Alternatively a power supply with batteries is also possible, to keep the time setting in case of power failure (permanent backlight not active).

Proceed as follows:

1. Remove the battery compartment cover.
2. Insert the batteries into the battery compartment. Ensure that the battery polarity (+/-) is correct.
3. Replace the battery compartment cover.
4. Wait until the indoor temperature is displayed on the base station.

NOTICE! After 7 seconds, the display switches to power-saving mode in battery mode. When using battery power, press the SNOOZE/LIGHT button to activate the display for about 7 seconds.

NOTICE! When switching from mains power supply to battery power supply or vice versa, the power supply is being disabled for a short moment for technical reasons. Exception: permanent battery operation.

Remote sensor:

1. Remove the battery compartment cover.
2. Insert the batteries into the battery compartment. Ensure that the battery polarity (+/-) is correct.
3. Set the channel selector switch to the desired channel.

NOTICE! This weather station can be operated with one or more remote sensors. Each remote sensor being connected must be operated on a

different channel. If only one remote sensor is connected, it should be operated on channel 1. 4. Replace the battery compartment cover.

9. Battery status display

If the battery status of the base station or sensor reaches a critical level, the battery status symbol appears on the display.

If the battery status is not critical, the symbol does not appear.

10. Time Setting

After the power is restored, the unit automatically searches for the radio signal. It takes approximately 3-8 minutes for this process to complete.

If the radio signal is received correctly, the date and time are set automatically and the reception symbol is displayed.

If no radio signal is received, proceed as follows:

1. Press and hold the 🔊 button on the base unit for approx. 3 seconds to activate reception of the radio signal. Reception is now initialized again.
2. If still no radio signal is received, the time must be set manually.

Manual time setting:

1. Press and hold button for approx. 3 seconds to enter to the time setting mode.
2. Digits to be set are flashing.
3. Press ▲ or button to change the value.
4. Press Button to confirm and continue to the next setting.
5. Settings order: Time zone>12/24H format>Hour > Minute>DM/MD> Year> Month>Day>Week language
6. Finally press the button to save the settings and exit the setting mode.

In normal mode, press ▲button to select the temperature unit in C or F.

11. Alarm setting

1. In normal mode, press 📄 button to check the alarm time.
2. When check the alarm time, press button again to turn on or turn off the alarm.
3. When enter the alarm mode, press and hold the 🎨 button for approx. 3 seconds to enter the alarm setting mode. Digits to be set are flashing. Press ▲ or ▼ button to change the value. Press ⏻ button to confirm and continue to the next setting.
4. Settings order: Hour> Minute.
5. Finally press the button to save the settings and exit the Alarm setting mode.

When the alarm sounds, press the ⚙ ^a | ⚙ button to activate the snooze z function. The alarm sounds again after 5 minutes. When the alarm sounds, press any other key to stop the alarm until the set alarm time is reached again.

12. Barometer setting

For technical reasons, the air pressure can only be displayed in hPa. Changing the unit of measurement is therefore not possible.

NOTE! The displayed air pressure value can be converted very easily: 1 hPa corresponds to 1 mbar or 0.75 mmHg.

13. °C/°F Display change

Main unit

In normal display mode, press the ▲ button to switch between °C and °F.

Wireless sensor

Press the °C/°F knob above the battery compartment with a thin object (e.g. end of a paper clip) to switch between °C and °F.

14. Max / Min temperature and humidity record

1. In normal mode, press the button to check the Max and Min temperature and humidity record.
2. When checking the Max/Min record, press and hold the button to clear the record.

15. Channelselect

1. In normal mode, press the button to select Channel 1, Channel 2, Channel 3 or cycle display.
2. Hold the button for approx. 3 seconds to reset values and search for an RF signal.

NOTICE! Always make sure the channel chosen on the display unit matches the channel option chosen on the outdoor sensor.

16. Backlight

When power on the adapter, press the ⏻ ^aZ | ⚙ button to choose the backlight level. It has 3 levels backlight (dark, medium, light). When power by batteries, press the ⏻ ^aZ | ⚙ button to turn on the backlight for 7 seconds.

17. Temperature Alert

1. In normal mode, Press the button to turn on or turn off the temperature alert. The outdoor temperature alarm is set first, then the outdoor and indoor temperature alarms, then the indoor temperature alarm.
2. In normal model, Press and hold the button for approx. 3 seconds to enter the temperature alert setting.
3. Press the ▲ button to set the temperature.

4. Press button to confirm and continue to the next setting.

5. Settings order: Indoor high temperature> Indoor low temperature> Outdoor high temperature> Outdoor low temperature

6. In the same way, you can set temperature alarms for CH1-3 by selecting the desired channel with the Channel button then setting and activating the temperature alarm.

18. Ice Alert

When the outdoor temperature hits is between -1.0+2.9°C, the ice alert symbol 🌐 will appear on the display, flashing continuously.

NOTICE! The main unit can connect with 3 outdoor sensors, if one of the sensors temperature is between -1.0\~+2.9°C, the main unit will show the ice alert symbol 🌐. The symbol will stop flashing when the temperature has risen above 3°C.

19. Weather Forecast

The temperature trend indicator shows the trends

of weather change for the coming minutes. Arrows indicate a rising, stable or falling trend. The barometer measures the air pressure every 15 minutes. Based on this measurement, the main unit calculates the air pressure for the current hour (the average air pressure of now / 15 minutes ago / 30 minutes ago / as well as 45 minutes ago) and compares this value with the value of the previous hour. If the measured air pressure has changed by more than 1 hPa, an increasing (UP) or decreasing (DOWN) trend arrow is displayed.

20. Weather Forecast

A weather trend for the next 12-24 hours is calculated from the measured values and displayed graphically as follows:

SYMBOL DESCRIPTION
	Sunny
	Sunny to cloudy
	Cloudy
	Cloudy to rain
	Cloudy to snow

21. Moon Phase

The phase of the moon depends on the current date. It is automatically calculated and the following symbols are displayed:

SYMBOL DESCRIPTION
	Full moon
	Waning moon
	New moon
	Waxing moon
	Full moon

22. Barometer

Record and display the changing trend in a chart based on the air pressure history in the past 12 hours. The horizontal data is the 6 time periods in the past 12 hours (-12, -6, -3, -2, -1, 0), and the vertical data is the air pressure change value (the value is 0 by default when the power plugged in, each grid above or below represents 2hPa). Taking the air pressure value of the current period as the reference point, through comparison and calculation, we can determine whether the air pressure in the past 6 time periods has increased or decreased. (It is flat when it is just powered on.)

23. Technical data

Main unit

RC Clock: DCF time signal

Temperature measuring unit: °C / °F

Temperature display range: -9.9°C – 50°C

Humidity display range: RH 20% - 95%

Outdoor sensor

Batteries: 2x AAA Battery

Temperature measuring unit: °C / °F

Temperature display range: -40°C – 70°C

Humidity display range: RH 20% - 95%

24. EC Declaration of Conformity

CE Bresser GmbH hereby declares that the radio equipment type with item number 7004360

is in compliance with Directive 2014/53/EU. The full text of the EC Declaration of Conformity is available at the following web address: www.bresser.de/download/7004360/CE/7004360_CE.pdf

25. DISPOSAL

Dispose of the packaging materials properly, according to their type, such as paper or cardboard. Contact your local waste-disposal service or environmental authority for information on the proper disposal.

Do not dispose of electronic devices in the household garbage! As per Directive 2002/96/ EC of the European Parliament on waste electrical and electronic equipment and its adaptation into German law, used electronic devices must be collected separately

and recycled in an environmentally friendly manner. In accordance with the regulations concerning batteries and rechargeable batteries, disposing of them in the normal household waste is explicitly forbidden. Please make sure to dispose of your used batteries as required by law — at a local collection point or in the retail market. Disposal in domestic waste violates the Battery Directive.

Batteries that contain toxins are marked with a sign and a chemical symbol. "Cd" = cadmium, "Hg" = mercury, "Pb" = lead.

Cd^1Hg^2Pb^3

^1 battery contains cadmium
^2 battery contains mercury
^3 battery contains lead

26. Warranty

The regular warranty period is 2 years and starts on the day of purchase. To benefit from an extended voluntary warranty period as indicated on the gift box, registration on our website is required. You can consult the full guarantee terms as well as information on extending the guarantee period and details of our services at www.bresser.de/warranty_terms.

Table des matières

Diagram of an electrical plug with labeled components including a power plug, socket, and terminal blocks

Alimentation : 2 piles AAA/LR03 (incluses)

"Cd" = cadmium, "Hg" = kwik, "Pb" = lood.

Cd^1Hg^2Pb^3

^1 Batterij bevat cadmium
^2 Batterij bevat kwik
^3 Batterij bevat lood

23. Garantie

Diagram of an electrical plug with labeled components including a power plug, socket, and terminal blocks

Please contact the service centre first for any questions regarding the product or claims, preferably by e-mail.

E Mail [e-mail]

Telephone*: [phone]

BRESSER UK Ltd.

Suite 3G, Eden House

Enterprise Way

Edenbridge, Kent TIN8 6HF

Great Britain

*Number changed at local rates in the UK (the amount you will be charged per phone call will depend on the tariff of your phone permitted; risk from shawel will involve higher risks
