Invigoration K-32325 - Steam cleaner KOHLER - Free user manual and instructions

Product Type	Steam Cleaner
Brand	Kohler
Model	Invigoration K-32325
Power Supply	208-240 V AC, 50/60 Hz
Rated Power	1500 W
Water Tank Capacity	1.5 L
Steam Temperature	Up to 120 °C
Housing Material	ABS Plastic
Color	White and Silver
Net Weight	4.5 kg
Dimensions (L × W × H)	30 × 25 × 20 cm
Included Accessories	Service Kit (test rod, test cord, coupler)
Main Features	High-pressure steam production for cleaning and disinfection
Maintenance	Regular descaling recommended; test kit available
Safety	Overheat protection, automatic shut-off
Warranty	1 year (parts and labor)
Customer Service	1-800-4KOHLER (USA/Canada); 001-800-456-4537 (Mexico)

Frequently Asked Questions - Invigoration K-32325 KOHLER

What power supply voltage is required for the K-32325?

The Kohler Invigoration K-32325 steam cleaner operates under a voltage of 208 to 240 V AC, 50/60 Hz. Verify that your electrical installation is compatible before use.

How to test the steam generator?

Unplug the control cord from the generator, insert the test rod into the inlet port, then power on. If you hear a click, the generator is working properly. Otherwise, contact customer service.

What to do if steam does not come out?

Check the power supply, water inlet, and that the circuit breaker is on. Perform a test with the test kit to identify any defect in the generator or control cord.

How to clean my steam cleaner?

Use a suitable descaler to remove limescale deposits. Follow the instructions in the maintenance manual. Never immerse the appliance in water.

Where can I find spare parts?

Spare parts are available on the website kohler.com/serviceparts. You can also order the test kit (rod, cord, coupler) from customer service.

What is the warranty of the device?

The device is covered by a one-year warranty on parts and labor. For claims, contact Kohler at 1-800-4KOHLER.

Can I use tap water?

Yes, but hard water can reduce efficiency. Preferably use demineralized water to extend the life of the device.

How to test the digital control?

Unplug the control cord from the digital control, connect the coupler and test rod. If a click occurs when turning on, the control is functional.

What does a click sound mean during generator test?

A click indicates that the internal relay activates, meaning the steam generator is working properly. Continue the test by running the device for 5 minutes to check steam production.

How to contact Kohler customer service?

Call 1-800-4KOHLER (1-800-456-4537) for the United States and Canada, or 001-800-456-4537 for Mexico, Monday through Friday from 8 a.m. to 5 p.m. CST.

USER MANUAL Invigoration K-32325 KOHLER

Service Kit Instructions

Steam Generator Test Kit

Record your model number:

Need help? Contact our Customer Care Center.

- USA/Canada: 1-800-4KOHLER (1-800-456-4537) Mexico: 001-800-456-4537 Hours of Operation: Monday-Friday 8:00 AM -5:00 PM (CT) Languages Spoken: English, Spanish, and translation services are available.

• Service parts: kohler.com/serviceparts
- Care and cleaning: kohler.com/clean
• Patents: kohlercompany.com/patents

Purpose

Use this service kit to test the functionality of the steam generator, control cord, and digital control.

This kit consists of a test stick, a test cord, and a two-way coupler.

1. Check Power and Water Supply

☐ Check that the voltage to the steam generator unit is between 208 V and 240 V.
☐ Verify that the electrical wire and dedicated electrical breaker at the main electrical panel are the correct sizes. Check the specifications in the installation guide.
☐ Verify that the breaker to the steam generator is switched "ON" at the electrical panel.
☐ Reset the power by turning OFF the breaker at the electrical panel.
□ Turn the power back ON.
☐ Check all control cord connections.
☐ Verify that the water to the steam generator is turned ON.

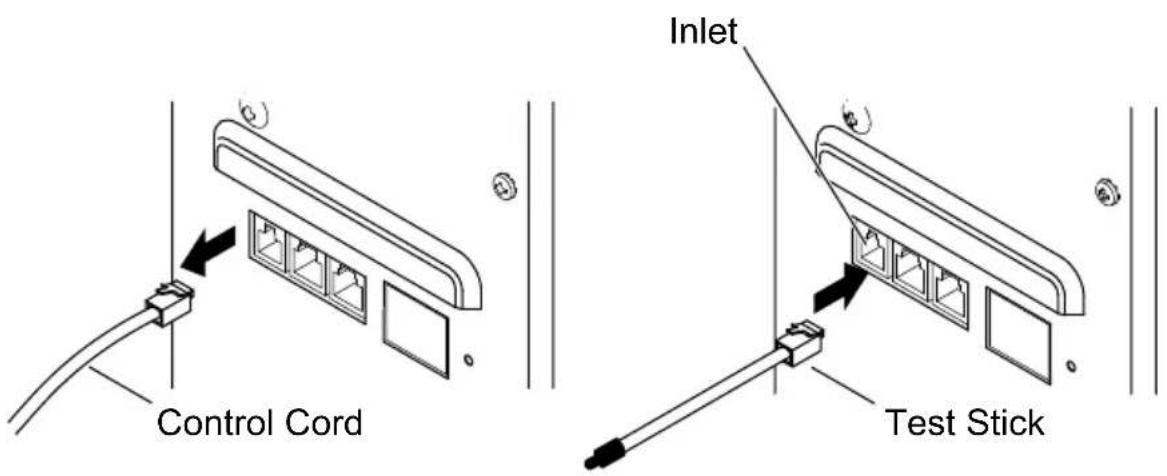

2. Test the Generator

□ Disconnect the control cord from the steam generator.
☐ Insert the test stick into the control cord inlet on the steam generator.
☐ If you do not hear the relay click ON within 2 minutes: There is an internal failure in the steam generator. Contact Customer Service.
☐ If you hear the relay click ON: The steam generator is functioning properly.
□ Remove the test stick and reconnect the control cord to the steam generator.
□ Run the steam generator for 5 minutes to verify that the unit produces steam.

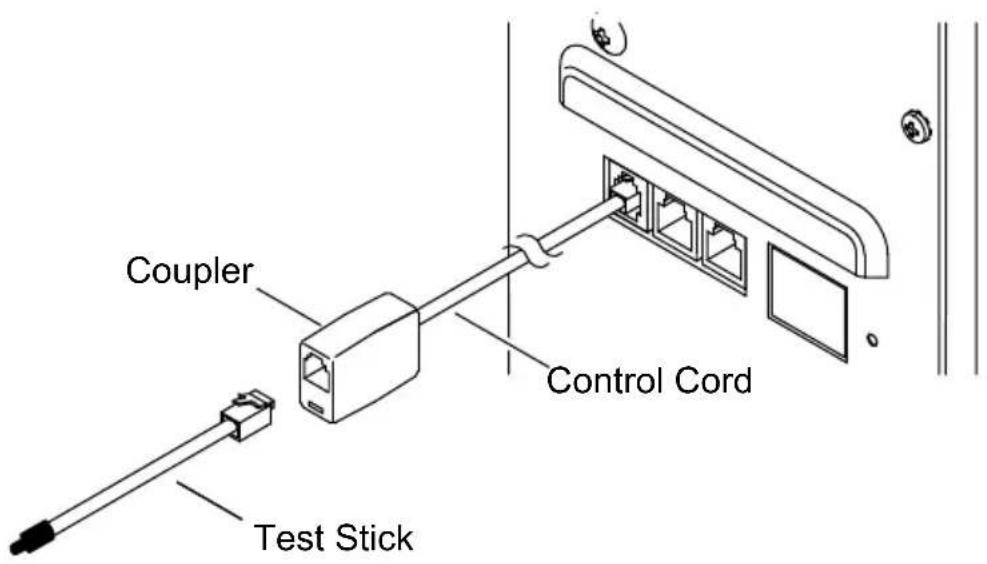

3. Test the Control Cord

☐ Disconnect the control cord from the digital control. Leave the other end of the control cord connected to the steam generator.
□ Connect the coupler to the control cord.
☐ Insert the test stick into the coupler.
☐ If you do not hear the relay click ON within 2 minutes: The control cord is damaged and must be replaced.
☐ If you hear the relay click ON within 2 minutes: The steam generator and control cord are functioning properly.

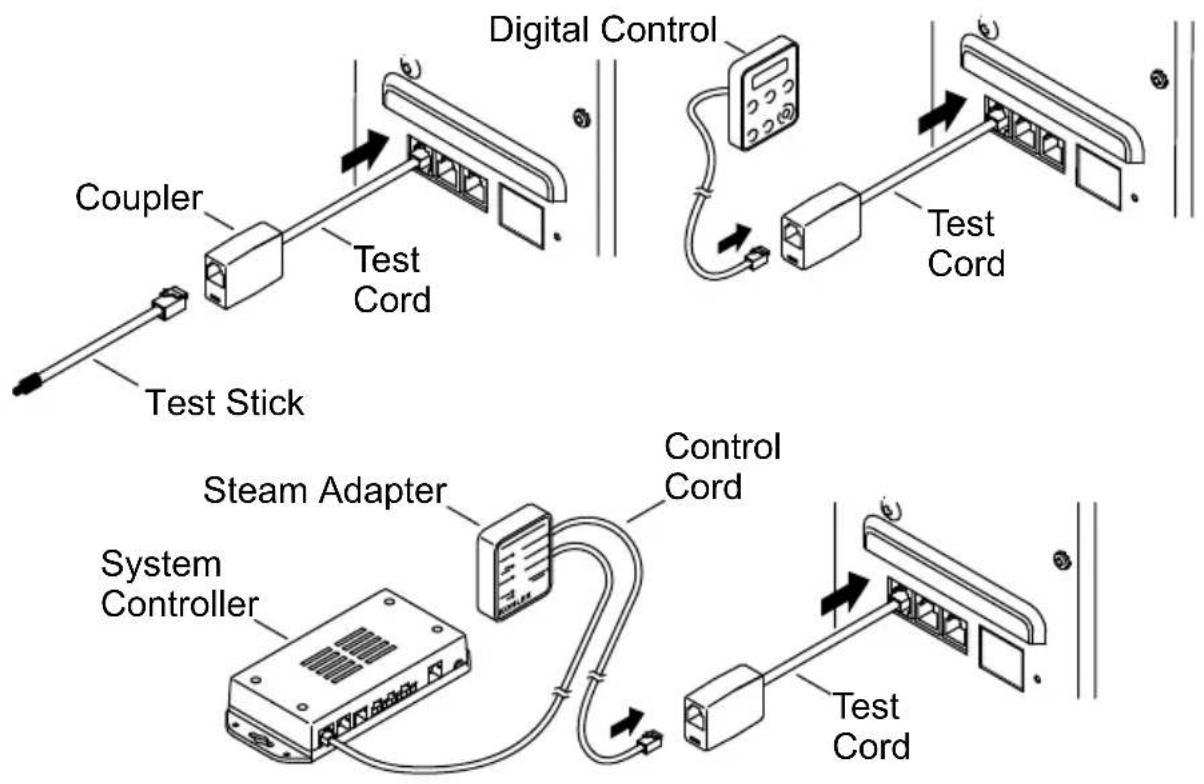

4. Test the Digital Control

Check the Test Cord and Coupler (Test Kit)

☐ Turn OFF the electrical power to the steam generator.
☐ Disconnect the control cord from the steam generator.
☐ Insert the test cord into the control cord inlet on the steam generator.
□ Connect the coupler to the test cord.
☐ Turn ON the electrical power to the steam generator.
☐ Insert the test stick into the coupler.
☐ If you do not hear the relay click ON within 2 minutes: The test kit must be replaced.
☐ If you hear the relay click ON: The steam generator, test cord, and coupler are functioning properly.

Check the Digital Control

☐ Disconnect the test stick from the coupler.
□ Connect the control cord to the coupler.
☐ Connect the digital control to the control cord (for steam adapter installations, connect the steam adapter and system controller).
□ Activate the digital control (or steam adapter).
☐ If you do not hear the relay click ON: The digital control (or steam adapter) must be replaced.
☐ If you hear the relay click ON: The steam generator and digital control (or steam adapter) are functioning properly.

Contact Your Service Representative

If all the components mentioned in this kit have been tested and are functioning properly, but the unit will still not operate, contact your Kohler Co. Authorized Service Representative for assistance. Please complete the information on the next page before contacting your Service Representative.

Homeowner:
Daytime Phone:
E-mail:
Address:
City: State: Zip Code:

Plumber/Installer:
Daytime Phone:
E-mail:
Address:
City: State: Zip Code:

From the list below, circle the ONE steam generator and control that you are experiencing problems with:

Steam Generator:
K-32324 K-32327 K-3	2332 K-32334
K-32325 K-32328 K-3	2333 K-32335
K-32326 K-32329

Control:
K-5548 K-5549 K-5557	K-5558

Serial Number:

Date Code:

Is this a new installation? (Circle one.) Yes / No

The unit functioned properly from approximately: __/__/__ to __/__/__
