USER MANUAL Invigoration K-32309 KOHLER

Installation Instructions

Steam Head

Record your model number:

Need help? Contact our Customer Care Center.

- USA/Canada: 1-800-4KOHLER (1-800-456-4537) Mexico: 001-800-456-4537 Hours of Operation: Monday-Friday 8:00 AM -5:00 PM (CT) Languages Spoken: English, Spanish, and translation services are available.

• Service parts: kohler.com/serviceparts
- Care and cleaning: kohler.com/clean
• Patents: kohlercompany.com/patents

Warranty

This product is covered under the KOHLER® Electronic Faucets, Valves, and Controls Five-Year Limited Warranty, found at kohler.com/warranty. For a hardcopy of warranty terms, contact the Customer Care Center.

IMPORTANT SAFEGUARDS

WARNING: Risk of personal injury. If you become uncomfortable while taking a steambath, you should turn off the unit. Cool off with the shower, open the door, or exit the unit.

WARNING: Risk of allergic reaction. Before adding any oils, aromatic therapies, or skin care products to the aromatherapy well, verify that they will not cause an allergic reaction to the user.

WARNING: Risk of personal injury. This steambath may not be suitable for use if you are pregnant, have a heart condition, have high blood pressure, have circulatory problems, are under the influence of alcohol, are taking drugs or are under the care of a physician. A steambath can cause undue stress on the body, as does any hot bath, shower, or sauna.

WARNING: Risk of personal injury. DO NOT consume alcoholic beverages or take medications/drugs before or when using the steambath. Alcohol and drugs affect mental judgment, greatly increase the risk of hyperthermia, and inhibit bodily functions such as heartbeat and respiration, resulting in potentially dangerous effects.

WARNING: Risk of injury to children. Do not allow children to use this unit unless they are closely supervised at all times. The steam generator is not designed to be used by children.

WARNING: Risk of scalding or burning. Stay away from the steam head during operation. The steam head is hot during operation.

WARNING: Risk of personal injury or property damage. Avoid coming in contact with the water tank and/or steam discharge line while the steam generator is operating or shortly after shutdown. Wear eye protection and protective clothing when servicing the steam generator. The steam generator operates at high temperatures.

Use this product only for its intended use as described in this manual. Only use attachments recommended by Kohler Co.

Verify that the steam generator is OFF before performing these installation steps.

Follow all local plumbing and building codes.

Tools and Materials

Illustration of various screw and tool components including a pencil, switch, screwdriver, drill bit, and screw spool (no text or labels)

Sealant Tape Wood Screws

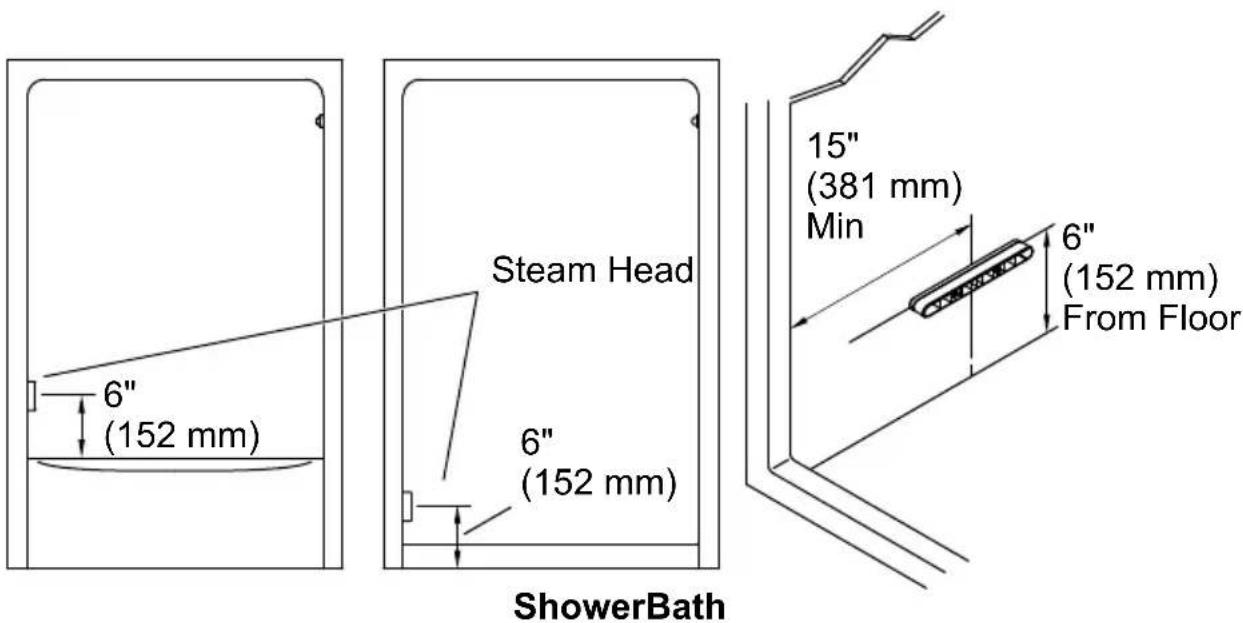

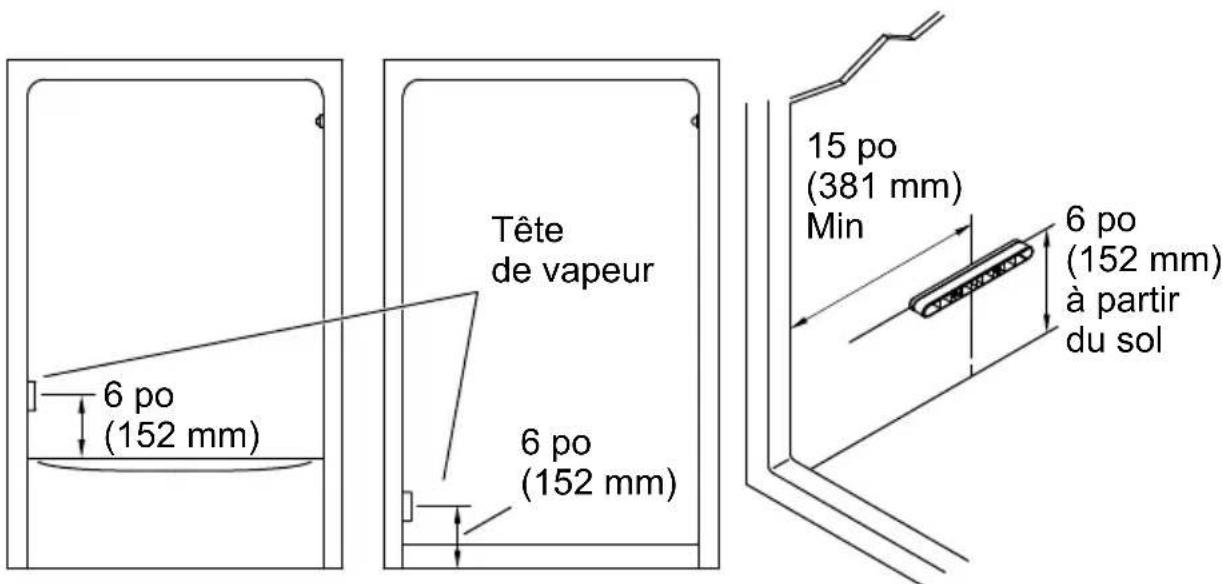

Steam Head 6" (152 mm) 6" (152 mm) 15" (381 mm) Min 6" (152 mm) From Floor ShowerBath

CAUTION: Risk of scalding. Do not locate the steam head near a shower seat. The steam head is hot during operation and could scald the user if touched.

NOTICE: Do not locate the steam head(s) on the same wall as the digital control.

NOTICE: Locate the steam head(s) on the wall opposite the temperature sensor.

NOTE: For dual steam heads, install on different walls to improve steam distribution. If installed on the same wall, located the steam heads at least 12-1/2" (318 mm) apart.

If possible, install the steam generator(s) and the system controller before beginning this installation.

Locate the steam head 6" (152 mm) above the floor or bath rim and 15" (381 mm) from the inside of the threshold.

Locate the steam head(s) away from any shower seating.

Provide adequate clearance between the steam lines and any surrounding surfaces, or apply appropriate insulation to the steam lines.

1. Install the Housing

Steam Inlet Pipe Housing

NOTE: This section continues the installation steps from the steam generator installation instructions. Refer to the steam generator installation instructions for more information, as needed.

□ Apply sealant tape to the threads of the steam inlet pipe.
□ Attach the steam inlet pipe to the housing.
☐ Using two screws (not provided), install the brackets to the wall studs.
□ Adjust the brackets for leveling and alignment.

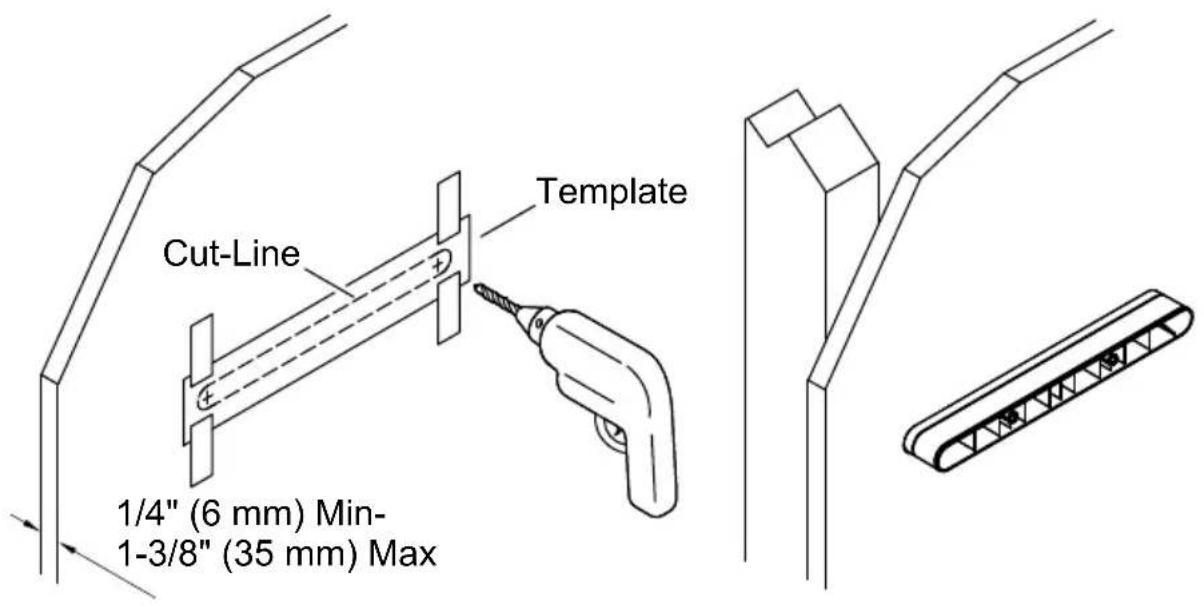

2. Install the Finished Wall

Cut-Line Template 1/4" (6 mm) Min- 1-3/8" (35 mm) Max

☐ Wall thickness must be between 1/4" (6 mm) and 1-3/8" (35 mm).
□ Using an appropriate tape for the surface, adhere the provided template to the wall material.
□ Drill two pilot holes at the marked locations. Cut the wall material along the cut-line.
□ Install the finished wall.

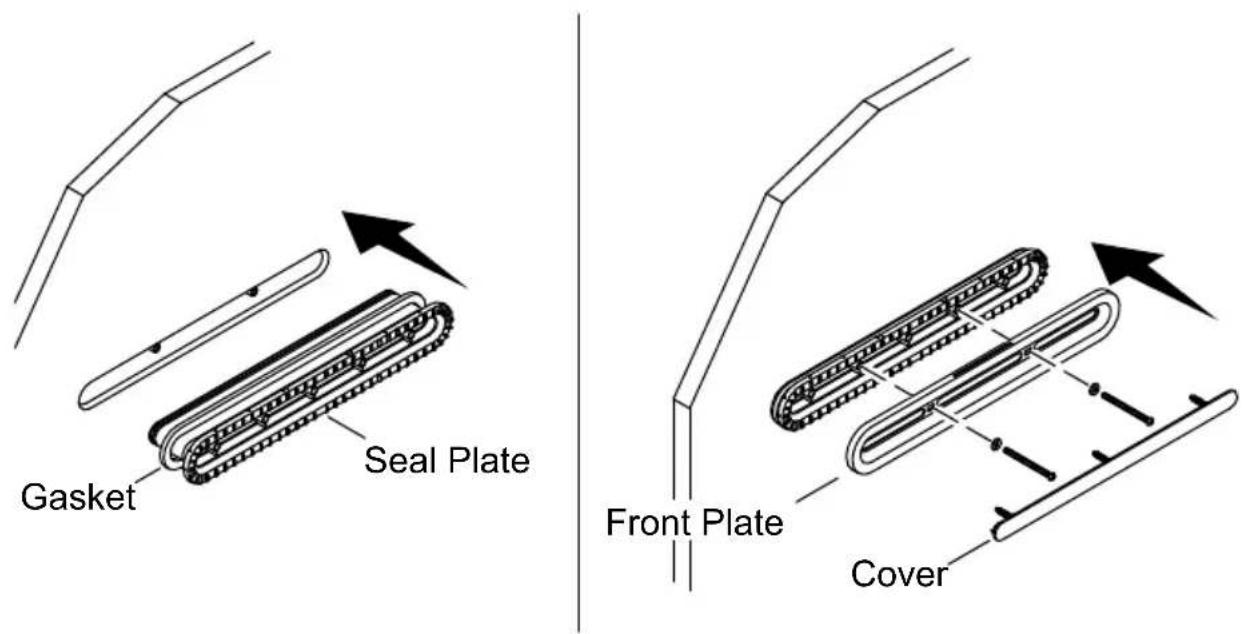

3. Install the Cover

Gasket Seal Plate Front Plate Cover

NOTE: Do not obstruct the steam head with shut-off valves, plugs, or caps.

□ Remove the plaster guard.
☐ Place the seal plate in the housing. Verify that the gasket is firmly against the finished wall.
□ Using the two provided screws, install the front plate to the housing.
□ Install the cover.
