Product Type	Steam Cleaner
Brand	Kohler
Model	Invigoration K-32327
Power Supply	208-240 V, 50/60 Hz, dedicated circuit
Steam Generator	Integrated, testable with test kit
Digital Control	On/Off functions, compatible with steam adapter
Control Cord	Standard length, replaceable
Test Kit Included	Test probe, test cord, two-way coupler
Test Function	Tests generator, control cord, and digital control
Maintenance and Cleaning	kohler.com/clean for instructions
Replacement Parts	kohler.com/serviceparts
Customer Service	USA/Canada: 1-800-4KOHLER, Mexico: 001-800-456-4537, Mon-Fri 8am-5pm CST
Patents	kohlercompany.com/patents
Manual Languages	French, English, Spanish
Number of Pages	24
Weight	Not specified

Frequently Asked Questions - Invigoration K-32327 KOHLER

How to test the steam generator?

Disconnect the control cord, insert the test probe into the generator orifice. If the relay clicks, the generator works. Otherwise, contact customer service.

What to do if the generator does not produce steam?

Check the power supply (208-240 V), water supply, and circuit breaker. Perform the generator test with the test kit.

How to test the control cord?

Disconnect the cord from the digital control, connect the coupler, insert the probe. If the relay does not click, replace the cord.

How to test the digital control?

Cut power, disconnect the cord from the generator, insert the test cord and coupler, then restore power. Plug in the control and activate it. If the relay clicks, it works.

Where to find replacement parts?

Visit kohler.com/serviceparts to order genuine parts.

How to maintain my steam cleaner?

Refer to instructions on kohler.com/clean for recommended maintenance and cleaning.

What is the required supply voltage?

The generator requires a voltage of 208 to 240 V on a dedicated circuit.

How to contact Kohler customer service?

Call 1-800-4KOHLER (USA/Canada) or 001-800-456-4537 (Mexico), Monday to Friday 8am-5pm CST.

What to do if all tests pass but the unit does not work?

Contact a Kohler authorized technician providing owner and installer information.

Where to find patent information?

Visit kohlercompany.com/patents to view the list of patents.

USER MANUAL Invigoration K-32327 KOHLER

Service Kit Instructions

Steam Generator Test Kit

Record your model number:

Noter le numero de modulo:

Anote su numero de modelo:

Français, page 8

Espanol, página 15

KOHLER

Thank You for Choosing KOHLER

Need help? Contact our Customer Care Center.

USA/Canada: 1-800-4KOHLER (1-800-456-4537) Mexico: 001-800-456-4537

Hours of Operation: Monday-Friday 8:00 AM -5:00 PM (CT)

Languages Spoken: English, Spanish, and translation services are available.

• Service parts: kohler.com/serviceparts
• Care and cleaning: kohler.com/clean
  Patents: kohlercompany.com/patents

Purpose

Use this service kit to test the functionality of the steam generator, control cord, and digital control.

This kit consists of a test stick, a test cord, and a two-way coupler.

1. Check Power and Water Supply

Check that the voltage to the steam generator unit is between 208V and 240V .
- Verify that the electrical wire and dedicated electrical breaker at the main electrical panel are the correct sizes. Check the specifications in the installation guide.
Verify that the breaker to the steam generator is switched "ON" at the electrical panel.
Reset the power by turning OFF the breaker at the electrical panel.
Turn the power back ON.
Check all control cord connections.
Verify that the water to the steam generator is turned ON.

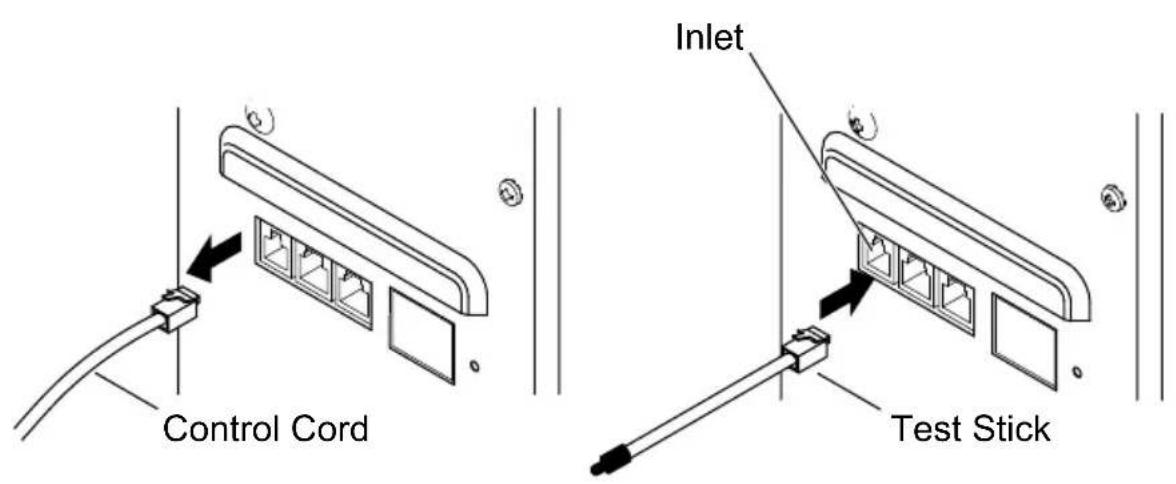

2. Test the Generator

• Disconnect the control cord from the steam generator.
  Insert the test stick into the control cord inlet on the steam generator.
  If you do not hear the relay click ON within 2 minutes: There is an internal failure in the steam generator. Contact Customer Service.
  If you hear the relay click ON: The steam generator is functioning properly.
  Remove the test stick and reconnect the control cord to the steam generator.
  Run the steam generator for 5 minutes to verify that the unit produces steam.

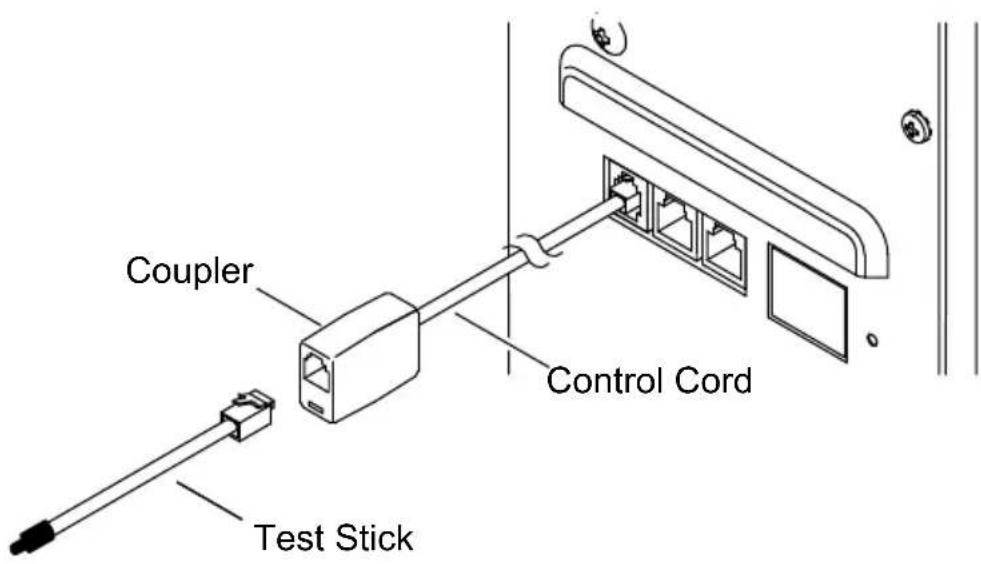

3. Test the Control Cord

• Disconnect the control cord from the digital control. Leave the other end of the control cord connected to the steam generator.
  Connect the coupler to the control cord.
  Insert the test stick into the coupler.
  □ If you do not hear the relay click ON within 2 minutes: The control cord is damaged and must be replaced.
  If you hear the relay click ON within 2 minutes: The steam generator and control cord are functioning properly.

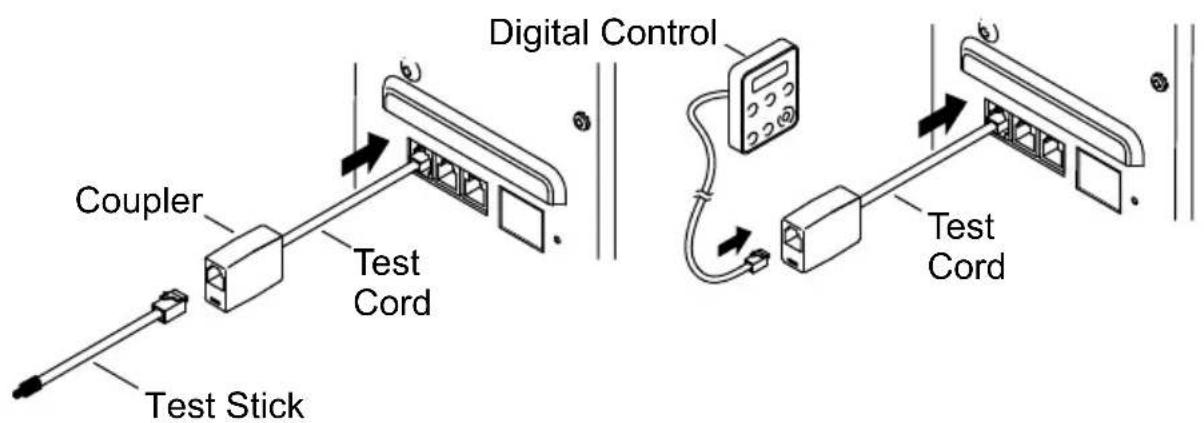

4. Test the Digital Control

Check the Test Cord and Coupler (Test Kit)

Turn OFF the electrical power to the steam generator.
- Disconnect the control cord from the steam generator.
Insert the test cord into the control cord inlet on the steam generator.
Connect the coupler to the test cord.
Turn ON the electrical power to the steam generator.
Insert the test stick into the coupler.
If you do not hear the relay click ON within 2 minutes: The test kit must be replaced.
If you hear the relay click ON: The steam generator, test cord, and coupler are functioning properly.

Check the Digital Control

• Disconnect the test stick from the coupler.
  Connect the control cord to the coupler.

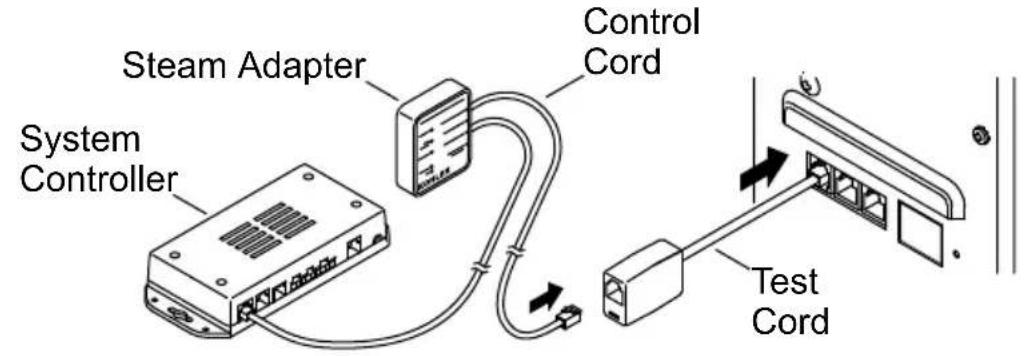

• Connect the digital control to the control cord (for steam adapter installations, connect the steam adapter and system controller).
  Activate the digital control (or steam adapter).
  If you do not hear the relay click ON: The digital control (or steam adapter) must be replaced.
  If you hear the relay click ON: The steam generator and digital control (or steam adapter) are functioning properly.

Contact Your Service Representative

If all the components mentioned in this kit have been tested and are functioning properly, but the unit will still not operate, contact your Kohler Co. Authorized Service Representative for assistance. Please complete the information on the next page before contacting your Service Representative.

Homeowner:
Daytime Phone:
E-mail:
Address:
City: State: Zip Code:

Plumber/Installer:
Daytime Phone:
E-mail:
Address:
City: State: Zip Code:

From the list below, circle the ONE steam generator and control that you are experiencing problems with:

Steam Generator:
K-32324 K-32327 K-3	2332 K-32334
K-32325 K-32328 K-3	2333 K-32335
K-32326 K-32329

Control:
K-5548 K-5549 K-555	7 K-5558

Serial Number:

Date Code:

Is this a new installation? (Circle one.) Yes / No

The unit functioned properly from approximately: __/__ to __/__
