USER MANUAL Premier DOLPHIN

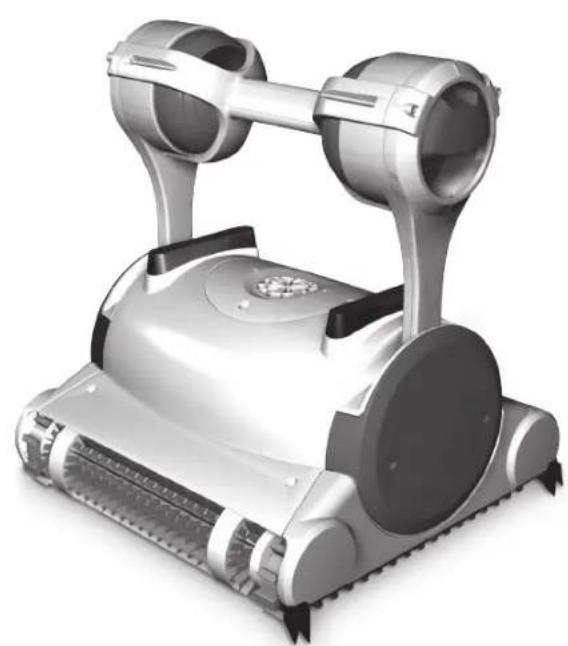

Dolphin Classic 5 / Top 5 Pool Cleaner

EN Operating Instructions p. 1-10

Exterior view of a modern robotic device with dual circular heads and mesh base (no text or symbols visible)

3D rendering of a robotic vacuum cleaner with dual-mounted fans and mesh blades (no text or symbols visible)

EN

Robotic Pool Cleaner

Dolphin Classic 5 / Top 5

Operating Instructions

Contents

1. INTRODUCTION....2
2. SPECIFICATIONS 2
3. WARNINGS AND CAUTIONS....2

3.1 Warnings....2
3.2 Cautions....2

1. POOL CLEANER PARTS....3
2. USING THE POOL CLEANER....4

5.1 Setup....4
5.2 Putting the Pool Cleaner into the pool....5
5.3 Removing the Pool Cleaner from the pool....5
5.4 Maintenance....6
5.5 Off-season storage 7

1. POWER SUPPLY - model Top 5 only 8
2. REMOTE CONTROL UNIT - model Top 5 only....9

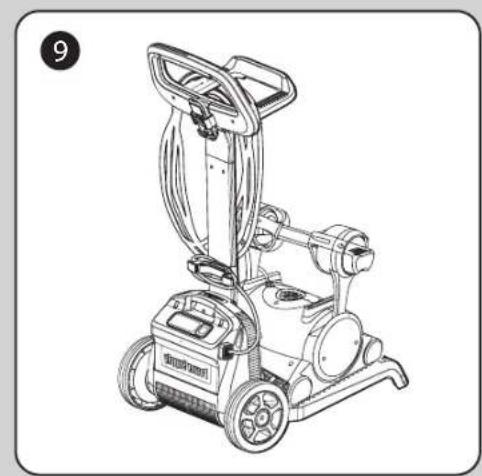

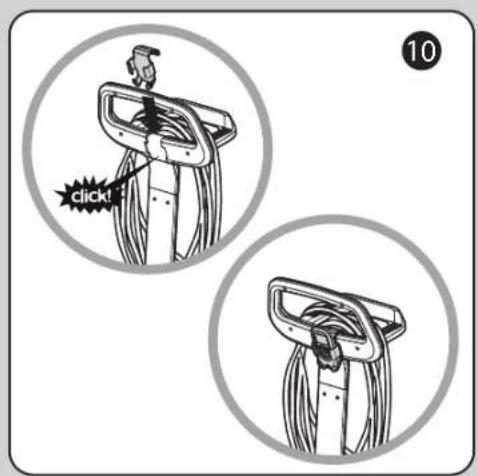

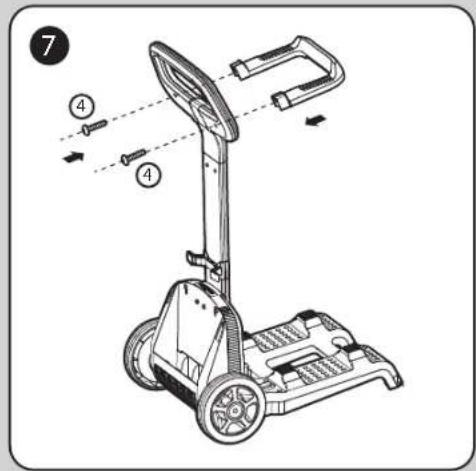

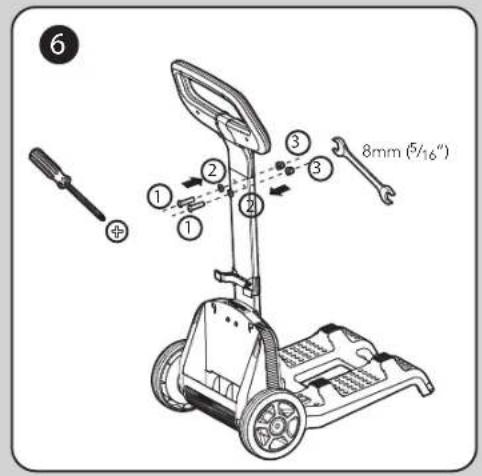

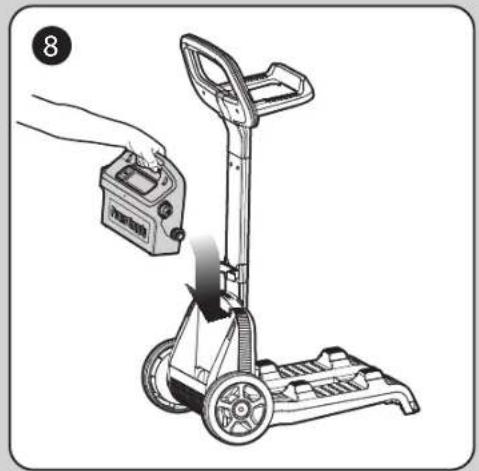

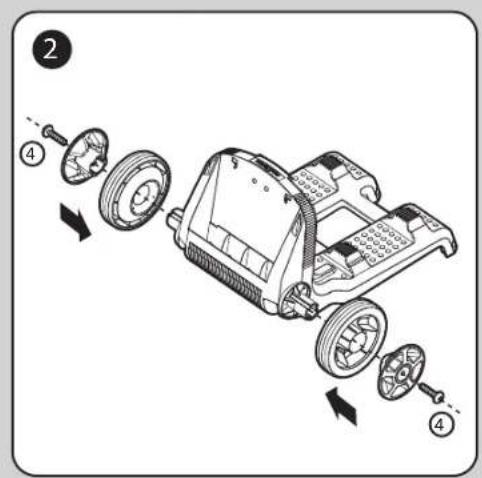

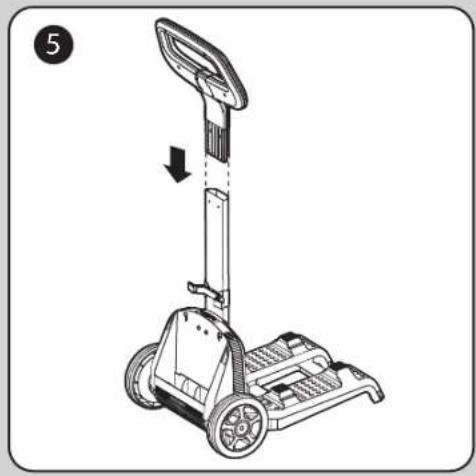

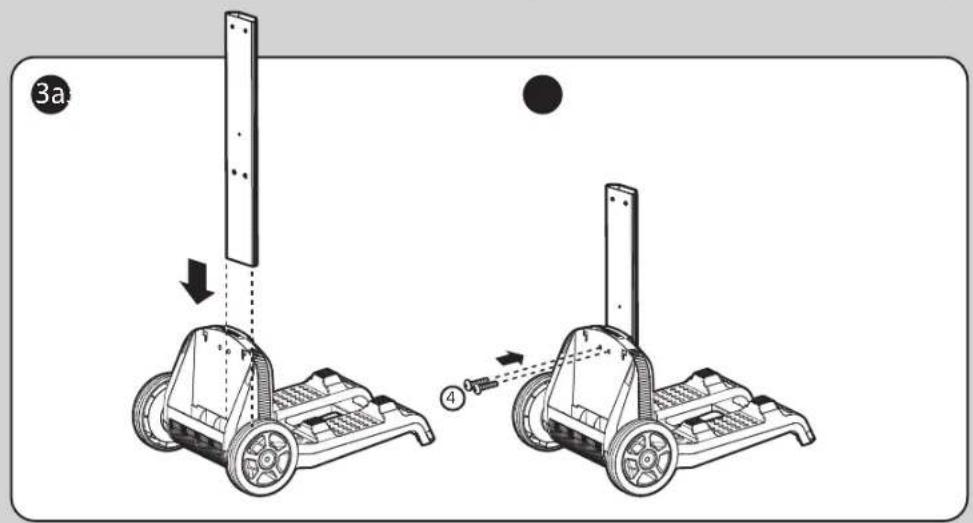

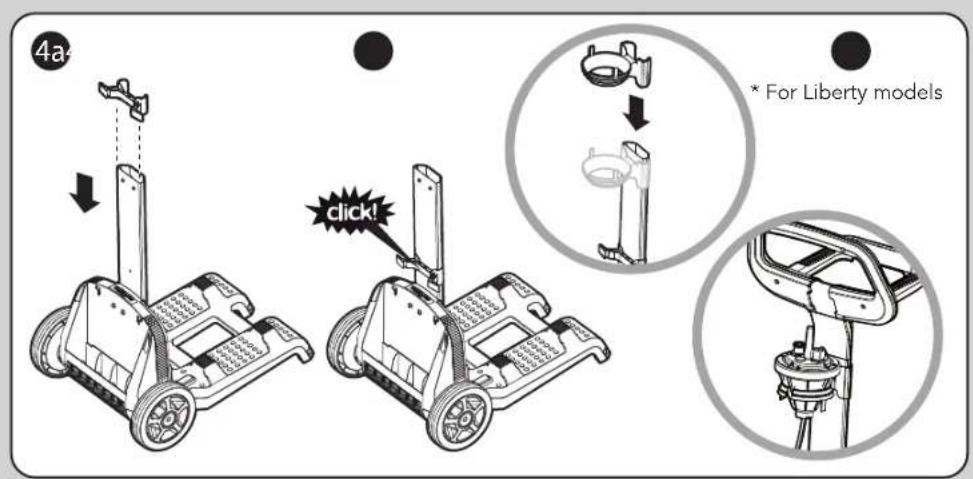

CADDY ASSEMBLY 71

Robotic Pool Cleaner Dolphin Classic 5 / Top 5

Operating Instructions

1. INTRODUCTION

Thank you for purchasing a Maytronics Robotic Pool Cleaner.

We are sure that your Maytronics Robotic Pool Cleaner will provide you with reliable, convenient and cost effective pool cleaning. Its reliable filtration in all pool conditions and all-surface climbing brush enhance maximum pool hygiene.

The Robotic Pool Cleaners by Maytronics deliver advanced cleaning technologies, long lasting performance and easy maintenance.

2. SPECIFICATIONS

Motor protection: IP 68

Minimum depth: 0.80m/2.6ft

Maximum depth: 5m/16.4ft

3. WARNINGS AND CAUTIONS

3.1 Warnings

• Use the originally supplied power supply only
- Ensure the electrical outlet is protected by a ground fault interrupter (GFI) or an earth leakage interrupter (ELI)
- Keep the power supply out of standing water
- Position the power supply at least 3m/10ft away from the edge of the pool
- Do not enter the pool while the pool cleaner is working
• Unplug the power supply before servicing

3.2 Cautions

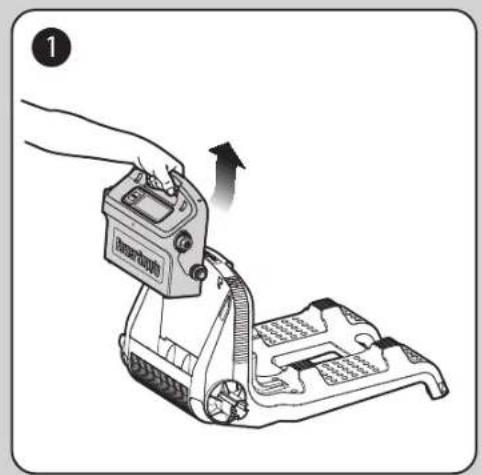

When not in use store the Pool Cleaner on the Caddy in a shaded area.

Use the Pool Cleaner in the following water conditions only:

Chlorine Maximum	4 ppm
pH 7.0 - 7.8
Temperature 6 – 34°C / 43-93°F
NaCl Maximum 5000 ppm

4. POOL CLEANER PARTS

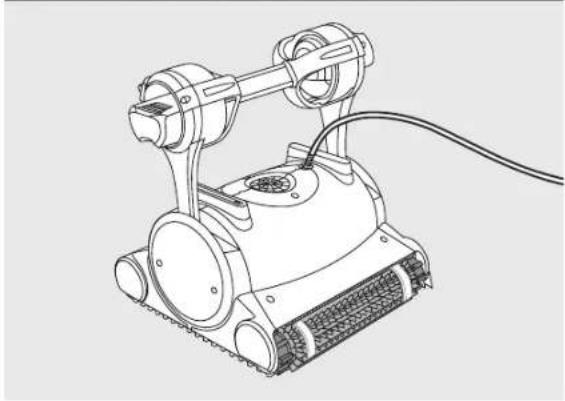

▶ Robotic Pool Cleaner Model Classic 5

Line drawing of a robotic lawn mower with mesh base and attached arm (no text or symbols)

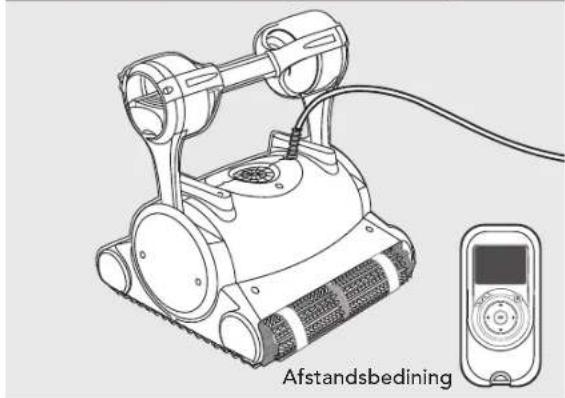

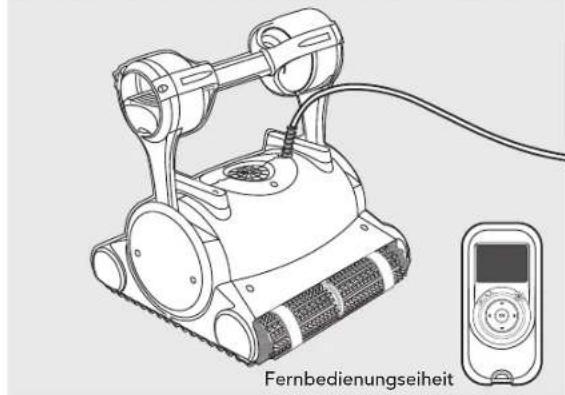

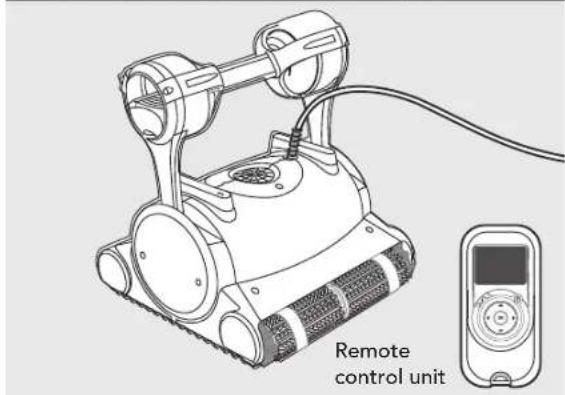

Robotic Pool Cleaner Model Top 5

Remote control unit

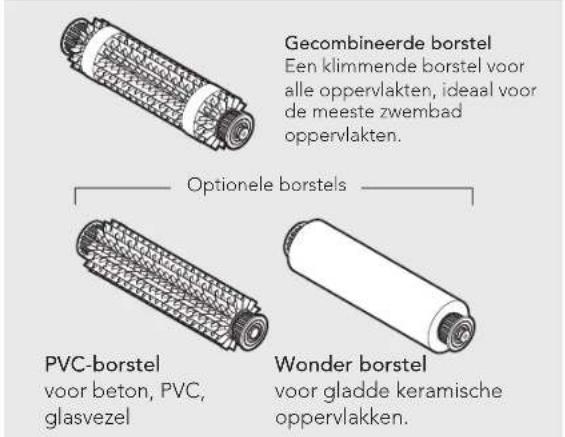

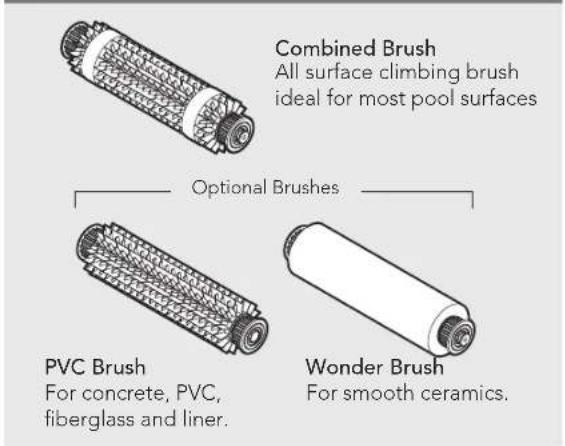

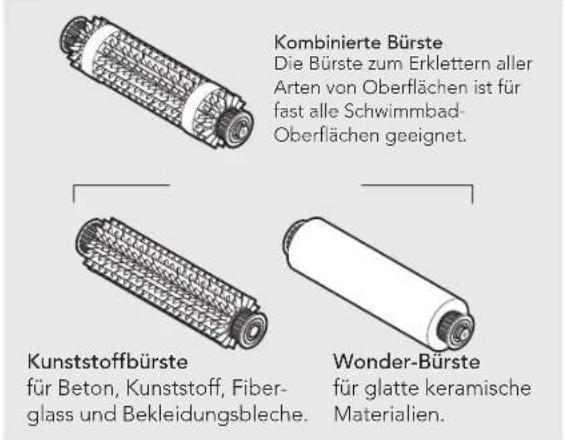

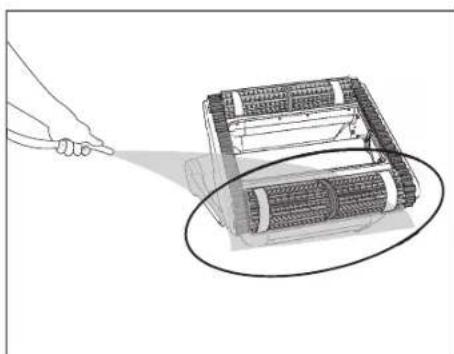

Brushes

Combined Brush All surface climbing brush ideal for most pool surfaces Optional Brushes PVC Brush For concrete, PVC, fiberglass and liner. Wonder Brush For smooth ceramics.

Combined Brush
All surface climbing brush ideal for most pool surfaces

Optional Brushes

PVC Brush
For concrete, PVC, fiberglass and liner.

Wonder Brush
For smooth ceramics.

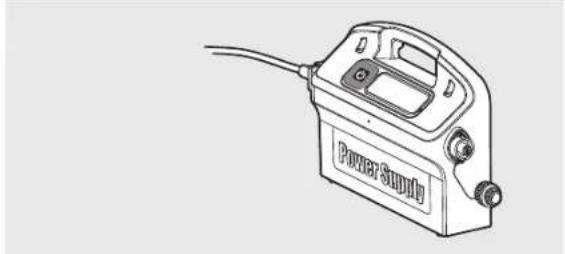

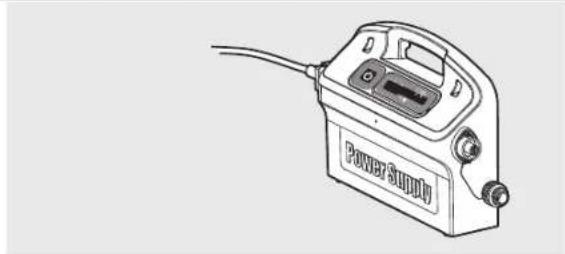

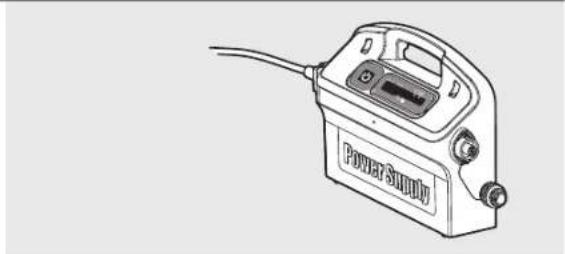

▶ Power supply unit

Line drawing of a power supply device with attached cable (no text or symbols)

Line drawing of a Power Supply device with cable and ports (no text or symbols on body)

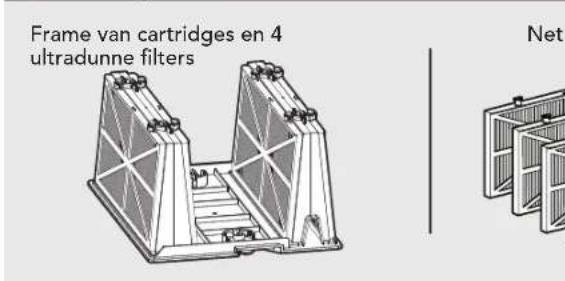

▶ Filtration options
Frame Cartridges and 4 ultra-fine filters

Technical line drawing of a structural support structure with triangular supports and a central platform (no text or symbols)

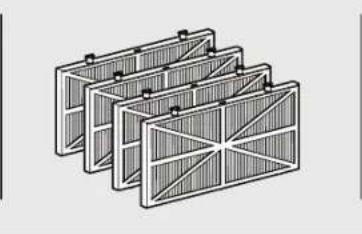

Net filters

Illustration of three identical rectangular panels with internal diagonal dividers, no text or symbols present.

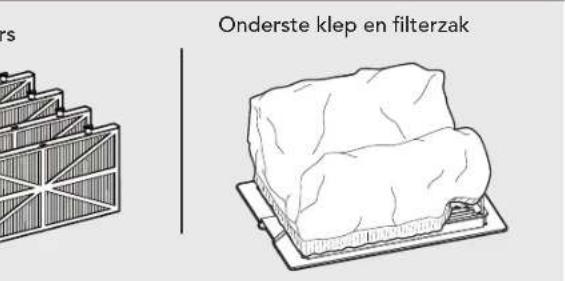

Bottom lid and filter Bag

Line drawing of a rectangular object placed on a flat base, resembling a cheese or cheese plate (no text or symbols)

5. USING THE POOL CLEANER

5.1 Set Up

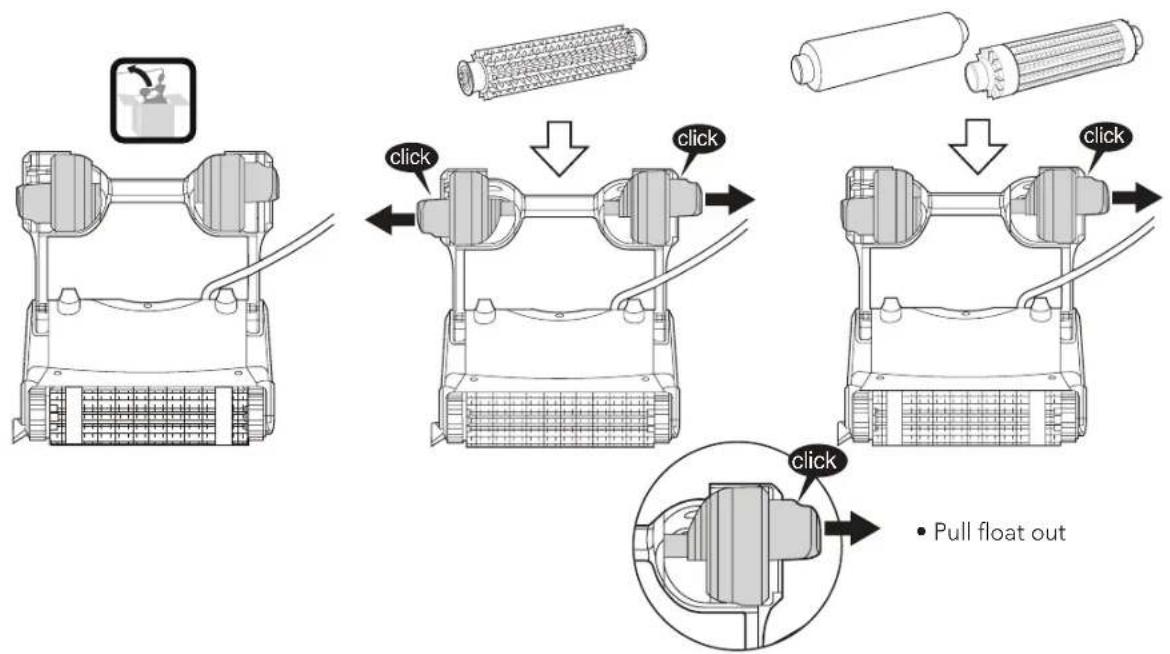

Initial float set up prior to first use - Classic 5 model only

• Place cable at the right side in front of the handle.
• Float position with various type of brushes:

click click click click • Pull float out

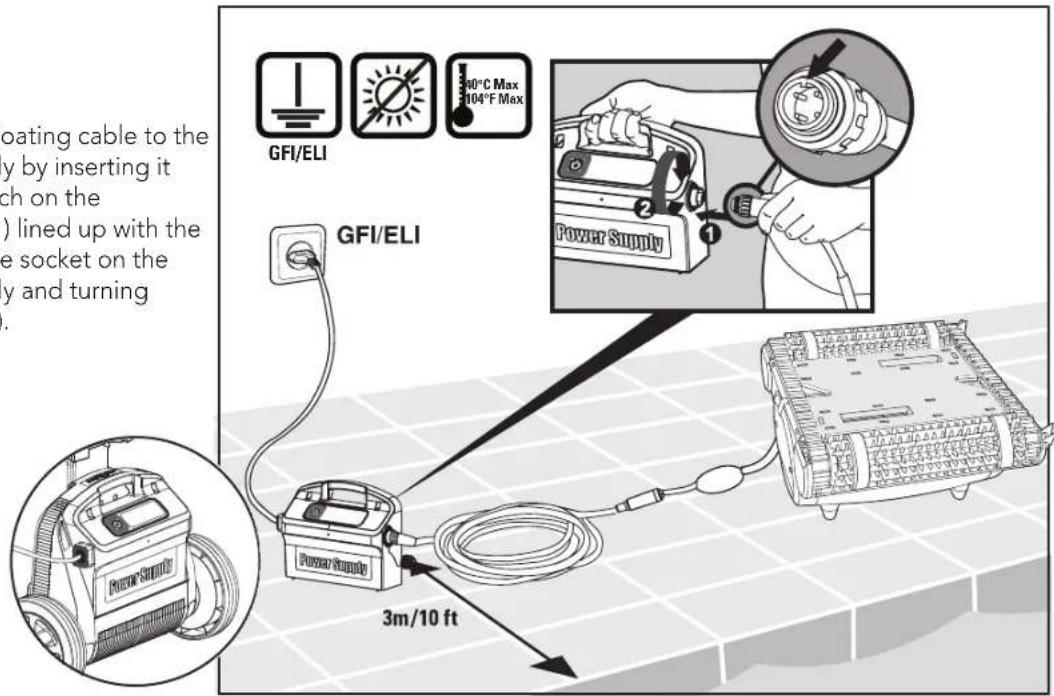

Attach the floating cable to the power supply by inserting it with the notch on the connector (1) lined up with the groove in the socket on the power supply and turning clockwise (2).

floating cable to the by inserting it ch on the ) lined up with the e socket on the y and turning GFI/ELI 30°C Max 104°F Max Power Supply GFI/ELI 3m/10 ft

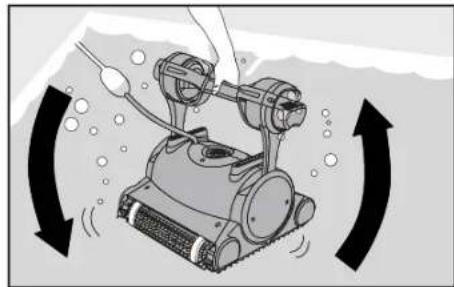

5.2 Putting the Pool Cleaner into the pool

If Wonder brush/ Wonder rings are dry, soak them in water until soft.

Shake the robot from side to side or turn it upside down to release trapped air. Let it sink to the pool floor.

Illustration of a robotic device with rotating arrows indicating motion (no text or symbols)

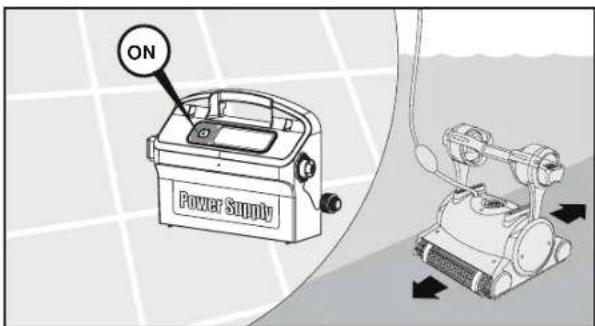

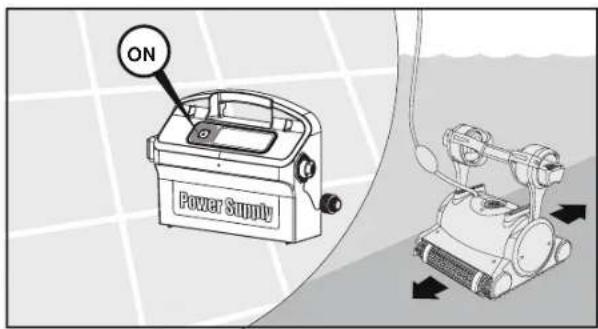

Turn the power supply ON.

The Pool Cleaner will now operate until it has reached the end of the cleaning cycle.

ON Power Supply

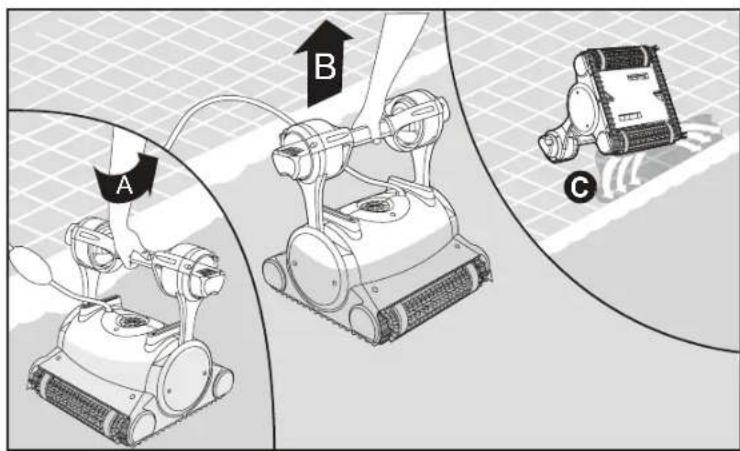

5.3 Removing the Pool Cleaner from the pool

The robot will perform automatic shut-off at the end of the cleaning cycle.

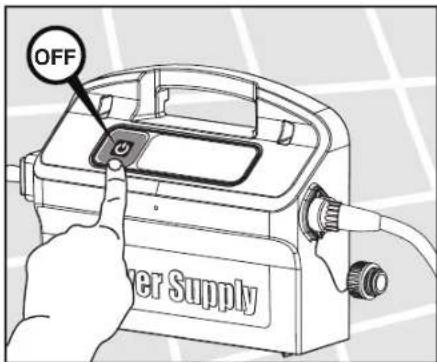

Turn Off and unplug the power supply.

OFF Power Supply

Illustration of a robotic arm with a hand operating it, showing mechanical components and a black arrow indicating direction (no text or symbols present)

A B C

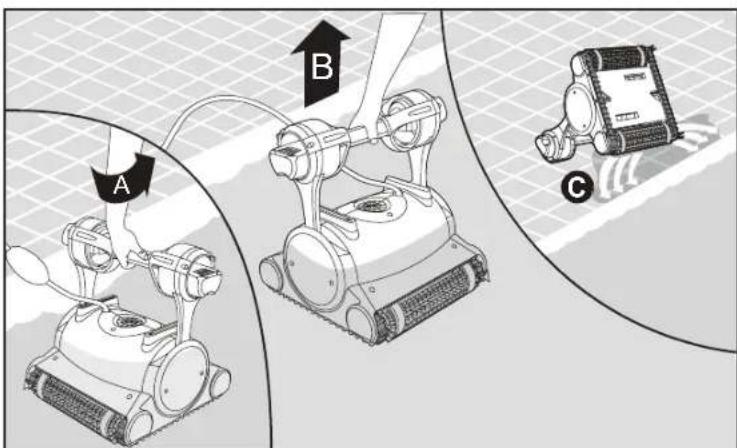

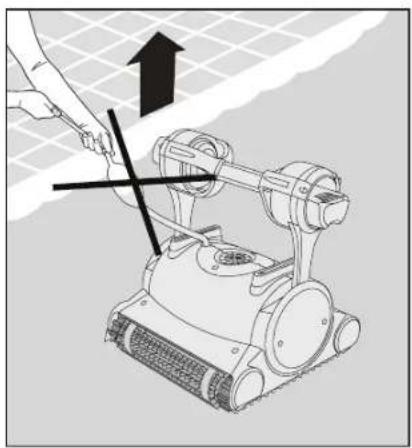

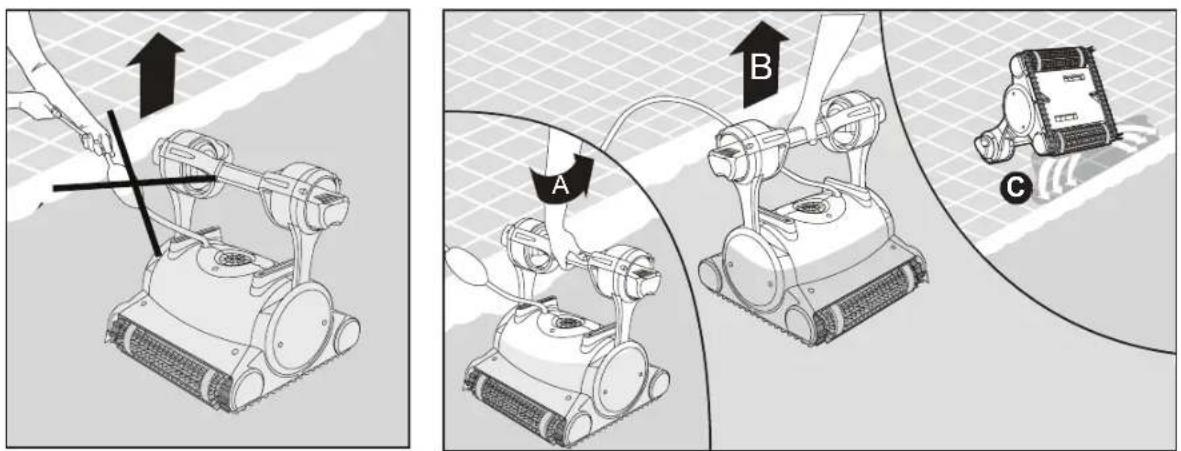

Using the floating cable, bring the Pool Cleaner to the pool's edge. Using the handle remove the Pool Cleaner from the pool.

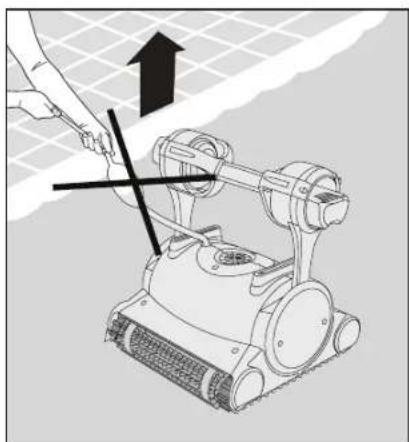

DO NOT PULL THE POOL CLEANER FROM THE POOL USING THE CABLE.

Dolphin Classic 5 / Top 5 Pool Cleaner | Operating Instructions

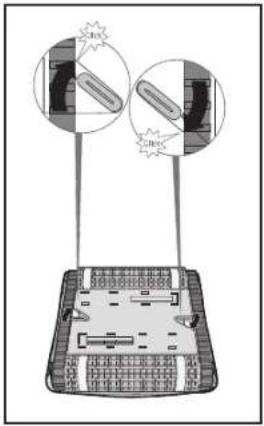

5.4 Maintenance

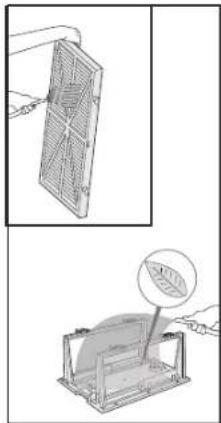

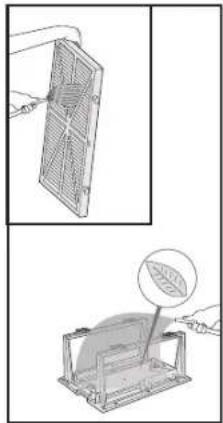

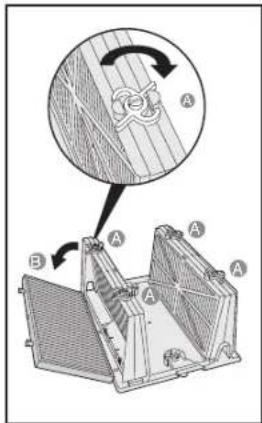

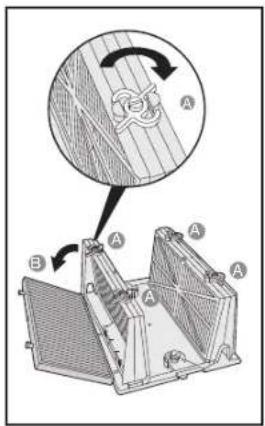

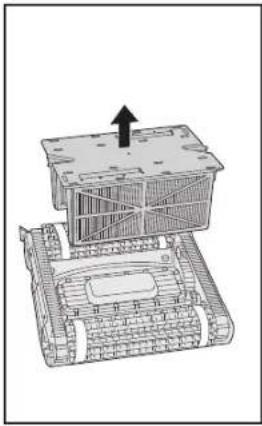

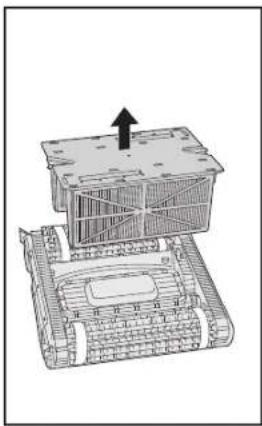

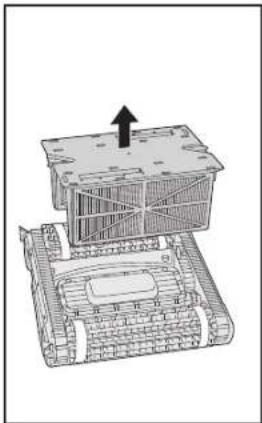

Cartridge

It is recommended to wash the cartridge after every cycle.

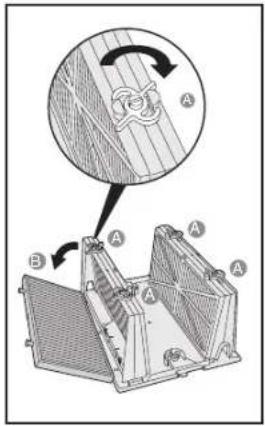

Filtration Options

• Ultra-fine filters for day-to-day use.
• Net filters for dirty pools with large debris such as leaves etc., useful for beginning of season.

Diagram of a tank with attached sensors and two close-up insets showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a highlighted component (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components A and B, including a magnified view of a component with rotation arrow.

Illustration of a battery pack being held by a hand, with a magnified view showing the internal structure (no text or symbols)

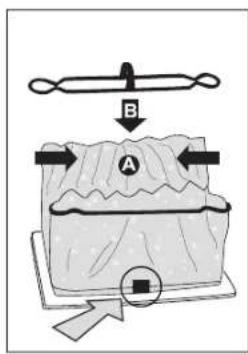

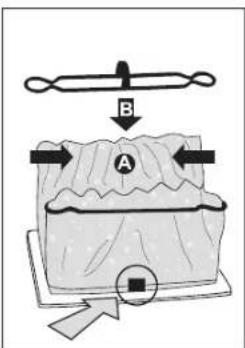

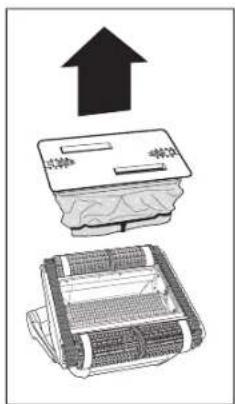

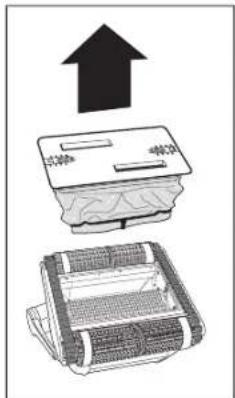

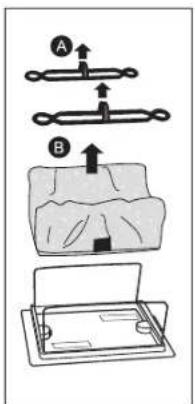

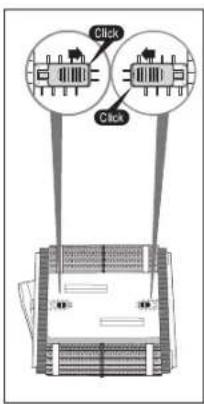

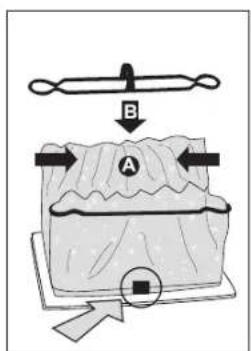

Filter bag

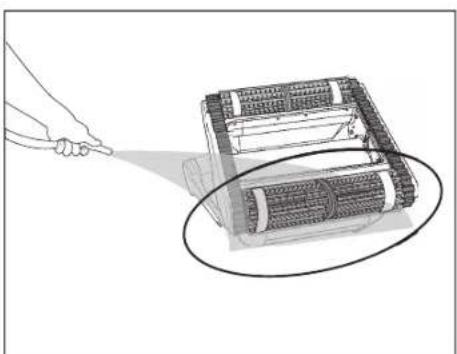

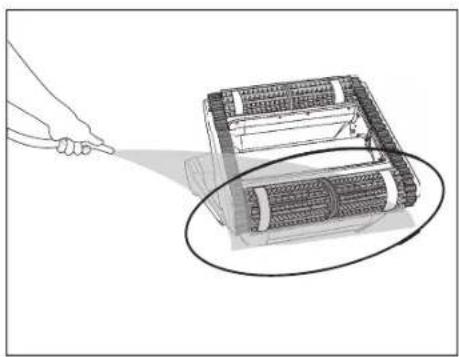

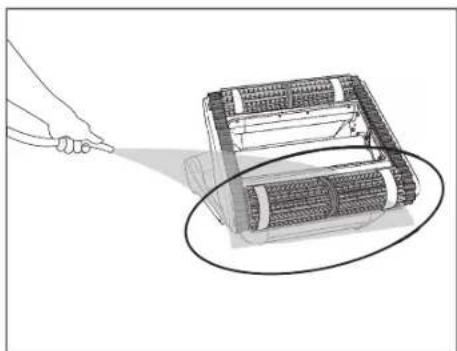

Clean the filter bag with a hose. Periodically clean the brushes with a hose. It is recommended to periodically wash the filter bag in a washing machine. Use gentle cycle program.

Click Click

Diagram showing a printer with an upward arrow and a folded paper, likely illustrating a process or installation.

Diagram illustrating a mechanical assembly with labeled parts A and B, showing step-by-step assembly steps.

Illustration showing a leaf being injected from a container with a magnified view of the leaf inside (no text or symbols)

Illustration of a hand using a tool to zoom onto a mechanical device component (no text or symbols visible)

B A


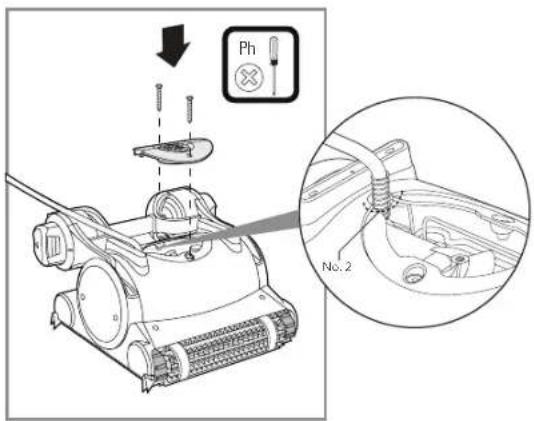

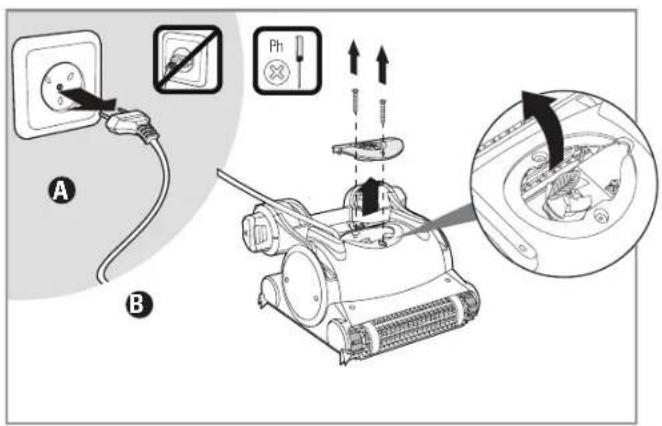

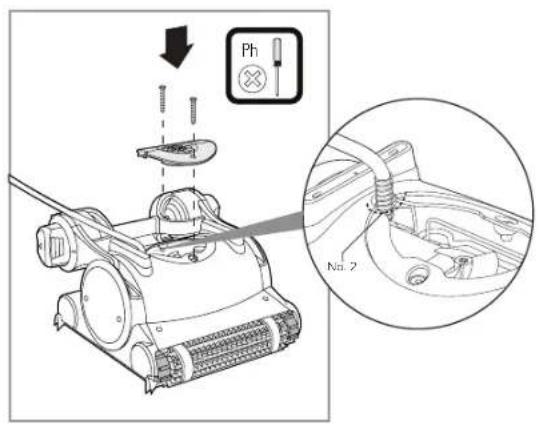

Cleaning the impeller

Unplug the power supply.

If you notice debris trapped in the impeller open the impeller and remove the debris.

Diagram illustrating electrical switch installation and component disassembly, showing power outlet, switch, and motor assembly with labeled parts A and B.

Ph No. 2

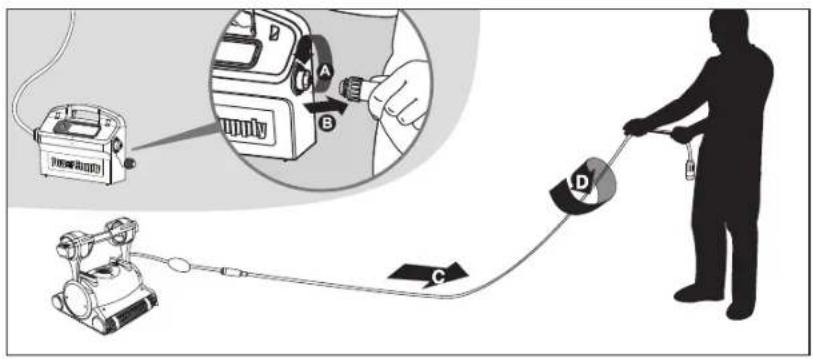

Cable

To remove the kinks, stretch the cable out completely and let it sit for at least a day in the sun.

Diagram illustrating a person using a power supply device connected to a robotic device, with labeled parts A, B, C, D.

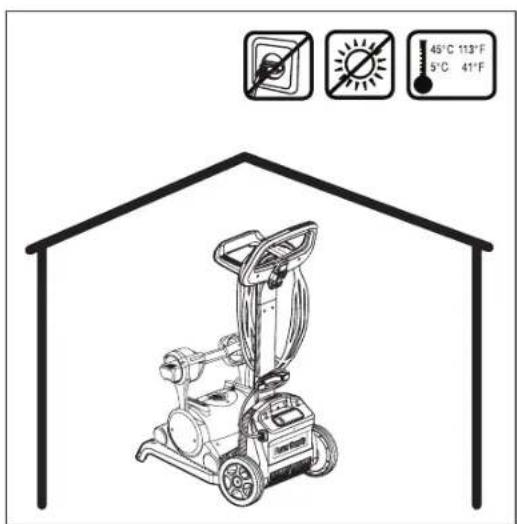

5.5 Off-season storage

If the pool cleaner will not be in use for an extended period, perform the following storage steps:

• Make sure that no water is left in the pool cleaner.
• Thoroughly clean the filter bag and insert in place.
- Roll up the cable so that it has no kinks and place on the Caddy.
- Store the pool cleaner upright on the Caddy in a protected area out of direct sun/rain/frost at a temperature of between 5^ - 45^ / 41^ - 113^ .

45°C 113°F 5°C 41°F

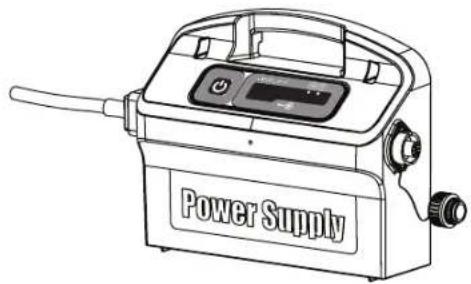

6. POWER SUPPLY - MODEL TOP 5 ONLY

Digital "Switch-Mode" Power Supply with full filter bag and delay indicator.

• Input - 100-250 AC Volts
- 50-60 Hertz
• 180 Watt
- Output - <30 VDC
IP 54

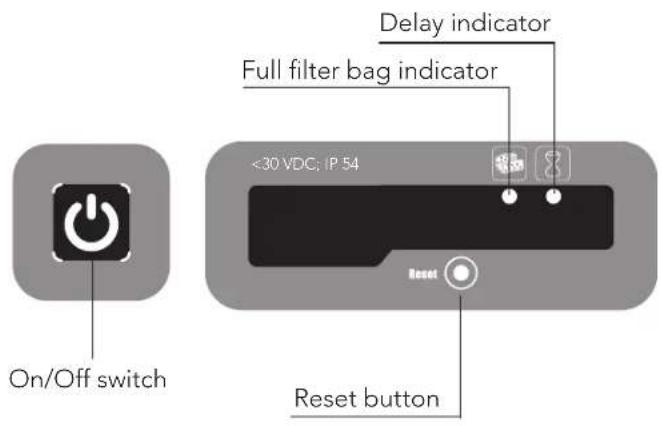

On/Off switch <30 VDC; IP 54 Reset button Delay indicator Full filter bag indicator

Line drawing of a power supply device with control panel and buttons (no text or symbols on body)

Full filter bag indicator and Reset button

The power supply is equipped with a filter bag status indicator.

The red LED indicates two filter conditions.

• When blinking - The filter is partially blocked.
• When lighted - The filter is blocked and must be emptied and cleaned.

If the LED does not turn off after the filter bag had been emptied and cleaned, press the RESET button while the robot is working.

Delay indicator

The power supply is equipped with a Delay indicator that indicates if the Delay option is activated (through the remote control unit).

7. REMOTE CONTROL UNIT - MODEL TOP 5 ONLY

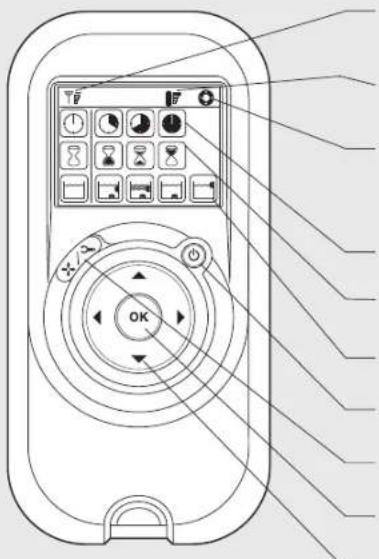

The Control Panel

The remote control unit offers two operation modes – Automatic mode and manual direction control mode.

In automatic mode, the cleaning parameters can be changed.

In manual direction mode, the robot's motion can be controlled manually.

Diagram of a remote control device with labeled buttons and function icons, showing navigation and operation controls.

Radio reception meter

When no black lines are showing, move closer to the power supply unit

Battery level meter

When flashing, change the batteries

Manual control indicator

When flashing, you are in manual direction control mode

Cleaning cycle icons

Delay timer icons

Cleaning mode icons

ON/OFF button

Manual/automatic select button

Set/OK button

Direction control arrows

Manual Direction Control Mode

1. Press the On/Off button once. The remote control will start in manual direction control mode.2. Use the direction control arrows (see right) to control the movement of the robot around the pool.

Exiting Manual Direction Control Mode and setting the Automatic Mode

	Manual/Automatic Select button	1. To exit the manual direction control mode, press the Manual/Automatic select button once only.2. The digital screen will light up and three rows of function icons will be displayed in default mode.
	Direction control arrows	1. To change the parameters press the up or down arrows.2. To select the parameter settings use the right or left arrows. When you reach the required function press the Set/OK button.		Set OK button

Press the Manual/Automatic select button and then choose the desired parameters according to the following table:

Cleaning cycle indicatorThis determines the length of the cleaning cycle.	Fast2-hour cycle	Efficient3-hour cycle for everyday use.(Default setting)	Extra4-hour cycle
Delay time indicatorThis determines when the pool cleaner starts to work. Delaying allows the dirt to settle to the bottom of the pool.	Immediate start (Default setting)	One-hour delay	Two-hour delay
Cleaning action indicatorAllowing you to choose from the following options.	StandardFloor and wall cleaning.(Default setting)	Ultra-cleanStronger suction and slower movement.(floor and wall)	Floor onlyCleans only the floor and the area where the floor and walls meet	Walls onlyCleans walls and waterline only

Note:

• After 2 minute if no button is pressed, the Remote Control Unit will shut-down and the Pool cleaner will continue to work in the previous settings.
• When the "Ultra-Clean" and "Walls Only" options finish their cycles, the Pool Cleaner will return to default settings.
