Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
Safety Instructions 21
Installation 23
Operation 27
Cleaning and Maintenance 27
Troubleshooting 30
Product Data Sheet 31
Notes on Environmental Protection 35
Disposal Considerations 35
Manufacturer & Importer (UK) 35
TECHNICAL DATA
| Item number 10046613, 10046614, 10046615 |
| Power supply 220-240 V ~ 50/60 Hz |
SAFETY INSTRUCTIONS
- Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
- The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
- The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
• Children under the age of 8 must not use the cooker hood. - The appliance is not intended for commercial use, but only for household and similar environments.
- The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
• Before cleaning, switch the power off at the main supply. - Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
• Prohibit putting the cooker hood by fire. - If the appliance does not function normally, contact the manufacturer or a specialist company.
- This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
- Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.
Important hints on installation
- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• Regulations concerning the discharge of air have to be fulfilled.
Important notes about the extraction mode

WARNING
Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.
Open flue combustion equipment (for example, gas, oil, wood or coal-fired heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.
- Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
- An air supply / extractor box alone does not ensure compliance with the limit value.
Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.
If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.
Important note on disassembly of the device
- Disassembly is similar to installation/assembly in reverse order.
• Take a second person to help you during disassembly to avoid injuries.
INSTALLATION
Preparation
If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 120 mm).
- Before installation, turn the unit off and unplug it from the outlet.
- The cooker hood should be placed at a distance of 65\~75 cm above the cooking plane for best effect.
Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa ( 4 × 10^-5 Bar).
Important Information for the Installation of Exhaust Air Ducts
The following rules must be strictly observed to ensure optimum air extraction. Failure to follow these instructions will reduce performance and increase the noise level of the cooker hood.
- Lay the exhaust pipe as short and straight as possible.
- Do not use a smaller exhaust duct and do not confine it.
- If flexible ducts are used, the duct must always be mounted tightly in order to minimise pressure loss.
- All installation work may only be carried out by a qualified electrician or a qualified person.
- Do not connect the exhaust duct of the cooker hood to an existing ventilation system used for another appliance, such as a chimney.
- The angle of the exhaust pipe bend should not be less than 120^ . Align the pipe horizontally. Alternatively, the duct should go up from the starting point and be led to an outer wall.
• After installation, make sure that the cooker hood is level to prevent grease from accumulating on one side. - Make sure that the exhaust duct selected for the installation complies with the relevant standards and is fire-resistant.

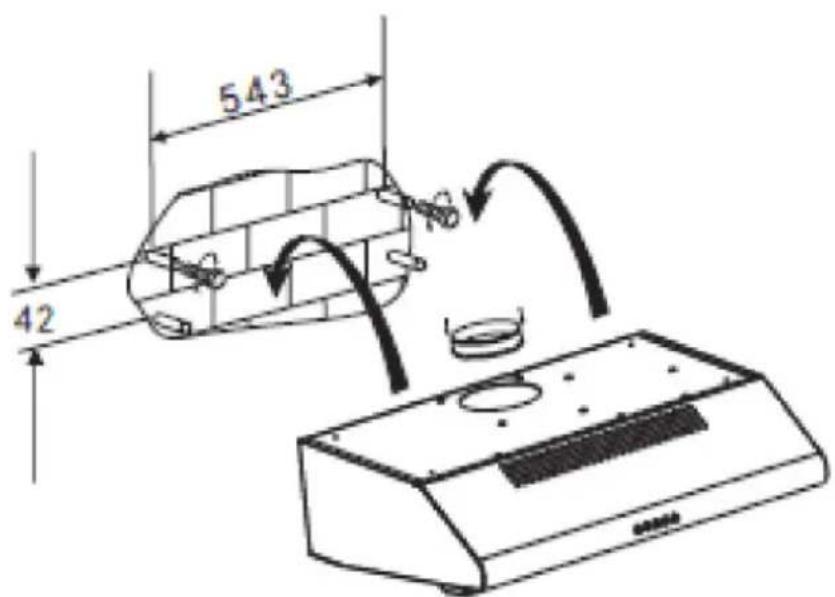

Installation Method A
![]() | |
| 1 | For wall mounting, drill 4 holes with a diameter of 8 mm at a suitable point in the wall. Use the distance between the holes on the back of the cooker hood as a guide. |
| 2 | Insert the dowels in the holes. |
| 3 | Insert the top screws into the dowels and tighten them until the cooker hood just fits over them. |
| 4 | Place the cooker hood on the screws. |
| 5 | Then tighten the bottom two screws from the inside to fix the cooker hood to the wall. |
| 6 | Then attach the exhaust hose to the cooker hood. |
Installation Method B
| 1 | Drill 4 holes with a diameter of 6 mm in the bottom of the wall cabinet. Ensure that the distance between the back of the cooker hood and the wall is maintained. |
| 2 | Fit the air outlet on the cooker hood, then mount the cooker hood on the cabinet base by tightening it with the 4 screws, washers and nuts supplied. |
Horizontal and vertical air outlet
The air outlet can be horizontal or vertical.
| Horizontal air outlet Vertical air outlet | |
A | B |
| Use the cover to seal the outlet on the top. | Use the cover to seal the outlet on the rear. |
Setting the ventilation
- Exhaust ventilation: Turn the control knob to exhaust mode (Figure A). Install the exhaust hose and switch on the cooker hood. The exhaust air is now discharged to the outside.
- Recirculation ventilation: Turn the control knob to recirculation mode (Figure B). Fasten the outlet covers and switch on the cooker hood. The air is now discharged via the inner outlet.
Recirculation ventilation

WARNING
For safety reasons, please use only the same size of fixing or mounting screws which are recommended in this instruction manual. Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
OPERATION

Timer

Light

Display

Speed

On/Off
- Press the 'Power' button to switch the machine on or off.
- Press the "Speed" button repeatedly, the engine will run as low/medium/high/low/medium..., the speed will run in circles; and the LED display will show 1-2-3-1-2... in circles.
- Press the "Lamp" button, the light is on, press this button again, the light is off. Please note that the lamp is not controlled by the on/off button.
- When the hood is working, if you press the "Timer" button, the hood will go into the state of acquiescent working (acquiescent time is 9 min), and then the LED display will show 9.8.7.6 ...decreasing by 1, when the time is up, the hood will automatically switch off and the lamp will extinguish. If you press the "Timer" button, the hood will go in or out "Timer" function.
CLEANING AND MAINTENANCE
Turn off the cooker hood before cleaning and maintenance and unplug the appliance from the wall outlet. The exterior surfaces are susceptible to scratches and stains.
Therefore, do not use abrasive cleaners and wipe away any alkaline or acidic residue (lemon juice, vinegar) immediately after cleaning.
Stainless Steel Surfaces
The stainless steel must be cleaned regularly to ensure a long service life. Use stainless steel cleaner. Always wipe along the grain of the stainless steel to prevent scratching.
Control Panel
The control panel can be cleaned with a damp cloth and a mild dishwashing detergent. Before cleaning, make sure the cloth is clean and well wrung. Use a dry, soft cloth to remove excess moisture after cleaning.
Monthly Cleaning for Grease Filter
Clean the filter every month can prevent any risk of fire. The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

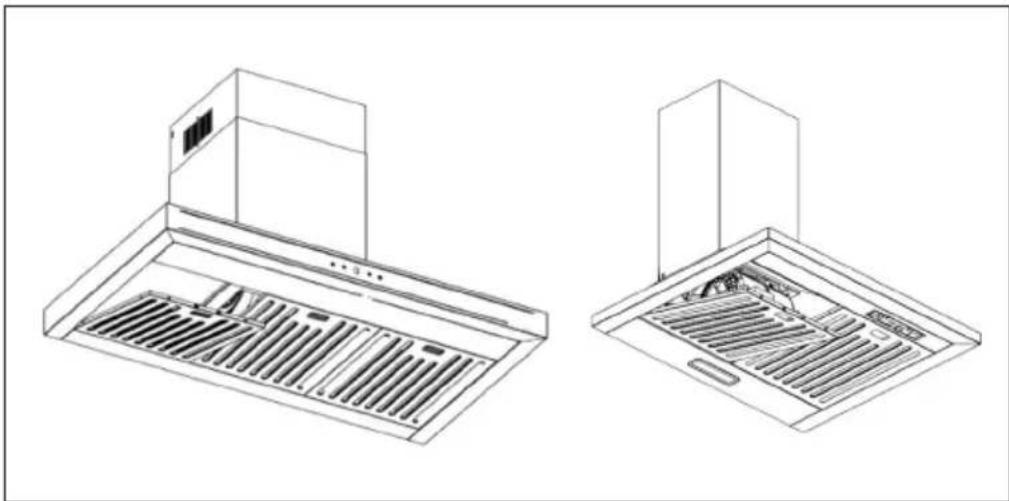

How to remove and install the grease filters
Remove the grease filters by pressing the button on the handle of the filter and removing the filter.
1 Angle the filter and insert it into the slots on the back of the hood.
2 Press the button on the handle of the filter.
3 Release the handle once the filter is back in its original position.
4 Repeat this procedure for all filters.

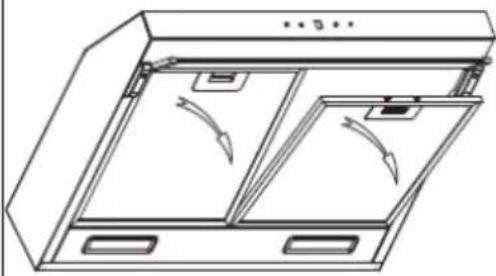

Installing the activated carbon filter (optional)
Note: If an activated carbon filter is installed, the extraction capacity decreases slightly.

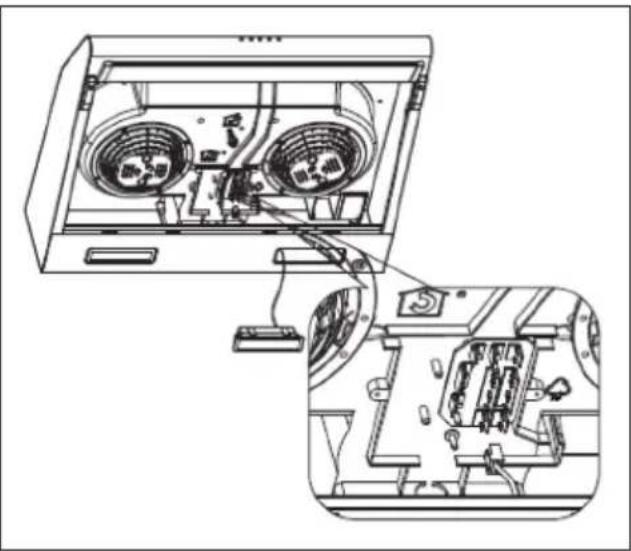

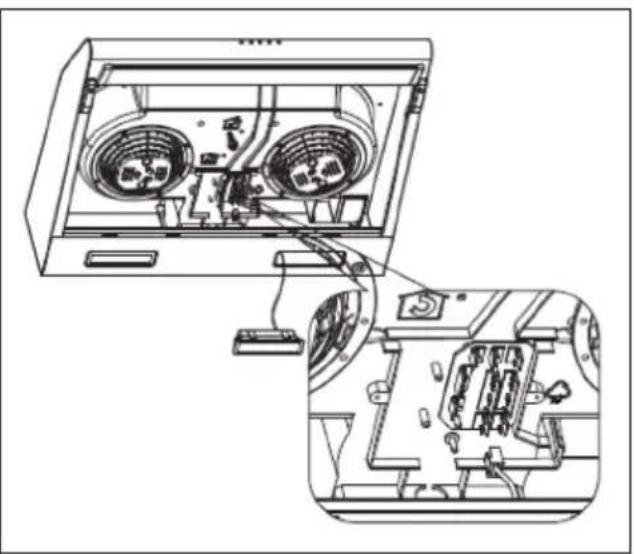

![]() | 1 Disconnect the device from the power supply.2 Press the filter lock and remove the grease filter.3 Turn the carbon filter clockwise on both sides of the motor. Replace the carbon filters firmly with the new carbon filters.4 Install the grease filter.5 Connect the unit to the power supply. |

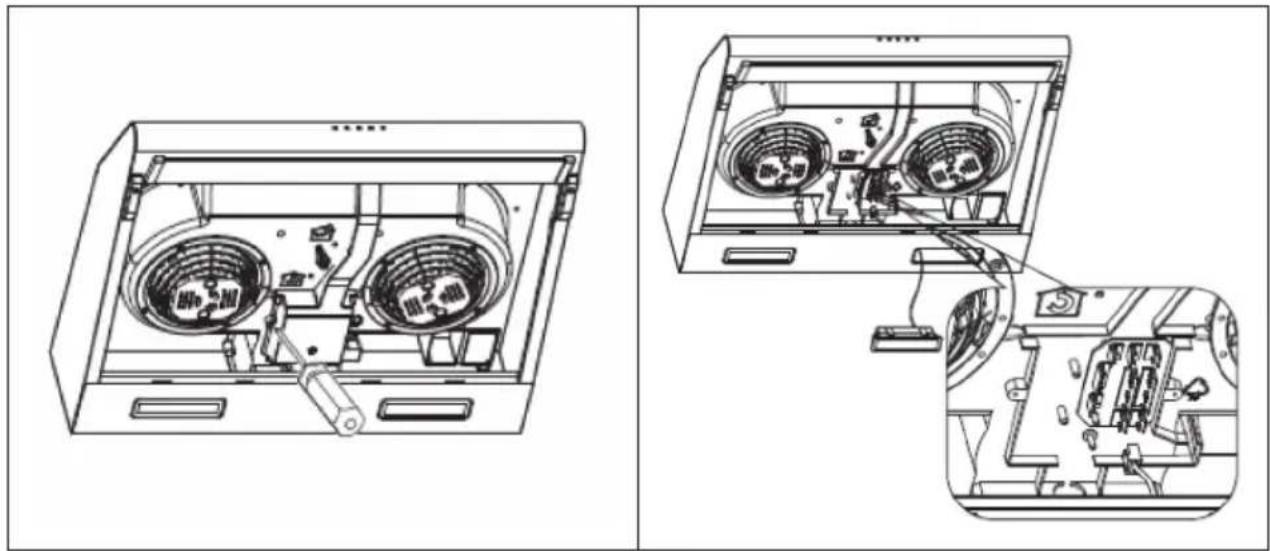

Replacing the lamp
1 Remove the grease filter.
2 Remove the cover with a screwdriver (Figure 1).
3 Pull the lamp out by hand and remove the wire clamp to replace the lamp (Figure 2).
4 To reinstall the lamp, follow the steps in reverse order.
| 2 x 1.5 W DC 12 V== | ![]() | DBS-2/65-H-120/33 | |
TROUBLESHOOTING
| Fault Possible Cause Solution | ||
| Light on, but motor does not work. | The leaf blocked. Get rid of the blocking. | |
| The capacitor damaged. Replace capacitor. | ||
| The motor jammed bearing damaged. | Replace motor. | |
| The internal with of motor off or a bad smell from the motor. | Replace motor. | |
| Light does not work, motor does not work. | Light damaged. Replace lights. | |
| Power cord looses. Connect the wires as per the electric diagram. | ||
| Shake of the body. The leaf | damaged and causes shaking. | Replace the leaf. |
| The motor is not tightly hanged. | Lock the motor tightly. | |
| The body is not tightly hanged. | Fixed the body tightly. | |
| Insufficient suction. The distance between the body and the gas top too long. | Readjust the distance. | |
| Too much ventilation from open doors or windows. Choose a new place and resemble the machine. | ||
