USER MANUAL Puls2 BT Capital Sports

QR code image containing encoded data, no visible human-readable text

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

DECLARATION OF CONFORMITY

CE UK CA

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited Unit 6 Riverside Business Centre Brighton Road Shoreham-by-Sea BN43 6RE United Kingdom

The complete declaration of conformity of the manufacturer can be found at the following link: https://use.berlin/10039938

SAFETY INSTRUCTIONS

This product is one of our company's heart rate monitors, which transmits the real-time heart rate data to heart rate receiving devices, sports and health apps via BLE or ANT+, and helps you control your exercise intensity according to scientific standards. This instruction manual is for better use of the product. Keep it for future reference. (This product is intended for athletic use only and is not a substitute for medical advice).

SCOPE OF DELIVERY

Heart rate wristband Charging cable Instruction manual

TECHNICAL DATA

Dimensions (mm) 46.5 x 36 x 14
Weight 12, 3 g
Power 90 mAH rechargeable lithium battery
Battery life 16 hours continuous heart rate measurement
Water resistance IP67
Operating temperature 0 °C ~ 40 °C
Transmission ANT+, BLE

Switching on: Press the start button. The LED light will flash blue rapidly until the heart rate is found.

Switching off: Press and hold the start button. The LED light flashes red, the device vibrates and turns off.

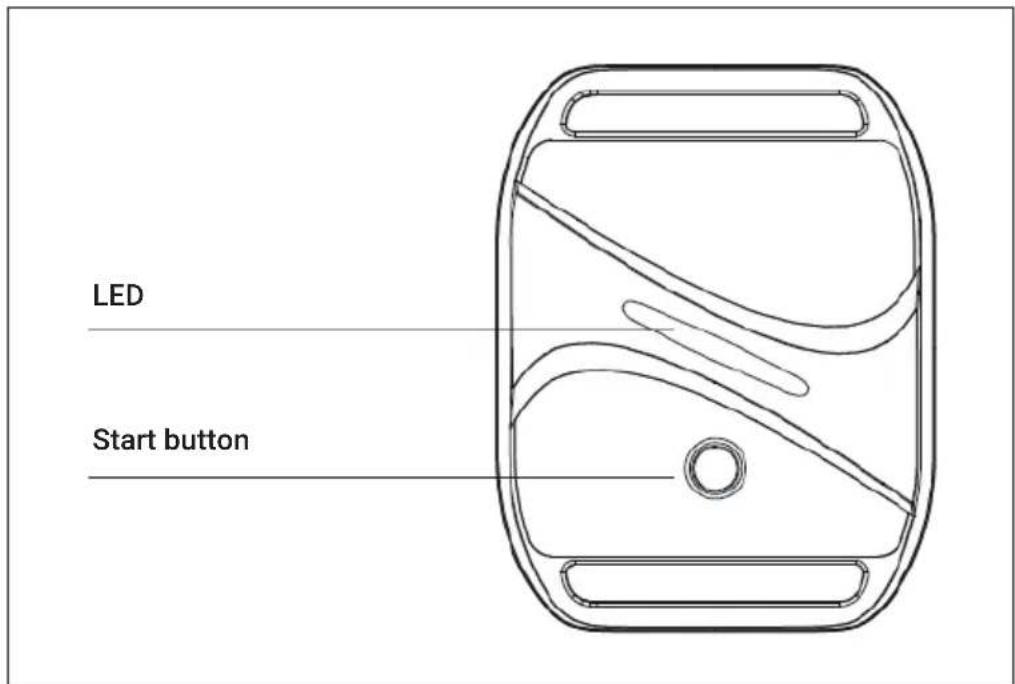

LED Start button

Heart Rate Display

* Maximum heart rate rate (MHR) = 180 (factory set).

Zone Color Range (factory set)
Zone 1 Blue Below	60 % MHR
Zone 2 Green 61 %	~ 70 % MHR
Zone 3 Yellow 71 %	~ 80 % MHR
Zone 4 Purple 81 %	~ 90 % MHR
Zone 5 Red Above	91 % MHR

Heart rate alarm: As soon as the heart rate exceeds the set maximum value, the sensor vibrates 3 times continuously.

Power supply

Low battery alarm: LED light flashes red and green alternately and the device vibrates once

Charging: The LED flashes green while charging. Once the wristband is fully charged, the LED will turn solid green.

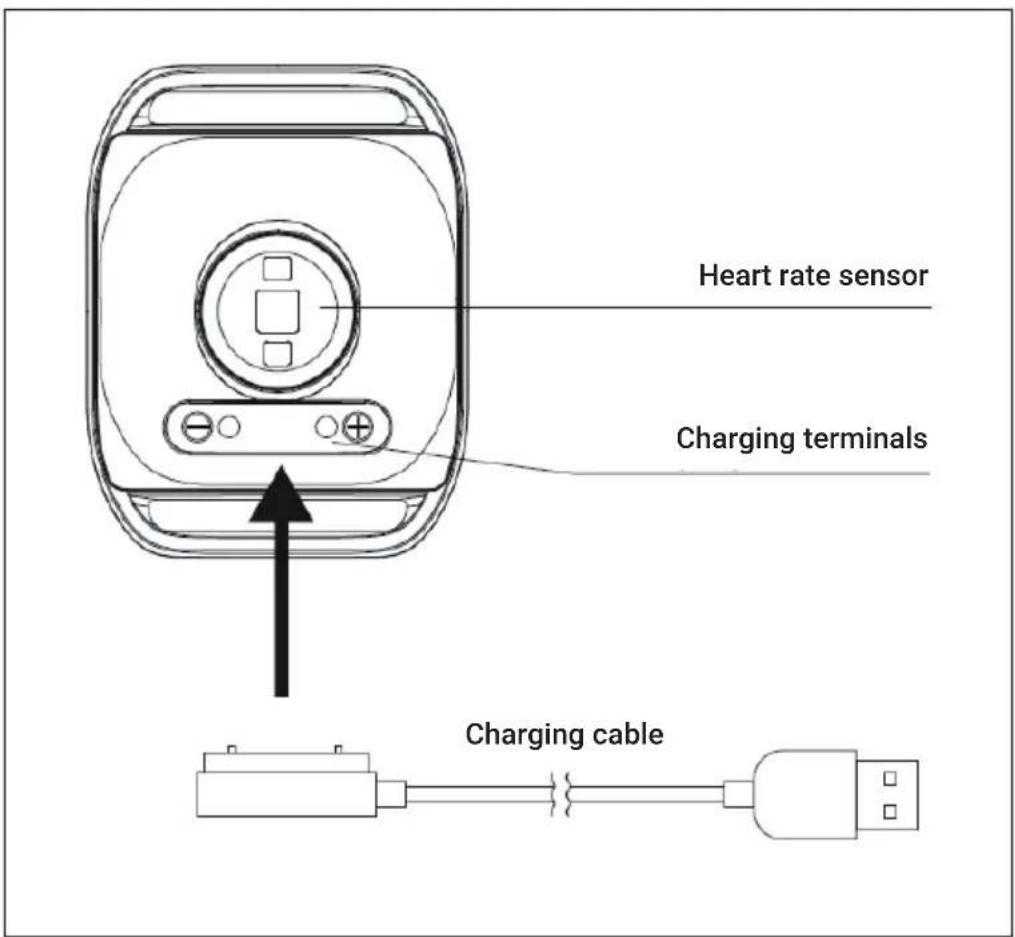

Heart rate sensor Charging terminals Charging cable

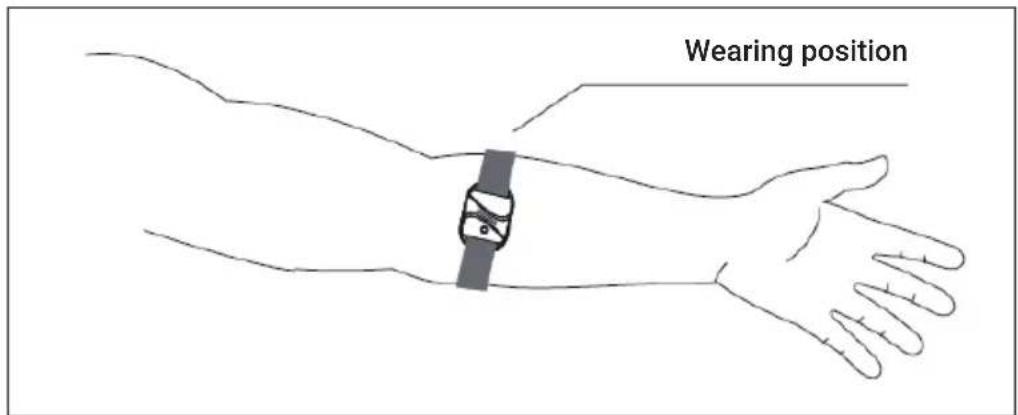

Wearing the wristband

Wear the wristband on the upper part of the forearm. The sensor should be on the bottom or top of the forearm. It should be tight enough to not slip on the forearm, but not so tight as to restrict blood flow.

Wearing position

Initial setup of the BLE Smart Fitness app.

1 Enable BLE on the mobile device.
2 In the BLE Smart Fitness app, open the sensor setting.
3 Connect the app to the wristband by turning it on.

Initial setup of BLE smart devices

(Sports watches, fitness equipment and GYM Team Training systems).

1 Select „Add HR sensor“ from the device settings menu.
2 Connect the device to the wristband by turning it on.

Compatible apps

Endomondo, Wahoo, Runtastic, UA Run, Zwift, etc.

Compatible models

• iOS 9.0 version and above, iPhone 5S and above.
• All BT 4.0 enabled Android devices version 4.3 and above

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.
