Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 22

Installation 24

Control Panel and Key Functions 27

Care and Cleaning 28

Troubleshooting 31

Product Data Sheet 32

Product Data Sheet 34

Notes on Environmental Protection 36

Disposal Considerations 36

Manufacturer & Importer (UK) 36

TECHNICAL DATA

Item number	10031992, 10031993, 10031994, 10040264, 10040265, 10040266, 10040267, 10040268
Power supply 220-240 V ~ 50/60 Hz
Note: You can purchase an activated carbon filter separately for this cooker hood under item number 10030983. Please visit our website: www.klarstein.co.uk

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
  • Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
  • Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
  • Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
  • Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING

Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open fl ue combustion equipment (for example, gas, oil, wood or coal-fi red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms - without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction fl ue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can flow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
  • Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

Wall Mounted Installation

• The hood can be installed as extractor or recirculation hood.
- The cooker hood should be placed at a distance of 65-75cm (26-30inch) from the cooking surface for the best effect.

Note: The maximum height of the chimney is variable, and depends on the model purchased.

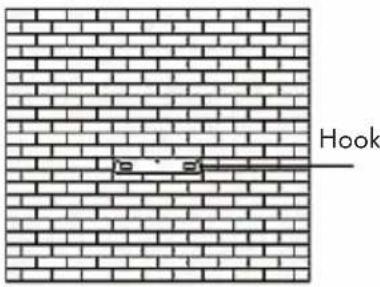

Install the hook on a suitable place once the installation height is fixed, and keep it in line.Fix the outside chimney bracket on the outside chimney, and be sure that the inside chimney can be adjusted the height in it freely.	Hang the range hood onto the hood plate and fix the chimney with 4 screws. Put on the external chimney and fix it with chimney holder.

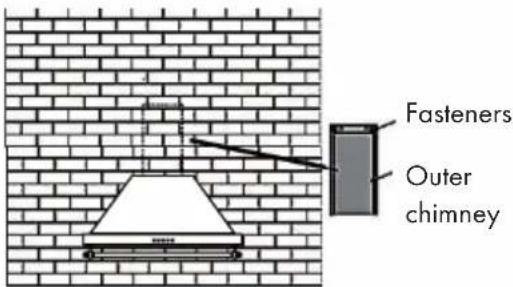

Finally, fix the external chimney to the wall. As picture 6 shows.	Adjust the height of the inner chimney to the desired positionslightly widen the outer chimney and screw.

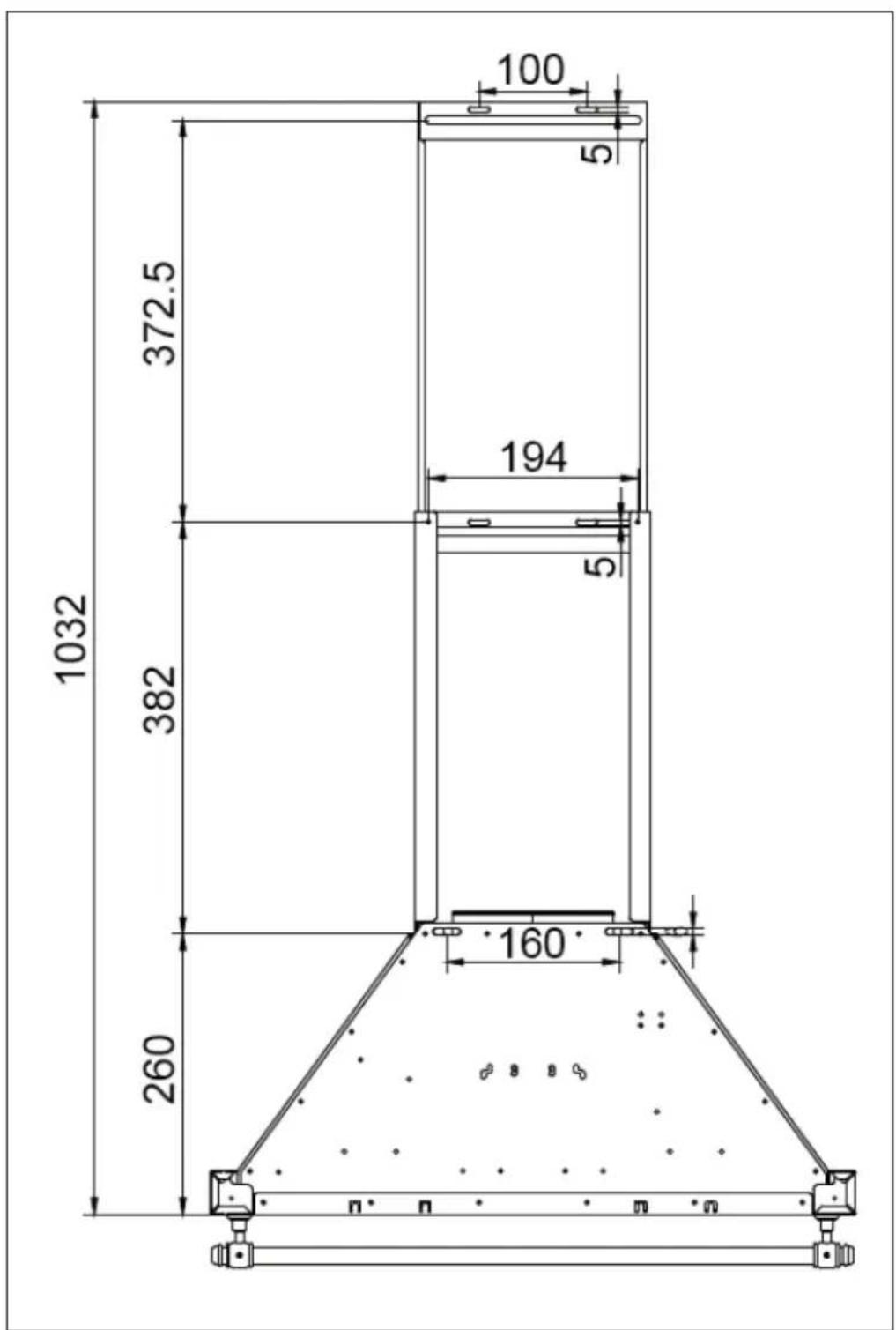

Wall Mounted Model Details

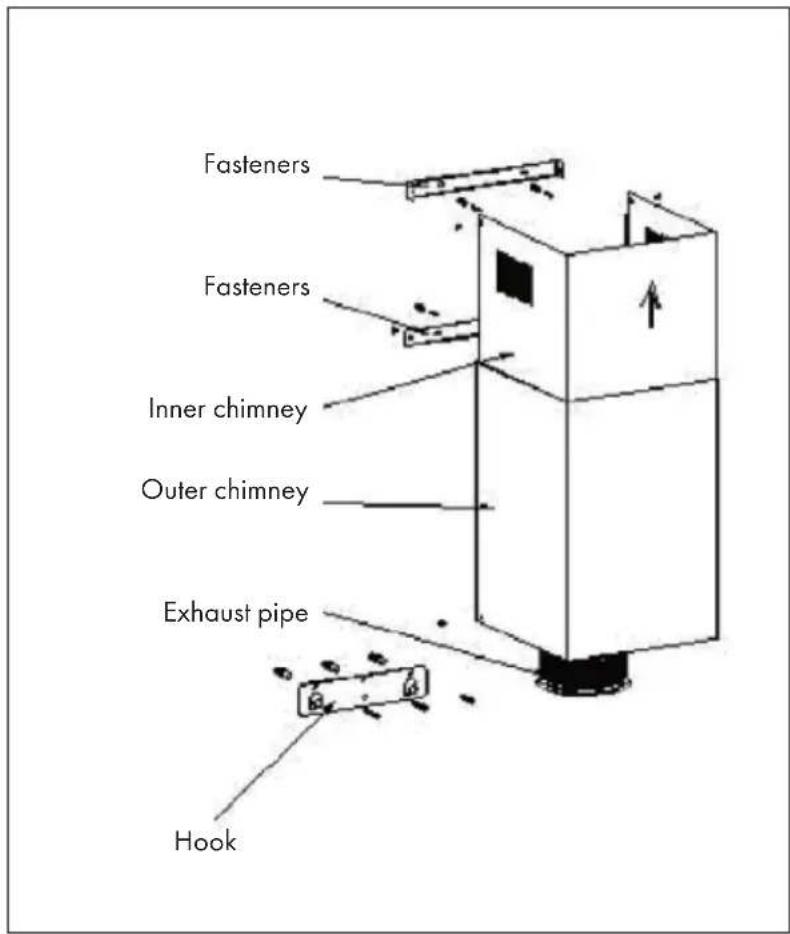

Fasteners Fasteners Inner chimney Outer chimney Exhaust pipe Hook

1032 372.5 382 260 160 100 5 194 5

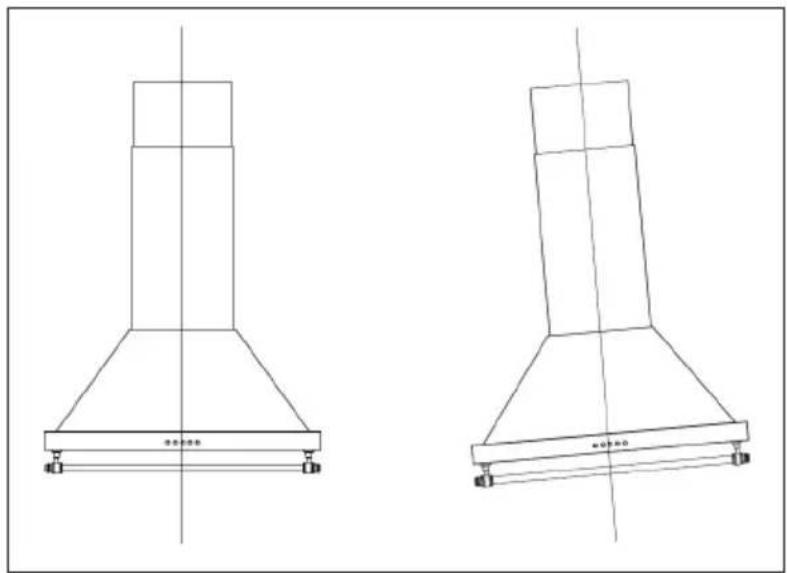

Important Hints on Installation

The bending angle of the pipe should be more than 120^ and duct it out of the wall. Make sure that the range hood is vertical after installation.

Technical line drawing of two identical kitchen fan profiles with mounting base (no text or symbols)

CONTROL PANEL AND KEY FUNCTIONS

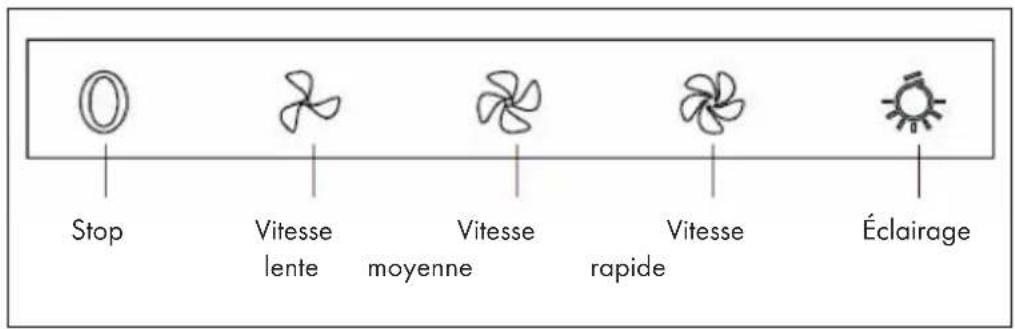

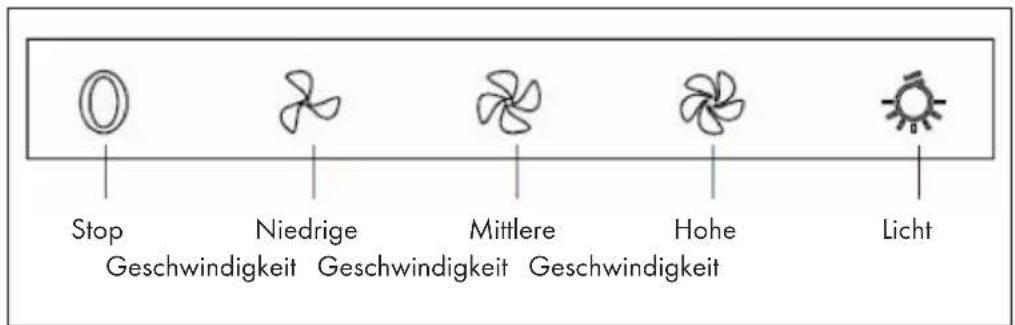

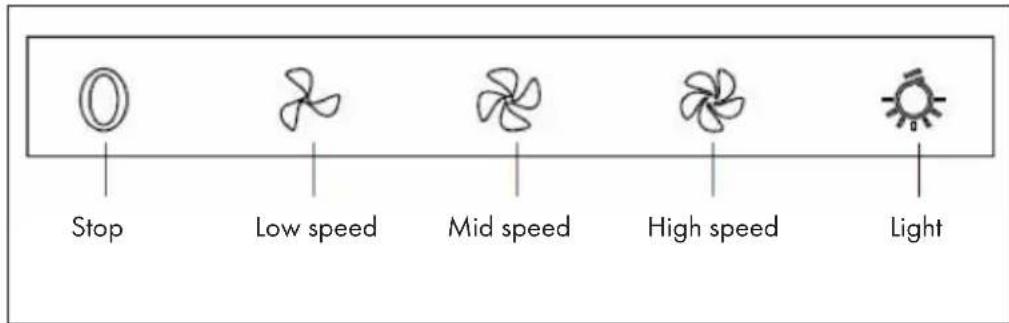

Control Panel

Stop Low speed Mid speed High speed Light

Key functions

	Stop buttonPush stop button, and the motor will stop.
	Low Speed ButtonPush the Low button, and the motor runs at low speed.
	Mid Speed ButtonPush the middle speed button, and the motor runs at mid speed.
[45ZS]	High Speed ButtonPush the High speed button, and the motor runs at high speed.
	Light ButtonPush the light button and the two lights will come on. Push it again and the light will turn off.

CARE AND CLEANING

Grease Filters Cleaning

Important: Cleaning the filters will keep the appliance in correct operation and will prevent possible exhaust flare-ups or fire by accumulation of fat below the hood.

The Grease filter is made of high-density layers of aluminium meshes. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below:

• Method 1: Put the mesh into 40-50 °C clean water, pour on detergent, and soak for 2-3 min. Wear gloves and clean with a soft brush. Please do not apply too much pressure, as the mesh is delicate and will damage easy.
• Method 2: If instructed to do so, it can be put into a dishwasher, set the temperature at around 60 degrees.

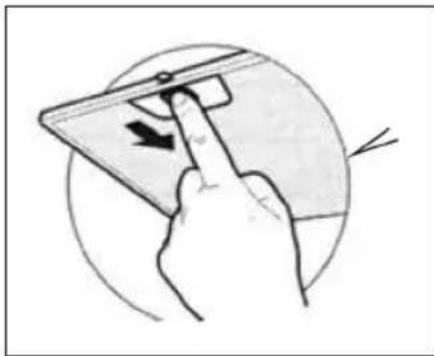

To remove aluminiumfilters press the metal tab back, remove the filter (one at a time) and gently pull down. After washing and drying them, places the filters following the passages of the assembly in inverse form.

Illustration of a hand pressing a tablet with a finger, showing the screen and arrow (no text or symbols)

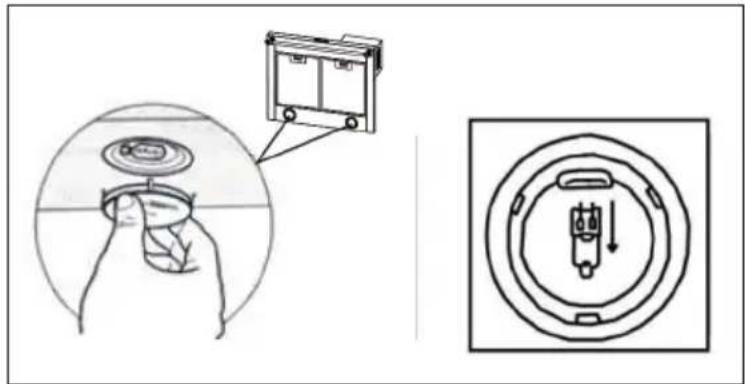

Lamp Change

Technical diagram showing a hand holding a circular component with a magnified inset, alongside its internal view with a mechanical component.

1 Before changing the bulbs, sure that the hood is not connected.
2 Grasp the metal ring of the bulb, pull down and remove halogen cavity. Pic.12
3 Replace the bulb with a new one with the same characteristics.

Note: In several models the lamp or LED changes completely.

Connector

Cooker Hood Cleaning

To protect the main steel body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus non corrosive detergent and then to maintain its brightness should be used products or foams for exclusive steel, which will leave a protective coating on the surface. It is recommended to clean it at least once every months.

Important Hints

• Please do not use abrasive detergent for it will damage the body.
• Keep the motor and other spare parts free from water, as this will cause damage to the appliance.
  • Before cleaning the appliance please remember to cut off power.
• The carbon filter shouldn't be exposed to heat.
• Please don't tear open the fixed bar around the carbon filter
• If the plug or cord is damaged, please replace it with special soft cord.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work.	The leaf blocked. Get rid of	the blocking.
	The capacitor damaged.	Replace capacitor.
	The motor jammed bearing damaged.	Replace motor.
	The internal with of motor off or a bad smell from the motor.	Replace motor.
Light does not work, motor does not work.	Light damaged. Replace lights.
	Power cord looses. Connect	the wires as per the electric diagram.
Shake of the body. The leaf	damaged and causes shaking.	Replace the leaf.
	The motor is not tightly hanged.	Lock the motor tightly.
	The body is not tightly hanged.	Fixed the body tightly.
Insufficient suction. The distance between the body and the gas top too long.		Readjust the distance.
		Too much ventilation from open doors or windows. Choose a new place and resemble the machine.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10031992/10031993/10031994/10040264
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	36,0 kWh/Year
Energy Efficiency class A
Fluid Dynamic Efficiency FDE	hood	30,3
Fluid Dynamic Efficiency class A
Lighting Efficiency LE	hood	13,5 Lux/W
Lighting Efficiency class D
Grease Filtering Efficiency	GFBhood	65,0 %
Grease Filtering Efficiency class		D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		402/599	m^3/h
air flow at intensive or boost setting		-	m^3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		61/69	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20

11+A11:2014+A12:2015

Item number	10031992/10031993/10031994/10040264
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	36,0 kWh/Year
Time increase factor f 0,9
Fluid Dynamic Efficiency FDE	hood	30,3
Energy Efficiency Index EEI	hood	48,9
Measured air flow rate at best efficiency point	Q_BEP	328,3 m^3/h
Measured air pressure at best efficiency point	PBEP	328 Pa
Maximum air flow Q	max	621,71	m^3/h
Measured electric power input at best efficiency point	WBEP	110,4	W
Nominal power of the lighting system	W_L	1.5X2	W
Average illumination of the lighting system on the cooking surface	Emiddle	41 Lux
Measured power consumption in standby mode	P_o	-	W
Measured power consumption off mode	P_s	0	W
Sound power level	L_WA	61/69	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:2011+A11:2014+A12:2015

Item number	10040265/10040266/10040267/10040268
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	36,0 kWh/Year
Energy Efficiency class A
Fluid Dynamic Efficiency FDE	hood	30,3
Fluid Dynamic Efficiency class A
Lighting Efficiency LE	hood	25,3 Lux/W
Lighting Efficiency class B
Grease Filtering Efficiency	GFBhood	68,0 %
Grease Filtering Efficiency class		D
air flow at minimum and maximum speed in normal use, intensive or boost excluded		402/599	m^3/h
air flow at intensive or boost setting		-	m^3/h
airborne acoustical A-weighted sound power emissions at minimum and maximum speed available in normal use		61/69	dB
airborne acoustical A-weighted sound power emissions at intensive or boost setting		-	dB
power consumption in off mode	Po	0	W
power consumption in standby mode	Ps	-	W
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

Information according to Regulation (EU) No. 66/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20

11+A11:2014+A12:2015

Item number	10040265/10040266/10040267/10040268
Description Symbol Value Unit
Annual Energy Consumption AEC	hood	36,0 kWh/Year
Time increase factor f 0,9
Fluid Dynamic Efficiency FDE	hood	30,3
Energy Efficiency Index EEI	hood	48,9
Measured air flow rate at best efficiency point	Q_BEP	328,3 m3/h
Measured air pressure at best efficiency point	PBEP	328 Pa
Maximum air flow Q	max	621,71	m3/h
Measured electric power input at best efficiency point	WBEP	110,4	W
Nominal power of the lighting system	WL	1.5X2	W
Average illumination of the lighting system on the cooking surface	Emiddle	76 Lux
Measured power consumption in standby mode	Po	-	W
Measured power consumption off mode	Ps	0	W
Sound power level	LWA	61/69	dB
Contact details	Chal-Tec GmbH, Wallstraße 16, 10179, Berlin, Germany

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
  • Always put the lid on when cooking to reduce cooking steam and condensation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente,

QR code image containing encoded data, no visible human-readable text

ÍNDICE DE CONTENIDOS

Technical line drawings of two identical industrial smokestacks with mounting feet (no text or symbols)

Illustration of a hand pressing down on a smartphone screen with an arrow indicating the press (no text or symbols present)

Sustituir la bombilla

Technical diagram showing a hand holding a device with a magnified inset, alongside its close-up view of the internal components.

Technical line drawing of a circular component with internal grid pattern and connected cable (no text or symbols)

Conexión

Limpiar la campana extractora

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Technical line drawings of two identical industrial exhaust canopy structures (no text or symbols)

PANNEAU DE COMMANDE ET TOUCHES DE FONCTIONS

Panneau de commande

Illustration of a hand pressing down on a smartphone screen with a finger, showing the screen and arrow (no text or symbols)

Changement de lampe

Technical diagram showing a hand holding a circular component with a magnified inset, alongside its close-up view of the internal structure.

Technical line drawing of a circular component with grid pattern and connector (no text or symbols)

Prise

Nettoyage de la hotte aspirante

FICHE DE DONNÉES PRODUIT

FICHE DE DONNÉES PRODUIT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Technical line drawings of two identical industrial exhaust canopy structures with mounting feet (no text or symbols)

PANNELLO DEI COMANDI E TASTI FUNZIONE

Illustration of a hand pressing down on a smartphone screen with a finger, showing the screen and arrow (no text or symbols)

Technical diagram showing a hand holding a circular component with a magnified inset, alongside its close-up view of the internal structure.

Line drawing of a circular device with grid pattern and connector (no text or symbols)

Connettore

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
