Product type	Electric pizza oven
Brand	Klarstein
Model	Marinara
Power supply	230 V ~ 50 Hz
Total power	1200 W (top element 450 W + bottom element 750 W)
Capacity	Suitable for a standard size pizza
Functions	Pizza baking, griddle cooking
Control type	Thermostat with heating indicator light
Material	Metal with non-stick coating on the cooking plate
Included accessories	Cooking plate, pizza spatula
Cooking zone	Non-stick cooking surface
Recommended preheating	10 minutes
Pizza cooking time	5 to 7 minutes
Care and cleaning	Clean the lid, plate and spatula with warm water and a soft cloth; do not put in dishwasher; do not immerse the base
Safety	Automatic shut-off not specified; hot surfaces indicated; protection against burns
Intended use	Domestic only, indoors
Article number	10045615

Frequently Asked Questions - Marinara Klarstein

How to use the Klarstein Marinara pizza oven for the first time?

Before first use, run the appliance empty for 10 minutes to eliminate odors. Slight smoke may occur, this is normal. Ventilate the room. Let it cool down, then clean the cooking plate.

How long does it take to preheat the pizza oven?

The recommended preheating is 10 minutes. The red indicator light turns on when the appliance is plugged in.

Can the pizza oven be used to grill other foods besides pizza?

Yes, the appliance also allows grilling meat, fish or vegetables on the griddle. Simply lightly grease the plate and turn the food several times during cooking.

How to clean the Klarstein Marinara pizza oven?

Let it cool down for at least 30 minutes. Clean the lid, plate and spatula with warm water and a soft cloth. Do not put in the dishwasher and never immerse the base in water.

What is the power of the pizza oven?

The total power is 1200 W, divided between a top element of 450 W and a bottom element of 750 W, for even cooking.

Is a special socket required to plug it in?

No, it operates on a standard domestic socket of 230 V ~ 50 Hz. Make sure your hands are dry when plugging in.

What to do if smoke appears during first use?

This is normal during the first heating. It is the combustion of manufacturing residues. Ventilate the room and let the appliance heat empty for 10 minutes.

Can metal utensils be used on the plate?

No, the plate is non-stick. Only use wooden or heat-resistant plastic utensils to avoid scratching the coating.

How to avoid burns during use?

The dome and some parts become very hot. Use oven mitts, do not move the appliance while operating and wait for complete cooling before touching.

Where to find the recommended pizza dough recipe?

The manual contains a pizza dough recipe for 4 people with 500 g flour, salt, olive oil, yeast and warm water, as well as a tomato sauce recipe. See the recipe section of the manual.

USER MANUAL Marinara Klarstein

KLARSTEIN

www.klarstein.com

INHALTSVERZEICHNIS

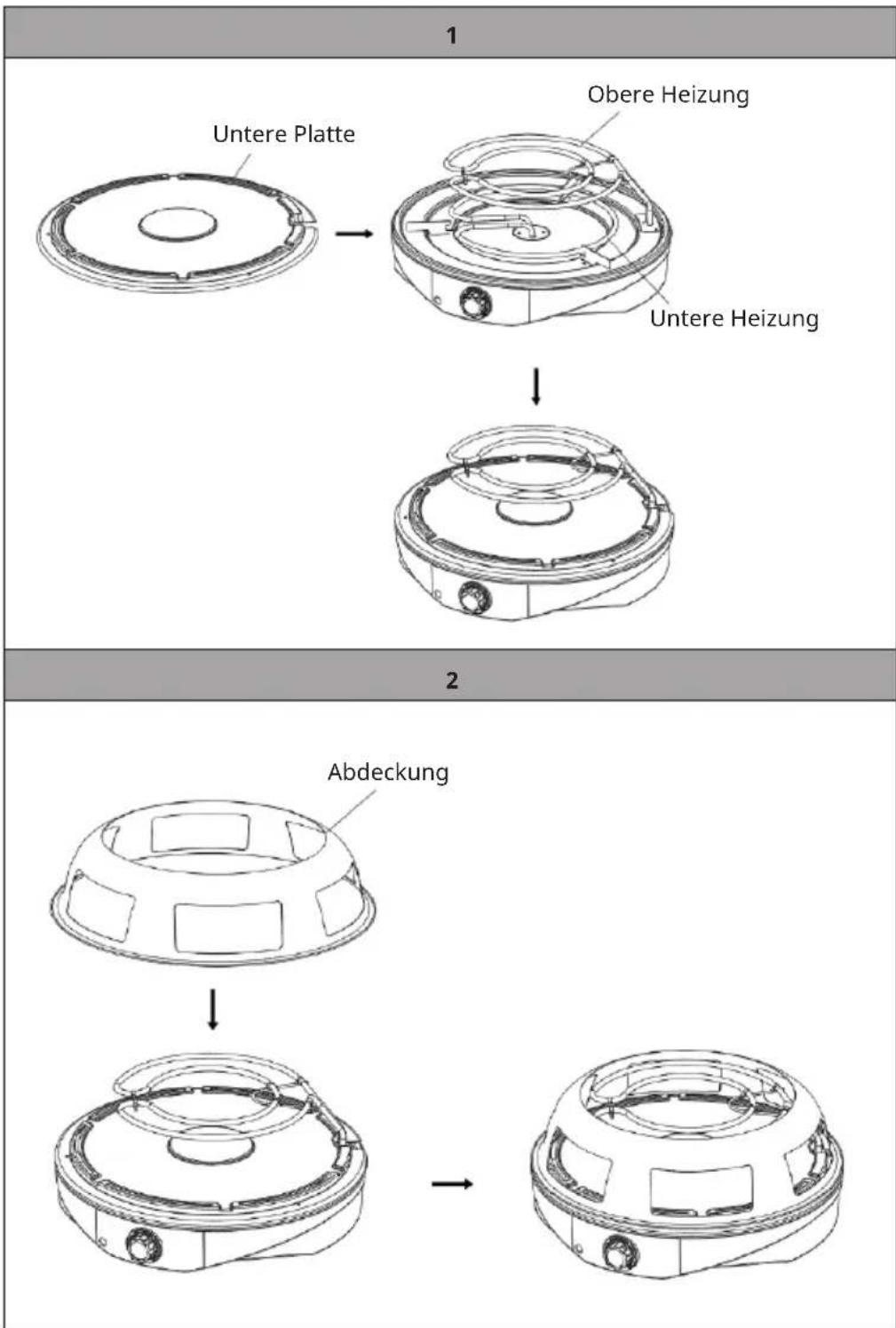

ZUSAMMENBAU

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear customer,

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions and improper use. Please scan the QR code to access the latest operating instructions and further information about the product.

CONTENTS

Safety Instructions 14

Assembly 16

Operation 18

Recipes 19

Cleaning and Care 19

Disposal Considerations 20

Manufacturer & importer (UK) 20

TECHNICAL DATA

Article number 10045615
Power supply 230 V ~ 50-60 Hz
Power 1200 W (450 W + 750 W)

SAFETY INSTRUCTIONS

• Children are not aware of the dangers of electronic devices. Never leave the device unattended while it is in use. Therefore, always keep the device out of the reach of children.
• The device is suitable for household use only. Never use the device outdoors.
• Make sure that the device and the mains cable never come into contact with hot devices such as hotplates or open flames.
• Do not let the power cord hang over the edge of the sink, countertop, or table.
• Make sure your hands are dry when you touch the device, the power cord or the plug.
• Never immerse the device in water or any other liquid.
• The device must be able to dissipate its heat to prevent a fire. Therefore, make absolutely sure that the device has enough free space on all sides and does not come into contact with combustible materials. The device must not be covered.
• Do not use the device near explosives or flammable materials.
• Do not use a metal scouring pad to clean the device. Metal parts could come loose and touch the electrical parts of the device and cause a short circuit.
  • Always turn off the device when:

• A malfunction occurs during use.
- You are servicing or cleaning the device.
- You are attaching or removing accessories.
- You unplug the device from the power outlet.
- You have stopped using the device.

• Never switch off the device by pulling the cable.
• Always contact an approved, trained service technician if the device or the cable is damaged, malfunctions or if the device needs to be repaired. Never repair this device yourself! Self-performed or improper repairs can lead to significant dangers for the user.
• Remove the plug from the mains socket when the device is not in use and before cleaning it.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children must not play with the device.

- The device is not intended to be operated with an external timer or a separate remote control system.

- This device is intended for use in households and similar areas, such as:

• Staff kitchens in shops, offices and other work areas

- Farms

- By customers in hotels, motels and other residential areas

• Bed-and-breakfast environments

- This unit has a heating function. Surfaces other than the functional surfaces can develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with caution. Only hold the device on the designated surfaces and use heat protection measures such as heat protection gloves or oven mitts. Areas that are not intended to be grasped must be given sufficient time to cool down.

- Do not move the device during use.

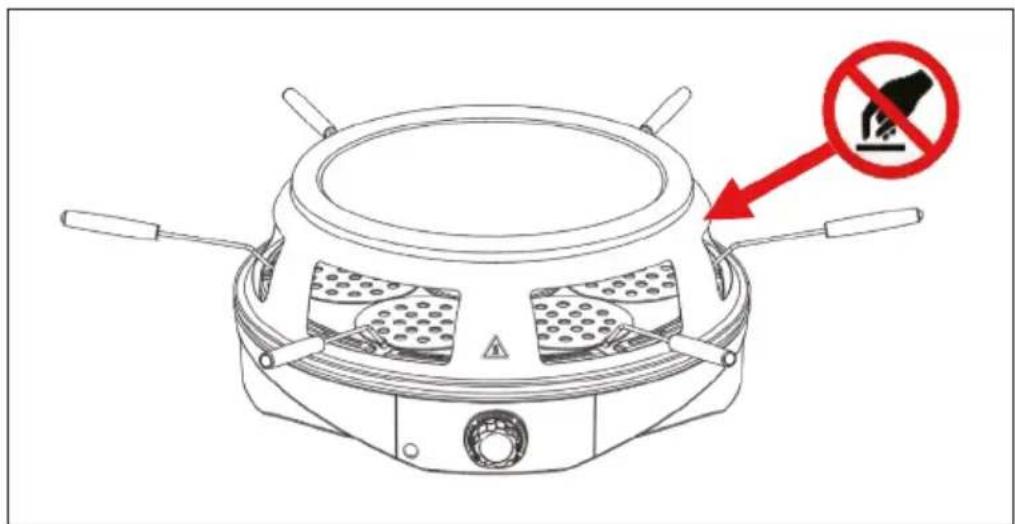

CAUTION

Risk of burns! The dome and other parts of the device can become hot during use. To avoid burning yourself, do not touch these areas. Do not touch the dome until it has completely cooled.

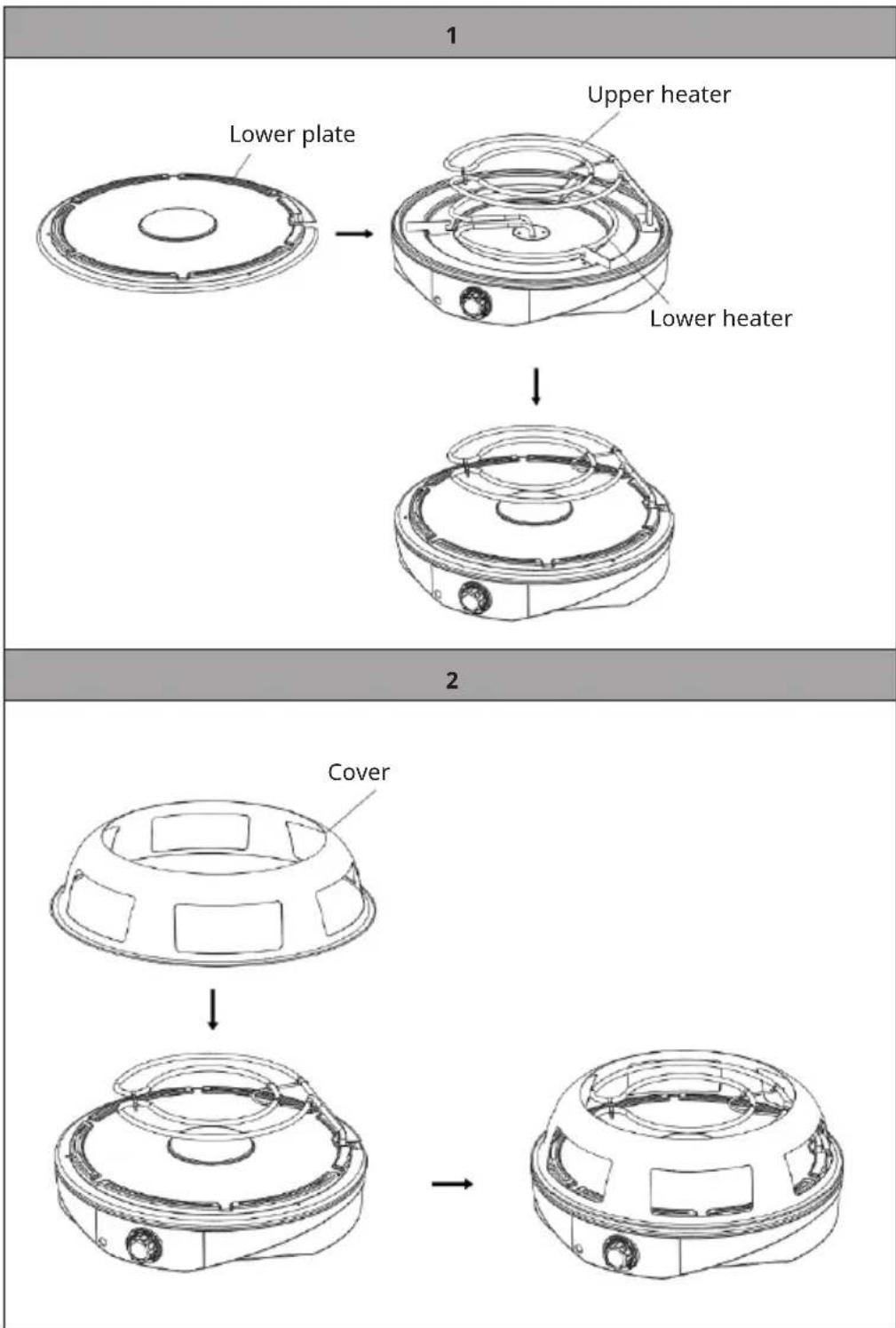

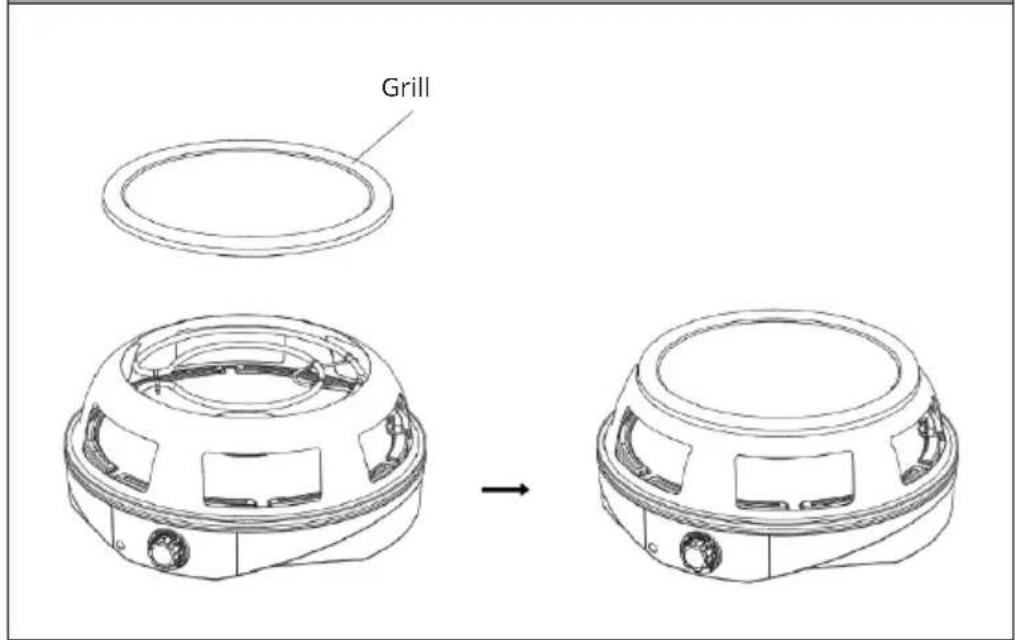

ASSEMBLY


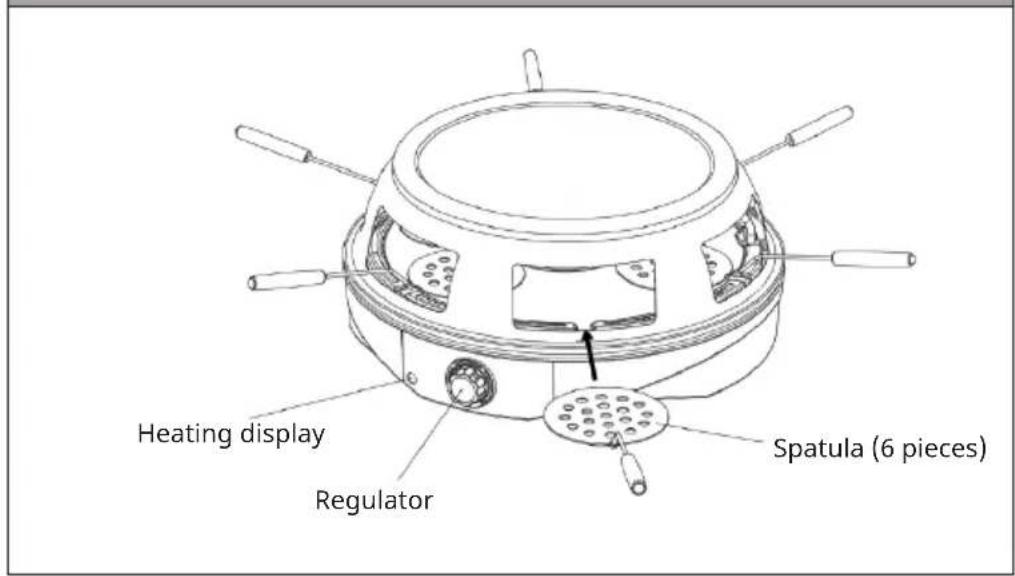

3

4

OPERATION

Before first use

• Before using the device for the first time, run it for 10 minutes without food. This is to remove the smell. A small amount of smoke may also be noticed, which is normal. Ventilate the room during this time.
• Allow the grill plate to cool down and clean it (see chapter Cleaning & Care).

Grilling on the griddle

1. Place the pizza oven on a stable and level surface. Make sure that the surface is heat and splash-proof.
2. Insert the plug into the mains socket. The red display will flash. Allow the pizza oven to preheat for 10 minutes.
3. Lightly grease the griddle with butter.
4. Cut the meat into small pieces to reduce the preparation time.
5. Season the food.
6. The preparation time depends on the type and thickness of the food. For a good result, we recommend turning the grilled food several times during grilling.
7. During use, the heating indicator will flash on and off, and the thermostat controls the temperature throughout the table.

Note: Never use hard or sharp objects on the non-stick baking surface. The surface can be easily damaged by scratching.

Preparing pizza

1. Place the pizza oven on a stable and level surface. Make sure that the surface is heat and splash-proof.
2. Plug the power plug into the mains socket. The red display will flash. Allow the pizza oven to preheat for 10 minutes.
3. Slide the pizza into the pizza oven on the spatula. Leave the pizza on the spatula so you can easily remove it from the oven.
4. Bake the pizza for 5 to 7 minutes. Put the pizza on the plate. Please note that the spatula is very hot.
5. During use, the heating indicator will flash on and off, and the thermostat controls the temperature throughout the table.

RECIPES

Pizza dough recipe

• Pizza dough (for 4 people) 500 g wheat flour
• 1 teaspoon of salt
  • 4 tablespoons olive oil
  • 20 g fresh yeast or 1 packet of baking yeast
  • 250 ml lukewarm water

Mix the flour with the salt and the oil in a suitable bowl. Dissolve the fresh yeast in the lukewarm water and stir until smooth. Then pour this mixture into the flour and stir. You can put the yeast directly into the flour and then add the lukewarm water. Knead everything into a smooth dough. A mixer with a dough hook or food processor is ideal for this. Cover the bowl with a cloth and let it rise for a good 45 minutes until it has doubled in volume. Sprinkle the dough with some flour and roll out the mass to a thickness of 3 mm. Turn the mixture occasionally and sprinkle with flour to prevent sticking. Then cut out discs with the cutter form. Place these discs on a plate or board and sprinkle extra flour on the dough discs to prevent them from sticking together. You can prepare the other ingredients while it is rising.

Tomato sauce recipe

• 1 can peeled tomatoes
• 1 small can of tomato puree
- Salt, pepper, oregano
• 2 tablespoons olive oil
• 2 crushed garlic cloves

Chop the peeled tomatoes and mix with the remaining ingredients.

CLEANING AND CARE

• After use, allow the pizza oven to cool for at least 30 minutes before cleaning and storing.
• Clean the cover, baking plate and pizza spatula with warm water and a soft cloth. Do not clean the parts in the dishwasher!
• Never immerse the base unit in water. Clean the surface with a damp cloth to clean.
• Always keep the device and its accessories in the original box so that nothing can be damaged.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

This product contains batteries. If there is a legal regulation in your country regarding the disposal of batteries, the batteries must not be disposed of in household waste. Consult your local regulations for the disposal of batteries. By disposing of this product in accordance with the regulations, you are protecting the environment and the health of those around you from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

ÍNDICE

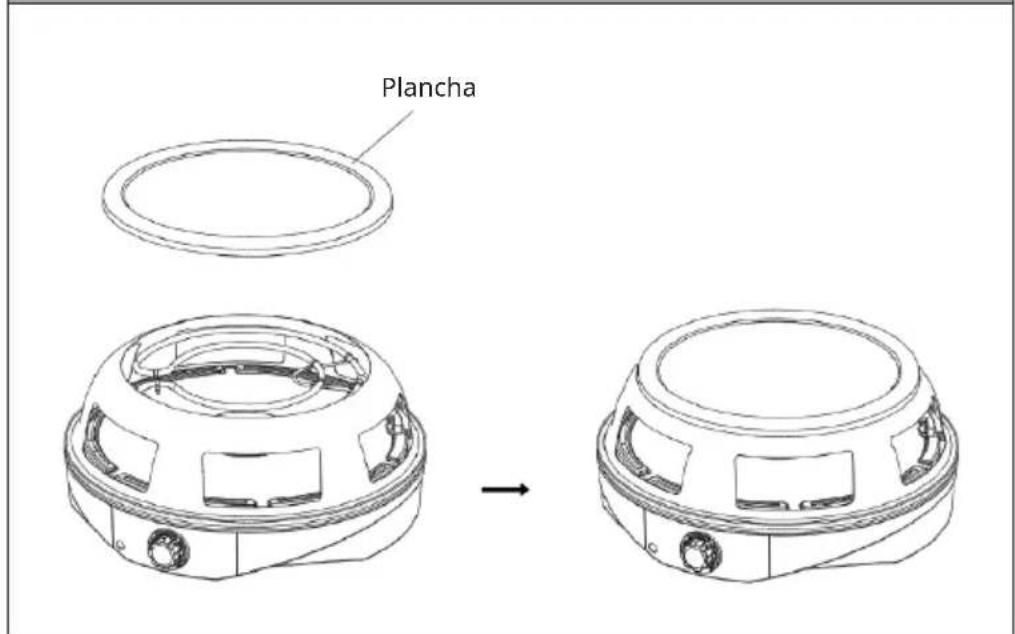

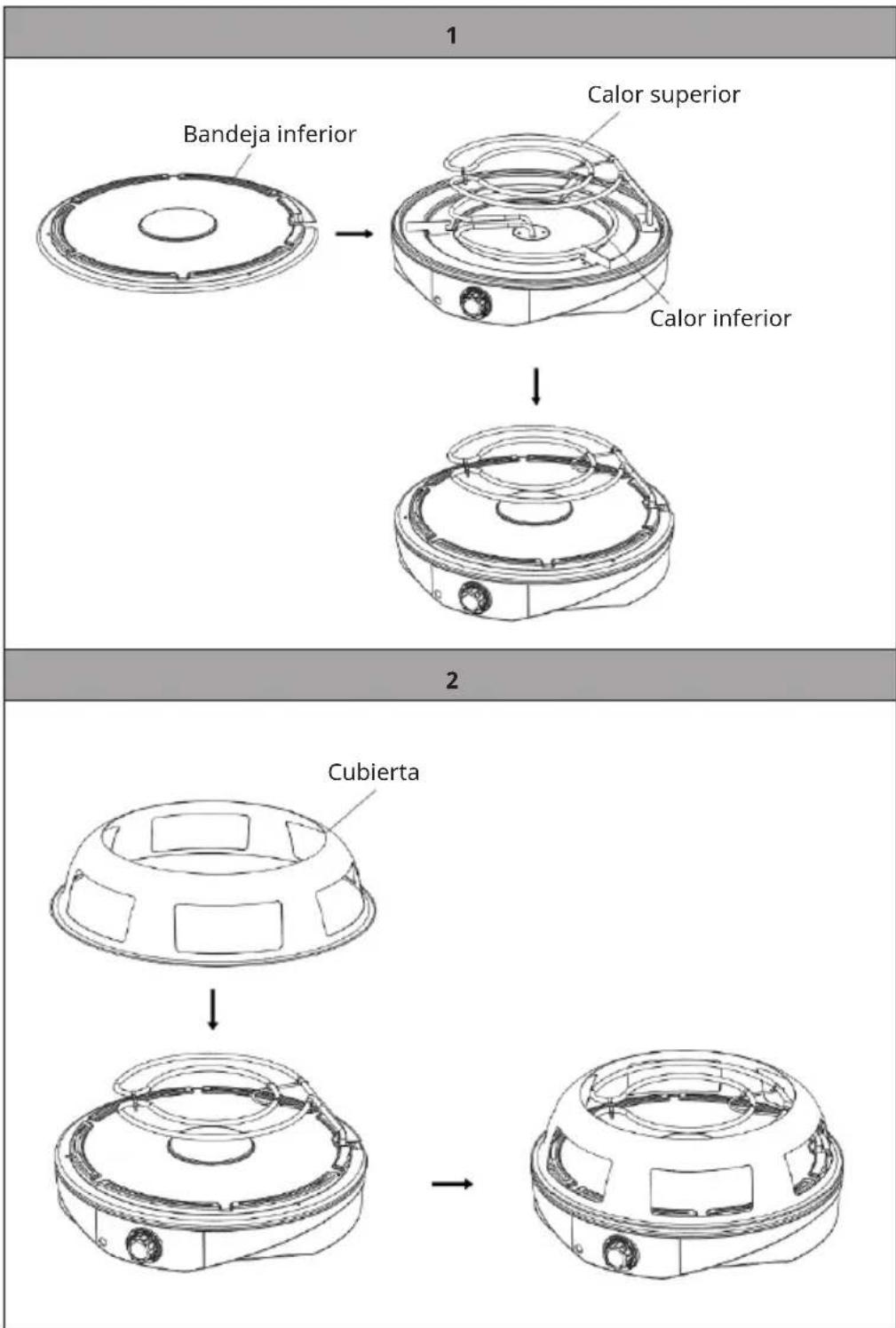

MONTAJE

3

4

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Reino Unido

Cher client, chère cliente,

SOMMAIRE

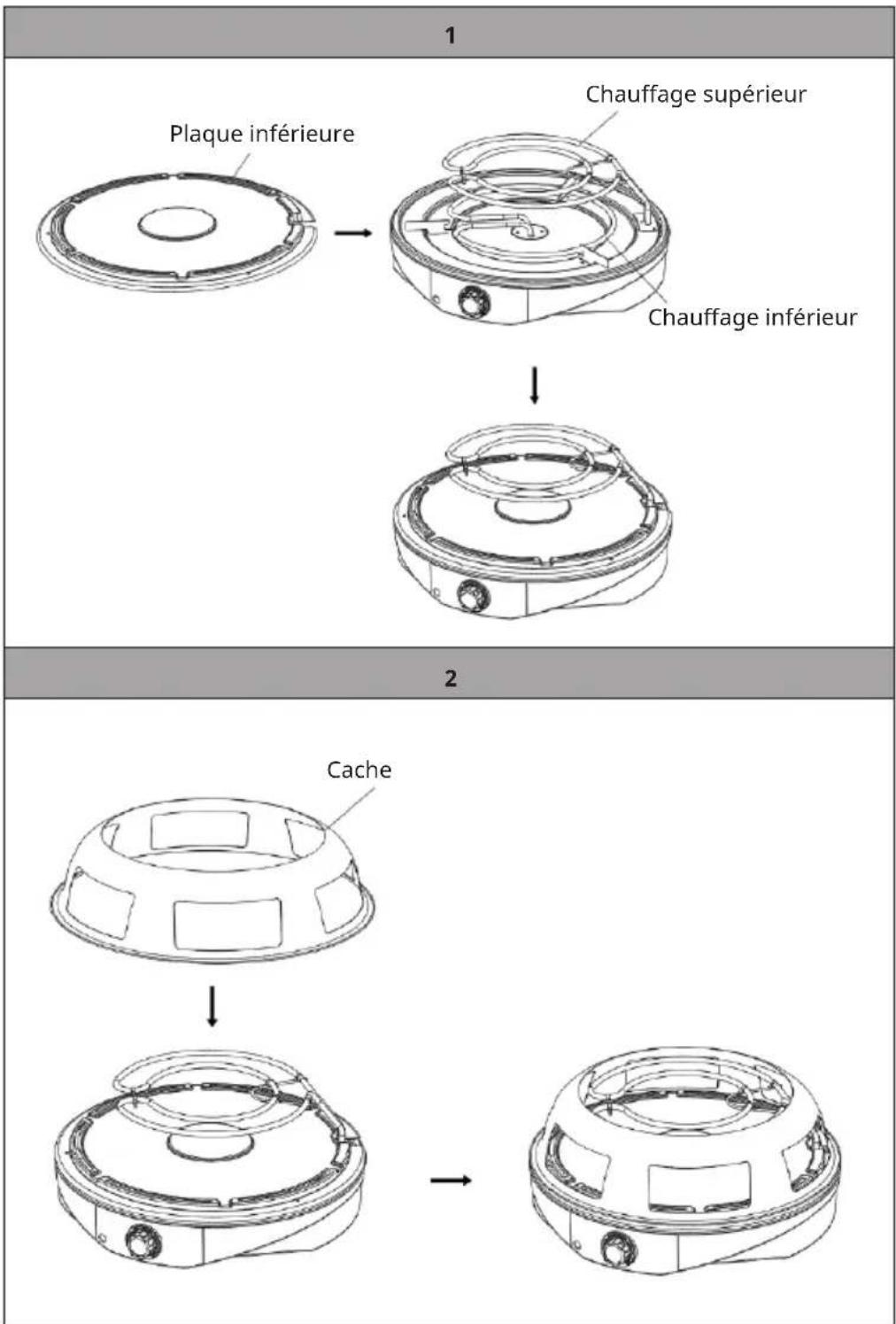

ASSEMBLAGE

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Berlin Brands Group UK Ltd

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

INDICE

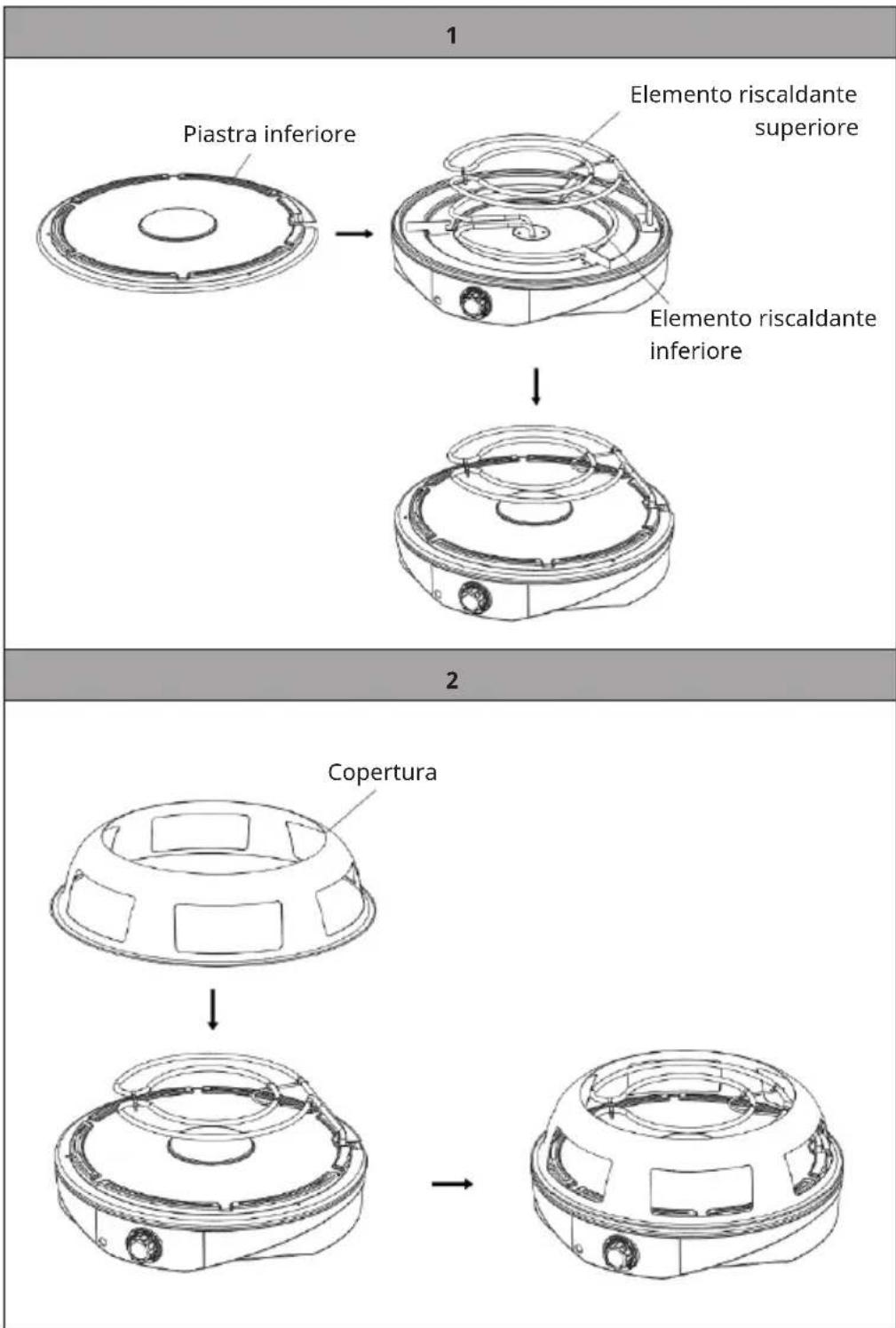

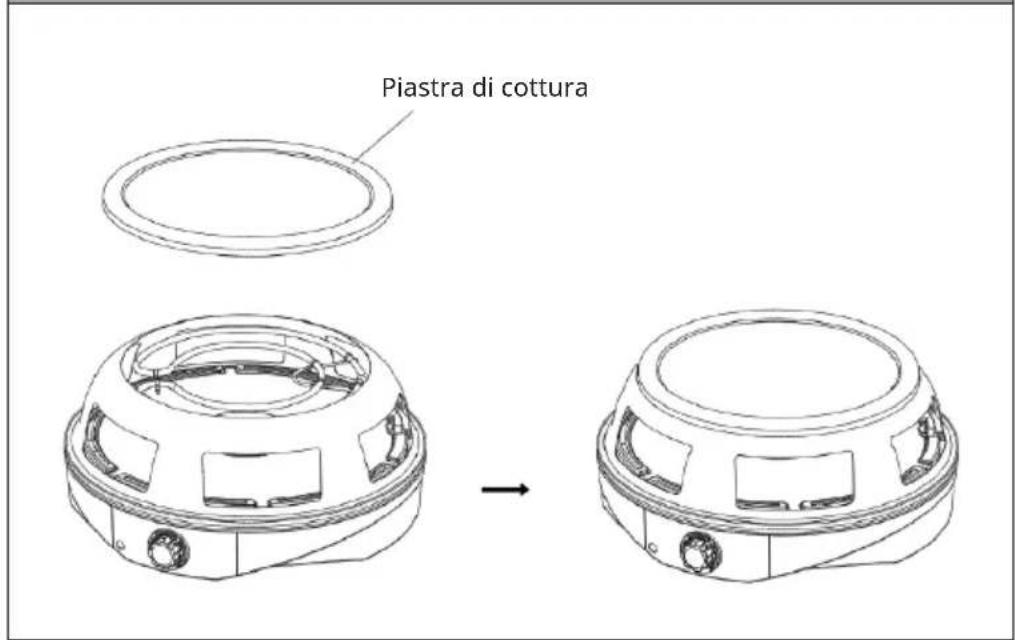

ASSEMBLAGGIO

3

Symbol of a trash bin crossed with a diagonal line, no text or labels present

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
