Product Type	Stroller
Brand	Chicco
Model	Urbino
Maximum child weight	22 kg
Recommended age	From birth to 4 years (depending on weight)
Restraint system	5-point harness (shoulder straps, waist belt, crotch strap)
Brake	Rear linked brakes with central pedal
Backrest	Adjustable to multiple positions (recline via rear button)
Leg rest	Adjustable to 2 positions (horizontal and lowered)
Canopy	With metal frame and sun shade net
Storage basket	Maximum capacity 3 kg
Folding	One-hand, with slider and safety button
Stroller weight	Approximately 8 kg (estimated)
Folded dimensions	Not specified
Unfolded dimensions	Not specified
Materials	Metal frame, plastic parts, fabric cover
Maintenance	Clean with damp sponge and mild soap; lubricate moving parts with silicone oil
Use	Suitable from birth (backrest fully reclined up to 6 months)
Safety	Never leave unattended; lock brakes when stopped; always use harness
Warranty	Warranty against conformity defects (according to national standards)

Frequently Asked Questions - Urbino CHICCO

How to open the Chicco Urbino stroller?

Grasp the handle and pull the stroller upward until the frame is fully open. Check that the mechanism is locked before use.

How to install the wheels?

Insert the front wheels until they click. For the rear wheels, insert the axle into the rear tube hole. Press the buttons to remove them.

How to properly fasten the safety harness?

Thread the shoulder straps through the adjustment slots. For babies 0-6 months, use both slots. Attach the buckles into the shoulder strap loops then into the crotch strap. Adjust height.

How to adjust the backrest recline?

To recline the backrest, press the rear adjustment button and push the backrest downward. To raise it, pull the strap upward. Be mindful of the child's weight.

How to brake the stroller?

Push the central pedal downward to brake both rear wheels simultaneously. To release, press the pedal in the opposite direction.

How to fold the stroller?

Before folding, empty the basket. Slide the lateral slider to the right or left while pressing the release button. Push the handle downward until fully closed.

What is the maximum weight supported by the stroller?

The maximum child weight is 22 kg, or up to 4 years whichever comes first. The basket supports up to 3 kg.

How to clean the stroller?

Clean fabric parts with a damp sponge and mild soap. Do not wash in water, do not bleach, do not tumble dry, do not iron, do not dry clean. Wipe metal parts if wet.

Can I use the stroller for jogging?

No, this product is not suitable for jogging or rollerblading. It is designed for normal urban use.

What to do if a part is broken or missing?

Do not use the stroller if parts are broken, torn, or missing. Contact the manufacturer for approved spare parts. Do not use accessories not supplied by the manufacturer.

USER MANUAL Urbino CHICCO

Line drawing of a baby stroller with four wheels and a canopy (no text or symbols)

Illustration of a hand using a bicycle pedal device with a red arrow indicating motion (no text or symbols present)

Line drawing of a chair-like device with legs and seat, no text or symbols present

Illustration of a hand using a tool to lift a car wheel, with a red arrow indicating the motion (no text or symbols present)

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Diagram of a car seatbelt with two vertical bars and two circular markers highlighting the seat (no text or symbols present)

Line drawing of a person adjusting a seatbelt with a red circular mark (no text or symbols)

Line drawing of a hand holding a small object near a vehicle seat (no text or symbols)

Line drawing of a hand using a tool to adjust or install a car seatbelt (no text or symbols visible)

Illustration of a hand operating a stroller with a red arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with a red arrow indicating direction (no text or symbols)

Illustration of a stroller with two wheels and a hand holding a curved object, showing a red arrow indicating motion (no text or symbols)

Illustration of a baby stroller with wheels and a red circular badge labeled '11A' (no text or symbols on the device itself)

Line drawing of a hand adjusting a car seatbelt component (no text or symbols)

IT ISTRUZIONI D'USO

IMPORTANTE - LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFE-RIMENTO.

ATTENZIONE: PRIMA DELL'USO RI-MUOVERE ED ELIMINARE EVENTUALI SACCHETTI DI PLASTICA E TUTTI GLI ELEMENTI FACENTI PARTE DELLA CONFEZIONE DEL PRODOTTO O COMUNQUE TENERLI LONTANI DALLA PORTATA DEI BAMBINI.

AVVERTENZE

EN INSTRUCTIONS FOR USE IMPORTANT – READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

WARNINGS

• WARNING: Never leave the child unattended.
• WARNING: Ensure that all the locking devices are engaged before use.
• WARNING: To avoid injury ensure that the child is kept away when unfolding and folding this product.
• WARNING: Do not let the child play with this product.
• WARNING: Always use the restraint system.
• The use of the crotch strap and safety harness is essential to ensure the safety of the child. Always use the safety harness together with the crotch strap.
• WARNING: This product is not suitable for running or skating.
• The vehicle is suitable for children up to 22 kg or 4 years, or whichever limit is reached first.
• The backrest should be used in its most reclined position for children from birth to 6 months of age.
  • The parking brake must always be

engaged when positioning or re- moving the child.

• Use the brake every time you stop.
- Never leave the stroller on a sloped surface, with a child on board, even when the brakes are on.
- Do not overload the storage basket. Maximum weight 3 kg.
- Any weight attached to the handles and/or backrest and/or on the sides of the stroller may effect the stability of the stroller.

- Do not transport more than one child at a time.

- Do not use accessories, replacement parts, or any component not supplied or approved by the manufacturer / distributor.

- Do not use this product if any part is broken, torn or missing.

- Before assembling, ensure that the product and its components have not been damaged during transportation. In this case, do not use and keep out of reach of children.

- During adjustment operations, ensure that the moving parts of the stroller do not come into contact with your child.

• Make sure that the person using the stroller knows how to operate it in the safest way.

• This product must only be used by an adult.

• The product must only be assembled by an adult.

• To avoid all strangulation hazards, never give children objects with cords or strings attached, or leave them close to such objects.

- Never use the stroller on staircases or escalators: you could suddenly

lose control of it.

• Always pay attention when going up and down steps or pavements.
- If the stroller is left exposed to direct sunlight for an extended period of time, allow it to cool down before placing your child inside. Prolonged exposure to direct sunlight may cause the colour of the materials and fabric to fade.
- Prevent the stroller from coming into contact with salt water. It may cause rusting.
- Do not use the stroller on the beach.
- When not in use, the stroller should be kept out of reach of children.

TIPS FOR CLEANING AND MAINTENANCE

This product requires periodical maintenance. Cleaning and maintenance should only be carried out by an adult.

CLEANING

The cover cannot be removed. Clean the fabric parts using a wet terycloth and neutral soap. Periodically wipe the plastic parts clean with a soft damp cloth. To prevent the formation of rust, always dry metal parts if they have come into contact with water.

The washing symbols and relative meanings are indicated below:

Do not wash with water

Do not bleach

Do not tumble dry

Do not iron

Do not dry clean

MAINTENANCE

If necessary, lubricate the moving parts with dry silicone lubricant. Regularly check the condition of the wheels and clean off all dust and sand. Keep the stroller in a dry place.

GENERAL INSTRUCTIONS

OPENING THE STROLLER AND FIRST ASSEMBLY

WARNING: When opening the stroller, make sure that your child or other children are at a safety distance.

WARNING: Make sure that during these operations the moving parts of the stroller do not come into contact with your child.

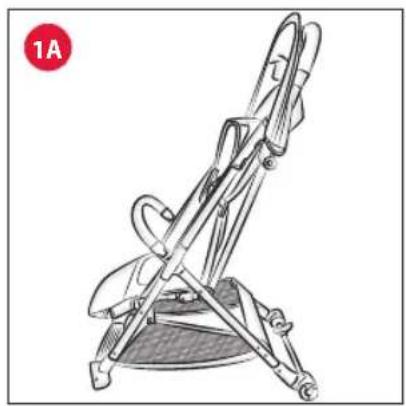

1. Take hold of the handle (Fig. 1) and pull the stroller upwards until the structure is fully open (Fig. 1A).

WARNING: Before use, ensure that the stroller is locked in the open position, checking that the mechanism is effectively locked.

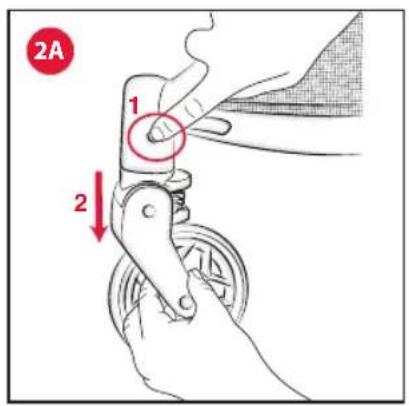

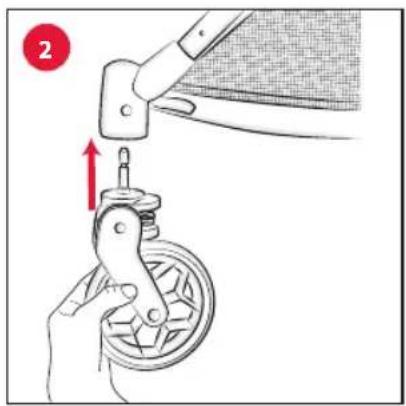

1. Mount the front wheels on the stroller and push until they are locked in position (Fig. 2). To remove the front wheels, press the button shown and pull down on the wheel (Fig. 2A).

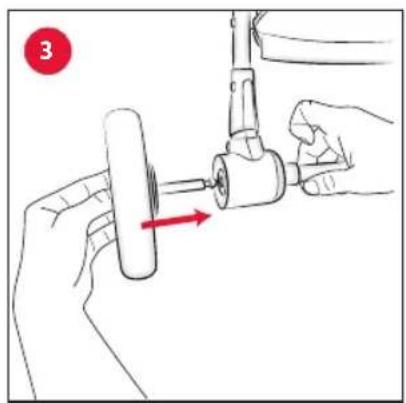

2. Fit the rear wheels by inserting the wheel pin into the appropriate

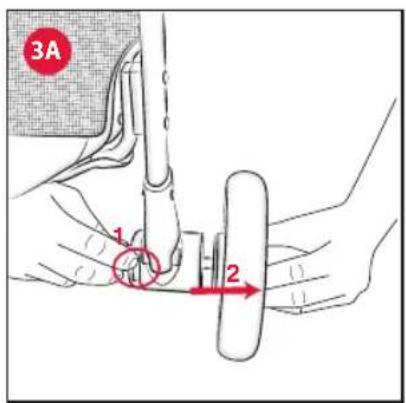

hole on the rear tube (Fig. 1). 3). To remove them, press the button indicated and pull outwards (Fig. 3A).

WARNING: Before use, ensure that the wheels have locked correctly.

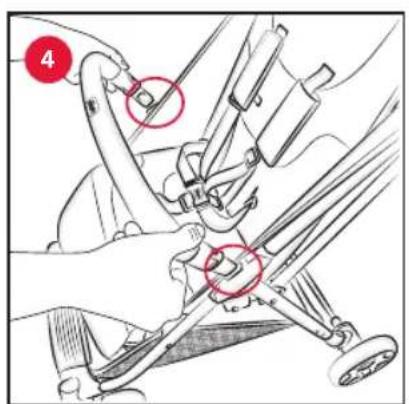

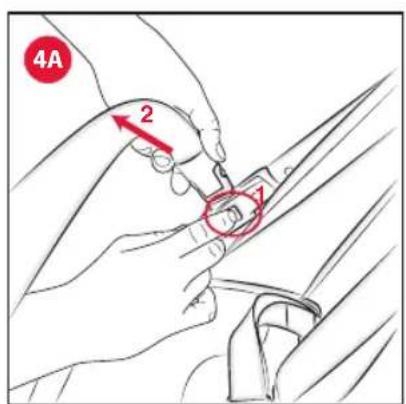

1. Install the bumper bar by inserting it into the appropriate slots located on the joints of the stroller (Fig. 4). If it needs to be removed, press on the buttons located on the inside of the joints (Fig. A). 4A).

WARNING: Never use the bumper bar to lift the product with your child sitting in it.

HOW TO USE THE SAFETY HARNESS

The stroller has a five-point safety harness featuring two shoulder straps, two adjuster slots, a waist strap and a crotch strap with buckle.

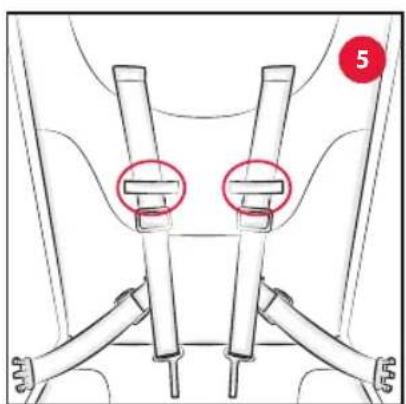

1. WARNING: When using with children up to 6 months of age, the shoulder straps must be passed through the 2 adjuster slots (Fig. 5).

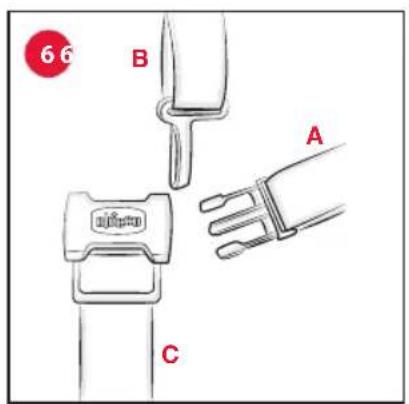

2. After having placed the child in the stroller, fasten the belts (Fig. 6) passing the two prongs (A) through the shoulder strap buckle (B) and then through the crotch strap (C); adjust the height of the shoulder straps so that they correctly fit your child's shoulders (Fig. 6A). Always make sure that the straps are fastened correctly. To unfasten the strap, press and pull the side clips.

WARNING: To ensure the safety of your child, the safety harness must be fastened at all times. To make sure the harness straps are fitted correctly, place your child inside the stroller and pull the ends of the straps firmly.

The backrest can be adjusted to several positions.

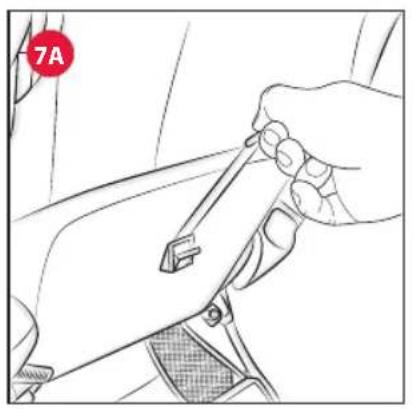

1. To recline the backrest, use the rear adjustment system, pressing the button and pulling the backrest downwards (Fig. 7) until the desired position is reached. Meanwhile, to raise the backrest, pull the strap upwards (Fig. 7A).

WARNING: The child's weight can make these operations more difficult.

REAR BRAKES

The rear wheels have linked brakes, which can be applied simultaneously on both rear wheels using the pedal located between them.

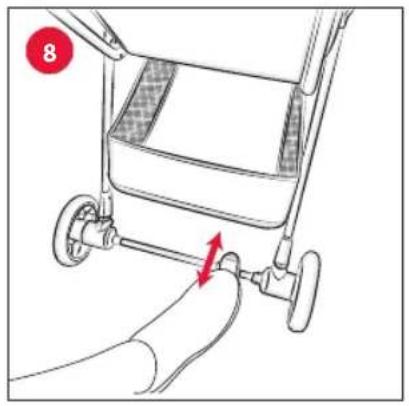

1. To activate the brakes, press down on the pedal (Fig. 8). To release the brakes, press the pedal in the opposite direction.

SUN CANOPY

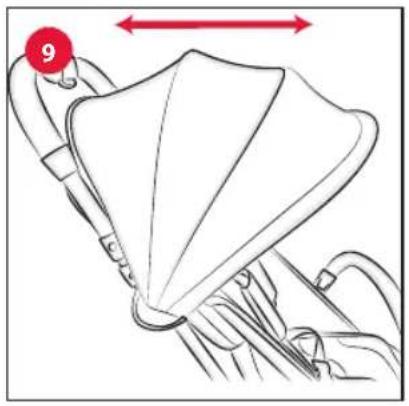

1. The canopy is already installed on the stroller. To open or close it, use the front metal arch (Fig.9).

ADJUSTABLE LEGREST

The legrest can be used in 2 positions.

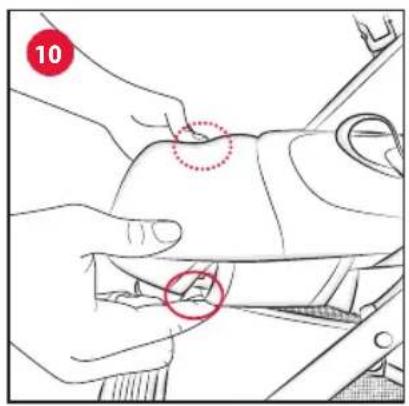

1. To use the legrest in the horizontal position, simply push it upwards. To lower it, press the levers under the legrest on both sides and push down. (Fig. 10).

WARNING: When opening or closing the stroller, make sure that your child or other children are at a safe distance.

Before closing the stroller, ensure that the storage basket is empty. The stroller has a closing device that can be operated with one hand.

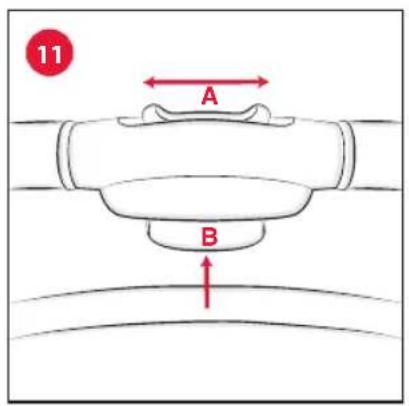

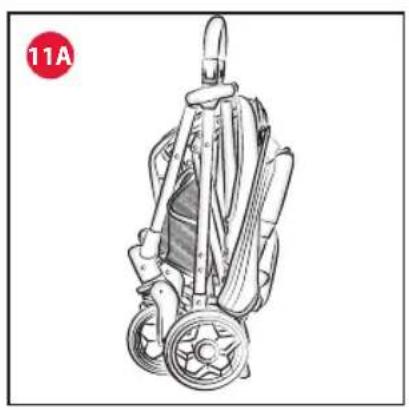

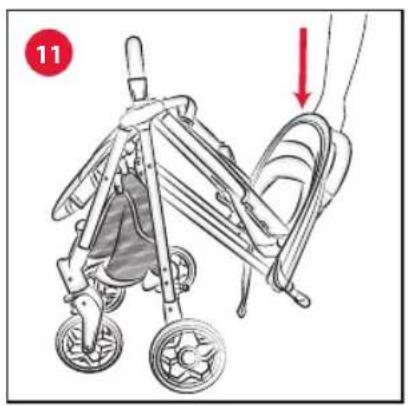

1. To close the stroller, push arrow "A" to the left or right whilst simultaneously pressing button "B" (Fig. 11); push the handle down until the stroller is fully closed (Fig. 11A). When closed, the stroller stands on its own (Fig. 11B).

ACCESSORIES

WARNING: The accessories described below may not be included in some product versions. Carefully read the instructions for the accessories that came with the model you have purchased.

SHOULDER STRAP KIT

The stroller is equipped with padded shoulder straps.

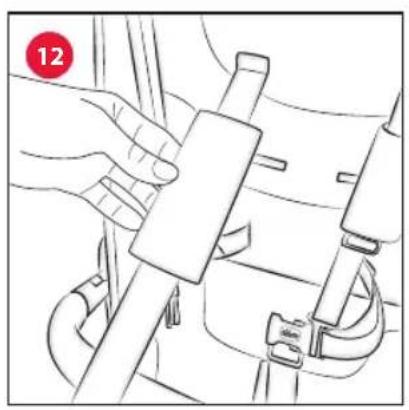

1. Slip the shoulder straps into the padded shoulder straps (Fig. 12) before closing the buckle.

WARNING: Adjust the waist belt if necessary by pressing on the buckles.

WARNING: To ensure the safety of your child, the safety harness must be fastened at all times.

WARRANTY

The product is guaranteed against any conformity defect in normal conditions of use as provided for by the instructions. The warranty shall not therefore apply in the case of damage caused by improper use, wear or accidental events. For the duration of the warranty on conformity defects please refer to the specific provisions of applicable national laws in the country of purchase, where appropriate.

FR NOTICE D'UTILISATION IMPORTANT – À LIRE ATTENTIVEMENT ET À CONSERVER POUR CONSULTATION UL- TÉRIEURE.

AVERTISSEMENT : AVANT L'EMPLOI, ENLEVER ET ÉLIMINER TOUS LES SACS EN PLASTIQUE ET ÉLÉMENTS QUI FONT PARTIE DE L'EMBALLAGE DU PRODUIT ET LES TENIR HORS DE PORTÉE DES ENFANTS.

AVERTISSEMENTS

ARTSANA INDIA PRIVATE LIMITED, 7Th Floor, Tower B, Paras Twin Towers, Golf Course Road, Sector 54 Gurgaon – 122002 - Haryana, India (+91)(124)(4964500) www.CHICCO.in

ARTSANA S.p.A. Via Saldarini Catelli, 1 22070 Grandate (CO) - Italy Tel. [phone] Fax [phone] www.CHICCO.com
