USER MANUAL STS 850 F3 SILVERCREST

Black square toaster with two food items on top (no visible text or symbols)

Exterior view of a modern kitchen toaster with two food items on top (no visible text or symbols)

PDF ONLINE www.lidl-service.com

2-SLICE TOASTER / DOPPELSCHLITZ-TOASTER GRILLE-PAIN DOUBLE STS 850 F3

GB IE

2-SLICE TOASTER

Operating instructions

FR BE

GRILLE-PAIN DOUBLE

Mode d'emploi

CZ

TOPINKOVAČ

Návod k obsluze

SK

HRIANKOVAČ

Návod na obsluhu

DK

BR∅DRISTER TIL 2 SKIVER BR∅D

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Technical diagram of a microwave oven with labeled components and indicator lights

B

Technical diagram of a toaster with numbered parts for identification

Index

Introduction 2

Intended use 2

Warnings and symbols used 2

Safety instructions 3

Items supplied 4

Appliance description 4

Tips for use 5

Setting up 5

Before taking into use 5

Operation 5

Adjusting the browning level 5

Toasting 5

Interrupting the toasting process 6

Warming function 6

Defrost function 6

Crisping bread rolls 7

Crumb tray 7

Cleaning....7

Storage 7

Troubleshooting 8

Disposal 8

Disposal of the appliance....8

Disposal of the packaging 9

Technical data....9

KompernassHandelsGmbHwarranty....9

Service 10

Importer 10

Introduction

Congratulations on the purchase of your new appliance!

You have clearly decided in favour of a modern, high quality product. These operating instructions are a component of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use this appliance only as described and only for the purposes indicated. In addition, pass these documents on, together with the product, to any future owner.

Intended use

This appliance is intended exclusively for toasting slices of bread and bread rolls in private households. It is not intended for use with other foods or other materials.

This appliance is intended exclusively for use in domestic households. Do not use the appliance for commercial applications!

Warnings and symbols used

The following warnings and symbols are used in these operating instructions, on the packaging and on the appliance (where applicable):

	DANGER! A warning with this symbol and the signal word "DANGER" indicates an immi- nently hazardous situation that will result in death or serious injury if not avoided.
	WARNING! A warning with this symbol and the signal word "WARNING" indicates a poten- tially hazardous situation that could result in death or serious injury if not avoided.

	CAUTION! A warning with this symbol and the signal word "CAUTION" indicates a potentially hazardous situation that could result in a minor or moderate injury if not avoided.
	ATTENTION! A warning with this symbol and the signal word "ATTENTION" indicates a potential situation that could result in property damage if not avoided.
	Note: A note identifies additional information that facilitates the use of the appliance.
	AC current/voltage
	Do not immerse in water!
	All of the parts of this appliance that come into contact with food are food-safe.

Safety instructions

⚠️ DANGER! RISK OF ELECTRIC SHOCK!

■ If the mains cable of this appliance is damaged, it must be replaced by the manufacturer, their customer service department or a similarly qualified person in order to avoid potential risks.

■ Use the appliance only in dry indoor areas, not outdoors.

■ NEVER submerse the appliance in water or other liquids! If you do, then you could receive a potentially fatal electric shock.

■ NEVER insert cutlery items or other metallic objects into the toaster slots.

■ Ensure that the appliance can never come into contact with water. NEVER use the appliance adjacent to water or close to vessels containing liquids.

■ Ensure that the power cable never gets wet or moist when the appliance is in use. Lay the cable such that it cannot be clamped or otherwise damaged.

■ After use, always remove the plug from the mains power socket, this prevents the unintentional switching on of the appliance.

⚠ WARNING! RISK OF INJURY!

■The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

■ Children should not play with the appliance.

■ Cleaning and user maintenance should not be performed by children, unless they are older than 8 years of age and are supervised.

■ Children younger than 8 years of age are to be kept away from the appliance and the power cable.

■ The appliance can become hot when it is in use. Therefore, only touch the operating elements.
■ Use the appliance only on a stable, non-slippery and level surface.
■ Do not use an external timing switch or a separate remote control system to operate the appliance.
■ Unwind the power cable completely from the cable winder before using the appliance.
■ Risk of burning if you do not use standard toast bread! Because of the smaller size or shape, there is a risk of touching hot parts when removing the toasted bread.

! CAUTION! RISK OF FIRE!

■ Bakery products can burn! You should therefore NEVER locate the appliance close to or underneath inflammable objects, especially not under curtains or suspended cupboards.
■ This appliance may not be used in close vicinity to flammable material.
■ NEVER cover the toaster when it is in use.
■ To avoid risk of fire, empty the crumb tray at regular intervals.

Items supplied

The appliance is delivered with the following components as standard:

• 2-Slice Toaster
• Operating instructions

1) Remove the appliance and the operating instructions from the carton.

2) Remove all packing material.

(i) Note

▶ Check the contents to ensure everything is present and for visible damage.
▶ If the delivery is not complete or has been damaged due to defective packaging or transportation, contact the Service Hotline (see section Service).

Appliance description

Illustration A:

① "Warm up" button
② "Defrost" button
③ "Stop" button
4 Toasting dial
⑤ Cable clamp

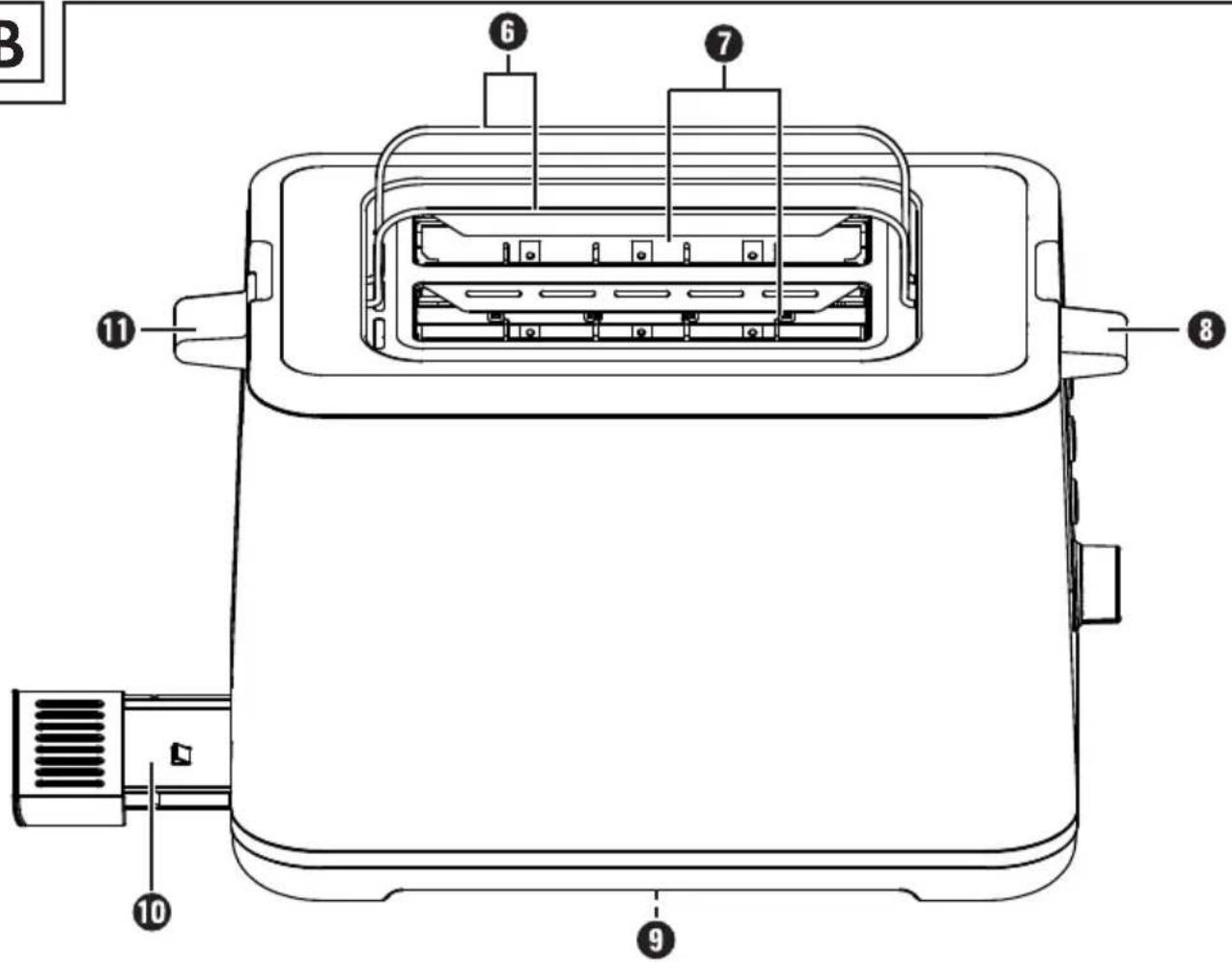

Illustration B:

⑦ Toasting slots
⑧ Operating button
9 Cable winder
10 Crumb tray
⑪ Lever for the bread roll rack

Tips for use

■ Avoid using slices that are too big or too thick, as these can easily become jammed in the appliance. Should slices of bread become jammed, first disconnect the plug from the mains power socket. Release jammed slices of bread with a blunt wooden object (e.g. a wooden spatula or spoon). Thereby, do NOT touch the heater elements.

■ Differences in bread sorts, moisture content and the thickness of individual slices influence the browning of the toast. Therefore the bread for toasting should be kept in sealed packaging until required. Always initially try out a lower level of browning.

■ Use a lower level of browning if you are toasting dry bread, as dry bread browns faster than fresh bread.

■ Select a higher level of browning for dark bread than for light bread, for example, wheat bread.

The numbers on the toasting dial ④ are not time indications. They serve only as a guide for the browning.

■ To avoid an overheating of the toaster and to obtain an even browning of bread, wait for about 15 seconds between two toasting processes.

■ You should only use the highest level on the toasting dial ④ for large slices of dark bread. With this browning level light bread will scorch and become inedible. In addition, it may cause the generation of smoke. If this occurs, press the button "Stop" ▲ ③ immediately and disconnect the power cable from the mains power socket.

Setting up

CAUTION!

▶ You should therefore NEVER locate the appliance close to or underneath inflammable objects, especially not under curtains or suspended cupboards.

■ Unwind the cable completely from around the cable winder ⑨ and lead it through the cable clamp ⑤.
■ Place the appliance on a level and heat-resistant surface.
■ Insert the plug into a mains power socket.

i Note

▶ When the toaster is not in use, always remove the plug from the mains power socket. This is the only way to ensure that the appliance is current-free.

Before taking into use

■ Operate the toaster without bread for 3 times at the maximum browning level "6".
■ Afterwards, clean the toaster as described in the chapter Cleaning.

i Note

The operating button ⑧ only engages when the cable is connected to a mains power socket.
▶ With the first usage a slight smell can arise (minimal smoke development is also possible). This is normal and dissipates after a short time. Provide for sufficient ventilation. For example, open a window.

Operation

Adjusting the browning level

The desired level of browning, from "light" (1) to "dark" (6), can be adjusted infinitely with the toasting dial 4.

Toasting

CAUTION!

Do not cover the toasting slots ⑦ when the appliance is in operation. There will be a risk of fire! The appliance could be irreparably damaged!

(i) Note

▶ If you only want to put one piece of toast into the toaster, turn the toasting dial 4 down by approx. 1 level to achieve the same level of browning as with two pieces of toast.

1) After setting the desired browning level, insert the bread into the toaster slots ⑦.
2) Press the operating button ⑧ downwards. The automatic bread centring device centres the inserted bread in the toaster slots ⑦. During the toasting process the control lamp integrated in the "Stop" button ▲ ③ glows.
3) When the desired level of browning has been reached the toaster switches itself off automatically, the slices are ejected to the top and the control lamp goes out.

Interrupting the toasting process

If you wish to interrupt the toasting procedure, press the button "Stop" ▲③. The toaster switches itself off and the bread slices are ejected upwards.

Warming function

The warming function enables you to warm bread without browning it. As an example, for toast that has gone cold. The bread is only briefly warmed.

1) Insert the bread and press the operating button ⑧ downwards.
2) Press the "Warm up" button ⏻ ①. The integrated control lamp lights up.
3) When the bread has been reheated, the appliance switches itself off automatically and the slices are ejected upwards.

i Note

▶ Press the button "Stop" button ▲ ③ to switch off the warming function. The toaster switches itself off and the bread slices are ejected upwards.

Defrost function

By pressing the button "Defrosting" ✦ ②, also frozen bread can be thawed and toasted. With this, the toaster slowly warms the bread. Activating the defrost function will allow the frozen bread to achieve the same browning level as when you toast fresh bread.

1) After setting the desired browning level, insert the bread into the toaster slots ⑦.
2) Press the operating button ⑧ downwards.
3) Press the button "Defrosting" ✕②. The integrated control lamp glows.
4) When the defrosting and toasting process is finished, the toaster switches itself off automatically, the control lamp integrated in the button "Defrosting" ✕② goes out and the bread slices are ejected to the top.

i Note

▶ Press the "Stop" button▲ ③ to switch off the defrost function. The toaster switches itself off and the bread slices are ejected upwards.

Crisping bread rolls

Never lay bread rolls directly onto the toaster, always use the bread roll rack 6.

1) Press down the lever ⑪ until the bread roll rack ⑥ is fully extended.

2) Place the bread rolls onto the bread roll rack ⑥ and start the toasting procedure. Set the toasting dial ④ to the desired browning level. We recommend setting the browning level to 1, but the setting may vary depending on the bread type and personal taste.

3) As soon as the appliance switches off, turn the rolls over to toast the other side, and then switch the appliance back on.

(i) Note

▶ After toasting, the rolls will be very hot.

4) When you no longer need the bread roll rack ⑥, fold it back in by pushing the lever ⑪ back up.

Crumb tray

When toasting, crumbs that fall from the bread are collected in the crumb tray 10.

1) To empty crumbs from the crumb tray ⑩, simply pull it out.

2) Tip out the crumbs.

3) Slide the crumb tray 10 back into the toaster so that it palpably engages.

Cleaning

DANGER!

▶ Disconnect the plug from the mains power socket before cleaning the appliance.

'ER submerse the appliance in water or other liquids! If you do, then could receive a potentially fatal electric

WARNING!

▶ Allow the toaster to cool before cleaning it. Risk of Burns!

CAUTION!

▶ Do not use aggressive or abrasive cleaning agents. These can damage the upper surfaces of the appliance.

■ Clean the appliance housing only with a dry or lightly moistened cloth.

■ Wipe the bread roll rack ⑥ off with a damp cloth.

■ To avoid the risk of fire, empty the crumb tray 10 at regular intervals.

Storage

■ Clean the toaster as described in the chapter Cleaning.

- Wrap the power cable around the cable winder ⑨ on the underside of the toaster in the direction of the arrow. Fasten the end of the power cable with the cable clamp ⑤.

■ Store the toaster in a dry location.

Troubleshooting

Problem Cause Remedy
The appliance does not function.	The plug is not inserted into a mains power socket.	Connect the power cable into a mains power socket.
	The appliance is defective.	In this case, contact Customer Services.
The slices of toast are too dark.	The level of browning is set too high.	Set the toasting dial 4 somewhat lower.
The slices of bread are not toasted.	The level of browning is set too low.	Set the toasting dial 4 somewhat higher.
The operating button 8 does not engage when it is pressed down.	The plug is not inserted into a mains power socket.	Insert the plug into a mains power socket.
	The appliance is defective.	In this case, contact Customer Services.

Disposal

Applies only to France:

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states

that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

Technical data

Voltage	220 - 240 V ~,50 - 60 Hz
Power consumption 850 W
No-load power consumption	0 W

Kompernass Handels GmbHwarranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 484644_2501 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 484644_2501.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE ServiceIreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 484644_2501

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 12

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Sommaire

Introduction 24

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 38

⚠ WAARSCHUWING! LETSELGEVAAR!

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod 48

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

Wstep....58

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod 70

Používanie primerané účelu....70

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Indice

Introducción 80

Finalidad de uso 80

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Introduktion 92

Anvendelsesområde 92

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione....102

Uso conforme 102

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezetés 114

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

FR © Document Recycle Bin

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
