USER MANUAL TotalClean AP-T100 HOMEDICS

Homedics please take a moment now register your product at www.Homedics.com/register Your valuable input regarding this product will help us create the products you will want in the future.

INSTRUCTION MANUAL AND WARRANTY INFORMATION

3-year limited warranty

AP-T100 | L-03783, Rev 3

IMPORTANT SAFETY INSTRUCTIONS:

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ AND SAVE THESE INSTRUCTIONS.

DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

• Always unplug the air purifier from the electrical outlet immediately after using and before cleaning or replacing filters.
• Keep cord away from heated surfaces.
• Always place the air purifier on a firm, level surface.
• Always place the air purifier at least 6 inches away from walls and 3 feet from heat sources, such as stoves, radiators, or heaters.
• DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
• DO NOT place or store appliance where it can fall or be pulled into a tub or sink.
• DO NOT place in or drop into water or other liquid.
• Keep dry — DO NOT operate in wet or moist conditions.
• Check your air purifier cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tightly in the outlet.

WARNING – TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK, FIRE, OR INJURY TO PERSONS:

• Always unplug the air purifier when not in use.
- DO NOT operate the air purifier with a damaged cord or plug, or after the air purifier malfunctions, or has been dropped or damaged in any manner. Return to a Homedics Service Center for examination, electrical or mechanical adjustment, or repair.
- This air purifier is not intended for use in bathrooms, laundry areas, or similar moist indoor locations.
- DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings.
- DO NOT route cord under furniture or appliances. Arrange cord away from traffic areas where it can be tripped over.
- To disconnect the air purifier, first turn controls to the off position, then remove plug from outlet.
- DO NOT tilt or move the air purifier while it is in operation. Shut off and remove plug from outlet before moving.
- DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the air purifier.
- DO NOT block air intakes or exhaust in any manner. Do not use on any soft surface, like a bed, where openings may become blocked.
- Use this air purifier only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• DO NOT use outdoors.
- This product is intended for household use only.
- WARNING: To reduce the Risk of Fire, electric shock or injury to persons: DO NOT use replacement parts that have not been recommended by the manufacturer (e.g. parts made at home using a 3D printer).
- Only use power supply provided with this product. Use of any other power supply may cause risk of fire, electric shock, injury to persons, or damage to the product. Use only AC Adapter bearing the Part # PP-APT100ADPT.

SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE.

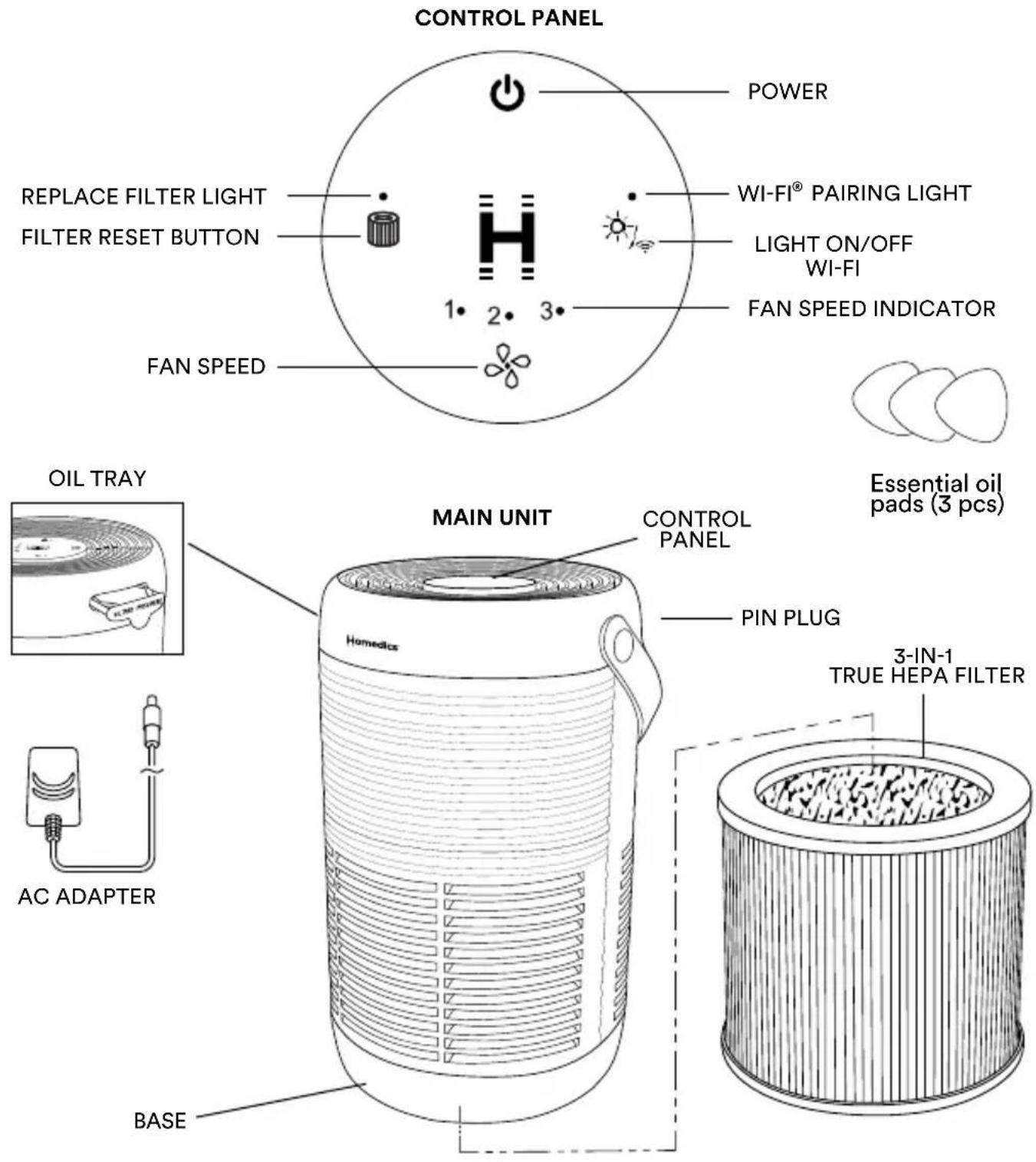

GETTING TO KNOW YOUR AIR PURIFIER

CONTROL PANEL POWER REPLACE FILTER LIGHT WI-FI® PAIRING LIGHT FILTER RESET BUTTON LIGHT ON/OFF WI-FI FAN SPEED INDICATOR 1. 2. 3. OIL TRAY MAIN UNIT CONTROL PANEL PIN PLUG Hemedics ACC ADAPTER BASE 3-IN-1 TRUE HEPA FILTER Essential oil pads (3 pcs)

HOW TO OPERATE

BEFORE TURNING THE UNIT ON

• Take the air purifier out of the box and remove the clear protective plastic bag.
• Place the air purifier on a firm, level surface.
• Insert single pin plug into the back of the air purifier, then plug the adapter into a 120-volt AC electrical outlet.

Simple line drawing of a cylindrical object with a circular inset showing a magnified view (no text or symbols)

POWER BUTTON

Turns the air purifier on/off

LIGHT ON/OFF, WI-FI PAIRING

Press the Light/Wi-Fi button to turn the control panel lights on/off. Press and hold to enter Wi-Fi pairing mode until you hear a beep.

FAN SPEED

Cycles through 3 fan speed settings: low (1), medium (2), and high (3)

REPLACE FILTER RESET

Push and hold the filter reset button until the replace filter light turns off.

HOW TO CONNECT THE MOBILE APP

H

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

1. Download the Homedics Home app in the App Store ^ or on Google Play store or scan the QR code.
2. Open the Homedics Home app. If you already have an account, log in. To create a new account, tap Sign Up.
3. Press the power button to turn the air purifier on.
4. Follow the in-app instructions to add your air purifier.

4a. Login or Register 4b. Add New Device 4c. Enter Pairing Mode 4d. Connect to Wi-Fi

H Log In Sign Up

If you have an existing Homedics Home account, please login, otherwise register and then login.

1:41 v HomeMills 36°F Excellent Add Device Outlook Air Inc. 85.0% Outlook Air Inc... 20.0% Outlook Air Inc... Add Device Create Scene All Devices Living Room Master Radio... No devices Add Device

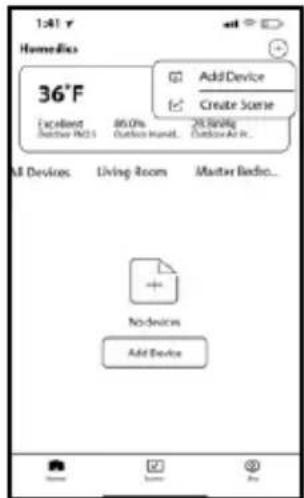

Press the “+” or “add device” on the home screen to pair a new a device.

H 2. 3.

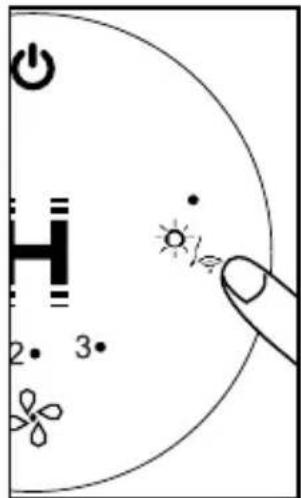

Press and hold the Light/Wi-Fi button for 3 seconds to enter pairing mode. You will hear a beep.

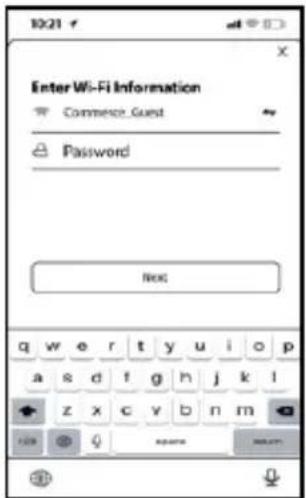

Enter Wi-Fi Information Commerce_Guest Password Next

Enter Wi-Fi name and password and press Next. If no password is required, press Next.

LINK TO AMAZON ALEXA OR GOOGLE ASSISTANT

Voice Booklets Home Google Archive Home Management Message Carter ARQS ReviewBox

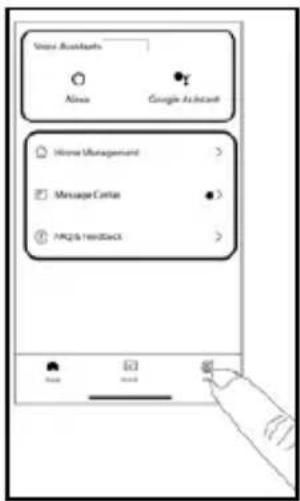

In the Homedics Home app, tap Me at the bottom of the right screen.

Select Alexa (☐) under Voice Assistants and follow the in-app instructions.

Select Google Assistant under Voice Assistants and follow the in-app instructions.

HOW TO USE THE OIL TRAY

WARNING: Putting oil anywhere but the oil tray will damage the air purifier.

BIL TRAY - PUSH NAME

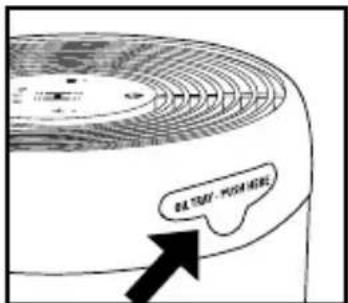

1. The oil tray is located on the side of the air purifier.

BE TRAY - PESH MINE

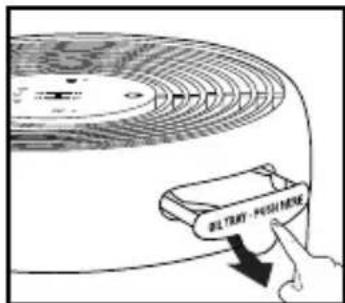

1. Push to open and remove the tray.

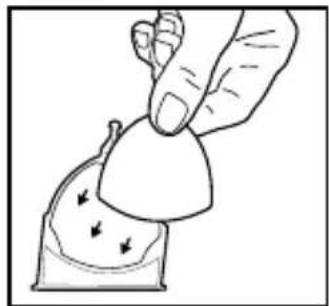

Line drawing of a hand holding a bag with arrows indicating force or movement (no text or symbols)

1. Use the 1 preinstalled essential oil pad in the oil tray (3 total included).

Illustration of a hand pouring liquid into a container with droplets (no text or symbols)

1. Add 5–7 drops of essential oil to the pad. You may use more or less depending on personal preference. WARNING: Only place essential oil on the pad and NOT directly into the tray.

OR TRAVI - PETRIN

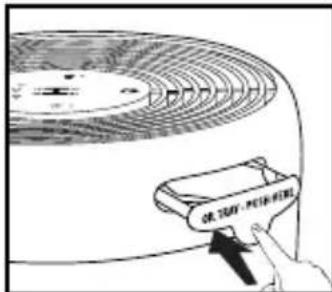

1. Place the oil tray back in its compartment and push to close. The scent will start automatically when the air purifier is turned on.

NOTE: For use with the included Homedics essential oil pads only.

NOTE: Do not leave a used essential oil pad in the oil tray if it will be out of use for a long period of time.

ARE ESSENTIAL OILS SAFE TO USE AROUND PETS?

We should always exercise caution when using essential oils around our pets. Keep all essential oil and aromatherapy products (like diffusers) out of reach of pets. Keep open bottles away from pets to avoid internal consumption. We do not recommend the topical use of essential oils on pets, as they have a strong sense of smell and cannot get rid of the oil if they don't like it or it is disturbing them. When diffusing essential oils around pets, always diffuse in a well-ventilated area and leave an option for them to remove themselves from the space, such as leaving a door open. Every animal is different, so carefully observe how each animal responds when introducing an essential oil for the first time. If irritation occurs, discontinue the use of the essential oil. We recommend seeking medical attention if ingestion of essential oil occurs.

HOW TO CHANGE THE FILTER

REPLACE FILTER LIGHT

The replace filter light illuminates when it is time to replace the True HEPA filter based on the air purifier's hours of use.

REPLACING THE TRUE HEPA FILTER

For optimal performance, replace every 12 months under normal usage conditions based on 12 hours per day for 365 days.

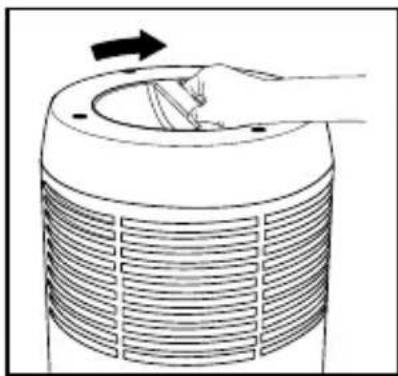

Diagram of a hand pressing down on a cylindrical device with a curved arrow indicating rotation (no text or symbols present)

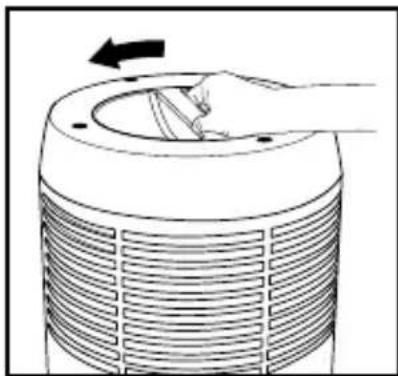

1. Unplug the air purifier. Turn the air purifier upside down and turn the base to the left.

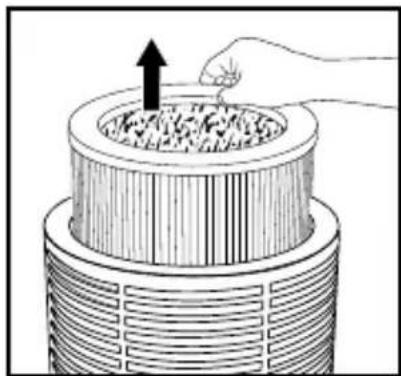

Diagram of a hand pressing down on a cylindrical structure with an upward arrow, showing material inside (no text or symbols)

1. Remove the old filter.

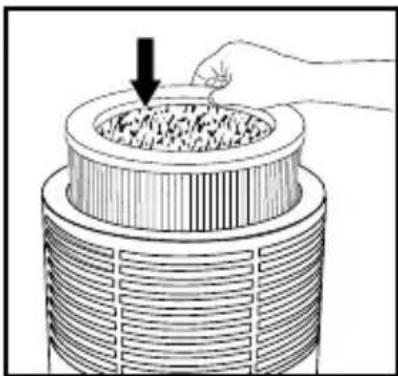

Illustration of a hand pressing down on a cylindrical container filled with granular material, no text or symbols present

1. Insert the new filter into the filter compartment.

Diagram of a hand pressing down on a cylindrical component with ribbed texture (no text or symbols)

1. Reinstall the base by turning to the right until it locks into place.

Hand holding a finger pressing a power button icon (no text or symbols)

1. Plug the power cord into a standard AC outlet. Turn the air purifier on.

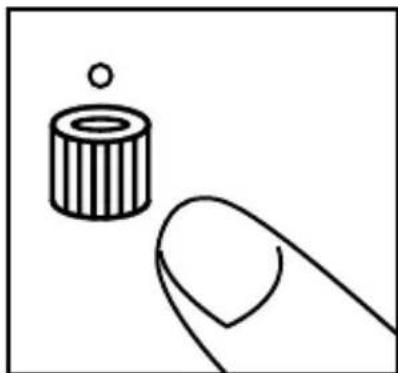

Simple line drawing of a finger pressing a button onto a cylindrical object (no text or symbols)

1. Press and hold the filter reset button until the replace filter light turns off.

HOW TO CLEAN AND CARE

HOW TO CLEAN THE PREFILTER

NOTE: For best performance, vacuum the prefilter once a month under normal usage.

1. Unplug the air purifier.
2. Remove the True HEPA filter as described in the How to change the filter section.

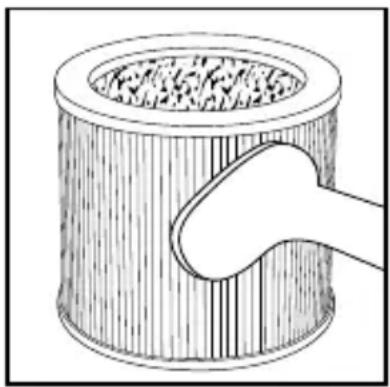

3. Thoroughly vacuum the outside of the True HEPA filter using the brush attachment of your vacuum cleaner.
4. Place the True HEPA filter back into the air purifier and reinstall the base.
5. Plug the power cord into a household electrical outlet.

Diagram of a cylindrical container with a handle inserted, showing internal granular material (no text or symbols)

HOW TO CLEAN THE OIL TRAY

CLEANING THE OIL TRAY

1. Open the oil tray and remove the pad.
2. Rinse the oil tray with water and wipe dry with a soft cloth. DO NOT clean with detergent or liquid cleaners.

NOTE: If continuing to use the same scent, set the oil pad aside for reuse.

DO NOT leave a used pad in the oil tray if the air purifier will be out of use for a long period of time.

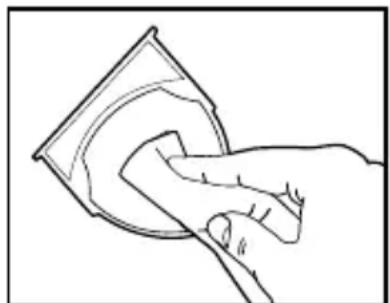

Line drawing of a hand cleaning a circular object with a magnifying glass (no text or symbols)

FOR BEST PERFORMANCE:

• NEVER use water or any household cleaners or detergents to clean the True HEPA filter.
• Clean off the outside of the unit with a soft, dry cloth as needed.
• NEVER use water, wax, polish, or any chemical solution to clean the outside of the air purifier.
• Clean the grille using a damp cloth or the brush attachment of your vacuum as needed.
  • Vacuum the prefilter monthly under normal usage conditions.
• Replace the True HEPA filter every 12 months based on 12 hours per day, 365 days per year.
• Always use a genuine Homedics replacement filter for optimal performance.

SPECIFICATIONS

THREE-IN-ONE TRUE HEPA FILTRATION SYSTEM

- TRUE HEPA FILTRATION

Removes up to 99.97% of airborne particles as small as 0.3 microns, such as allergens, pollen, dust, germs, pet dander, odor, mold spores, and smoke that pass through the filter media.

• ACTIVATED CARBON ODOR FILTRATION

Reduces formaldehyde and toluene in the air as shown by independent laboratory testing. Reduces common household odors such as pet, bathroom, laundry, diaper pail, cooking, and smoke as shown by independent laboratory testing.

- PREFILTER

Captures large particles.

SUGGESTED ROOM SIZE

207 ft ^2 /19.3 m ^2 . Portable air purifiers will be more effective in rooms where all the doors and windows are closed. Suggested room size is based on AHAM AC-1 test results.

AIR CHANGES PER HOUR

This air purifier will purify the air in a 207 ft ^2 /19.3 m ^2 room (assuming an 8 ft/2.43 m ceiling) every 12.5 minutes or up to 1005 ft ^2 /93.3 m ^2 once an hour on the highest speed setting in a closed room based on measured smoke CADR volume flow rate and 8-foot ceilings.

QUIET OPERATION

26-59 dBA

ELECTRICAL RATING

100-240 VAC, 50/60 Hz, 1.5 A

WI-FI ENABLED

Works with Homedics Home app

VOICE CONTROL

Control your smart air purifier using just your voice with Amazon Alexa or Google Assistant-enabled devices.

REPLACEMENT PARTS

To purchase genuine Homedics Replacement parts, go to the retailer where you purchased your Homedics Smart Air Purifier, or visit www.homedics.com (US), www.homedics.ca (CAN).

TRUE HEPA FILTER
Model #: AP-T100FL

AROMA PADS
Model #: UHE-PAD1

AC ADAPTER
Model #: PP-APT100ADPT

This product earned the ENERGY STAR label by meeting strict energy efficiency guidelines set by the U.S. EPA. Room air cleaners have demonstrated the potential for improving air quality and providing health benefits. EPA does not endorse manufacturer claims regarding the degree to which a specific product will produce healthier indoor air. The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model's CADR for Smoke and the electrical energy it consumes, or CADR/Watt.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Unit will not operate • Unit is not plugged in• Power button not pressed• No power to unit		• Plug unit in• Press the power button to turn the power on• Check circuits, fuses, try a different outlet
Reduced airflow • The grille may be blocked• Prefilter needs to be vacuumed• The True HEPA filter needs to be replaced		• Check to make sure nothing is blocking the grille and air outlet• Vacuum the prefilter with the brush attachment of your vacuum cleaner• Replace the True HEPA filter
Reduced odor removal • The True HEPA filter needs to be replaced		• Replace the True HEPA filter
Excessive noise • The unit is not level •	Place the unit on a flat, level surface
Replace filter light remains lit after filter replacement	• The replace filter indicator needs to be reset	• Press and hold the filter reset button until the replace filter light turns off
Control Panel lights are off	• Light ON/OFF selection	• Press the Light ON/OFF button to turn lights on
Smart air purifier is not connecting to the Homedics Home App	• Bluetooth® not turned on.• Wi-Fi name and password not entered	• Make sure your phone has Bluetooth® turned on.• Enter Wi-Fi name and password
Air purifier not pairing with App • Not in pairing mode • Press and hold the Light/Wi-Fi button for 3-seconds to enter pairing mode. You will hear a beep
Air purifier not connecting to Wi-Fi • Wi-Fi network not entered correctly• Password not entered correctly		• Enter Wi-Fi name• Be sure the password is entered correctly
Amazon Alexa or Google Assistant voice control not working	• Not set-up properly • In the Homedics Home app tap “Me” in the lower right-hand corner of the screen. Select Alexa or Google Assistant under Voice Assistants and follow the in-app instructions.

SUPPLIER'S DECLARATION OF CONFORMITY

Product Description: SMART AIR PURIFIER

Model Numbers: AP-T100

Trade Name: Homedics

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. This device contains license-exempt transmitter/receiver that complies with Innovation, Science and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

U.S. Contact Information

Company: Homedics, LLC.

Address: 3000 N. Pontiac Trail, Commerce Township, MI 48390

8:30am-7:00pm EST Monday-Friday 1-800-466-3342

Homedics is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-003(B)/NMB-003(B)

RF Exposure Statement

This equipment complies with FCC and ISED RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Homedics

3-YEAR LIMITED WARRANTY

Homedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of 3 years from the date of original purchase, except as noted below. Homedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your Homedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available.

Homedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate Homedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of Homedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of Homedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state and country to country. Because of individual state and country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit www.Homedics.com. For Canada, please visit www.Homedics.ca.

FOR SERVICE IN THE USA

[e-mail]

8:30AM-7:00PM EST MONDAY-FRIDAY

1-800-466-3342

FOR SERVICE IN CANADA

[e-mail]

8:30AM-5:00PM EST MONDAY-FRIDAY

1-888-225-7378

©2023 Homedics, LLC. All rights reserved. Homedics is a registered trademark of Homedics, LLC.

Amazon, Alexa, and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Google, Google Play and Google Home are trademarks of Google LLC. Google Assistant is not available in certain languages and countries. The App Store is a service mark of Apple Inc. Wi-Fi® is a registered trademark of Wi-Fi Alliance. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use

of such marks by Homedics is under license. Other trademarks and trade names are those of their respective owners.

Distributed by Homedics, LLC, 3000 N Pontiac Trail, Commerce Township, MI 48390

IB-APT100B

Made in China

Homedics™

Simple line drawing of a cylindrical object with a circular inset showing an eye (no text or symbols)

BOUTON D'ALIMENTATION

Pure electrical circuit lines without any symbols

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

H Log In Sign Up

Enter Wi-Fi Information Commerce_Guest Password Next

Name Assistant Name Course Assistant Home Management Maintenance Center FAC & FieldBack id

BALTRY - PUSH NAME

Line drawing of a hand pressing down on a bag with arrows indicating motion (no text or symbols)

Illustration of a hand pouring liquid into a container with droplets (no text or symbols)

OR: 300 - POWER FLOWE

Diagram of a hand pressing down on a cylindrical device with a curved arrow indicating rotation (no text or symbols present)

Diagram of a hand pressing down on a cylindrical object with an upward arrow, no text or symbols present

Illustration of a hand pressing down on a cylindrical container filled with granular material (no text or symbols)

Diagram of a hand pressing down on a cylindrical component with ribbed texture (no text or symbols)

Simple line drawing of a finger pressing a cylindrical component with a dot above it (no text or symbols)

Diagram of a cylindrical container with a handle inserted, showing internal texture and material (no text or symbols)

NETTOYAGE DU PLATEAU À HUILE

Line drawing of a hand cleaning a circular object with a magnified view (no text or symbols)

POUR DE MEILLEURES PERFORMANCES :

Two electronic components: a cylindrical wire and a connected plug (no visible text or symbols)

Adresse : 3000 N. Pontiac Trail, Commerce Township, MI 48390

[e-mail]

DE 8H30 À 19H00, DU LUNDI AU VENDREDI

1-800-466-3342

POUR LE SERVICE AU CANADA

[e-mail]

DE 8H30 À 17H00, DU LUNDI AU VENDREDI

1-888-225-7378

Simple line drawing of a cylindrical object with a circular inset showing a spiral (no text or symbols)

BOTÓN DE ENCENDIDO

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

H Log In Sign Up

Enter Wi-Fi Information Commerce_Guest Password Next

Home Assistends Place Goode Assistant Home Management Encourage Center FAC & Feedback

BALTRY - PUSH MORE

Line drawing of a hand pressing down on a bag with arrows indicating motion (no text or symbols)

Illustration of a hand pouring liquid into a container with a droplet (no text or symbols)

OR DAY - PEAR FLOW

Diagram of a hand pressing down on a cylindrical device with a curved arrow indicating rotation (no text or symbols present)

Illustration of a hand pressing down on a cylindrical structure with an upward arrow, no text or symbols present

Illustration of a hand pressing down on a cylindrical container filled with granular material (no text or symbols)

Diagram of a hand pressing down on a cylindrical component with ribbed texture (no text or symbols)

Simple line drawing of a finger pressing a button with a circular head (no text or symbols)

Diagram of a cylindrical container with a handle inserted, showing internal texture and material (no text or symbols)

LIMPIEZA DE LA BANDEJA DE ACEITE

Line drawing of a hand cleaning a circular object (no text or symbols)

PARA UN MEJOR RENDIMIENTO:
