Table of contents: Page:

1. Introduction ...... 18
2. Layout....18
3. Scope of delivery.... 18
4. Proper use....18
5. Safety instructions.... 19
6. Technical Data 21
7. Unpacking 21
8. Before starting the equipment.... 21
9. Attachment and operation....22
10. Electrical connection....22
11. Cleaning, maintenance, storage and transport....23
12. Disposal and recycling 24
13. Troubleshooting....25
14. Spare part list + drawing....68
15. Declaration of conformity 70

1. Introduction

MANUFACTURER:

Adeo Services

135 rue Sadi Carnot

CS 00001

59790 Ronchin

France

DEAR CUSTOMER,

We hope your new tool brings you much enjoyment and success.

NOTE:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
  • Installation and replacement of non-original spare parts,
  • Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device. The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations. The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country. Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety instructions in these operating instructions and the separate regulations of your country, the generally recognised technical rules relating to the operation of woodworking machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

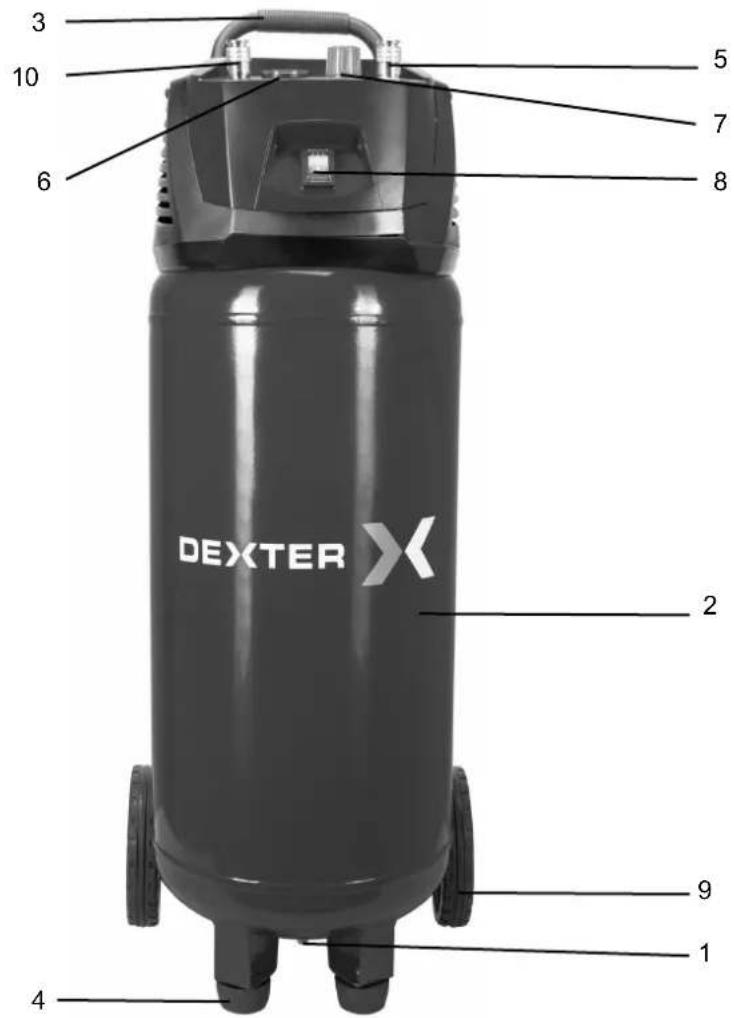

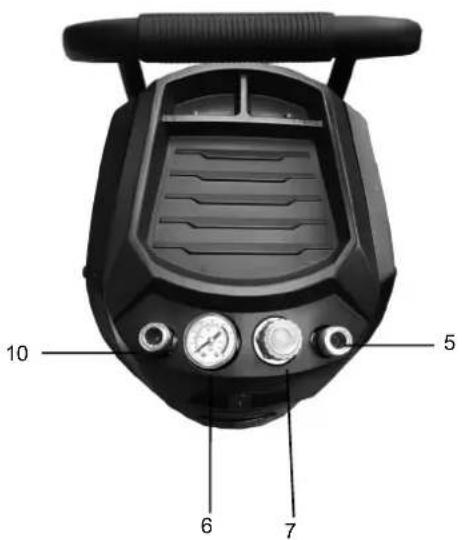

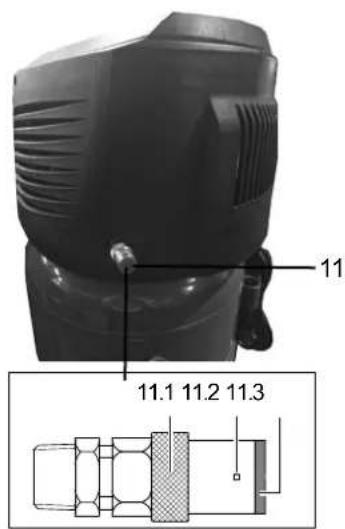

2. Layout (Fig. 1,2)

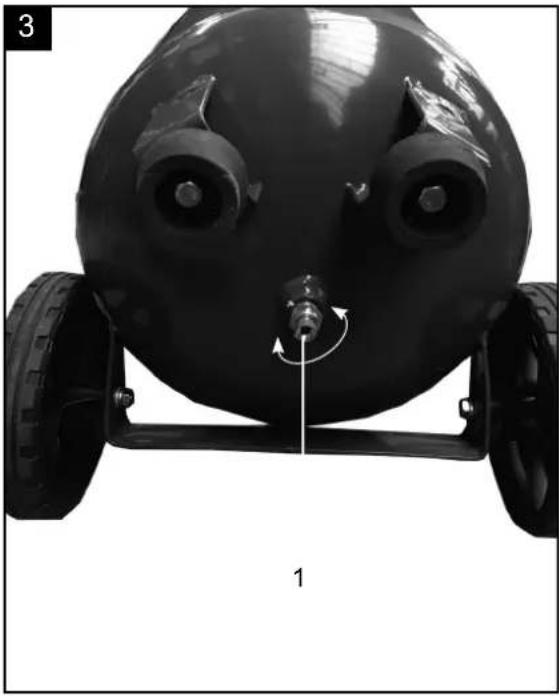

1. Drain plug for condensation water
2. Pressure vessel
3. Transport handle

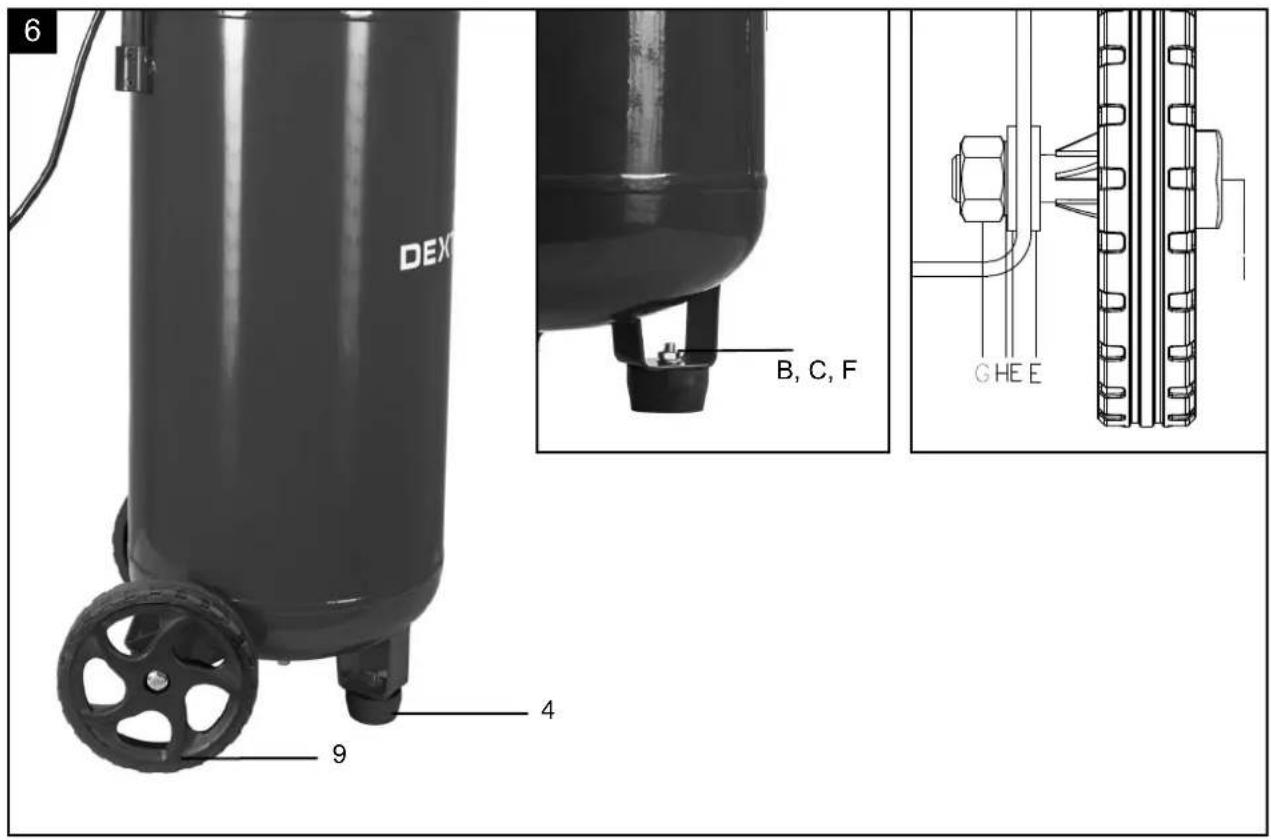

4. Supporting foot
5. Quick-lock coupling (tank pressure)
6. Pressure gauge (for reading the preset vessel pressure)
7. Pressure regulator
8. ON/OFF switch
9. Wheels
10. Quick-lock coupling (regulated compressed air)
11. Safety valve

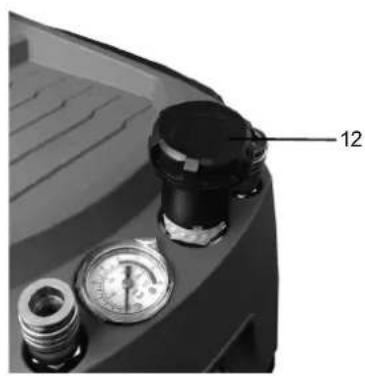

12. Pressure regulator attachment

3. Scope of delivery

A. 4x Threaded pins
B. 2x Hexagonal bolt
C. 4x Washers for feet

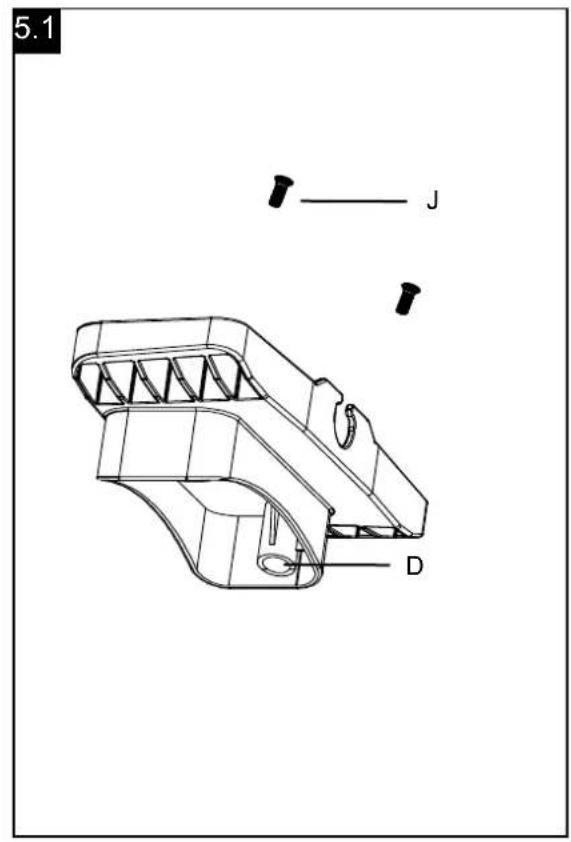

D. 1x Bracket

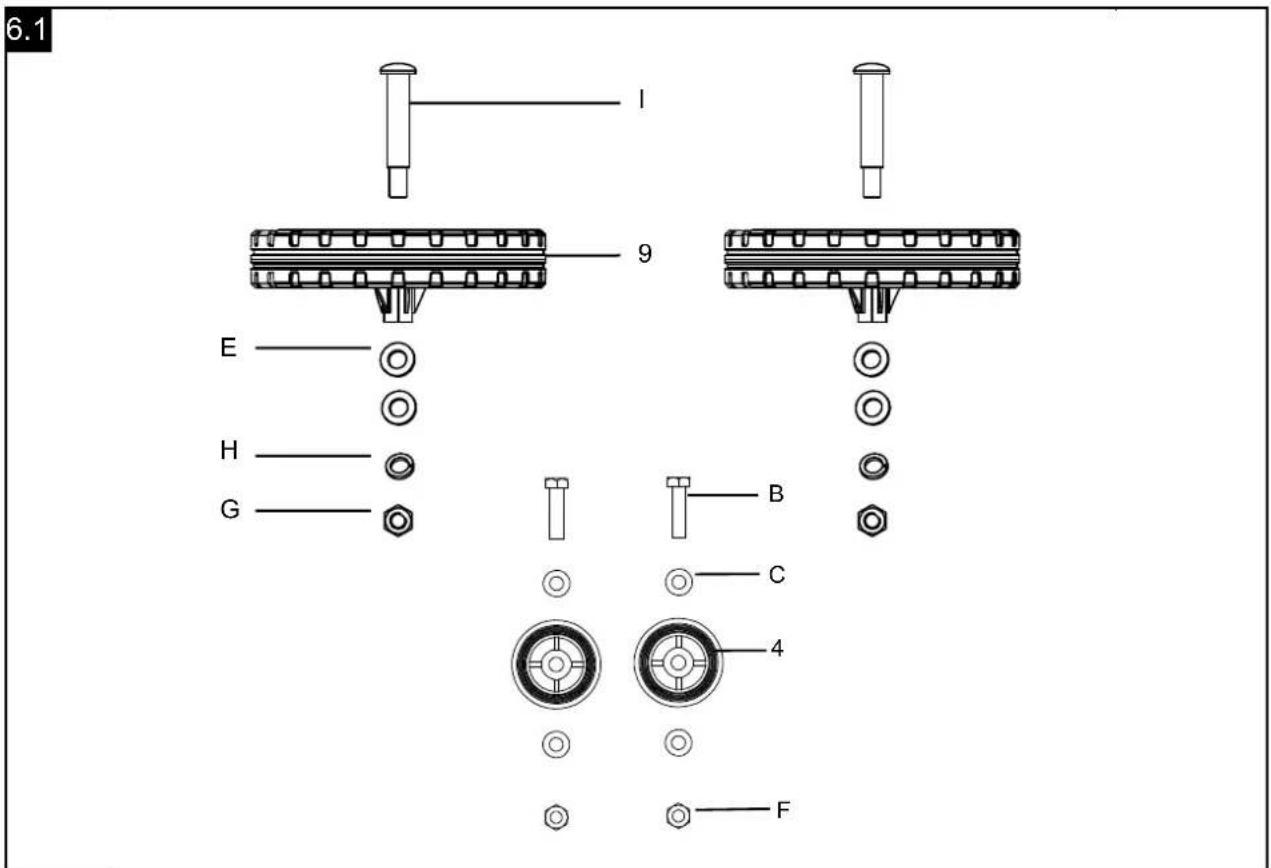

E. 4x Washers for wheels
F. 2x Hexagonal nuts for feet
G. 2x Hexagonal nuts for wheels
H. 2x Spring washer
I. 2x Flange screw
J. 2x Philips screw

4. Proper use

The compressor is designed to generate compressed air for compressed-air driven tools which can be driven with an air volume of up to approx. 120 l/min (e.g. tire inflator, blow-out pistol and paint spray gun). Due to the limited air output it is not possible to use the compressor to drive tools with very high air consumption (for example orbital sanders, rod grinders and hammer screwdrivers).

The compressor may only be operated in a dry and well ventilated indoor space.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this. Please note that our equipment has not been designed for use in commercial, trade or industrial applications.

Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Safety instructions

⚠ Attention! The following basic safety measures must be observed when using electric tools for protection against electric shock, and the risk of injury and fire. Read all these notices before using the electric tool and keep the safety instructions for later reference.

Safe work

1. Keep the work area orderly

– Disorder in the work area can lead to accidents.

1. Take environmental influences into account

2. Do not expose electric tools to rain.

3. Do not use electric tools in a damp or wet environment. There is a risk of electric shock!
4. Make sure that the work area is well-illuminated.

5. Do not use electric tools where there is a risk of fire or explosion.

6. Protect yourself from electric shock

- Avoid physical contact with earthed parts (e.g. pipes, radiators, electric ranges, cooling units).

1. Keep children away

- Do not allow other persons to touch the equipment or cable, keep them away from your work area.

1. Securely store unused electric tools

– Unused electric tools should be stored in a dry, elevated or closed location out of the reach of children.

1. Do not overload your electric tool

– They work better and more safely in the specified output range.

1. Wear suitable clothing

2. Do not wear wide clothing or jewellery, which can become entangled in moving parts.
   – Rubber gloves and non-slip shoes are recommended when working outdoors.
   – Tie long hair back in a hair net.

3. Do not use the cable for purposes for which it is not intended

- Do not use the cable to pull the plug out of the outlet. Protect the cable from heat, oil and sharp edges.

1. Take care of your tools

2. Keep your compressor clean in order to work well and safely.
   – Follow the maintenance instructions.

3. Check the connection cable of the electric tool regularly and have it replaced by a recognised specialist when damaged.

4. Check extension cables regularly and replace them when damaged.

5. Pull the plug out of the outlet

– During non-use of the electric tool or prior to maintenance and when replacing tools such as saw blades, bits, milling heads.

1. Avoid inadvertent starting

- Make sure that the switch is switched off when plugging the plug into an outlet.

12 Use extension cables for outdoors

• Only use approved and appropriately identified extension cables for use outdoors.

• Only use cable reels in the unrolled state.

• Remain attentive

– Pay attention to what you are doing. Remain sensible when working. Do not use the electric tool when you are distracted.

1. Check the electric tool for potential damage

2. Protective devices and other parts must be carefully inspected to ensure that they are fault-free and function as intended prior to continued use of the electric tool.

3. Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions must be fulfilled to ensure fault-free operation of the electric tool.
   – Damaged protective devices and parts must be properly repaired or replaced by a recognised workshop, insofar as nothing different is specified in the operating manual.
   – Damaged switches must be replaced at a customer service workshop.
4. Do not use any faulty or damaged connection cables.

5. Do not use any electric tool on which the switch cannot be switched on and off.

6. Have your electric tool repaired by a qualified electrician

- This electric tool conforms to the applicable safety regulations. Repairs may only be performed by an electrician using original spare parts. Otherwise accidents can occur.

1. Important!

- For your own safety you must only use the accessories and additional units listed in the operating instructions or recommended or specified by the manufacturer. The use of mounted tools or accessories other than those recommended in the operating instructions or catalog may place your personal safety at risk.

1. Noise

- Wear ear muffs when you use the compressor.

1. Replacing the power cable

– To prevent hazards, leave the replacement of damaged power cables strictly to the manufacturer or a qualified electrician.
– There is a risk of electric shock!

1. Inflating tires

– Directly after inflating tires, check the pressure with a suitable pressure gauge, for example at your filling station.

1. Roadworthy compressors for building site operations

- Make sure that all lines and fittings are suitable for the maximum permissible operating pressure of the compressor.

1. Place of installation
2. Set up the compressor on an even surface.
3. Supply hoses at pressures above 7 bar should be equipped with a safety cable (e.g. a wire rope).
4. Avoid over-stressing the piping system by using flexible hose connections to prevent kinking.
5. Use a residual current circuit breaker with a trigger current of 30 mA or less. Using a residual current circuit breaker reduces the risk of an electric shock.

⚠ Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool.

ADDITIONAL SAFETY INSTRUCTIONS

Observe the corresponding operating manuals of the respective compressed air tools / compressed air attachments! The following general warnings must also be observed.

Safety instructions for working with compressed air and blasting guns

• Ensure there is sufficient distance to the product, at least 2.50 m, and keep the compressed air tools / compressed air attachments away from the compressor during operation.
• The compressor pump and lines can become very hot during operation. Touching these parts will burn you.
• The air which is sucked in by the compressor must be kept free of impurities that could cause fires or explosions in the compressor pump.
• When releasing the hose coupling, hold the hose coupling piece with your hand. This way, you can protect yourself against injury from the rebounding hose.
• Wear safety goggles when working with the blow-out pistol. Foreign bodies or blown off parts can easily cause injuries.
• Wear safety goggles and a respirator when working with the compressed air pistol. Dusts are harmful to health! Injuries can be easily caused by foreign objects and blown away parts.
• Do not blow at people with the blow-out pistol and do not clean clothes while being worn. Risk of injury!

Safety instructions when using spraying attachments (e.g. paint sprayers\*)

• Keep the spray attachment away from the compressor when filling so that no liquid comes into contact with the compressor.
• Never spray in the direction of the compressor when using the spraying attachments (e.g. paint sprayers). Moisture can lead to electrical hazards!
• Do not process any paints or solvents with a flash point below 55 °C. Risk of explosion!
• Do not heat up paints or solvents. Risk of explosion!
• If hazardous liquids are processed, wear protective filter units (face guards). Also, adhere to the safety information provided by the manufacturers of such liquids.
• The details and designations of the Ordinance on Hazardous Substances, which are displayed on the outer packaging of the processed material, must be observed. Additional protective measures are to be undertaken if necessary, particularly the wearing of suitable clothing and masks.
• Do not smoke during the spraying process and/or in the work area. Risk of explosion! Paint vapours are easily combustible.
• Never set up or operate the equipment in the vicinity of a fire place, open lights or sparking machines.
• Do not store or eat food and drink in the work area. Paint vapours are harmful to your health.
• The work area must exceed 30 m ^3 and sufficient ventilation must be ensured during spraying and drying.
• Do not spray against the wind. Always adhere to the regulations of the local police authority when spraying combustible or hazardous materials.
• Do not process media such as white spirit, butyl alcohol and methylene chloride with the PVC pressure hose. These media will destroy the pressure hose.
• The work area must be separated from the compressor so that it cannot come into direct contact with the working medium.

* Optional item

Operating pressure vessels

• You must keep your pressure vessel in good working order, operate the vessel correctly, monitor the vessel, carry out necessary maintenance and repair work immediately and meet the relevant safety precautions.
• The supervisory authority may enforce essential control measures in individual cases.
• A pressure vessel is not allowed to be used if it has faults or deficiencies that can endanger workers or third parties.

- Check the pressure vessel for signs of rust and damage each time before using. Do not use the compressor with a damaged or rusty pressure vessel. If you discover any damage, then please contact the customer service workshop.

Do not lose these safety instructions.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "Safety information" and the "Proper use" together with the operating manual as a whole are observed.
• Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool that is recommended in this operating manual. This is how to ensure that your machine provides optimum performance.
• Keep your hands away from the work area, when the machine is in operation.

6. Technical Data

Mains connection 230 V \~ 50Hz

Motor rating W 1500
Operating mode S3 25%
Compressor speed 3300 min	-1
Pressure vessel capacity (in liters) 50
Operating pressure	approx. 10 bar
Theoretical intake capacity (l/min) approx. 170
Output power l/min approx. 120
Sound power level L_WA	95 dB(A)
Sound pressure level L_pA	73,3 dB (A)
Uncertainty K_WA	1,93 dB
Protection type IP30
Weight of the unit in kg	22,5
Max. altitude (above mean sea level)	1010 m
Minimum temperature in operating mode	+ 5°C
Maximum temperature in operating mode	+ 40°C
Type, serial number	ZBW50-0.0810-50LV-A
Maximum horizontal inclination allowed	< 5°

The noise emission values were measured in accordance with EN ISO 3744.

Wear hearing protection.

The effects of noise can cause a loss of hearing.

7. Unpacking

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the pack aging and transport bracing (if available).
  • Check that the delivery is complete.
• Check the device and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

ATTENTION

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

8. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

• Check the equipment for damage which may have occurred in transit. Report any damage immediately to the transport company which was used to deliver the compressor.
• Install the compressor near the point of consumption.
• Avoid long air lines and supply lines (extension cables).
• Make sure that the intake air is dry and dustfree.
• Do not install the compressor in a damp or wet room.
• The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5 °C to 40 °C). There must be no dust, acids, vapors, explosive gases or inflammable gases in the room.
• The compressor is designed to be used in dry rooms. It is prohibited to use the compressor in areas where work is conducted with sprayed water.
• The compressor may only be used outdoor briefly when the ambient conditions are dry.
• The compressor must always be kept dry and must not be left outdoors after work is complete.

9. Attachment and operation

⚠️ Important!

You must fully assemble the appliance before using it for the first time!

You require the following for assembly:

1x Allen key, 4 mm, Phillips screwdriver, open-end wrench (not included in the scope of delivery)

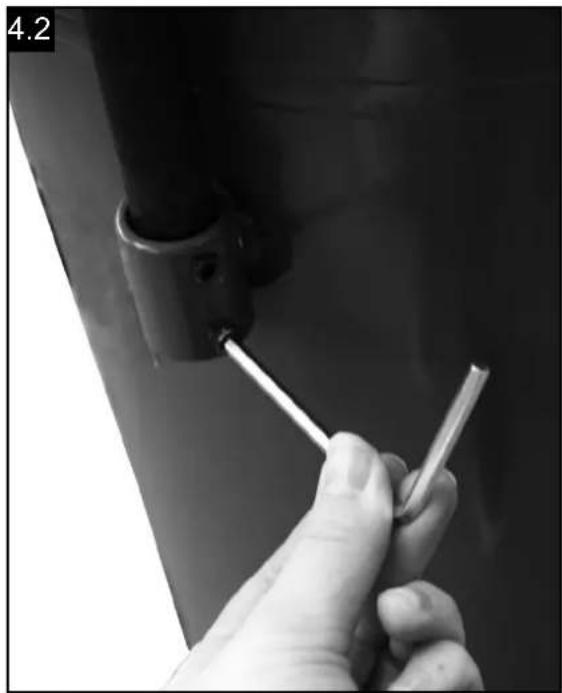

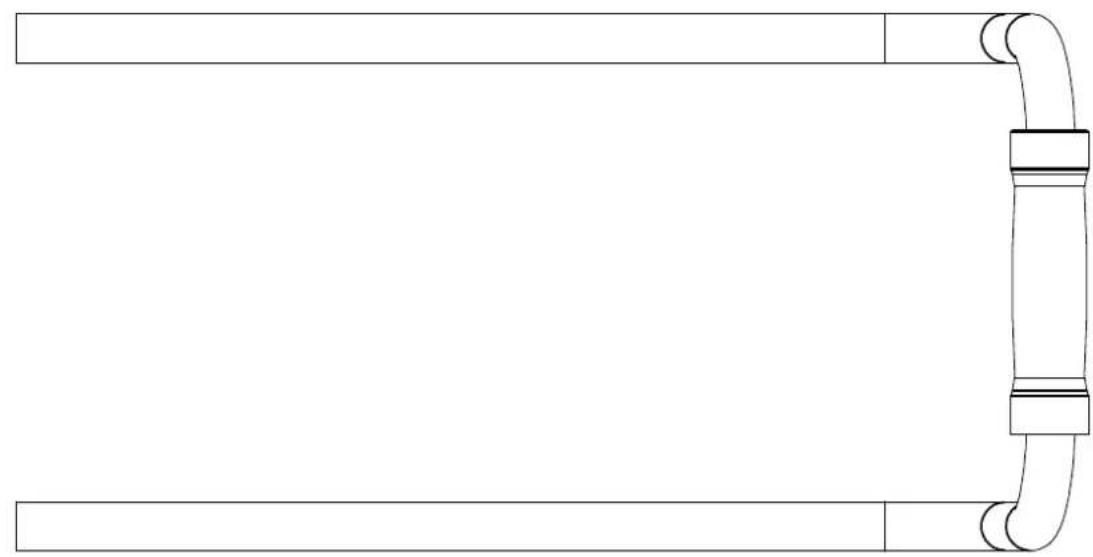

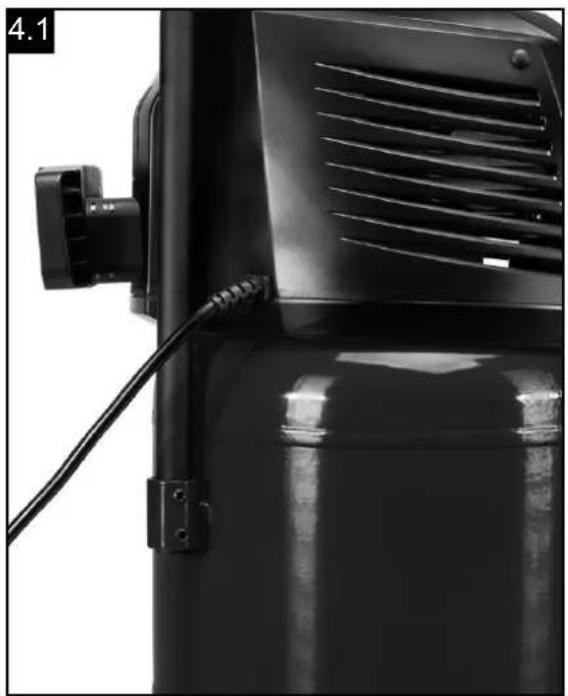

9.1 Fitting the transport handle (Fig. 4 / 4.1 / 4.2)

- Insert the transport handle (3) in the brackets on the pressure vessel (2) and secure it with the help of the 4 threaded pins (A). Tighten the threaded pins (A) with an Allen key (4 mm).

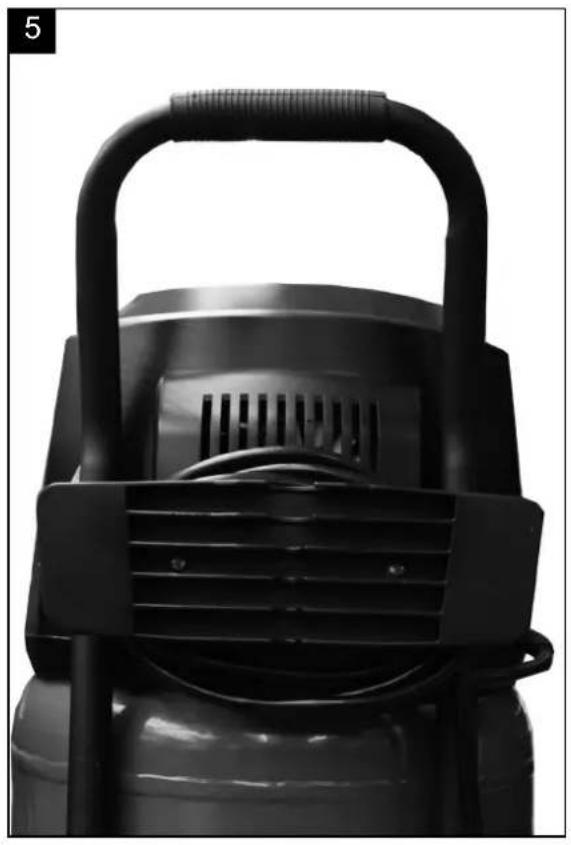

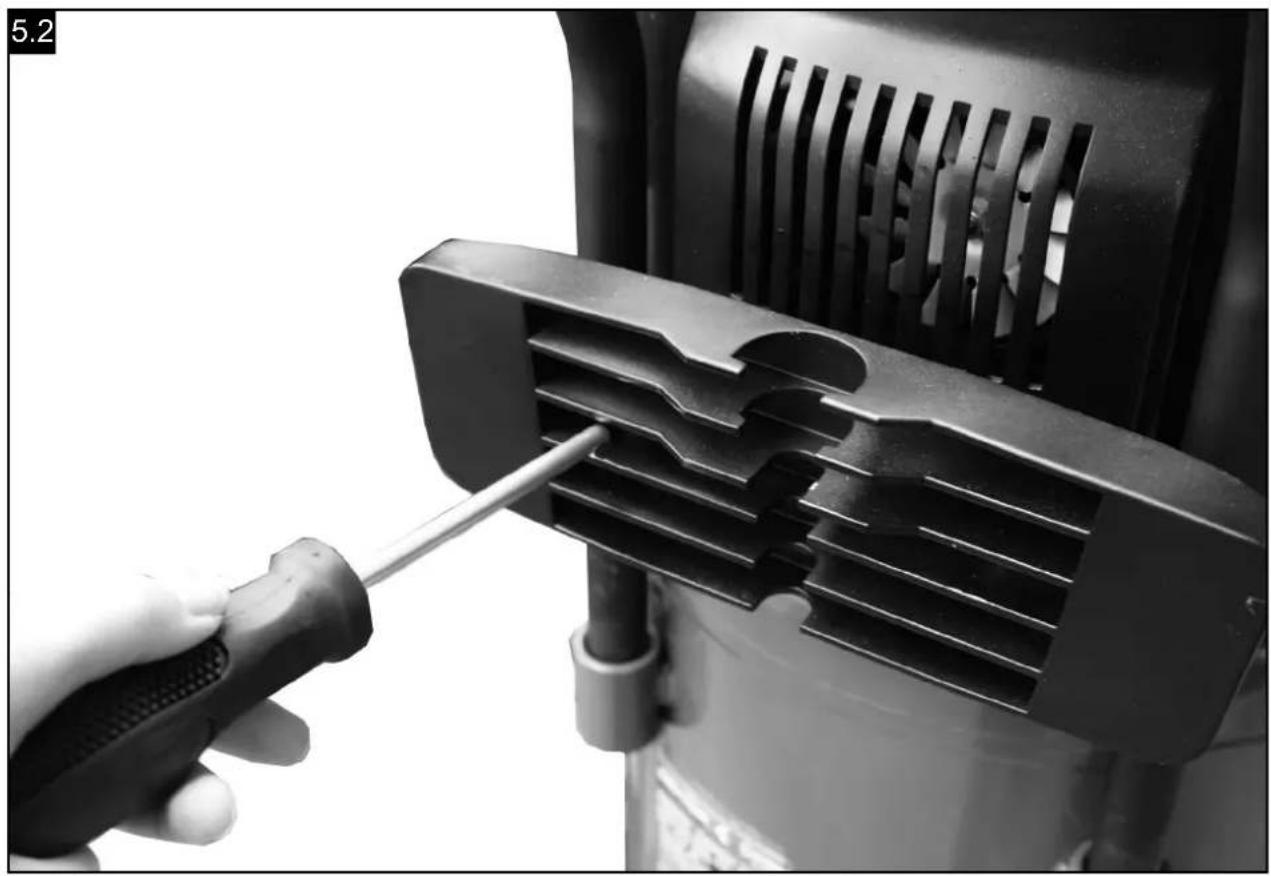

9.2 Fitting the bracket (Fig. 5 / 5.1 / 5.2)

- Screw the bracket (D) with Philips screws (J) into the threaded holes as shown in Fig. 5, 5.1 and 5.2. Use a Phillips screwdriver for this.

9.3 Fitting the feet (Fig. 6 / 6.1)

- Fit the enclosed feet (4) with the hexagonal bolts (B), washers (C) and hexagonal nuts (F) as shown in Fig. 6 and 6.1.

9.4 Fitting the wheels (Fig. 6 / 6.1)

Fit the enclosed wheels (9) with the flange screws (I), washers (E), spring washers (H) and hexagonal nuts (G), as shown in Fig. 6 and 6.1. Tighten the nuts using an open-end wrench.

9.5 Mains connection

• The compressor is equipped with a mains cable with shock-proof plug. This can be connected to any 230V \~ 50 Hz shock-proof socket which is protected by a 16 A fuse.
• Before you use the machine, make sure that the mains voltage is the same as the operating voltage (see the rating plate).
• Long supply cables, extensions, cable reels etc. cause a drop in voltage and can impede motor start-up.
• At low temperatures below +5 °C, sluggishness may make starting difficult or impossible.

9.6 ON/OFF switch (fig. 1)

• To switch on the compressor, press the button (8) on position I.
• To switch off the compressor, press the button (8) on position 0.

9.7 Setting the pressure (fig. 2)

• The tank pressure is taken from the quick lock coupling (5).
• You can adjust the pressure on the pressure gauge (6) using the pressure regulator (7). For this purpose place the corresponding attachment (9) on the pressure regulator.
• The set pressure can be taken from the quick lock coupling (10).

9.8 Setting the pressure switch

- The pressure switch is set at the factory. Cut-in pressure approx. 8 bar. Cut-out pressure approx. 10 bar.

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

When working with spray attachments and during temporary use outdoors, the device must be connected to a residual current circuit breaker with a trigger current of 30 mA or less.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  • Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection. Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the marking „H05VV-F“.

The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 230 V\~
• Extension cables up to 25 m long must have a cross-section of 1.5 ~mm^2 .

Connection type X

If the mains connection cable of this device is damaged, it must be replaced with a special connection lead available from the manufacturer or its after-sales service.

Connections and repairs of electrical equipment may only be carried out by an electrician.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
• Machine data - type plate

11. Cleaning, maintenance, storage and transport

⚠️ Important!

Pull out the power plug before doing any cleaning and maintenance work on the equipment. Risk of injury from electric shock!

⚠️ Important!

Wait until the equipment has cooled down completely! Risk of burns!

⚠️ Important!

Always depressurize the equipment before carrying out any cleaning and maintenance work! Risk of injury!

11.1 Cleaning

• Keep the equipment free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it down with compressed air at low pressure.
• We recommend that you clean the equipment immediately after you use it.
• Clean the equipment regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the equipment. Ensure that no water can get into the interior of the equipment.
• You must disconnect the hose and any spraying tools from the compressor before cleaning. Do not clean the compressor with water, solvents or the like.

11.2 Maintenance work on the pressure vessel (fig. 1, 3)

⚠️ Important! To ensure a long service life of the pressure vessel (2), drain off the condensed water by opening the drain valve (1) each time after using. Release the vessel pressure first (see 11.3.1).

Open the drain screw by turning counter-clockwise (looking at the screw from the bottom of the compressor) so that all the condensed water can run out of the pressure vessel.

Then close the drain screw again (turn it clockwise). Check the pressure vessel for signs of rust and damage each time before using.

Do not use the compressor with a damaged or rusty pressure vessel. If you discover any damage, then please contact the customer service workshop.

11.3 Storage

Store the device and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C.

Keep the electric tool in its original packaging.

Cover the electric tool to protect it from dust or moisture. Store the operating manual with the electric tool.

⚠️ Important!

Pull out the mains plug and ventilate the equipment and all connected pneumatic tools. Switch off the compressor and make sure that it is secured in such a way that it cannot be started up again by any unauthorized person.

⚠️ Important!

Store the compressor only in a dry location which is not accessible to unauthorized persons. Always store upright, never tilted!

11.3.1 Releasing excess pressure

Release the excess pressure by switching off the compressor and using the compressed air which is still left in the pressure vessel, e.g. with a compressed air tool running in idle mode or with a blow-out pistol.

11.3.2 Safety valve (Fig. 1)

The safety valve (11) has been set for the highest permitted pressure of the pressure vessel. It is not permitted to adjust the safety valve or remove the connection lock (11.2) between the exhaust nut (11.1) and its cap (11.3).

Actuate the safety valve every 30 operating hours but at least 3 times a year, to ensure that it works when required. Turn the perforated exhaust nut (11.1) counterclockwise to open it and use your hands to pull the valve rod outwards over the perforated exhaust nut (11.1) to open the safety valve outlet. Now, the valve audibly releases air. Then, tighten the exhaust nut clockwise again.

11.4 Carbon brushes

In case of excessive sparking, have the carbon brushes checked only by a qualified electrician. Important! The carbon brushes should not be replaced by anyone but a qualified electrician.

11.5 Transport (fig. 1)

The compressor can be transported by tilting to the wheels.

11.6 Ordering replacement parts

Please quote the following data when ordering replacement parts:

• Type of machine
  • Article number of the machine

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Belt, clutch

* Not necessarily included in the scope of delivery!

12. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Old batteries or rechargeable batteries that are not permanently installed in the old unit must be removed before handing them in! Their disposal is regulated by the battery act.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their personal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

- Public disposal or collection points (e.g. municipal works yards)

- Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

- Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.
• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

GUARANTEE:

Thank you for investing in a ADEO power tool. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 24 months from the date of purchase.

This guarantee does not affect your statutory rights. In case of any malfunction of your tool (failure, missing part, etc.), please contact service.

ADEO's Service address:

135 RUE SADI CARNOT CS00001,

59790 RONCHIN,

FRANCE

Normal wear and tear, including accessory wear, is not covered under guarantee. The product is guaranteed for 24 months if used for normal domestic use. Any guarantee is invalid if the product has been overloaded or subject to neglect, improper use or an attempted repair other than by an authorized agent. Heavy-duty, daily professional or hire usage are not guaranteed. Due to continuous product improvement, we reserve the right to change the product specification without prior notice.

13. Troubleshooting

Fault Possible cause Remedy
The compressor does not start.	No supply voltage.Insufficient supply voltage.Outside temperature is too low.Motor is overheated.	Check the supply voltage, the power plug and the socket-outlet.Make sure that the extension cable is not too long. Use an extension cable with large enough wires.Never operate with an outside temperature of below +5°C.Allow the motor to cool down. If necessary, remedy the cause of the overheating.
The compressor starts but there is no pressure.	The non-return valve leaks.The seals are damaged.The drain plug for condensation water (1) leaks.	Have a service center replace the non-return valve.Check the seals and have any damaged seals replaced by a service center.Tighten the screw by hand. Check the seal on the screw and replace if necessary.
The compressor starts, pressure is shown on the pressure gauge, but the tools do not start.	The hose connections have a leak.A quick-lock coupling has a leak.Insufficient pressure set on the pressure regulator (7).	Check the compressed air hose and tools and replace if necessary.Check the quick-lock coupling and replace if necessary.Increase the set pressure with the pressure regulator.

11.5 Transport (fig. 1)

Exploded view diagram of a mechanical device with numbered parts for identification

No.	Designation Désignation Designazione Qty.
2 The trim cover Couvercle capot moteur		Copertura di bordura 1
3	Cover medium cover	Capot moteur	Copertura intermedia	1
4 Fixed power cord Support pour cordon		d'alimentation	Statore 1
6	Elbow	Raccord coudé	Gomito meccanico	1
14	Belt	Courroie	Cinghia	1
23	High pressure pipe	Conduite haute pression	Tubo per alta pressione	1
24	Pressure relay	Pressostat	Relè di pressione	1
2728	Handle	Poignée	Impugnatura	1
294376	Fittings	Raccords	Raccordi	1
31323435	Wheel axle	Axe de roue	Asse della ruota	1
33	Wheel	Roue	Ruota	2
39	Silentbloc	Silentbloc	Silentbloc	2
373840	Silentbloc fasteners	Visserie silentbloc	Viti e bulloni Silentbloc	1
44	Check valve	Clapet anti-retour	Valvola di ritegno	1
45	capacitance	Condensateur	Capacità elettrica	1
64	Air filter	Filtre à air	Filtro dell'aria	1
67	Pressure gauge	Manomètre	Tavola	1
68	Pressure switch	Vanne de régulation de la pression	Valvola di regolazione della pressione	1
70	switch	Interrupteur	Interruttore	1

EU/EC Declaration of conformity Déclaration UE/CE de conformité

Name and address of the manufacturer or his authorised representative|Nom et adresse du fabricant ou de son mandataire|

ADEO Services, 135 Rue Sadi Carnot - CS 00001 59790 RONCHIN - France

EU/EC Declaration of conformity DICHIARAZIONE DI CONFORMITÀ CE / UE

French Platform Quality Leader

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us

we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded. The saw blade is a consumable item and explicitly excluded from any warranty.

Garantie FR
